Parts for G0453ZW 15" Planer with Spiral Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

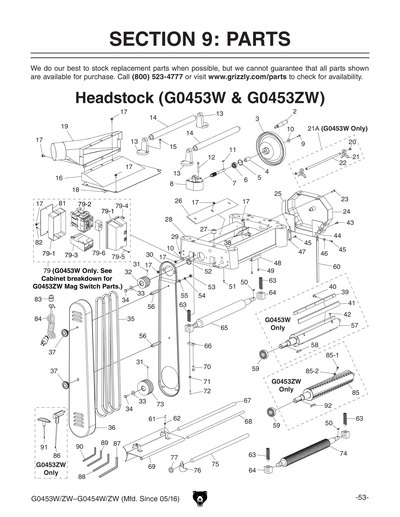

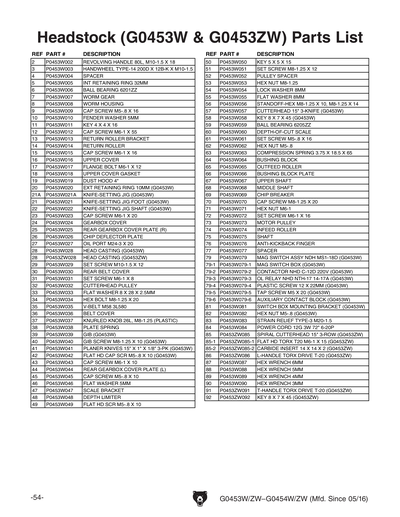

2
*DISCD*REVLVING HANDLE 80L, M10-1.5 X 18
Price
N/A
3
*DISCD*HDWHEL TYPE-14 200DX12B-KXM10-1.5
Price
N/A
4
*DISCD*SPACER
Price
N/A
5
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
6
BALL BEARING 6201ZZ
Price
N/A
7
*DISCD*WORM GEAR
Price
N/A
8
*DISCD*WORM HOUSING
Price
N/A
9
CAP SCREW M5-.8 X 16
Price
N/A
10
FENDER WASHER 5MM
Price
N/A
11
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
12
CAP SCREW M6-1 X 55
Price
N/A
13
*DISCD*RETURN ROLLER BRACKET
Price
N/A
14
*DISCD*RETURN ROLLER
Price
N/A
15
CAP SCREW M6-1 X 16
Price
N/A
16
*DISCD*UPPER COVER
Price
N/A
17
FLANGE BOLT M6-1 X 12
Price
N/A
18
*DISCD*UPPER COVER GASKET
Price
N/A
19
*DISCD*DUST HOOD 4"
Price
N/A
23
CAP SCREW M6-1 X 20
Price
N/A
24
*DISCD*GEARBOX COVER
Price
N/A
25
*DISCD*REAR GEARBOX COVER PLATE (R)
Price
N/A
26
*DISCD*CHIP DEFLECTOR PLATE
Price
N/A
27
*DISCD*OIL PORT M24-3 X 20
Price
N/A
28
*DISCD*HEAD CASTING
Item is no longer available
Price
N/A
29
SET SCREW M10-1.5 X 12
Price
N/A
30
*DISCD*REAR BELT COVER
Price
N/A
31
SET SCREW M6-1 X 8
Price
N/A
32
*DISCD*CUTTERHEAD PULLEY
Price
N/A
33
*DISCD*FLAT WASHER 8 X 28 X 2.5MM
Price
N/A
34
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
35
Now: PVM58
V-BELT M58 3L580
Price
N/A
36
*DISCD*BELT COVER
Price
N/A
37
*DISCD*KNURLED KNOB 26L, M8-1.25 (PLSTC)
Price
N/A
38
*DISCD*PLATE SPRING
Price
N/A
43
CAP SCREW M6-1 X 10
Price
N/A
44
*DISCD*REAR GEARBOX COVER PLATE (L)
Price
N/A
45
CAP SCREW M5-.8 X 10
Price
N/A
46
Now: PW02M
FLAT WASHER 5MM
Price
N/A
47
*DISCD*SCALE BRACKET
Price
N/A
48
*DISCD*DEPTH LIMITER
Price
N/A
49
FLAT HD SCR M5-.8 X 10
Price
N/A
50
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
51
SET SCREW M8-1.25 X 12
Price
N/A
52
*DISCD*PULLEY SPACER
Price
N/A
53
Now: PN03M
HEX NUT M8-1.25
Price
N/A
54
LOCK WASHER 8MM
Price
N/A
55
Now: PW01M
FLAT WASHER 8MM
Price
N/A
56
*DISCD*SDOFF-HEX M8-1.25X10, M8-1.25 X14
Price
N/A
59
BALL BEARING 6205ZZ
Price
N/A
60
*DISCD*DEPTH-OF-CUT SCALE
Price
N/A
61
SET SCREW M5-.8 X 16
Price
N/A
62
Now: PN06M
HEX NUT M5-.8
Price
N/A
63
*DISCD*COMPRESSION SPRING 3.75X18.5 X 65
Price
N/A
64
*DISCD*BUSHING BLOCK
Price
N/A
65
*DISCD*OUTFEED ROLLER
Price
N/A
66
*DISCD*BUSHING BLOCK PLATE
Price
N/A
67
*DISCD*UPPER SHAFT
Price
N/A
68
*DISCD*MIDDLE SHAFT
Price
N/A
69
*DISCD*CHIP BREAKER
Price
N/A
70
CAP SCREW M8-1.25 X 20
Price
N/A
71
Now: PN01M
HEX NUT M6-1
Price
N/A
72
SET SCREW M6-1 X 16
Price
N/A
73
*DISCD*MOTOR PULLEY
Price
N/A
74
*DISCD*INFEED ROLLER
Price
N/A
75
*DISCD*SHAFT
Price
N/A
76
*DISCD*ANTI-KICKBACK FINGER
Price
N/A
77
*DISCD*SPACER
Price
N/A
83
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
84
*DISCD*POWER CORD 12G 3W 72" 6-20P
Price
N/A
85
*DISCD*SPIRAL CUTTERHEAD 15" 4-ROW
85-1
*DISCD*FLAT HD TORX T20 M6-1 X 12
Item is no longer available
Price
N/A
85-2
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
86
*DISCD*L-HANDLE TORX DRIVE T-20
87
HEX WRENCH 6MM
Price
N/A
88
HEX WRENCH 5MM
Price
N/A
89
HEX WRENCH 4MM
Price
N/A
90
HEX WRENCH 3MM
Price
N/A
91
T-HANDLE TORX DRIVE T-20
Price
N/A
92
Now: PK43M
KEY 8 X 8 X 45
Price
N/A

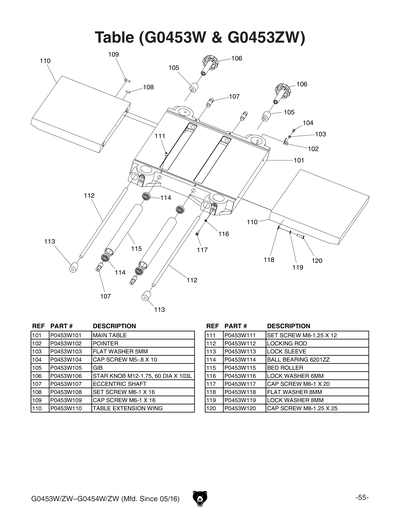

101
*DISCD*MAIN TABLE
Price
N/A
102
*DISCD*POINTER
Price
N/A
103
Now: PW02M
FLAT WASHER 5MM
Price
N/A
104
CAP SCREW M5-.8 X 10
Price
N/A
105
*DISCD*GIB
Price
N/A
106
*DISCD*STAR KNOB M12-1.75, 60 DIA X 103L
Price
N/A
107
*DISCD*ECCENTRIC SHAFT
Price
N/A
108
SET SCREW M6-1 X 16
Price
N/A
109
CAP SCREW M6-1 X 16
Price
N/A
110
*DISCD*TABLE EXTENSION WING
Price
N/A
111
SET SCREW M8-1.25 X 12
Price
N/A
112
*DISCD*LOCKING ROD
Price
N/A
113
*DISCD*LOCK SLEEVE
Price
N/A
114
BALL BEARING 6201ZZ
Price
N/A
115
*DISCD*BED ROLLER
Price
N/A
116
LOCK WASHER 6MM
Price
N/A
117
CAP SCREW M6-1 X 20
Price
N/A
118
Now: PW01M
FLAT WASHER 8MM
Price
N/A
119
LOCK WASHER 8MM
Price
N/A
120
CAP SCREW M8-1.25 X 25
Price
N/A

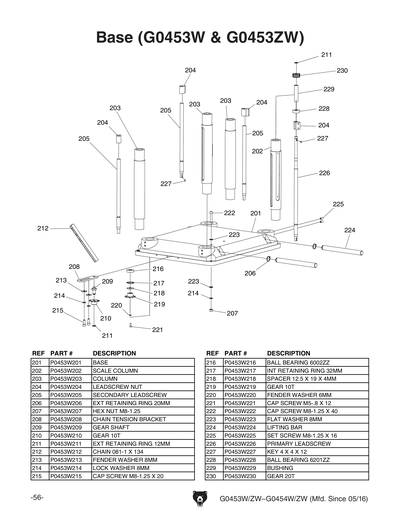

201
*DISCD*BASE
Price
N/A
202
*DISCD*SCALE COLUMN
Price
N/A
203
*DISCD*COLUMN
Price
N/A
204
*DISCD*LEADSCREW NUT
Price
N/A
205
*DISCD*SECONDARY LEADSCREW
Price
N/A
206
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
207
Now: PN03M
HEX NUT M8-1.25
Price
N/A
208
*DISCD*CHAIN TENSION BRACKET
Price
N/A
209
*DISCD*GEAR SHAFT
Price
N/A
210
*DISCD*GEAR 10T
Price
N/A
211
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
212
*DISCD*CHAIN 081-1 X 134
Price
N/A
213
FENDER WASHER 8MM
Price
N/A
214
LOCK WASHER 8MM
Price
N/A
215
CAP SCREW M8-1.25 X 20
Price
N/A
216
BALL BEARING 6002ZZ
Price
N/A
217
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
218
*DISCD*SPACER 12.5 X 19 X 4MM
Price
N/A
219
*DISCD*GEAR 10T
Price
N/A
220
FENDER WASHER 6MM
Price
N/A
221
CAP SCREW M5-.8 X 12
Price
N/A
222
CAP SCREW M8-1.25 X 40
Price
N/A
223
Now: PW01M
FLAT WASHER 8MM
Price
N/A
224
*DISCD*LIFTING BAR
Price
N/A
225
SET SCREW M8-1.25 X 16
Price
N/A
226
*DISCD*PRIMARY LEADSCREW
Price
N/A
227
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
228
BALL BEARING 6201ZZ
Price
N/A
229
*DISCD*BUSHING
Price
N/A
230
*DISCD*GEAR 20T
Price
N/A
300
*DISCD*COMPLETE GEAR BOX ASSY
Price
N/A

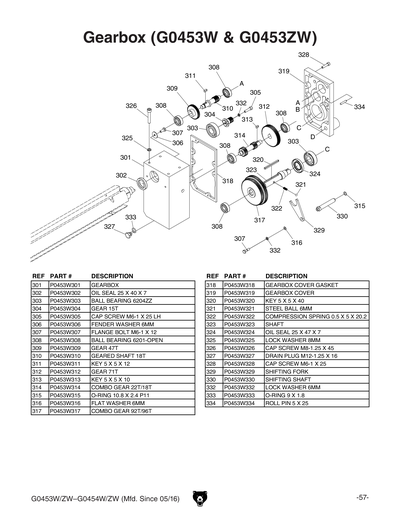

301
*DISCD*GEARBOX
Price
N/A
302
*DISCD*OIL SEAL 25 X 40 X 7
Price
N/A
303
BALL BEARING 6204ZZ
Price
N/A
304
*DISCD*GEAR 15T
Price
N/A
305
*DISCD*CAP SCREW M6-1 X 25 LH
Price
N/A
306
FENDER WASHER 6MM
Price
N/A
307
FLANGE BOLT M6-1 X 12
Price
N/A
308
BALL BEARING 6201-OPEN
Price
N/A
309
*DISCD*GEAR 47T
Price
N/A
310
*DISCD*GEARED SHAFT 18T
Price
N/A
311
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
312
*DISCD*GEAR 71T
Price
N/A
313
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
314
*DISCD*COMBO GEAR 22T/18T
Price
N/A
315
*DISCD*O-RING 11.8 X 2.65
Price
N/A
316
Now: PW03M
FLAT WASHER 6MM
Price
N/A
317
*DISCD*COMBO GEAR 92T/96T
Price
N/A
318
*DISCD*GEARBOX COVER GASKET
Price
N/A
319
*DISCD*GEARBOX COVER
Price
N/A
320
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
321
STEEL BALL 6MM
Price
N/A
322
*DISCD*COMPRESSION SPRING 0.5 X 5 X 20.2
Price
N/A
323
*DISCD*SHAFT
Price
N/A
324
*DISCD*OIL SEAL 25 X 47 X 7
Price
N/A
325
LOCK WASHER 8MM
Price
N/A
326
CAP SCREW M8-1.25 X 45
Price
N/A
327
*DISCD*DRAIN PLUG M12-1.25 X 16
Price
N/A
328
CAP SCREW M6-1 X 25
Price
N/A
329
*DISCD*SHIFTING FORK
Price
N/A
330
*DISCD*SHIFTING SHAFT
Price
N/A
332
LOCK WASHER 6MM
Price
N/A
333
*DISCD*O-RING 9 X 1.8
Price
N/A
334
ROLL PIN 5 X 25
Price
N/A

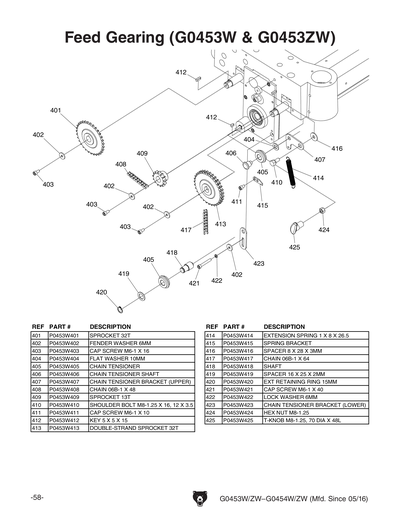

401
*DISCD*SPROCKET 32T
Price
N/A
402
FENDER WASHER 6MM
Price
N/A
403
CAP SCREW M6-1 X 16
Price
N/A
404
Now: PW04M
FLAT WASHER 10MM
Price
N/A
405
*DISCD*CHAIN TENSIONER
Price
N/A
406
*DISCD*CHAIN TENSIONER SHAFT
Price
N/A
407
*DISCD*CHAIN TENSIONER BRACKET (UPPER)
Price
N/A
408
*DISCD*CHAIN 06B-1 X 48
Price
N/A
409
*DISCD*SPROCKET 13T
Price
N/A
410
*DISCD*SHOULDER BOLT M8-1.25 X 16, 12 X
Price
N/A
411
CAP SCREW M6-1 X 10
Price
N/A
412
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
413
*DISCD*DOUBLE-STRAND SPROCKET 32T
Price
N/A
414
*DISCD*EXTENSION SPRING 1 X 8 X 26.5
Price
N/A
415
*DISCD*SPRING BRACKET
Price
N/A
416
*DISCD*SPACER 8 X 28 X 3MM
Price
N/A
417
*DISCD*CHAIN 06B-1 X 64
Price
N/A
418
*DISCD*SHAFT
Price
N/A
419
*DISCD*SPACER 16 X 25 X 2MM
Price
N/A
420
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
421
CAP SCREW M6-1 X 40
Price
N/A
422
LOCK WASHER 6MM
Price
N/A
423
*DISCD*CHAIN TENSIONER BRACKET (LOWER)
Price
N/A
424
Now: PN03M
HEX NUT M8-1.25
Price
N/A
425
*DISCD*T-KNOB M8-1.25, 70 DIA X 48L
Price
N/A

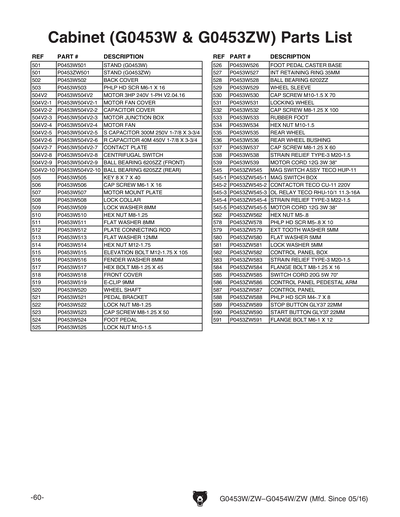

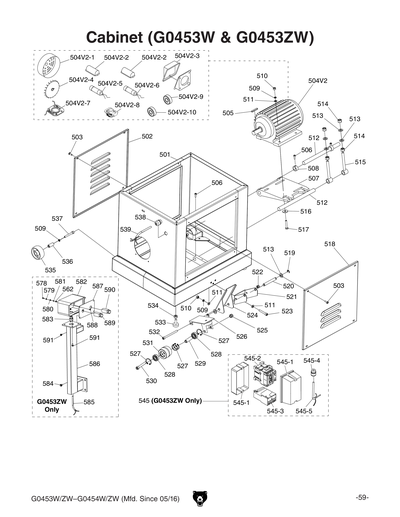

501
*DISCD*STAND
502
*DISCD*BACK COVER
Price
N/A
503
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
504
*DISCD*MOTOR 3HP 240V 1-PH V1
Price
N/A
504-1
*DISCD*MOTOR FAN COVER
Price
N/A
504-2
*DISCD*CAPACITOR COVER
Price
N/A
504-3
*DISCD*MOTOR JUNCTION BOX
Price
N/A
504-4
*DISCD*MOTOR FAN
Price
N/A
504-5
*DISCD*S CAPACITOR 300M 250V 1-7/8 X 3-3
Price
N/A
504-6
*DISCD*R CAP 40M 450V 1-7/8 X 3-3/4
Price
N/A
504-7
*DISCD*CONTACT PLATE
Price
N/A
504-8
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
504-9
BALL BEARING 6205ZZ
Price
N/A
504V2
*DISCD*MOTOR 3HP 240V 1-PH V2.04.16
Price
N/A
504V2-1
*DISCD*MOTOR FAN COVER
Price
N/A
504V2-10
BALL BEARING 6205ZZ
Price
N/A
504V2-2
*DISCD*CAPACITOR COVER
Price
N/A
504V2-3
*DISCD*MOTOR JUNCTION BOX
Price
N/A
504V2-4
*DISCD*MOTOR FAN
Price
N/A
504V2-5
*DISCD*S CAPACITOR 300M 250V 1-7/8 X 3-3
Price
N/A
504V2-6
*DISCD*R CAPACITOR 40M 450V 1-7/8 X 3-3/4
Price
N/A
504V2-7
*DISCD*CONTACT PLATE
Price
N/A
504V2-8
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
504V2-9
BALL BEARING 6205ZZ
Price
N/A
505
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
506
CAP SCREW M6-1 X 16
Price
N/A
507
*DISCD*MOTOR MOUNT PLATE
Price
N/A
508
*DISCD*LOCK COLLAR
Price
N/A
509
LOCK WASHER 8MM
Price
N/A
510
Now: PN03M
HEX NUT M8-1.25
Price
N/A
511
Now: PW01M
FLAT WASHER 8MM
Price
N/A
512
*DISCD*PLATE CONNECTING ROD
Price
N/A
513
Now: PW06M
FLAT WASHER 12MM
Price
N/A
514
Now: PN09M
HEX NUT M12-1.75
Price
N/A
515
*DISCD*ELEVATION BOLT M12-1.75 X 105
Price
N/A
516
FENDER WASHER 8MM
Price
N/A
517
HEX BOLT M8-1.25 X 45
Price
N/A
518
*DISCD*FRONT COVER
Price
N/A
519
E-CLIP 9MM
Price
N/A
520
*DISCD*WHEEL SHAFT
Price
N/A
521
*DISCD*PEDAL BRACKET V2.06.16
Price
N/A
522
LOCK NUT M8-1.25
Price
N/A
523
CAP SCREW M8-1.25 X 50
Price
N/A
524
*DISCD*FOOT PEDAL
Price
N/A
525
LOCK NUT M10-1.5
Price
N/A
526
*DISCD*FOOT PEDAL CASTER BASE
Price
N/A
527
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
528
BALL BEARING 6202ZZ
Price
N/A
529
*DISCD*WHEEL SLEEVE
Price
N/A
530
CAP SCREW M10-1.5 X 70
Price
N/A
531
*DISCD*LOCKING WHEEL
Price
N/A
532
CAP SCREW M8-1.25 X 100
Price
N/A
533
*DISCD*RUBBER FOOT
Price
N/A
534
Now: PN02M
HEX NUT M10-1.5
Price
N/A
535
*DISCD*REAR WHEEL
Price
N/A
536
*DISCD*REAR WHEEL BUSHING
Price
N/A
537
CAP SCREW M8-1.25 X 60
Price
N/A
538
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
539
*DISCD*MOTOR CORD 12G 3W 48"
Price
N/A
545
*DISCD*MAG SWITCH ASSY TECO HUP-11
Item is no longer available
Price
N/A
545-1
*DISCD*MAG SWITCH BOX
545-2
*DISCD*CONTACTOR TECO CU-11 220V
Item is no longer available
Price
N/A
545-3
*DISCD*OL RELAY TECO RHU-10/1 11.3-16A
Item is no longer available
Price
N/A
545-4
*DISCD*STRAIN RELIEF TYPE-3 M22-1.5
Item is no longer available
Price
N/A
545-5
*DISCD*MOTOR CORD 12G 3W 48"
Price
N/A
562
Now: PN06M
HEX NUT M5-.8
Price
N/A
578
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
579
EXT TOOTH WASHER 5MM
Price
N/A
580
Now: PW02M
FLAT WASHER 5MM
Price
N/A
581
LOCK WASHER 5MM
Price
N/A
582
*DISCD*CONTROL PANEL BOX
583
*DISCD*STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
584
FLANGE BOLT M8-1.25 X 16
Price
N/A
585
*DISCD*SWITCH CORD 12G 5W 70"
586
*DISCD*CONTROL PANEL PEDESTAL ARM
587
*DISCD*CONTROL PANEL
588
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
589
*DISCD*STOP BUTTON GLY37 22MM
590
*DISCD*START BUTTON GLY37 22MM
591
FLANGE BOLT M6-1 X 12
Price
N/A
601

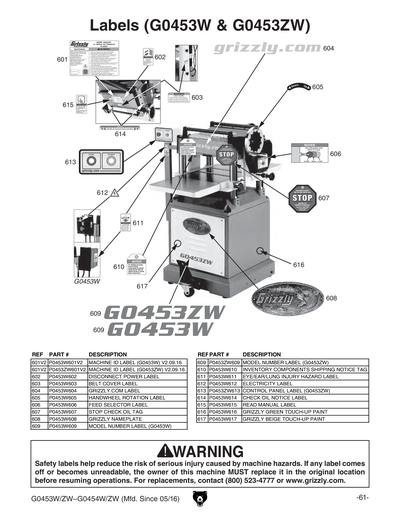

*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
602
DISCONNECT 110V 2W X 3.3H
Price
N/A
603
BELT COVER LABEL
Price
N/A
604
*DISCD*GRIZZLY.COM LABEL
Price
N/A
605
*DISCD*HANDWHEEL ROTATION LABEL
Price
N/A
606
*DISCD*FEED SELECTOR LABEL
Price
N/A
607
*DISCD*STOP CHECK OIL TAG
Price
N/A
608
Now: G8588
Nameplate - Small
Price
N/A
609
*DISCD*MODEL NUMBER LABEL
610
*DISCD*INVENTORY COMPONENTS SHIPPING NOT
Price
N/A
611
EYE/EAR/LUNG INJURY HAZARD LABEL
Price
N/A
612
ELECTRICITY 1.4W X 1.2H
Price
N/A
613
CONTROL PANEL LABEL
614
*DISCD*CHECK OIL NOTICE LABEL
Price
N/A
615
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
616
N/S GRIZZLY GREEN G1023S
Price
N/A
617
BEIGE REF G0555
Price
N/A
MAN
MAN FOR G0453W, G0453ZW, G0454W, G0454ZW
Price
N/A
