Parts for G0454 - 20" 5 HP Planer

Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454
Part Diagram for G0454

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

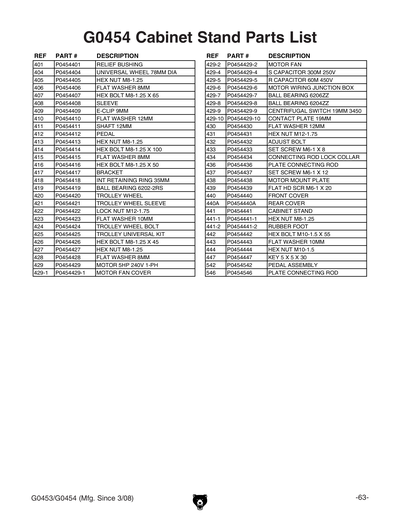

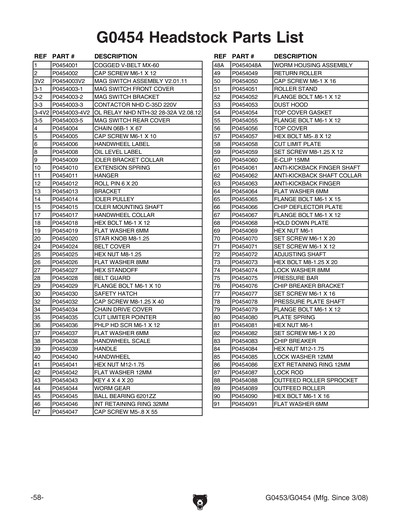

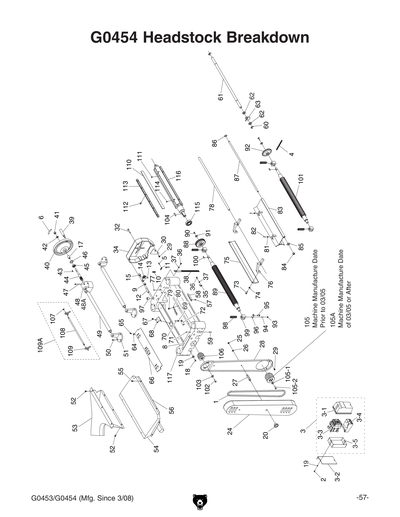

Ref #
Part #
Description
1
V-BELT MX60
Price
N/A
2
CAP SCREW M6-1 X 12
Price
N/A
3
*DISCD*MAG SWITCH ASSY V1
Item is no longer available
Price
N/A
3-1
MAG SWITCH FRONT COVER
Price
$37.75
3-2
MAG SWITCH BRACKET
Price
$3.65
3-3
CONTACTOR NHD 35D 220V
Price
$102.70
3-4
OL RELAY NHD NTH-32 26-32A V2.08.12
Price
N/A
3-4V2
OL RELAY NHD NTH-32 26-32A V2.08.12
Price
$41.70
3-5
MAG SWITCH REAR COVER
Price
$33.45
3V2
MAG SWITCH ASSEMBLY V2.01.11
Price
$223.20
4
CHAIN 06B-1 X 67
Price
$10.10
5
CAP SCREW M6-1 X 10
Price
N/A
6
HANDWHEEL LABEL
Price
N/A
7
SPEED CHANGE LABEL
Price
$1.25
8
OIL LEVEL LABEL
Price
$1.25
9
IDLER BRACKET COLLAR
Price
N/A
10
EXTENSION SPRING
Price
N/A
11
HANGER
Price
N/A
12
ROLL PIN 6 X 20
Price
N/A
13
BRACKET
Price
N/A
14
IDLER PULLEY
Price
N/A
15
IDLER MOUNTING SHAFT
Price
N/A
16
BELT COVER LABEL
Price
N/A
17
HANDWHEEL COLLAR
Price
N/A
18
HEX BOLT M6-1 X 12
Price
N/A
19
FLAT WASHER 6MM
Price
N/A
20
STAR KNOB M8-1.25
Price
N/A
21
SPEED CHANGE LABEL
Price
N/A
22
*DISCD*RIVET 2 X 4
Item is no longer available
Price
N/A
24
BELT COVER
Price
N/A
25
HEX NUT M8-1.25
Price
N/A
26
FLAT WASHER 8MM
Price
N/A
27
HEX STANDOFF STUD
Price
N/A
28
BELT GUARD
Price
N/A
29
FLANGE BOLT M6-1 X 10
Price
N/A
30
SAFETY HATCH
Price
$1.90
31
SAFETY HATCH
Price
N/A
32
CAP SCREW M8-1.25 X 40
Price
N/A
33
ROLL PIN 6 X 20
Price
N/A
34
CHAIN DRIVE COVER
Price
$61.85
35
CUT LIMITER POINTER
Price
$1.90
36
PHLP HD SCR M6-1 X 12
Price
N/A
37
FLAT WASHER 6MM
Price
N/A
38
HANDWHEEL SCALE
Price
N/A
39
HANDWHEEL HANDLE
Price
N/A
40
HANDWHEEL
Price
N/A
41
HEX NUT M12-1.75
Price
N/A
42
FLAT WASHER 12MM
Price
N/A
43
KEY 4 X 4 X 20
Price
N/A
44
WORM GEAR
Price
N/A
45
BALL BEARING 6201ZZ
Price
N/A
46
INT RETAINING RING 32MM
Price
N/A
47
CAP SCREW M5-.8 X 55
Price
N/A
48
WORM HOUSING
Price
$16.95
48A
WORM HOUSING ASSEMBLY
Price
$44.60
49
RETURN ROLLER
Price
$27.35
50
CAP SCREW M6-1 X 16
Price
N/A
51
ROLLER STAND
Price
$11.20
52
FLANGE BOLT M6-1 X 12
Price
N/A
53
DUST HOOD
Price
$39.60
54
TOP COVER GASKET
Price
$1.90
55
FLANGE BOLT M6-1 X 12
Price
N/A
56
TOP COVER
Price
$34.20
57
HEX BOLT M5-.8 X 12
Price
N/A
58
CUT LIMIT PLATE
Price
N/A
59
SET SCREW M8-1.25 X 12
Price
N/A
60
E-CLIP 15MM
Price
N/A
61
ANTI-KICKBACK FINGER SHAFT
Price
$11.90
62
ANTI-KICKBACK SHAFT COLLAR
Price
N/A
63
ANTI-KICKBACK FINGER
Price
N/A
64
FLAT WASHER 6MM
Price
N/A
65
FLANGE BOLT M6-1 X 15
Price
N/A
66
CHIP DEFLECTOR PLATE
Price
$5.45
67
FLANGE BOLT M6-1 X 12
Price
N/A
68
HOLD DOWN PLATE
Price
$2.60
69
HEX NUT M6-1
Price
N/A
70
SET SCREW M6-1 X 20
Price
N/A
71
SET SCREW M6-1 X 12
Price
N/A
72
ADJUSTING SHAFT
Price
$1.90
73
HEX BOLT M8-1.25 X 20
Price
N/A
74
LOCK WASHER 8MM
Price
N/A
75
PRESSURE BAR
Price
$11.90
76
CHIP BREAKER BRACKET
Price
$5.10
77
SET SCREW M6-1 X 16
Price
N/A
78
PRESSURE PLATE SHAFT
Price
$19.45
79
FLANGE BOLT M6-1 X 12
Price
N/A
80
PLATE SPRING
Price
$1.90
81
HEX NUT M6-1
Price
N/A
82
SET SCREW M6-1 X 20
Price
N/A
83
CHIP BREAKER
Price
$38.50
84
HEX NUT M12-1.75
Price
N/A
85
LOCK WASHER 12MM
Price
N/A
86
EXT RETAINING RING 12MM
Price
N/A
87
LOCK ROD
Price
$11.50
88
OUTFEED ROLLER SPROCKET
Price
$27.35
89
OUTFEED ROLLER (SERRATED STEEL) V1
Price
$89.50
89V2
20" Rubber Outfeed Roller for G0454 Series Planers
Price
N/A
90
HEX BOLT M6-1 X 16
Price
N/A
91
FLAT WASHER 6MM
Price
N/A

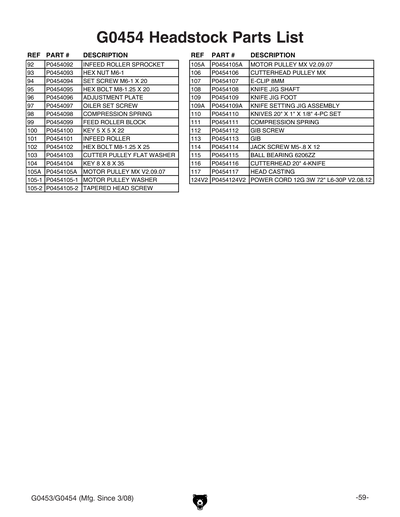

92
INFEED ROLLER SPROCKET
Price
$17.25
93
HEX NUT M6-1
Price
N/A
94
SET SCREW M6-1 X 20
Price
N/A
95
HEX BOLT M8-1.25 X 20
Price
N/A
96
ADJUSTMENT PLATE
Price
$1.90
97
OILER SET SCREW
Price
N/A
98
COMPRESSION SPRING
Price
N/A
99
FEED ROLLER BLOCK
Price
$7.95
100
KEY 5 X 5 X 22
Price
N/A
101
INFEED ROLLER
Price
$115.00
102
HEX BOLT M8-1.25 X 25
Price
N/A
103
CUTTER PULLEY FLAT WASHER 8MM
Price
$1.90
104
KEY 8 X 8 X 35
Price
N/A
105
*DISCD*MOTOR PULLEY V1.03.05
Item is no longer available
Price
N/A
105-1
MOTOR PULLEY WASHER
Price
$3.25
105-2
TAPERED HEAD SCREW
Price
$1.90
105A
MOTOR PULLEY MX V2.09.07
Price
$32.00
106
CUTTERHEAD PULLEY MX
Price
N/A
107
E-CLIP 8MM
Price
N/A
108
KNIFE JIG SHAFT
Price
$4.70
109
KNIFE JIG FOOT
Price
$9.75
109A
KNIFE SETTING JIG ASSEMBLY
Price
$9.40
110
20" x 1" x 1/8" HSS Planer Knives, Set of 4
Price
N/A
111
COMPRESSION SPRING
Price
$1.90
112
GIB SCREW
Price
$1.90
113
GIB
Price
$10.85
114
JACK SCREW M5-.8 X 12
Price
$1.90
115
BALL BEARING 6206ZZ
Price
N/A
116
CUTTERHEAD 20" 4-KNIFE
Price
$212.10
117
HEAD CASTING
Price
$276.90
118

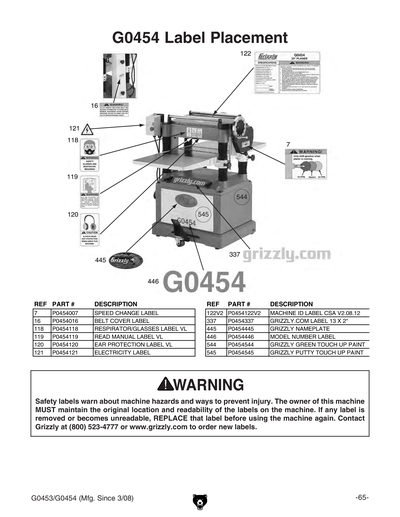

GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
119
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
120
DISCONNECT POWER-DOOR 2W X 3.3H
Price
N/A
121
ELECTRICITY 1.4W X 1.2H
Price
N/A
122
MACHINE ID LABEL V1
Price
$16.40
122V2
MACHINE ID LABEL CSA V2.08.12
Price
$16.40
123
FLAT WASHER 8MM
Price
N/A
124
POWER CORD 12G 3W 78" V1
Item is no longer available
Price
N/A
124V2
POWER CORD 12G 3W 72" L6-30P V2.08.12
Price
$48.20

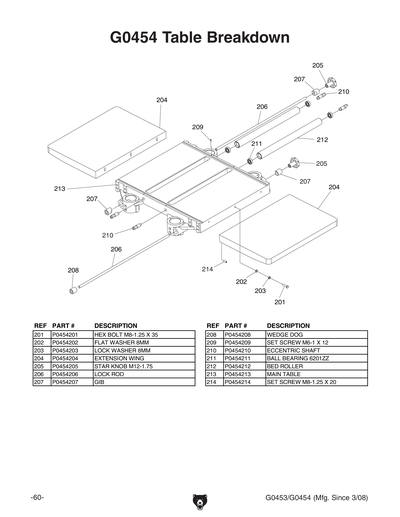

201
HEX BOLT M8-1.25 X 35
Price
N/A
202
FLAT WASHER 8MM
Price
N/A
203
FLAT WASHER 8MM
Price
N/A
204
EXTENSION WING
Price
$129.10
205
STAR KNOB M12-1.75
Price
N/A
206
LOCK ROD
Price
$8.65
207
GIB
Price
$2.60
208
WEDGE DOG
Price
$2.60
209
SET SCREW M6-1 X 12
Price
N/A
210
ECCENTRIC SHAFT
Price
$2.90
211
BALL BEARING 6201ZZ
Price
N/A
212
BED ROLLER
Price
$20.15
213
MAIN TABLE
Price
$448.20
214
SET SCREW M8-1.25 X 20
Price
N/A
301
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A

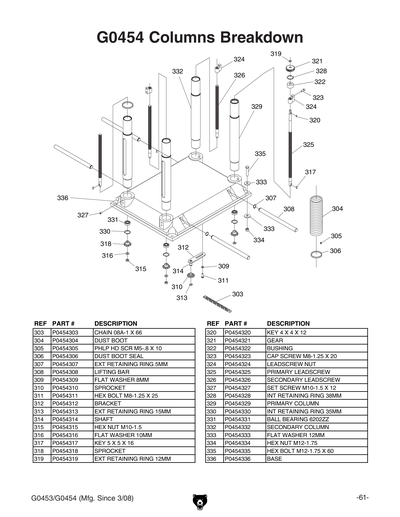

303
CHAIN 08A-1 X 66
Price
$23.75
304
DUST BOOT
Price
$1.90
305
PHLP HD SCR M5-.8 X 10
Price
N/A
306
DUST BOOT SEAL
Price
$1.90
307
EXT RETAINING RING 5MM
Price
N/A
308
LIFTING BAR
Item is no longer available
Price
N/A
309
FLAT WASHER 8MM
Price
N/A
310
SPROCKET
Price
$5.45
311
HEX BOLT M8-1.25 X 25
Price
N/A
312
BRACKET
Price
$6.90
313
EXT RETAINING RING 15MM
Price
N/A
314
SHAFT
Price
$1.90
315
HEX NUT M10-1.5
Price
N/A
316
FLAT WASHER 10MM
Price
N/A
317
KEY 5 X 5 X 16
Price
N/A
318
SPROCKET
Price
$34.90
319
EXT RETAINING RING 12MM
Price
N/A
320
KEY 4 X 4 X 12
Price
N/A
321
GEAR
Price
N/A
322
BUSHING
Price
$1.90
323
CAP SCREW M8-1.25 X 20
Price
N/A
324
LEADSCREW NUT
Price
$3.25
325
PRIMARY LEADSCREW
Price
$24.85
326
SECONDARY LEADSCREW
Price
$15.15
327
SET SCREW M10-1.5 X 12
Price
N/A
328
INT RETAINING RING 38MM
Price
N/A
329
PRIMARY COLUMN
Item is no longer available
Price
N/A
330
INT RETAINING RING 35MM
Price
N/A
331
BALL BEARING 6202ZZ
Price
N/A
332
SECONDARY COLUMN
Price
$78.50
333
FLAT WASHER 12MM
Price
N/A
334
HEX NUT M12-1.75
Price
N/A
335
HEX BOLT M12-1.75 X 60
Price
N/A
336
BASE
Item is no longer available
Price
N/A
337
GRIZZLY.COM LABEL 13 X 2"
Price
$4.40
401
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
402
*DISCD*LABEL
Item is no longer available
Price
N/A
403
*DISCD*WARNING LABEL
Item is no longer available
Price
N/A

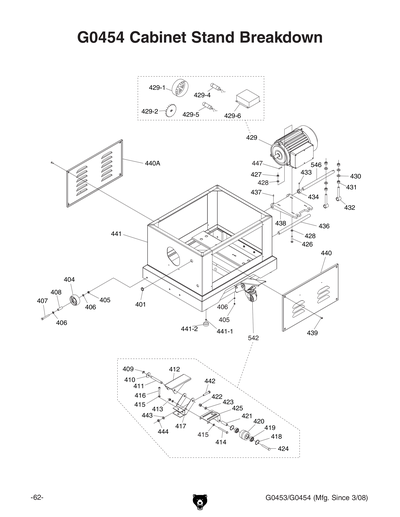

404
UNIVERSAL WHEEL 78MM DIA
Price
N/A
405
HEX NUT M8-1.25
Price
N/A
406
FLAT WASHER 8MM
Price
N/A
407
HEX BOLT M8-1.25 X 65
Price
N/A
408
SLEEVE
Price
N/A
409
E-CLIP 9MM
Price
N/A
410
FLAT WASHER 12MM
Price
N/A
411
SHAFT 12MM
Price
N/A
412
PEDAL
Price
N/A
413
HEX NUT M8-1.25
Price
N/A
414
HEX BOLT M8-1.25 X 100
Price
N/A
415
FLAT WASHER 8MM
Price
N/A
416
HEX BOLT M8-1.25 X 50
Price
N/A
417
BRACKET
Price
N/A
418
INT RETAINING RING 35MM
Price
N/A
419
BALL BEARING 6202-2RS
Price
N/A
420
TROLLEY WHEEL
Price
N/A
421
TROLLEY WHEEL SLEEVE
Price
N/A
422
LOCK NUT M12-1.75
Price
N/A
423
FLAT WASHER 10MM
Price
N/A
424
TROLLEY WHEEL BOLT
Price
N/A
425
TROLLEY UNIVERSAL KIT
Price
N/A
426
HEX BOLT M8-1.25 X 45
Price
N/A
427
HEX NUT M8-1.25
Price
N/A
428
FLAT WASHER 8MM
Price
N/A
429
MOTOR 5HP 240V 1-PH
Price
$527.60
429-1
MOTOR FAN COVER
Price
$12.65
429-10
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
429-2
MOTOR FAN
Price
$6.50
429-3
CAPACITOR COVER
Price
$4.70
429-4
S CAPACITOR 300M 250V 2 X 3-3/4
Price
$19.85
429-5
R CAPACITOR 60M 450V 2 X 4-3/4
Price
$10.10
429-6
MOTOR WIRING JUNCTION BOX
Price
$3.65
429-7
BALL BEARING 6206ZZ
Price
N/A
429-8
BALL BEARING 6204ZZ
Price
N/A
429-9
CENT SWITCH 3/4-3450
Price
N/A
430
FLAT WASHER 12MM
Price
N/A
431
HEX NUT M12-1.75
Price
N/A
432
ADJUST BOLT
Price
N/A
433
SET SCREW M6-1 X 8
Price
N/A
434
LOCK COLLAR
Price
N/A
435
SET SCREW M8-1.25 X 12
Price
N/A
436
PLATE CONNECTING ROD
Price
$5.10
437
SET SCREW M6-1 X 12
Price
N/A
438
MOTOR MOUNT PLATE
Price
$25.60
439
FLAT HD SCR M6-1 X 20
Price
N/A
440
FRONT COVER
Price
$17.65
440A
REAR COVER
Price
$27.35
441
CABINET STAND
Price
$223.60
441-1
HEX NUT M8-1.25
Price
N/A
441-2
RUBBER FOOT
Price
N/A
441A
COMPLETE STAND ASSY
Item is no longer available
Price
N/A
442
HEX BOLT M10-1.5 X 55
Price
N/A
443
FLAT WASHER 10MM
Price
N/A
444
HEX NUT M10-1.5
Price
N/A
445
Nameplate - Small
Price
N/A
446
MODEL NUMBER LABEL
Price
$4.40
447
KEY 5 X 5 X 30
Price
N/A
448
FLAT WASHER 3MM
Price
N/A
449
HEX NUT M3-.5
Price
N/A

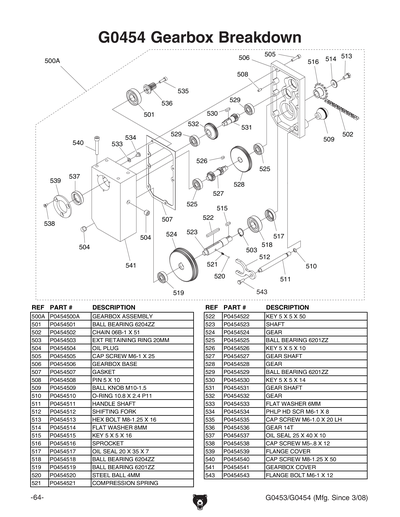

500A
GEARBOX ASSEMBLY
Price
$207.75
501
BALL BEARING 6204ZZ
Price
N/A
502
CHAIN 06B-1 X 51
Price
$6.90
503
EXT RETAINING RING 20MM
Price
N/A
504
OIL PLUG
Price
N/A
505
CAP SCREW M6-1 X 25
Price
N/A
506
GEARBOX BASE
Price
N/A
507
GASKET
Price
N/A
508
PIN 5 X 10
Price
N/A
509
BALL KNOB M10-1.5
Price
N/A
510
O-RING 10.8 X 2.4 P11
Price
N/A
511
HANDLE SHAFT
Price
N/A
512
SHIFTING FORK
Price
N/A
513
HEX BOLT M8-1.25 X 16
Price
N/A
514
FLAT WASHER 8MM
Price
N/A
515
KEY 5 X 5 X 16
Price
N/A
516
SPROCKET
Price
$10.10
517
OIL SEAL 20 X 35 X 7
Price
N/A
518
BALL BEARING 6204ZZ
Price
N/A
519
BALL BEARING 6201ZZ
Price
N/A
520
STEEL BALL 4MM
Price
N/A
521
COMPRESSION SPRING
Price
N/A
522
KEY 5 X 5 X 50
Price
N/A
523
SHAFT C
Price
N/A
524
COMBO GEAR C 75T/79T
Price
$34.20
525
BALL BEARING 6201ZZ
Price
N/A
526
KEY 5 X 5 X 10
Price
N/A
527
GEAR SHAFT B 14T/18T
Price
$15.85
528
GEAR
Price
N/A
529
BALL BEARING 6201ZZ
Price
N/A
530
KEY 5 X 5 X 14
Price
N/A
531
GEAR SHAFT
Price
N/A
532
GEAR
Price
N/A
533
FLAT WASHER 6MM
Price
N/A
534
CAP SCREW M6-1 X 20
Price
N/A
535
CAP SCREW M6-1 X 20 LH
Price
N/A
536
GEAR 14T
Price
N/A
537
OIL SEAL 25 X 40 X 10
Price
N/A
538
CAP SCREW M5-.8 X 12
Price
N/A
539
FLANGE COVER
Price
$4.70
540
CAP SCREW M8-1.25 X 50
Price
N/A
541
GEARBOX COVER
Price
$60.25
542
PEDAL ASSEMBLY
Price
N/A
543
FLANGE BOLT M6-1 X 12
Price
N/A
544
N/S GRIZZLY GREEN G1023S
Price
N/A
545
GREY PUTTY REF G0504
Price
N/A
546
PLATE CONNECTING ROD
Price
N/A
550V2
MAG SWITCH MS1-35D V2.01.11
Price
N/A
MANUAL
MANUAL FOR G0453/G0454 10/06
Price
N/A
MANV2
MANUAL G0453-54 MFG 8/12 V2.07.12
Price
N/A
