Parts for G0454Z 20" 5 HP Planer w/ Spiral Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

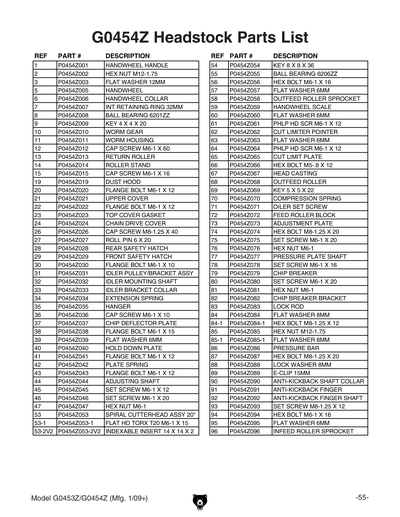

1
HANDWHEEL HANDLE
Price
N/A
2
Now: PN09M
HEX NUT M12-1.75
Price
N/A
3
Now: PW06M
FLAT WASHER 12MM
Price
N/A
5
HANDWHEEL
Price
N/A
6
HANDWHEEL COLLAR
Price
N/A
7
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
8
BALL BEARING 6201ZZ
Price
N/A
9
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
10
WORM GEAR
Price
N/A
11
WORM HOUSING
Price
N/A
12
CAP SCREW M6-1 X 60
Price
N/A
13
RETURN ROLLER
Price
N/A
14
ROLLER STAND
Price
N/A
15
CAP SCREW M6-1 X 16
Price
N/A
19
DUST HOOD
Price
N/A
20
FLANGE BOLT M6-1 X 12
Price
N/A
21
TOP COVER
Price
N/A
22
FLANGE BOLT M6-1 X 12
Price
N/A
23
TOP COVER GASKET
Price
N/A
24
GEAR BOX COVER
26
CAP SCREW M8-1.25 X 40
Price
N/A
27
ROLL PIN 6 X 20
Price
N/A
28
RIGHT SAFETY HATCH
29
FRONT SAFETY HATCH
30
FLANGE BOLT M6-1 X 10
Price
N/A
31
IDLER PULLEY
Price
N/A
32
IDLER MOUNTING SHAFT
Price
N/A
33
IDLER BRACKET COLLAR
Price
N/A
34
EXTENSION SPRING
Price
N/A
35
HANGER
Price
N/A
36
CAP SCREW M6-1 X 10
Price
N/A
37
CHIP DEFLECTOR PLATE
Price
N/A
38
FLANGE BOLT M6-1 X 15
Price
N/A
39
Now: PW03M
FLAT WASHER 6MM
Price
N/A
40
HOLD DOWN PLATE
Price
N/A
41
FLANGE BOLT M6-1 X 12
Price
N/A
42
PLATE SPRING
Price
N/A
43
FLANGE BOLT M6-1 X 12
Price
N/A
44
ADJUSTING SHAFT
Price
N/A
45
SET SCREW M6-1 X 12
Price
N/A
46
SET SCREW M6-1 X 20
Price
N/A
47
Now: PN01M
HEX NUT M6-1
Price
N/A
53
SPIRAL CUTTERHEAD ASSY 20" V1
53-1
INSERT SCREW TORX T20 M6-1 X 15
Price
N/A
53-2
Indexable Carbide Inserts - 14.18 x 14.18 x 2mm, 10-Pk.
Price
N/A
53-2V2
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
53V2
SPIRAL CUTTERHEAD ASSY V2.04.15
54
KEY 8 X 8 X 36
Price
N/A
55
BALL BEARING 6206ZZ
Price
N/A
56
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
57
Now: PW03M
FLAT WASHER 6MM
Price
N/A
58
OUTFEED ROLLER SPROCKET
Price
N/A
59
HANDWHEEL SCALE
Price
N/A
60
Now: PW03M
FLAT WASHER 6MM
Price
N/A
61
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
62
CUT LIMITER POINTER
Price
N/A
63
Now: PW03M
FLAT WASHER 6MM
Price
N/A
64
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
65
CUT LIMIT PLATE
Price
N/A
66
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
67

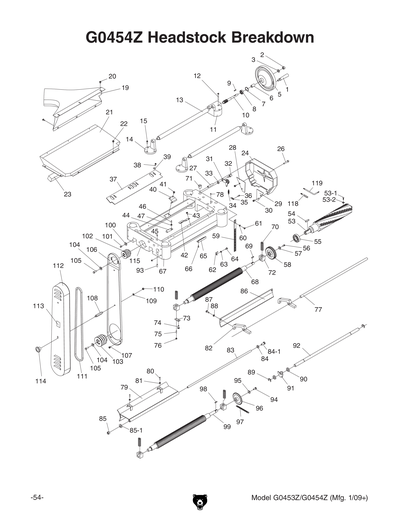

HEAD CASTING
Price
N/A
68
OUTFEED ROLLER (SERRATED STEEL) V1
Price
N/A
68V2
20" Rubber Outfeed Roller for G0454 Series Planers
Price
N/A
69
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
70
COMPRESSION SPRING
Price
N/A
71
OILER SET SCREW
Price
N/A
72
FEED ROLLER BLOCK
73
ADJUSTMENT PLATE
Price
N/A
74
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
75
SET SCREW M6-1 X 20
Price
N/A
76
Now: PN01M
HEX NUT M6-1
Price
N/A
77
PRESSURE PLATE SHAFT
Price
N/A
78
SET SCREW M6-1 X 16
Price
N/A
79
CHIP BREAKER
Price
N/A
80
SET SCREW M6-1 X 20
Price
N/A
81
Now: PN01M
HEX NUT M6-1
Price
N/A
82
CHIP BREAKER BRACKET
Price
N/A
83
LOCK ROD
Price
N/A
84
Now: PW01M
FLAT WASHER 8MM
Price
N/A
84-1
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
85
Now: PN09M
HEX NUT M12-1.75
Price
N/A
85-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
86
PRESSURE BAR
Price
N/A
87
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
88
LOCK WASHER 8MM
Price
N/A
89
E-CLIP 15MM
Price
N/A
90
ANTI-KICKBACK SHAFT COLLAR
Price
N/A
91
ANTI-KICKBACK FINGER
92
ANTI-KICKBACK FINGER SHAFT
Price
N/A
93
SET SCREW M8-1.25 X 12
Price
N/A
94
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
95
Now: PW03M
FLAT WASHER 6MM
Price
N/A
96
INFEED ROLLER SPROCKET
Price
N/A

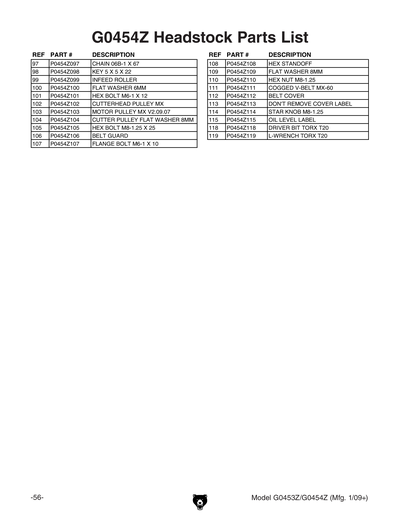

97
CHAIN 06B-1 X 67
Price
N/A
98
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
99
INFEED ROLLER
Price
N/A
100
Now: PW03M
FLAT WASHER 6MM
Price
N/A
101
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
102
CUTTERHEAD PULLEY MX
Price
N/A
103
MOTOR PULLEY MX V2.09.07
Price
N/A
104
CUTTER PULLEY FLAT WASHER 8MM
Price
N/A
105
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
106
BELT GUARD
Price
N/A
107
FLANGE BOLT M6-1 X 10
Price
N/A
108
HEX STANDOFF STUD
Price
N/A
109
Now: PW01M
FLAT WASHER 8MM
Price
N/A
110
Now: PN03M
HEX NUT M8-1.25
Price
N/A
111
V-BELT MX60
Price
N/A
112
BELT COVER
Price
N/A
113
DON'T REMOVE COVER LABEL
Price
N/A
114
STAR KNOB M8-1.25
Price
N/A
115
OIL LEVEL LABEL
Price
N/A
118
DRIVER BIT TORX T20
Price
N/A
119
L-WRENCH TORX T20
Price
N/A

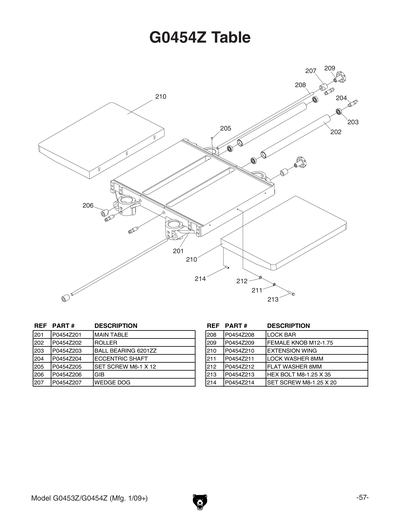

201
MAIN TABLE
202
ROLLER
203
BALL BEARING 6201ZZ
Price
N/A
204
ECCENTRIC SHAFT
205
SET SCREW M6-1 X 12
Price
N/A
206
GIB
Price
N/A
207
WEDGE DOG
Price
N/A
208
LOCK ROD
Price
N/A
209
FEMALE KNOB M12-1.75
Price
N/A
210
EXTENSION WING
Price
N/A
211
LOCK WASHER 8MM
Price
N/A
212
Now: PW01M
FLAT WASHER 8MM
Price
N/A
213
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
214
SET SCREW M8-1.25 X 20
Price
N/A
301

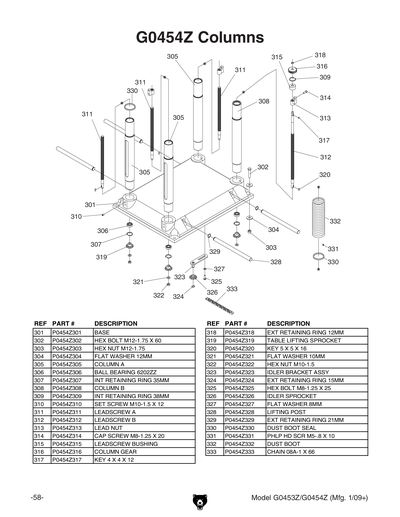

BASE
302
Now: PB38M
HEX BOLT M12-1.75 X 60
Price
N/A
303
Now: PN09M
HEX NUT M12-1.75
Price
N/A
304
Now: PW06M
FLAT WASHER 12MM
Price
N/A
305
COLUMN A
306
BALL BEARING 6202ZZ
Price
N/A
307
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
308
COLUMN B
309
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
310
SET SCREW M10-1.5 X 12
Price
N/A
311
LEADSCREW A
312
LEADSCREW B
313
LEAD NUT
314
CAP SCREW M8-1.25 X 20
Price
N/A
315
LEADSCREW BUSHING
316
COLUMN GEAR
317
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
318
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
319
TABLE LIFTING SPROCKET
320
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
321
Now: PW04M
FLAT WASHER 10MM
Price
N/A
322
Now: PN02M
HEX NUT M10-1.5
Price
N/A
323
IDLER BRACKET ASSY
324
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
325
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
326
IDLER SPROCKET
327
Now: PW01M
FLAT WASHER 8MM
Price
N/A
328
LIFTING POST
329
Now: PR81M
EXT RETAINING RING 21MM
Price
N/A
330
DUST BOOT SEAL
Price
N/A
331
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
332
DUST BOOT
333
CHAIN 08A-1 X 66

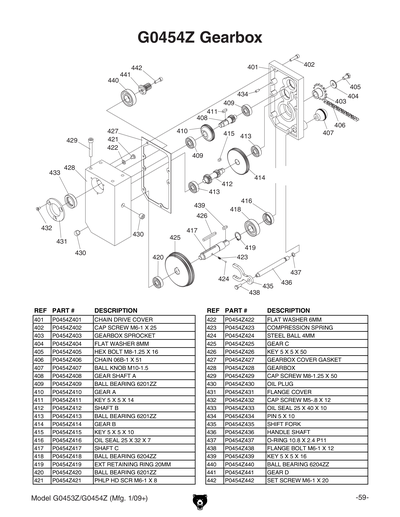

401
CHAIN DRIVE COVER
402
CAP SCREW M6-1 X 25
Price
N/A
403
SPROCKET
Price
N/A
404
Now: PW01M
FLAT WASHER 8MM
Price
N/A
405
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
406
CHAIN 06B-1 X 51
Price
N/A
407
BALL KNOB M10-1.5
408
GEAR SHAFT A
409
BALL BEARING 6201ZZ
Price
N/A
410
GEAR A
411
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
412
GEAR SHAFT B 14T/18T
Price
N/A
413
BALL BEARING 6201ZZ
Price
N/A
414
GEAR B
415
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
416
OIL SEAL 25 X 32 X 7
Price
N/A
417
SHAFT C
418
BALL BEARING 6204ZZ
Price
N/A
419
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
420
BALL BEARING 6201ZZ
Price
N/A
421
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
422
Now: PW03M
FLAT WASHER 6MM
Price
N/A
423
COMPRESSION SPRING
Price
N/A
424
STEEL BALL 4MM
Price
N/A
425
COMBO GEAR C 75T/79T
Price
N/A
426
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
427
GEARBOX COVER GASKET
428
GEARBOX
429
CAP SCREW M8-1.25 X 50
Price
N/A
430
OIL PLUG
Price
N/A
431
FLANGE COVER
Price
N/A
432
CAP SCREW M5-.8 X 12
Price
N/A
433
OIL SEAL 25 X 40 X 10
Price
N/A
434
PIN 5 X 10
Price
N/A
435
SHIFT FORK
Price
N/A
436
HANDLE SHAFT
Price
N/A
437
O-RING 10.8 X 2.4 P11
Price
N/A
438
FLANGE BOLT M6-1 X 12
Price
N/A
439
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
440
BALL BEARING 6204ZZ
Price
N/A
441
GEAR D
442
CAP SCREW M6-1 X 20 LH
Price
N/A

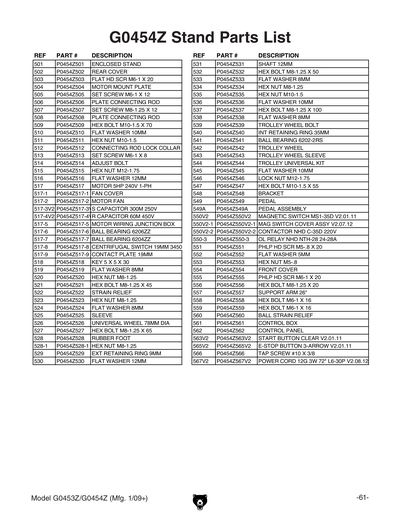

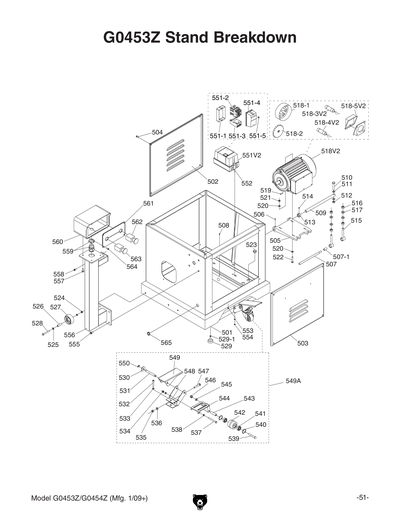

501

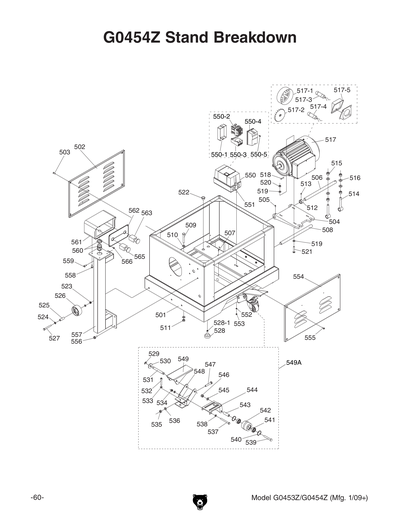

ENCLOSED STAND
502
REAR COVER
Price
N/A
503
FLAT HD SCR M6-1 X 20
Price
N/A
504
MOTOR MOUNT PLATE
Price
N/A
505
SET SCREW M6-1 X 12
Price
N/A
506
PLATE CONNECTING ROD
Price
N/A
507
SET SCREW M8-1.25 X 12
Price
N/A
508
PLATE CONNECTING ROD
Price
N/A
509
HEX BOLT M10-1.5 X 70
Price
N/A
510
Now: PW04M
FLAT WASHER 10MM
Price
N/A
511
Now: PN02M
HEX NUT M10-1.5
Price
N/A
512
LOCK COLLAR
Price
N/A
513
SET SCREW M6-1 X 8
Price
N/A
514
ADJUST BOLT
Price
N/A
515
Now: PN09M
HEX NUT M12-1.75
Price
N/A
516
Now: PW06M
FLAT WASHER 12MM
Price
N/A
517
MOTOR 5HP 240V 1-PH
Price
N/A
517-1
MOTOR FAN COVER
Price
N/A
517-2
MOTOR FAN
Price
N/A
517-3
S CAPACITOR 300M 300V 2 X 3-3/4 V1
517-3V2
S CAPACITOR 300M 250V 2 X 3-3/4
Price
N/A
517-4
R CAPACITOR 60M 400V 2 X 4-1/2 V1
517-4V2
R CAPACITOR 60M 450V 2 X 4-3/4
Price
N/A
517-5
MOTOR WIRING JUNCTION BOX
Price
N/A
517-6
BALL BEARING 6206ZZ
Price
N/A
517-7
BALL BEARING 6204ZZ
Price
N/A
517-8
CENT SWITCH 3/4-3450
Price
N/A
517-9
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
518
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
519
Now: PW01M
FLAT WASHER 8MM
Price
N/A
520
Now: PN03M
HEX NUT M8-1.25
Price
N/A
521
HEX BOLT M8-1.25 X 45
Price
N/A
522
STRAIN RELIEF
523
Now: PN03M
HEX NUT M8-1.25
Price
N/A
524
Now: PW01M
FLAT WASHER 8MM
Price
N/A
525
SLEEVE
Price
N/A
526
UNIVERSAL WHEEL 78MM DIA
Price
N/A
527
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
528
RUBBER FOOT
Price
N/A
528-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
529
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
530
Now: PW06M
FLAT WASHER 12MM
Price
N/A
531
SHAFT 12MM
Price
N/A
532
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
533
Now: PW01M
FLAT WASHER 8MM
Price
N/A
534
Now: PN03M
HEX NUT M8-1.25
Price
N/A
535
Now: PN02M
HEX NUT M10-1.5
Price
N/A
536
Now: PW04M
FLAT WASHER 10MM
Price
N/A
537
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
538
Now: PW01M
FLAT WASHER 8MM
Price
N/A
539
TROLLEY WHEEL BOLT
Price
N/A
540
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
541
BALL BEARING 6202-2RS
Price
N/A
542
TROLLEY WHEEL
Price
N/A
543
TROLLEY WHEEL SLEEVE
Price
N/A
544
TROLLEY UNIVERSAL KIT
Price
N/A
545
Now: PW04M
FLAT WASHER 10MM
Price
N/A
546
LOCK NUT M12-1.75
Price
N/A
547
HEX BOLT M10-1.5 X 55
Price
N/A
548
BRACKET
Price
N/A
549
PEDAL
Price
N/A
549A
PEDAL ASSEMBLY
Price
N/A
550
*DISCD*COMPLETE MAG SWITCH MS1-35D V1
Item is no longer available
Price
N/A
550-1
SWITCH BACK COVER
550-2
CONTACTOR NHD C25-D 220V V1
550-3
OL RELAY NHD NTH-28 24-28A
550-4
SWITCH FRONT COVER
550-5
SWITCH BOX SCREW
550V2
MAG SWITCH MS1-35D V2.01.11
550V2-1
MAG SWITCH COVER ASSY V2.08.12
550V2-2
CONTACTOR NHD C-35D 220V
551
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
552
Now: PW02M
FLAT WASHER 5MM
Price
N/A
553
Now: PN06M
HEX NUT M5-.8
Price
N/A
554
FRONT COVER
Price
N/A
555
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
556
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
557
SUPPORT ARM 26"
558
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
559
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
560
BALL STRAIN RELIEF
Price
N/A
561
CONTROL BOX
Price
N/A
562
CONTROL PANEL
Price
N/A
563
*DISCD*START BUTTON SOLID V1
Price
N/A
563V2
START BUTTON CLEAR V2.01.11
Price
N/A
565
*DISCD*EMERGENCY STOP BUTTON 1 ARROW V1
Price
N/A
565V2
E-STOP BUTTON W/3 ARROW NHD NLB22-R V2
Price
N/A
566
TAP SCREW #10 X 3/8
Price
N/A
567
POWER CORD 12G 3W 78" V1
Price
N/A
567V2
POWER CORD 12G 3W 72" L6-30P V2.08.12
Price
N/A

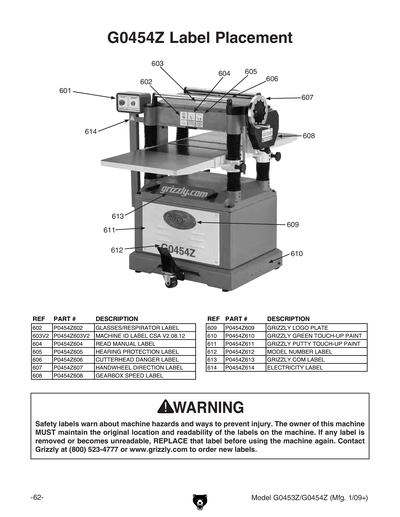

601
CONTROL PANEL
Price
N/A
602
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
603
MACHINE ID LABEL NO CSA V1
603V2
MACHINE ID LABEL CSA V2.08.12
604
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
605
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
606
CUTTERHEAD DANGER LABEL
Price
N/A
607
HANDWHEEL DIRECTION LABEL
Price
N/A
608
GEARBOX SPEED LABEL
609
Now: G8588
Nameplate - Small
Price
N/A
610
N/S GRIZZLY GREEN G1023S
Price
N/A
611
GREY PUTTY REF G0504
Price
N/A
612
MODEL NUMBER LABEL
613
GRIZZLY.COM LABEL 10 X 1-1/2"
Price
N/A
614
ELECTRICITY 1.4W X 1.2H
Price
N/A
MAN
MANUAL FOR G0454Z 10/07 V1
MANV2
MANUAL G0453Z MFD_08.12+ V3.07.12
Price
N/A
