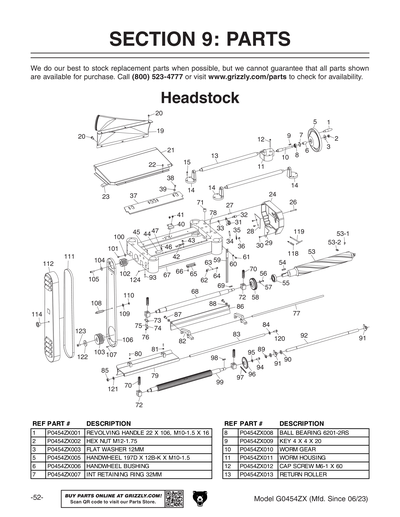

Parts for G0454ZX - 20" Planer w/ Spiral Cutterhead

Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX
Part Diagram for G0454ZX

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
REVOLVING HANDLE 22 X 106, M10-1.5 X 16
Price
$24.60
2
HEX NUT M12-1.75
Price
N/A
3
FLAT WASHER 12MM
Price
N/A
5
HANDWHEEL 197D X 12B-K X M10-1.5
Price
$49.10
6
HANDWHEEL BUSHING
Price
$2.25
7
INT RETAINING RING 32MM
Price
N/A
8
Price
N/A
9
KEY 4 X 4 X 20
Price
$1.90
10
WORM GEAR
Price
$31.25
11
WORM HOUSING
Price
$42.85
12
CAP SCREW M6-1 X 60
Price
N/A
13
RETURN ROLLER
Price
$39.70

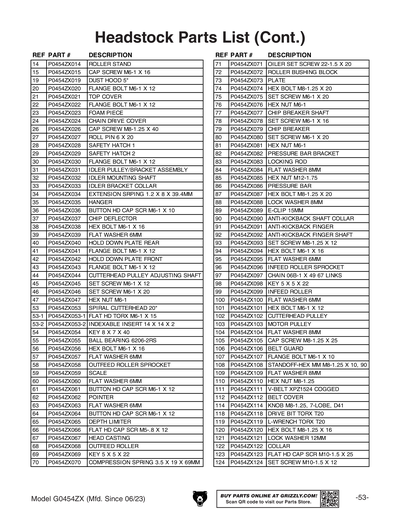

14
ROLLER STAND
Price
$18.75
15
CAP SCREW M6-1 X 16
Price
N/A
19
DUST HOOD 5"
Price
$38.40
20
FLANGE BOLT M6-1 X 12
Price
N/A
21
TOP COVER
Price
$61.50
22
FLANGE BOLT M6-1 X 12
Price
N/A
23
FOAM PIECE
Price
$1.90
24
CHAIN DRIVE COVER
Price
$60.20
26
CAP SCREW M8-1.25 X 40
Price
N/A
27
ROLL PIN 6 X 20
Price
N/A
28
SAFETY HATCH 1
Price
$2.25
29
SAFETY HATCH 2
Price
$2.25
30
FLANGE BOLT M6-1 X 12
Price
N/A
31
IDLER PULLEY/BRACKET ASSEMBLY
Price
$7.20
32
IDLER MOUNTING SHAFT
Price
$2.70
33
IDLER BRACKET COLLAR
Price
$1.90
34
EXTENSION SPRING 1.2 X 8 X 39.4MM
Price
$1.90
35
HANGER
Price
$1.90
36
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
37
CHIP DEFLECTOR
Price
$11.20
38
HEX BOLT M6-1 X 16
Price
N/A
39
FLAT WASHER 6MM
Price
N/A
40
HOLD DOWN PLATE REAR
Price
$1.90
41
FLANGE BOLT M6-1 X 12
Price
N/A
42
HOLD DOWN PLATE FRONT
Price
$1.90
43
FLANGE BOLT M6-1 X 12
Price
N/A
44
CUTTERHEAD PULLEY ADJUSTING SHAFT
Price
$2.70
45
SET SCREW M6-1 X 12
Price
N/A
46
SET SCREW M6-1 X 20
Price
N/A
47
HEX NUT M6-1
Price
N/A
53
SPIRAL CUTTERHEAD 20"
Price
$2,161.35
53-1
FLAT HD TORX M6-1 X 15
Price
$1.90
53-2
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
54
KEY 8 X 7 X 40
Price
$1.90
55
Price
N/A
56
HEX BOLT M6-1 X 16
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
OUTFEED ROLLER SPROCKET
Price
$30.35
59
SCALE
Price
$3.15
60
FLAT WASHER 6MM
Price
N/A
61
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
62
POINTER
Price
$1.90
63
FLAT WASHER 6MM
Price
N/A
64
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
65
DEPTH LIMITER
Price
$1.90
66
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
67
HEAD CASTING
Price
$454.60
68
OUTFEED ROLLER
Price
$115.90
69
KEY 5 X 5 X 22
Price
$1.90
70
COMPRESSION SPRING 3.5 X 19 X 69MM
Price
$1.90
71
OILER SET SCREW 22-1.5 X 20
Price
$3.65
72
ROLLER BUSHING BLOCK
Price
$7.65
73
PLATE
Price
$1.90
74
HEX BOLT M8-1.25 X 20
Price
N/A
75
SET SCREW M6-1 X 20
Price
N/A
76
HEX NUT M6-1
Price
N/A
77
CHIP BREAKER SHAFT
Price
$9.85
78
SET SCREW M6-1 X 16
Price
N/A
79
CHIP BREAKER
Price
$60.20
80
SET SCREW M6-1 X 20
Price
N/A
81
HEX NUT M6-1
Price
N/A
82
PRESSURE BAR BRACKET
Price
$16.95
83
LOCKING ROD
Price
$6.70
84
FLAT WASHER 8MM
Price
N/A
85
HEX NUT M12-1.75
Price
N/A
86
PRESSURE BAR
Price
$21.90
87
HEX BOLT M8-1.25 X 20
Price
N/A
88
LOCK WASHER 8MM
Price
N/A
89
E-CLIP 15MM
Price
N/A
90
ANTI-KICKBACK SHAFT COLLAR
Price
$1.90
91
ANTI-KICKBACK FINGER
Price
$1.90
92
ANTI-KICKBACK FINGER SHAFT
Price
$16.95
93
SET SCREW M8-1.25 X 12
Price
N/A
94
HEX BOLT M6-1 X 16
Price
N/A
95
FLAT WASHER 6MM
Price
N/A
96
INFEED ROLLER SPROCKET
Price
$28.15
97
CHAIN 06B-1 X 49 67 LINKS
Price
$11.85
98
KEY 5 X 5 X 22
Price
$1.90
99
INFEED ROLLER
Price
$191.65
100
FLAT WASHER 6MM
Price
N/A
101
HEX BOLT M6-1 X 12
Price
N/A
102
CUTTERHEAD PULLEY
Price
$24.60
103
MOTOR PULLEY
Price
$34.85
104
FLAT WASHER 8MM
Price
N/A
105
CAP SCREW M8-1.25 X 25
Price
N/A
106
BELT GUARD
Price
$37.95
107
FLANGE BOLT M6-1 X 10
Price
N/A
108
STANDOFF-HEX MM M8-1.25 X 10, 90
Price
$2.70
109
FLAT WASHER 8MM
Price
N/A
110
HEX NUT M8-1.25
Price
N/A
111
V-BELT XPZ1524 COGGED
Price
$21.90
112
BELT COVER
Price
$43.25
114
KNOB M8-1.25, 7-LOBE, D41
Price
$3.65
118
DRIVE BIT TORX T20
Price
$1.90
119
L-WRENCH TORX T20
Price
$4.50
120
HEX BOLT M8-1.25 X 16
Price
N/A
121
LOCK WASHER 12MM
Price
N/A
122
COLLAR
Price
$2.25
123
FLAT HD CAP SCR M10-1.5 X 25
Price
N/A
124
SET SCREW M10-1.5 X 12
Price
N/A

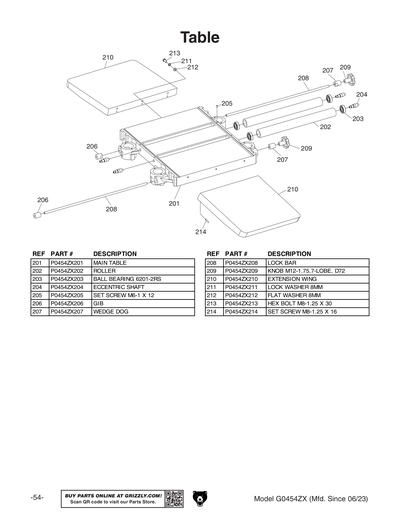

201
MAIN TABLE
Price
$561.50
202
ROLLER
Price
$37.95
203
Price
N/A
204
ECCENTRIC SHAFT
Price
$5.40
205
SET SCREW M6-1 X 12
Price
N/A
206
GIB
Price
$5.40
207
WEDGE DOG
Price
$5.40
208
LOCK BAR
Price
$7.20
209
KNOB M12-1.75,7-LOBE, D72
Price
$4.50
210
EXTENSION WING
Price
$378.85
211
LOCK WASHER 8MM
Price
N/A
212
FLAT WASHER 8MM
Price
N/A
213
HEX BOLT M8-1.25 X 30
Price
N/A
214
SET SCREW M8-1.25 X 16
Price
N/A

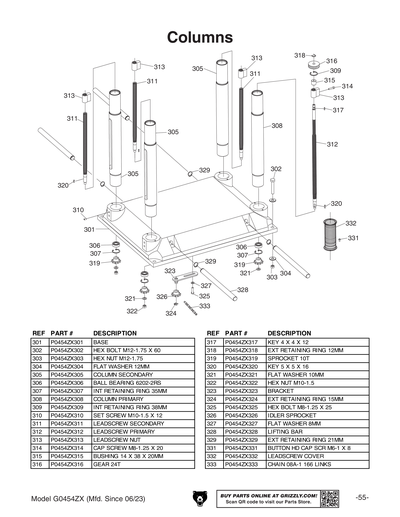

301
BASE
Price
$485.75
302
HEX BOLT M12-1.75 X 60
Price
N/A
303
HEX NUT M12-1.75
Price
N/A
304
FLAT WASHER 12MM
Price
N/A
305
COLUMN SECONDARY
Price
$73.60
306
Price
N/A
307
INT RETAINING RING 35MM
Price
N/A
308
COLUMN PRIMARY
Price
$80.25
309
INT RETAINING RING 38MM
Price
N/A
310
SET SCREW M10-1.5 X 12
Price
N/A
311
LEADSCREW SECONDARY
Price
$24.60
312
LEADSCREW PRIMARY
Price
$33.90
313
LEADSCREW NUT
Price
$12.95
314
CAP SCREW M8-1.25 X 20
Price
N/A
315
BUSHING 14 X 38 X 20MM
Price
$5.40
316
GEAR 24T
Price
$21.00
317
KEY 4 X 4 X 12
Price
$1.90
318
EXT RETAINING RING 12MM
Price
N/A
319
SPROCKET 10T
Price
$9.85
320
KEY 5 X 5 X 16
Price
$1.90
321
FLAT WASHER 10MM
Price
N/A
322
HEX NUT M10-1.5
Price
N/A
323
BRACKET
Price
$6.70
324
EXT RETAINING RING 15MM
Price
N/A
325
HEX BOLT M8-1.25 X 25
Price
N/A
326
IDLER SPROCKET
Price
$9.40
327
FLAT WASHER 8MM
Price
N/A
328
LIFTING BAR
Price
$8.95
329
EXT RETAINING RING 21MM
Price
N/A
331
BUTTON HD CAP SCR M6-1 X 8
Price
N/A
332
LEADSCREW COVER
Price
$18.75
333
CHAIN 08A-1 166 LINKS
Price
$27.20

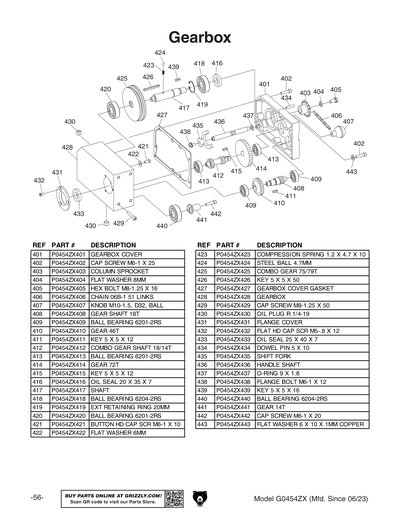

401
GEARBOX COVER
Price
$69.60
402
CAP SCREW M6-1 X 25
Price
N/A
403
COLUMN SPROCKET
Price
$9.40
404
FLAT WASHER 8MM
Price
N/A
405
HEX BOLT M8-1.25 X 16
Price
N/A
406
CHAIN 06B-1 51 LINKS
Price
$10.25
407
KNOB M10-1.5, D32, BALL
Price
$1.90
408
GEAR SHAFT 18T
Price
$20.10
409
Price
N/A
410
GEAR 46T
Price
$34.85
411
KEY 5 X 5 X 12
Price
$1.90
412
COMBO GEAR SHAFT 18/14T
Price
$37.95
413
Price
N/A
414
GEAR 72T
Price
$29.00
415
KEY 5 X 5 X 12
Price
$1.90
416
OIL SEAL 20 X 35 X 7
Price
$1.90
417
SHAFT
Price
$11.65
418
Price
N/A
419
EXT RETAINING RING 20MM
Price
N/A
420
BALL BEARING 6201-2RS
Price
N/A
421
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
422
FLAT WASHER 6MM
Price
N/A
423
COMPRESSION SPRING 1.2 X 4.7 X 10
Price
$1.90
424
STEEL BALL 4.7MM
Price
$1.90
425
COMBO GEAR 75/79T
Price
$138.20
426
KEY 5 X 5 X 50
Price
$1.90
427
GEARBOX COVER GASKET
Price
$4.10
428
GEARBOX
Price
$111.45
429
CAP SCREW M8-1.25 X 50
Price
N/A
430
OIL PLUG R 1/4-19
Price
$1.90
431
FLANGE COVER
Price
$8.10
432
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
433
OIL SEAL 25 X 40 X 7
Price
$1.90
434
DOWEL PIN 5 X 10
Price
$1.90
435
SHIFT FORK
Price
$2.95
436
HANDLE SHAFT
Price
$5.40
437
O-RING 9 X 1.8
Price
$1.90
438
FLANGE BOLT M6-1 X 12
Price
N/A
439
KEY 5 X 5 X 16
Price
$1.90
440
Price
N/A
441
GEAR 14T
Price
$38.40
442
CAP SCREW M6-1 X 20
Price
N/A
443
FLAT WASHER 6 X 10 X 1MM COPPER
Price
$1.90

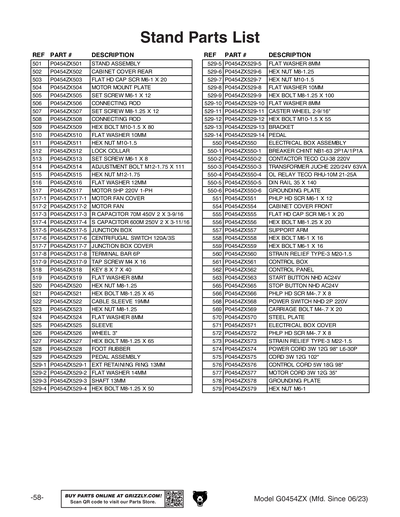

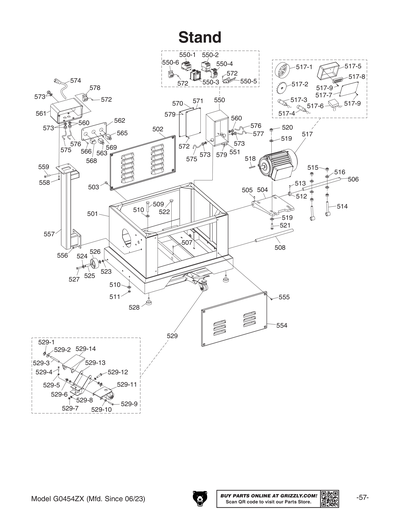

501
STAND
Price
$289.70
502
CABINET COVER REAR
Price
$40.15
503
FLAT HD CAP SCR M6-1 X 20
Price
N/A
504
MOTOR MOUNT PLATE
Price
$66.90
505
SET SCREW M6-1 X 12
Price
N/A
506
CONNECTING ROD
Price
$6.70
507
SET SCREW M8-1.25 X 12
Price
N/A
508
CONNECTING ROD
Price
$6.70
509
HEX BOLT M10-1.5 X 80
Price
N/A
510
FLAT WASHER 10MM
Price
N/A
511
HEX NUT M10-1.5
Price
N/A
512
LOCK COLLAR
Price
$2.25
513
SET SCREW M6-1 X 8
Price
N/A
514
ADJUSTMENT BOLT M12-1.75 X 111
Price
$3.65
515
HEX NUT M12-1.75
Price
N/A
516
FLAT WASHER 12MM
Price
N/A
517
MOTOR 5HP 220V 1-PH
Price
$1,292.35
517-1
MOTOR FAN COVER
Price
$6.70
517-2
MOTOR FAN
Price
$4.50
517-3
R CAPACITOR 70M 450V 2 X 3-9/16
Price
$26.75
517-4
S CAPACITOR 600M 250V 2 X 3-11/16
Price
$34.85
517-5
JUNCTION BOX
Price
$9.85
517-6
CENTRIFUGAL SWITCH 120A/3S
Price
$66.90
517-7
JUNCTION BOX COVER
Price
$1.90
517-8
TERMINAL BAR 6P
Price
$12.95
517-9
TAP SCREW M4 X 16
Price
N/A
518
KEY 8 X 7 X 40
Price
$1.90
519
FLAT WASHER 8MM
Price
N/A
520
HEX NUT M8-1.25
Price
N/A
521
HEX BOLT M8-1.25 X 45
Price
N/A
522
CABLE SLEEVE 19MM
Price
$1.90
523
HEX NUT M8-1.25
Price
N/A
524
FLAT WASHER 8MM
Price
N/A
525
SLEEVE
Price
$4.50
526
WHEEL 3"
Price
$17.90
527
HEX BOLT M8-1.25 X 65
Price
N/A
528
FOOT RUBBER
Price
$2.25
529
PEDAL ASSEMBLY
Price
$124.85
529-1
EXT RETAINING RING 13MM
Price
N/A
529-10
FLAT WASHER 8MM
Price
N/A
529-11
CASTER WHEEL 2-9/16"
Price
$33.45
529-12
HEX BOLT M10-1.5 X 55
Price
N/A
529-13
BRACKET
Price
$26.75
529-14
PEDAL
Price
$20.10
529-2
FLAT WASHER 14MM
Price
N/A
529-3
SHAFT 13MM
Price
$2.25
529-4
HEX BOLT M8-1.25 X 50
Price
N/A
529-5
FLAT WASHER 8MM
Price
N/A
529-6
HEX NUT M8-1.25
Price
N/A
529-7
HEX NUT M10-1.5
Price
N/A
529-8
FLAT WASHER 10MM
Price
N/A
529-9
HEX BOLT M8-1.25 X 100
Price
N/A
550
ELECTRICAL BOX ASSEMBLY
Price
$365.45
550-1
BREAKER CHINT NB1-63 2P1A/1P1A
Price
$43.70
550-2
CONTACTOR TECO CU-38 220V
Price
$147.10
550-3
TRANSFORMER JUCHE 220/24V 63VA
Price
$42.40
550-4
OL RELAY TECO RHU-10M 21-25A
Price
$60.20
550-5
DIN RAIL 35 X 140
Price
$1.90
550-6
GROUNDING PLATE
Price
$4.50
551
PHLP HD SCR M6-1 X 12
Price
N/A
552
FLAT WASHER 8MM
Price
N/A
553
HEX NUT M8-1.25
Price
N/A
554
CABINET COVER FRONT
Price
$37.95
555
FLAT HD CAP SCR M6-1 X 20
Price
N/A
556
HEX BOLT M8-1.25 X 20
Price
N/A
557
SUPPORT ARM
Price
$57.10
558
HEX BOLT M6-1 X 16
Price
N/A
559
HEX BOLT M6-1 X 16
Price
N/A
560
STRAIN RELIEF TYPE-3 M20-1.5
Price
$1.90
561
CONTROL BOX
Price
$42.40
562
CONTROL PANEL
Price
$10.25
563
START BUTTON NHD AC24V
Price
$24.60
565
STOP BUTTON NHD AC24V
Price
$40.15
566
PHLP HD SCR M4-.7 X 8
Price
N/A
568
POWER SWITCH NHD 2P 220V
Price
$57.95
569
PHLP HD SCR M4-.7 X 20
Price
N/A
570
STEEL PLATE
Price
$8.50
571
ELECTRICAL BOX COVER
Price
$11.20
572
PHLP HD SCR M4-.7 X 8
Price
N/A
573
STRAIN RELIEF TYPE-3 M22-1.5
Price
$1.90
574
POWER CORD 3W 12G 98" L6-30P
Price
$38.85
575
CORD 3W 12G 102"
Price
$2.70
576
CONTROL CORD 5W 18G 98"
Price
$1.90
577
MOTOR CORD 3W 12G 35"
Price
$15.65
578
GROUNDING PLATE
Price
$4.50
579
HEX NUT M6-1
Price
N/A

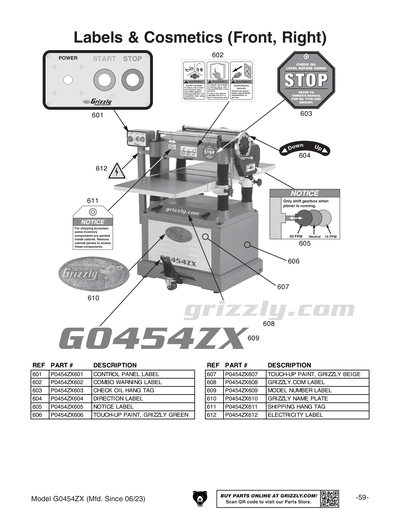

601
CONTROL PANEL LABEL
Price
$10.25
602
COMBO WARNING LABEL
Price
$1.90
603
STOP OIL FILL TAG 4W X 4H
Price
N/A
604
DIRECTION LABEL
Price
$1.90
605
NOTICE LABEL
Price
$1.90
606
N/S GRIZZLY GREEN G1023S
Price
N/A
607
LIGHT BEIGE REF G4003G
Price
N/A
608
GRIZZLY.COM LABEL
Price
$1.90
609
MODEL NUMBER LABEL
Price
$1.49
610
Nameplate - Small
Price
N/A
611
SHIPPING HANG TAG
Price
$1.90
612
ELECTRICITY 1.4W X 1.2H
Price
N/A
613
MACHINE ID LABEL V1
Price
$2.70
613V2
MACHINE ID LABEL V2.02.24
Price
$10.95
614
INJURY HAZARD LABEL
Price
$1.90
615
ELECTRICITY 1.4W X 1.2H
Price
N/A
616
LUBRICATING NOTICE LABEL
Price
$1.90
MAN
MANUAL G0454ZX MFD-06.23-12.23 V1.05.23
Price
$6.45
MANV2
MANUAL G0453ZX/54ZX MFD-01.24+ V2.02.24
Price
$14.65
