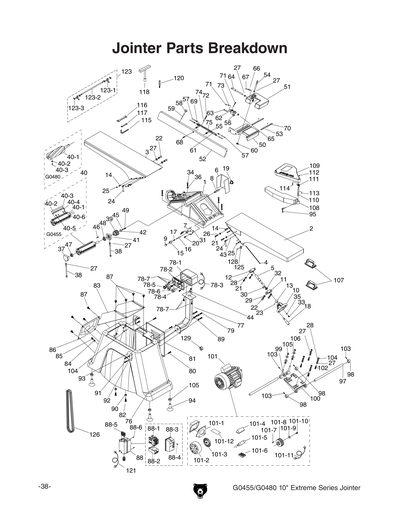

Parts for G0455 10" 4 Blade Cutterhead Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

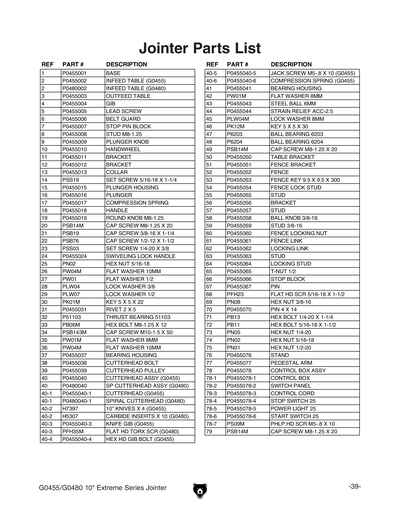

1
*DISCD*BASE
Item is no longer available
Price
N/A
2
*DISCD*INFEED TABLE
Item is no longer available
Price
N/A
3
*DISCD*OUTFEED ROLLER
Item is no longer available
Price
N/A
4
*DISCD*GIB
Item is no longer available
Price
N/A
5
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
6
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
7
*DISCD*STOP PIN BLOCK
Item is no longer available
Price
N/A
8
*DISCD*STANDOFF-HEX STUD M8-1.25
Item is no longer available
Price
N/A
9
*DISCD*PLUNGER KNOB
10
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
11
*DISCD*BRACKET
Item is no longer available
Price
N/A
12
*DISCD*BRACKET
Item is no longer available
Price
N/A
13
*DISCD*COLLAR
Item is no longer available
Price
N/A
14
Now: PSS19
SET SCREW 5/16-18 X 1-1/4
Price
N/A
15
*DISCD*PLUNGER HOUSING
Item is no longer available
Price
N/A
16
PLUNGER
17
COMPRESSION SPRING
18
*DISCD*HANDLE
Item is no longer available
Price
N/A
19
*DISCD*KNOB ROUND M8-1.25
Item is no longer available
Price
N/A
20
CAP SCREW M8-1.25 X 20
Price
N/A
21
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
22
CAP SCREW 1/2-12 X 1-1/2
Price
N/A
23
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
24
*DISCD*SWIVELING LOCK HANDLE 1/4-18 X 1
Item is no longer available
Price
N/A
25
Now: PN02
HEX NUT 5/16-18
Price
N/A
26
Now: PW04M
FLAT WASHER 10MM
Price
N/A
27
Now: PW01
FLAT WASHER 1/2
Price
N/A
28
Now: PLW04
LOCK WASHER 3/8
Price
N/A
29
Now: PLW07
LOCK WASHER 1/2
Price
N/A
30
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
31
*DISCD*RIVET 2 X 5
Item is no longer available
Price
N/A
32
THRUST BEARING 51103
Price
N/A
33
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
34
CAP SCREW M10-1.5 X 50
Price
N/A
35
Now: PW01M
FLAT WASHER 8MM
Price
N/A
36
Now: PW04M
FLAT WASHER 10MM
Price
N/A
37
*DISCD*BEARING HOUSING
38
*DISCD*CUTTERHEAD BOLT
Item is no longer available
Price
N/A
39
*DISCD*CUTTERHEAD PULLEY
40
*DISCD*COMPLETE CUTTERHEAD ASSY
Item is no longer available
Price
N/A
40-1
*DISCD*CUTTERHEAD
Item is no longer available
Price
N/A
40-2
Now: H7397
10" x 3/4" x 1/8" HSS Jointer Knives for G0455, Set of 4
Price
N/A
40-3
*DISCD*KNIFE GIB
Item is no longer available
Price
N/A
40-4
*DISCD*HEX HD BOLT M4 X 8
Price
N/A
40-5
*DISCD*JACK SCREW M5-.8 X 10
40-6
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
41
*DISCD*BEARING HOUSING
42
Now: PW01M
FLAT WASHER 8MM
Price
N/A
43
STEEL BALL 6MM
Price
N/A
44
*DISCD*STRAIN RELIEF ACC-2.5
Item is no longer available
Price
N/A
45
LOCK WASHER 8MM
Price
N/A
46
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
47
BALL BEARING 6203ZZ
Price
N/A
48
BALL BEARING 6204ZZ
Price
N/A
49
CAP SCREW M8-1.25 X 20
Price
N/A
50
*DISCD*TABLE BRACKET
Item is no longer available
Price
N/A
51
*DISCD*FENCE BRACKET
52
*DISCD*FENCE
53
*DISCD*FENCE KEY 9.5 X 9.5 X 300
54
FENCE LOCK SHOULDER STUD
55
*DISCD*STUD
Item is no longer available
Price
N/A
56
*DISCD*BRACKET
Item is no longer available
Price
N/A
57
*DISCD*DOG PT SET SCREW
58
*DISCD*BALL KNOB 3/8-16
59
*DISCD*STUD-UDE 3/8-16X3-3/16 1/4, 3/8
60
FENCE LOCKING NUT
61
*DISCD*FENCE LINK
62
*DISCD*LOCK LINK
63
*DISCD*LOCKING LINK BOLT
64
*DISCD*SHOULDER STUD
65
*DISCD*T-NUT 1/2
Item is no longer available
Price
N/A
66
*DISCD*STOP BLOCK
67
*DISCD*PIN
Item is no longer available
Price
N/A
68
Now: PFH23
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
69
Now: PN08
HEX NUT 3/8-16
Price
N/A
70
*DISCD*PIN 4 X 14
Item is no longer available
Price
N/A
71
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
72
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
73
Now: PN05
HEX NUT 1/4-20
Price
N/A
74
Now: PN02
HEX NUT 5/16-18
Price
N/A
75
Now: PN01
HEX NUT 1/2-20
Price
N/A
76
*DISCD*STAND
77
*DISCD*PEDESTAL ARM
78
*DISCD*CONTROL BOX ASSY
Item is no longer available
Price
N/A
78-1
*DISCD*CONTROL BOX
Item is no longer available
Price
N/A
78-2
*DISCD*SWITCH PANEL
Item is no longer available
Price
N/A
78-3
*DISCD*CONTROL CORD
Item is no longer available
Price
N/A
78-4
*DISCD*E-STOP BUTTON 250V 10A
78-5
*DISCD*POWER LIGHT 25
Item is no longer available
Price
N/A
78-6
*DISCD*START SWITCH 25
Item is no longer available
Price
N/A
78-7
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
79
CAP SCREW M8-1.25 X 20
Price
N/A

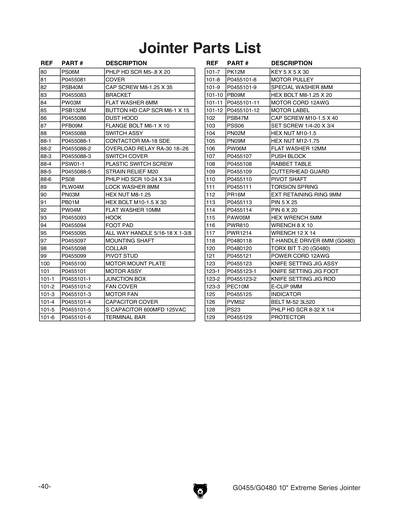

80
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
81
*DISCD*COVER
Item is no longer available
Price
N/A
82
CAP SCREW M8-1.25 X 35
Price
N/A
83
*DISCD*BRACKET
Item is no longer available
Price
N/A
84
Now: PW03M
FLAT WASHER 6MM
Price
N/A
85
BUTTON HD CAP SCR M6-1 X 15
Price
N/A
86
*DISCD*DUST HOOD
Item is no longer available
Price
N/A
87
FLANGE BOLT M6-1 X 10
Price
N/A
88
SWITCH ASSY
88-1
CONTACTOR MA-18 SDE SHERN DIAN
88-2
OL RELAY SDE RA-30 18-26A
88-3
*DISCD*SWITCH COVER
Item is no longer available
Price
N/A
88-4
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
88-5
*DISCD*STRAIN RELIEF M20
Item is no longer available
Price
N/A
88-6
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
89
LOCK WASHER 8MM
Price
N/A
90
Now: PN03M
HEX NUT M8-1.25
Price
N/A
91
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
92
Now: PW04M
FLAT WASHER 10MM
Price
N/A
93
*DISCD*HOOK
Item is no longer available
Price
N/A
94
*DISCD*FOOT PAD
95
*DISCD*ALL WAY HANDLE 5/16-18 X 1-3/8
Item is no longer available
Price
N/A
97
*DISCD*MOUNTING SHAFT
Item is no longer available
Price
N/A
98
*DISCD*COLLAR
Item is no longer available
Price
N/A
99
*DISCD*SLEEVE HEAD STUD
Item is no longer available
Price
N/A
100
*DISCD*MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
101
*DISCD*MOTOR ASSY 3HP 220V 1-PH
Item is no longer available
Price
N/A
101-1
*DISCD*JUNCTION BOX
Item is no longer available
Price
N/A
101-10
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
101-11
*DISCD*MOTOR CORD 12AWG
Item is no longer available
Price
N/A
101-12
*DISCD*MOTOR LABEL
Item is no longer available
Price
N/A
101-2
*DISCD*FAN COVER
Item is no longer available
Price
N/A
101-3
MOTOR FAN
101-4
*DISCD*CAPACITOR COVER
Item is no longer available
Price
N/A
101-5
*DISCD*S CAP. 600M 125V 1-3/4 X 3-9/16
Item is no longer available
Price
N/A
101-6
*DISCD*TERMINAL BAR
Item is no longer available
Price
N/A
101-7
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
101-8
MOTOR PULLEY
101-9
MOTOR PULLEY WASHER 8MM
102
CAP SCREW M10-1.5 X 40
Price
N/A
103
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
104
Now: PN02M
HEX NUT M10-1.5
Price
N/A
105
Now: PN09M
HEX NUT M12-1.75
Price
N/A
106
Now: PW06M
FLAT WASHER 12MM
Price
N/A
107
Now: W1400
Safety Push Block - Small
Price
N/A
108
*DISCD*RABBET TABLE
109
*DISCD*CUTTERHEAD GUARD
110
*DISCD*PIVOT SHAFT
Item is no longer available
Price
N/A
111
TORSION SPRING
112
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
113
PIN 5 X 25
114
PIN 6 X 20
115
HEX WRENCH 5MM
Price
N/A
116
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
117
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
121
*DISCD*POWER CORD 12AWG
Item is no longer available
Price
N/A
123
*DISCD*KNIFE SETTING JIG ASSY
Item is no longer available
Price
N/A
123-1
*DISCD*KNIFE SETTING JIG FOOT
123-2
*DISCD*KNIFE SETTING JIG ROD
Item is no longer available
Price
N/A
123-3
E-CLIP 9MM
Price
N/A
125
*DISCD*INDICATOR
Item is no longer available
Price
N/A
126
Now: PVM52
V-BELT M52 3L520
Price
N/A
128
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
129
*DISCD*PROTECTOR
Item is no longer available
Price
N/A

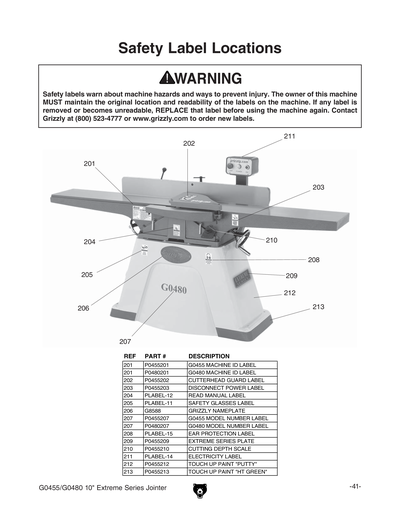

201
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
202
*DISCD*CUTTERHEAD GUARD LABEL
203
*DISCD*DISCONNECT POWER LABEL
Item is no longer available
Price
N/A
204
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
205
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
206
Now: G8588
Nameplate - Small
Price
N/A
207
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
208
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
209
Now: H7942
Extreme Series Nameplate
Price
N/A
210
*DISCD*CUTTING DEPTH SCALE
Item is no longer available
Price
N/A
211
ELECTRICITY 1.4W X 1.2H
Price
N/A
212
*DISCD*TOUCH UP PAINT "PUTTY"
Item is no longer available
Price
N/A
MAN
*DISCD*MANUAL FOR G0455 03/06
Item is no longer available
Price
N/A
