Parts for G0458Z - 18" 1-1/2 HP Open-End Drum Sander w/ VS Feed

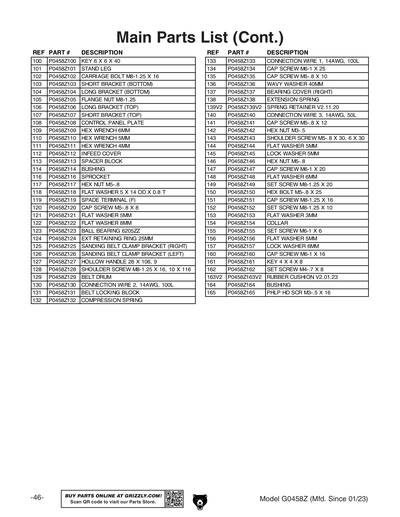

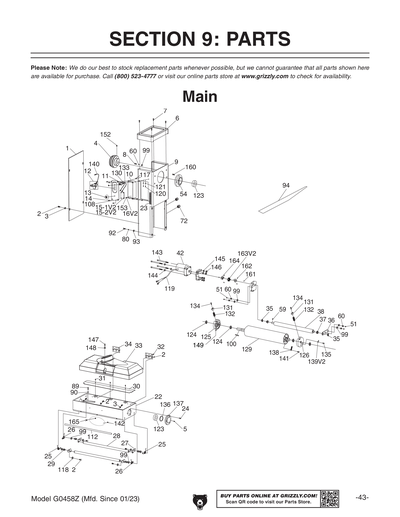

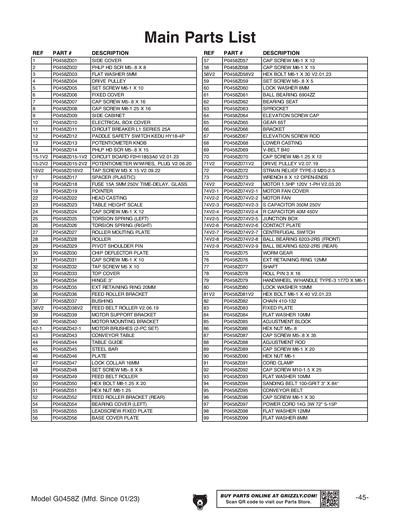

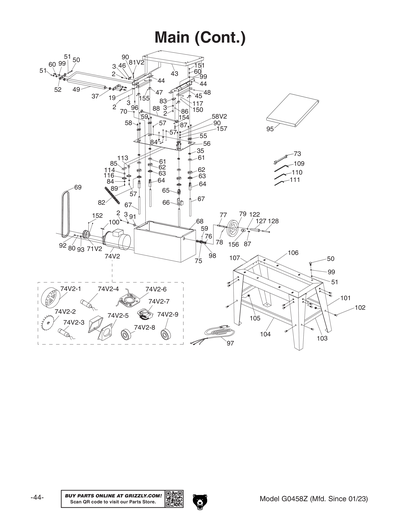

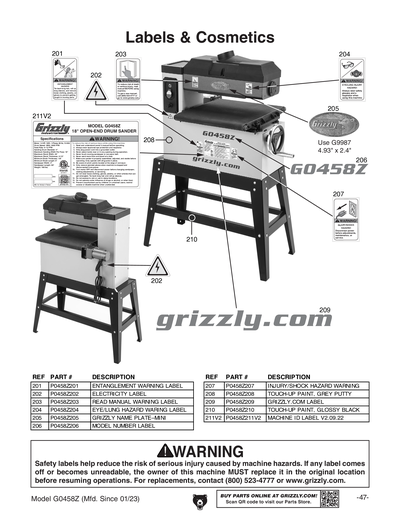

Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z
Part Diagram for G0458Z

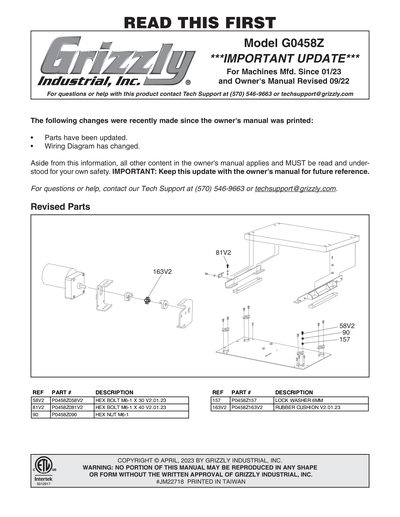

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SIDE COVER
Price
$26.90
2
PHLP HD SCR M5-.8 X 8
Price
N/A
3
FLAT WASHER 5MM
Price
N/A
4
DRIVE PULLEY
Price
$76.40
5
SET SCREW M6-1 X 10
Price
N/A
6
COVER
Price
N/A
7
CAP SCREW M5-.8 X 16
Price
N/A
8
CAP SCREW M8-1.25 X 16
Price
N/A
9
SIDE CABINET
Price
$96.35
10
ELECTRICAL BOX COVER
Price
$4.85
11
CIRCUIT BREAKER L1 SERIES 25A
Price
$8.70
12
PADDLE SAFETY SWITCH KEDU HY18-4P
Price
$9.80
13
POTENTIOMETER KNOB
Price
$2.20
13-1
LOW/HIGH SPEED LABEL
Price
$1.05
14
PHLP HD SCR M5-.8 X 15
Price
N/A
15
*SEE EXTENDED DESCRIPTION*
Item is no longer available
Price
N/A
15-1
CIRCUIT BOARD TN40-55 (JSC)
Price
$35.20
15-1V2
CIRCUIT BOARD F2H11853A0 V2.01.23
Price
$35.20
15-2
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
15-2V2
POTENTIOMETER W/WIRES AND PLUG V2
Price
$47.85
16
TAP SCREW M3.5 X 8
Price
N/A
16V2
TAP SCREW M3 X 15
Price
N/A
19
POINTER
Price
$1.60
22
HEAD CASTING
Price
$161.25
23
TABLE HEIGHT SCALE
Price
$1.60
24
CAP SCREW M6-1 X 12
Price
N/A
25
TORSION SPRING (LEFT)
Price
$1.85
26
TORSION SPRING (RIGHT)
Price
$1.85
27
ROLLER MOUTING PLATE
Price
$4.60
28
ROLLER
Price
$26.90
29
PIVOT SHOULDER PIN
Price
$3.65
30
CHIP DEFLECTOR PLATE
Price
$19.65
31
CAP SCREW M6-1 X 10
Price
N/A
32
TAP SCREW M5 X 10
Price
N/A
33
TOP COVER
Price
$70.70
34
HINGE 3"
Price
$2.20
35
EXT RETAINING RING 20MM
Price
N/A
36
FEED ROLLER BRACKET (REAR)
Price
$3.65
37
BUSHING
Price
$6.40
38
FEED BELT ROLLER
Price
$36.00
38V2
FEED BELT ROLLER V2.06.19
Price
$48.30
39
MOTOR SUPPORT BRACKET
Price
$23.30
40
MOTOR MOUNTING BRACKET
Price
$14.50
41
CAP SCREW M6-1 X 16
Price
N/A
42
FEED MOTOR 1.5HP 110DC
Price
$214.05
42-1
MOTOR BRUSHES (2-PC SET)
Price
$30.55
43
CONVEYOR TABLE
Price
$58.95
44
TABLE GUIDE
Price
$48.05
45
STEEL BAR
Price
$23.30
46
PLATE
Price
$2.45
47
LOCK COLLAR 16MM
Price
$5.50
48
SET SCREW M5-.8 X 8
Price
N/A
49
FEED BELT ROLLER
Price
$36.00
50
HEX BOLT M8-1.25 X 20
Price
N/A
51
HEX NUT M8-1.25
Price
N/A
52
FEED ROLLER BRACKET (FRONT)
Price
$5.10
53
FLAT WASHER 6MM
Price
N/A
54
BEARING COVER (LEFT)
Price
$32.05
55
DUST COVER
Price
N/A
56
BASE COVER PLATE
Price
$44.70
57
CAP SCREW M6-1 X 12
Price
N/A
58
CAP SCREW M6-1 X 15
Price
N/A
58V2
HEX BOLT M6-1 X 30
Price
N/A
59
SET SCREW M5-.8 X 5
Price
N/A
60
LOCK WASHER 8MM
Price
N/A
61
BALL BEARING 6904ZZ
Price
N/A
62
BEARING COVER
Price
N/A
63
SPROCKET
Price
N/A
64
ELEVATION SCREW CAP
Price
$10.90
65
GEAR 65T
Price
$36.90
66
BRACKET
Price
$14.25
67
ELEVATION SCREW ROD
Price
$13.30
68
LOWER CASTING
Price
$142.80
69
V-BELT B40
Price
N/A
70
CAP SCREW M8-1.25 X 12
Price
N/A
71
DRIVE PULLEY V1
Price
$156.75
71V2
DRIVE PULLEY V2.07.19
Price
$61.60
72
STRAIN RELIEF TYPE-3 M20-2.5
Price
$4.85
73
WRENCH 8 X 12 OPEN-ENDS
Price
$12.40
74
MOTOR 1.5HP 120V 1-PH V1
Price
$343.25
74-1
MOTOR FAN COVER
Price
$12.75
74-2
MOTOR FAN
Price
$2.75
74-3
S CAPACITOR 350M 125V 1-5/16" X 3-1/2"
Price
$18.15
74-4
R CAPACITOR 40M 250V 1-5/8" X 3-1/8"
Price
$12.20
74-5
JUNCTION BOX
Price
$17.25
74-6
CONTACT PLATE
Price
$6.70
74-7
CENTRIFUGAL SWITCH
Price
$7.25
74-8
BALL BEARING 6204-2RS
Price
N/A
74V2
MOTOR 1.5HP 120V 1-PH V2.03.20
Price
$281.10
74V2-1
MOTOR FAN COVER
Price
$6.70
74V2-2
MOTOR FAN
Price
$11.50
74V2-3
S CAPACITOR 350M 250V
Price
$32.40
74V2-4
R CAPACITOR 40M 450V
Price
$16.35
74V2-5
*DISCD*JUNCTION BOX
Item is no longer available
Price
N/A
74V2-6
CONTACT PLATE
Price
$10.75
74V2-7
CENTRIFUGAL SWITCH
Price
$10.75
74V2-8
BALL BEARING 6203-2RS
Price
N/A
74V2-9
BALL BEARING 6202-2RS
Price
N/A
75
WORM GEAR
Price
$40.20
76
EXT RETAINING RING 12MM
Price
N/A
77
SHAFT
Price
$5.15
78
ROLL PIN 3 X 16
Price
N/A
79
HANDWHEEL TYPE-3 177D X M6-1
Price
$22.30
80
LOCK WASHER 10MM
Price
N/A
81
HEX BOLT M6-1 X 45
Price
N/A
81V2
HEX BOLT M6-1 X 40
Price
N/A
82
CHAIN 410-132
Price
$36.00
83
FIXED PLATE
Price
$4.85
84
FLAT WASHER 10MM
Price
N/A
85
ADJUSTMENT BLOCK
Price
$4.30
86
HEX NUT M5-.8
Price
N/A
87
CAP SCREW M5-.8 X 35
Price
N/A
88
ADJUSTMENT ROD
Price
$6.40
89
CAP SCREW M6-1 X 20
Price
N/A
90
HEX NUT M6-1
Price
N/A
91
CORD CLAMP
Price
$1.60
92
CAP SCREW M10-1.5 X 25
Price
N/A
93
FLAT WASHER 10MM
Price
N/A
94
SANDPAPER
Price
N/A
95
CONVEYOR BELT V2.11.16
Price
N/A
96
CAP SCREW M6-1 X 30
Price
N/A
97
POWER CORD 14G 3W 72" 5-15P
Price
$24.50
98
FLAT WASHER 12MM
Price
N/A
99
FLAT WASHER 8MM
Price
N/A
100
KEY 6 X 6 X 40
Price
N/A
101
STAND LEG
Price
$29.65
102
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
103
SHORT BRACKET (BOTTOM)
Price
$10.90
104
LONG BRACKET (BOTTOM)
Price
$23.30
105
FLANGE NUT M8-1.25
Price
N/A
106
LONG BRACKET (TOP)
Price
$32.35
107
SHORT BRACKET (TOP)
Price
$13.60
108
CONTROL PANEL PLATE
Price
$3.05
109
HEX WRENCH 6MM
Price
N/A
110
HEX WRENCH 5MM
Price
N/A
111
HEX WRENCH 4MM
Price
N/A
112
INFEED COVER
Price
$19.65
113
SPACER BLOCK
Price
$3.05
114
BUSHING
Price
$2.20
115
FLAT WASHER 6MM
Price
N/A
116
SPROCKET
Price
$2.45
117
HEX NUT M5-.8
Price
N/A
118
FLAT WASHER 5 X 14 OD X 0.8 T
Price
$1.60
119
SPADE TERMINAL (F)
Price
$1.60
120
CAP SCREW M5-.8 X 8
Price
N/A
121
FLAT WASHER 5MM
Price
N/A
122
FLAT WASHER 8MM
Price
N/A
123
BALL BEARING 6205ZZ
Price
N/A
124
EXT RETAINING RING 25MM
Price
N/A
125
SANDING BELT CLAMP BRACKET (LEFT)
Price
$30.85
126
SANDING BELT CLAMP BRACKET (RIGHT)
Price
$29.15
127
HOLLOW HANDLE 26 X 106, 9
Price
$16.15
128
SHOULDER SCREW M8-1.25 X 16, 10 X 116
Price
$3.05
129
BELT DRUM
Price
$106.00
130
CONNECTION WIRE 2, 14AWG, 100L
Price
$1.60
131
LOCKING BLOCK
Price
N/A
132
COMPRESSION SPRING
Price
N/A
133
CONNECTION WIRE 1, 14AWG, 100L
Price
$1.85
134
CAP SCREW M6-1 X 25
Price
N/A
135
CAP SCREW M5-.8 X 10
Price
N/A
136
WAVY WASHER 40MM
Price
$1.60
137
BEARING COVER
Price
N/A
138
EXTENSION SPRING
Price
$1.60
139
*DISCD*SPRING RETAINER V1
Item is no longer available
Price
N/A
139V2
SPRING RETAINER V2.11.20
Price
$1.60
140
CONNECTION WIRE 3, 14AWG, 50L
Price
$1.60
141
CAP SCREW M5-.8 X 12
Price
N/A
142
HEX NUT M3-.5
Price
N/A
143
SHOULDER SCREW M5-.8 X 30, 6 X 30
Price
$1.60
144
FLAT WASHER 5MM
Price
N/A
145
LOCK WASHER 5MM
Price
N/A
146
HEX NUT M5-.8
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
148
FLAT WASHER 6MM
Price
N/A
149
SET SCREW M8-1.25 X 20
Price
N/A
150
HEX BOLT M5-.8 X 25
Price
N/A
151
CAP SCREW M8-1.25 X 16
Price
N/A
152
SET SCREW M8-1.25 X 10
Price
N/A
153
FLAT WASHER 3MM
Price
N/A
154
COLLAR
Price
$3.65
155
SET SCREW M6-1 X 6
Price
N/A
156
FLAT WASHER 5MM
Price
N/A
157
LOCK WASHER 6MM
Price
N/A
160
CAP SCREW M6-1 X 16
Price
N/A
161
KEY 4 X 4 X 8
Price
N/A
162
SET SCREW M4-.7 X 8
Price
N/A
163
RUBBER CUSHION V2.01.23
Price
N/A
163V2
RUBBER CUSHION V2.01.23
Price
$1.60
164
BUSHING
Price
$3.05
165
PHLP HD SCR M3-.5 X 16
Price
N/A
201
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
202
ELECTRICITY 1.4W X 1.2H
Price
N/A
203
READ MANUAL 1.5W X 2.5H
Price
N/A
204
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
205
Nameplate - Mini
Price
N/A
206
MODEL NUMBER LABEL
Price
$1.60
207
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
208
GREY PUTTY REF G0504
Price
N/A
209
GRIZZLY.COM LABEL
Price
$2.40
210
GLOSSY BLACK
Price
N/A
211
MACHINE ID LABEL V1
Price
$16.40
211V2
MACHINE ID LABEL V2.09.22
Price
$4.75
MAN
MANUAL G0458Z MFD-12.17-06.19 V1.02.18
Price
$18.25
MANV2
MANUAL G0458Z MFD-07.19-02.20 V2.10.19
Price
$18.25
MANV3
MANUAL G0458Z MFD-03.20-08.22 V3.02.21
Price
$12.25
MANV4
MANUAL G0458Z MFD-09.22+ V3.02.22
Price
$21.95
