Parts for G0460 12" 5 HP Single-Phase Sliding Table Saw

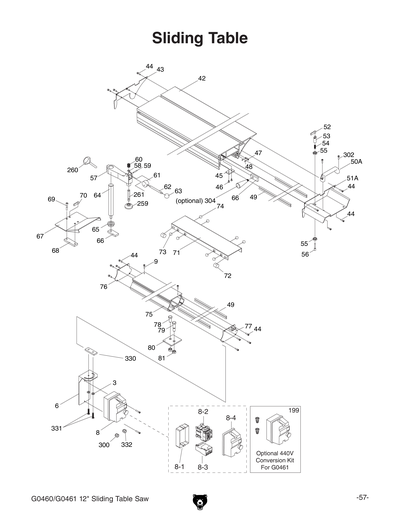

Parts Diagrams for G0460 - 12" 5 HP Single-Phase Sliding Table Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

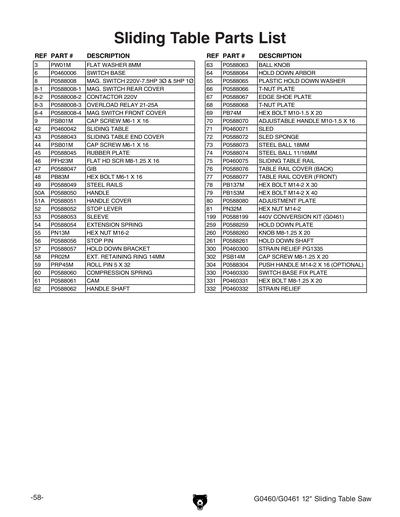

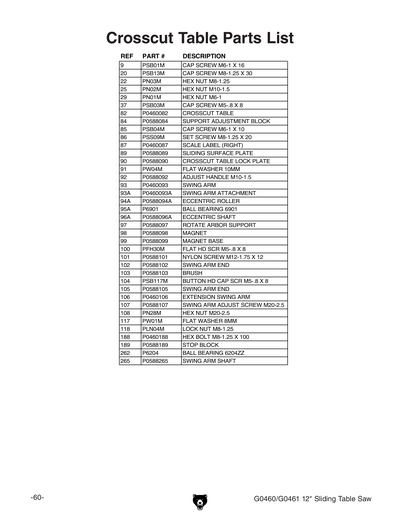

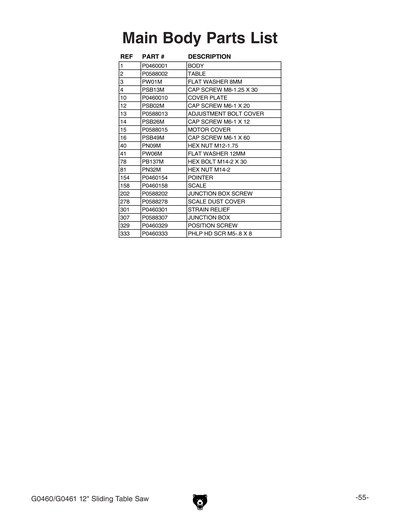

Parts List for Parts for G0460 12" 5 HP Single-Phase Sliding Table Saw

132-1
SCALE INDICATOR WINDOW
$3.45
Enter quantity between 1 and 99
132-2
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
138
KNOB SHAFT W/GEAR
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0460 01/07
$14.65
Enter quantity between 1 and 99
