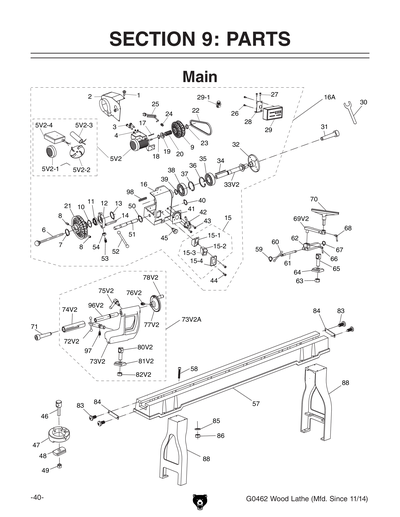

Parts for G0462 - 16" x 46" Wood Lathe with DRO
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

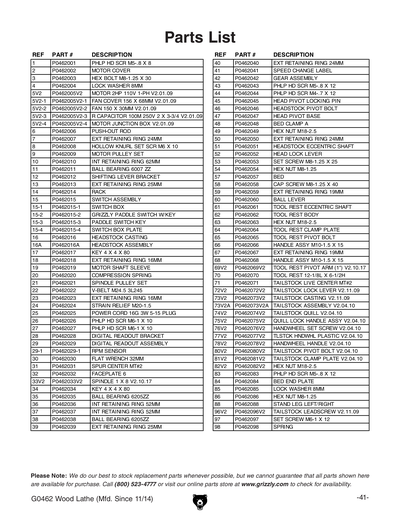

| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| G0462 | P0462001 | PHLP HD SCR M5-.8 X 8 | $1.00 | ||
| G0462 | P0462002 | MOTOR COVER | $13.25 | ||
| G0462 | P0462003 | HEX BOLT M8-1.25 X 30 | $1.00 | ||
| G0462 | P0462004 | LOCK WASHER 8MM | $1.00 | ||
| G0462 | P0462005 |
*DISCD*MOTOR 2HP 1PH 110V V1.12.05
|
N/A | ||
| G0462 | P0462005-1 | *DISCD*FAN COVER 156 X 63MM V1.12.05 | $4.25 | ||
| G0462 | P0462005-1V2 | FAN COVER 156 X 68MM V2.01.09 | $9.25 | ||
| G0462 | P0462005-2 | FAN 120MM V1.12.05 | $4.25 | ||
| G0462 | P0462005-2V2 | FAN 150 X 30MM V2.01.09 | $6.75 | ||
| G0462 | P0462005-3 |
CAPACITOR COVER 54 X 108MM V1.12.05
|
N/A | ||
| G0462 | P0462005-3V2 | MOTOR JUNCTION BOX V2.01.09 | $9.75 | ||
| G0462 | P0462005-4 |
*DISCD*S CAPACITOR 300M 300V 1-1/2 X 3 V1.12.05
|
N/A | ||
| G0462 | P0462005-4V2 | R. CAPACITOR 100UF 250V 1-3/8" X 2-3/4" V2.01.09 | $15.50 | ||
| G0462 | P0462005-5 | R CAPACITOR 80M 300V 2 X 3-3/4 | $16.50 | ||
| G0462 | P0462005-6 |
R CAPACITOR COVER 125 X 59MM V1.12.05
|
N/A | ||
| G0462 | P0462005-7V2 | MOTOR JUNCTION BOX V2.01.09 | $9.75 | ||
| G0462 | P0462005-8V2 | MOTOR JUNCTION BOX TOP | $2.75 | ||
| G0462 | P0462005V2 | MOTOR 2HP 110V 1-PH V2.01.09 | $248.60 | ||
| G0462 | P0462005V2-1 | FAN COVER 156 X 68MM V2.01.09 | $9.25 | ||
| G0462 | P0462005V2-2 | FAN 150 X 30MM V2.01.09 | $6.75 | ||
| G0462 | P0462005V2-3 | R CAPACITOR 100M 250V 2 X 3-3/4 V2.01.09 | $15.50 | ||
| G0462 | P0462005V2-4 | MOTOR JUNCTION BOX V2.01.09 | $9.75 | ||
| G0462 | P0462006 | PUSH-OUT ROD | $4.50 | ||
| G0462 | P0462007 | EXT RETAINING RING 24MM | $1.00 | ||
| G0462 | P0462008 | HOLLOW KNURL SET SCR M6 X 10 | $1.25 | ||
| G0462 | P0462009 | MOTOR PULLEY SET | $35.50 | ||
| G0462 | P0462010 | INT RETAINING RING 62MM | $1.75 | ||
| G0462 | P0462011 | BALL BEARING 6007ZZ | $5.25 | ||
| G0462 | P0462012 | SHIFTING LEVER BRACKET | $10.31 | ||
| G0462 | P0462013 | EXT RETAINING RING 35MM | $1.50 | ||
| G0462 | P0462014 | RACK | $5.31 | ||
| G0462 | P0462015 | SWITCH ASSEMBLY | $53.25 | ||
| G0462 | P0462015-1 | SWITCH BOX | $5.50 | ||
| G0462 | P0462015-2 | Safety Paddle Switch | $7.95 | ||
| G0462 | P0462015-3 | PADDLE SWITCH KEY | $3.75 | ||
| G0462 | P0462015-4 | SWITCH BOX PLATE | $6.00 | ||
| G0462 | P0462016 |
HEADSTOCK CASTING
|
N/A | ||
| G0462 | P0462016A | HEADSTOCK ASSEMBLY | $450.00 | ||
| G0462 | P0462017 | KEY 4 X 4 X 80 | $1.25 | ||
| G0462 | P0462018 | EXT RETAINING RING 16MM | $1.00 | ||
| G0462 | P0462019 | SLEEVE | $2.00 | ||
| G0462 | P0462020 | COMPRESSION SPRING | $2.00 | ||
| G0462 | P0462021 | SPINDLE PULLEY SET | $43.75 | ||
| G0462 | P0462022 | V-BELT MX24.5, COGGED | $6.60 | ||
| G0462 | P0462023 | EXT RETAINING RING 16MM | $1.00 | ||
| G0462 | P0462024 | STRAIN RELIEF M20 TYPE-6 ST | $1.25 | ||
| G0462 | P0462025 | POWER CORD 16G 3W 5-15 PLUG | $15.00 | ||
| G0462 | P0462026 | PHLP HD SCR M6-1 X 10 | $1.00 | ||
| G0462 | P0462027 | PHLP HD SCR M6-1 X 10 | $1.00 | ||
| G0462 | P0462028 | DIGITAL READOUT BRACKET | $6.25 | ||
| G0462 | P0462029 | DIGITAL READOUT ASSEMBLY | $68.25 | ||
| G0462 | P0462029-1 | RPM SENSOR | $31.75 | ||
| G0462 | P0462029-2 | *DISCD*READOUT/PICKUP CABLE | $0.00 | ||
| G0462 | P0462030 | FLAT WRENCH 32MM | $4.75 | ||
| G0462 | P0462031 | SPUR CENTER MT#2 | $12.75 | ||
| G0462 | P0462032 | FACEPLATE 6" | $21.50 | ||
| G0462 | P0462033 | SPINDLE 1 X 8" V2.10.17 | $46.25 | ||
| G0462 | P0462033-1 | SPINDLE MAGNET 1-6/16 X 1-1/2" DIA | $5.75 | ||
| G0462 | P0462033V2 | SPINDLE 1 X 8" V2.10.17 | $46.25 | ||
| G0462 | P0462034 | KEY 4 X 4 X 80 | $1.25 | ||
| G0462 | P0462035 | BALL BEARING 6205ZZ | $9.50 | ||
| G0462 | P0462036 | INT RETAINING RING 52MM | $1.75 | ||
| G0462 | P0462037 | INT RETAINING RING 52MM | $1.75 | ||
| G0462 | P0462038 | BALL BEARING 6205ZZ | $9.50 | ||
| G0462 | P0462039 | EXT RETAINING RING 25MM | $1.25 | ||
| G0462 | P0462040 | EXT RETAINING RING 24MM | $1.00 | ||
| G0462 | P0462041 | SPEED CHANGE LABEL | $1.00 | ||
| G0462 | P0462042 | GEAR ASSEMBLY | $10.50 | ||
| G0462 | P0462043 | PHLP HD SCR M5-.8 X 12 | $1.00 | ||
| G0462 | P0462044 | PHLP HD SCR M4-.7 X 12 | $1.00 | ||
| G0462 | P0462045 | SWIVEL PIN ASSEMBLY | $10.25 | ||
| G0462 | P0462046 | HEADSTOCK PIVOT BOLT | $4.25 | ||
| G0462 | P0462047 | TURNING BASE | $10.25 | ||
| G0462 | P0462048 | BED CLAMP A | $2.50 | ||
| G0462 | P0462049 | HEX NUT M18-2.5 | $1.00 | ||
| G0462 | P0462050 | EXT RETAINING RING 24MM | $1.00 | ||
| G0462 | P0462051 | HEADSTOCK ECCENTRIC SHAFT | $11.00 | ||
| G0462 | P0462052 | HEAD LOCK LEVER | $5.31 | ||
| G0462 | P0462053 | SET SCREW M8-1.25 X 25 | $1.00 | ||
| G0462 | P0462054 | HEX NUT M8-1.25 | $1.00 | ||
| G0462 | P0462055 | PHLP HD SCR M5-.8 X 12 | $1.00 | ||
| G0462 | P0462056 |
BAFFLE
P0462056 Replaced By P0584039
|
N/A | ||
| G0462 | P0462057 | BED | $512.00 | ||
| G0462 | P0462058 | CAP SCREW M8-1.25 X 40 | $1.00 | ||
| G0462 | P0462059 | EXT RETAINING RING 19MM | $1.00 | ||
| G0462 | P0462060 | BALL LEVER | $4.25 | ||
| G0462 | P0462061 | ECCENTRIC ROD | $15.94 | ||
| G0462 | P0462062 | TOOL REST BODY | $21.75 | ||
| G0462 | P0462062V2 | TOOL REST BODY (1" HOLE) V2.10.17 | $21.75 | ||
| G0462 | P0462063 | HEX NUT M18-2.5 | $1.00 | ||
| G0462 | P0462064 | TOOL REST CLAMP PLATE | $5.31 | ||
| G0462 | P0462065 | TOOL REST PIVOT BOLT | $5.31 | ||
| G0462 | P0462066 | HANDLE ASSY M10-1.5 X 15 | $9.69 | ||
| G0462 | P0462067 | EXT RETAINING RING 19MM | $1.00 | ||
| G0462 | P0462068 | HANDLE ASSY M10-1.5 X 15 | $9.69 | ||
| G0462 | P0462069 | EXTENSION TOOL REST | $19.50 | ||
| G0462 | P0462069V2 | TOOL REST PIVOT ARM (1") V2.10.17 | $19.50 | ||
| G0462 | P0462070 | TOOL REST (25MM POST) V1 | $21.50 | ||
| G0462 | P0462070V2 | TOOL REST (1" POST) V2.10.17 | $15.50 | ||
| G0462 | P0462071 | TAILSTOCK LIVE CENTER MT#2 | $8.25 | ||
| G0462 | P0462072 | TAILSTOCK LOCK LEVER V1.12.05 | $5.00 | ||
| G0462 | P0462072V2 | TAILSTOCK LOCK LEVER V2.04.10 | $11.00 | ||
| G0462 | P0462073 | TAILSTOCK CASTING V1.12.05 | $34.50 | ||
| G0462 | P0462073AV2 | TAILSTOCK ASSEMBLY V2.11.09 | $158.12 | ||
| G0462 | P0462073V2 | TAILSTOCK CASTING V2.04.10 | $59.00 | ||
| G0462 | P0462073V2A | TAILSTOCK ASSEMBLY V2.11.09 | $158.12 | ||
| G0462 | P0462074 | TAILSTOCK QUILL V1.12.05 | $8.44 | ||
| G0462 | P0462074V2 | TAILSTOCK QUILL V2.04.10 | $17.81 | ||
| G0462 | P0462075 | QUILL LOCKING SCREW V1.12.05 | $1.25 | ||
| G0462 | P0462075V2 | QUILL LOCK HANDLE ASSY V2.04.10 | $3.50 | ||
| G0462 | P0462076 | CONE SET SCREW V1.12.05 | $1.25 | ||
| G0462 | P0462076V2 | HANDWHEEL SET SCREW V2.04.10 | $1.00 | ||
| G0462 | P0462077 | TAILSTOCK HANDWHEEL CAST IRON V1.12.05 | $12.00 | ||
| G0462 | P0462077V2 | TAILSTOCK HANDWHEEL PLASTIC V2.04.10 | $4.50 | ||
| G0462 | P0462077V2A | TAILSTOCK HANDWHEEL W/HANDLE ASSY V2.11.09 | $16.50 | ||
| G0462 | P0462078 | HANDWHEEL HANDLE V1.12.05 | $2.50 | ||
| G0462 | P0462078V2 |
***USE P0462077V2A***
|
N/A | ||
| G0462 | P0462079 | EXT RETAINING RING 10MM | $1.00 | ||
| G0462 | P0462080 | TAILSTOCK PIVOT BOLT M10-1.5 V1.12.05 | $2.75 | ||
| G0462 | P0462080V2 | TAILSTOCK PIVOT BOLT V2.04.10 | $4.75 | ||
| G0462 | P0462081 | TAILSTOCK CLAMP PLATE V1.12.05 | $4.25 | ||
| G0462 | P0462081V2 | TAILSTOCK CLAMP PLATE V2.04.10 | $3.75 | ||
| G0462 | P0462082 | HEX NUT M10-1.5 | $1.00 | ||
| G0462 | P0462082V2 | HEX NUT M18-2.5 | $1.00 | ||
| G0462 | P0462083 | PHLP HD SCR M5-.8 X 12 | $1.00 | ||
| G0462 | P0462084 | BED END PLATE | $1.56 | ||
| G0462 | P0462085 | LOCK WASHER 8MM | $1.00 | ||
| G0462 | P0462086 | HEX NUT M8-1.25 | $1.00 | ||
| G0462 | P0462087 | STAND LEG LEFT/RIGHT | $176.00 | ||
| G0462 | P0462087A | COMPLETE LEG ASSY BOX 2 | $214.50 | ||
| G0462 | P0462088 | STAND LEG LEFT/RIGHT | $176.00 | ||
| G0462 | P0462088A | COMPLETE LEG ASSY BOX 2 | $214.50 | ||

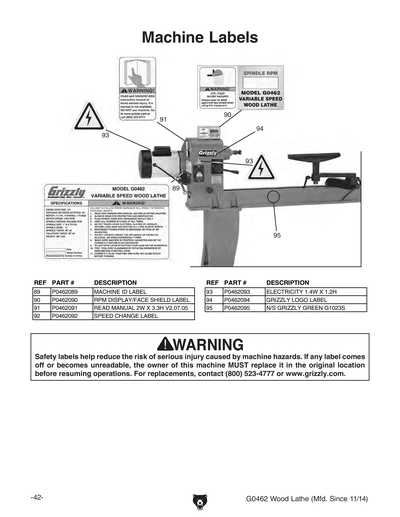

| G0462 | P0462089 | MACHINE ID LABEL | $9.50 | ||
| G0462 | P0462090 | RPM DISPLAY/FACE SHIELD LABEL | $1.00 | ||
| G0462 | P0462091 | READ MANUAL 2W X 3.3H V2.07.05 | $2.50 | ||
| G0462 | P0462092 | SPEED CHANGE LABEL | $1.00 | ||
| G0462 | P0462093 | ELECTRICITY 1.4W X 1.2H | $2.50 | ||
| G0462 | P0462094 | GRIZZLY LOGO LABEL | $4.00 | ||
| G0462 | P0462095 | N/S GRIZZLY GREEN G1023S | $6.50 | ||
| G0462 | P0462096 | TAILSTOCK LEADSCREW V2.11.09 | $10.31 | ||
| G0462 | P0462096V2 | TAILSTOCK LEADSCREW V2.11.09 | $10.31 | ||
| G0462 | P0462097 | SET SCREW M6-1 X 12 | $1.00 | ||
| G0462 | P0462098 |
SPRING
|
N/A | ||
| G0462 | P0462MANUAL | MANUAL FOR G0462 04/10 | $11.50 |
