Parts for G0466 - 4-Gallon 1.5 HP Air Compressor

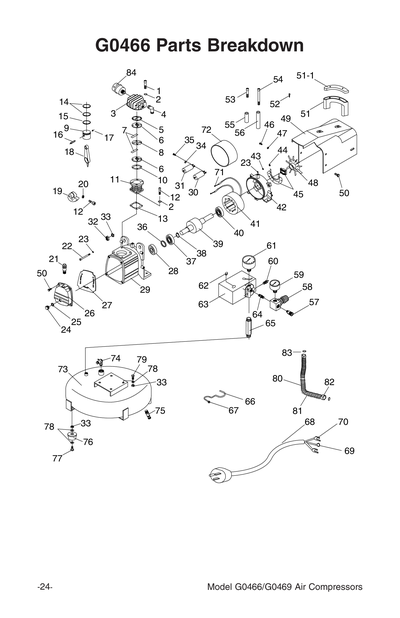

Part Diagram for G0466
Part Diagram for G0466

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
CAP SCREW M6-1 X 30
Price
N/A
2
LOCK WASHER 6MM
Price
N/A
3
*DISCD*CYLINDER HEAD
Item is no longer available
Price
N/A
4
*DISCD*EXHAUST ELBOW
Item is no longer available
Price
N/A
5
*DISCD*HEAD GASKET
Item is no longer available
Price
N/A
6
*DISCD*VALVE PLATE
Item is no longer available
Price
N/A
7
*DISCD*VALVE REED
Item is no longer available
Price
N/A
8
*DISCD*VALVE PLATE GASKET
Item is no longer available
Price
N/A
9
*DISCD*PISTON
Item is no longer available
Price
N/A
10
*DISCD*UPPER CYLINDER GASKET
Item is no longer available
Price
N/A
11
*DISCD*CYLINDER
Item is no longer available
Price
N/A
12
CAP SCREW M6-1 X 20
Price
N/A
13
*DISCD*CYLINDER GASKET LOWER
Item is no longer available
Price
N/A
14
*DISCD*COMPRESSION RING
Item is no longer available
Price
N/A
15
*DISCD*OIL SCRAPER RING
Item is no longer available
Price
N/A
16
*DISCD*PISTON PIN
Item is no longer available
Price
N/A
17
EXT RETAINING RING 12MM
Price
N/A
18
*DISCD*CONNECTING ROD
Item is no longer available
Price
N/A
19
*DISCD*ECCENTRIC
Item is no longer available
Price
N/A
20
HEX NUT M6-1
Price
N/A
21
*DISCD*OIL FILL CAP
Price
N/A
22
*DISCD*HEX BOLT M5-.8 X 155
Item is no longer available
Price
N/A
23
FLAT WASHER 5MM
Price
N/A
24
*DISCD*OIL SIGHT GAUGE
Item is no longer available
Price
N/A
25
*DISCD*OIL SIGHT GAUGE SEAL
Item is no longer available
Price
N/A
26
*DISCD*CRANKCASE COVER
Item is no longer available
Price
N/A
27
*DISCD*COVER GASKET
Item is no longer available
Price
N/A
28
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
29
*DISCD*CRANKCASE
Item is no longer available
Price
N/A
30
*DISCD*START CAPACITOR 200M 125V
Price
N/A
31
*DISCD*R CAP 40M 250V 1-5/8 X 4-1/4"
Price
N/A
32
HEX NUT M8-1.25
Price
N/A
33
FLAT WASHER 8MM
Price
N/A
34
LOCK WASHER 3MM
Price
N/A
35
PHLP HD SCR M3-.5 X 6
Price
N/A
36
*DISCD*WAVY WASHER 17MM
Price
N/A
37
BALL BEARING 6203ZZ
Price
N/A
38
EXT RETAINING RING 17MM
Price
N/A
39
*DISCD*ROTOR
Item is no longer available
Price
N/A
40
BALL BEARING 6004ZZ
Price
N/A
41
Price
$50.60
42
*DISCD*MOTOR COVER REAR
Item is no longer available
Price
N/A
43
LOCK WASHER 5MM
Price
N/A
44
HEX NUT M5-.8
Price
N/A
45
*DISCD*CENTRIFIGAL SWITCH
Item is no longer available
Price
N/A
46
TAP SCREW M4 X 10
Price
N/A
47
LOCK WASHER 4MM
Price
N/A
48
Price
$1.49
49
*DISCD*COVER
Item is no longer available
Price
N/A
50
HEX BOLT M5-.8 X 16
Price
N/A
51
*DISCD*HANDLE GRIP
Item is no longer available
Price
N/A
51-1
Price
$1.49
52
TAP SCREW M4 X 10
Price
N/A
53
CAP SCREW M6-1 X 35
Price
N/A
54
*DISCD*CAP SCREW M6-1 X 95
Item is no longer available
Price
N/A
55
*DISCD*SLEEVE
Item is no longer available
Price
N/A
56
*DISCD*SLEEVE
Item is no longer available
Price
N/A
57
*DISCD*QUICK CONNECT FEMALE
Item is no longer available
Price
N/A
58
*DISCD*PRESSURE REGULATOR
Item is no longer available
Price
N/A
59
*DISCD*PRESSURE GAUGE
Item is no longer available
Price
N/A
60
*DISCD*SAFETY VALVE
Item is no longer available
Price
N/A
61
*DISCD*PRESSURE GAUGE
Price
N/A
62
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
63
*DISCD*PRESSURE SWITCH
Item is no longer available
Price
N/A
64
*DISCD*CONNECT NPT 1/4
Item is no longer available
Price
N/A
65
Price
$1.49
66
*DISCD*PRESSURE RELIEF TUBE
Item is no longer available
Price
N/A
67
*DISCD*COMPRESSION NUT
Item is no longer available
Price
N/A
68
*DISCD*POWER CORD 14GA
Item is no longer available
Price
N/A
69
*DISCD*CABLE CONNECTOR O
Item is no longer available
Price
N/A
70
*DISCD*CABLE CONNECTOR U
Item is no longer available
Price
N/A
71
*DISCD*CABLE CONNECTOR O
Item is no longer available
Price
N/A
72
*DISCD*MOTOR COVER
Item is no longer available
Price
N/A
73
*DISCD*TANK
Item is no longer available
Price
N/A
74
Price
$4.05
75
*DISCD*DRAIN VALVE NPT 1/4
Price
N/A
76
*DISCD*FOOT
Price
N/A
77
HEX BOLT M8-1.25 X 20
Price
N/A
78
FLAT WASHER 8MM
Price
N/A
79
HEX BOLT M8-1.25 X 25
Price
N/A
80
*DISCD*OUTLET TUBE 10MM
Item is no longer available
Price
N/A
81
*DISCD*FIN TUBING
Item is no longer available
Price
N/A
82
*DISCD*EXHAUST NUT
Item is no longer available
Price
N/A
83
FLAT WASHER 10MM
Price
N/A
84
*DISCD*AIR FILTER KIT
Price
N/A
1101
MACHINE FRAME
Price
N/A
MAN
MANUAL FOR G0466 07/05
Item is no longer available
Price
N/A
