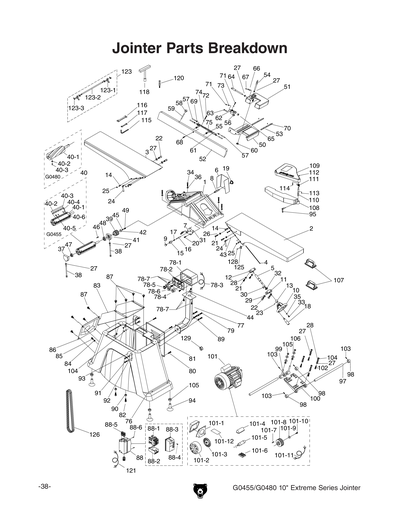

Parts for G0480 10" Spiral Cutterhead Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*BASE
Price
N/A
2
INFEED TABLE
Item is no longer available
Price
N/A
3
*DISCD*OUTFEED ROLLER
Price
N/A
4
*DISCD*GIB
Price
N/A
5
*DISCD*LEADSCREW
Price
N/A
6
*DISCD*BELT GUARD
Price
N/A
7
*DISCD*STOP PIN BLOCK
Price
N/A
8
*DISCD*STANDOFF-HEX STUD M8-1.25
Price
N/A
9
*DISCD*PLUNGER KNOB
Price
N/A
10
*DISCD*HANDWHEEL
Price
N/A
11
*DISCD*BRACKET
Price
N/A
12
*DISCD*BRACKET
Price
N/A
13
*DISCD*COLLAR
Price
N/A
14
Now: PSS19
SET SCREW 5/16-18 X 1-1/4
Price
N/A
15
*DISCD*PLUNGER HOUSING
Price
N/A
16
PLUNGER
Price
N/A
17
COMPRESSION SPRING
Price
N/A
18
*DISCD*HANDLE
Price
N/A
19
*DISCD*KNOB ROUND M8-1.25
Price
N/A
20
CAP SCREW M8-1.25 X 20
Price
N/A
21
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
22
CAP SCREW 1/2-12 X 1-1/2
Price
N/A
23
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
24
*DISCD*SWIVELING LOCK HANDLE 1/4-18 X 1
Price
N/A
25
Now: PN02
HEX NUT 5/16-18
Price
N/A
26
Now: PW04M
FLAT WASHER 10MM
Price
N/A
27
Now: PW01
FLAT WASHER 1/2
Price
N/A
28
Now: PLW04
LOCK WASHER 3/8
Price
N/A
29
Now: PLW07
LOCK WASHER 1/2
Price
N/A
30
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
31
*DISCD*RIVET 2 X 5
Price
N/A
32
THRUST BEARING 51103
Price
N/A
33
Now: PB06M
HEX BOLT M8-1.25 X 12
Price
N/A
34
CAP SCREW M10-1.5 X 50
Price
N/A
35
Now: PW01M
FLAT WASHER 8MM
Price
N/A
36
Now: PW04M
FLAT WASHER 10MM
Price
N/A
37
*DISCD*BEARING HOUSING
Price
N/A
38
*DISCD*CUTTERHEAD BOLT
Price
N/A
39
*DISCD*CUTTERHEAD PULLEY
Price
N/A
40
CUTTERHEAD ASSY V1.10.05
Item is no longer available
Price
N/A
40-1
SPIRAL CUTTERHEAD V1.10.05
Item is no longer available
Price
N/A
40-1V2
SPIRAL CUTTERHEAD V2.05.08
Item is no longer available
Price
N/A
40-2
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
40-2V2
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
40-3
FLAT HD TORX T20 M6-1 X 15
Price
N/A
40-3V2
Now: PFH32
FLAT HEAD TORX 10-32 X 1/2
Price
N/A
40V2
CUTTERHEAD ASSY V2.05.08
Item is no longer available
Price
N/A
41
*DISCD*BEARING HOUSING
Price
N/A
42
Now: PW01M
FLAT WASHER 8MM
Price
N/A
43
STEEL BALL 6MM
Price
N/A
44
*DISCD*STRAIN RELIEF ACC-2.5
Price
N/A
45
LOCK WASHER 8MM
Price
N/A
46
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
47
BALL BEARING 6203ZZ
Price
N/A
48
BALL BEARING 6204ZZ
Price
N/A
49
CAP SCREW M8-1.25 X 20
Price
N/A
50
*DISCD*TABLE BRACKET
Price
N/A
51
*DISCD*FENCE BRACKET
Price
N/A
52
*DISCD*FENCE
Price
N/A
53
*DISCD*FENCE KEY 9.5 X 9.5 X 300
Price
N/A
54
FENCE LOCK SHOULDER STUD
Price
N/A
55
*DISCD*STUD
Price
N/A
56
*DISCD*BRACKET
Price
N/A
57
*DISCD*DOG PT SET SCREW
Price
N/A
58
*DISCD*BALL KNOB 3/8-16
Price
N/A
59
*DISCD*STUD-UDE 3/8-16X3-3/16 1/4, 3/8
Price
N/A
60
FENCE LOCKING NUT
Price
N/A
61
*DISCD*FENCE LINK
Price
N/A
62
*DISCD*LOCK LINK
Price
N/A
63
*DISCD*LOCKING LINK BOLT
Price
N/A
64
*DISCD*SHOULDER STUD
Price
N/A
65
*DISCD*T-NUT 1/2
Price
N/A
66
*DISCD*STOP BLOCK
Price
N/A
67
*DISCD*PIN
Price
N/A
68
Now: PFH23
FLAT HD SCR 5/16-18 X 1-1/2
Price
N/A
69
Now: PN08
HEX NUT 3/8-16
Price
N/A
70
*DISCD*PIN 4 X 14
Price
N/A
71
Now: PB13
HEX BOLT 1/4-20 X 1-1/4
Price
N/A
72
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
73
Now: PN05
HEX NUT 1/4-20
Price
N/A
74
Now: PN02
HEX NUT 5/16-18
Price
N/A
75
Now: PN01
HEX NUT 1/2-20
Price
N/A
76
*DISCD*STAND
Price
N/A
77
*DISCD*PEDESTAL ARM
Price
N/A
78
*DISCD*CONTROL BOX ASSY
Price
N/A
78-1
*DISCD*CONTROL BOX
Price
N/A
78-2
*DISCD*SWITCH PANEL
Price
N/A
78-3
*DISCD*CONTROL CORD
Price
N/A
78-4
*DISCD*E-STOP BUTTON 250V 10A
Price
N/A
78-5
*DISCD*POWER LIGHT 25
Price
N/A
78-6
*DISCD*START SWITCH 25
Price
N/A
78-7
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
79
CAP SCREW M8-1.25 X 20
Price
N/A
80
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
81
*DISCD*COVER
Price
N/A
82
CAP SCREW M8-1.25 X 35
Price
N/A
83
*DISCD*BRACKET
Price
N/A
84
Now: PW03M
FLAT WASHER 6MM
Price
N/A
85
BUTTON HD CAP SCR M6-1 X 15
Price
N/A
86
*DISCD*DUST HOOD
Price
N/A
87
FLANGE BOLT M6-1 X 10
Price
N/A
88
SWITCH ASSY
Price
N/A
88-1
CONTACTOR MA-18 SDE SHERN DIAN
Price
N/A
88-2
OL RELAY SDE RA-30 18-26A
Price
N/A
88-3
*DISCD*SWITCH COVER
Price
N/A
88-4
WHITE SWITCH COVER SCREW V1.12.95
Price
N/A
88-5
*DISCD*STRAIN RELIEF M20
Price
N/A
88-6
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
89
LOCK WASHER 8MM
Price
N/A
90
Now: PN03M
HEX NUT M8-1.25
Price
N/A
91
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
92
Now: PW04M
FLAT WASHER 10MM
Price
N/A
93
*DISCD*HOOK
Price
N/A
94
*DISCD*FOOT PAD
Price
N/A
95
*DISCD*ALL WAY HANDLE 5/16-18 X 1-3/8
Price
N/A
97
*DISCD*MOUNTING SHAFT
Price
N/A
98
*DISCD*COLLAR
Price
N/A
99
*DISCD*SLEEVE HEAD STUD
Price
N/A
100
*DISCD*MOTOR MOUNTING PLATE
Price
N/A
101
*DISCD*MOTOR ASSY 3HP 220V 1-PH
Price
N/A
101-1
*DISCD*JUNCTION BOX
Price
N/A
101-10
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
101-11
*DISCD*MOTOR CORD 12AWG
Price
N/A
101-12
*DISCD*MOTOR LABEL
Price
N/A
101-2
*DISCD*FAN COVER
Price
N/A
101-3
MOTOR FAN
Price
N/A
101-4
*DISCD*CAPACITOR COVER
Price
N/A
101-5
*DISCD*S CAP. 600M 125V 1-3/4 X 3-9/16
Price
N/A
101-6
*DISCD*TERMINAL BAR
Price
N/A
101-7
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
101-8
MOTOR PULLEY
Price
N/A
101-9
MOTOR PULLEY WASHER 8MM
Price
N/A
102
CAP SCREW M10-1.5 X 40
Price
N/A
103
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
104
Now: PN02M
HEX NUT M10-1.5
Price
N/A
105
Now: PN09M
HEX NUT M12-1.75
Price
N/A
106
Now: PW06M
FLAT WASHER 12MM
Price
N/A
107
Now: W1400
Safety Push Block - Small
Price
N/A
108
*DISCD*RABBET TABLE
Price
N/A
109
*DISCD*CUTTERHEAD GUARD
Price
N/A
110
*DISCD*PIVOT SHAFT
Price
N/A
111
TORSION SPRING
Price
N/A
112
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
113
PIN 5 X 25
Price
N/A
114
PIN 6 X 20
Price
N/A
115
HEX WRENCH 5MM
Price
N/A
116
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
117
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
118
T-HANDLE TORX DRIVE T-20
Price
N/A
118V2
T-HANDLE TORX DRIVER T-25
Price
N/A
120
Now: PBT01
TORX BIT T-20
Price
N/A
120V2
Now: PBT02
TORX BIT T-25
Price
N/A
121
*DISCD*POWER CORD 12AWG
Price
N/A
125
*DISCD*INDICATOR
Price
N/A
126
Now: PVM52
V-BELT M52 3L520
Price
N/A
128
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
129
*DISCD*PROTECTOR
Price
N/A

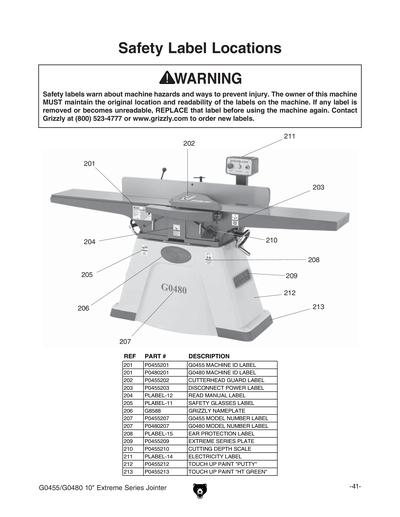

201
MACHINE ID LABEL
Item is no longer available
Price
N/A
202
*DISCD*CUTTERHEAD GUARD LABEL
Price
N/A
203
*DISCD*DISCONNECT POWER LABEL
Price
N/A
204
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
205
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
206
Now: G8588
Nameplate - Small
Price
N/A
207
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
208
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
209
Now: H7942
Extreme Series Nameplate
Price
N/A
210
*DISCD*CUTTING DEPTH SCALE
Price
N/A
211
ELECTRICITY 1.4W X 1.2H
Price
N/A
212
*DISCD*TOUCH UP PAINT "PUTTY"
Price
N/A
213
*DISCD*TOUCH UP PAINT HT GREEN
Price
N/A
MAN
MANUAL FOR G0480 03/06
Item is no longer available
Price
N/A
