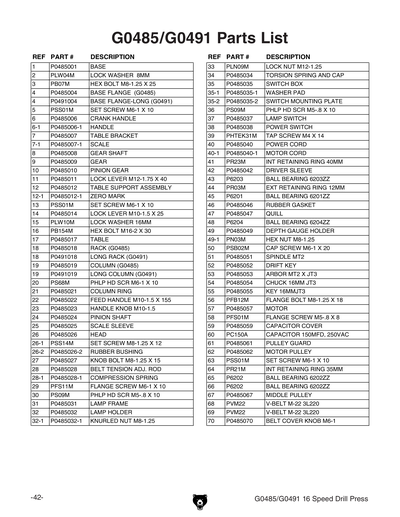

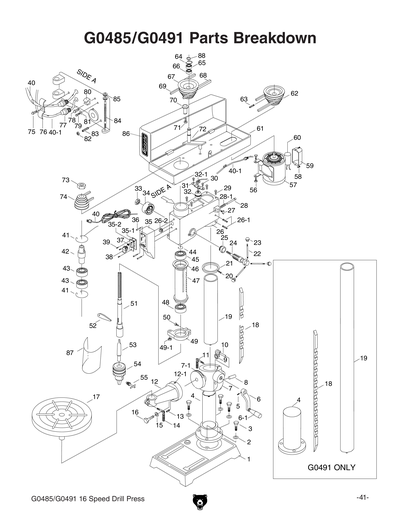

Parts for G0485 13" Bench Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*BASE
Item is no longer available
Price
N/A
2
LOCK WASHER 8MM
Price
N/A
3
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
4
*DISCD*BASE FLANGE
5
SET SCREW M6-1 X 10
Price
N/A
6
*DISCD*CRANK HANDLE
Item is no longer available
Price
N/A
6-1
*DISCD*HANDLE
7
*DISCD*TABLE BRACKET
Item is no longer available
Price
N/A
7-1
*DISCD*SCALE
8
*DISCD*GEAR SHAFT
9
*DISCD*GEAR
10
*DISCD*PINION GEAR
Item is no longer available
Price
N/A
11
*DISCD*LOCK LEVER M12-1.75 X 40
12
*DISCD*TABLE SUPPORT ASSEMBLY
Item is no longer available
Price
N/A
12-1
*DISCD*ZERO MARK
13
SET SCREW M6-1 X 10
Price
N/A
14
*DISCD*LOCK LEVER M10-1.5 X 25
15
LOCK WASHER 16MM
Price
N/A
16
HEX BOLT M16-2 X 30
Price
N/A
17
*DISCD*TABLE
Item is no longer available
Price
N/A
18
*DISCD*RACK
Item is no longer available
Price
N/A
19
*DISCD*COLUMN
Item is no longer available
Price
N/A
20
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
21
*DISCD*COLUMN RING
Item is no longer available
Price
N/A
22
*DISCD*FEED HANDLE M10-1.5 X 155
Item is no longer available
Price
N/A
23
*DISCD*HANDLE KNOB M10-1.5
Item is no longer available
Price
N/A
24
*DISCD*PINION SHAFT
25
*DISCD*SCALE SLEEVE
26
*DISCD*HEAD
Item is no longer available
Price
N/A
26-1
SET SCREW M8-1.25 X 12
Price
N/A
26-2
*DISCD*RUBBER BUSHING
Item is no longer available
Price
N/A
27
*DISCD*KNOB BOLT M8-1.25 X 15
Item is no longer available
Price
N/A
28
*DISCD*BELT TENSION ADJ ROD
Item is no longer available
Price
N/A
28-1
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
29
FLANGE SCREW M6-1 X 10
Price
N/A
30
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
31
*DISCD*LAMP FRAME
Item is no longer available
Price
N/A
32
*DISCD*LAMP HOLDER
Item is no longer available
Price
N/A
32-1
*DISCD*KNURLED NUT M8-1.25
Item is no longer available
Price
N/A
33
LOCK NUT M12-1.75
Price
N/A
34
*DISCD*TORSION SPRING AND CAP
35
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
35-1
*DISCD*WASHER PAD
35-2
*DISCD*SWITCH MOUNTING PLATE
Item is no longer available
Price
N/A
36
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
37
*DISCD*LAMP SWITCH
Item is no longer available
Price
N/A
38
Now: G8988
Safety Paddle Switch
Price
N/A
39
TAP SCREW M4 X 14
Price
N/A
40
*DISCD*POWER CORD
Item is no longer available
Price
N/A
40-1
*DISCD*MOTOR CORD
Item is no longer available
Price
N/A
41
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
42
*DISCD*DRIVER SLEEVE
Item is no longer available
Price
N/A
43
BALL BEARING 6203ZZ
Price
N/A
44
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
45
BALL BEARING 6201ZZ
Price
N/A
46
*DISCD*RUBBER GASKET
Item is no longer available
Price
N/A
47
*DISCD*QUILL
Item is no longer available
Price
N/A
48
BALL BEARING 6204ZZ
Price
N/A
49
*DISCD*DEPTH GAUGE HOLDER
Item is no longer available
Price
N/A
49-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
50
CAP SCREW M6-1 X 20
Price
N/A
51
*DISCD*SPINDLE MT2
Item is no longer available
Price
N/A
52
*DISCD*DRIFT KEY
Item is no longer available
Price
N/A
53
*DISCD*ARBOR MT2 X JT3
Item is no longer available
Price
N/A
54
*DISCD*CHUCK 16MM JT3
Item is no longer available
Price
N/A
55
*DISCD*KEY 16MM JT3
Item is no longer available
Price
N/A
56
FLANGE BOLT M8-1.25 X 18
Price
N/A
57
*DISCD*MOTOR 1/2HP 1PH 110/220V
Item is no longer available
Price
N/A
58
FLANGE SCREW M5-.8 X 8
Price
N/A
59
*DISCD*CAPACITOR COVER
60
*DISCD*S CAPACITOR 150M 250V
Price
N/A
61
*DISCD*PULLEY GUARD
62
*DISCD*MOTOR PULLEY
63
SET SCREW M6-1 X 10
Price
N/A
64
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
65
BALL BEARING 6202ZZ
Price
N/A
66
BALL BEARING 6202ZZ
Price
N/A
67
*DISCD*PULLEY MIDDLE
Item is no longer available
Price
N/A
68
Now: PVM22
V-BELT M22 3L220
Price
N/A
69
Now: PVM22
V-BELT M22 3L220
Price
N/A
70
*DISCD*BELT COVER KNOB M6-1

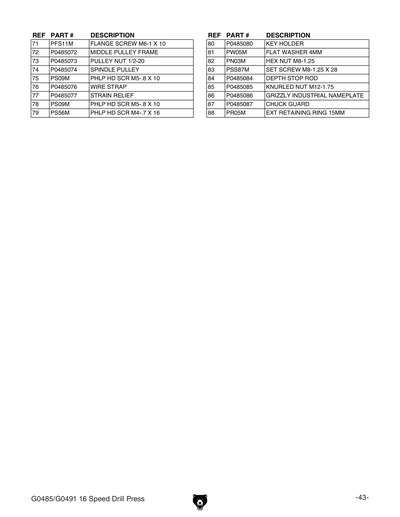

71
FLANGE SCREW M6-1 X 10
Price
N/A
72
*DISCD*PULLEY FRAME MIDDLE
Item is no longer available
Price
N/A
73
*DISCD*PULLEY NUT M25 X 1.5
Item is no longer available
Price
N/A
74
*DISCD*SPINDLE PULLEY
75
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
76
*DISCD*WIRE STRAP
Item is no longer available
Price
N/A
77
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
78
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
79
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
80
*DISCD*KEY HOLDER
Item is no longer available
Price
N/A
81
Now: PW05M
FLAT WASHER 4MM
Price
N/A
82
Now: PN03M
HEX NUT M8-1.25
Price
N/A
83
SET SCREW M8-1.25 X 28
Price
N/A
84
*DISCD*DEPTH STOP ROD
85
*DISCD*KNURLED NUT M12-1.75
Item is no longer available
Price
N/A
86
*DISCD*GRIZZLY INDUSTRIAL NAMEPLATE
87
*DISCD*CHUCK GUARD
Item is no longer available
Price
N/A
88
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
90

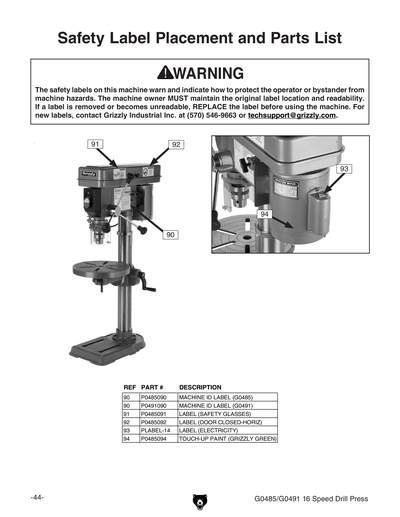

*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
91
*DISCD*SAFETY GLASSES LABEL
92
*DISCD*DOOR CLOSED HORIZONTAL
93
ELECTRICITY 1.4W X 1.2H
Price
N/A
94
N/S GRIZZLY GREEN G1023S
Price
N/A
95
*DISCD*SPEED CHART
MAN
*DISCD*MANUAL FOR G0485 11/05
Item is no longer available
Price
N/A
