Parts for G0486 - 43" 25 HP 3-Phase Double Wide-Belt Sander

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

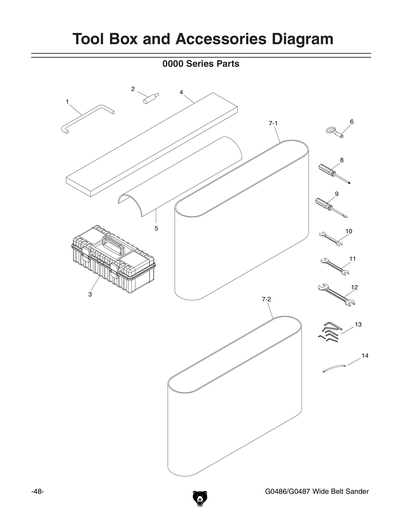

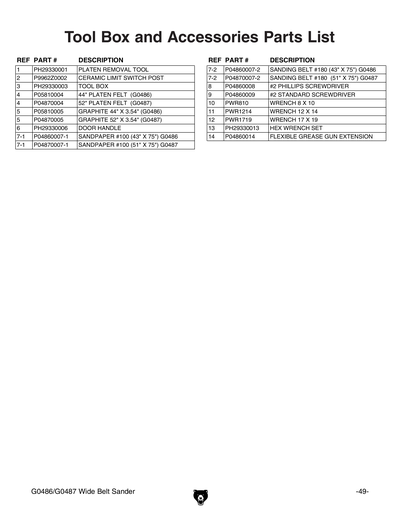

Ref # Part # Description Price Qty
1 P04860001
Replaced By PH29330001
*DISCD*FELT PLATEN REMOVAL TOOL
N/A View Replacement
2 P04860002
Replaced By P9962Z0002
LIMIT SWITCH CERAMIC TIP
N/A View Replacement
3 P04860003
Replaced By PH29330003
TOOL BOX
N/A View Replacement
4 P04860004
Replaced By P05815303
FELT PLATEN PAD 44"
N/A View Replacement
5 P04860005
Replaced By P05815304
GRAPHITE PAD 44" X 3.54"
N/A View Replacement
6 P04860006
Replaced By PH29330006
DOOR HANDLE
N/A View Replacement
7-1 P04860007-1 SANDPAPER #100 43 X 75" $100.00
7-2 P04860007-2 SANDING BELT #180 43 X 75" $71.50
8 P04860008
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
N/A View Replacement
9 P04860009
Replaced By PSDF2
SCREWDRIVER FLAT #2
N/A View Replacement
10 P04860010
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
11 P04860011
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
12 P04860012
Replaced By PWR1719
WRENCH 17 X 19MM OPEN-ENDS
N/A View Replacement
13 P04860013
Replaced By PH29330013
HEX WRENCH SET
N/A View Replacement
14 P04860014 FLEXIBLE GREASE GUN EXTENSION $8.50

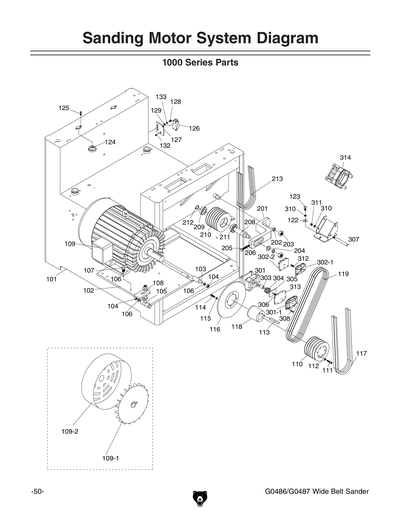

1102 P04861102
Replaced By P05811102
MOTOR BASE
N/A View Replacement
1103 P04861103
Replaced By P05811103
MOTOR BASE HINGE
N/A View Replacement
1104 P04861104
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
1105 P04861105
Replaced By PH29331105
MOTOR BASE ADJUSTMENT ROD
N/A View Replacement
1106 P04861106
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
1107 P04861107
Replaced By PB41
HEX BOLT 1/2-12 X 1-1/2
N/A View Replacement
1108 P04861108
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
1109 P04861109
Replaced By P99791109
MOTOR 25HP 220V/440V 3-PH
N/A View Replacement
1109-1 P04861109-1
Replaced By P99791109-1
FAN
N/A View Replacement
1109-2 P04861109-2
Replaced By P99791109-2
FAN COVER
N/A View Replacement
1110 P04861110
Replaced By P05811110
PULLEY 5" X 5
N/A View Replacement
1111 P04861111
Replaced By PCAP11
CAP SCREW 5/16-18 X 1-1/4
N/A View Replacement
1112 P04861112
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
1113 P04861113
Replaced By PH29331113
KEY 8 X 12 X 105
N/A View Replacement
1114 P04861114
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
1115 P04861115
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
1116 P04861116
Replaced By PH29331116
ROTOR
N/A View Replacement
1117 P04861117
Replaced By PVB76
V-BELT B76
N/A View Replacement
1118 P04861118
Replaced By P05811118
PULLEY BUSHING
N/A View Replacement
1119 P04861119
Replaced By PVA50
V-BELT A50
N/A View Replacement
1121 P04861121 BRAKE BRACKET $36.00
1122 P04861122
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
1123 P04861123
Replaced By PB21
HEX BOLT 3/8-16 X 3/4
N/A View Replacement
1124 P04861124 FLAT HEAD NUT $7.50
1125 P04861125
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
1126 P04861126 LIMIT SWITCH $57.00
1127 P04861127 LIMIT SWITCH PLATE $15.50
1128 P04861128
Replaced By PB19
HEX BOLT 1/4-20 X 1/2
N/A View Replacement
1129 P04861129
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
1132 P04861132
Replaced By PFH12M
FLAT HD SCR M6-1 X 25
N/A View Replacement
1133 P04861133
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
1201 P04861201 IDLE WHEEL ADJ BRACKET $36.00
1202 P04861202
Replaced By PLW10
LOCK WASHER 3/4
N/A View Replacement
1203 P04861203
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
1204 P04861204
Replaced By PW13
FLAT WASHER 3/4
N/A View Replacement
1205 P04861205
Replaced By PB84
HEX BOLT 3/8-16 X 3-1/2
N/A View Replacement
1206 P04861206
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
1208 P04861208 IDLE WHEEL SHAFT $38.00
1209 P04861209
Replaced By P6305ZZ
BALL BEARING 6305ZZ
N/A View Replacement
1210 P04861210 PULLEY $151.50
1211 P04861211
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
1212 P04861212
Replaced By PR11M
EXT RETAINING RING 25MM
N/A View Replacement
1213 P04861213
Replaced By PVA40
V-BELT A40
N/A View Replacement
1301 P04861301 BRAKE BRACKET $168.00
1301-1 P04861301-1 BRAKE BRACKET FRONT GUARD $50.00
1302-1 P04861302-1 BRAKE LINING $28.50
1302-2 P04861302-2 BRAKE LINING $28.50
1303 P04861303 BRAKE ARBOR $25.50
1304 P04861304 BRAKE COMPRESSION SPRING $5.50
1305 P04861305 BRAKE INSIDE PIECE $25.50
1306 P04861306
Replaced By PFH04
FLAT HD SCR 1/4-20 X 5/8
N/A View Replacement
1307 P04861307 BRAKE PIN $7.25
1308 P04861308
Replaced By PCAP31
CAP SCREW 10-24 X 5/8
N/A View Replacement
1310 P04861310
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
1311 P04861311
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
1312 P04861312
Replaced By PCAP01
CAP SCREW 1/4-20 X 5/8
N/A View Replacement
1313 P04861313 BRAKE GASKET $9.50
1314 P04861314 BRAKE ASSEMBLY $346.00

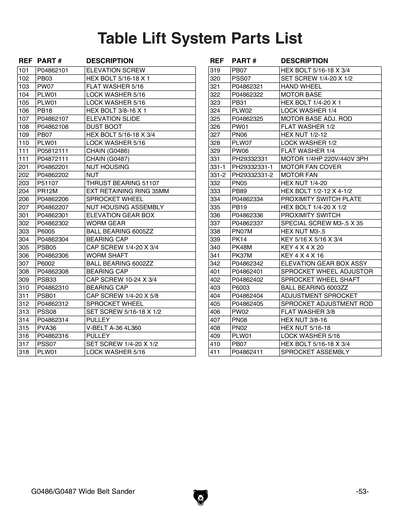

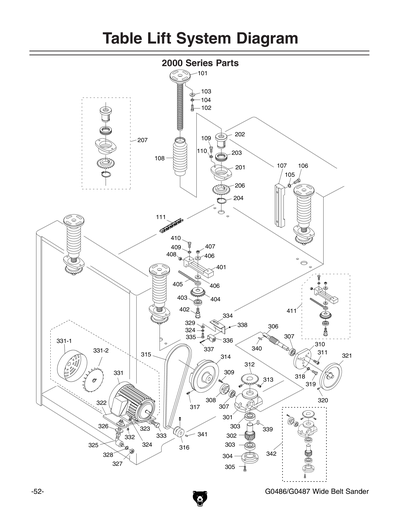

2101 P04862101 ELEVATION SCREW $192.00
2102 P04862102
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
2103 P04862103
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
2104 P04862104
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2105 P04862105
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2106 P04862106
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
2107 P04862107 ELEVATION SLIDE $60.00
2108 P04862108 DUST BOOT $44.00
2109 P04862109
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
2110 P04862110
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2111 P04862111
Replaced By P05812111
CHAIN 1/2"
N/A View Replacement
2201 P04862201 NUT HOUSING $18.00
2202 P04862202 NUT $40.00
2203 P04862203
Replaced By P51107
THRUST BEARING 51107
N/A View Replacement
2204 P04862204
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
2206 P04862206 SPROCKET WHEEL $18.75
2207 P04862207 NUT HOUSING ASSEMBLY $90.50
2301 P04862301 ELEVATION GEAR BOX $100.00
2302 P04862302 WORM GEAR $60.00
2303 P04862303
Replaced By P6005ZZ
BALL BEARING 6005ZZ
N/A View Replacement
2304 P04862304 BEARING CAP $40.00
2305 P04862305
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
2306 P04862306 WORM SHAFT $60.00
2307 P04862307
Replaced By P6002ZZ
BALL BEARING 6002ZZ
N/A View Replacement
2308 P04862308 BEARING CAP $40.00
2309 P04862309
Replaced By PCAP33
CAP SCREW 10-24 X 3/4
N/A View Replacement
2310 P04862310 BEARING CAP $50.00
2311 P04862311
Replaced By PCAP01
CAP SCREW 1/4-20 X 5/8
N/A View Replacement
2312 P04862312 SPROCKET WHEEL $60.00
2313 P04862313
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
N/A View Replacement
2314 P04862314 PULLEY $75.00
2315 P04862315
Replaced By PVA36
V-BELT A36
N/A View Replacement
2316 P04862316 PULLEY $45.50
2317 P04862317
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
2318 P04862318
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2319 P04862319
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
2320 P04862320
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
2321 P04862321 HAND WHEEL $80.50
2322 P04862322 MOTOR BASE $58.00
2323 P04862323
Replaced By PB31
HEX BOLT 1/4-20 X 1
N/A View Replacement
2324 P04862324
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
2325 P04862325 MOTOR BASE ADJUSTMENT ROD $4.00
2326 P04862326
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
2327 P04862327
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
2328 P04862328
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
2329 P04862329
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
2331 P04862331
Replaced By PH29332331
MOTOR 1/4HP 220V/440V 3-PH
N/A View Replacement
2331-1 P04862331-1
Replaced By PH29332331-1
MOTOR FAN COVER
N/A View Replacement
2331-2 P04862331-2
Replaced By PH29332331-2
MOTOR FAN
N/A View Replacement
2332 P04862332
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
2333 P04862333
Replaced By PB89
HEX BOLT 1/2-12 X 4-1/2
N/A View Replacement
2334 P04862334 PROXIMITY SWITCH PLATE $5.50
2335 P04862335
Replaced By PB19
HEX BOLT 1/4-20 X 1/2
N/A View Replacement
2336 P04862336 PROXIMITY SWITCH $88.50
2337 P04862337 PROXIMITY SWITCH SCREW M3-.5 X 35 $3.00
2338 P04862338
Replaced By PN07M
HEX NUT M3-.5
N/A View Replacement
2339 P04862339
Replaced By PK14
KEY 5/16 X 5/16 X 3/4
N/A View Replacement
2340 P04862340
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
2341 P04862341
Replaced By PK37M
KEY 4 X 4 X 16
N/A View Replacement
2342 P04862342 ELEVATION GEAR BOX ASSEMBLY $382.50
2401 P04862401 SPROCKET WHEEL ADJUSTOR $178.00
2402 P04862402 SPROCKET WHEEL SHAFT $28.00
2403 P04862403
Replaced By G3850
Bearing - 35mm x 17mm
N/A View Replacement
2404 P04862404 ADJUSTMENT SPROCKET $50.00
2405 P04862405 SPROCKET ADJUSTMENT ROD $15.50
2406 P04862406
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
2407 P04862407
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
2408 P04862408
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
2409 P04862409
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2410 P04862410
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
2411 P04862411 SPROCKET ASSEMBLY $286.00

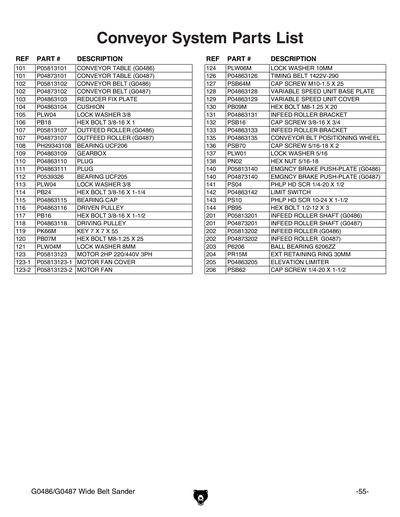

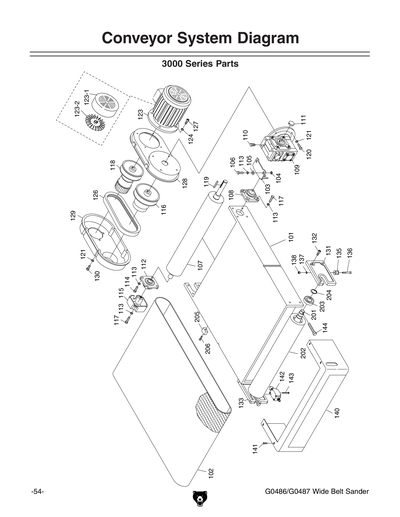

3101 P04863101
Replaced By P05813101
CONVEYOR TABLE
N/A View Replacement
3102 P04863102
Replaced By P05813102
CONVEYOR BELT
N/A View Replacement
3103 P04863103 REDUCER FIX PLATE $120.00
3104 P04863104 CUSHION $15.50
3105 P04863105
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
3106 P04863106
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
3107 P04863107
Replaced By P05813107
OUTFEED ROLLER
N/A View Replacement
3108 P04863108
Replaced By PH29343108
BEARING UCF206
N/A View Replacement
3109 P04863109 GEARBOX $1,151.50
3110 P04863110 PLUG $3.00
3111 P04863111 PLUG $3.00
3112 P04863112
Replaced By P0539326
BEARING UCF205
N/A View Replacement
3113 P04863113
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
3114 P04863114
Replaced By PB24
HEX BOLT 3/8-16 X 1-1/4
N/A View Replacement
3115 P04863115 BEARING CAP $35.50
3116 P04863116 DRIVEN PULLEY $346.00
3117 P04863117
Replaced By PB16
HEX BOLT 3/8-16 X 1-1/2
N/A View Replacement
3118 P04863118 DRIVING PULLEY $346.00
3119 P04863119
Replaced By PK66M
KEY 7 X 7 X 55
N/A View Replacement
3120 P04863120
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
3121 P04863121
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
3123 P04863123
Replaced By P99793123
MOTOR 2HP 220V/440V 3-PH
N/A View Replacement
3123-1 P04863123-1
Replaced By P99793123-2
FAN COVER
N/A View Replacement
3123-2 P04863123-2
Replaced By P99793123-1
FAN
N/A View Replacement
3124 P04863124
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
3126 P04863126 TIMING BELT 1422V-290 $191.50
3127 P04863127
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
3128 P04863128 VARIABLE SPEED UNIT BASE PLATE $178.00
3129 P04863129 VARIABLE SPEED UNIT COVER $178.00
3130 P04863130
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement
3131 P04863131 INFEED ROLLER BRACKET $75.00
3132 P04863132
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
3133 P04863133 INFEED ROLLER BRACKET $75.00
3135 P04863135 CONVEYOR BELT POSITIONING WHEEL $25.50
3136 P04863136
Replaced By PCAP70
CAP SCREW 5/16-18 X 2
N/A View Replacement
3137 P04863137
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
3138 P04863138
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
3140 P04863140
Replaced By P05813140
EMGNCY BRAKE PUSH-PLATE
N/A View Replacement
3141 P04863141
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
3142 P04863142 LIMIT SWITCH $100.00
3143 P04863143
Replaced By PS10
PHLP HD SCR 10-24 X 1-1/2
N/A View Replacement
3144 P04863144
Replaced By PB95
HEX BOLT 1/2-12 X 3
N/A View Replacement
3201 P04863201
Replaced By P05813201
INFEED ROLLER SHAFT
N/A View Replacement
3202 P04863202
Replaced By P05813202
INFEED ROLLER
N/A View Replacement
3203 P04863203
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
3204 P04863204
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement
3205 P04863205 ELEVATION LIMITER $50.00
3206 P04863206
Replaced By PCAP62
CAP SCREW 1/4-20 X 1-1/2
N/A View Replacement

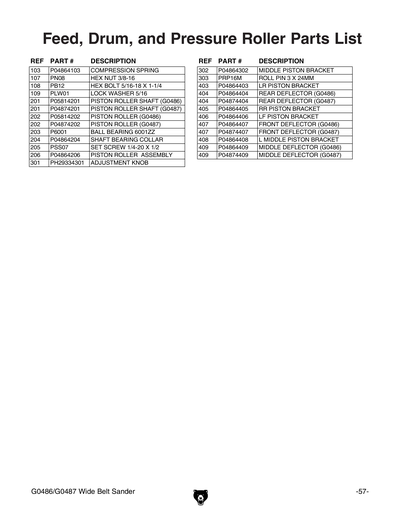

4103 P04864103 COMPRESSION SPRING $10.50
4107 P04864107
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
4108 P04864108
Replaced By PB12
HEX BOLT 5/16-18 X 1-1/4
N/A View Replacement
4109 P04864109
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement

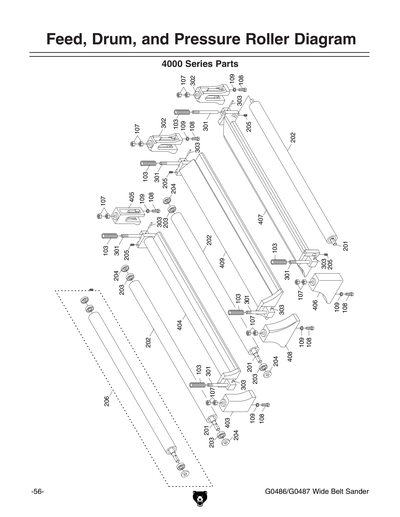

4201 P04864201
Replaced By P05814201
PISTON ROLLER SHAFT ASSY LONG
N/A View Replacement
4202 P04864202
Replaced By P05814202
*DISCD*PISTON ROLLER
N/A View Replacement
4203 P04864203
Replaced By P6001ZZ
BALL BEARING 6001ZZ
N/A View Replacement
4204 P04864204 SHAFT BEARING COLLAR $15.50
4205 P04864205
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
4206 P04864206 PISTON ROLLER ASSY $482.00
4301 P04864301
Replaced By PH29334301
GUIDE STUD-SE 3/8-16 X 4-5/16 1-3/8
N/A View Replacement
4302 P04864302 PISTON BRACKET MIDDLE $64.00
4303 P04864303
Replaced By PRP16M
ROLL PIN 3 X 25
N/A View Replacement
4403 P04864403 PISTON BRACKET LR $90.50
4404 P04864404 DEFLECTOR REAR $700.50
4405 P04864405 PISTON BRACKET RR $90.50
4406 P04864406 PISTON BRACKET LEFT $90.50
4407 P04864407 DEFLECTOR FRONT $700.50
4408 P04864408 PISTON BRACKET L MIDDLE $90.50
4409 P04864409 DEFLECTOR MIDDLE $787.50

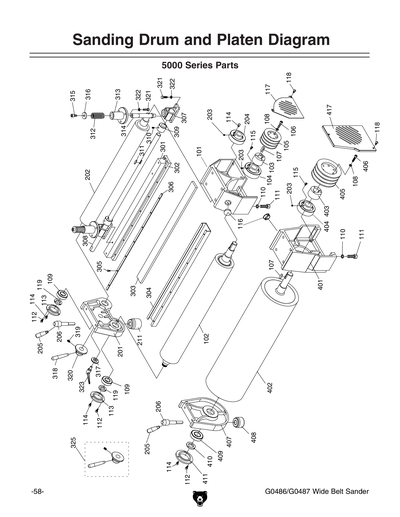

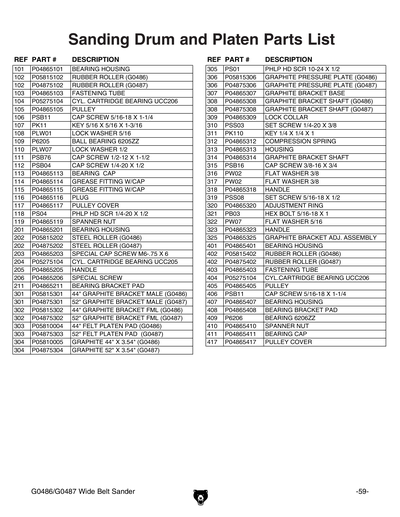

5101 P04865101 BEARING HOUSING $204.50
5102 P04865102
Replaced By P05815102
RUBBER ROLLER
N/A View Replacement
5103 P04865103 FASTENING TUBE $60.00
5104 P04865104
Replaced By PUCC206
CARTRIDGE BEARING UCC206
N/A View Replacement
5105 P04865105 PULLEY 3.5" X 3 $67.00
5106 P04865106
Replaced By PCAP11
CAP SCREW 5/16-18 X 1-1/4
N/A View Replacement
5107 P04865107
Replaced By PK11
KEY 5/16 X 5/16 X 1-3/16
N/A View Replacement
5108 P04865108
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
5109 P04865109
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
5110 P04865110
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
5111 P04865111
Replaced By PCAP76
CAP SCREW 1/2-12 X 1-1/2
N/A View Replacement
5112 P04865112
Replaced By PCAP04
CAP SCREW 1/4-20 X 1/2
N/A View Replacement
5113 P04865113 BEARING CAP $40.00
5114 P04865114 GREASE FITTING W/CAP 1/16 STRAIGHT $3.00
5115 P04865115 GREASE FITTING W/CAP 1/16 90-DEG $3.00
5116 P04865116 PLUG $3.00
5117 P04865117 PULLEY COVER $50.00
5118 P04865118
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
5119 P04865119 SPANNER NUT $3.00
5201 P04865201 BEARING HOUSING $372.00
5202 P04865202
Replaced By P05815202
STEEL ROLLER
N/A View Replacement
5203 P04865203 BEARING CAP SCREW M6-.75 X 6 $3.00
5204 P04865204
Replaced By PUCC206
CARTRIDGE BEARING UCC206
N/A View Replacement
5205 P04865205 HANDLE $40.00
5206 P04865206 HANDLE SHAFT $14.50
5211 P04865211 BEARING BRACKET PAD $29.00
5301 P04865301
Replaced By P05815301
GRAPHITE BRACKET MALE 44"
N/A View Replacement
5302 P04865302
Replaced By P05815302
GRAPHITE BRACKET FEMALE 44"
N/A View Replacement
5303 P04865303
Replaced By P05815303
FELT PLATEN PAD 44"
N/A View Replacement
5304 P04865304
Replaced By P05815304
GRAPHITE PAD 44" X 3.54"
N/A View Replacement
5305 P04865305
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
N/A View Replacement
5306 P04865306
Replaced By P05815306
GRAPHITE PRESSURE PLATE 44"
N/A View Replacement
5307 P04865307 GRAPHITE BRACKET BASE $50.00
5308 P04865308 GRAPHITE BRACKET SHAFT $65.50
5309 P04865309 LOCK COLLAR $30.50
5310 P04865310
Replaced By PSS03
SET SCREW 1/4-20 X 3/8
N/A View Replacement
5311 P04865311
Replaced By PK110
KEY 1/4 X 1/4 X 1
N/A View Replacement
5312 P04865312 COMPRESSION SPRING 5/18" X 2-1/2" $5.50
5313 P04865313 HOUSING $35.50
5314 P04865314 GRAPHITE BRACKET SHAFT $25.50
5315 P04865315
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
5316 P04865316
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
5317 P04865317
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
5318 P04865318 HANDLE $25.50
5319 P04865319
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
N/A View Replacement
5320 P04865320 ADJUSTMENT RING $50.00
5321 P04865321
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
5322 P04865322
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
5323 P04865323 HANDLE $29.00
5325 P04865325 GRAPHITE BRACKET ADJUST ASSY $60.00
5401 P04865401 BEARING HOUSING $202.00
5402 P04865402
Replaced By P05815402
RUBBER ROLLER
N/A View Replacement
5403 P04865403 FASTENING TUBE $60.00
5404 P04865404
Replaced By PUCC206
CARTRIDGE BEARING UCC206
N/A View Replacement
5405 P04865405 PULLEY $144.00
5406 P04865406
Replaced By PCAP11
CAP SCREW 5/16-18 X 1-1/4
N/A View Replacement
5407 P04865407 BEARING HOUSING $438.00
5408 P04865408 BEARING BRACKET PAD $29.00
5409 P04865409
Replaced By P6206ZZ
BALL BEARING 6206ZZ
N/A View Replacement
5410 P04865410 SPANNER NUT $3.00
5411 P04865411 BEARING CAP $40.00
5417 P04865417 PULLEY COVER $50.00

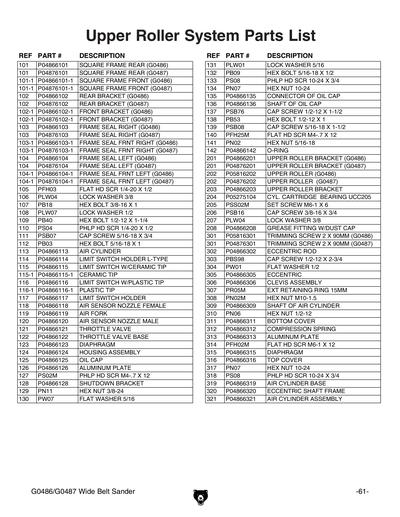

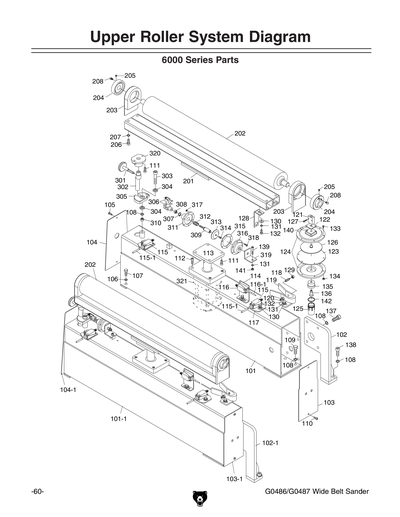

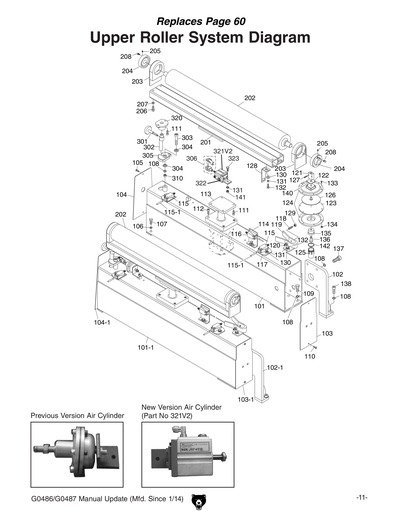

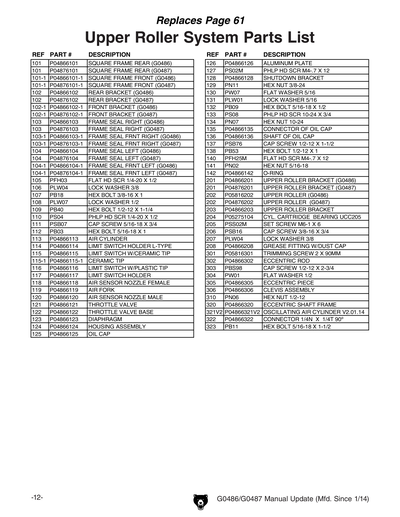

6101 P04866101 SQUARE FRAME REAR $286.00
6101-1 P04866101-1 SQUARE FRAME FRONT $286.00
6102 P04866102 BRACKET REAR $90.50
6102-1 P04866102-1 BRACKET FRONT $90.50
6103 P04866103 FRAME SEAL RIGHT $75.00
6103-1 P04866103-1 FRAME SEAL FRONT RIGHT $75.00
6104 P04866104 FRAME SEAL LEFT $75.00
6104-1 P04866104-1 FRAME SEAL FRONT LEFT $75.00
6105 P04866105
Replaced By PFH03
FLAT HD SCR 1/4-20 X 1/2
N/A View Replacement
6106 P04866106
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
6107 P04866107
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
6108 P04866108
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
6109 P04866109
Replaced By PB40
HEX BOLT 1/2-12 X 1-1/4
N/A View Replacement
6110 P04866110
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
6111 P04866111
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
6112 P04866112
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
6113 P04866113 AIR CYLINDER $349.50
6114 P04866114 LIMIT SWITCH HOLDER L-TYPE $15.50
6115 P04866115
Replaced By P9962Z6115
LIMIT SWITCH CERAMIC ASSY
N/A View Replacement
6115-1 P04866115-1
Replaced By P9962Z0002
LIMIT SWITCH CERAMIC TIP
N/A View Replacement
6116 P04866116 LIMIT SWITCH W/PLASTIC TIP $38.00
6116-1 P04866116-1
Replaced By P04866116
LIMIT SWITCH W/PLASTIC TIP
N/A View Replacement
6117 P04866117 LIMIT SWITCH HOLDER $15.50
6118 P04866118 AIR SENSOR NOZZLE FEMALE $5.75
6119 P04866119 AIR FORK $53.25
6120 P04866120 AIR SENSOR NOZZLE MALE $5.75
6121 P04866121 THROTTLE VALVE $57.00
6122 P04866122 THROTTLE VALVE BASE $7.50
6123 P04866123 DIAPHRAM $13.25
6124 P04866124 HOUSING ASSY $322.50
6125 P04866125 OIL CAP $60.25
6126 P04866126 ALUMINUM PLATE $18.00
6127 P04866127
Replaced By PS02M
PHLP HD SCR M4-.7 X 12
N/A View Replacement
6128 P04866128
Replaced By P99796128
POWER OFF PLATE
N/A View Replacement
6129 P04866129
Replaced By PN11
HEX NUT 3/8-24
N/A View Replacement
6130 P04866130
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
6131 P04866131
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
6132 P04866132
Replaced By PB09
HEX BOLT 5/16-18 X 1/2
N/A View Replacement
6133 P04866133
Replaced By PS08
PHLP HD SCR 10-24 X 3/4
N/A View Replacement
6134 P04866134
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
6135 P04866135 CONNECTOR OF OIL CAP $25.50
6136 P04866136 SHAFT OF OIL CAP $15.50
6137 P04866137
Replaced By PCAP76
CAP SCREW 1/2-12 X 1-1/2
N/A View Replacement
6138 P04866138
Replaced By PB53
HEX BOLT 1/2-12 X 1
N/A View Replacement
6139 P04866139
Replaced By PCAP08
CAP SCREW 5/16-18 X 1-1/2
N/A View Replacement
6140 P04866140
Replaced By PFH25M
FLAT HD SCR M4-.7 X 12
N/A View Replacement
6141 P04866141
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
6142 P04866142 O-RING 26.7 X 1.78 $4.00
6201 P04866201 ROLLER BRACKET UPPER $230.50
6202 P04866202
Replaced By P05816202
ROLLER UPPER
N/A View Replacement
6203 P04866203 ROLLER BRACKET UPPER $90.50
6204 P04866204
Replaced By PUCC205
CARTRIDGE BEARING UCC205
N/A View Replacement
6205 P04866205
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
6206 P04866206
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
6207 P04866207
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
6208 P04866208
Replaced By P9962Z5114
GREASE FITTING W/CAP 1/16" STRAIGHT
N/A View Replacement
6301 P04866301
Replaced By P05816301
TRIMMING SCREW 2 X 90MM
N/A View Replacement
6302 P04866302 ECCENTRIC ROD $53.50
6303 P04866303
Replaced By PCAP98
CAP SCREW 1/2-12 X 2-3/4
N/A View Replacement
6304 P04866304
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
6305 P04866305 ECCENTRIC PIECE $63.75
6306 P04866306 CLEVIS ASSEMBLY $21.50
6307 P04866307
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
6308 P04866308
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
6309 P04866309 SHAFT OF AIR CYLINDER $25.50
6310 P04866310
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
6311 P04866311
Replaced By P05816323
OSCILLATING AIR CYLINDER 50 X 4
N/A View Replacement
6312 P04866312 COMPRESSION SPRING 1" X 1/4" $2.00
6313 P04866313 ALUMINUM PLATE $18.00
6314 P04866314
Replaced By PFH02M
FLAT HD SCR M6-1 X 12
N/A View Replacement
6315 P04866315 DIAPHRAM $15.50
6316 P04866316 COVER TOP $50.00
6317 P04866317
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
6318 P04866318
Replaced By PS08
PHLP HD SCR 10-24 X 3/4
N/A View Replacement
6319 P04866319 AIR CYLINDER BASE $25.50
6320 P04866320 ECCENTRIC SHAFT FRAME $40.00
6321 P04866321
Replaced By P05816323
OSCILLATING AIR CYLINDER 50 X 4
N/A View Replacement
6321V2 P04866321V2
Replaced By P05816323
OSCILLATING AIR CYLINDER 50 X 4
N/A View Replacement
6322 P04866322 CONNECTOR 1/4N X 1/4T 90 $4.00
6323 P04866323
Replaced By PB11
HEX BOLT 5/16-18 X 1-1/2
N/A View Replacement

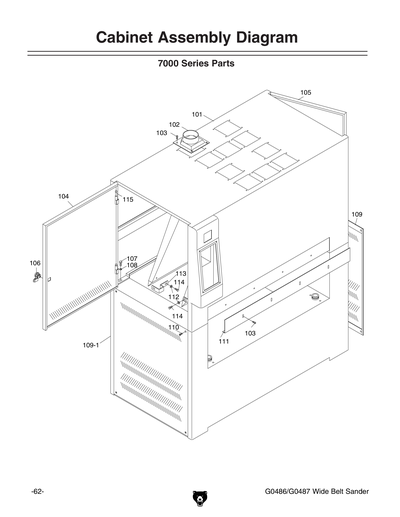

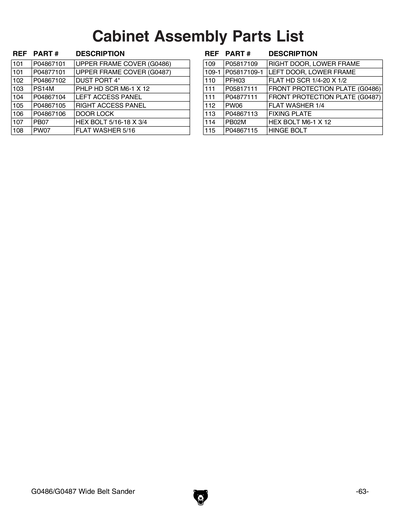

7101 P04867101
Replaced By P05817101
FRAME COVER UPPER
N/A View Replacement
7102 P04867102 DUST PORT 4" $17.75
7103 P04867103
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
7104 P04867104
Replaced By P05817104
ACCESS PANEL LEFT
N/A View Replacement
7105 P04867105
Replaced By P05817105
ACCESS PANEL RIGHT
N/A View Replacement
7106 P04867106 DOOR LOCK $50.00
7107 P04867107
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
7108 P04867108
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
7109 P04867109
Replaced By P05817109
DOOR RIGHT LOWER FRAME
N/A View Replacement
7109-1 P04867109-1
Replaced By P05817109-1
DOOR LEFT LOWER FRAME
N/A View Replacement
7110 P04867110
Replaced By PFH03
FLAT HD SCR 1/4-20 X 1/2
N/A View Replacement
7111 P04867111
Replaced By P05817111
PROTECTION PLATE FRONT
N/A View Replacement
7112 P04867112
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
7113 P04867113 FIXING PLATE $10.50
7114 P04867114
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
7115 P04867115 HINGE BOLT $10.50

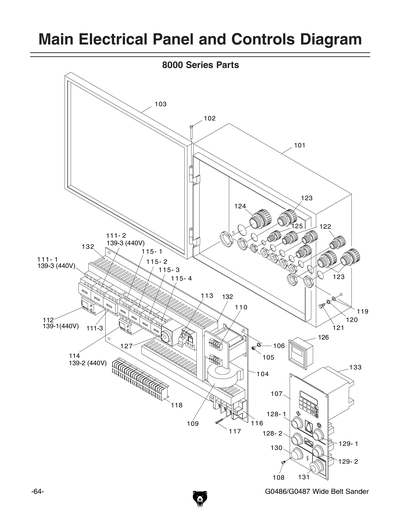

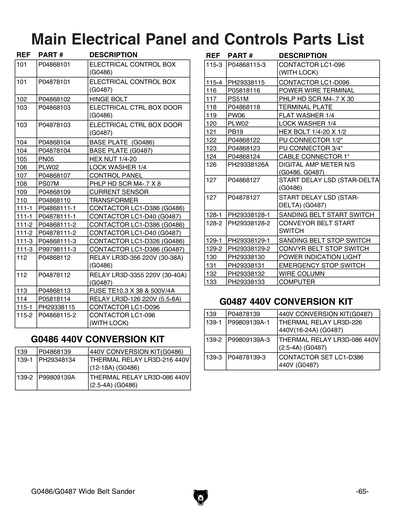

8101 P04868101 ELECTRICAL CONTROL BOX $192.00
8102 P04868102 HINGE BOLT $10.50
8103 P04868103 ELECTRICAL CONTROL BOX DOOR $75.00
8104 P04868104 BASE PLATE $120.00
8105 P04868105
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
8106 P04868106
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
8107 P04868107
Replaced By PH29338107
CONTROL PANEL
N/A View Replacement
8108 P04868108
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
8109 P04868109 CURRENT SENSOR $42.50

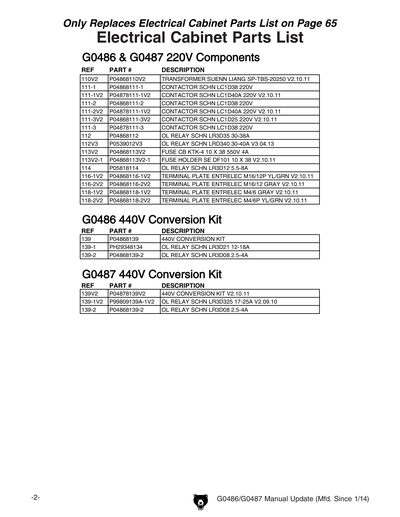

8110 P04868110 TRANSFORMER 250VA 440V-200/220V $83.00
8110V2 P04868110V2 TRANSFORMER 250VA 440V-200/220V $106.50
8111-1 P04868111-1 CONTACTOR SCHN LC1D38 220V $142.00
8111-2 P04868111-2 CONTACTOR SCHN LC1D38 220V $92.00
8111-3 P04868111-3
Replaced By P04868111-3V2
CONTACTOR SCHN LC1D25 220V V2.10.11
N/A View Replacement
8111-3V2 P04868111-3V2 CONTACTOR SCHN LC1D25 220V V2.10.11 $71.00
8112 P04868112 OL RELAY SCHN LR3D35 30-38A $67.00
8113 P04868113 FUSE TE 550V 4A 10.3 X 38 V1 $33.50
8113-1 P04868113-1 FUSE HOLDER 10.3 X 38 X V1 $10.50
8113V2 P04868113V2 FUSE CB KTK-4 10 X 38 500V 4A V2.10.11 $21.50
8113V2-1 P04868113V2-1 FUSE HOLDER SE DF101 10 X 38 V2.10.11 $10.50
8114 P04868114
Replaced By P05818114
OL RELAY SCHN LR3D12 5.5-8A
N/A View Replacement
8115-1 P04868115-1
Replaced By PH29338115
CONTACTOR SCHN LC1D09 220V
N/A View Replacement
8115-2 P04868115-2 CONTACTOR TE LC1-096 W/LOCK 220V $68.50
8115-3 P04868115-3 CONTACTOR TE LC1-096 W/LOCK 220V $68.50
8115-4 P04868115-4
Replaced By PH29338115
CONTACTOR SCHN LC1D09 220V
N/A View Replacement
8116 P04868116
Replaced By P05818116
GROUND TERMINAL V1.04.05
N/A View Replacement
8116-1V2 P04868116-1V2 TERMINAL PLATE ENT M16/12P YL/GRN V2.10. $33.00
8116-2V2 P04868116-2V2 TERMINAL PLATE ENT M16/12P GRAY V2.10.11 $31.00
8116V2 P04868116V2 TERMINAL PLATE ASSEMBLY ENT V2.10.11 $176.50
8117 P04868117
Replaced By PS51M
PHLP HD SCR M4-.7 X 30
N/A View Replacement
8118 P04868118 TERMINAL PLATE V1 $120.00
8118-1V2 P04868118-1V2 TERMINAL PLATE ENT M4/6 GRAY V2.10.11 $100.50
8118-2V2 P04868118-2V2 TERMINAL PLATE ENT M4/6P YL/GRN V2.10.11 $12.50
8118-3V2 P04868118-3V2
Replaced By P04868116-2V2
TERMINAL PLATE ENT M16/12P GRAY V2.10.11
N/A View Replacement
8119 P04868119
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
8120 P04868120
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
8121 P04868121
Replaced By PB19
HEX BOLT 1/4-20 X 1/2
N/A View Replacement
8122 P04868122 PU CONNECTOR 1/2" $4.00
8123 P04868123 PU CONNECTOR 3/4" $4.00
8124 P04868124 CABLE CONNECTOR 1" $5.50
8126 P04868126
Replaced By P99628126
AMP METER, DIGITAL
N/A View Replacement
8127 P04868127
Replaced By P99798127
STAR/DELTA TIMER ORDER LSD 220V V1
N/A View Replacement
8128-1 P04868128-1
Replaced By PH29338128-1
START SWITCH
N/A View Replacement
8128-2 P04868128-2
Replaced By PH29338128-2
START SWITCH
N/A View Replacement
8129-1 P04868129-1
Replaced By P99798129
E-STOP BUTTON 250V 10A
N/A View Replacement
8129-2 P04868129-2
Replaced By PH29338129-2
STOP SWITCH
N/A View Replacement
8130 P04868130
Replaced By P99798130
POWER INDICATOR LIGHT 220V 22MM WHT
N/A View Replacement
8131 P04868131
Replaced By P05278131
E-STOP BUTTON 250V 10A
N/A View Replacement
8132 P04868132
Replaced By PH29338132
WIRE COLUMN
N/A View Replacement
8133 P04868133
Replaced By PH29338133
COMPUTER W/CONTROL PANEL
N/A View Replacement
8139 P04868139 440V CONVERSION KIT $93.50
8139-1 P04868139-1
Replaced By PH29348134
OL RELAY SCHN LR3D21 12-18A
N/A View Replacement
8139-2 P04868139-2
Replaced By P99809139-2
OL RELAY SCHN LR3D08 2.5-4A
N/A View Replacement

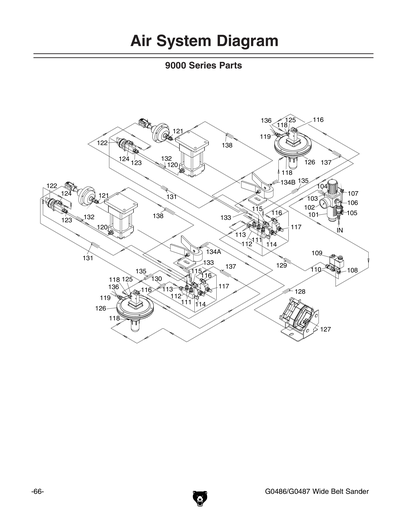

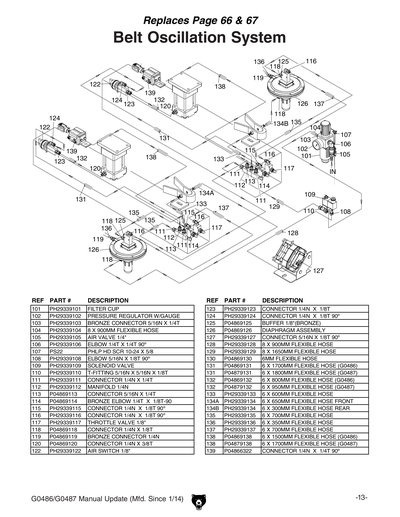

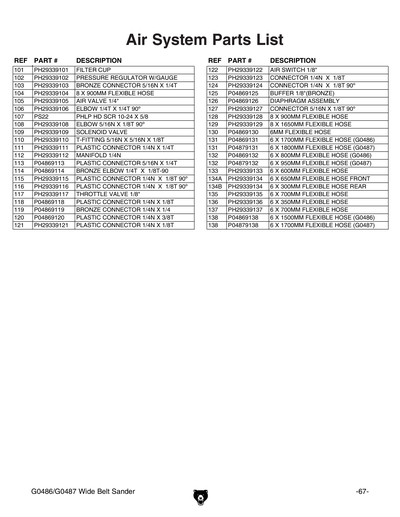

9101 P04869101
Replaced By PH29339101
FILTER CUP AND REGULATOR W/ GAUGE
N/A View Replacement
9102 P04869102
Replaced By PH29339101
FILTER CUP AND REGULATOR W/ GAUGE
N/A View Replacement
9103 P04869103
Replaced By PH29339103
CONNECTOR, BRONZE
N/A View Replacement
9104 P04869104
Replaced By PH29339104
FLEXIBLE HOSE 8MM
N/A View Replacement
9105 P04869105
Replaced By PH29339105
AIR SWITCH
N/A View Replacement
9106 P04869106
Replaced By PH29339106
ELBOW
N/A View Replacement
9107 P04869107
Replaced By PS22
PHLP HD SCR 10-24 X 5/8
N/A View Replacement
9108 P04869108
Replaced By PH29339108
ELBOW 5/16N X 1/8T 90DEG
N/A View Replacement
9109 P04869109
Replaced By PH29339109
SOLENOID VALVE
N/A View Replacement
9110 P04869110
Replaced By PH29339110
T-FITTING 5/16N X 5/16N X 1/8T
N/A View Replacement
9111 P04869111
Replaced By PH29339111
CONNECTOR 5/16 X 1/4T BRONZE
N/A View Replacement
9112 P04869112
Replaced By PH29339112
MANIFOLD 1/4N 2-PORT
N/A View Replacement
9113 P04869113 CONNECTOR 5/16N X 1/4T $5.50
9114 P04869114 ELBOW 1/4 X 1/8" 90DEG BRONZE $5.50
9115 P04869115
Replaced By PH29339115
CONNECTOR 1/4N X 1/8T 90DEG
N/A View Replacement
9116 P04869116
Replaced By PH29339116
CONNECTOR 1/4N X 1/8T 90DEG
N/A View Replacement
9117 P04869117
Replaced By PH29339117
THROTTLE VALVE
N/A View Replacement
9118 P04869118 CONNECTOR 1/4N X 1/8T $5.50
9119 P04869119 BRONZE CONNECTOR 1/4N $5.50
9120 P04869120 CONNECTOR 1/4N X 3/8T $5.50
9121 P04869121
Replaced By PH29339121
CONNECTOR 1/4N X1/8T
N/A View Replacement
9122 P04869122
Replaced By PH29339122
AIR SWITCH
N/A View Replacement
9123 P04869123
Replaced By PH29339123
CONNECTOR 1/4N X1/8T
N/A View Replacement
9124 P04869124
Replaced By PH29339124
CONNECTOR 1/4N X 1/8T 90DEG
N/A View Replacement
9125 P04869125 BUFFER 1/8" BRONZE $8.00
9126 P04869126 DIAPHRAM ASSY $652.50
9127 P04869127
Replaced By PH29339127
CONNECTOR 5/16N X 1/8T 90DEG
N/A View Replacement
9128 P04869128
Replaced By PH29339128
FLEXIBLE HOSE 8MM
N/A View Replacement
9129 P04869129
Replaced By PH29339129
FLEXIBLE HOSE 8MM
N/A View Replacement
9130 P04869130
*DISCD*FLEXIBLE HOSE 6MM
Item is no longer available
N/A
9131 P04869131 FLEXIBLE HOSE 6 X 1700MM $4.00
9132 P04869132 FLEXIBLE HOSE 6 X 800MM $4.00
9133 P04869133
Replaced By PH29339133
FLEXIBLE HOSE 6MM
N/A View Replacement
9134A P04869134A
Replaced By PH29339134
FLEXIBLE HOSE 6MM
N/A View Replacement
9134B P04869134B
Replaced By PH29339134
FLEXIBLE HOSE 6MM
N/A View Replacement
9135 P04869135
Replaced By PH29339135
FLEXIBLE HOSE 6MM
N/A View Replacement
9136 P04869136
Replaced By PH29339136
FLEXIBLE HOSE 6MM
N/A View Replacement
9137 P04869137
Replaced By PH29339137
FLEXIBLE HOSE 6MM
N/A View Replacement
9138 P04869138 FLEXIBLE HOSE 6 X 1500MM $4.00

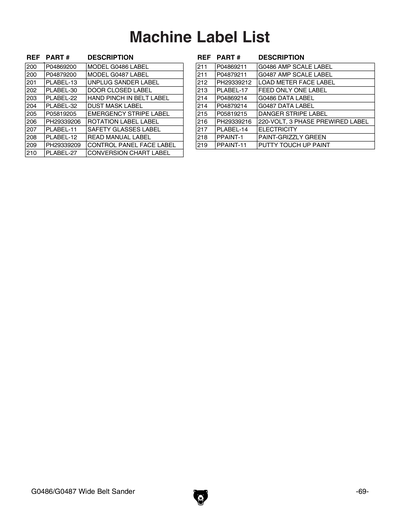

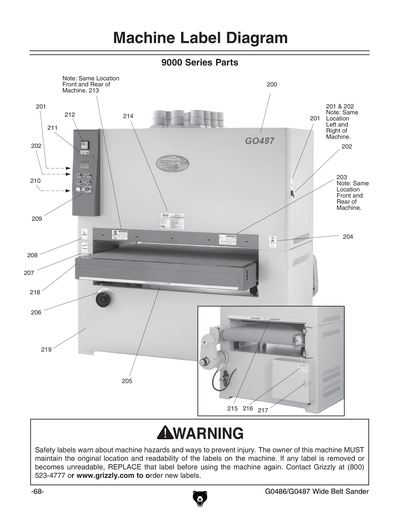

9200 P04869200 MODEL NUMBER LABEL $23.00
9201 P04869201
Replaced By PLABEL-13
DISCONNECT SANDER 220V 2W X 3.3H
N/A View Replacement
9202 P04869202
Replaced By PLABEL-30
CLOSE DOOR LABEL 2 X 3.3
N/A View Replacement
9203 P04869203
Replaced By PLABEL-22
SANDER BELT PINCH 4W X 2.1H
N/A View Replacement
9204 P04869204
Replaced By PLABEL-32
DUST MASK 2W X 3.3H V1
N/A View Replacement
9205 P04869205
Replaced By P05819205
EMERGENCY STRIPE LABEL
N/A View Replacement
9206 P04869206
Replaced By PH29339206
*DISCD*LABEL, ROTATION LABEL
N/A View Replacement
9207 P04869207
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
N/A View Replacement
9208 P04869208
Replaced By PLABEL-12
***USE PLABEL-12A***
N/A View Replacement
9209 P04869209
Replaced By PH29339209
CONTROL PANEL FACE LABEL
N/A View Replacement
9210 P04869210
Replaced By PLABEL-27
MM CONVERSION CHART 3.6W X 5.5H
N/A View Replacement
9211 P04869211 AMP SCALE LABEL $1.50
9212 P04869212
Replaced By PH29339212
LOAD METER FACE LABEL
N/A View Replacement
9213 P04869213
Replaced By PLABEL-17A
FEED ONLY ONE 5.3W X 2.8H V2.04.08
N/A View Replacement
9214 P04869214 DATA LABEL $2.50
9215 P04869215
Replaced By P05819215
DANGER STRIPE LABEL
N/A View Replacement
9216 P04869216
Replaced By PH29339216
PREWIRED FOR 220V LABEL
N/A View Replacement
9217 P04869217
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
9218 P04869218
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
9219 P04869219
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
MAN P0486MAN MANUAL FOR G0486 04/06 $13.50
