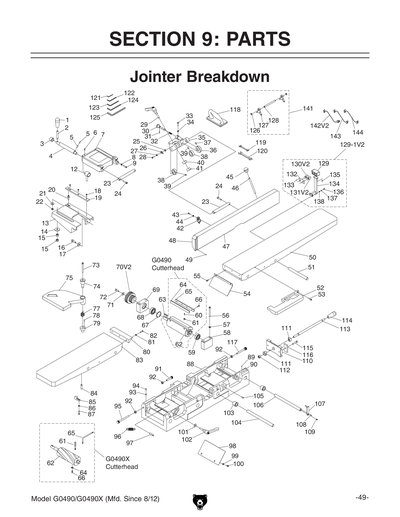

Parts for G0490 - 8" x 76" Parallelogram Jointer

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

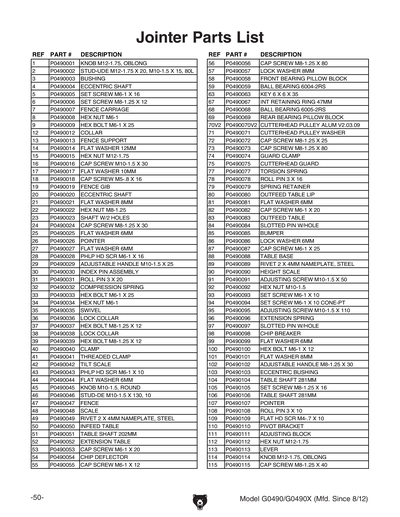

1 P0490001 KNOB M12-1.75, OBLONG $1.00
2 P0490002 STUD-UDE M12-1.75 X 20, M10-1.5 X 15, 80 $1.00
3 P0490003 BUSHING $1.00
4 P0490004 ECCENTRIC SHAFT $7.75
5 P0490005
Replaced By PSS11M
SET SCREW M6-1 X 16
N/A View Replacement
6 P0490006
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
7 P0490007 FENCE CARRIAGE $31.00
8 P0490008
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
9 P0490009
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
12 P0490012 COLLAR $2.25
13 P0490013 FENCE SUPPORT $34.25
14 P0490014
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
15 P0490015
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
16 P0490016
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
17 P0490017
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
18 P0490018
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
19 P0490019 FENCE GIB $5.00
20 P0490020 ECCENTRIC SHAFT $1.50
21 P0490021
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
22 P0490022
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
23 P0490023 SHAFT W/2 HOLES $2.00
24 P0490024
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
25 P0490025
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
26 P0490026 POINTER $1.00
27 P0490027
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
28 P0490028
Replaced By PS11M
PHLP HD SCR M6-1 X 16
N/A View Replacement
29 P0490029 ADJUSTABLE HANDLE M10-1.5 X 35 $5.25
30 P0490030 INDEX PIN ASSEMBLY $1.50
31 P0490031
Replaced By PRP42M
ROLL PIN 3 X 20
N/A View Replacement
32 P0490032 COMPRESSION SPRING $1.00
33 P0490033
Replaced By PB10M
HEX BOLT M6-1 X 25
N/A View Replacement
34 P0490034
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
35 P0490035 SWIVEL $13.00
36 P0490036 LOCK COLLAR $2.50
37 P0490037
Replaced By PB06M
HEX BOLT M8-1.25 X 12
N/A View Replacement
38 P0490038 LOCK COLLAR $2.00
39 P0490039
Replaced By PB06M
HEX BOLT M8-1.25 X 12
N/A View Replacement
40 P0490040 CLAMP $1.00
41 P0490041 THREADED CLAMP $1.00
42 P0490042 TILT SCALE $1.00
43 P0490043
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
44 P0490044
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
45 P0490045 KNOB M10-1.5, ROUND $1.00
46 P0490046 STUD-DE M10-1.5 X 130, 10 $2.25
47 P0490047 FENCE $88.25
48 P0490048 SCALE $1.00
49 P0490049
Replaced By PRIV003M
RIVET 2 X 4MM NAMEPLATE, STEEL
N/A View Replacement
50 P0490050 INFEED TABLE $219.00
51 P0490051 TABLE SHAFT 202MM $3.25
52 P0490052 EXTENSION TABLE $15.00
53 P0490053
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
54 P0490054 CHIP DEFLECTOR $2.25
55 P0490055
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
56 P0490056
Replaced By PCAP148M
CAP SCREW M8-1.25 X 80
N/A View Replacement
57 P0490057
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
58 P0490058 FRONT BEARING PILLOW BLOCK $7.75
59 P0490059
Replaced By P6004-2RS
BALL BEARING 6004-2RS
N/A View Replacement
60 P0490060
Replaced By PSS34M
SET SCREW M5-.8 X 16
N/A View Replacement
61 P0490061 KNIFE LIFTER $2.00
62 P0490062 CUTTERHEAD 8" 4-KNIFE $74.75
63 P0490063
Replaced By PK74M
KEY 6 X 6 X 35
N/A View Replacement
64 P0490064
Replaced By H8842
8" x 3/4" x 1/8" HSS Jointer Knives, Set of 4
N/A View Replacement
65 P0490065 KNIFE GIB $3.50
66 P0490066 KNIFE GIB SCREW $1.00
67 P0490067
Replaced By PR25M
INT RETAINING RING 47MM
N/A View Replacement
68 P0490068
Replaced By P6005-2RS
BALL BEARING 6005-2RS
N/A View Replacement
69 P0490069 REAR BEARING PILLOW BLOCK $6.50
70 P0490070 CUTTERHEAD PULLEY CAST IRON V1.01.09 $6.00
70V2 P0490070V2 CUTTERHEAD PULLEY ALUM V2.03.09 $14.75
71 P0490071 CUTTERHEAD PULLEY WASHER $1.00
72 P0490072
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
73 P0490073
Replaced By PCAP148M
CAP SCREW M8-1.25 X 80
N/A View Replacement
74 P0490074 GUARD CLAMP $5.00
75 P0490075 CUTTERHEAD GUARD $23.25
77 P0490077 TORSION SPRING $1.00
78 P0490078
Replaced By PRP02M
ROLL PIN 3 X 16
N/A View Replacement
79 P0490079 SPRING RETAINER $4.50
80 P0490080 OUTFEED TABLE LIP $12.25
81 P0490081
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
82 P0490082
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
83 P0490083 OUTFEED TABLE $177.25
84 P0490084 SLOTTED PIN W/HOLE $1.00
85 P0490085 BUMPER $2.00
86 P0490086
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
87 P0490087
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
88 P0490088 TABLE BASE $208.75
89 P0490089
Replaced By PRIV003M
RIVET 2 X 4MM NAMEPLATE, STEEL
N/A View Replacement
90 P0490090 HEIGHT SCALE $1.00
91 P0490091 ADJUSTING SCREW M10-1.5 X 50 $1.00
92 P0490092
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
93 P0490093
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
94 P0490094
Replaced By PSS139M
SET SCREW M6-1 X 10 CONE-PT
N/A View Replacement
95 P0490095 ADJUSTING SCREW M10-1.5 X 110 $1.00
96 P0490096 EXTENSION SPRING $1.00
97 P0490097 SLOTTED PIN W/HOLE $1.00
98 P0490098 CHIP BREAKER $3.00
99 P0490099
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
100 P0490100
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
101 P0490101
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
102 P0490102 ADJUSTABLE HANDLE M8-1.25 X 30 $5.25
103 P0490103 ECCENTRIC BUSHING $2.50
104 P0490104 TABLE SHAFT 281MM $4.00
105 P0490105
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
106 P0490106
Replaced By P0490104
TABLE SHAFT 281MM
N/A View Replacement
107 P0490107 POINTER $1.00
108 P0490108
Replaced By PRP44M
ROLL PIN 3 X 10
N/A View Replacement
109 P0490109
Replaced By PFH19M
FLAT HD SCR M4-.7 X 10
N/A View Replacement
110 P0490110 PIVOT BRACKET $10.75
111 P0490111 ADJUSTING BLOCK $2.25
112 P0490112
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
113 P0490113 LEVER $11.75
114 P0490114 KNOB M12-1.75, OBLONG $1.00
115 P0490115
Replaced By PCAP12M
CAP SCREW M8-1.25 X 40
N/A View Replacement

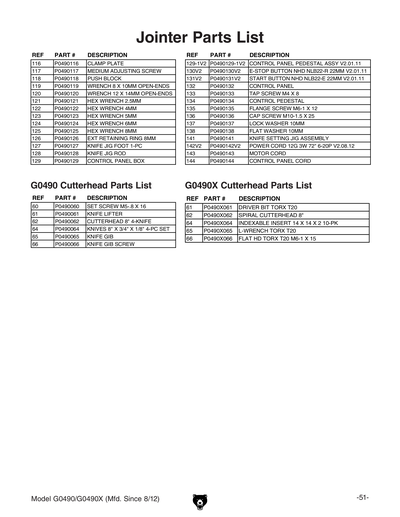

116 P0490116 CLAMP PLATE $2.75
117 P0490117 MEDIUM ADJUSTING SCREW $1.50
118 P0490118
Replaced By W1400
Safety Push Block - Small
N/A View Replacement
119 P0490119
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
120 P0490120
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
121 P0490121
Replaced By PAW02.5M
N/A View Replacement
122 P0490122
Replaced By PAW04M
HEX WRENCH 4MM
N/A View Replacement
123 P0490123
Replaced By PAW05M
HEX WRENCH 5MM
N/A View Replacement
124 P0490124
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement
125 P0490125
Replaced By PAW08M
HEX WRENCH 8MM
N/A View Replacement
126 P0490126
Replaced By PR39M
EXT RETAINING RING 8MM
N/A View Replacement
127 P0490127 KNIFE JIG FOOT 1-PC $1.25
128 P0490128 KNIFE JIG ROD $3.25
129 P0490129 CONTROL PANEL BOX $15.00
129-1 P0490129-1 *DISCD*COMPLETE SWITCH ASSY V1 $106.00
129-1V2 P0490129-1V2 CONTROL PANEL PEDESTAL ASSY V2.01.11 $61.00
130 P0490130
*DISCD*STOP BUTTON WHITE ARROW V1
Item is no longer available
N/A
130V2 P0490130V2 E-STOP BUTTON NHD NLB22-R 22MM V2.01.11 $15.50
131 P0490131
*DISCD*START BUTTON SOLID V1
Item is no longer available
N/A
131V2 P0490131V2 START BUTTON NHD NLB22-E 22MM V2.01.11 $13.50
132 P0490132 CONTROL PANEL $11.00
133 P0490133
Replaced By PHTEK4M
TAP SCREW M4 X 8
N/A View Replacement
134 P0490134 CONTROL PEDESTAL $15.00
135 P0490135
Replaced By PFS02M
FLANGE SCREW M6-1 X 12
N/A View Replacement
136 P0490136
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
137 P0490137
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
138 P0490138
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
140 P0490140
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
141 P0490141 KNIFE SETTING JIG ASSEMBLY $5.50
141-1 P0490141-1
Replaced By P0490127
KNIFE JIG FOOT 1-PC
N/A View Replacement
141-2 P0490141-2
Replaced By P0490128
KNIFE JIG ROD
N/A View Replacement
142 P0490142 POWER CORD V1 $19.50
142V2 P0490142V2
Replaced By P0453119V2
POWER CORD 12G 3W 72" 6-20P V2.08.12
N/A View Replacement
143 P0490143 MOTOR CORD $6.50
144 P0490144 CONTROL PANEL CORD $25.25
200 P0490200
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
201 P0490201
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement

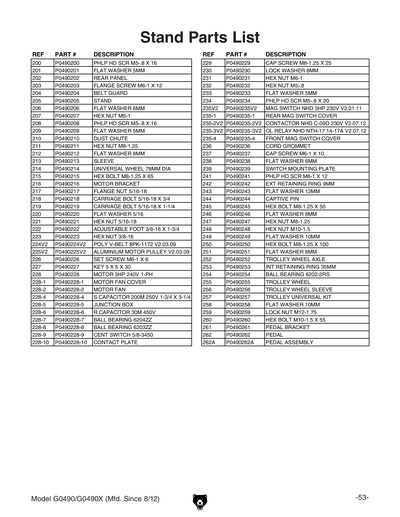

202 P0490202 REAR PANEL $28.75
203 P0490203
Replaced By PFS02M
FLANGE SCREW M6-1 X 12
N/A View Replacement
204 P0490204 BELT GUARD $2.25

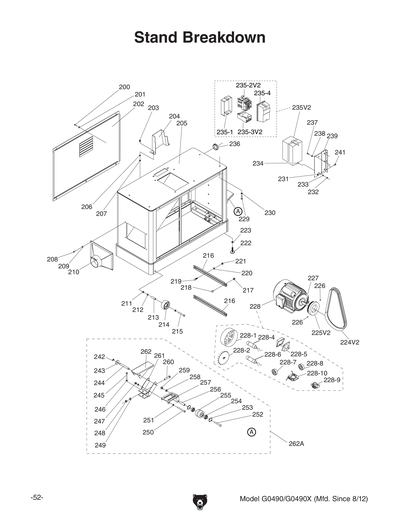

205 P0490205 STAND $235.75
205-1 P0490205-1 CABINET ASSY W/MOTOR 3HP 220V 1-PH $578.00
206 P0490206
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
207 P0490207
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
208 P0490208
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
N/A View Replacement
209 P0490209
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
210 P0490210
Replaced By P0604210
DUST PORT
N/A View Replacement
211 P0490211
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
212 P0490212
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
213 P0490213
Replaced By P0452205
SLEEVE
N/A View Replacement
214 P0490214
Replaced By P0453405
UNIVERSAL WHEEL 78MM DIA
N/A View Replacement
215 P0490215
Replaced By PB86M
HEX BOLT M8-1.25 X 65
N/A View Replacement
216 P0490216 MOTOR BRACKET $9.25
217 P0490217
Replaced By PFN02
FLANGE NUT 5/16-18
N/A View Replacement
218 P0490218
Replaced By PCB05
CARRIAGE BOLT 5/16-18 X 3/4
N/A View Replacement
219 P0490219
Replaced By PCB06
CARRIAGE BOLT 5/16-18 X 1-1/4
N/A View Replacement
220 P0490220
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
221 P0490221
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
222 P0490222
Replaced By P0452209
RUBBER FOOT
N/A View Replacement
223 P0490223
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
224 P0490224
Replaced By PVA46
V-BELT A46
N/A View Replacement
224V2 P0490224V2 POLY V-BELT 8PK1172 V2.03.09 (SINGLE UNIT) $12.25
225 P0490225 CAST IRON MOTOR PULLEY V1.01.09 $22.25
225V2 P0490225V2 ALUMINIUM MOTOR PULLEY V2.03.09 $21.25
226 P0490226
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
227 P0490227
Replaced By PK12M
KEY 5 X 5 X 30
N/A View Replacement
228 P0490228 MOTOR 3HP 240V 1-PH $243.50
228-1 P0490228-1 MOTOR FAN COVER $5.75
228-10 P0490228-10
Replaced By PCP001
CONTACT PLT-TUNGSTEN 5HP OR LESS
N/A View Replacement
228-2 P0490228-2 MOTOR FAN $2.50
228-4 P0490228-4 S CAPACITOR 200M 250V 1-9/16 X 3-9/16 $14.25
228-5 P0490228-5 JUNCTION BOX $2.75
228-6 P0490228-6 R CAPACITOR 30M 450V 1-3/4 X 2-3/4 $14.25
228-7 P0490228-7
Replaced By P6204ZZ
BALL BEARING 6204ZZ
N/A View Replacement
228-8 P0490228-8
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
228-9 P0490228-9
Replaced By PCS003
CENT SWITCH 5/8-3450
N/A View Replacement
229 P0490229
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
230 P0490230
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
231 P0490231
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
232 P0490232
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
233 P0490233
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
234 P0490234
Replaced By PS06M
PHLP HD SCR M5-.8 X 20
N/A View Replacement
235 P0490235
Replaced By P0453Z551V2
MAGNETIC SWITCH ASSY V2.01.11
N/A View Replacement
235-1 P0490235-1 REAR MAG SWITCH COVER $18.00
235-2 P0490235-2 CONTACTOR NHD C-09D 220V V1 $42.50
235-2V2 P0490235-2V2
Replaced By P0453007-3
CONTACTOR NHD 09D 230V
N/A View Replacement
235-3 P0490235-3 OL RELAY NHD NTH-11 8-11 V1 $31.00
235-3V2 P0490235-3V2
Replaced By P0609334-4
OL RELAY NHD NTH-17 14-17A
N/A View Replacement
235-4 P0490235-4 FRONT MAG SWITCH COVER $19.75
235-5 P0490235-5
Replaced By PSW01-1
WHITE SWITCH COVER SCREW V1.12.95
N/A View Replacement
235-6 P0490235-6
Replaced By P0490144
CONTROL PANEL CORD
N/A View Replacement
235V2 P0490235V2 MAGNETIC SWITCH ASSY V2.01.11 $104.75
236 P0490236 GROMMET 50 X 41MM $1.00
237 P0490237
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
238 P0490238
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
239 P0490239 SWITCH MOUNTING PLATE $1.75
241 P0490241
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
242 P0490242
Replaced By PR16M
EXT RETAINING RING 9MM
N/A View Replacement
243 P0490243
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
244 P0490244
Replaced By P0452236
SHAFT 12MM
N/A View Replacement
245 P0490245
Replaced By PB22M
HEX BOLT M8-1.25 X 50
N/A View Replacement
246 P0490246
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
247 P0490247
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
248 P0490248
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
249 P0490249
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
250 P0490250
Replaced By PB45M
HEX BOLT M8-1.25 X 100
N/A View Replacement
251 P0490251
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
252 P0490252
Replaced By P0452245
TROLLEY WHEEL BOLT
N/A View Replacement
253 P0490253
Replaced By PR21M
INT RETAINING RING 35MM
N/A View Replacement
254 P0490254
Replaced By P6202-2RS
BALL BEARING 6202-2RS
N/A View Replacement
255 P0490255
Replaced By P0452246
TROLLEY WHEEL
N/A View Replacement
256 P0490256
Replaced By P0452249
TROLLEY WHEEL SLEEVE
N/A View Replacement
257 P0490257
Replaced By P0452250
TROLLEY UNIVERSAL KIT
N/A View Replacement
258 P0490258
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
259 P0490259
Replaced By PLN09M
LOCK NUT M12-1.75
N/A View Replacement
260 P0490260
Replaced By PB144M
HEX BOLT M10-1.5 X 55
N/A View Replacement
261 P0490261
Replaced By P0452253
BRACKET
N/A View Replacement
262 P0490262
Replaced By P0452254
PEDAL
N/A View Replacement
262A P0490262A
Replaced By P0656231
PEDAL ASSEMBLY
N/A View Replacement

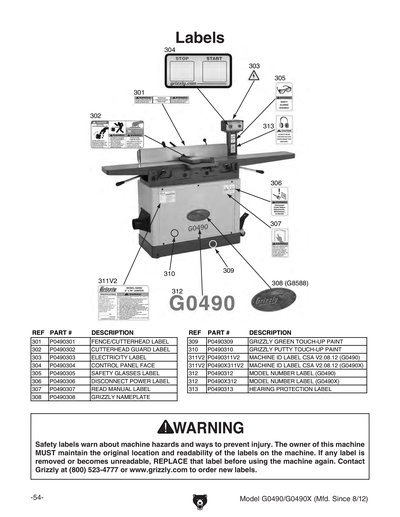

301 P0490301 FENCE/CUTTERHEAD LABEL $1.00
302 P0490302 CUTTERHEAD GUARD LABEL $1.00
303 P0490303
Replaced By PLABEL-14
ELECTRICITY 1.4W X 1.2H
N/A View Replacement
304 P0490304 CONTROL PANEL FACE $9.75
305 P0490305
Replaced By PLABEL-11
SAFETY GLASSES 2W X 3.3H V1
N/A View Replacement
306 P0490306
Replaced By PLABEL-36
DISCONNECT POWER-DOOR 2W X 3.3H
N/A View Replacement
307 P0490307
Replaced By PLABEL-12A
READ MANUAL 2W X 3.3H V2.07.05
N/A View Replacement
308 P0490308
Replaced By G8588
Name Plates - Small
N/A View Replacement
309 P0490309
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
310 P0490310
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
311 P0490311 MACHINE ID LABEL NO-CSA V1 $9.50
311V2 P0490311V2 MACHINE ID LABEL CSA V2.08.12 $9.50
312 P0490312 MODEL NUMBER LABEL $5.50
313 P0490313 HEARING PROTECTION LABEL $1.00
BOX1 P0490BOX1 COMPLETE UPPER ASSY BOX 1 $694.00
MANUAL P0490MANUAL MANUAL G0490-90X MFD-03.09-07.12 V1.10.0 $17.50
MANV2 P0490MANV2 MANUAL G0490-90X MFD-08.12+ V2.06.14 $14.00
P0940139 P0940139
Replaced By P0939127
CUTTERHEAD ELEVATION SCALE
N/A View Replacement
X235-5 P0490X235-5
Replaced By PSW01-1
WHITE SWITCH COVER SCREW V1.12.95
N/A View Replacement
XBOX1 P0490XBOX1 COMPLETE JOINTER ASSY BOX 1 $1,741.50
