Parts for G0490X - 8" x 76" Jointer with Parallelogram Beds and Spiral Cutterhead

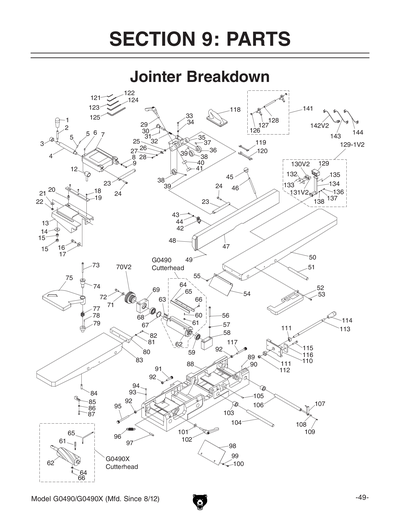

Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X

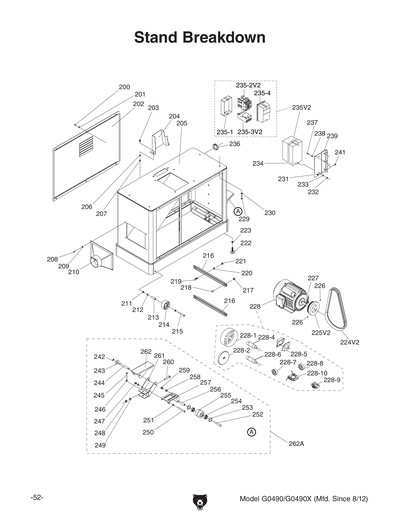

Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X
Part Diagram for G0490X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

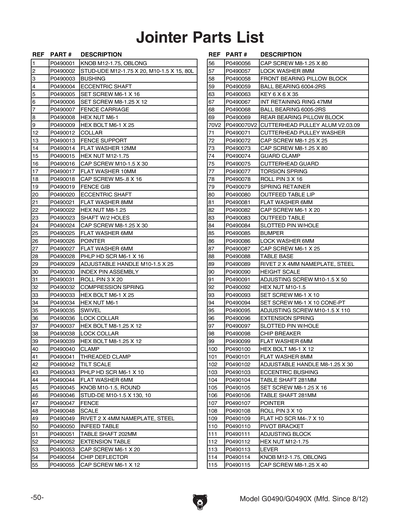

Ref #
Part #
Description
1
KNOB M12-1.75, OBLONG
Price
N/A
2
STUD-UDE M12-1.75 X 20, M10-1.5 X 15, 80
Price
N/A
3
BUSHING
Price
N/A
4
ECCENTRIC SHAFT
Price
N/A
5
SET SCREW M6-1 X 16
Price
N/A
6
SET SCREW M8-1.25 X 12
Price
N/A
7
FENCE CARRIAGE
Price
N/A
8
HEX NUT M6-1
Price
N/A
9
HEX BOLT M6-1 X 25
Price
N/A
12
COLLAR
Price
N/A
13
FENCE SUPPORT
Price
N/A
14
FLAT WASHER 12MM
Price
N/A
15
HEX NUT M12-1.75
Price
N/A
16
CAP SCREW M10-1.5 X 30
Price
N/A
17
FLAT WASHER 10MM
Price
N/A
18
CAP SCREW M5-.8 X 16
Price
N/A
19
FENCE GIB
Price
N/A
20
ECCENTRIC SHAFT
Price
N/A
21
FLAT WASHER 8MM
Price
N/A
22
HEX NUT M8-1.25
Price
N/A
23
SHAFT W/2 HOLES
Price
N/A
24
CAP SCREW M8-1.25 X 30
Price
N/A
25
FLAT WASHER 6MM
Price
N/A
26
POINTER
Price
N/A
27
FLAT WASHER 6MM
Price
N/A
28
PHLP HD SCR M6-1 X 16
Price
N/A
29
ADJUSTABLE HANDLE M10-1.5 X 35
Price
N/A
30
INDEX PIN ASSEMBLY
Price
N/A
31
ROLL PIN 3 X 20
Price
N/A
32
COMPRESSION SPRING
Price
N/A
33
HEX BOLT M6-1 X 25
Price
N/A
34
HEX NUT M6-1
Price
N/A
35
SWIVEL
Price
N/A
36
LOCK COLLAR
Price
N/A
37
HEX BOLT M8-1.25 X 12
Price
N/A
38
LOCK COLLAR
Price
N/A
39
HEX BOLT M8-1.25 X 12
Price
N/A
40
CLAMP
Price
N/A
41
THREADED CLAMP
Price
N/A
42
TILT SCALE
Price
N/A
43
PHLP HD SCR M6-1 X 10
Price
N/A
44
FLAT WASHER 6MM
Price
N/A
45
KNOB M10-1.5, ROUND
Price
N/A
46
STUD-DE M10-1.5 X 130, 10
Price
N/A
47
FENCE
Price
N/A
48
SCALE
Price
N/A
49
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
50
INFEED TABLE
Price
N/A
51
TABLE SHAFT 202MM
Price
N/A
52
EXTENSION TABLE
Price
N/A
53
CAP SCREW M6-1 X 20
Price
N/A
54
CHIP DEFLECTOR
Price
N/A
55
CAP SCREW M6-1 X 12
Price
N/A
56
CAP SCREW M8-1.25 X 80
Price
N/A
57
LOCK WASHER 8MM
Price
N/A
58
FRONT BEARING PILLOW BLOCK
Price
N/A
59
BALL BEARING 6004-2RS
Price
N/A
60
SET SCREW M5-.8 X 16
Price
N/A
61
DRIVER BIT TORX T20
Price
N/A
62
SPIRAL CUTTERHEAD 8" V1
Price
$1,257.50
62V2
SPIRAL CUTTERHEAD 8" V2.04.15
Price
$668.45
63
KEY 6 X 6 X 35
Price
N/A
64
Indexable Carbide Inserts - 14.18 x 14.18 x 2mm, 10-Pk.
Price
N/A
64V2
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
65
L-WRENCH TORX T20
Price
N/A
66
INSERT SCREW TORX T20 M6-1 X 15
Price
N/A
67
INT RETAINING RING 47MM
Price
N/A
68
BALL BEARING 6005-2RS
Price
N/A
69
REAR BEARING PILLOW BLOCK
Price
N/A
70
CUTTERHEAD PULLEY CAST IRON V1.01.09
Price
N/A
70V2
CUTTERHEAD PULLEY ALUM V2.03.09
Price
N/A
71
CUTTERHEAD PULLEY WASHER
Price
$1.90
72
CAP SCREW M8-1.25 X 25
Price
N/A
73
CAP SCREW M8-1.25 X 80
Price
N/A
74
GUARD CLAMP
Price
N/A
75
CUTTERHEAD GUARD
Price
N/A
77
TORSION SPRING
Price
N/A
78
ROLL PIN 3 X 16
Price
N/A
79
SPRING RETAINER
Price
N/A
80
OUTFEED TABLE LIP
Price
N/A
81
FLAT WASHER 6MM
Price
N/A
82
CAP SCREW M6-1 X 20
Price
N/A
83
OUTFEED TABLE
Price
N/A
84
SLOTTED PIN W/HOLE
Price
N/A
85
BUMPER
Price
N/A
86
LOCK WASHER 6MM
Price
N/A
87
CAP SCREW M6-1 X 25
Price
N/A
88
TABLE BASE
Price
N/A
89
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
90
HEIGHT SCALE
Price
N/A
91
ADJUSTING SCREW M10-1.5 X 50
Price
N/A
92
HEX NUT M10-1.5
Price
N/A
93
SET SCREW M6-1 X 10
Price
N/A
94
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
95
ADJUSTING SCREW M10-1.5 X 110
Price
N/A
96
EXTENSION SPRING
Price
N/A
97
SLOTTED PIN W/HOLE
Price
N/A
98
CHIP BREAKER
Price
N/A
99
FLAT WASHER 6MM
Price
N/A
100
HEX BOLT M6-1 X 12
Price
N/A
101
FLAT WASHER 8MM
Price
N/A
102
ADJUSTABLE HANDLE M8-1.25 X 30
Price
N/A
103
ECCENTRIC BUSHING
Price
N/A
104
TABLE SHAFT 281MM
Price
N/A
105
SET SCREW M8-1.25 X 16
Price
N/A
106
TABLE SHAFT 281MM
Price
N/A
107
POINTER
Price
N/A
108
ROLL PIN 3 X 10
Price
N/A
109
FLAT HD SCR M4-.7 X 10
Price
N/A
110
PIVOT BRACKET
Price
N/A
111
ADJUSTING BLOCK
Price
N/A
112
HEX NUT M12-1.75
Price
N/A
113
LEVER
Price
N/A
114
KNOB M12-1.75, OBLONG
Price
N/A
115
CAP SCREW M8-1.25 X 40
Price
N/A
116
CLAMP PLATE
Price
N/A
117
MEDIUM ADJUSTING SCREW
Price
N/A
118
Safety Push Block - Small
Price
N/A
119
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
120
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
121
HEX WRENCH 2.5MM
Price
N/A
122
HEX WRENCH 4MM
Price
N/A
123
HEX WRENCH 5MM
Price
N/A
124
HEX WRENCH 6MM
Price
N/A
125
HEX WRENCH 8MM
Price
N/A

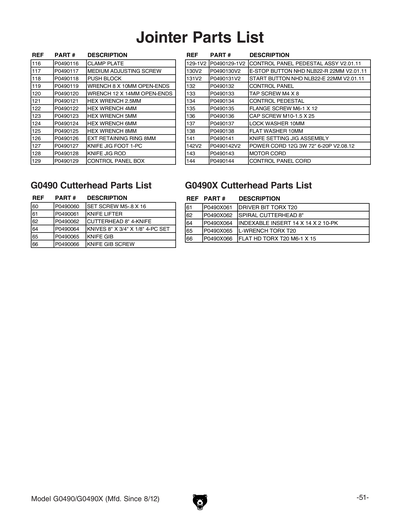

129
CONTROL PANEL BOX
Price
N/A
129-1
*DISCD*COMPLETE SWITCH ASSY V1
Price
N/A
129-1V2
CONTROL PANEL PEDESTAL ASSY V2.01.11
Price
N/A
130
*DISCD*STOP BUTTON WHITE ARROW V1
Price
N/A
130V2
E-STOP BUTTON NHD NLB22-R 22MM V2.01.11
Price
N/A
131
*DISCD*START BUTTON SOLID V1
Price
N/A
131V2
START BUTTON NHD NLB22-E 22MM V2.01.11
Price
N/A
132
CONTROL PANEL
Price
N/A
133
TAP SCREW M4 X 8
Price
N/A
134
CONTROL PEDESTAL
Price
N/A
135
FLANGE SCREW M6-1 X 12
Price
N/A
136
CAP SCREW M10-1.5 X 25
Price
N/A
137
LOCK WASHER 10MM
Price
N/A
138
FLAT WASHER 10MM
Price
N/A
142
POWER CORD V1
Price
N/A
142V2
POWER CORD 12G 3W 72" 6-20P V2.08.12
Price
N/A
143
MOTOR CORD
Price
N/A
144
CONTROL PANEL CORD
Price
N/A

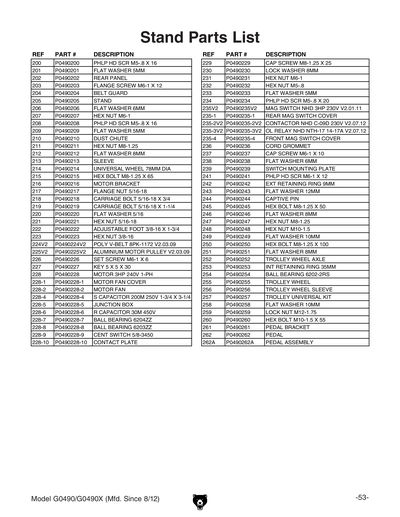

200
PHLP HD SCR M5-.8 X 16
Price
N/A
201
FLAT WASHER 5MM
Price
N/A
202
REAR PANEL
Price
N/A
203
FLANGE SCREW M6-1 X 12
Price
N/A
204
BELT GUARD
Price
N/A
205
STAND
Price
N/A
205-1
CABINET ASSY W/MOTOR 3HP 220V 1-PH
Price
$1,042.60
206
FLAT WASHER 6MM
Price
N/A
207
HEX NUT M6-1
Price
N/A
208
PHLP HD SCR M5-.8 X 16
Price
N/A
209
FLAT WASHER 5MM
Price
N/A
210
DUST PORT
Price
N/A
211
HEX NUT M8-1.25
Price
N/A
212
FLAT WASHER 8MM
Price
N/A
213
SLEEVE
Price
N/A
214
UNIVERSAL WHEEL 78MM DIA
Price
N/A
215
HEX BOLT M8-1.25 X 65
Price
N/A
216
MOTOR BRACKET
Price
N/A
217
FLANGE NUT 5/16-18
Price
N/A
218
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
219
CARRIAGE BOLT 5/16-18 X 1-1/4
Price
N/A
220
FLAT WASHER 5/16
Price
N/A
221
HEX NUT 5/16-18
Price
N/A
222
RUBBER FOOT
Price
N/A
223
HEX NUT 3/8-16
Price
N/A
224
V-BELT A46
Price
N/A
224V2
POLY V-BELT 8PK1172 V2.03.09 (1 PC)
Price
N/A
225
CAST IRON MOTOR PULLEY V1.01.09
Price
N/A
225V2
ALUMINIUM MOTOR PULLEY V2.03.09
Price
N/A
226
SET SCREW M6-1 X 6
Price
N/A
227
KEY 5 X 5 X 30
Price
N/A
228
MOTOR 3HP 240V 1-PH
Price
N/A
228-1
MOTOR FAN COVER
Price
N/A
228-10
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
228-2
MOTOR FAN
Price
N/A
228-4
S CAPACITOR 200M 250V 1-9/16 X 3-9/16
Price
N/A
228-5
JUNCTION BOX
Price
N/A
228-6
R CAPACITOR 30M 450V 1-3/4 X 2-3/4
Price
N/A
228-7
BALL BEARING 6204ZZ
Price
N/A
228-8
BALL BEARING 6203ZZ
Price
N/A
228-9
CENT SWITCH 5/8-3450
Price
N/A
229
CAP SCREW M8-1.25 X 25
Price
N/A
230
LOCK WASHER 8MM
Price
N/A
231
HEX NUT M6-1
Price
N/A
232
HEX NUT M5-.8
Price
N/A
233
FLAT WASHER 5MM
Price
N/A
234
PHLP HD SCR M5-.8 X 20
Price
N/A
235
MAGNETIC SWITCH ASSY V2.01.11
Price
N/A
235-1
REAR MAG SWITCH COVER
Price
N/A
235-2
CONTACTOR NHD C-09D 220V V1
Price
N/A
235-2V2
CONTACTOR NHD 09D 230V
Price
N/A
235-2V2-9
CONTACTOR NHD 09D 230V
Price
N/A
235-3
OL RELAY NHD NTH-11 8-11 V1
Price
N/A
235-3V2
OL RELAY NHD NTH-17 14-17A
Price
N/A
235-4
FRONT MAG SWITCH COVER
Price
N/A
235V2
MAGNETIC SWITCH ASSY V2.01.11
Price
N/A
236
GROMMET 50 X 41MM
Price
N/A
237
CAP SCREW M6-1 X 10
Price
N/A
238
FLAT WASHER 6MM
Price
N/A
239
SWITCH MOUNTING PLATE
Price
N/A
241
PHLP HD SCR M6-1 X 12
Price
N/A
242
EXT RETAINING RING 9MM
Price
N/A
243
FLAT WASHER 12MM
Price
N/A
244
SHAFT 12MM
Price
N/A
245
HEX BOLT M8-1.25 X 50
Price
N/A
246
FLAT WASHER 8MM
Price
N/A
247
HEX NUT M8-1.25
Price
N/A
248
HEX NUT M10-1.5
Price
N/A
249
FLAT WASHER 10MM
Price
N/A
250
HEX BOLT M8-1.25 X 100
Price
N/A
251
FLAT WASHER 8MM
Price
N/A
252
TROLLEY WHEEL BOLT
Price
N/A
253
INT RETAINING RING 35MM
Price
N/A
254
BALL BEARING 6202-2RS
Price
N/A
255
TROLLEY WHEEL
Price
N/A
256
TROLLEY WHEEL SLEEVE
Price
N/A
257
TROLLEY UNIVERSAL KIT
Price
N/A
258
FLAT WASHER 10MM
Price
N/A
259
LOCK NUT M12-1.75
Price
N/A
260
HEX BOLT M10-1.5 X 55
Price
N/A
261
BRACKET
Price
N/A
262
PEDAL
Price
N/A
262A
PEDAL ASSEMBLY
Price
N/A

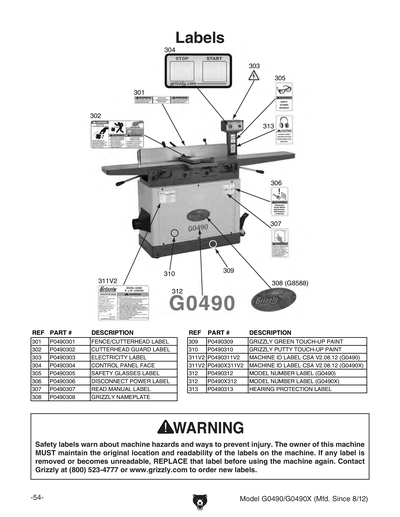

301
FENCE/CUTTERHEAD LABEL
Price
N/A
302
CUTTERHEAD GUARD LABEL
Price
N/A
303
ELECTRICITY 1.4W X 1.2H
Price
N/A
304
CONTROL PANEL FACE
Price
N/A
305
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
306
DISCONNECT POWER-DOOR 2W X 3.3H
Price
N/A
307
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
308
Nameplate - Small
Price
N/A
309
N/S GRIZZLY GREEN G1023S
Price
N/A
310
GREY PUTTY REF G0504
Price
N/A
311
MACHINE ID LABEL V1
Price
$16.40
311V2
MACHINE ID LABEL CSA V2.08.12
Price
$16.40
312
MODEL NUMBER LABEL
Price
$5.75
313
HEARING PROTECTION LABEL
Price
N/A
MAN
MANUAL G0490-90X MFD-03.09-07.12 V1.10.0
Price
N/A
