Parts for G0490ZX - 8" Jointer with Spiral Cutterhead

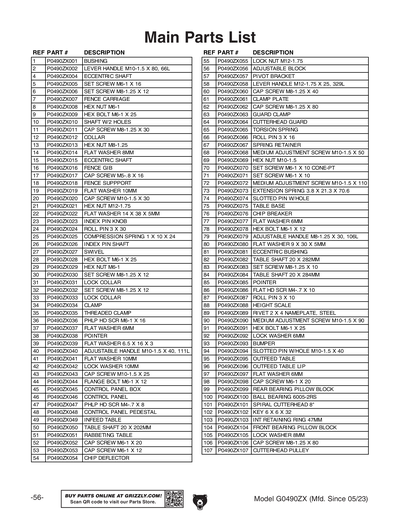

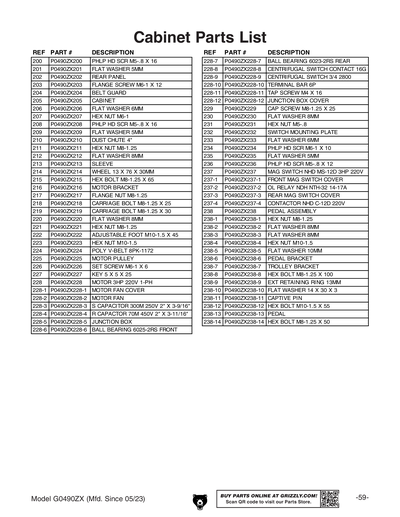

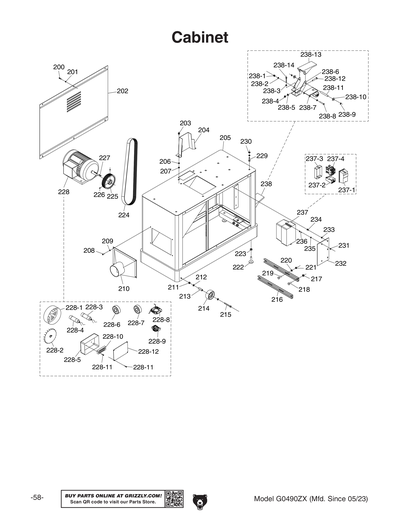

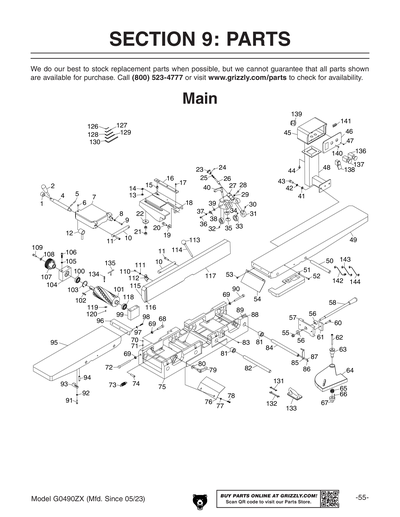

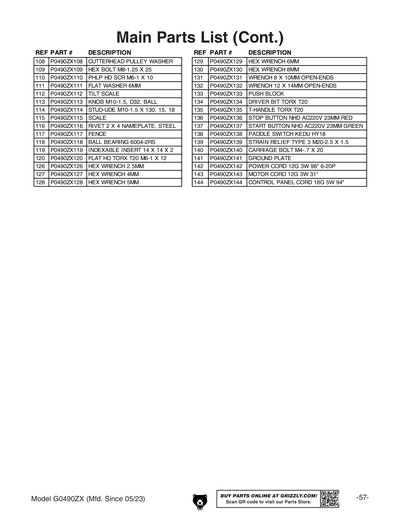

Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX
Part Diagram for G0490ZX

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BUSHING
Price
$2.70
2
LEVER HANDLE M10-1.5 X 80, 66L
Price
$5.40
4
ECCENTRIC SHAFT
Price
$12.50
5
SET SCREW M6-1 X 16
Price
$1.90
6
SET SCREW M8-1.25 X 12
Price
N/A
7
FENCE CARRIAGE
Price
$49.10
8
HEX NUT M6-1
Price
N/A
9
HEX BOLT M6-1 X 25
Price
N/A
10
SHAFT W/2 HOLES
Price
$5.40
11
CAP SCREW M8-1.25 X 30
Price
N/A
12
COLLAR
Price
$2.25
13
HEX NUT M8-1.25
Price
N/A
14
FLAT WASHER 8MM
Price
N/A
15
ECCENTRIC SHAFT
Price
$1.90
16
FENCE GIB
Price
$6.70
17
CAP SCREW M5-.8 X 16
Price
N/A
18
FENCE SUPPPORT
Price
$62.45
19
FLAT WASHER 10MM
Price
N/A
20
CAP SCREW M10-1.5 X 30
Price
N/A
21
HEX NUT M12-1.75
Price
N/A
22
FLAT WASHER 14 X 38 X 5MM
Price
$1.90
23
INDEX PIN KNOB
Price
$3.65
24
ROLL PIN 3 X 30
Price
N/A
25
COMPRESSION SPRING 1 X 10 X 24
Price
$1.90
26
INDEX PIN SHAFT
Price
$3.15
27
SWIVEL
Price
$40.15
28
HEX BOLT M6-1 X 25
Price
N/A
29
HEX NUT M6-1
Price
N/A
30
SET SCREW M8-1.25 X 12
Price
N/A
31
LOCK COLLAR
Price
$4.50
32
SET SCREW M8-1.25 X 12
Price
N/A
33
LOCK COLLAR
Price
$4.50
34
CLAMP
Price
$2.70
35
THREADED CLAMP
Price
$2.70
36
PHLP HD SCR M6-1 X 16
Price
N/A
37
FLAT WASHER 6MM
Price
N/A
38
POINTER
Price
$1.90
39
FLAT WASHER 6.5 X 16 X 3
Price
$1.90
40
ADJUSTABLE HANDLE M10-1.5 X 40, 111L
Price
$10.25
41
FLAT WASHER 10MM
Price
N/A
42
LOCK WASHER 10MM
Price
N/A
43
CAP SCREW M10-1.5 X 25
Price
N/A
44
FLANGE BOLT M6-1 X 12
Price
N/A
45
CONTROL PANEL BOX
Price
$16.50
46
CONTROL PANEL
Price
$10.25
47
PHLP HD SCR M4-.7 X 8
Price
N/A
48
CONTROL PANEL PEDESTAL
Price
$21.00
49
INFEED TABLE
Price
$338.70
50
TABLE SHAFT 20 X 202MM
Price
$4.50
51
RABBETING TABLE
Price
$33.45
52
CAP SCREW M6-1 X 20
Price
N/A
53
CAP SCREW M6-1 X 12
Price
N/A
54
CHIP DEFLECTOR
Price
$2.70
55
LOCK NUT M12-1.75
Price
N/A
56
ADJUSTABLE BLOCK
Price
$3.65
57
PIVOT BRACKET
Price
$15.65
58
LEVER HANDLE M12-1.75 X 25, 329L
Price
$5.40
60
CAP SCREW M8-1.25 X 40
Price
N/A
61
CLAMP PLATE
Price
$3.15
62
CAP SCREW M8-1.25 X 80
Price
N/A
63
GUARD CLAMP
Price
$13.40
64
CUTTERHEAD GUARD
Price
$62.45
65
TORSION SPRING
Price
$2.25
66
ROLL PIN 3 X 16
Price
N/A
67
SPRING RETAINER
Price
$11.20
68
MEDIUM ADJUSTMENT SCREW M10-1.5 X 50
Price
$3.65
69
HEX NUT M10-1.5
Price
N/A
70
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
71
SET SCREW M6-1 X 10
Price
N/A
72
MEDIUM ADJUSTMENT SCREW M10-1.5 X 110
Price
$4.50
73
EXTENSION SPRING 3.8 X 21.3 X 70.6
Price
$1.90
74
SLOTTED PIN W/HOLE
Price
$1.90
75
TABLE BASE
Price
$588.25
76
CHIP BREAKER
Price
$1.90
77
FLAT WASHER 6MM
Price
N/A
78
HEX BOLT M6-1 X 12
Price
N/A
79
ADJUSTABLE HANDLE M8-1.25 X 30, 106L
Price
$9.85
80
FLAT WASHER 9 X 30 X 5MM
Price
$1.90
81
ECCENTRIC BUSHING
Price
$7.20
82
TABLE SHAFT 20 X 282MM
Price
$6.70
83
SET SCREW M8-1.25 X 10
Price
N/A
84
TABLE SHAFT 20 X 284MM
Price
$6.70
85
POINTER
Price
$1.90
86
FLAT HD SCR M4-.7 X 10
Price
N/A
87
ROLL PIN 3 X 10
Price
N/A
88
HEIGHT SCALE
Price
$1.90
89
RIVET 2 X 4 NAMEPLATE, STEEL
Price
$1.90
90
MEDIUM ADJUSTMENT SCREW M10-1.5 X 90
Price
$20.10
91
HEX BOLT M6-1 X 25
Price
N/A
92
LOCK WASHER 6MM
Price
N/A
93
BUMPER
Price
$4.50
94
SLOTTED PIN W/HOLE M10-1.5 X 40
Price
$1.90
95
OUTFEED TABLE
Price
$289.70
96
OUTFEED TABLE LIP
Price
$31.25
97
FLAT WASHER 6MM
Price
N/A
98
CAP SCREW M6-1 X 20
Price
N/A
99
REAR BEARING PILLOW BLOCK
Price
$22.35
100
BALL BEARING 6005-2RS
Price
N/A
101
SPIRAL CUTTERHEAD 8"
Price
$1,203.20
102
KEY 6 X 6 X 32
Price
N/A
103
INT RETAINING RING 47MM
Price
N/A
104
FRONT BEARING PILLOW BLOCK
Price
$32.15
105
LOCK WASHER 8MM
Price
N/A
106
CAP SCREW M8-1.25 X 80
Price
N/A
107
CUTTERHEAD PULLEY
Price
$25.90
108
CUTTERHEAD PULLEY WASHER
Price
$1.90
109
HEX BOLT M8-1.25 X 25
Price
N/A
110
PHLP HD SCR M6-1 X 10
Price
N/A
111
FLAT WASHER 6MM
Price
N/A
112
TILT SCALE
Price
$2.25
113
KNOB M10-1.5, D32, BALL
Price
$5.40
114
STUD-UDE M10-1.5 X 130, 15, 18
Price
$1.90
115
SCALE
Price
$1.90
116
RIVET 2 X 4 NAMEPLATE, STEEL
Price
$1.90
117
FENCE
Price
$205.00
118
BALL BEARING 6004-2RS
Price
N/A
119
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
120
FLAT HD TORX T20 M6-1 X 12
Price
$1.90
126
HEX WRENCH 2.5MM
Price
N/A
127
HEX WRENCH 4MM
Price
N/A
128
HEX WRENCH 5MM
Price
N/A
129
HEX WRENCH 6MM
Price
N/A
130
HEX WRENCH 8MM
Price
N/A
131
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
132
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
133
Safety Push Block - Small
Price
N/A
134
DRIVER BIT TORX T20
Price
$1.90
135
T-HANDLE TORX T20
Price
$4.50
136
STOP BUTTON NHD AC220V 23MM RED
Price
$29.45
137
START BUTTON NHD AC220V 23MM GREEN
Price
$22.35
138
PADDLE SWITCH KEDU HY18
Price
$7.15
139
STRAIN RELIEF TYPE 3 M20-2.5 X 1.5
Price
$1.90
140
CARRIAGE BOLT M4-.7 X 20
Price
$1.90
141
GROUND PLATE
Price
$5.40
142
POWER CORD 12G 3W 98" 6-20P
Price
$33.45
143
MOTOR CORD 12G 3W 31"
Price
$13.40
144
CONTROL PANEL CORD 18G 5W 94"
Price
$6.70
200
PHLP HD SCR M5-.8 X 16
Price
N/A
201
FLAT WASHER 5MM
Price
N/A
202
REAR PANEL
Price
$33.45
203
FLANGE SCREW M6-1 X 12
Price
N/A
204
BELT GUARD
Price
$6.70
205
CABINET
Price
$294.15
206
FLAT WASHER 6MM
Price
N/A
207
HEX NUT M6-1
Price
N/A
208
PHLP HD SCR M5-.8 X 16
Price
N/A
209
FLAT WASHER 5MM
Price
N/A
210
DUST CHUTE 4"
Price
$11.20
211
HEX NUT M8-1.25
Price
N/A
212
FLAT WASHER 8MM
Price
N/A
213
SLEEVE
Price
$1.90
214
WHEEL 13 X 76 X 30MM
Price
$12.50
215
HEX BOLT M8-1.25 X 65
Price
N/A
216
MOTOR BRACKET
Price
$4.95
217
FLANGE NUT M8-1.25
Price
N/A
218
CARRIAGE BOLT M8-1.25 X 25
Price
N/A
219
CARRIAGE BOLT M8-1.25 X 30
Price
N/A
220
FLAT WASHER 8MM
Price
N/A
221
HEX NUT M8-1.25
Price
N/A
222
ADJUSTABLE FOOT M10-1.5 X 45
Price
$6.25
223
HEX NUT M10-1.5
Price
N/A
224
POLY V-BELT 8PK-1172
Price
$16.50
225
MOTOR PULLEY
Price
$22.35
226
SET SCREW M6-1 X 6
Price
N/A
227
KEY 5 X 5 X 25
Price
N/A
228
MOTOR 3HP 220V 1-PH
Price
$735.35
228-1
MOTOR FAN COVER
Price
$13.40
228-10
TERMINAL BAR 6P
Price
$12.95
228-11
TAP SCREW M4 X 16
Price
N/A
228-2
MOTOR FAN
Price
$3.65
228-3
S CAPACITOR 300M 250V 2" X 3-9/16"
Price
$26.75
228-4
R CAPACTOR 70M 450V 2" X 3-11/16"
Price
$26.75
228-5
JUNCTION BOX W/COVER
Price
$11.20
228-6
BALL BEARING 6025-2RS FRONT
Price
$2.70
228-7
BALL BEARING 6023-2RS REAR
Price
$4.50
228-8
CENTRIFUGAL SWITCH CONTACT W/PLATE
Price
$22.35
228-9
CENTRIFUGAL SWITCH CONTACT W/PLATE
Price
N/A
229
CAP SCREW M8-1.25 X 25
Price
N/A
230
FLAT WASHER 8MM
Price
N/A
231
HEX NUT M5-.8
Price
N/A
232
SWITCH MOUNTING PLATE
Price
$3.65
233
FLAT WASHER 6MM
Price
N/A
234
PHLP HD SCR M6-1 X 10
Price
N/A
235
FLAT WASHER 5MM
Price
N/A
236
PHLP HD SCR M5-.8 X 12
Price
N/A
237
MAG SWITCH NHD MS-12D 3HP 220V
Price
$173.85
237-1
FRONT MAG SWITCH COVER
Price
$20.10
237-2
OL RELAY NDH NTH-32 14-17A
Price
$49.10
237-3
REAR MAG SWITCH COVER
Price
$13.40
237-4
CONTACTOR NHD C-12D 220V
Price
$66.90
238
PEDAL ASSEMBLY
Price
$82.50
238-1
HEX NUT M8-1.25
Price
N/A
238-10
FLAT WASHER 14 X 30 X 3
Price
$1.90
238-11
CAPTIVE PIN
Price
$1.90
238-12
HEX BOLT M10-1.5 X 55
Price
N/A
238-13
PEDAL
Price
$7.20
238-14
HEX BOLT M8-1.25 X 50
Price
N/A
238-2
FLAT WASHER 8MM
Price
N/A
238-3
FLAT WASHER 8MM
Price
N/A
238-4
HEX NUT M10-1.5
Price
N/A
238-5
FLAT WASHER 10MM
Price
N/A
238-6
PEDAL BRACKET
Price
$8.95
238-7
TROLLEY BRACKET
Price
$33.45
238-8
HEX BOLT M8-1.25 X 100
Price
N/A
238-9
EXT RETAINING RING 13MM
Price
N/A
301
CUTTERHEAD GUARD LABEL
Price
$1.90
302
FENCE/CUTTERHEAD LABEL
Price
$1.90
303
CONTROL PANEL FACE LABEL
Price
$9.85
304
ELECTRICITY LABEL
Price
$1.90
305
COMBO WARNING LABEL
Price
$1.90
306
LIGHT BEIGE REF G4003G
Price
N/A
307
Nameplate - Small
Price
N/A
308
MODEL NUMBER LABEL
Price
$1.90
309
GRIZZLY.COM LABEL
Price
$1.90
310
N/S GRIZZLY GREEN G1023S
Price
N/A
311
MACHINE ID LABEL
Price
$3.15
311V2
MACHINE ID LABEL V2.07.24
Price
$10.95
MAN
G0490ZX MANUAL MFD 05.23-12.23 V1.05.23
Price
$6.45
MANV2
G0490ZX MANUAL MFD 01.24+ V2.07.24
Price
$15.20
P
CARRIAGE BOLT M8-1.25 X 30
Price
$1.49
