Parts for G0491 - 13" Floor Model Drill Press

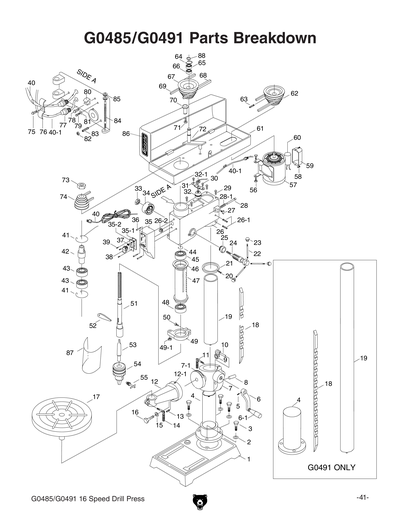

Part Diagram for G0491
Part Diagram for G0491
Part Diagram for G0491
Part Diagram for G0491
Part Diagram for G0491
Part Diagram for G0491
Part Diagram for G0491
Part Diagram for G0491

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

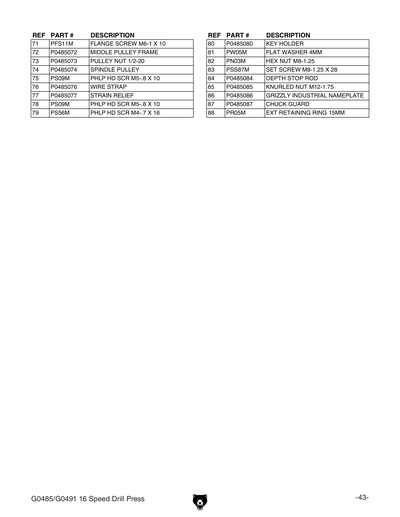

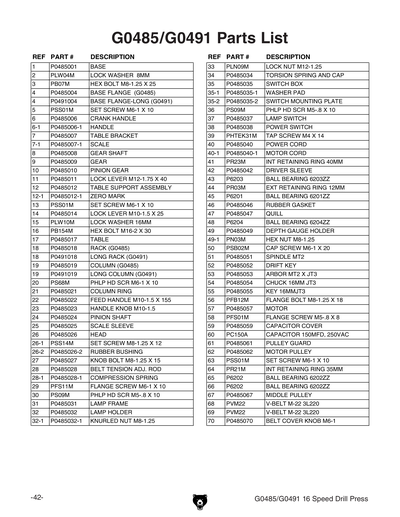

Ref #
Part #
Description
1
Price
$77.35
2
LOCK WASHER 8MM
Price
N/A
3
HEX BOLT M8-1.25 X 25
Price
N/A
4
*DISCD*BASE FLANGE-LONG
Price
$33.65
5
SET SCREW M6-1 X 10
Price
N/A
6
*DISCD*CRANK HANDLE
Price
N/A
6-1
*DISCD*HANDLE
Price
N/A
7
*DISCD*TABLE BRACKET
Price
N/A
7-1
*DISCD*SCALE
Price
N/A
8
*DISCD*GEAR SHAFT
Price
N/A
9
*DISCD*GEAR
Price
N/A
10
*DISCD*PINION GEAR
Price
N/A
11
*DISCD*LOCK LEVER M12-1.75 X 40
Price
N/A
12
*DISCD*TABLE SUPPORT ASSEMBLY
Price
N/A
12-1
*DISCD*ZERO MARK
Price
N/A
13
SET SCREW M6-1 X 10
Price
N/A
14
*DISCD*LOCK LEVER M10-1.5 X 25
Price
N/A
15
LOCK WASHER 16MM
Price
N/A
16
HEX BOLT M16-2 X 30
Price
N/A
17
*DISCD*TABLE
Price
N/A
18
*DISCD*RACK LONG
Item is no longer available
Price
N/A
19
*DISCD*COLUMN LONG
Item is no longer available
Price
N/A
20
PHLP HD SCR M6-1 X 10
Price
N/A
21
*DISCD*COLUMN RING
Price
N/A
22
*DISCD*FEED HANDLE M10-1.5 X 155
Price
N/A
23
*DISCD*HANDLE KNOB M10-1.5
Price
N/A
24
*DISCD*PINION SHAFT
Price
N/A
25
*DISCD*SCALE SLEEVE
Price
N/A
26
*DISCD*HEAD
Price
N/A
26-1
SET SCREW M8-1.25 X 12
Price
N/A
26-2
*DISCD*RUBBER BUSHING
Price
N/A
27
*DISCD*KNOB BOLT M8-1.25 X 15
Price
N/A
28
*DISCD*BELT TENSION ADJ ROD
Price
N/A
28-1
*DISCD*COMPRESSION SPRING
Price
N/A
29
FLANGE SCREW M6-1 X 10
Price
N/A
30
PHLP HD SCR M5-.8 X 10
Price
N/A
31
*DISCD*LAMP FRAME
Price
N/A
32
*DISCD*LAMP HOLDER
Price
N/A
32-1
*DISCD*KNURLED NUT M8-1.25
Price
N/A
33
LOCK NUT M12-1.75
Price
N/A
34
*DISCD*TORSION SPRING AND CAP
Price
N/A
35
*DISCD*SWITCH BOX
Price
N/A
35-1
*DISCD*WASHER PAD
Price
N/A
35-2
*DISCD*SWITCH MOUNTING PLATE
Price
N/A
36
PHLP HD SCR M5-.8 X 10
Price
N/A
37
*DISCD*LAMP SWITCH
Price
N/A
38
Safety Paddle Switch
Price
N/A
39
TAP SCREW M4 X 14
Price
N/A
40
*DISCD*POWER CORD
Price
N/A
40-1
*DISCD*MOTOR CORD
Price
N/A
41
INT RETAINING RING 40MM
Price
N/A
42
*DISCD*DRIVER SLEEVE
Price
N/A
43
BALL BEARING 6203ZZ
Price
N/A
44
EXT RETAINING RING 12MM
Price
N/A
45
BALL BEARING 6201ZZ
Price
N/A
46
*DISCD*RUBBER GASKET
Price
N/A
47
*DISCD*QUILL
Price
N/A
48
BALL BEARING 6204ZZ
Price
N/A
49
*DISCD*DEPTH GAUGE HOLDER
Price
N/A
49-1
HEX NUT M8-1.25
Price
N/A
50
CAP SCREW M6-1 X 20
Price
N/A
51
*DISCD*SPINDLE MT2
Price
N/A
52
*DISCD*DRIFT KEY
Price
N/A
53
*DISCD*ARBOR MT2 X JT3
Price
N/A
54
*DISCD*CHUCK 16MM JT3
Price
N/A
55
*DISCD*KEY 16MM JT3
Price
N/A
56
FLANGE BOLT M8-1.25 X 18
Price
N/A
57
*DISCD*MOTOR 1/2HP 1PH 110/220V
Price
N/A
58
FLANGE SCREW M5-.8 X 8
Price
N/A
59
*DISCD*CAPACITOR COVER
Price
N/A
60
*DISCD*S CAPACITOR 150M 250V
Price
N/A
61
*DISCD*PULLEY GUARD
Price
N/A
62
*DISCD*MOTOR PULLEY
Price
N/A
63
SET SCREW M6-1 X 10
Price
N/A
64
INT RETAINING RING 35MM
Price
N/A
65
BALL BEARING 6202ZZ
Price
N/A
66
BALL BEARING 6202ZZ
Price
N/A
67
*DISCD*PULLEY MIDDLE
Price
N/A
68
V-BELT M22 3L220
Price
N/A
69
V-BELT M22 3L220
Price
N/A
70
*DISCD*BELT COVER KNOB M6-1
Price
N/A
71
FLANGE SCREW M6-1 X 10
Price
N/A
72
*DISCD*PULLEY FRAME MIDDLE
Price
N/A
73
*DISCD*PULLEY NUT M25 X 1.5
Price
N/A
74
*DISCD*SPINDLE PULLEY
Price
N/A
75
PHLP HD SCR M5-.8 X 10
Price
N/A
76
*DISCD*WIRE STRAP
Price
N/A
77
*DISCD*STRAIN RELIEF
Price
N/A
78
PHLP HD SCR M5-.8 X 10
Price
N/A
79
PHLP HD SCR M4-.7 X 16
Price
N/A
80
*DISCD*KEY HOLDER
Price
N/A
81
FLAT WASHER 4MM
Price
N/A
82
HEX NUT M8-1.25
Price
N/A
83
SET SCREW M8-1.25 X 28
Price
N/A
84
*DISCD*DEPTH STOP ROD
Price
N/A
85
*DISCD*KNURLED NUT M12-1.75
Price
N/A
86
*DISCD*GRIZZLY INDUSTRIAL NAMEPLATE
Price
N/A
87
*DISCD*CHUCK GUARD
Price
N/A
88
EXT RETAINING RING 15MM
Price
N/A

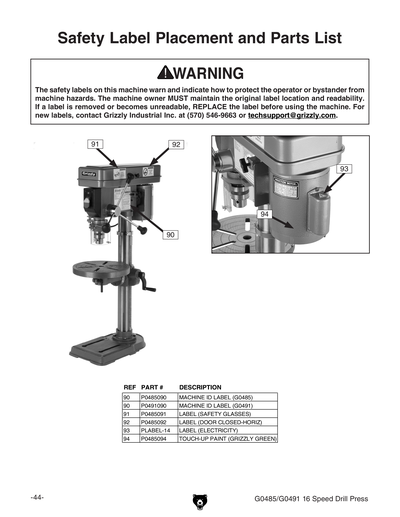

90
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
91
*DISCD*SAFETY GLASSES LABEL
Price
N/A
92
*DISCD*DOOR CLOSED HORIZONTAL
Price
N/A
93
ELECTRICITY 1.4W X 1.2H
Price
N/A
94
N/S GRIZZLY GREEN G1023S
Price
N/A
95
*DISCD*SPEED CHART
Price
N/A
MAN
*DISCD*MANUAL FOR G0491 11/05
