Parts for G0493 - 14" 10 HP 3-Phase Sliding Table Saw

Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493
Part Diagram for G0493

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

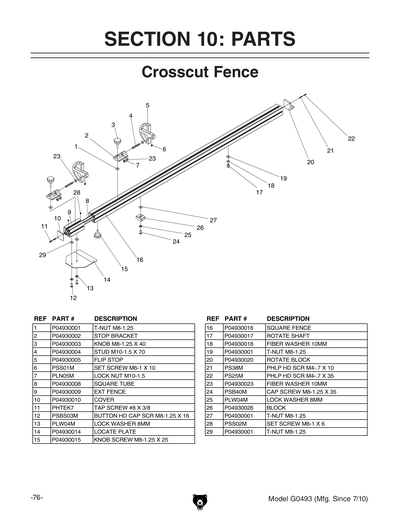

1
T-NUT M8-1.25
Price
N/A
2
STOP BRACKET
Price
N/A
3
KNOB BOLT M8-1.25 X 40
Price
N/A
4
STUD-FT M10-1.5 X 70 V1
Price
N/A
4V2
ROTATION SHAFT V2.05.12
Item is no longer available
Price
N/A
5
FLIP STOP
Price
N/A
5A
FLIP STOP ASSEMBLY
Item is no longer available
Price
N/A
6
SET SCREW M6-1 X 10
Price
N/A
7
LOCK NUT M10-1.5
Price
N/A
8
*DISCD*SQUARE TUBE
Price
N/A
9
EXT. FENCE ASSEMBLY V2.05.12
Price
N/A
9A
EXT. FENCE ASSEMBLY V2.05.12
Price
N/A
9AV2
EXT. FENCE ASSEMBLY V2.05.12
Price
$619.20
9V2
EXT FENCE W/SQUARE FENCE V2.05.12
Price
$414.60
10
COVER V1
Item is no longer available
Price
N/A
10V2
COVER V2.05.12
Price
$5.75
11
TAP SCREW #8 X 3/8
Price
N/A
12
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
13
LOCK WASHER 8MM
Price
N/A
14
*DISCD*LOCATE PLATE
Price
N/A
15
KNOB SCREW M8-1.25 X 25
Price
$12.95
16
EXT. FENCE ASSEMBLY V2.05.12
Price
N/A
16V2
EXT FENCE W/SQUARE FENCE V2.05.12
Price
N/A
17
*DISCD*ROTATE SHAFT
Price
$7.50
18
*DISCD*FIBER WASHER 10 X 18
Price
N/A
19
*DISCD*T-NUT M8-1.25
Price
N/A
20
ROTATE BLOCK V1
Item is no longer available
Price
N/A
20V2
END PIECE ABS V2.06.13
Price
N/A
21
PHLP HD SCR M4-.7 X 10
Price
N/A
22
PHLP HD SCR M4-.7 X 35
Price
N/A
23
FIBER FLAT WASHER 10MM
Price
N/A
24
CAP SCREW M8-1.25 X 35
Price
N/A
25
LOCK WASHER 8MM
Price
N/A
26
BLOCK
Price
$26.45
27
*DISCD*T-NUT M8-1.25
Price
N/A
28
SET SCREW M6-1 X 6
Price
N/A
29
*DISCD*T-NUT M8-1.25
Price
N/A
30
RULER 0-2000MM
Price
N/A
31
RULER 1720-3420MM
Price
N/A
32
SQUARE NUT M5-.8
Price
N/A
33
KNURLED SET SCREW M5-.8 X 6
Item is no longer available
Price
N/A
34
SET SCREW M5-.8 X 6
Price
N/A
35
T-BOLT M8-1.25 X 35 V2.05.12
Price
N/A

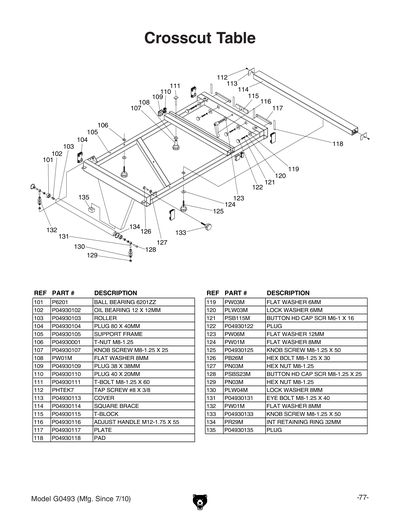

101
BALL BEARING 6201ZZ
Price
N/A
102
OIL BEARING 12 X 12MM
Item is no longer available
Price
N/A
103
ROLLER
Price
$39.00
104
PLUG 80 X 40MM
Item is no longer available
Price
N/A
105
SUPPORT FRAME V2.05.12
Price
N/A
105V2
SUPPORT FRAME V2.05.12
Item is no longer available
Price
N/A
106
*DISCD*T-NUT M8-1.25
Price
N/A
107
KNOB SCREW M8-1.25 X 25
Price
$10.10
108
FLAT WASHER 8MM
Price
N/A
109
*DISCD*PLUG 38 X 38MM
Price
N/A
110
*DISCD*PLUG 40 X 20MM
Price
N/A
111
T-BOLT M8-1.25 X 60 V1
Price
N/A
112
TAP SCREW #8 X 3/8
Price
N/A
113
*DISCD*COVER
Price
N/A
114
*DISCD*SQUARE BRACE
Price
N/A
115
*DISCD*T-NUT M12-1.75 V2.06.06
Price
N/A
116
*DISCD*LOCK HANDLE M12-1.75 X 55
Price
N/A
117
PLATE
Item is no longer available
Price
N/A
118
PAD
Price
$3.20
119
FLAT WASHER 6MM
Price
N/A
120
LOCK WASHER 6MM
Price
N/A
121
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
122
*DISCD*PLUG
Price
N/A
123
FLAT WASHER 12MM
Price
N/A
124
FLAT WASHER 8MM
Price
N/A
125
*DISCD*KNOB SCREW M8-1.25 X 50
Price
N/A
126
HEX BOLT M8-1.25 X 30
Price
N/A
127
HEX NUT M8-1.25
Price
N/A
128
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
129
HEX NUT M8-1.25
Price
N/A
130
LOCK WASHER 8MM
Price
N/A
131
*DISCD*EYE BOLT M8-1.25 X 40
Price
N/A
132
FLAT WASHER 8MM
Price
N/A
133
KNOB BOLT M8-1.25 X 50
Price
N/A
134
INT RETAINING RING 32MM
Price
N/A
135
*DISCD*PLUG
Price
N/A
136
SET SCREW M5-.8 X 10
Price
N/A
137
TUBE
Item is no longer available
Price
N/A
138
SCALE
Item is no longer available
Price
N/A
139
SCALE
Item is no longer available
Price
N/A
140
END COVER PLATE
Item is no longer available
Price
N/A
141
TAP SCREW M3 X 6
Price
N/A
142
FIXED BLOCK
Item is no longer available
Price
N/A
143
LOCK WASHER 8MM
Price
N/A
144
CAP SCREW M8-1.25 X 25
Price
N/A
145
T-NUT BLOCK
Item is no longer available
Price
N/A
146
FLAT WASHER 8MM
Price
N/A
147
HANDLE
Item is no longer available
Price
N/A
148
PLASTIC PLUG HP-16
Item is no longer available
Price
N/A
201
CAP SCREW M6-1 X 30
Price
N/A
202
HEX NUT M6-1
Price
N/A
203
HEX NUT M12-1.75
Price
N/A
204
FLAT WASHER 12MM
Price
N/A
205
PLASTIC WASHER 13MM
Price
N/A
206
SET SCREW M10-1.5 X 35
Price
N/A
207
HEX NUT M10-1.5
Price
N/A
208
PHLP HD SCR M4-.7 X 35
Price
N/A
209
LIMIT SWITCH CANLIE AZDS11
Price
N/A
210
FIXED PLATE
Item is no longer available
Price
N/A
211
FLAT WASHER 4MM
Price
N/A
212
HEX NUT M4-.7
Price
N/A
213
PHLP HD SCR M4-.7 X 12
Price
N/A
214
PLATE
Item is no longer available
Price
N/A
215
KEYED POWER SWITCH
Price
N/A
216
*DISCD*POWER INDICATOR LIGHT SENO SN22
Price
N/A
217
ON BUTTON YK 22-1A1B
Price
N/A
218
*DISCD*OFF BUTTON
Price
N/A
219
*DISCD*E-STOP BUTTON RENY R9C01VN
Price
N/A
220
*DISCD*CONTROL PANEL FACE
Price
$122.20
221
PHLP HD SCR M4-.7 X 6
Price
N/A
222
CORD 1C
Item is no longer available
Price
N/A
223
CORD 1C
Item is no longer available
Price
N/A
224
*DISCD*SHAFT
Price
N/A
225
SET SCREW M10-1.5 X 20
Price
N/A
226
HEX NUT M10-1.5
Price
N/A
227
FOOT M16-2 X 100
Item is no longer available
Price
N/A
228
TAP SCREW M5 X 20
Price
N/A
229
PAD
Item is no longer available
Price
N/A
230
SWITCH BOX
Item is no longer available
Price
N/A
231
STRAIN RELIEF M17 TYPE-6 ST
Price
N/A
232
CORD 6W
Price
$21.00
233
EYE BOLT 12MM
Item is no longer available
Price
N/A
234
CORD STOP 2C
Price
$15.25
235
ELECTRIC PANEL 220/440V 3PH
Item is no longer available
Price
N/A
236
FLANGE NUT M6-1
Price
N/A
237
SET SCREW M6-1 X 12
Price
N/A
238
MACHINE BODY
Item is no longer available
Price
N/A
239
LOCATE BLOCK
Price
$56.95
240
CAP SCREW M8-1.25 X 16
Price
N/A
241
FLANGE SCREW M4-.7 X 6
Price
N/A
242
HEX NUT M10-1.5
Price
N/A
243
SET SCREW M10-1.5 X 35
Price
N/A
244
LOCATE BLOCK
Item is no longer available
Price
N/A
245
PLATE
Item is no longer available
Price
N/A
246
HEX NUT M8-1.25
Price
N/A
247
HEX BOLT M8-1.25 X 30
Price
N/A
248
SPACER RING 14MM
Item is no longer available
Price
N/A
249
*DISCD*STUF-FT M14-2 X 110 V2.06.07
Price
N/A
250
HEX NUT M14-2
Price
N/A
251
DOOR KNOB
Item is no longer available
Price
N/A
252
STOP CORD 2C
Item is no longer available
Price
N/A
253
WIRE CONNECTOR 224-201
Item is no longer available
Price
N/A
254
STOP CORD 2C
Item is no longer available
Price
N/A
255
EMERGENCY STOP BUTTON E2R1R 1B
Price
$29.05
256
HANGER
Item is no longer available
Price
N/A
257
FLANGE SCREW M4-.7 X 16
Price
N/A
258
POWER CORD
Item is no longer available
Price
N/A
259
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
260
JUNCTION BOX ASSEMBLY
Price
N/A
261
TERMINAL 4P
Item is no longer available
Price
N/A
262
PHLP HD SCR M5-.8 X 8
Price
N/A
263
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
264
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
265
*DISCD*ARBOR WRENCH 24,19MM CLOSED
Price
N/A
266
*DISCD*ARBOR WRENCH 24,19MM OPEN
Price
N/A
267
PUSH STICK
Item is no longer available
Price
N/A
268
CAP SCREW M6-1 X 20
Price
N/A
269
LOCK NUT M6-1
Price
N/A
270
PLATE
Item is no longer available
Price
N/A
271
FLAT WASHER 6MM
Price
N/A
272
LOCK WASHER 6MM
Price
N/A
273
CAP SCREW M6-1 X 10
Price
N/A
274
SET SCREW M10-1.5 X 25
Price
N/A
275
LOCK WASHER 4MM
Price
N/A
276
FLAT WASHER 14MM
Price
N/A
277
SET SCREW M10-1.5 X 40
Price
N/A
278
LOCK NUT M14-2
Price
N/A
279
BLOCK
Item is no longer available
Price
N/A
280
COTTON PAD
Item is no longer available
Price
N/A
281
HOLE PLUGS
Item is no longer available
Price
N/A
282
*DISCD*STRAIN RELIEF
Price
N/A

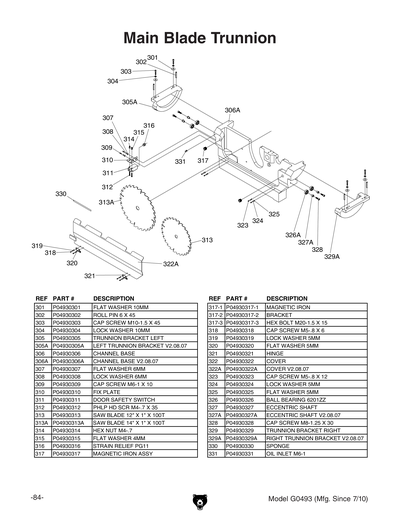

301
FLAT WASHER 10MM
Price
N/A
302
ROLL PIN 6 X 45
Price
N/A
303
CAP SCREW M10-1.5 X 45
Price
N/A
304
LOCK WASHER 10MM
Price
N/A
305
LEFT TRUNNION BRACKET V1
Item is no longer available
Price
N/A
305A
LEFT TRUNNION BRACKET V2.08.07
Price
$77.75
306
CHANNEL BASE V1
Item is no longer available
Price
N/A
306A
CHANNEL BASE V2.08.07
Item is no longer available
Price
N/A
307
FLAT WASHER 6MM
Price
N/A
308
LOCK WASHER 6MM
Price
N/A
309
CAP SCREW M6-1 X 10
Price
N/A
310
FIX PLATE
Item is no longer available
Price
N/A
311
*DISCD*DOOR SAFETY SWITCH
Price
N/A
312
PHLP HD SCR M4-.7 X 35
Price
N/A
313
SAW BLADE 12" X 1" X 100T
Price
$281.70
314
HEX NUT M4-.7
Price
N/A
315
FLAT WASHER 4MM
Price
N/A
316
STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
317
MAGNETIC IRON ASSY
Item is no longer available
Price
N/A
317-1
MAGNETIC IRON
Item is no longer available
Price
N/A
317-2
BRACKET
Item is no longer available
Price
N/A
317-3
HEX BOLT M20-1.5 X 15
Item is no longer available
Price
N/A
318
CAP SCREW M5-.8 X 6
Price
N/A
319
LOCK WASHER 5MM
Price
N/A
320
FLAT WASHER 5MM
Price
N/A
321
HINGE
Item is no longer available
Price
N/A
322
COVER V1
Item is no longer available
Price
N/A
322A
COVER V2.08.07
Item is no longer available
Price
N/A
323
CAP SCREW M5-.8 X 12
Price
N/A
324
LOCK WASHER 5MM
Price
N/A
325
FLAT WASHER 5MM
Price
N/A
326
BALL BEARING 6201ZZ
Price
N/A
327
ECCENTRIC SHAFT V1
Item is no longer available
Price
N/A
327A
ECCENTRIC SHAFT V2.08.07
Item is no longer available
Price
N/A
328
CAP SCREW M8-1.25 X 30
Price
N/A
329
RIGHT TRUNNION BRACKET V1
Item is no longer available
Price
N/A
329A
RIGHT TRUNNION BRACKET V2.08.07
Price
$94.85
330
SPONGE
Item is no longer available
Price
N/A
331
OIL INLET M6-1
Price
$1.60

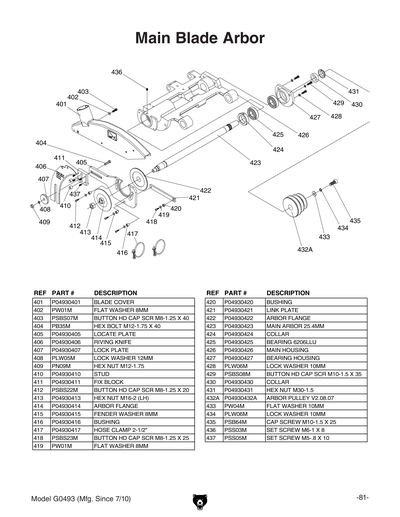

401A
BLADE COVER RIVING KNIFE ASSY V2.05.12
Price
N/A
401V2
BLADE GUARD ASSY V2.02.12
Price
N/A
401V2A
BLADE COVER RIVING KNIFE ASSY V2.05.12
Price
$154.90
402
FLAT WASHER 8MM
Price
N/A
402V2
BLADE COVER RIVING KNIFE ASSY V2.05.12
Price
N/A
403
BUTTON HD CAP SCR M8-1.25 X 40
Price
N/A
403V2
BLADE COVER RIVING KNIFE ASSY V2.05.12
Price
N/A
404
HEX BOLT M12-1.75 X 40
Price
N/A
405
LOCATE PLATE
Item is no longer available
Price
N/A
406
RIVING KNIFE V1
Price
N/A
406-1
*DISCD*RIVING KNIFE V1
Price
$68.45
406-1V2
RIVING KNIFE V1
Price
N/A
406V2
BLADE COVER RIVING KNIFE ASSY V2.05.12
Price
N/A
406V2-1
SPREADER V2.05.12
Item is no longer available
Price
N/A
406V2-2
RIVING KNIFE V1
Price
N/A
407
LOCK PLATE
Item is no longer available
Price
N/A
408
LOCK WASHER 12MM
Price
N/A
409
HEX NUT M12-1.75
Price
N/A
410
*DISCD*LOCATING PIN
Price
N/A
411
FIX BLOCK
Item is no longer available
Price
N/A
412
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
413
HEX NUT M16-2 LH
Price
N/A
414
ARBOR FLANGE
Price
$46.25
415
FENDER WASHER 8MM
Price
N/A
416
BUSHING
Item is no longer available
Price
N/A
417
*DISCD*HOSE CLAMP 2-1/2"
Price
N/A
418
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
419
FLAT WASHER 8MM
Price
N/A
420
BUSHING
Price
N/A
421
LINK PLATE
Item is no longer available
Price
N/A
422
ARBOR FLANGE
Item is no longer available
Price
N/A
423
MAIN ARBOR 25.4MM
Price
$93.55
424
COLLAR
Item is no longer available
Price
N/A
425
BALL BEARING 6206-2RS
Price
N/A
426
*DISCD*MAIN HOUSING
Item is no longer available
Price
N/A
427
BEARING HOUSING
Price
$120.75
428
LOCK WASHER 10MM
Price
N/A
429
BUTTON HD CAP SCR M10-1.5 X 35
Price
N/A
430
COLLAR
Item is no longer available
Price
N/A
431
SPANNER NUT M30-1.5
Item is no longer available
Price
N/A
432
ARBOR PULLEY V1
Item is no longer available
Price
N/A
432A
ARBOR PULLEY V2.08.07
Item is no longer available
Price
N/A
433
FLAT WASHER 10MM
Price
N/A
434
LOCK WASHER 10MM
Price
N/A
435
CAP SCREW M10-1.5 X 25
Price
N/A
436
SET SCREW M6-1 X 8
Price
N/A
437
SET SCREW M5-.8 X 10
Price
N/A

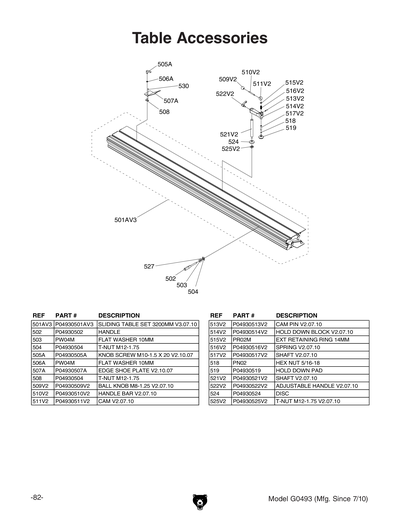

501
*DISCD*SLIDING TABLE SET 3200MM V1
Item is no longer available
Price
N/A
501A
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Item is no longer available
Price
N/A
501AV3
SLIDING TABLE SET 3200MM V3.07.10
Item is no longer available
Price
N/A
502
LEVER HANDLE M12-1.75 X 20, 215L
Price
N/A
503
FLAT WASHER 12MM
Price
N/A
504
*DISCD*T-NUT M12-1.75
Price
$8.65
505
*DISCD*KNOB SCREW M12-1.75 X 20 V1
Item is no longer available
Price
N/A
505A
*DISCD*KNOB SCREW M12-1.75 X 20 V1
Price
N/A
505V4
KNOB SCREW M10-1.5 X 20 V4.05.12
Item is no longer available
Price
N/A
506
FLAT WASHER 12MM
Price
N/A
506A
FLAT WASHER 12MM
Price
N/A
506V3
FLAT WASHER 10MM
Price
N/A
507
*DISCD*EDGE SHOE PLATE V2.08.07
Price
N/A
507A
EDGE SHOE PLATE V2.10.07
Item is no longer available
Price
N/A
508
T-NUT M12-1.75
Price
N/A
509
*DISCD*BALL KNOB M8-1.25 BLACK V1
Price
$7.20
509V2
*DISCD*BALL KNOB M8-1.25 BLACK V1
Price
N/A
509V3
BALL KNOB M8-1.25 ORANGE RED V3.07.10
Item is no longer available
Price
N/A
510
*DISCD*HANDLE BAR 125 X 12.7 V1
Price
$7.20
510V2
*DISCD*HANDLE BAR 125 X 12.7 V1
Price
N/A
510V3
HANDLE BAR 100 X 10 V3.07.10
Item is no longer available
Price
N/A
511
CAM 76.5 X 17 V1
Price
$4.60
511V2
CAM 76.5 X 17 V1
Price
N/A
511V3
CAM 78 X 13 V3.07.10
Item is no longer available
Price
N/A
512
*DISCD*CAM BRACKET
Price
N/A
513
ROLL PIN 6 X 40
Price
N/A
513V2
ROLL PIN 6 X 40
Price
N/A
513V3
CAM PIN V3.07.10
Item is no longer available
Price
N/A
514
*DISCD*LOCATE BLOCK V1
Price
N/A
514V2
*DISCD*LOCATE BLOCK V1
Price
N/A
514V3
HOLD DOWN BLOCK V3.07.10
Item is no longer available
Price
N/A
515
EXT RETAINING RING 12MM
Price
N/A
515V2
EXT RETAINING RING 12MM
Price
N/A
515V3
EXT RETAINING RING 14MM
Price
N/A
516
*DISCD*COMPRESSION SPRING V1
Price
N/A
516V2
*DISCD*COMPRESSION SPRING V1
Price
N/A
516V3
SPRING 18 V3.07.10
Item is no longer available
Price
N/A
517
*DISCD*SHAFT V1
Price
N/A
517V2
*DISCD*SHAFT V1
Price
N/A
517V3
SHAFT 80 X 14 V3.07.10
Item is no longer available
Price
N/A
518
HEX NUT 5/16-18
Price
N/A
519
*DISCD*CLAMP FOOT
Price
N/A
520
*DISCD*SHAFT
Price
N/A
521
SHAFT 200 X 25 V1
Price
$15.00
521V2
SHAFT 200 X 25 V1
Price
N/A
521V3
SUPPORT SHAFT
Price
N/A
522
*DISCD*LOCK HANDLE V1
Price
N/A
522V2
*DISCD*LOCK HANDLE V1
Price
N/A
522V3
ADJUSTABLE HANDLE V3.07.10
Item is no longer available
Price
N/A
523
*DISCD*BLOCK
Price
N/A
524
SHAFT BASE
Price
N/A
525
T-NUT M12-1.75
Price
N/A
525V2
T-NUT M12-1.75
Price
N/A
525V3
T-NUT M12-1.75
Price
N/A
526
PAD 2PC
Price
$1.49
527
PLASTIC WASHER 13MM
Price
$1.49
528
SET SCREW M12-1.75 X 50
Price
N/A
529
SET SCREW M8-1.25 X 50
Price
N/A
530
ROLL PIN 5 X 18
Price
N/A

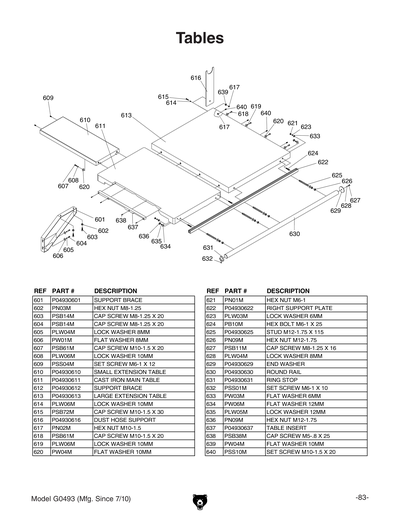

601
SUPPORT BRACE
Item is no longer available
Price
N/A
602
HEX NUT M8-1.25
Price
N/A
603
CAP SCREW M8-1.25 X 20
Price
N/A
604
CAP SCREW M8-1.25 X 20
Price
N/A
605
LOCK WASHER 8MM
Price
N/A
606
FLAT WASHER 8MM
Price
N/A
607
CAP SCREW M10-1.5 X 20
Price
N/A
608
LOCK WASHER 10MM
Price
N/A
609
SET SCREW M6-1 X 12
Price
N/A
610
SMALL EXTENSION TABLE
Item is no longer available
Price
N/A
611
CAST IRON MAIN TABLE
Item is no longer available
Price
N/A
612
SUPPORT BRACE
Price
$63.40
612-1
HARDWARE BAG
Price
$60.95
613
LARGE EXTENSION TABLE
Price
$576.10
614
LOCK WASHER 10MM
Price
N/A
615
CAP SCREW M10-1.5 X 30
Price
N/A
616
DUST HOSE SUPPORT
Price
$23.30
617
HEX NUT M10-1.5
Price
N/A
618
CAP SCREW M10-1.5 X 20
Price
N/A
619
LOCK WASHER 10MM
Price
N/A
620
FLAT WASHER 10MM
Price
N/A
621
HEX NUT M6-1
Price
N/A
622
RIGHT SUPPORT PLATE
Price
$18.65
623
LOCK WASHER 6MM
Price
N/A
624
HEX BOLT M6-1 X 25
Price
N/A
625
STUD-FT M12-1.75 X 115
Item is no longer available
Price
N/A
626
HEX NUT M12-1.75
Price
N/A
627
CAP SCREW M8-1.25 X 16
Price
N/A
628
LOCK WASHER 8MM
Price
N/A
629
*DISCD*END WASHER CIRCULAR V1
Item is no longer available
Price
N/A
629V2
END WASHER SQUARE V2.05.12
Item is no longer available
Price
N/A
630
ROUND RAIL
Item is no longer available
Price
N/A
631
*DISCD*STOP RING V1
Item is no longer available
Price
N/A
631V2
STOP RING V2.05.12
Item is no longer available
Price
N/A
632
SET SCREW M6-1 X 10
Price
N/A
633
FLAT WASHER 6MM
Price
N/A
634
FLAT WASHER 12MM
Price
N/A
635
LOCK WASHER 12MM
Price
N/A
636
HEX NUT M12-1.75
Price
N/A
637
TABLE INSERT
Item is no longer available
Price
N/A
638
CAP SCREW M5-.8 X 25
Price
N/A
639
FLAT WASHER 10MM
Price
N/A
640
SET SCREW M10-1.5 X 20
Price
N/A

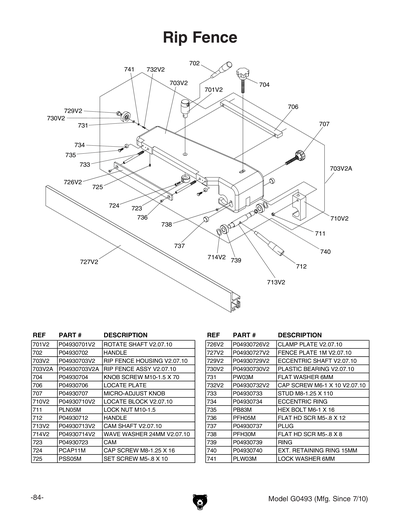

701
ROTATE SHAFT V1
Item is no longer available
Price
N/A
701V2
ROTATE SHAFT V2.07.10
Item is no longer available
Price
N/A
701V3
ROTATE SHAFT V3.05.12
Item is no longer available
Price
N/A
702
*DISCD*HANDLE M10-1.5 X 12
Price
N/A
703
RIP FENCE HOUSING V1
Item is no longer available
Price
N/A
703V3
RIP FENCE HOUSING V3.05.12
Item is no longer available
Price
N/A
703V3A
RIP FENCE ASSY V3.05.12
Price
$378.95
704
*DISCD*KNOB M10-1.5 X 70
Price
N/A
705
HEX NUT M8-1.25
Price
N/A
706
LOCATE PLATE
Item is no longer available
Price
N/A
707
MICRO-ADJUST KNOB BOLT
Price
N/A
708
LOCK WASHER 8MM
Price
N/A
709
HEX NUT M8-1.25
Price
N/A
710
LOCATE BLOCK V1
Item is no longer available
Price
N/A
710V2
LOCATE BLOCK V2.07.10
Item is no longer available
Price
N/A
710V3
LOCATE BLOCK V3.05.12
Item is no longer available
Price
N/A
711
LOCK NUT M10-1.5
Price
N/A
712
*DISCD*HANDLE M10-1.5 X 12
Price
N/A
713
CAM SHAFT V1
Item is no longer available
Price
N/A
713V3
CAM SHAFT V3.05.12
Item is no longer available
Price
N/A
714
WAVE WASHER 10MM V1
Item is no longer available
Price
N/A
714V2
WAVE WASHER 24MM V2.07.10
Item is no longer available
Price
N/A
714V3
EXT RETAINING RING 15MM
Price
N/A
715
FLANGE SCREW M5-.8 X 12
Price
N/A
716
SPRING PIECE
Item is no longer available
Price
N/A
717
PIN
Item is no longer available
Price
N/A
718
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
719
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
720
FLAT WASHER 6MM
Price
N/A
721
PLATE
Item is no longer available
Price
N/A
722
SPRING
Item is no longer available
Price
N/A
723
CAM
Item is no longer available
Price
N/A
724
CAP SCREW M8-1.25 X 16
Price
N/A
725
SET SCREW M5-.8 X 10
Price
N/A
726
CLAMP PLATE V1
Item is no longer available
Price
N/A
726V2
CLAMP PLATE V2.07.10
Item is no longer available
Price
N/A
727
FENCE PLATE V1
Price
$193.70
727V2
RIP FENCE
Price
N/A
728
*DISCD*BEARING PAD
Price
N/A
729
ECCENTRIC SHAFT V1
Item is no longer available
Price
N/A
729V2
ECCENTRIC SHAFT V2.07.10
Item is no longer available
Price
N/A
730
PLASTIC BEARING V1
Item is no longer available
Price
N/A
730V2
PLASTIC BEARING V2.07.10
Item is no longer available
Price
N/A
731
FLAT WASHER 6MM
Price
N/A
732
CAP SCREW M6-1 X 16
Price
N/A
732V2
CAP SCREW M6-1 X 10
Price
N/A
733
STUD-SE M8-1.25 X 105 30
Item is no longer available
Price
N/A
734
ECCENTRIC RING
Price
$6.05
735
HEX BOLT M6-1 X 16
Price
N/A
736
FLAT HD SCR M5-.8 X 12
Price
N/A
736V2
FLAT HD SCR M6-1 X 16
Price
N/A
737
PLUG
Item is no longer available
Price
N/A
738
FLAT HD SCR M5-.8 X 8
Price
N/A
739
RING
Item is no longer available
Price
N/A
740
EXT RETAINING RING 15MM
Price
N/A
741
LOCK WASHER 6MM
Price
N/A
742
SHAFT
Item is no longer available
Price
N/A
743
LOCK NUT M8-1.25
Price
N/A
744
FLAT WASHER 20MM
Price
N/A
745
STEEL BALL 8MM
Price
N/A
746
COMPRESSION SPRING
Item is no longer available
Price
N/A
747
SET SCREW M10-1.5 X 10
Price
N/A
748
FLAT WASHER 10MM
Price
N/A
749
LOCK NUT M10-1.5
Price
N/A
750
LOCATE BLOCK HANDLE
Item is no longer available
Price
N/A
751
EXT RETAINING RING 20MM
Price
N/A
752
LOCK WASHER 8MM
Price
N/A
753
BALL BEARING 6202ZZ
Price
N/A
754
HEX NUT M8-1.25
Price
N/A
755
BEARING COVER
Item is no longer available
Price
N/A
756
BUSHING
Item is no longer available
Price
N/A
757
FLAT WASHER 30MM
Price
N/A
758
HEX BOLT M8-1.25 X 35
Price
N/A
759
CAP SCREW M6-1 X 10
Price
N/A
760
RIP FENCE PLATE
Item is no longer available
Price
N/A
801
FIX PLATE
Item is no longer available
Price
N/A
802
LOCK NUT M12-1.75
Price
N/A
803
CAP SCREW M6-1 X 16
Price
N/A
804
LOCK WASHER 6MM
Price
N/A
805
SCORING FLANGE
Item is no longer available
Price
N/A
806
SCORING SAW BLADE 22MM ARBOR
Price
$73.40
807
SCORING ARBOR 22MM
Item is no longer available
Price
N/A
808
REGULATOR
Item is no longer available
Price
N/A
809
BALL BEARING 6202-2RS
Price
N/A
810
SCORING PULLEY
Item is no longer available
Price
N/A
811
SET SCREW M6-1 X 6
Price
N/A
812
FLAT WASHER 8MM
Price
N/A
813
HEX NUT M8-1.25
Price
N/A
814
BUSHING
Item is no longer available
Price
N/A
815
CHECK RING
Item is no longer available
Price
N/A
816
HEX NUT M12-1.75
Price
N/A
817
LOCK WASHER 6MM
Price
N/A
818
FLAT WASHER 8MM
Price
N/A
819
ROLL PIN 3 X 20
Price
N/A
820
SET SCREW M6-1 X 8
Price
N/A
821
ASBESTOS WASHER 13MM
Item is no longer available
Price
N/A
822
LOCATE PLATE
Item is no longer available
Price
N/A
823
CAP SCREW M6-1 X 45
Price
N/A
824
LOCATE BUSHING
Item is no longer available
Price
N/A
825
ADJUST SHAFT
Item is no longer available
Price
N/A
826
BUSHING V1
Item is no longer available
Price
N/A
826A
BUSHING V2.10.07
Item is no longer available
Price
N/A
827
LOCK NUT M8-1.25
Price
N/A
828
CAP SCREW M8-1.25 X 20
Price
N/A
829
LOCK WASHER 8MM
Price
N/A
830
FIXED PLATE
Item is no longer available
Price
N/A
831
SET SCREW M12-1.75 X 65
Item is no longer available
Price
N/A
832
LOCK NUT M8-1.25
Price
N/A
833
FIXED PLATE
Item is no longer available
Price
N/A
834
BUSHING
Item is no longer available
Price
N/A
835
FIXED PLATE
Item is no longer available
Price
N/A
836
CAP SCREW M8-1.25 X 35
Price
N/A
837
REGULATING SHAFT
Item is no longer available
Price
N/A
838
LOCK KNOB M6-1 X 40
Price
$2.60
839
ADJUST KNOB V1
Item is no longer available
Price
N/A
839A
ADJUST KNOB V2.10.07
Item is no longer available
Price
N/A
840
SET SCREW M5-.8 X 10
Price
N/A
841
PIN M8-1.25 X 120
Item is no longer available
Price
N/A
842
ADJUST SHAFT
Item is no longer available
Price
N/A
843
LOCATE PLATE
Item is no longer available
Price
N/A
844
GEAR
Item is no longer available
Price
N/A
845
STUD-FT M12-1.75 X 120
Item is no longer available
Price
N/A
846
HEX NUT M8-1.25
Price
N/A
847
CAP SCREW M8-1.25 X 20
Price
N/A
848
LOCK WASHER 8MM
Price
N/A
849
FLAT WASHER 8MM
Price
N/A
850
CAP SCREW M6-1 X 20
Price
N/A
851
LOCK WASHER 6MM
Price
N/A
852
FIXED PLATE
Item is no longer available
Price
N/A
853
CAP SCREW M6-1 X 16
Price
N/A
854
LOCK WASHER 6MM
Price
N/A
855
GEAR FIXED PLATE
Item is no longer available
Price
N/A
856
GEAR
Price
$14.90
857
BUSHING
Item is no longer available
Price
N/A
858
LOCATE BLOCK
Item is no longer available
Price
N/A
859
HEX NUT M12-1.75
Price
N/A
860
SET SCREW M8-1.25 X 8
Price
N/A
861
BUSHING
Item is no longer available
Price
N/A
862
ROTATE SHAFT
Item is no longer available
Price
N/A
863
HEX BOLT M8-1.25 X 25
Price
N/A
864
LOCK WASHER 8MM
Price
N/A
865
MOTOR LOCATE BLOCK
Item is no longer available
Price
N/A
866
FLAT BELT 15 X 1045 V2.05.07
Price
$59.95
866A
FLAT BELT 15 X 1050 V1.12.05
Price
$47.45
867
SET SCREW M8-1.25 X 12
Price
N/A
868
CAP SCREW M8-1.25 X 90
Price
N/A
869
KEY 5 X 5 X 25
Price
N/A
870
MOTOR PULLEY 60HZ
Item is no longer available
Price
N/A
871
SET SCREW M6-1 X 10
Price
N/A
872
FLAT WASHER 8MM
Price
N/A
873
HEX NUT M8-1.25
Price
N/A
874
SCORING MOTOR CORD
Item is no longer available
Price
N/A
875
SCORING MOTOR 1HP 220V/440V 3-PH
Price
$250.45
876
MOTOR PLATE
Item is no longer available
Price
N/A
877
SPRING
Item is no longer available
Price
N/A
878
COLLAR
Item is no longer available
Price
N/A
879
SET SCREW M6-1 X 6
Price
N/A
880
HEX BOLT M10-1.5 X 30
Price
N/A
881
LOCK WASHER 10MM
Price
N/A
882
FLAT WASHER 10MM
Price
N/A
883
FIX PLATE
Item is no longer available
Price
N/A
884
HEX NUT M10-1.5
Price
N/A
885
FENDER WASHER 8MM
Price
N/A
886
LOCK WASHER 8MM
Price
N/A
887
HEX BOLT M8-1.25 X 16
Price
N/A
888
SPRING V1
Item is no longer available
Price
N/A
888A
SPRING V2.08.07
Item is no longer available
Price
N/A
889
CAP SCREW M6-1 X 16
Price
N/A
890
LOCK WASHER 6MM
Price
N/A
891
SPRING PLATE V1
Item is no longer available
Price
N/A
891A
SPRING PLATE V2.08.07
Item is no longer available
Price
N/A
892
ROLL PIN 3 X 20
Price
N/A
901
KNOB M10-1.5, 12-LOBE, 60D
Price
N/A
902
FLAT WASHER 10MM
Price
N/A
903
HANDWHEEL W/HANDLE
Price
N/A
904
KEY 7 X 7 X 20
Price
N/A
905
HAND WHEEL SHAFT
Price
$77.60
906
SPACER
Price
$5.50
907
INT RETAINING RING 28MM
Price
N/A
908
BALL BEARING 6902ZZ
Price
N/A
909
LOCATE RING
Price
$146.75
910
LOCK WASHER 8MM
Price
N/A
911
CAP SCREW M8-1.25 X 20
Price
N/A
912
SET SCREW M6-1 X 10
Price
N/A
913
SCREW TR20-2.0 X 2T
Price
$239.75
914
SET NUT TR20-2.0 X 2T
Price
$19.00
915
THRUST BEARING 10 X 12MM
Price
$7.60
916
FREE JOINT
Price
$101.45
917
ROLL PIN 5 X 20
Price
N/A
918
SPACER RING
Price
$50.75
919
SET SCREW M6-1 X 6
Price
N/A
920
HAND WHEEL 8"
Price
$199.25
921
KEY 5 X 5 X 30
Price
N/A
922
LOCATE BUSHING
Price
$134.05
923
FINGER GUIDE V1
Item is no longer available
Price
N/A
923A
FINGER GUIDE V2.08.07
Item is no longer available
Price
N/A
924
CAP SCREW M6-1 X 20
Price
N/A
925
LOCK WASHER 6MM
Price
N/A
926
BRACKET NUT V1
Price
$69.00
926A
BRACKET NUT V2.08.07
Item is no longer available
Price
N/A
927
BALL BEARING 6902ZZ
Price
N/A
928
SET SCREW M6-1 X 10
Price
N/A

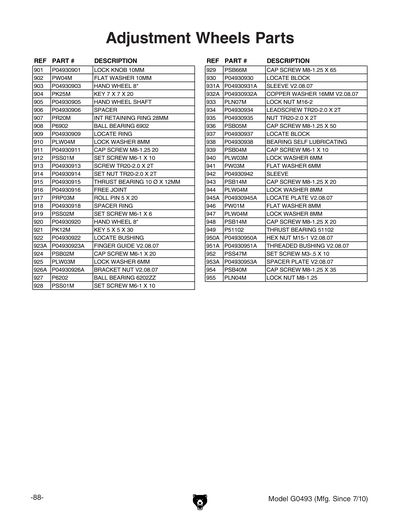

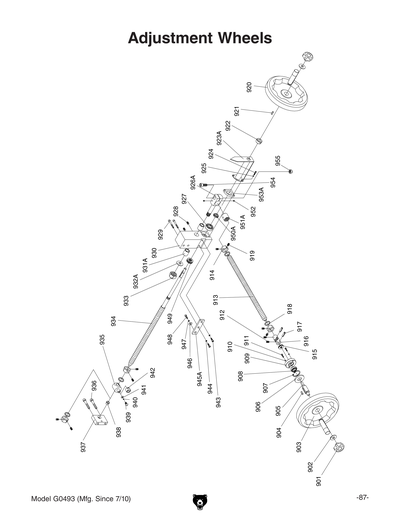

929
CAP SCREW M8-1.25 X 65
Price
N/A
930
LOCATE BLOCK
Price
$124.20
931
SLEEVE V1
Item is no longer available
Price
N/A
931A
SLEEVE V2.08.07
Item is no longer available
Price
N/A
932
FLAT WASHER 17 X 24MM, COPPER
Price
N/A
932A
FLAT WASHER 17 X 24MM, COPPER
Price
N/A
933
LOCK NUT M16-2
Price
N/A
934
*DISCD*LEADSCREW TR20-2.0 X 2T
Item is no longer available
Price
N/A
935
*DISCD*NUT TR20-2.0 X 2T
Item is no longer available
Price
N/A
936
CAP SCREW M8-1.25 X 50
Price
N/A
937
LOCATE BLOCK
Price
$35.95
938
BUSHING
Price
$1.49
939
CAP SCREW M6-1 X 10
Price
N/A
940
LOCK WASHER 6MM
Price
N/A
941
FLAT WASHER 6MM
Price
N/A
942
SLEEVE
Price
$26.00
943
CAP SCREW M8-1.25 X 20
Price
N/A
944
LOCK WASHER 8MM
Price
N/A
945
LOCATE PLATE V1
Item is no longer available
Price
N/A
945A
LOCATE PLATE V2.08.07
Item is no longer available
Price
N/A
946
FLAT WASHER 8MM
Price
N/A
947
LOCK WASHER 8MM
Price
N/A
948
CAP SCREW M8-1.25 X 20
Price
N/A
949
THRUST BEARING 51102
Price
N/A
950
SPANNER NUT M15-1
Price
N/A
950A
SPANNER NUT M15-1
Price
N/A
951
THREADED BUSHING V1
Price
$31.75
951A
THREADED BUSHING V2.08.07
Item is no longer available
Price
N/A
952
SET SCREW M3-.5 X 10
Price
N/A
953
SPACER PLATE V1
Item is no longer available
Price
N/A
953A
SPACER PLATE V2.08.07
Item is no longer available
Price
N/A
954
CAP SCREW M8-1.25 X 35
Price
N/A
955
LOCK NUT M8-1.25
Price
N/A

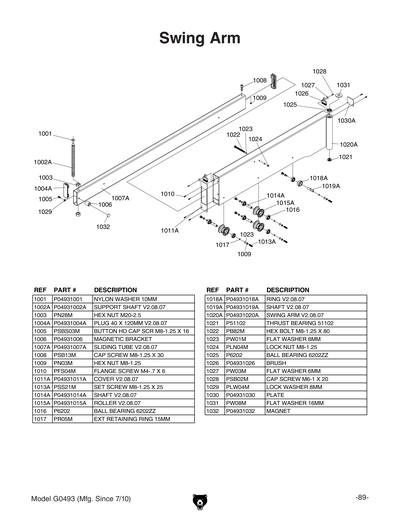

1001
NYLON WASHER 10MM
Item is no longer available
Price
N/A
1002
SUPPORT SHAFT V1
Item is no longer available
Price
N/A
1002A
SUPPORT SHAFT V2.08.07
Item is no longer available
Price
N/A
1003
HEX NUT M20-2.5
Price
N/A
1004
PLUG 40 X 120MM V1
Item is no longer available
Price
N/A
1004A
PLUG 40 X 120MM V2.08.07
Item is no longer available
Price
N/A
1005
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
1006
*DISCD*MAGNETIC BRACKET V1.04.05
Price
N/A
1007
SLIDING TUBE V1
Item is no longer available
Price
N/A
1007A
SLIDING TUBE V2.08.07
Item is no longer available
Price
N/A
1008
CAP SCREW M8-1.25 X 30
Price
N/A
1009
HEX NUT M8-1.25
Price
N/A
1010
FLANGE SCREW M4-.7 X 6
Price
N/A
1011
COVER V1
Item is no longer available
Price
N/A
1011A
COVER V2.08.07
Item is no longer available
Price
N/A
1012
LOCK WASHER 8MM
Price
N/A
1013
HEX BOLT M8-1.25 X 10
Price
N/A
1013A
SET SCREW M8-1.25 X 25
Price
N/A
1014
SHAFT V1
Item is no longer available
Price
N/A
1014A
SHAFT V2.08.07
Price
$15.15
1015
ROLLER V1
Item is no longer available
Price
N/A
1015A
ROLLER V2.08.07
Price
$46.90
1016
BALL BEARING 6902ZZ
Price
N/A
1017
EXT RETAINING RING 15MM
Price
N/A
1018
RING V1
Item is no longer available
Price
N/A
1018A
RING V2.08.07
Price
$20.15
1019
SHAFT V1
Item is no longer available
Price
N/A
1019A
SHAFT V2.08.07
Price
$25.20
1020
SWING ARM V1
Item is no longer available
Price
N/A
1020A
SWING ARM V2.08.07
Item is no longer available
Price
N/A
1021
THRUST BEARING 51102
Price
N/A
1022
HEX BOLT M8-1.25 X 80
Price
N/A
1023
FLAT WASHER 8MM
Price
N/A
1024
LOCK NUT M8-1.25
Price
N/A
1025
BALL BEARING 6902ZZ
Price
N/A
1026
BRUSH
Price
N/A
1027
FLAT WASHER 6MM
Price
N/A
1028
CAP SCREW M6-1 X 20
Price
N/A
1029
LOCK WASHER 8MM
Price
N/A
1030
PLATE
Item is no longer available
Price
N/A
1031
FLAT WASHER 16MM
Price
N/A
1032
MAGNET
Item is no longer available
Price
N/A

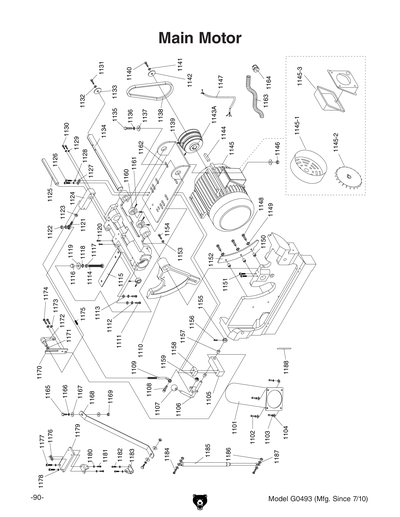

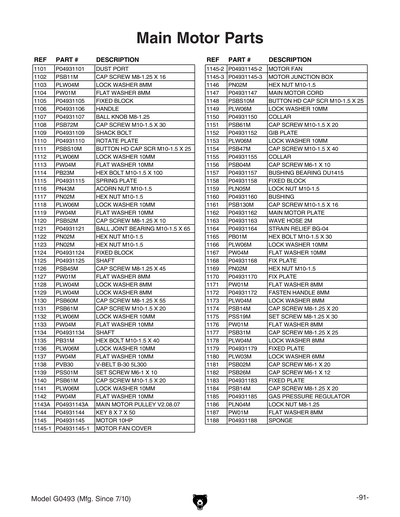

1101
DUST PORT
Item is no longer available
Price
N/A
1102
CAP SCREW M8-1.25 X 16
Price
N/A
1103
LOCK WASHER 8MM
Price
N/A
1104
FLAT WASHER 8MM
Price
N/A
1105
FIXED BLOCK
Item is no longer available
Price
N/A
1106
HANDLE
Item is no longer available
Price
N/A
1107
BALL KNOB M8-1.25
Item is no longer available
Price
N/A
1108
CAP SCREW M10-1.5 X 30
Price
N/A
1109
SHACK BOLT
Item is no longer available
Price
N/A
1110
ROTATE PLATE
Item is no longer available
Price
N/A
1111
BUTTON HD CAP SCR M10-1.5 X 25
Price
N/A
1112
LOCK WASHER 10MM
Price
N/A
1113
FLAT WASHER 10MM
Price
N/A
1114
HEX BOLT M10-1.5 X 100
Price
N/A
1115
SPRING PLATE
Item is no longer available
Price
N/A
1116
ACORN NUT M10-1.5
Price
N/A
1117
HEX NUT M10-1.5
Price
N/A
1118
LOCK WASHER 10MM
Price
N/A
1119
FLAT WASHER 10MM
Price
N/A
1120
CAP SCREW M8-1.25 X 10
Price
N/A
1121
BALL JOINT BEARING M10-1.5 X 65
Item is no longer available
Price
N/A
1122
HEX NUT M10-1.5
Price
N/A
1123
HEX NUT M10-1.5
Price
N/A
1124
FIXED BLOCK
Item is no longer available
Price
N/A
1125
SHAFT
Item is no longer available
Price
N/A
1126
CAP SCREW M8-1.25 X 45
Price
N/A
1127
FLAT WASHER 8MM
Price
N/A
1128
LOCK WASHER 8MM
Price
N/A
1129
LOCK WASHER 8MM
Price
N/A
1130
CAP SCREW M8-1.25 X 55
Price
N/A
1131
CAP SCREW M10-1.5 X 20
Price
N/A
1132
LOCK WASHER 10MM
Price
N/A
1133
FLAT WASHER 10MM
Price
N/A
1134
SHAFT
Item is no longer available
Price
N/A
1135
HEX BOLT M10-1.5 X 40
Price
N/A
1136
LOCK WASHER 10MM
Price
N/A
1137
FLAT WASHER 10MM
Price
N/A
1138
V-BELT B30
Price
N/A
1139
SET SCREW M6-1 X 10
Price
N/A
1140
CAP SCREW M10-1.5 X 20
Price
N/A
1141
LOCK WASHER 10MM
Price
N/A
1142
FLAT WASHER 10MM
Price
N/A
1143
MAIN MOTOR PULLEY V1
Item is no longer available
Price
N/A
1143A
MAIN MOTOR PULLEY V2.08.07
Item is no longer available
Price
N/A
1144
KEY 8 X 7 X 50
Price
N/A
1145
MOTOR 10HP 220V/440V 3-PH
Price
$1,461.75
1145-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
1145-2
MOTOR FAN
Item is no longer available
Price
N/A
1145-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
1146
HEX NUT M10-1.5
Price
N/A
1147
MAIN MOTOR CORD
Item is no longer available
Price
N/A
1148
BUTTON HD CAP SCR M10-1.5 X 25
Price
N/A
1149
LOCK WASHER 10MM
Price
N/A
1150
COLLAR
Item is no longer available
Price
N/A
1151
CAP SCREW M10-1.5 X 20
Price
N/A
1152
GIB PLATE
Item is no longer available
Price
N/A
1153
LOCK WASHER 10MM
Price
N/A
1154
CAP SCREW M10-1.5 X 40
Price
N/A
1155
COLLAR
Item is no longer available
Price
N/A
1156
CAP SCREW M6-1 X 10
Price
N/A
1157
BUSHING BEARING DU1415
Item is no longer available
Price
N/A
1158
FIXED BLOCK
Item is no longer available
Price
N/A
1159
LOCK NUT M10-1.5
Price
N/A
1160
BUSHING
Item is no longer available
Price
N/A
1161
CAP SCREW M10-1.5 X 16
Price
N/A
1162
MAIN MOTOR PLATE
Item is no longer available
Price
N/A
1163
WAVE HOSE 2M
Item is no longer available
Price
N/A
1164
STRAIN RELIEF BG-04
Item is no longer available
Price
N/A
1165
HEX BOLT M10-1.5 X 30
Price
N/A
1166
LOCK WASHER 10MM
Price
N/A
1167
FLAT WASHER 10MM
Price
N/A
1168
FIX PLATE
Item is no longer available
Price
N/A
1169
HEX NUT M10-1.5
Price
N/A
1170
FIX PLATE
Item is no longer available
Price
N/A
1171
FLAT WASHER 8MM
Price
N/A
1172
ADJ HANDLE M8-1.25, 100L
Price
N/A
1173
LOCK WASHER 8MM
Price
N/A
1174
CAP SCREW M8-1.25 X 20
Price
N/A
1175
SET SCREW M8-1.25 X 30
Price
N/A
1176
FLAT WASHER 8MM
Price
N/A
1177
CAP SCREW M8-1.25 X 25
Price
N/A
1178
LOCK WASHER 8MM
Price
N/A
1179
FIXED PLATE
Item is no longer available
Price
N/A
1180
LOCK WASHER 6MM
Price
N/A
1181
CAP SCREW M6-1 X 20
Price
N/A
1182
CAP SCREW M6-1 X 12
Price
N/A
1183
FIXED PLATE
Item is no longer available
Price
N/A
1184
CAP SCREW M8-1.25 X 20
Price
N/A
1185
GAS PRESSURE REGULATOR
Item is no longer available
Price
N/A
1186
LOCK NUT M8-1.25
Price
N/A
1187
FLAT WASHER 8MM
Price
N/A
1188
SPONGE
Item is no longer available
Price
N/A
1203
FLAT HD SCR M6-1 X 16
Price
N/A
1205
SET SCREW M4-.7 X 6
Price
N/A
1207
HEX NUT M6-1
Price
N/A
1209
ROLL PIN 3 X 16
Price
N/A
1210
LOCK NUT M6-1
Price
N/A
1214
ROLL PIN 3 X 16
Price
N/A
1215
SET SCREW M4-.7 X 6
Price
N/A
1218
LOCK WASHER 6MM
Price
N/A
1219
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
1220
ROLL PIN 5 X 45
Price
N/A
1221
HEX NUT M12-1.75
Price
N/A
1222
LOCK WASHER 12MM
Price
N/A
1223
FLAT WASHER 12MM
Price
N/A
1224
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1225
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1225V3
TOP AND BOTTOM BASE 3200MM V3.07.10
Item is no longer available
Price
N/A
1226
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1226V3
COVER V3.07.10
Item is no longer available
Price
N/A
1227
FLAT HD SCR M6-1 X 30
Price
N/A
1228
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1228V3
RUBBER BLOCK V3.07.10
Price
$7.90
1228V4
RUBBER BLOCK V4.05.12
Price
$7.50
1229
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1229V3
*SEE EXTENDED DESCRIPTION
Item is no longer available
Price
N/A
1230
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1230V3
PLATE V3.07.10
Price
$19.30
1230V4
PLATE V4.05.12
Price
$21.00
1231
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1231V4
COVER V4.05.12
Item is no longer available
Price
N/A
1232
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1232V3
TOP AND BOTTOM BASE 3200MM V3.07.10
Price
N/A
1233
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1233V3
LOCATE ROD V3.07.10
Item is no longer available
Price
N/A
1234
FLAT HD SCR M6-1 X 10
Price
N/A
1235
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1235V3
STEEL RAIL V3.07.10
Item is no longer available
Price
N/A
1236
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1237
FLAT HD CAP SCR M10-1.5 X 20
Price
N/A
1238
LOCK NUT M10-1.5
Price
N/A
1239
CAP SCREW M8-1.25 X 12
Price
N/A
1240
HANDLE
Item is no longer available
Price
N/A
1241
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1241V3
LOCK HANDLE V3.07.10
Item is no longer available
Price
N/A
1241V4
LOCK HANDLE V4.05.12
Item is no longer available
Price
N/A
1242
SET SCREW M5-.8 X 8
Price
N/A
1243
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1243V3
*DISCD*LOCATE BLOCK V3.07.10
Item is no longer available
Price
N/A
1244
CAP SCREW M8-1.25 X 16
Price
N/A
1244V3
FLAT HD SCR M5-.8 X 10
Price
N/A
1245
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1245V3
RIGHT END PLATE V3.07.10
Item is no longer available
Price
N/A
1246
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
1246V3
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1247
CAP SCREW M6-1 X 10
Price
N/A
1247V3
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
1248
FLAT WASHER 6MM
Price
N/A
1249
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1249V3
*DISCD*TEETH LOCATE PLATE V3.07.10
Price
$41.40
1250
TAP SCREW M5 X 16
Price
N/A
1251
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1251V3
COVER V3.07.10
Item is no longer available
Price
N/A
1252
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1252V3
*DISCD*STEEL BALL 16.6MM V2.05.10
Price
N/A
1253
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1253V3
SLIDING BOTTOM V3.07.10
Item is no longer available
Price
N/A
1254
*DISCD*SLIDING TABLE SET 3200MM V2.08.07
Price
N/A
1254V3
WOOL PAD V3.07.10
Item is no longer available
Price
N/A
1255
FLAT HD SCR M6-1 X 16
Price
N/A
1255V3
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
1256
ADHESIVE
Item is no longer available
Price
N/A
1257
COVER SHEET
Item is no longer available
Price
N/A
1258
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
1259
FLAT HD SCR M10-1.5 X 20
Price
N/A
1260
LOCK NUT M10-1.5
Price
N/A
1302
HEX NUT M16-2
Price
N/A
1304
CAP SCREW M8-1.25 X 16
Price
N/A
1306
LOCK WASHER 8MM
Price
N/A
1307
HEX NUT M8-1.25
Price
N/A
1308
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
1310
HEX NUT M16-2
Price
N/A
1316
HEX BOLT M6-1 X 12
Price
N/A
1318
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
1321
HEX NUT M12-1.75
Price
N/A
1322
LOCK WASHER 12MM
Price
N/A
1323
FLAT WASHER 12MM
Price
N/A
1328
STEEL BALL 16MM
Price
N/A
1331
CAP SCREW M6-1 X 10
Price
N/A
1332
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1333
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1401
*DISCD*KEY SWITCH
Price
N/A
1402
*DISCD*POWER INDICATOR LIGHT SENO SN22
Price
N/A
1403
*DISCD*ON BUTTON
Price
N/A
1404
*DISCD*OFF BUTTON
Price
N/A
1405
*DISCD*E-STOP BUTTON RENY R9C01VN
Price
N/A
1406
*DISCD*TERMINAL BAR 3P
Price
N/A
1407
*DISCD*TERMINAL BAR 7P
Price
N/A
1408
*DISCD*FUSE BASE
Price
N/A
1409
FUSE 250V 10A
Price
N/A
1410
TRANSFORMER V2.03.07
Price
N/A
1411
CONTACTOR SDE MA-18 24V
Price
N/A
1412
OL RELAY SDE RA-20 12-18A
Price
N/A
1413
CONTACTOR SDE MA-09 24V
Price
N/A
1414
OL RELAY SDE RA-20E 2.6-4.4A
Price
N/A
1415
*DISCD*LIMIT SWITCH
Price
N/A
1416
CONVERSION KIT 440V OLR RA-20 8-
Price
N/A
1417
*DISCD*STAR DELTA TIMER 24V
Price
N/A
1418
*DISCD*TERMINAL 6 CIRCUIT 25A
Price
N/A
1419
*DISCD*CONTROL PANEL ASSY
Price
N/A
1420
*DISCD*ELECTRICAL BOX ASSY
Price
N/A
1421
MAGNETIC CONTACTOR MA-15 24V
Price
N/A
1422
CONTACTOR SDE MA-18 24V
Price
N/A
1501
LOWER BLADE GUARD LABEL
Item is no longer available
Price
N/A
1502
UPPER BLADE GUARD LABEL
Item is no longer available
Price
N/A
1503
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
1504
LOOSEN/TIGHTEN FENCE LABEL
Item is no longer available
Price
N/A
1505
KICKBACK WARNING LABEL
Item is no longer available
Price
N/A
1506
PREWIRED 220V 3.3W X 2.2H
Price
N/A
1507
SCORING VERTICAL ADJUST LABEL
Item is no longer available
Price
N/A
1508
*DISCD*BLADE TILT SCALE LABEL
Item is no longer available
Price
N/A
1509
SCORING HORIZONTAL ADJUST LABEL
Item is no longer available
Price
N/A
1510
MAIN BLADE ELEVATION LABEL
Item is no longer available
Price
N/A
1511
ELECTRICITY 1.4W X 1.2H
Price
N/A
1512
SLIDING TABLE LOCK LABEL
Item is no longer available
Price
N/A
1513
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
1514
TRAINED PERSONNEL ONLY LABEL
Item is no longer available
Price
N/A
1515
GREY PUTTY REF G0504
Price
N/A
1516
DISCONNECT POWER LABEL
Item is no longer available
Price
N/A
1517
GRIZZLY LABEL
Item is no longer available
Price
N/A
1518
BLADE TILT LABEL
Item is no longer available
Price
N/A
1520
MACHINE ID LABEL
Item is no longer available
Price
N/A
1521
N/S GRIZZLY GREEN G1023S
Price
N/A
1522
Nameplate - Large
Price
N/A
1523
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0493 10/07
Price
$17.25
