Parts for G0495X - 8" x 83" Helical Cutterhead Jointer w/ Digital Height Readout

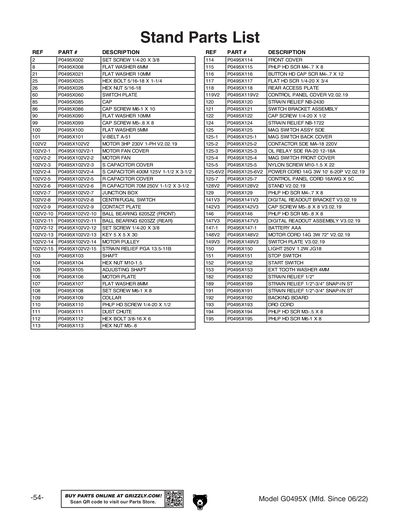

Part Diagram for G0495X

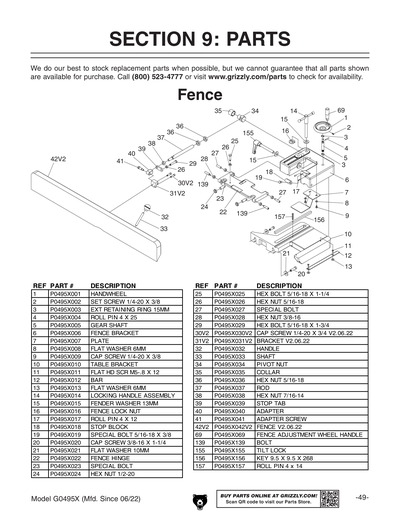

Part Diagram for G0495X

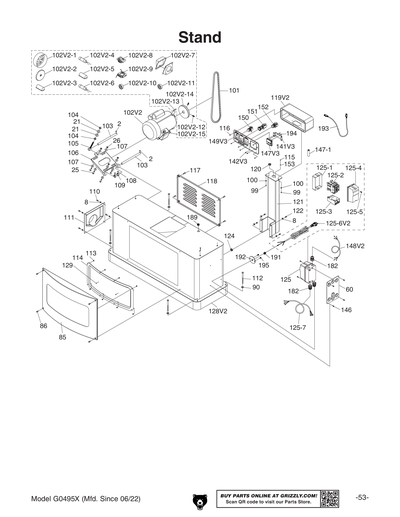

Part Diagram for G0495X

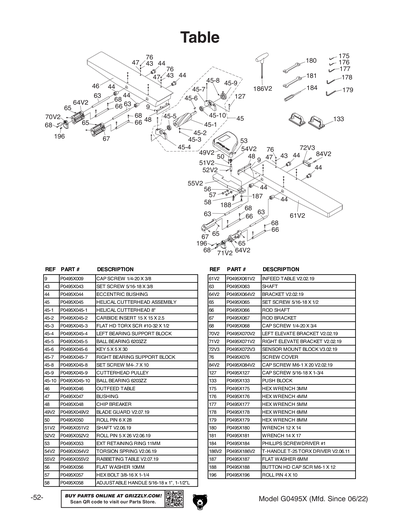

Part Diagram for G0495X

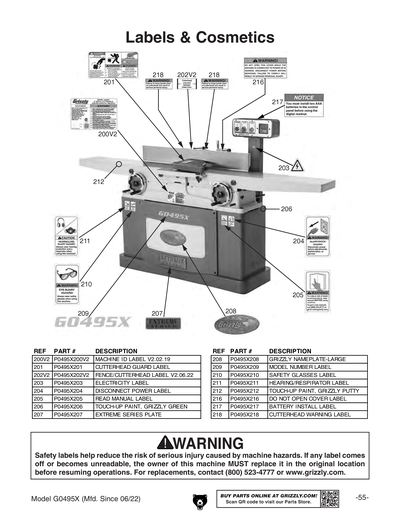

Part Diagram for G0495X

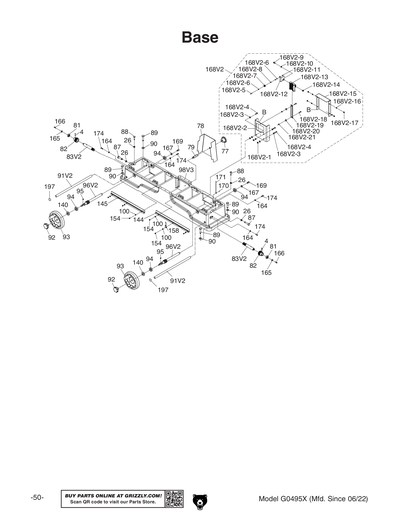

Part Diagram for G0495X

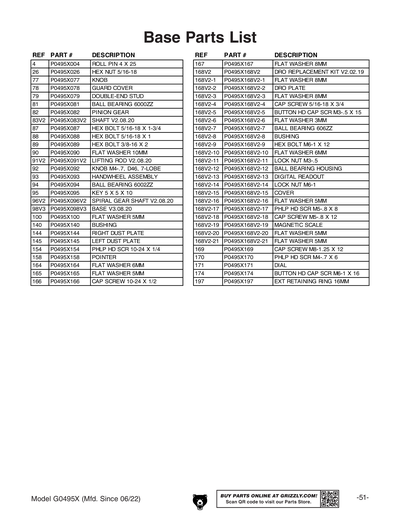

Part Diagram for G0495X
Part Diagram for G0495X
Part Diagram for G0495X
Part Diagram for G0495X
Part Diagram for G0495X
Part Diagram for G0495X
Part Diagram for G0495X
Part Diagram for G0495X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HANDWHEEL
Price
$14.25
1V2
HANDWHEEL V2.07.24
Price
$35.70
2
SET SCREW 1/4-20 X 3/8
Price
N/A
3
EXT RETAINING RING 15MM
Price
N/A
4
ROLL PIN 4 X 25
Price
N/A
5
GEAR SHAFT
Price
$6.40
6
FENCE BRACKET
Price
$116.25
6V2
FENCE BRACKET V2.07.24
Price
$142.75
7
PLATE
Price
$4.85
8
FLAT WASHER 6MM
Price
N/A
9
CAP SCREW 1/4-20 X 3/8
Price
N/A
10
TABLE BRACKET
Price
$121.10
10V2
TABLE BRACKET V2.07.24
Price
$165.05
11
FLAT HD SCR M5-.8 X 12
Price
N/A
12
BAR
Price
$3.05
13
FLAT WASHER 6MM
Price
N/A
14
LOCK HANDLE ASSY
Price
$18.15
15
FENDER WASHER 13MM
Price
$1.85
16
FENCE LOCK NUT
Price
$2.20
17
ROLL PIN 4 X 12
Price
N/A
18
STOP BLOCK
Price
$1.85
19
STOP BLOCK BOLT 5/16-18 X 3/8
Price
$1.85
20
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
21
FLAT WASHER 10MM
Price
N/A
22
FENCE HINGE
Price
$25.40
22V2
FENCE HINGE V2.07.24
Price
$42.45
23
CAM LOCK BOLT
Price
$3.05
24
HEX NUT 1/2-20
Price
N/A
25
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
26
HEX NUT 5/16-18
Price
N/A
27
FENCE HINGE BOLT
Price
$1.75
28
HEX NUT 3/8-16
Price
N/A
29
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
30
CAP SCREW 1/4-20 X 1
Price
N/A
30V2
CAP SCREW 1/4-20 X 3/4
Price
N/A
31
BRACKET V1
Price
$7.90
31V2
BRACKET V2.06.22
Price
$3.65
32
ROUND FEMALE KNOB
Price
N/A
33
STUD-DE 3/8-16 X 3-1/8, 3/8
Price
N/A
34
PIVOT NUT
Price
$4.85
35
COLLAR
Price
$1.85
36
HEX NUT 5/16-18
Price
N/A
37
ROD
Price
$6.40
38
HEX NUT 7/16-14
Price
N/A
39
STOP TAB
Price
$1.85
40
ADAPTER
Price
$3.05
41
ADAPTER SCREW
Price
$1.85
42
FENCE V1
Price
$194.45
42V2
FENCE V2.06.22
Price
$182.10
42V3
FENCE V3.07.24
Price
$256.55
43
SET SCREW 5/16-18 X 3/8
Price
N/A
44
ECCENTRIC BUSHING
Price
$5.50
45
HELICAL CUTTERHEAD ASSY
Price
$1,198.20
45-1
HELICAL CUTTERHEAD
Price
$776.00
45-10
BALL BEARING 6203ZZ
Price
N/A
45-2
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
45-3
FLAT HEAD TORX 10-32 X 1/2
Price
N/A
45-4
BEARING SUPPORT BLOCK LEFT
Price
$6.40
45-4V2
LEFT BEARING SUPPORT BLOCK V2.07.24
Price
$48.05
45-5
BALL BEARING 6203ZZ
Price
N/A
45-6
KEY 5 X 5 X 30
Price
N/A
45-7
BEARING SUPPORT BLOCK RIGHT
Price
$6.40
45-7V2
RIGHT BEARING SUPPORT BLOCK V2.07.24
Price
$48.05
45-8
SET SCREW M4-.7 X 10
Price
N/A
45-9
CUTTERHEAD PULLEY
Price
$22.70
46
OUTFEED TABLE
Price
$467.95
46V2
OUTFEED TABLE V2.07.24
Price
$737.05
47
BUSHING
Price
$1.85
48
CHIPBREAKER
Price
$2.20
49
BLADE GUARD V1
Price
$39.10
49A
COMPLETE CUTTERHEAD GUARD ASSY
Price
$49.25
49V2
CUTTERHEAD GUARD V2.07.19
Price
N/A
50
ROLL PIN 6 X 20
Price
N/A
51
SHAFT V1
Price
$5.50
51V2
SHAFT V2.06.19
Price
$4.85
52
ROLL PIN 5 X 40
Price
N/A
52V2
ROLL PIN 5 X 26
Price
N/A
53
EXT RETAINING RING 11MM
Price
N/A
54
TORSION SPRING V1
Price
$1.75
54V2
TORSION SPRING V2.07.19
Price
N/A
55
RABBETING TABLE V1
Price
$51.70
55V2
RABBETING TABLE V2.07.19
Price
$45.35
55V3
RABBETING TABLE V3.07.24
Price
$97.30
56
FLAT WASHER 10MM
Price
N/A
57
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
58
ADJUSTABLE HANDLE 5/16-18 X 1", 1-1/2"L
Price
$6.40
59
PLATE
Price
$19.35
60
SWITCH PLATE
Price
$10.65
61
INFEED TABLE V1
Price
$503.30
61V2
INFEED TABLE V2.02.19
Price
$437.75
61V3
INFEED TABLE V3.07.24
Price
$634.90
62
SHAFT
Price
$17.25
63
SHAFT
Price
$17.25
64
BRACKET
Price
$30.20
64V2
BRACKET V2.02.19
Price
$30.20
65
SET SCREW 5/16-18 X 1/2
Price
N/A
66
ROD SHAFT
Price
$10.00
67
ROD BRACKET
Price
$36.00
68
CAP SCREW 1/4-20 X 3/4
Price
N/A
69
FENCE ADJUSTMENT WHEEL HANDLE
Price
$9.40
70
LEFT ELEVATE BRACKET V1
Price
$37.20
70V2
LEFT ELEVATE BRACKET V2.02.19
Price
$32.35
71
RIGHT ELEVATE BRACKET V1
Price
$38.65
71V2
RIGHT ELEVATE BRACKET V2.02.19
Price
$32.35
72
*DISCD*SENSOR MOUNT BLOCK V1
Item is no longer available
Price
N/A
72V2
MAGNETIC DRO BRACKET ASSY V2.03.15
Price
$58.30
72V2-1
MAGNETIC DRO BRACKET
Price
$9.40
72V2-2
MAGNETIC STRIP (SET OF 2)
Price
$14.85
72V3
SENSOR MOUNT BLOCK V3.02.19
Price
$24.15
72V4
SENSOR MOUNT BLOCK V4.05.24
Price
$5.35
76
SCREW COVER
Price
$1.85
77
KNOB
Price
$1.75
78
GUARD COVER
Price
$14.25
78V2
GUARD COVER V2.07.24
Price
$34.60
79
STANDOFF-HEX DOUBLE END STUD
Price
$4.85
80
INT RETAINING RING 25MM
Price
N/A
81
BALL BEARING 6000ZZ
Price
N/A
82
PINION GEAR
Price
$23.30
83
SHAFT V2.08.20
Price
N/A
83V2
SHAFT V2.08.20
Price
$16.95
84
CAP SCREW 5/16-18 X 3/4
Price
N/A
84V2
CAP SCREW M6-1 X 20
Price
N/A
85
CAP
Price
$102.10
85V2
CAP V2.07.24
Price
$154.75
86
CAP SCREW M6-1 X 10
Price
N/A
87
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
88
HEX BOLT 5/16-18 X 1
Price
N/A
89
HEX BOLT 3/8-16 X 2
Price
N/A
90
FLAT WASHER 10MM
Price
N/A
91
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
91V2
LIFTING ROD V2.08.20
Price
$11.50
92
LOCK NUT
Price
$2.20
93
HANDWHEEL ASSY
Price
$58.30
94
BALL BEARING 6002ZZ
Price
N/A
95
KEY 5 X 5 X 10
Price
N/A
96
SPIRAL GEAR SHAFT V2.08.20
Price
N/A
96V2
SPIRAL GEAR SHAFT V2.08.20
Price
$39.30
98
BASE V1
Price
$599.25
98V2
BASE V2.02.19
Price
$534.70
98V3
BASE V3.08.20
Price
$534.70
98V4
BASE V4.07.24
Price
$916.00
99
CAP SCREW M5-.8 X 8
Price
N/A
100
FLAT WASHER 5MM
Price
N/A
101
V-BELT A51
Price
N/A
102
*DISCD*MOTOR 3HP 220V 1-PH
Item is no longer available
Price
N/A
102-1
MOTOR FAN COVER
Price
N/A
102-10
SET SCREW 1/4-20 X 3/8
Price
N/A
102-11
KEY 5 X 5 X 45
Price
N/A
102-2
FAN
Price
$8.20
102-3
CAPACITOR COVER (RUN)
Price
N/A
102-4
S CAPACITOR 500M 125V 1-3/4 X 3-3/8
Price
N/A
102-5
R CAPACITOR COVER
Price
N/A
102-6
R CAPACITOR 40M 300V 1-1/2 X 2-3/8
Price
$18.15
102-7
JUNCTION BOX
Price
$13.30
102-8
CENTRIFUGAL SWITCH
Price
$14.50
102-9
MOTOR PULLEY
Price
$34.80
102V2
MOTOR 3HP 230V 1-PH
Price
N/A
102V2-1
MOTOR FAN COVER
Price
N/A
102V2-10
BALL BEARING 6205ZZ
Price
N/A
102V2-11
BALL BEARING 6203ZZ
Price
N/A
102V2-12
SET SCREW 1/4-20 X 3/8
Price
N/A
102V2-13
KEY 5 X 5 X 30
Price
N/A
102V2-14
MOTOR PULLEY
Price
$30.85
102V2-15
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
102V2-2
MOTOR FAN
Price
$11.20
102V2-3
CAPACITOR COVER (RUN)
Price
N/A
102V2-4
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
N/A
102V2-5
CAPACITOR COVER (RUN)
Price
N/A
102V2-6
R CAP 70M 250V 1-9/16 X 3-1/2 V2.09.18
Price
N/A
102V2-7
JUNCTION BOX
Price
N/A
102V2-8
CENTRIFUGAL SWITCH
Price
$14.40
102V2-9
CONTACT PLATE
Price
$5.50
103
SHAFT
Price
$3.95
104
HEX NUT M10-1.5
Price
N/A
105
ADJUSTING SHAFT
Price
$5.80
106
MOTOR PLATE
Price
$27.80
107
FLAT WASHER 8MM
Price
N/A
108
SET SCREW M6-1 X 8
Price
N/A
109
COLLAR
Price
$3.05
110
CAP SCREW 1/4-20 X 1/2
Price
N/A
111
DUST PORT
Price
N/A
112
HEX BOLT 3/8-16 X 6
Price
N/A
113
HEX NUT M5-.8
Price
N/A
114
COVER FRONT
Price
$25.40
114V2
FRONT COVER V2.07.24
Price
$74.70
115
PHLP HD SCR M4-.7 X 8
Price
N/A
116
BUTTON HD CAP SCR M4-.7 X 12
Price
N/A
117
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
118
REAR ACCESS PLATE
Price
$32.80
118V2
REAR ACCESS PLATE V2.07.24
Price
$42.85
119
CONTROL PANEL COVER V1
Price
$35.95
119V2
CONTROL PANEL COVER V2.02.19
Price
$35.65
119V3
CONTROL PANEL COVER V3.07.24
Price
$105.30
120
GROMMET M11 TYPE-2 SNAP-IN
Price
$1.60
121
SWITCH BRACKET ASSY
Price
$53.50
121V2
SWITCH BRACKET ASSEMBLY V2.07.24
Price
$106.75
122
CAP SCREW 1/4-20 X 1/2
Price
N/A
123
FLAT WASHER 8MM
Price
N/A
124
GROMMET M11 TYPE-2 SNAP-IN
Price
$1.60
125
MAG SWITCH
Price
$160.05
125-1
MAG SWITCH BACK COVER
Price
N/A
125-2
CONTACTOR SDE MA-18 220V
Price
N/A
125-3
OL RELAY SDE RA-20 12-18A
Price
$38.65
125-4
SWITCH COVER FRONT
Price
N/A
125-5
NYLON SCREW M10-1.5 X 22
Price
$1.85
125-6
POWER CORD 12G 3C V1
Price
$25.10
125-6V2
POWER CORD 14G 3W 10' 6-20P V2.02.19
Price
$22.40
125-7
CONTROL PANEL CORD 16AWG X 5C
Price
$7.60
126
STRAIN RELIEF 3/4" TYPE-1 SNAP-IN
Price
$1.85
127
CAP SCREW 5/16-18 X 1-3/4
Price
N/A
128
STAND V1
Price
$742.95
128V2
STAND V2.02.19
Price
$652.40
128V3
STAND V3.07.24
Price
$870.35
129
PHLP HD SCR M4-.7 X 8
Price
N/A
131
COLLAR
Price
$1.85
133
Safety Push Block - Small
Price
N/A
139
BOLT
Price
$1.75
140
BUSHING
Price
$1.85
141
DIGITAL READOUT BRACKET V2.03.15
Price
N/A
141V2
DIGITAL READOUT BRACKET V2.03.15
Price
$16.95
141V3
DIGITAL READOUT BRACKET V3.02.19
Price
$13.95
142
FLAT HD SCR M3-.5 X 8
Price
N/A
142V2
FLAT HD SCR M3-.5 X 6
Price
N/A
142V3
CAP SCREW M5-.8 X 8
Price
N/A
144
DUST PLATE RIGHT
Price
$3.65
144V2
RIGHT DUST PLATE V2.07.24
Price
$6.40
145
DUST PLATE LEFT
Price
$3.95
145V2
LEFT DUST PLATE V2.07.24
Price
$101.95
146
PHLP HD SCR M5-.8 X 8
Price
N/A
147
DRO ASSEMBLY REPLACEMENT KIT
Price
N/A
147-1
BATTERY AAA V1
Price
$8.80
147-1V2
BATTERY AA V2.03.15
Price
$3.40
147V2
DIGITAL READOUT ASSY V2.03.15
Price
$398.80
147V2A
DRO ASSEMBLY REPLACEMENT KIT
Price
$463.45
147V3
DIGITAL READOUT ASSEMBLY V3.02.19
Price
$80.50
148
MOTOR CORD 12G 3W 33"
Price
N/A
148V2
MOTOR CORD 14G 3W 72" V2.02.19
Price
$16.65
149
SWITCH PLATE V2.03.15
Price
N/A
149V2
SWITCH PLATE V2.03.15
Price
$23.30
149V3
SWITCH PLATE V3.02.19
Price
$39.00
150
LIGHT 250V 1.2W JG18
Price
$18.40
151
STOP SWITCH
Price
$54.10
152
START SWITCH
Price
$46.55
153
EXT TOOTH WASHER 4MM
Price
N/A
154
PHLP HD SCR 10-24 X 1/4
Price
N/A
155
TILT LOCK
Price
$14.50
156
KEY 9.5 X 9.5 X 268
Price
N/A
157
ROLL PIN 4 X 14
Price
N/A
158
POINTER
Price
$2.20
161
ACCESS DOOR
Price
$11.85
162
ACCESS DOOR SCREW
Price
$1.85
163
KNOB M6-1
Price
$1.85
164
FLAT WASHER 6MM
Price
N/A
165
FLAT WASHER 5MM
Price
N/A
166
CAP SCREW 10-24 X 1/2
Price
N/A
167
FLAT WASHER 8MM
Price
N/A
168
DRO ASSEMBLY REPLACEMENT KIT
Price
N/A
168-1
*DISCD*DIGITAL READOUT PLATE
Item is no longer available
Price
N/A
168-10
FLAT WASHER 3MM
Price
N/A
168-11
CAP SCREW 5/16-18 X 3/4
Price
N/A
168-12
FLAT WASHER 8MM
Price
N/A
168-13
*DISCD*PLATE
Item is no longer available
Price
N/A
168-14
*DISCD*COVER
Item is no longer available
Price
N/A
168-15
*DISCD*BATTERY 1.5V SILVER OXIDE 357/303
Item is no longer available
Price
N/A
168-2
*DISCD*CORD
Item is no longer available
Price
N/A
168-3
DRO ASSEMBLY REPLACEMENT KIT
Price
N/A
168-3V2
DIGITAL READOUT ASSY V2.03.15
Price
N/A
168-4
CAP SCREW M5-.8 X 8
Price
N/A
168-4V2
CAP SCREW M5-.8 X 6
Price
N/A
168-5
PHLP HD SCR M3-.5 X 12
Price
N/A
168-6
PHLP HD SCR M5-.8 X 8
Price
N/A
168-7
BALL BEARING 606ZZ
Price
N/A
168-8
*DISCD*BUSHING
Price
$3.45
168-9
FLAT WASHER 5MM
Price
N/A
168V2
DRO ASSEMBLY REPLACEMENT KIT V2.02.19
Price
$164.25
168V2-1
FLAT WASHER 8MM
Price
N/A
168V2-10
FLAT WASHER 6MM
Price
N/A
168V2-11
LOCK NUT M3-.5
Price
N/A
168V2-12
BALL BEARING HOUSING
Price
$6.70
168V2-13
DIGITAL READOUT
Price
$63.75
168V2-14
LOCK NUT M6-1
Price
N/A
168V2-15
COVER
Price
$11.85
168V2-16
FLAT WASHER 5MM
Price
N/A
168V2-17
PHLP HD SCR M5-.8 X 8
Price
N/A
168V2-18
CAP SCREW M5-.8 X 12
Price
N/A
168V2-19
MAGNETIC SCALE
Price
$46.55
168V2-2
DRO PLATE
Price
$18.45
168V2-20
FLAT WASHER 5MM
Price
N/A
168V2-21
FLAT WASHER 5MM
Price
N/A
168V2-3
FLAT WASHER 8MM
Price
N/A
168V2-4
CAP SCREW 5/16-18 X 3/4
Price
N/A
168V2-5
BUTTON HD CAP SCR M3-.5 X 15
Price
N/A
168V2-6
FLAT WASHER 3MM
Price
N/A
168V2-7
BALL BEARING 606ZZ
Price
N/A
168V2-8
BUSHING
Price
$1.60
168V2-9
HEX BOLT M6-1 X 12
Price
N/A
168V3
DRO ASSEMBLY V3.05.24
Price
$178.85
168V3-12
BALL BEARING HOUSING
Price
$8.50
168V3-15
COVER V2.07.24
Price
$23.45
168V3-2
DRO PLATE V2.07.24
Price
$50.05
169
CAP SCREW M8-1.25 X 12
Price
N/A
170
PHLP HD SCR M4-.7 X 6
Price
N/A
171
DIAL
Price
$1.60
172
BUSHING
Price
$7.25
173
SET SCREW M6-1 X 8
Price
N/A
174
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
175
HEX WRENCH 3MM
Price
N/A
176
HEX WRENCH 4MM
Price
N/A
177
HEX WRENCH 5MM
Price
N/A
178
HEX WRENCH 6MM
Price
N/A
179
HEX WRENCH 8MM
Price
N/A
180
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
181
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
182
STRAIN RELIEF 1/2"
Price
$6.40
183
*DISCD*TORX BIT T-25
Item is no longer available
Price
N/A
184
PHLP HD SCREWDRIVER #1
Price
N/A
185
CAP SCREW M8-1.25 X 10
Price
N/A
186
T-HANDLE T-25 TORX DRIVER V2.06.11
Price
N/A
186V2
T-HANDLE T-25 TORX DRIVER V2.06.11
Price
$14.85
187
FLAT WASHER 6MM
Price
N/A
188
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
189
STRAIN RELIEF 1/2"-3/4" SNAP-IN ST
Price
$1.60
191
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
192
BACKING BOARD
Price
$2.60
193
DRO CORD
Price
$10.90
194
PHLP HD SCR M3-.5 X 8
Price
N/A
195
PHLP HD SCR M6-1 X 8
Price
N/A
196
ROLL PIN 4 X 10
Price
N/A
197
EXT RETAINING RING 16MM
Price
N/A
200
MACHINE ID LABEL V1
Price
$16.40
200V2
MACHINE ID LABEL V2.02.19
Price
$16.40
201
CUTTERHEAD GUARD LABEL 4.1W X 2.2H
Price
N/A
202
FENCE/CUTTERHEAD LABEL V1
Price
$1.35
202V2
FENCE/CUTTERHEAD LABEL V2.06.22
Price
$1.05
203
ELECTRICITY 1.4W X 1.2H
Price
N/A
204
DISCONNECT POWER-DOOR 2W X 3.3H
Price
N/A
205
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
206
N/S GRIZZLY GREEN G1023S
Price
N/A
207
Extreme Series Nameplate
Price
N/A
208
Nameplate - Large
Price
N/A
209
MODEL NUMBER LABEL
Price
$1.25
209V2
MODEL NUMBER LABEL V2.07.24
Price
$16.40
210
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
211
EAR PROTECTION/RESPIRATOR LABEL
Price
$1.35
212
GREY PUTTY REF G0504
Price
N/A
216
DO NOT OPEN COVER LABEL
Price
$4.25
217
BATTERY INSTALL LABEL
Price
$4.25
218
CUTTERHEAD WARNING LABEL
Price
$1.05
219
CONTROL PANEL LABEL
Price
$13.10
MAN
MANUAL G0495X MFD 05.08-05.11 V1
Price
$12.50
MANV2
MANUAL G0495X MFD 06.11-01.19 V2.11.13
Price
$14.65
MANV3
MANUAL G0495X MFD 02.19-05.19 V3.04.19
Price
$14.65
MANV4
MANUAL G0495X MFD 06.19-01.20 V4.08.19
Price
$14.65
MANV5
MANUAL G0495X MFD 02.20-07.20 V5.04.20
Price
$14.65
MANV6
MANUAL G0495X MFD 08.20-05.22 V6.08.20
Price
$14.65
MANV7
MANUAL G0495X MFD 06.22+ V7.03.22
Price
$21.95
