Parts for G0505 - 12-1/2" 2 HP Benchtop Planer

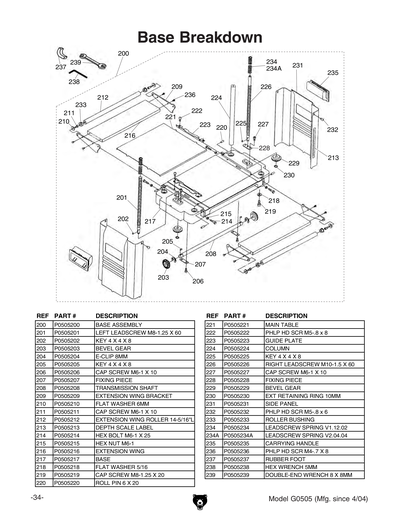

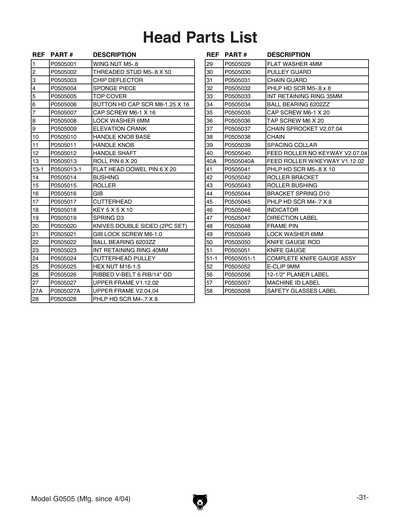

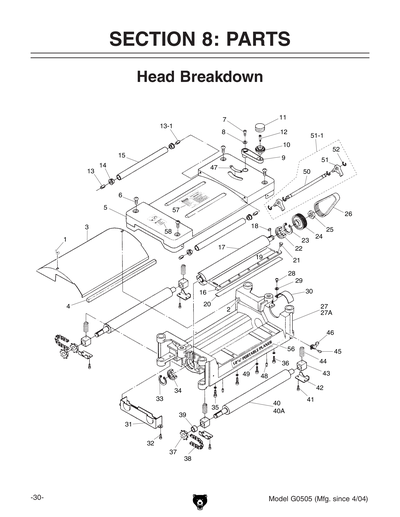

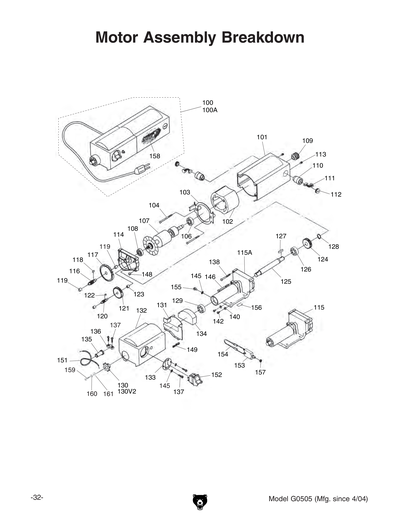

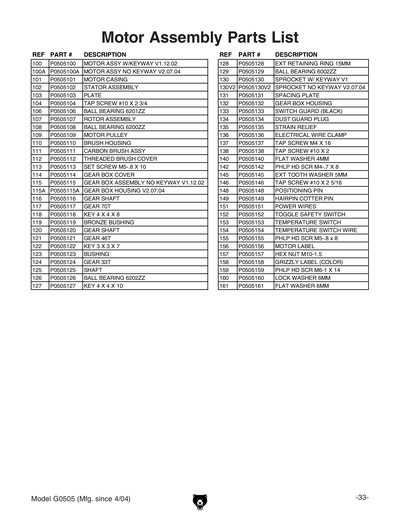

Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505
Part Diagram for G0505

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
WING NUT M5-.8
Price
N/A
2
STUD-DE M5-.8 X 40 12/16
Price
$1.90
3
CHIP DEFLECTOR
Price
$14.95
4
SPONGE PIECE
Price
$1.90
5
COVER TOP
Price
$55.75
6
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
7
CAP SCREW M6-1 X 16
Price
N/A
8
LOCK WASHER 6MM
Price
N/A
9
ELEVATION CRANK
Price
$1.90
10
HANDLE KNOB BASE
Price
$1.90
11
HANDLE KNOB
Price
$1.90
12
HANDLE SHAFT
Price
$1.90
13
ROLL PIN 6 X 20
Price
N/A
13-1
FLAT HEAD DOWEL PIN 6 X 20
Price
$1.90
14
BUSHING
Price
$2.85
15
ROLLER
Price
$13.10
16
GIB
Price
$7.60
17
CUTTERHEAD
Price
$19.60
18
KEY 5 X 5 X 10
Price
N/A
19
SPRING D3
Price
$1.90
20
KNIVES DOUBLE SIDED 2PC
Price
$58.25
21
GIB LOCK SCREW M6-1.0 X 8MM
Price
$1.90
22
BALL BEARING 6203ZZ
Price
N/A
23
INT RETAINING RING 40MM
Price
N/A
24
CUTTERHEAD PULLEY
Price
$10.40
25
HEX NUT M16-1.5
Price
N/A
26
V-BELT RIBBED 135J6 14 X 346MM
Price
$13.70
27
FRAME COVER UPPER V1.12.02
Price
$94.20
27A
FRAME COVER UPPER V2.04.04
Price
$148.10
27A-1
THREADED COLLAR 1-1/2"T 20 X 1MM
Price
$1.90
27A-2
HEX NUT 20 X 1MM
Price
$1.90
28
PHLP HD SCR M4-.7 X 8
Price
N/A
29
FLAT WASHER 4MM
Price
N/A
30
PULLEY GUARD
Price
$8.50
31
CHAIN GUARD
Price
$12.95
32
PHLP HD SCR M5-.8 X 8
Price
N/A
33
INT RETAINING RING 35MM
Price
N/A
34
BALL BEARING 6202ZZ
Price
N/A
35
CAP SCREW M6-1 X 20
Price
N/A
36
TAP SCREW M6 X 20
Price
N/A
37
CHAIN SPROCKET V2.07.04
Price
$5.10
37A
CHAIN SPROCKET SHAFT HAS KEYWAY V1.12.02
Price
$9.40
38
CHAIN
Price
$10.10
39
SPACING COLLAR LONG
Price
$5.95
39-1
SPACING COLLAR SMALL 2PC SET
Price
$5.40
40
FEED ROLLER NO KEYWAY V2.07.04
Price
$42.85
40A
FEED ROLLER W/KEYWAY V1.12.02
Price
$44.25
41
PHLP HD SCR M5-.8 X 10
Price
N/A
42
ROLLER BRACKET
Price
$5.10
43
ROLLER BUSHING
Price
$6.15
44
BRACKET SPRING D10
Price
$1.90
45
PHLP HD SCR M4-.7 X 8
Price
N/A
46
INDICATOR
Price
$1.90
47
DIRECTION LABEL
Price
$4.25
48
FRAME PIN
Price
$1.90
49
LOCK WASHER 6MM
Price
N/A
50
KNIFE GAUGE ROD
Price
$2.20
51
KNIFE GAUGE 1.5MM
Price
$2.90
51-1
COMPLETE KNIFE GAUGE ASSY
Price
$16.20
52
E-CLIP 9MM
Price
N/A
56
PLANER LABEL 12-1/2"
Price
$1.25
57
MACHINE ID LABEL
Price
$16.40
58
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
100
MOTOR 2HP 110V 1-PH W/KEYWAY V1
Price
$135.90
100A
MOTOR 2HP 110V 1-PH NO KEYWAY V2.07.04
Price
$167.75
101
MOTOR CASING
Price
$16.20
102
STATOR ASSEMBLY
Price
$42.10
103
PLATE
Price
$2.60
104
TAP SCREW #10 X 2-3/4
Price
N/A
106
BALL BEARING 6201ZZ
Price
N/A
107
ROTOR ASSEMBLY
Price
$85.95
108
BALL BEARING 6200ZZ
Price
N/A
109
MOTOR PULLEY
Price
$5.45
110
BRUSH HOUSING
Price
$2.90
111
CARBON BRUSH (SINGLE)
Price
$6.15
112
THREADED BRUSH COVER
Price
$1.90
113
SET SCREW M5-.8 X 10
Price
N/A
114
GEAR BOX COVER
Price
$5.10
115
GEARBOX ASSY
Price
$20.60
115A
GEARBOX HOUSING
Price
$18.70
116
GEAR SHAFT
Price
$5.45
117
GEAR 70T
Price
$6.90
118
KEY 4 X 4 X 8
Price
N/A
119
BRONZE BUSHING
Price
$1.90
120
GEAR SHAFT
Price
$6.70
121
GEAR 46T
Price
$2.85
122
KEY 3 X 3 X 7
Price
N/A
123
BUSHING
Price
$2.25
124
GEAR 33T
Price
$2.60
125
SHAFT
Price
$8.35
126
BALL BEARING 6202ZZ
Price
N/A
127
KEY 4 X 4 X 10
Price
N/A
128
EXT RETAINING RING 15MM
Price
N/A
129
BALL BEARING 6002ZZ
Price
N/A
130
SPROCKET W/KEYWAY V1
Price
$9.00
130V2
SPROCKET W/O KEYWAY V2.07.04
Price
$6.15
131
SPACER PLATE
Price
$4.00
132
GEAR BOX HOUSING
Price
$9.00
133
SWITCH GUARD BLACK
Price
$10.85
134
DUST GUARD PLUG
Price
$2.60
135
STRAIN RELIEF M13 TYPE-1 SNAP-IN
Price
$2.60
136
ELECTRICAL WIRE CLAMP
Price
$1.90
137
TAP SCREW M4 X 16
Price
N/A
138
TAP SCREW #10 X 2
Price
N/A
140
FLAT WASHER 4MM
Price
N/A
142
PHLP HD SCR M4-.7 X 8
Price
N/A
145
EXT TOOTH WASHER 5MM
Price
N/A
146
TAP SCREW #10 X 2-5/16
Price
N/A
148
POSITIONING PIN
Price
$1.90
149
HAIRPIN COTTER PIN
Price
$1.90
151
POWER WIRES
Price
$8.35
152
Toggle Safety Switch
Price
N/A
153
CIRCUIT BREAKER 15A ZING EAR ZE-700-15 1
Price
$5.45
154
TEMPERATURE SWITCH WIRE
Price
$7.20
155
PHLP HD SCR M5-.8 X 8
Price
N/A
156
*DISCD*MOTOR LABEL
Item is no longer available
Price
N/A
157
HEX NUT M10-1.5
Price
N/A
158
GRIZZLY LABEL IN COLOR
Price
$2.85
159
PHLP HD SCR M6-1 X 14
Price
N/A
160
LOCK WASHER 6MM
Price
N/A
161
FLAT WASHER 6MM
Price
N/A
200
BASE ASSEMBLY
Price
$154.95
201
LEADSCREW M8-1.25 X 60 LEFT
Price
$14.75
202
KEY 4 X 4 X 8
Price
N/A
203
BEVEL GEAR
Price
$5.60
204
E-CLIP 8MM
Price
N/A
205
KEY 4 X 4 X 8
Price
N/A
206
CAP SCREW M6-1 X 10
Price
N/A
207
FIXING PIECE
Price
$1.90
208
TRANSMISSION SHAFT
Price
$5.10
209
EXTENSION WING BRACKET
Price
$5.45
210
FLAT WASHER 6MM
Price
N/A
211
CAP SCREW M6-1 X 10
Price
N/A
212
EXTENSION WING ROLLER 14-5/16"L
Price
$7.40
213
DEPTH SCALE LABEL
Price
$1.25
214
HEX BOLT M6-1 X 25
Price
N/A
215
HEX NUT M6-1
Price
N/A
216
EXTENSION WING
Price
$24.15
217
BASE
Price
$80.45
218
P0505218
Now: PW07
FLAT WASHER 5/16
Price
N/A
219
CAP SCREW M8-1.25 X 20
Price
N/A
220
ROLL PIN 6 X 20
Price
N/A
221
MAIN TABLE
Price
$21.60
221-1
BRACKET 1 X 1-1/2" BLACK
Price
$5.75
222
PHLP HD SCR M5-.8 X 8
Price
N/A
223
GUIDE PLATE
Price
$4.70
224
COLUMN
Price
$9.85
225
KEY 4 X 4 X 8
Price
N/A
226
LEADSCREW M10-1.5 X 60 RIGHT
Price
$8.65
227
CAP SCREW M6-1 X 10
Price
N/A
228
FIXING PIECE
Price
$1.90
229
BEVEL GEAR
Price
N/A
230
EXT RETAINING RING 10MM
Price
N/A
231
SIDE PANEL
Price
$16.95
232
PHLP HD SCR M5-.8 X 6
Price
N/A
233
ROLLER BUSHING
Price
$1.90
234
LEADSCREW SPRING V1.12.02
Price
$2.90
234A
LEADSCREW SPRING V2.04.04
Price
$2.90
235
CARRYING HANDLE
Price
$4.35
236
PHLP HD SCR M4-.7 X 8
Price
N/A
237
RUBBER FOOT
Price
$1.90
238
HEX WRENCH 5MM
Price
N/A
239
WRENCH 8/8MM
Price
$4.00
MANUAL
MANUAL FOR G0505 09/09
Price
$14.65
P
TAP SCREW #10 X 2-3/4
Price
$2.00
