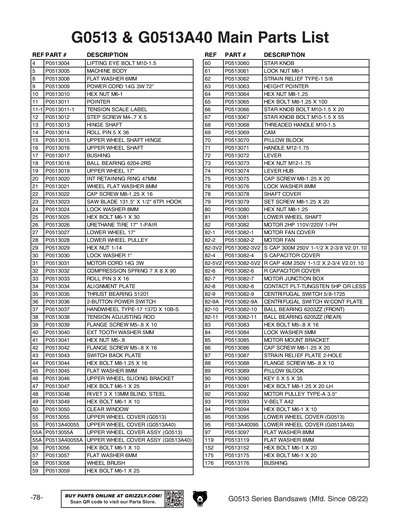

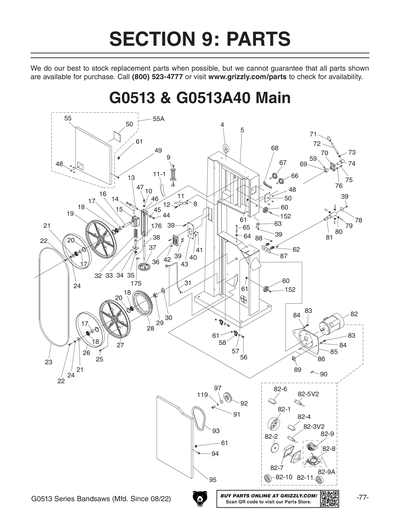

Parts for G0513 17" 2 HP Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

4
LIFTING EYE BOLT M10-1.5
5
*DISCD*MACHINE BODY
Item is no longer available
Price
N/A
6
SET SCREW M5-.8 X 5
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
POWER CORD 14G 3W 72"
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
POINTER
11-1
BLADE TENSION SCALE LABEL
Price
N/A
12
STEP SCREW M4-.7 X 5
13
HINGE SHAFT
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT HINGE
16
UPPER WHEEL SHAFT
17
BUSHING
18
BALL BEARING 6204-2RS
Price
N/A
19
UPPER WHEEL 17"
20
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
24
LOCK WASHER 8MM
Price
N/A
25
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
26
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
27
LOWER WHEEL 17"
28
LOWER WHEEL PULLEY
29
Now: PN32
HEX NUT 1-14
Price
N/A
30
Now: PLW09
LOCK WASHER 1"
Price
N/A
31
MOTOR CORD 14G 3W
32
COMPRESSION SPRING 7 X 8 X 90
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
35
THRUST BEARING 51201
Price
N/A
36
2-BUTTON POWER SWITCH
37
HANDWHEEL TYPE-17 137D X 10B-S
38
TENSION ADJUSTING BOLT
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
40
EXT TOOTH WASHER 5MM
Price
N/A
41
Now: PN06M
HEX NUT M5-.8
Price
N/A
42
FLANGE SCREW M5-.8 X 16
Price
N/A
43
SWITCH BACK PLATE
44
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
45
Now: PW01M
FLAT WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
47
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
50
CLEAR WINDOW
55
UPPER WHEEL COVER
55A
UPPER WHEEL COVER W/ LABELS & WINDOW
56
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
57
Now: PW03M
FLAT WASHER 6MM
Price
N/A
58
BRUSH
Price
N/A
59
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
60
STAR KNOB
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
63
HEIGHT POINTER
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
65
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
67
STAR KNOB BOLT M10-1.5 X 55
68
LOCK LEVER M10-1.5
Price
N/A
69
CAM
70
PILLOW BLOCK
71
HANDLE M12-1.75
72
LEVER
73
Now: PN09M
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
75
CAP SCREW M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
79
SET SCREW M8-1.25 X 20
Price
N/A
80
Now: PN03M
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
82
MOTOR 2HP 110/220V 1-PH V1
82-1
MOTOR FAN COVER V1
82-10
BALL BEARING 6203ZZ
Price
N/A
82-11
BALL BEARING 6205ZZ
Price
N/A
82-1V2
MOTOR FAN COVER V1
Price
N/A
82-2
MOTOR FAN V1
82-2V2
MOTOR FAN V1
Price
N/A
82-3
*DISCD*S CAPACITOR 200M 250V 1-1/2 X 2-3
Item is no longer available
Price
N/A
82-3V2
S CAPACITOR 300M 250V 1-1/2 X 2-3/8
Price
N/A
82-4
S CAPACITOR COVER V1.07.02
82-4V2
*DISCD*S CAPACITOR COVER V2.01.10
Item is no longer available
Price
N/A
82-5V2
R CAPACITOR 40M 250V 1-1/2 X 2-3/4
Price
N/A
82-6
R CAPACITOR COVER V1
82-6V2
*DISCD*R CAPACITOR COVER V2.01.10
Item is no longer available
Price
N/A
82-7
MOTOR JUNCTION BOX V1
82-7V2
*DISCD*MOTOR JUNCTION BOX V2.01.10
Item is no longer available
Price
N/A
82-8
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
82-9
CENT SWITCH 5/8-1725
Price
N/A
82-9A
CENTRIFUGAL SWITCH W/CONT PLATE
82V2
*DISCD*MOTOR 2HP 110V/220V 1-PH V2.01.10
Item is no longer available
Price
N/A
83
Now: PB95M
HEX BOLT M5-.8 X 16
Price
N/A
84
LOCK WASHER 5MM
Price
N/A
85
MOTOR MOUNT BRACKET
86
CAP SCREW M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
90
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
91
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
93
Now: PVA42
V-BELT A42
Price
N/A
94
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/ LABELS
96
Now: PW01M
FLAT WASHER 8MM
Price
N/A
97
Now: PW01M
FLAT WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
99
Now: PN02M
HEX NUT M10-1.5
Price
N/A
100

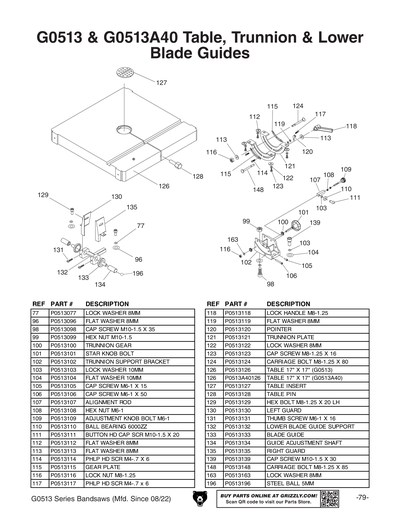

TRUNNION GEAR
101
STAR KNOB BOLT
102
TRUNNION SUPPORT BRACKET
103
LOCK WASHER 10MM
Price
N/A
104
Now: PW04M
FLAT WASHER 10MM
Price
N/A
105
CAP SCREW M6-1 X 15
Price
N/A
106
CAP SCREW M6-1 X 50
Price
N/A
107
ALIGNMENT ROD
108
Now: PN01M
HEX NUT M6-1
Price
N/A
109
ADJUSTMENT KNOB BOLT M6-1
110
BALL BEARING 6000ZZ
Price
N/A
111
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
112
Now: PW01M
FLAT WASHER 8MM
Price
N/A
113
Now: PW01M
FLAT WASHER 8MM
Price
N/A
114
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
115
GEAR PLATE
116
LOCK NUT M8-1.25
Price
N/A
117
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
118
ADJ HANDLE M8-1.25, 100L
Price
N/A
119
Now: PW01M
FLAT WASHER 8MM
Price
N/A
120
POINTER
121
TRUNNION PLATE
Price
N/A
122
LOCK WASHER 8MM
Price
N/A
123
CAP SCREW M8-1.25 X 16
Price
N/A
124
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
125
FENCE ASSEMBLY W/RAILS
125-10
*DISCD*HANDLE
125-11
*DISCD*GUARD PIECE
125-12
*DISCD*GUARD PIECE
125-15
FENCE
Price
N/A
125-16
*DISCD*SQUARE TUBE L=640
125-17
*DISCD*SCALE
125-19
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
125-20
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
125-21
Now: PN01M
HEX NUT M6-1
Price
N/A
125-24
Now: PN03M
HEX NUT M8-1.25
Price
N/A
125-25
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
125-26
LOCK WASHER 6MM
Price
N/A
126
TABLE 17" X 17"
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE PIN
Price
N/A
129
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
130
LEFT GUARD
131
THUMB SCREW M6-1 X 16
Price
N/A
132
LOWER BLADE GUIDE SUPPORT
133
BLADE GUIDE
134
GUIDE ADJUSTMENT SHAFT
135
RIGHT GUARD
136
CAP SCREW M8-1.25 X 80
Price
N/A
137
Now: PW01M
FLAT WASHER 8MM
Price
N/A
138
UPPER BLADE GUARD
138-1
BLADE GUARD SCALE
139
CAP SCREW M10-1.5 X 30
Price
N/A
140
STEP SCREW M4-.7 X 5
Price
N/A
141
FIBER WASHER 5MM
142
SLIDING PLATE
143
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
144
BALL BEARING 6202ZZ
Price
N/A
145
UPPER BLADE GUIDE SUPPORT
146
BLADE GUIDE
Price
N/A
147
THUMB SCREW M6-1 X 16
Price
N/A
148
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
149
CAP SCREW M6-1 X 15
Price
N/A
150
ADJUSTMENT SHAFT
151
UPPER SPACING SLEEVE
152
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
153
UPPER GUIDE SUPPORT BLOCK
154
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
155
Now: PN04M
HEX NUT M4-.7
Price
N/A
156
RACK
157
GUIDE POST
157A
GUIDE POST ASSEMBLY
158
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
159
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
160
HANDWHEEL BUSHING
Price
N/A
161
BUSHING
Price
N/A
161V2
THREADED BUSHING V2.06.09
162
CAP SCREW M8-1.25 X 20
Price
N/A
163
LOCK WASHER 8MM
Price
N/A
164
GUIDE BRACKET 16MM V2.06.09
Price
N/A
164V2
GUIDE BRACKET 16MM V2.06.09
165
WORM SHAFT
Price
N/A
166
FIXED PLATE
167
PINION GEAR 15T
168
PINION GEAR BOLT
Price
N/A
169
BRACKET COVER
170
CAP SCREW M8-1.25 X 16
Price
N/A
171
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
172
SET SCREW M6-1 X 16
Price
N/A
173
MITER GAUGE ASSY
Price
N/A
173-1
GUIDE BAR
173-2
*DISCD*T-SLOT WASHER 8MM BLACK
Price
N/A
173-3
*DISCD*INDICATOR
Price
N/A
173-4
***USE P0513X152***
Price
N/A
173-5
MITER GAUGE HANDLE 1/4"-20
173-6
MITER GAUGE BODY
173-7
***USE P0513X152***
Price
N/A
173-8
Now: PS37M
PHLP HD SCR M6-1 X 6
Price
N/A
173-9
FLANGE SCREW M5-.8 X 8
Price
N/A
174
BUSHING W/ HEX NUT V2.04.19
Price
N/A
174V2
BUSHING W/ HEX NUT V2.04.19
175
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
176
BUSHING
177
MACHINE ID LABEL V1
177V2
MACHINE ID LABEL V2.07.18
178
ELECTRICITY 1.4W X 1.2H
Price
N/A
179
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
180
READ MANUAL 1.5W X 2.5H
Price
N/A
181
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
182
DONT OPEN 2W X 3.3H
Price
N/A
183
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
184
Now: G8588
Nameplate - Small
Price
N/A
185
SAW TENSION LABEL
186
MODEL NUMBER LABEL
187
N/S GRIZZLY GREEN G1023S
Price
N/A
188
LIGHT GREY REF G9733
Price
N/A
189
GUARD ADJ LABEL
Price
N/A
190
BS BLADE ENCLOSURE LABEL
191
BLADE TENSION SCALE LABEL
192
HEX WRENCH 5MM
Price
N/A
193
HEX WRENCH 8MM
Price
N/A
194
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
195
GUIDE POST LOCK LABEL
196
STEEL BALL 5MM
Price
N/A
197
GRIZZLY.COM LABEL
198
CAP SCREW M5-.8 X 12
Price
N/A
199
Now: PW02M
FLAT WASHER 5MM
Price
N/A
201

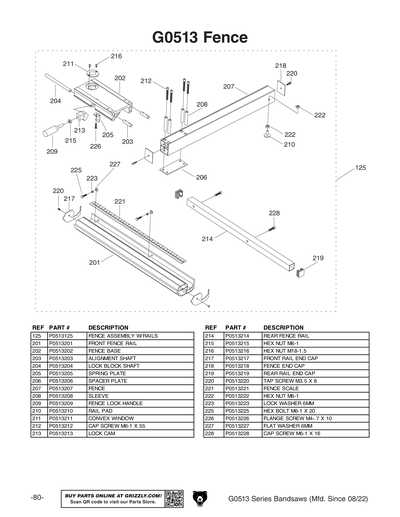

FRONT FENCE RAIL
202
FENCE BASE
203
ALIGNMENT SHAFT
204
LOCK SHAFT
Price
N/A
205
SPRING PLATE
Price
N/A
206
SPACER PLATE
Price
N/A
207
FENCE
208
SLEEVE
209
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
210
RAIL PAD
211
CONVEX WINDOW
212
CAP SCREW M6-1 X 55
Price
N/A
213
PIVOT BLOCK
Price
N/A
214
REAR FENCE RAIL
215
Now: PN01M
HEX NUT M6-1
Price
N/A
216
FLANGE SCREW M4-.7 X 6
Price
N/A
217
GUARD PIECE
Price
N/A
218
FENCE END CAP
219
REAR RAIL END CAP
Price
N/A
220
TAP SCREW M3.5 X 8
Price
N/A
221
FENCE SCALE
222
Now: PN01M
HEX NUT M6-1
Price
N/A
223
LOCK WASHER 6MM
Price
N/A
224
CAP SCREW M6-1 X 16
Price
N/A
225
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
226
FLANGE SCREW M4-.7 X 10
Price
N/A
227
Now: PW03M
FLAT WASHER 6MM
Price
N/A
228
CAP SCREW M6-1 X 16
Price
N/A
400
*DISCD*COMPLETE TENSION ASSY
Item is no longer available
Price
N/A
401
HARDWARE BAG
MANUAL
MANUAL G0513 MFD-08.02-10.12 V1.08.02
MANV2
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
MANV3
MANUAL G0513 SERIES MFD-07.18-07.22 V3.1
MANV4
MANUAL G0513 SERIES MFD-08.22+ V4.08.22
P055
UPPER WHEEL COVER
