Parts for G0513X2 17" 2 HP Bandsaw w/ Cast-Iron Trunnion

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BUSHING W/ HEX NUT V2.04.19
Price
N/A
2
SET SCREW M6-1 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Price
N/A
6
SET SCREW M5-.8 X 5
Price
N/A
7
BUSHING
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
POWER CORD 14G 3W 72"
Price
N/A
1
MODEL NUMBER LABEL
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
UPPER WHEEL ASSEMBLY
Price
N/A
17-1
BUSHING
Price
N/A
17-2
BALL BEARING 6204-2RS
Price
N/A
17-3
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
17-4
***USE P0513X2B017***
Price
N/A
17-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
18
LOWER WHEEL ASSEMBLY
Price
N/A
18-1
BUSHING
Price
N/A
18-2
BALL BEARING 6204-2RS
Price
N/A
18-3
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
18-4
***USE P0513X2B018***
Price
N/A
18-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
19
***USE P0513X2B017***
Price
N/A
2
Now: G8588
Nameplate - Small
Price
N/A
20
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
27
***USE P0513X2B018***
Price
N/A
28
LOWER WHEEL ASSEMBLY
Price
N/A
29
Now: PN32
HEX NUT 1-14
Price
N/A
3
DONT OPEN 2W X 3.3H
Price
N/A
30
Now: PLW09
LOCK WASHER 1"
Price
N/A
31
MOTOR CORD 14G 3W
Price
N/A
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
ON/OFF SWITCH 110/220V V2.05.11
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
4
GUARD ADJ LABEL
40
EXT TOOTH WASHER 5MM
Price
N/A
41
Now: PN06M
HEX NUT M5-.8
Price
N/A
42
FLANGE SCREW M5-.8 X 16
Price
N/A
43
SWITCH BACK PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M8-1.25 X 50
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
5
SCALE DIRECTIONS LABEL
50
CLEAR WINDOW
Price
N/A
51
TRUNNION PLATE
Price
N/A
52
LOCK WASHER 8MM
Price
N/A
53
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
54
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
55
UPPER WHEEL COVER W/LABELS & WINDOW
Price
N/A
55A
UPPER WHEEL COVER W/LABELS & WINDOW
56
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
57
Now: PW03M
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
6
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
7
***USE PLABEL-19A***
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
Now: PN09M
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
CAP SCREW M6-1 X 20
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
8
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
80
Now: PN03M
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82-10
BALL BEARING 6203ZZ
Price
N/A
82-11
BALL BEARING 6205ZZ
Price
N/A
82-1V2
MOTOR FAN COVER V2.01.10
82-2V2
MOTOR FAN V2.01.10
82-4
R CAPACITOR 40M 250V 1-1/2 X 2-1/2
Price
N/A
82-4V2
S CAPACITOR COVER V2.01.10
82-6V2
R CAPACITOR COVER V2.01.10
82-7V2
MOTOR JUNCTION BOX V2.01.10
82-8
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
82-9
CENT SWITCH 5/8-1725
Price
N/A
82V2
MOTOR 2HP 110V/220V 1-PH V2.01.10
83
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
9
ELECTRICITY 1.4W X 1.2H
Price
N/A
90
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
91
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
Price
N/A
93
Now: PVA42
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/ LABELS
Price
N/A
95A
LOWER WHEEL COVER W/ LABELS
96
FLAT HD SCR M4-.7 X 8
Price
N/A
97
FENDER WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
99
Now: PN02M
HEX NUT M10-1.5
Price
N/A
100
TRUNNION GEAR
Price
N/A
101
***USE P0640X173-34***
Price
N/A
102
TRUNNION SUPPORT BRACKET
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
Now: PW04M
FLAT WASHER 10MM
Price
N/A
105
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
106
CAP SCREW M6-1 X 50
Price
N/A
107
ALIGNMENT ROD
Price
N/A
108
Now: PN01M
HEX NUT M6-1
Price
N/A
109
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
11
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
110
BALL BEARING 6000ZZ
Price
N/A
111
CAP SCREW M6-1 X 20
Price
N/A
112
Now: PW01M
FLAT WASHER 8MM
Price
N/A
113
Now: PW01M
FLAT WASHER 8MM
Price
N/A
114
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
115
GEAR PLATE
Price
N/A
116
LOCK NUT M8-1.25
Price
N/A
117
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
118
LOCK HANDLE M8-1.25
Price
N/A
119
LOCK WASHER 4MM
Price
N/A
12
DONT OPEN 2W X 3.3H
Price
N/A
120
POINTER
Price
N/A
121
Now: H7588
Resaw Fence Complete For G0513
Price
N/A
121-1
FRONT RAIL 640MM
Price
N/A
121-10
***USE P0640X121-10***
Price
N/A
121-11
CONVEX WINDOW
Price
N/A
121-12
CAP SCREW M6-1 X 24
Price
N/A
121-13
LOCK BLOCK
Price
N/A
121-14
REAR RAIL 640MM
Price
N/A
121-15
Now: PN03M
HEX NUT M8-1.25
Price
N/A
121-16
FLANGE SCREW M4-.7 X 6
Price
N/A
121-17
GUARD PIECE
Price
N/A
121-18
MOVING PLATE
Price
N/A
121-19
***USE P0555319***
Price
N/A
121-2
ADJUST BASE
Price
N/A
121-20
TAP SCREW M3.5 X 8
Price
N/A
121-21
FENCE SCALE 18-1/2"
Price
N/A
121-22
Now: PN01M
HEX NUT M6-1
Price
N/A
121-23
LOCK WASHER 6MM
Price
N/A
121-24
CAP SCREW M6-1 X 16
Price
N/A
121-25
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
121-26
FLANGE BOLT M4-.7 X 8
Price
N/A
121-27
Now: PW03M
FLAT WASHER 6MM
Price
N/A
121-28
ALUMINUM RESAW FENCE 590MM
Price
N/A
121-29
SPACER PLATE
Price
N/A
121-3
ALIGNMENT SHAFT
Price
N/A
121-4
SHAFT
Price
N/A
121-5
***USE P0555305***
Price
N/A
121-6
***USE P0636X129***
Price
N/A
121-7
CAST IRON FENCE 590MM
Price
N/A
121-8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
121-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
122
***USE P0513167***
Price
N/A
123
STEP BOLT
Price
N/A
124
BRACKET COVER
Price
N/A
125
CAP SCREW M8-1.25 X 16
Price
N/A
126
TABLE 17" X 24"
Price
N/A
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE LOCK PIN
Price
N/A
129
ALIGNMENT BUSHING
Price
N/A
13
GREY PUTTY REF G0504
Price
N/A
130
THREADED BUSHING V2.06.09
Price
N/A
131
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
132
LOCK WASHER 8MM
Price
N/A
133
GUIDE BRACKET 16MM V2.06.09
Price
N/A
134
WORM SHAFT
Price
N/A
135
FIXED PLATE
Price
N/A
136
CAP SCREW M5-.8 X 10
Price
N/A
137
Now: PW02M
FLAT WASHER 5MM
Price
N/A
138
UPPER BLADE GUARD
Price
N/A
139
CAP SCREW M10-1.5 X 30
Price
N/A
139V2
CAP SCREW M10-1.5 X 35
Price
N/A
14
TENSION ADJ LABEL
140
STEP SCREW M4-.7 X 5
Price
N/A
141
FIBER WASHER 5MM
Price
N/A
142
SLIDING PLATE
Price
N/A
143
Now: PN04M
HEX NUT M4-.7
Price
N/A
144
***USE P0513156***
Price
N/A
145
GUIDE POST ASSEMBLY
Price
N/A
145-1
SET SCREW M5-.8 X 5
Price
N/A
145-10
GUIDE BRACKET 16MM V2.06.09
Price
N/A
145-11
***USE P0566196***
Price
N/A
145-12
FIXED PLATE
Price
N/A
145-13
PINION GEAR 15T
Price
N/A
145-14
***USE P0568239***
Price
N/A
145-15
BRACKET COVER
Price
N/A
145-16
CAP SCREW M8-1.25 X 16
Price
N/A
145-17
FLAT HD SCR M4-.7 X 8
Price
N/A
145-18
BUSHING W/ HEX NUT V2.04.19
Price
N/A
145-18V2
BUSHING W/ HEX NUT V2.04.19
Price
N/A
145-19
CAP SCREW M5-.8 X 12
Price
N/A
145-2
CAP SCREW M6-1 X 16
Price
N/A
145-20
Now: PW02M
FLAT WASHER 5MM
Price
N/A
145-3
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
145-4
Now: PN04M
HEX NUT M4-.7
Price
N/A
145-5
RACK
Price
N/A
145-6
GUIDE POST
Price
N/A
145-7
***USE P0640X129***
Price
N/A
145-8
THREADED BUSHING V2.06.09
Price
N/A
145-9
LOCK WASHER 8MM
Price
N/A
146
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
148
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
149
CAP SCREW M6-1 X 16
Price
N/A
15
N/S GRIZZLY GREEN G1023S
Price
N/A

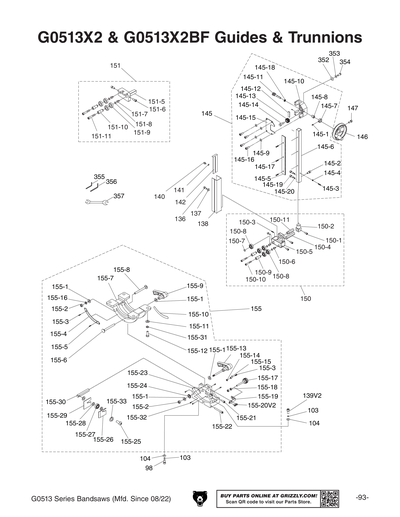

150
UPPER BLADE GUIDE ASSY
Price
N/A
150-1
CAP SCREW M6-1 X 16
Price
N/A
150-10
CAP SCREW M6-1 X 35
Price
N/A
150-11
UPPER SPACING SHAFT
Price
N/A
150-2
UPPER GUIDE SUPPORT BLOCK
Price
N/A
150-3
SET SCREW M6-1 X 10
Price
N/A
150-4
ADJUSTMENT BAR
Price
N/A
150-5
***USE P0817143-4***
Price
N/A
150-6
ECCENTRIC SHAFT
Price
N/A
150-7
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
150-8
BALL BEARING 6202ZZ
Price
N/A
150-9
***USE P0568274***
Price
N/A
151
LOWER BLADE GUIDE ASSY
Price
N/A
151-10
***USE P0568274***
Price
N/A
151-11
CAP SCREW M6-1 X 35
Price
N/A
151-5
LOWER BLADE GUIDE SUPPORT
Price
N/A
151-6
CAP SCREW M6-1 X 16
Price
N/A
151-7
ECCENTRIC SHAFT
Price
N/A
151-8
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
151-9
BALL BEARING 6202ZZ
Price
N/A
152
***USE P0513X152***
Price
N/A
154
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
155
Now: H8193
Optional Heavy-Duty Cast-Iron Trunnion for G0513, G0513X & G0514X
Price
N/A
155-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
155-10
ANGLE LABEL
Price
N/A
155-11
Now: PW01M
FLAT WASHER 8MM
Price
N/A
155-12
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
155-13
TABLE TILT HANDLE
Price
N/A
155-14
Now: PW05M
FLAT WASHER 4MM
Price
N/A
155-15
POINTER
Price
N/A
155-16
LOCK WASHER 8MM
Price
N/A
155-17
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
155-18
Now: PN01M
HEX NUT M6-1
Price
N/A
155-19
ADJUSTMENT PLATE
Price
N/A
155-2
LOCK NUT M8-1.25
Price
N/A
155-20V2
FLAT HD SCR M5-.8 X 8
Price
N/A
155-21
CAP SCREW M6-1 X 16
Price
N/A
155-22
CAP SCREW M6-1 X 50
Price
N/A
155-23
TRUNNION SUPPORT BRACKET
Price
N/A
155-24
TRUNNION GEAR
Price
N/A
155-25
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
155-26
RIGHT GUARD
Price
N/A
155-27
BALL BEARING 6000ZZ
Price
N/A
155-28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
155-29
LEFT GUARD
Price
N/A
155-3
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
155-30
SUPPORT BEARING SHAFT
Price
N/A
155-31
LOCK WASHER 8MM
Price
N/A
155-32
CAP SCREW M5-.8 X 6
Price
N/A
155-33
LOCK WASHER 10MM
Price
N/A
155-4
GEAR PLATE
Price
N/A
155-5
FLAT HD SCR M4-.7 X 6
Price
N/A
155-6
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
155-7
***USE P0640X173-4***
Price
N/A
155-8
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
155-9
LOCK HANDLE M8-1.25
Price
N/A
156
Now: PW01M
FLAT WASHER 8MM
Price
N/A
157
LOCK NUT M8-1.25
Price
N/A
158
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
159
GEAR PLATE
Price
N/A
16
MACHINE ID LABEL
160
FLAT HD SCR M4-.7 X 6
Price
N/A
161
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
162
UPPER TRUNNION
Price
N/A
163
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
164
LOCK HANDLE M8-1.25
Price
N/A
165
ANGLE LABEL
Price
N/A
166
Now: PW01M
FLAT WASHER 8MM
Price
N/A
167
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
168
***USE P0640X173-34***
Price
N/A
169
Now: PW05M
FLAT WASHER 4MM
Price
N/A
170
POINTER
Price
N/A
171
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
172
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
173
Now: PN01M
HEX NUT M6-1
Price
N/A
174
ADJUSTMENT PLATE
175
FLAT HD SCR M5-.8 X 15
Price
N/A
176
CAP SCREW M6-1 X 16
Price
N/A
177
CAP SCREW M6-1 X 50
Price
N/A
178
TRUNNION SUPPORT BRACKET
179
TRUNNION GEAR
Price
N/A
180
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
181
RIGHT GUARD
182
BALL BEARING 6000ZZ
Price
N/A
183
Now: PW04M
FLAT WASHER 10MM
Price
N/A
184
LEFT GUARD
185
ALIGNMENT ROD
Price
N/A
186
LOCK WASHER 8MM
Price
N/A
187
CAP SCREW M5-.8 X 6
Price
N/A
201
MODEL NUMBER LABEL
202
Now: G8588
Nameplate - Small
Price
N/A
203
DONT OPEN 2W X 3.3H
Price
N/A
204
GUARD ADJ LABEL
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
207
***USE PLABEL-19A***
Price
N/A
208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
209
ELECTRICITY 1.4W X 1.2H
Price
N/A
210
Now: H7942
Extreme Series Nameplate
Price
N/A
211
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
212
DONT OPEN 2W X 3.3H
Price
N/A
213
GREY PUTTY REF G0504
Price
N/A
214
TENSION ADJ LABEL
Price
N/A
215
N/S GRIZZLY GREEN G1023S
Price
N/A
216
MACHINE ID LABEL V1
216V2
MACHINE ID LABEL V2.09.18
217
GRIZZLY.COM LABEL
Price
N/A

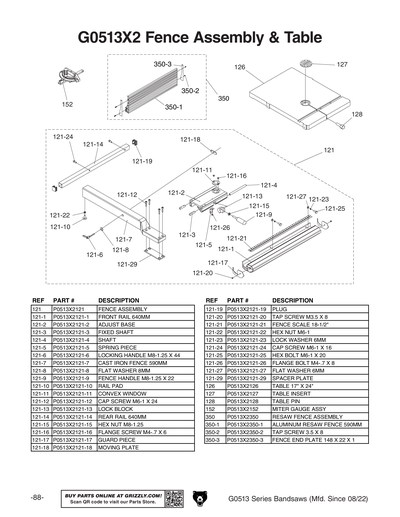

350
RESAW FENCE ASSEMBLY
Price
N/A
350-1
ALUMINUM RESAW FENCE 590MM
Price
N/A
350-2
TAP SCREW 3.5 X 8
Price
N/A
350-3
FENCE END PLATE 148 X 22 X 1
Price
N/A
352
LOCK WASHER 5MM
Price
N/A
353
LOCK WASHER 8MM
Price
N/A
354
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
355
HEX WRENCH 5MM
Price
N/A
356
HEX WRENCH 8MM
Price
N/A
357
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
MAN
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
MANV2
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
MANV3
MANUAL G0513 SERIES MFD-07.18-07.22 V3.1
Price
N/A
