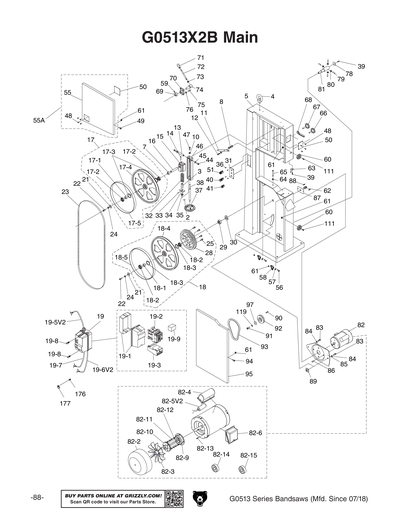

Parts for G0513X2B 17" 2 HP Extreme-Series Bandsaw w/ Cast-Iron Trunnion & Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

2
SET SCREW M6-1 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Price
N/A
7
BUSHING
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 35
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
UPPER WHEEL ASSEMBLY
17-1
BUSHING
Price
N/A
17-2
BALL BEARING 6204-2RS
Price
N/A
17-3
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
17-4
***USE P0513X2B017***
Price
N/A
17-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
18
LOWER WHEEL ASSEMBLY
18-1
BUSHING
Price
N/A
18-2
BALL BEARING 6204-2RS
Price
N/A
18-3
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
18-4
***USE P0513X2B018***
Price
N/A
18-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
19
MAG SWITCH ASSEMBLY MPE-18
19-1
MAG SWITCH COVER ASSEMBLY
Item is no longer available
Price
N/A
19-2
CONTACTOR SDE MA-18 220V
19-3
OL RELAY SDE RA-20 8-12A
19-4
MAG SWITCH COVER ASSEMBLY
Price
N/A
19-5
POWER CORD 14G 3W V1
Item is no longer available
Price
N/A
19-5V2
POWER CORD 14G 3W 6-15
Price
N/A
19-6
CORD 0.75MM X 5 V1
19-6V2
CONTROL CORD 16G 5W V2.05.11
19-7
MOTOR CORD 14G 5W
Item is no longer available
Price
N/A
19-8
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
19-9
RECTIFIER PU-23-2
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
28
LOWER WHEEL PULLEY
29
Now: PN32
HEX NUT 1-14
Price
N/A
30
Now: PLW09
LOCK WASHER 1"
Price
N/A
31
CONTROL PANEL PLATE
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
TAP SCREW M4 X 10
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
40
E-STOP BUTTON 250V 10A
Price
N/A
41
ON BUTTON YK 22-1A1B
Price
N/A
42
SWITCH CORD
Item is no longer available
Price
N/A
43
SWITCH BACK PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M6-1 X 25
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
N/A
51
KEYED POWER SWITCH
Price
N/A
55
UPPER WHEEL COVER W/LABELS & WINDOW
Price
N/A
55A
UPPER WHEEL COVER W/LABELS & WINDOW
56
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
57
Now: PW03M
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
Now: PN09M
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
Now: PN03M
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82
MOTOR 2HP 220V 1-PH W/BRAKE
82-10
MAGNETIC BRAKE YZG W/ BRAKE SHOE
Price
N/A
82-11
CAP SCREW M6-1 X 12
Price
N/A
82-12
LOCK WASHER 6MM
Price
N/A
82-13
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
82-14
BALL BEARING 6203ZZ
Price
N/A
82-15
BALL BEARING 6205ZZ
Price
N/A
82-2
MOTOR FAN COVER
82-3
MOTOR FAN
Item is no longer available
Price
N/A
82-4
CAPACITOR COVER
Item is no longer available
Price
N/A
82-5
R CAPACITOR 50M 350V 1-3/4 X 3-9/16 V1
Item is no longer available
Price
N/A
82-5V2
R CAPACITOR 45M 400V 2 X 2-1/2
Price
N/A
82-6
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
82-9
MAGNETIC BRAKE YZG W/ BRAKE SHOE
83
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 1-HOLE
Item is no longer available
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
91
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
Price
N/A
93
Now: PVA42
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/NAME PLATE
Price
N/A
97
FENDER WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
Now: PW04M
FLAT WASHER 10MM
Price
N/A
111
CAP SCREW M6-1 X 20
Price
N/A
119
LOCK WASHER 8MM
Price
N/A
126

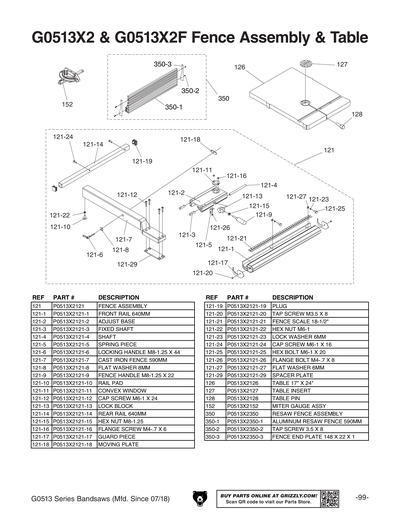

TABLE 17" X 24"
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE LOCK PIN
Price
N/A
131
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
132
LOCK WASHER 8MM
Price
N/A
136
CAP SCREW M5-.8 X 10
Price
N/A
137
Now: PW02M
FLAT WASHER 5MM
Price
N/A
138
UPPER BLADE GUARD
Price
N/A
139
CAP SCREW M10-1.5 X 30
Price
N/A
139V2
CAP SCREW M10-1.5 X 35
Price
N/A
140
STEP SCREW M4-.7 X 5
Price
N/A
141
FIBER WASHER 5MM
Price
N/A
142
SLIDING PLATE
Price
N/A
145
GUIDE POST ASSEMBLY
Price
N/A
145-1
SET SCREW M5-.8 X 5
Price
N/A
145-10
GUIDE BRACKET 16MM V2.06.09
Price
N/A
145-11
WORM CYLINDER
Price
N/A
145-12
FIXED PLATE
Price
N/A
145-13
PINION GEAR 15T
Price
N/A
145-14
***USE P0568239***
Price
N/A
145-15
BRACKET COVER
Price
N/A
145-16
CAP SCREW M8-1.25 X 16
Price
N/A
145-17
FLAT HD SCR M4-.7 X 8
Price
N/A
145-18
BUSHING W/ HEX NUT V2.04.19
Price
N/A
145-18V
BUSHING W/ HEX NUT V2.04.19
Price
N/A
145-19
CAP SCREW M5-.8 X 12
Price
N/A
145-2
CAP SCREW M6-1 X 16
Price
N/A
145-20
Now: PW02M
FLAT WASHER 5MM
Price
N/A
145-3
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
145-4
Now: PN04M
HEX NUT M4-.7
Price
N/A
145-5
RACK
Price
N/A
145-6
GUIDE POST
Price
N/A
145-7
***USE P0640X129***
Price
N/A
145-8
THREADED BUSHING V2.06.09
Price
N/A
145-9
LOCK WASHER 8MM
Price
N/A
146
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
150

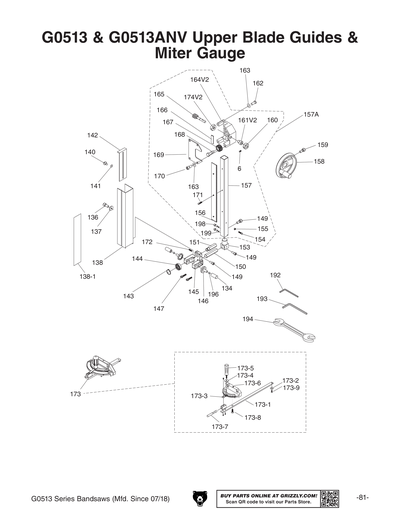

UPPER BLADE GUIDE ASSY
Price
N/A
150-1
***USE P0817143-4***
Price
N/A
150-10
UPPER GUIDE SUPPORT BLOCK
Price
N/A
150-11
UPPER SPACING SHAFT
Item is no longer available
Price
N/A
150-2
ECCENTRIC SHAFT
Price
N/A
150-3
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
150-4
BALL BEARING 6202ZZ
Price
N/A
150-5
HANDLE BUSHING
Price
N/A
150-5V2
PHLP HD SCR 10-24 X 3/16
Price
N/A
150-6
CAP SCREW M6-1 X 35
Price
N/A
150-7
UPPER SPACING SHAFT
Price
N/A
150-8
SET SCREW M6-1 X 10
Price
N/A
150-9
CAP SCREW M6-1 X 16
Price
N/A
151
LOWER BLADE GUIDE ASSY
Price
N/A
151-10
CAP SCREW M6-1 X 35
Price
N/A
151-4
LOWER BLADE GUIDE SUPPORT
Price
N/A
151-5
CAP SCREW M6-1 X 16
Price
N/A
151-6
ECCENTRIC SHAFT
Price
N/A
151-7
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
151-8
BALL BEARING 6202ZZ
Price
N/A
151-9
HANDLE BUSHING
Price
N/A
152
***USE P0513X152***
Price
N/A
152-1
***USE P0513X152***
Price
N/A
152-10
***USE P0513X152***
Price
N/A
152-11
***USE P0513X152***
Price
N/A
152-12
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
152-12V
PHLP HD SCR 10-24 X 3/16
Price
N/A
152-13
Now: PN04M
HEX NUT M4-.7
Price
N/A
152-14
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
152-15
***USE P0513X152***
Price
N/A
152-2
***USE P0513X152***
Price
N/A
152-3
FLAT HD SCR M6-1 X 8
Price
N/A
152-4
***USE P0513X152***
Price
N/A
152-5
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
152-5V2
PHLP HD SCR 10-24 X 3/16
Item is no longer available
Price
N/A
152-6
***USE P0513X152***
Price
N/A
152-7
***USE P0513X152***
Price
N/A
152-8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
152-9
***USE P0513X152***
Price
N/A
153
KNOB SCREW M8-1.25 X 20
154
OUTER RAIL PLATE
155
Now: H8193

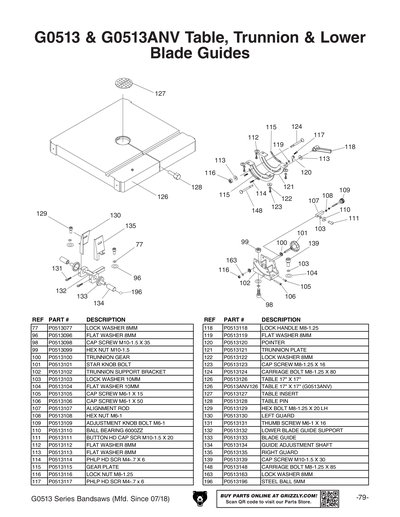

Optional Heavy-Duty Cast-Iron Trunnion for G0513, G0513X & G0514X
Price
N/A
155-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
155-10
ANGLE LABEL
Price
N/A
155-11
Now: PW01M
FLAT WASHER 8MM
Price
N/A
155-12
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
155-13
LOCK HANDLE M8-1.25
Price
N/A
155-14
Now: PW05M
FLAT WASHER 4MM
Price
N/A
155-15
POINTER
Price
N/A
155-16
LOCK WASHER 8MM
Price
N/A
155-17
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
155-18
Now: PN01M
HEX NUT M6-1
Price
N/A
155-19
ADJUSTMENT PLATE
Price
N/A
155-2
LOCK NUT M8-1.25
Price
N/A
155-20
FLAT HD SCR M5-.8 X 15
Price
N/A
155-20V
FLAT HD SCR M5-.8 X 8
Price
N/A
155-21
CAP SCREW M6-1 X 16
Price
N/A
155-22
CAP SCREW M6-1 X 50
Price
N/A
155-23
TRUNNION SUPPORT BRACKET
Price
N/A
155-24
TRUNNION GEAR
Price
N/A
155-25
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
155-26
RIGHT GUARD
Price
N/A
155-27
BALL BEARING 6000ZZ
Price
N/A
155-28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
155-29
LEFT GUARD
Price
N/A
155-3
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
155-30
ALIGNMENT ROD
Price
N/A
155-31
LOCK WASHER 8MM
Price
N/A
155-32
CAP SCREW M5-.8 X 6
Price
N/A
155-33
LOCK WASHER 10MM
Price
N/A
155-4
GEAR PLATE
Price
N/A
155-5
FLAT HD SCR M4-.7 X 6
Price
N/A
155-6
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
155-7
***USE P0640X173-4***
Price
N/A
155-8
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
155-9
LOCK HANDLE M8-1.25
Price
N/A

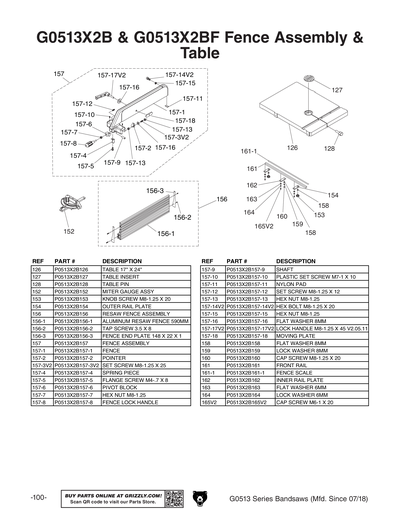

156
RESAW FENCE ASSEMBLY
156-1
ALUMINUM RESAW FENCE 590MM
Price
N/A
156-2
TAP SCREW 3.5 X 8
Price
N/A
156-3
FENCE END PLATE 148 X 22 X 1
156-4
*DISCD*RESAW FENCE SCALE
Item is no longer available
Price
N/A
157
FENCE ASSEMBLY
157-1
FENCE
Item is no longer available
Price
N/A
157-10
PLASTIC SET SCREW M7-1 X 10
157-11
NYLON PAD
157-12
SET SCREW M8-1.25 X 12
Price
N/A
157-13
Now: PN03M
HEX NUT M8-1.25
Price
N/A
157-14
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
157-14V
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
157-15
Now: PN03M
HEX NUT M8-1.25
Price
N/A
157-16
Now: PW01M
FLAT WASHER 8MM
Price
N/A
157-17
LOCK HANDLE M8-1.25 X 44 V1
Item is no longer available
Price
N/A
157-17V
LOCK HANDLE M8-1.25 X 45 V2.05.11
157-18
MOVING PLATE
157-2
POINTER
157-3
SET SCREW M8-1.25 X 20
Price
N/A
157-3V2
SET SCREW M8-1.25 X 25
Price
N/A
157-4
SPRING PIECE
157-5
FLANGE SCREW M4-.7 X 8
Price
N/A
157-6
PIVOT BLOCK
157-7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
157-8
FENCE LOCK HANDLE
157-9
SHAFT
158
Now: PW01M
FLAT WASHER 8MM
Price
N/A
159
LOCK WASHER 8MM
Price
N/A
160
CAP SCREW M8-1.25 X 20
Price
N/A
161
FRONT RAIL
161-1
FENCE SCALE
162
INNER RAIL PLATE
163
Now: PW03M
FLAT WASHER 6MM
Price
N/A
164
LOCK WASHER 6MM
Price
N/A
165
CAP SCREW M6-1 X 16
Price
N/A
165V2
CAP SCREW M6-1 X 20
Price
N/A
166
REAR RAIL 640MM
Price
N/A
167
HEX WRENCH 5MM
Price
N/A
168
HEX WRENCH 8MM
Price
N/A
169
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
170
FLANGE SCREW M5-.8 X 50
Price
N/A
171
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
172
EXT TOOTH WASHER 5MM
Price
N/A
173
CONNECTING CORD
Item is no longer available
Price
N/A
174
TERMINAL BOX
Item is no longer available
Price
N/A
175
WIRE NUT 14-22 AWG
Price
N/A
176
FLANGE SCREW M5-.8 X 10
Price
N/A
177
CORD CLAMP, PLASTIC 10MM
Item is no longer available
Price
N/A
178
Now: PW01M
FLAT WASHER 8MM
Price
N/A

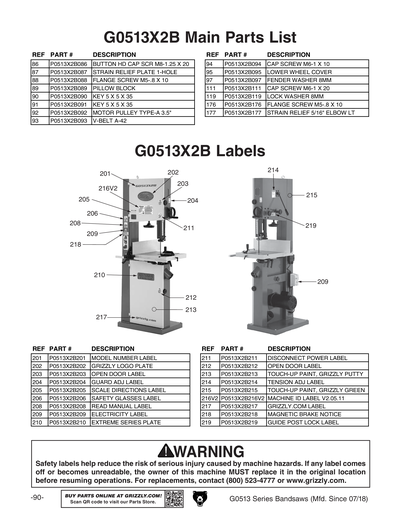

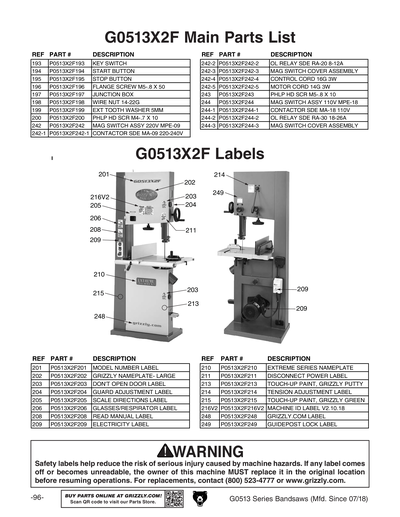

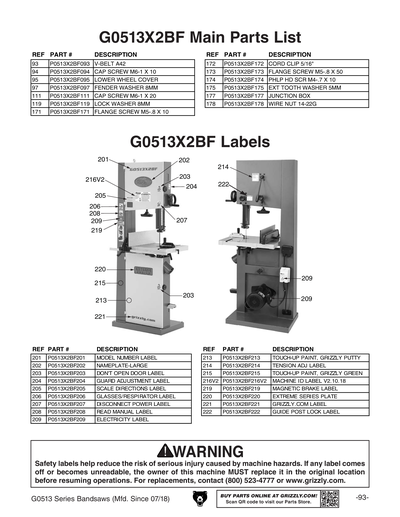

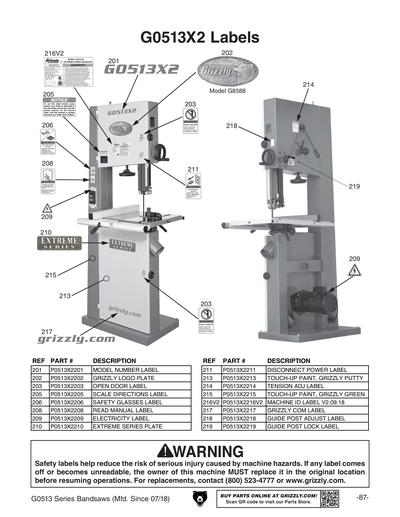

201
MODEL NUMBER LABEL
202
Now: G8588
Nameplate - Small
Price
N/A
203
DONT OPEN 2W X 3.3H
Price
N/A
204
GUARD ADJ LABEL
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
207
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
209
ELECTRICITY 1.4W X 1.2H
Price
N/A
210
Now: H7942
Extreme Series Nameplate
Price
N/A
211
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
212
DONT OPEN 2W X 3.3H
Price
N/A
213
GREY PUTTY REF G0504
Price
N/A
214
TENSION ADJ LABEL
Price
N/A
215
N/S GRIZZLY GREEN G1023S
Price
N/A
216
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
216V2
MACHINE ID LABEL CSA V2.05.11
217
GRIZZLY.COM LABEL
Price
N/A
352
Now: PW01M
FLAT WASHER 8MM
Price
N/A
353
LOCK WASHER 8MM
Price
N/A
354
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
355
HEX WRENCH 5MM
Price
N/A
356
HEX WRENCH 8MM
Price
N/A
357
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
MAN
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
MANV2
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
MANV3
MANUAL G0513 SERIES MFD-07.18-07.22 V3.1
Price
N/A
P0513X2082-3V2
S CAPACITOR 300M 250V 1-1/2 X 2-3/8
Price
N/A
P0513X2082-5V2
R CAPACITOR 40M 250V 1-3/8 X 2-5/8
Price
N/A
