Parts for G0513X2BF - 17" 2 HP Extreme Series Bandsaw w/ Cast-Iron Trunnion & Foot Brake

Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF
Part Diagram for G0513X2BF

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

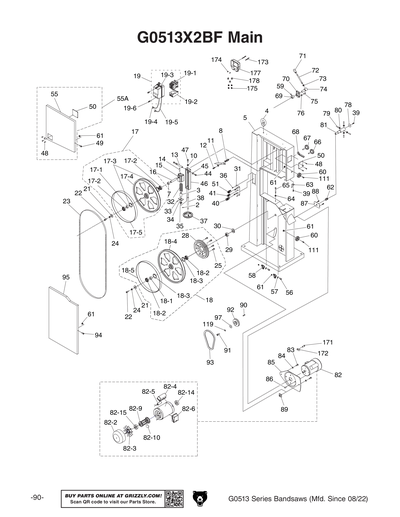

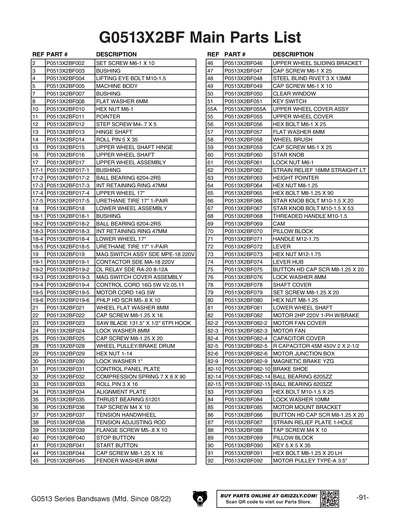

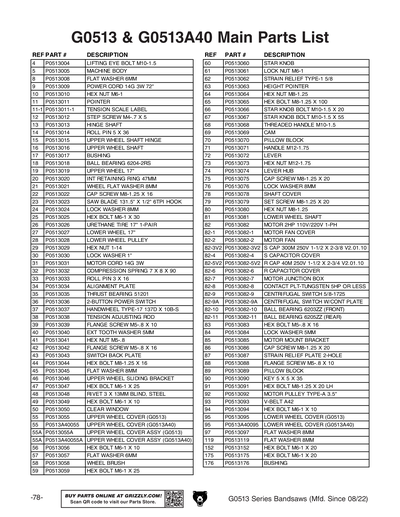

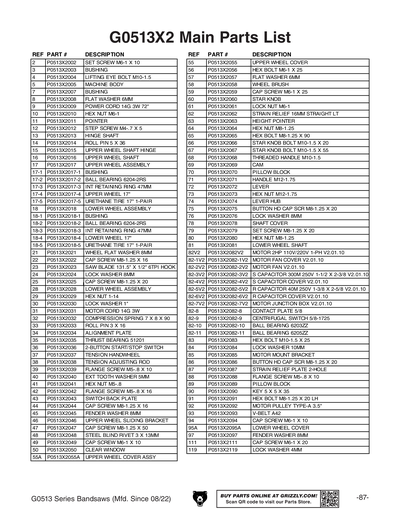

Ref #
Part #
Description
2
SET SCREW M6-1 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Price
N/A
7
BUSHING
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 35
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
UPPER WHEEL ASSEMBLY
Price
N/A
17-1
BUSHING
Price
N/A
17-2
BALL BEARING 6204-2RS
Price
N/A
17-3
INT RETAINING RING 47MM
Price
N/A
17-4
***USE P0513X2B017***
Price
N/A
17-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
18
LOWER WHEEL ASSEMBLY
Price
$314.05
18-1
BUSHING
Price
N/A
18-2
BALL BEARING 6204-2RS
Price
N/A
18-3
INT RETAINING RING 47MM
Price
N/A
18-4
***USE P0513X2B018***
Price
N/A
18-5
Urethane Tire for 17" Bandsaws (Pair)
Price
N/A
19
MAG SWITCH ASSY SDE MPE-18 220V
Price
$280.20
19-1
CONTACTOR SDE MA-18 220V
Price
N/A
19-2
OL RELAY SDE RA-20 8-12A
Price
N/A
19-3
MAG SWITCH COVER ASSEMBLY
Price
$44.10
19-4
CONTROL CORD 16G 5W V2.05.11
Price
N/A
19-5
MOTOR CORD 14G 5W
Price
N/A
19-6
PHLP HD SCR M5-.8 X 10
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
28
WHEEL PULLEY/BRAKE DRUM
Price
N/A
29
HEX NUT 1-14
Price
N/A
30
LOCK WASHER 1"
Price
N/A
31
CONTROL PANEL PLATE
Price
N/A
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
TAP SCREW M4 X 10
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
FLANGE SCREW M5-.8 X 10
Price
N/A
40
***USE P0566074***
Price
N/A
41
START BUTTON
Price
N/A
43
SWITCH BACK PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M6-1 X 25
Price
N/A
48
RIVET 3 X 13MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
N/A
51
KEY SWITCH W/KEYS
Price
N/A
55
UPPER WHEEL COVER W/LABELS & WINDOW
Price
N/A
55A
UPPER WHEEL COVER W/LABELS & WINDOW
Price
$141.95
56
HEX BOLT M6-1 X 25
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82
MOTOR 2HP 220V 1-PH W/BRAKE
Price
$901.75
82-10
CENTRIFUGAL SWITCH W/ MOTOR BRAKE PAD
Price
N/A
82-14
BALL BEARING 6205ZZ
Price
N/A
82-15
BALL BEARING 6203ZZ
Price
N/A
82-2
MOTOR FAN COVER
Price
N/A
82-3
MOTOR FAN
Price
N/A
82-4
CAPACITOR COVER
Price
$16.05
82-5
R CAPACITOR 45M 400V 2 X 2-1/2
Price
N/A
82-6
MOTOR JUNCTION BOX
Price
$14.50
82-7
CENTRIFUGAL SWITCH W/ MOTOR BRAKE PAD
Price
$138.00
82-9
BRAKE SHOE
Price
$295.30
83
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 1-HOLE
Price
N/A
88
TAP SCREW M4 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
KEY 5 X 5 X 35
Price
N/A
91
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY TYPE-A 3.5"
Price
N/A
93
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/NAME PLATE
Price
N/A
97
FENDER WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
FLAT WASHER 10MM
Price
N/A
111
CAP SCREW M6-1 X 20
Price
N/A
119
LOCK WASHER 8MM
Price
N/A
126
TABLE 17" X 24"
Price
N/A
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE LOCK PIN
Price
N/A
131
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
132
LOCK WASHER 8MM
Price
N/A
136
CAP SCREW M5-.8 X 10
Price
N/A
137
FLAT WASHER 5MM
Price
N/A
138
UPPER BLADE GUARD
Price
N/A
139
HEX BOLT M10-1.5 X 35
Price
N/A
139V2
CAP SCREW M10-1.5 X 35
Price
N/A
140
STEP SCREW M4-.7 X 5
Price
N/A
141
FIBER WASHER 5MM
Price
N/A
142
SLIDING PLATE
Price
N/A
145

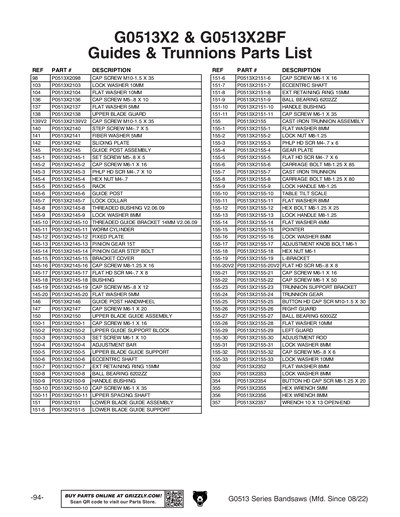

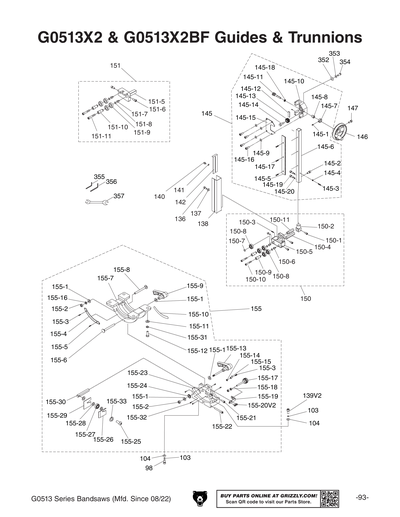

GUIDE POST ASSEMBLY
Price
N/A
145-1
SET SCREW M5-.8 X 5
Price
N/A
145-10
GUIDE BRACKET 16MM V2.06.09
Price
N/A
145-11
WORM CYLINDER
Price
N/A
145-12
FIXED PLATE
Price
N/A
145-13
PINION GEAR 15T
Price
N/A
145-14
***USE P0568239***
Price
N/A
145-15
BRACKET COVER
Price
N/A
145-16
CAP SCREW M8-1.25 X 16
Price
N/A
145-17
FLAT HD SCR M4-.7 X 8
Price
N/A
145-18
BUSHING W/ HEX NUT V2.04.19
Price
N/A
145-2
CAP SCREW M6-1 X 16
Price
N/A
145-3
PHLP HD SCR M4-.7 X 10
Price
N/A
145-4
HEX NUT M4-.7
Price
N/A
145-5
RACK
Price
N/A
145-6
GUIDE POST
Price
N/A
145-7
***USE P0640X129***
Price
N/A
145-8
THREADED BUSHING V2.06.09
Price
N/A
145-9
LOCK WASHER 8MM
Price
N/A
146
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
150

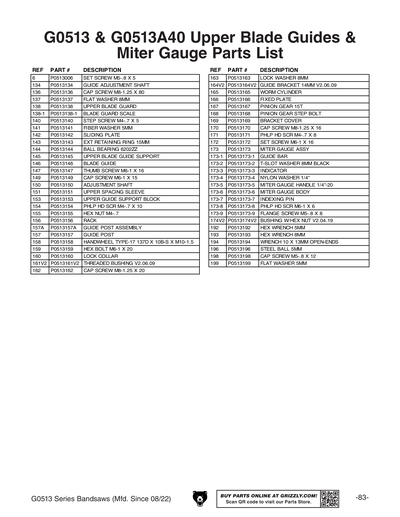

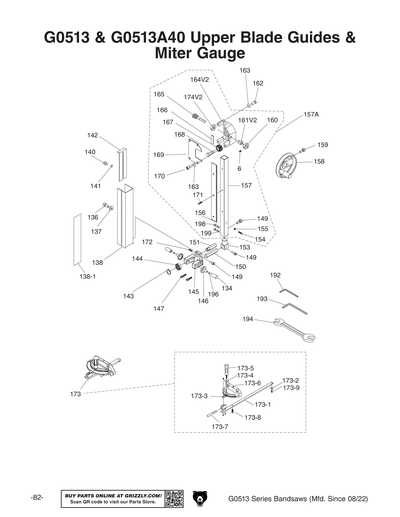

UPPER BLADE GUIDE ASSY
Price
N/A
150-1
CAP SCREW M6-1 X 16
Price
N/A
150-10
CAP SCREW M6-1 X 35
Price
N/A
150-11
UPPER SPACING SHAFT
Price
N/A
150-2
UPPER GUIDE SUPPORT BLOCK
Price
N/A
150-3
SET SCREW M6-1 X 10
Price
N/A
150-4
ADJUSTMENT BAR
Price
N/A
150-5
***USE P0817143-4***
Price
N/A
150-6
ECCENTRIC SHAFT
Price
N/A
150-7
EXT RETAINING RING 15MM
Price
N/A
150-8
BALL BEARING 6202ZZ
Price
N/A
150-9
HANDLE BUSHING
Price
N/A
151
LOWER BLADE GUIDE ASSY
Price
N/A
151-10
HANDLE BUSHING
Price
N/A
151-11
CAP SCREW M6-1 X 35
Price
N/A
151-5
LOWER BLADE GUIDE SUPPORT
Price
N/A
151-6
CAP SCREW M6-1 X 16
Price
N/A
151-7
ECCENTRIC SHAFT
Price
N/A
151-8
EXT RETAINING RING 15MM
Price
N/A
151-9
BALL BEARING 6202ZZ
Price
N/A
152
***USE P0513X152***
Price
N/A
153
KNOB SCREW M8-1.25 X 20
Price
N/A
154
OUTER RAIL PLATE
Price
N/A
155
Optional Heavy-Duty Cast-Iron Trunnion for G0513, G0513X & G0514X
Price
N/A
155-1
LOCK WASHER 5MM
Price
N/A
155-10
ANGLE LABEL
Price
N/A
155-11
LOCK WASHER 5MM
Price
N/A
155-12
HEX BOLT M8-1.25 X 25
Price
N/A
155-13
LOCK HANDLE M8-1.25
Price
N/A
155-14
FLAT WASHER 4MM
Price
N/A
155-15
POINTER
Price
N/A
155-16
LOCK WASHER 8MM
Price
N/A
155-17
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
155-18
HEX NUT M6-1
Price
N/A
155-19
ADJUSTMENT PLATE
Price
N/A
155-2
LOCK NUT M8-1.25
Price
N/A
155-20
FLAT HD SCR M5-.8 X 8
Price
N/A
155-21
CAP SCREW M6-1 X 16
Price
N/A
155-22
CAP SCREW M6-1 X 50
Price
N/A
155-23
TRUNNION SUPPORT BRACKET
Price
N/A
155-24
TRUNNION GEAR
Price
N/A
155-25
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
155-26
RIGHT GUARD
Price
N/A
155-27
BALL BEARING 6000ZZ
Price
N/A
155-28
FLAT WASHER 10MM
Price
N/A
155-29
LEFT GUARD
Price
N/A
155-3
PHLP HD SCR M4-.7 X 6
Price
N/A
155-30
ALIGNMENT ROD
Price
N/A
155-31
LOCK WASHER 8MM
Price
N/A
155-32
CAP SCREW M5-.8 X 6
Price
N/A
155-33
LOCK WASHER 10MM
Price
N/A
155-4
GEAR PLATE
Price
N/A
155-5
FLAT HD SCR M4-.7 X 6
Price
N/A
155-6
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
155-7
***USE P0640X173-4***
Price
N/A
155-8
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
155-9
LOCK HANDLE M8-1.25
Price
N/A
156

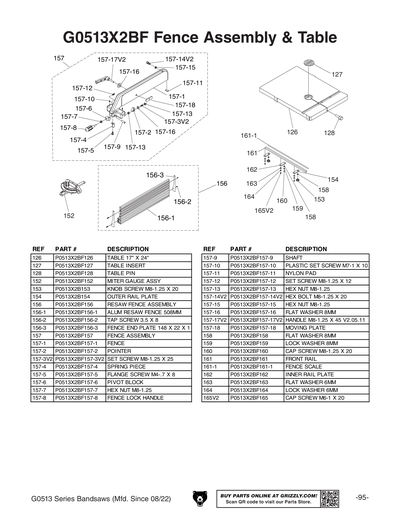

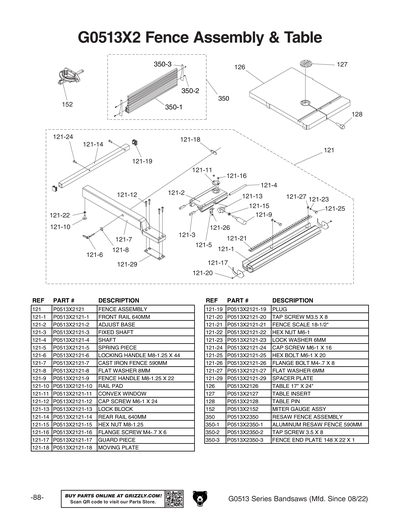

RESAW FENCE ASSEMBLY
Price
N/A
156-1
ALUMINUM RESAW FENCE 590MM
Price
N/A
156-2
TAP SCREW 3.5 X 8
Price
N/A
156-3
FENCE END PLATE 148 X 22 X 1
Price
N/A
156-4
*DISCD*RESAW FENCE SCALE
Price
N/A
157
FENCE ASSEMBLY
Price
N/A
157-1
FENCE
Price
N/A
157-10
PLASTIC SET SCREW M7-1 X 10
Price
N/A
157-11
NYLON PAD
Price
N/A
157-12
SET SCREW M8-1.25 X 12
Price
N/A
157-13
HEX NUT M8-1.25
Price
N/A
157-14
HEX BOLT M8-1.25 X 20
Price
N/A
157-15
HEX NUT M8-1.25
Price
N/A
157-16
FLAT WASHER 8MM
Price
N/A
157-17
LOCK HANDLE M8-1.25 X 45 V2.05.11
Price
N/A
157-18
MOVING PLATE
Price
N/A
157-2
POINTER
Price
N/A
157-3V
SET SCREW M8-1.25 X 25
Price
N/A
157-4
SPRING PIECE
Price
N/A
157-5
FLANGE SCREW M4-.7 X 8
Price
N/A
157-6
PIVOT BLOCK
Price
N/A
157-7
HEX NUT M8-1.25
Price
N/A
157-8
FENCE LOCK HANDLE
Price
N/A
157-9
SHAFT
Price
N/A
158
FLAT WASHER 8MM
Price
N/A
159
LOCK WASHER 8MM
Price
N/A
160
CAP SCREW M8-1.25 X 20
Price
N/A
161
FRONT RAIL
Price
N/A
161-1
FENCE SCALE
Price
N/A
162
INNER RAIL PLATE
Price
N/A
163
FLAT WASHER 6MM
Price
N/A
164
LOCK WASHER 6MM
Price
N/A
165
CAP SCREW M6-1 X 20
Price
N/A
170
FLAT WASHER 8MM
Price
N/A
171
FLANGE SCREW M5-.8 X 10
Price
N/A
172
CORD CLIP 5/16"
Price
N/A
173
FLANGE SCREW M5-.8 X 50
Price
N/A
174
PHLP HD SCR M4-.7 X 10
Price
N/A
175
EXT TOOTH WASHER 5MM
Price
N/A
176
CONNECTING CORD
Price
N/A
177
JUNCTION BOX
Price
N/A
178
WIRE NUT 14-22 AWG
Price
N/A
179
FOOT BRAKE SWITCH
Price
N/A
180
HEX NUT 5-40
Price
N/A
181
SWITCH CORD
Price
N/A
182
FLEXIBLE CORD CONDUIT 1/2" X 42"
Price
N/A
183
GROMMET 11 X 10MM PLASTIC
Price
N/A
184
TAP SCREW M4 X 8
Price
N/A
185
CORD CLIP 5/8"
Price
N/A
186
PHLP HD SCR M4-.7 X 30
Price
N/A
187
RUBBER CLIP
Price
N/A
188
FOOT BRAKE LEVER
Price
N/A
189
STEP BOLT M7-1 X 10 W/BUSHING
Price
N/A
190
CAP SCREW M6-1 X 16
Price
N/A
191
BRAKE EXTENSION SPRING
Price
N/A
192
HEX NUT M6-1
Price
N/A
193
NYLON PAD
Price
N/A
194
FOOT PAD
Price
N/A
195
LOCK WASHER 6MM
Price
N/A
196
BUSHING
Price
N/A
197
BRAKE SHOE
Price
N/A
198
CAP SCREW M6-1 X 25
Price
N/A
199
CAP SCREW M8-1.25 X 25
Price
N/A
200
LOCK WASHER 8MM
Price
N/A
201

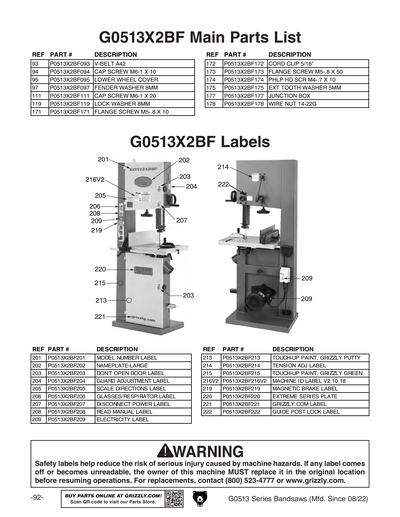

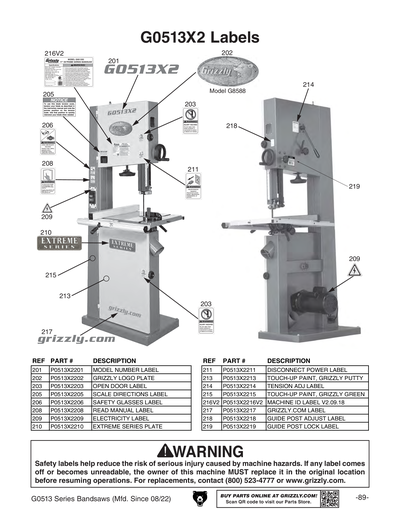

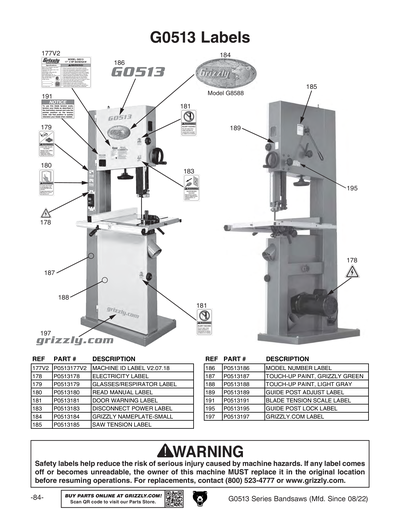

MODEL NUMBER LABEL
Price
$9.75
202
Nameplate - Large
Price
N/A
203
DONT OPEN 2W X 3.3H
Price
N/A
204
GUARD ADJ LABEL
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
207
DISCONNECT 110V 2W X 3.3H
Price
N/A
208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
209
ELECTRICITY 1.4W X 1.2H
Price
N/A
211
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
213
GREY PUTTY REF G0504
Price
N/A
214
TENSION ADJ LABEL
Price
N/A
215
N/S GRIZZLY GREEN G1023S
Price
N/A
216
MACHINE ID LABEL V1
Price
$16.40
216V2
MACHINE ID LABEL V2.10.18
Price
$16.40
217
FLAT WASHER 8MM
Price
N/A
218
BUSHING
Price
N/A
220
Extreme Series Nameplate
Price
N/A
221
GRIZZLY.COM LABEL
Price
N/A
222
GUIDE POST LOCK LABEL
Price
$16.40

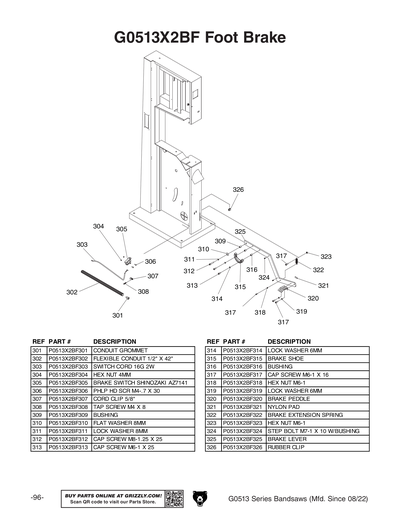

301
GROMMET 11 X 10MM PLASTIC
Price
N/A
302
FLEXIBLE CORD CONDUIT 1/2" X 42"
Price
N/A
303
SWITCH CORD
Price
N/A
304
HEX NUT 5-40
Price
N/A
305
FOOT BRAKE SWITCH
Price
N/A
306
PHLP HD SCR M4-.7 X 30
Price
N/A
307
CORD CLIP 5/8"
Price
N/A
308
TAP SCREW M4 X 8
Price
N/A
309
BUSHING
Price
N/A
310
FLAT WASHER 8MM
Price
N/A
311
LOCK WASHER 8MM
Price
N/A
312
CAP SCREW M8-1.25 X 25
Price
N/A
313
CAP SCREW M6-1 X 25
Price
N/A
314
LOCK WASHER 6MM
Price
N/A
315
BRAKE SHOE
Price
N/A
316
BUSHING
Price
N/A
317
CAP SCREW M6-1 X 16
Price
N/A
318
HEX NUT M6-1
Price
N/A
319
LOCK WASHER 6MM
Price
N/A
320
FOOT PAD
Price
N/A
321
NYLON PAD
Price
N/A
322
BRAKE EXTENSION SPRING
Price
N/A
323
HEX NUT M6-1
Price
N/A
324
STEP BOLT M7-1 X 10 W/BUSHING
Price
N/A
325
FOOT BRAKE LEVER
Price
N/A
326
RUBBER CLIP
Price
N/A
352
FLAT WASHER 8MM
Price
N/A
353
LOCK WASHER 8MM
Price
N/A
354
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
355
HEX WRENCH 5MM
Price
N/A
356
HEX WRENCH 8MM
Price
N/A
357
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
MAN
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
MANV2
MANUAL G0513 SERIES MFD-11.12-06.18 V2.1
Price
N/A
