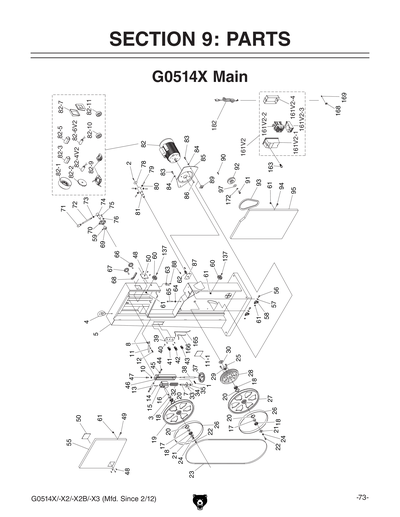

Parts for G0514X 19" 3 HP Extreme Series Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

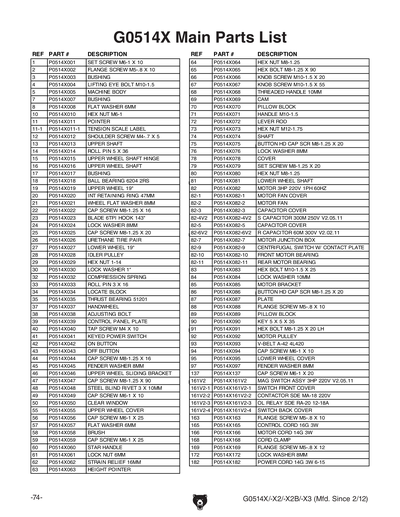

1
SET SCREW M6-1 X 10
Price
N/A
2
FLANGE SCREW M5-.8 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Price
N/A
6
SET SCREW M5-.8 X 5
Price
N/A
7
BUSHING
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
11-1
BLADE TENSION SCALE LABEL
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 36
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
BUSHING
Price
N/A
18
BALL BEARING 6204-2RS
Price
N/A
19
UPPER WHEEL 19"
20
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 143" X 3/4" X 5MM
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
Bandsaw Tire for 19" Bandsaws (Pair)
Price
N/A
27
LOWER WHEEL 19"
28
IDLER PULLEY
29
Now: PN32
HEX NUT 1-14
Price
N/A
30
Now: PLW09
LOCK WASHER 1"
Price
N/A
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
MAG SWITCH ASSY 3HP 220V V2.05.11
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
CONTROL PANEL PLATE
40
TAP SCREW M4 X 10
Price
N/A
41
KEYED POWER SWITCH
42
ON BUTTON
43
E-STOP BUTTON 250V 10A
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M8-1.25 X 90
Price
N/A
48
RIVET 3 X 10MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
N/A
51
CAP SCREW M6-1 X 20
Price
N/A
52
BUSHING W/ HEX NUT V2.04.19
Price
N/A
52V2
BUSHING W/ HEX NUT V2.04.19
Price
N/A
53
FLAT HD SCR M4-.7 X 8
Price
N/A
54
STEP BOLT M8-1.25 X 80
55
UPPER WHEEL COVER W/LABELS & WINDOW
55A
UPPER WHEEL COVER W/LABELS & WINDOW
56
CAP SCREW M6-1 X 25
Price
N/A
57
Now: PW03M
FLAT WASHER 6MM
Price
N/A
58
***USE P0566B032***
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
Now: PN09M
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
77
COVER
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
Now: PN03M
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82
MOTOR 3HP 220V 1-PH
82-1
MOTOR FAN COVER
Price
N/A
82-10
FRONT MOTOR BEARING
82-11
REAR MOTOR BEARING
82-2
MOTOR FAN
82-3
CAPACITOR COVER
82-4
S CAPACITOR 300M 250V 1-3/4 X 3-3/4 SECC
Price
N/A
82-4V2
S CAPACITOR 300M 250V 2 X 3-1/2 V2.05.11
82-5
CAPACITOR COVER
Price
N/A
82-6
R CAPACITOR 60M 250V 1-1/2 X 2-1/2
Price
N/A
82-6V2
R CAPACITOR 60M 300V 2 X 3-1/2
82-7
MOTOR JUNCTION BOX
82-8
CENTRIFUGAL SWITCH W/CONTACT PLATE
Price
N/A
82-9
CENTRIFUGAL SWITCH W/CONTACT PLATE
83
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
91
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY
93
Now: PVA42
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/LABELS
Price
N/A
95A
LOWER WHEEL COVER W/LABELS
96
FIXED BOLT
97
FENDER WASHER 8MM
Price
N/A
98
CAP SCREW M10-1.5 X 35
Price
N/A
99
Now: PN02M
HEX NUT M10-1.5
Price
N/A
100
TRUNNION GEAR
Price
N/A
101
***USE P0640X173-34***
Price
N/A
102
TRUNNION SUPPORT BRACKET
Price
N/A
103
LOCK WASHER 10MM
Price
N/A
104
Now: PW04M
FLAT WASHER 10MM
Price
N/A
105
Now: PB18M
HEX BOLT M6-1 X 15
Price
N/A
106
CAP SCREW M6-1 X 45
Price
N/A
107
ALIGNMENT ROD
Price
N/A
108
Now: PN01M
HEX NUT M6-1
Price
N/A
109
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
110
BALL BEARING 6000ZZ
Price
N/A
111
CAP SCREW M10-1.5 X 20
Price
N/A
112
Now: PW01M
FLAT WASHER 8MM
Price
N/A
113
Now: PW01M
FLAT WASHER 8MM
Price
N/A
114
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
115
GEAR PLATE
Price
N/A
116
LOCK NUT M8-1.25
Price
N/A
117
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
118
LOCK HANDLE M8-1.25
Price
N/A
119
Now: PW05M
FLAT WASHER 4MM
Price
N/A
120
POINTER
Price
N/A
121
TRUNNION
122
LOCK WASHER 8MM
Price
N/A
123
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
124
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
125

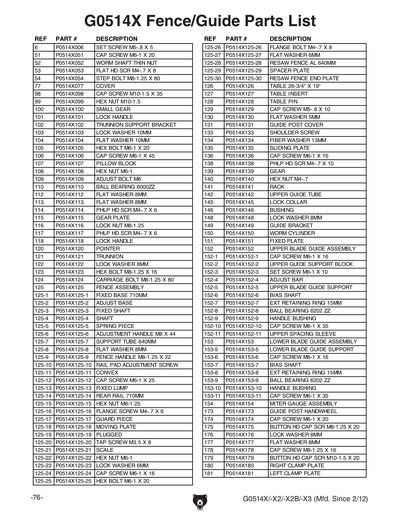

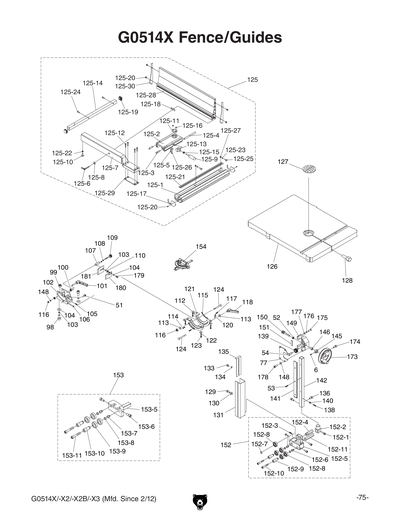

FENCE ASSEMBLY
125-1
FIXED BASE 710MM
Price
N/A
125-10
RAIL PAD ADJUSTMENT SCREW
Price
N/A
125-11
CONVEX WINDOW
Price
N/A
125-12
CAP SCREW M6-1 X 25
Price
N/A
125-13
LOCK BLOCK
Price
N/A
125-14
SQUARE TUBE 710MM
Price
N/A
125-15
Now: PN03M
HEX NUT M8-1.25
Price
N/A
125-16
FLANGE SCREW M4-.7 X 6
Price
N/A
125-17
GUARD PIECE
Price
N/A
125-18
MOVING PLATE
Price
N/A
125-19
***USE P0555319***
Price
N/A
125-2
ADJUST BASE
Price
N/A
125-20
TAP SCREW M3.5 X 8
Price
N/A
125-21
FENCE SCALE 18-1/2"
Price
N/A
125-22
Now: PN01M
HEX NUT M6-1
Price
N/A
125-23
LOCK WASHER 6MM
Price
N/A
125-24
CAP SCREW M6-1 X 16
Price
N/A
125-25
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
125-26
FLANGE BOLT M4-.7 X 8
Price
N/A
125-27
Now: PW03M
FLAT WASHER 6MM
Price
N/A
125-28
RESAW FENCE AL 640MM
Price
N/A
125-29
SPACER PLATE
Price
N/A
125-3
ALIGNMENT SHAFT
Price
N/A
125-30
RESAW FENCE END PLATE
Price
N/A
125-4
SHAFT
Price
N/A
125-5
***USE P0555305***
Price
N/A
125-6
***USE P0636X129***
Price
N/A
125-7
SUPPORT TUBE 640MM
Price
N/A
125-8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
125-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
126
TABLE 26-3/4" X 19"
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE LOCK PIN
Price
N/A
129
CAP SCREW M5-.8 X 10
Price
N/A
130
Now: PW02M
FLAT WASHER 5MM
Price
N/A
131
GUIDE POST COVER
132
SHOULDER SCREW
Price
N/A
133
SHOULDER SCREW
Price
N/A
134
WASHER 5MM (PLASTIC)
Price
N/A
135
SLIDING PLATE
Price
N/A
136
CAP SCREW M6-1 X 16
Price
N/A
137
CAP SCREW M6-1 X 20
Price
N/A
138
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
139
***USE P0513167***
Price
N/A
140
Now: PN04M
HEX NUT M4-.7
Price
N/A
141
***USE P0513156***
Price
N/A
142
GUIDE POST
Price
N/A
143
HANDWHEEL
Price
N/A
144
CAP SCREW M6-1 X 20
Price
N/A
145
LOCK COLLAR
146
THREADED BUSHING V2.06.09
Price
N/A
147
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
148
LOCK WASHER 8MM
Price
N/A
149
GUIDE BRACKET 16MM V2.06.09
Price
N/A
150
WORM SHAFT
Price
N/A
151
FIXED PLATE
Price
N/A
152
UPPER BLADE GUIDE ASSEMBLY
152-1
CAP SCREW M6-1 X 16
Price
N/A
152-10
CAP SCREW M6-1 X 35
Price
N/A
152-11
UPPER SPACING SHAFT
Price
N/A
152-2
UPPER GUIDE SUPPORT BLOCK
Price
N/A
152-3
SET SCREW M6-1 X 10
Price
N/A
152-4
ADJUSTMENT BAR
Price
N/A
152-5
***USE P0817143-4***
Price
N/A
152-6
ECCENTRIC SHAFT
Price
N/A
152-7
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
152-8
BALL BEARING 6202ZZ
Price
N/A
152-9
HANDLE BUSHING
Price
N/A
153
LOWER BLADE GUIDE ASSY
Price
N/A
153-1
LEFT GUARD
Price
N/A
153-10
HANDLE BUSHING
Price
N/A
153-11
CAP SCREW M6-1 X 35
Price
N/A
153-2
RIGHT GUARD
Price
N/A
153-5
LOWER BLADE GUIDE SUPPORT
Price
N/A
153-6
CAP SCREW M6-1 X 16
Price
N/A
153-7
ECCENTRIC SHAFT
Price
N/A
153-8
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
153-9
BALL BEARING 6202ZZ
Price
N/A
154
MITER GAUGE ASSY
Price
N/A
155
FLANGE SCREW M5-.8 X 50
Price
N/A
156
TERMINAL BOX
157
*DISCD*TERMINAL HOUSE
Item is no longer available
Price
N/A
158
Now: PN04M
HEX NUT M4-.7
Price
N/A
159
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
160
*DISCD*STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
161
MAG SWITCH ASSY 3HP 220V V2.05.11
Price
N/A
161V2
MAG SWITCH ASSY 3HP 220V V2.05.11
161V2-1
SWITCH FRONT COVER
161V2-2
CONTACTOR SDE MA-18 220V
161V2-3
OL RELAY SDE RA-20 12-18A V1
Price
N/A
161V2-4
SWITCH BACK COVER
162
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
163
FLANGE SCREW M5-.8 X 10
Price
N/A
165
CONTROL CORD 16G 3W
166
MOTOR CORD 14G 3W
167
CORD V1
167V2
GROUND WIRE 90MM V2.05.11
168
CORD CLAMP
169
FLANGE SCREW M5-.8 X 12
Price
N/A
170
EXT TOOTH WASHER 5MM
Price
N/A
171
WIRE NUT P3
172
LOCK WASHER 8MM
Price
N/A
173
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
174
CAP SCREW M6-1 X 20
Price
N/A
175
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
176
LOCK WASHER 8MM
Price
N/A
177
Now: PW01M
FLAT WASHER 8MM
Price
N/A
178
CAP SCREW M8-1.25 X 16
Price
N/A
179
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
180
RIGHT GUARD
Price
N/A
181
LEFT GUARD
Price
N/A
182
POWER CORD 14G 3W 6-15
183
***USE T34391***
Item is no longer available
Price
N/A

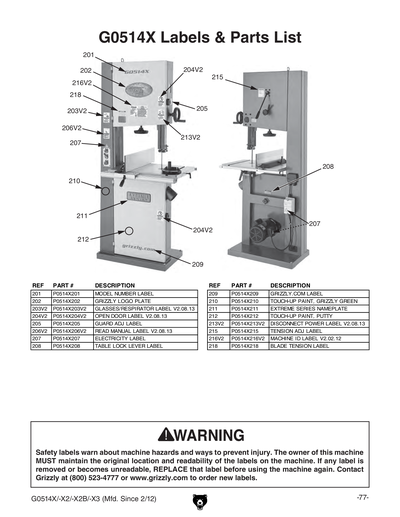

201
MODEL NUMBER LABEL
202
Now: G8589
Nameplate - Large
Price
N/A
203
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
203V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
204
DONT OPEN 2W X 3.3H
Price
N/A
204V2
DONT OPEN 2W X 3.3H
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
206V2
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
207
ELECTRICITY 1.4W X 1.2H
Price
N/A
208
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
209
BS MOVING/ADJUST 2W X 3.3H
Price
N/A
210
N/S GRIZZLY GREEN G1023S
Price
N/A
211
Now: H7942
Extreme Series Nameplate
Price
N/A
212
GREY PUTTY REF G0504
Price
N/A
213
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
213V2
DISCONNECT 110V 2W X 3.3H
Price
N/A
214
DONT OPEN 2W X 3.3H
Price
N/A
215
TENSION ADJ LABEL
Price
N/A
2153
***USE P0513X151***
Price
N/A
216
MACHINE ID LABEL
216V2
MACHINE ID LABEL V2.02.12
217
GROUND WIRE GREEN 4-3/4" LONG
218
BLADE TENSION LABEL
264
PLASTIC SET SCREW
Price
N/A
MANUAL
MANUAL G0514X-X3 MFG 01/06-04/09 V1
MANV2
MANUAL G0514X-X3 MFG 05/09-1/11 V2.04.09
MANV3
MANUAL G0514X-X3 MFG 02/11-1/12 V3.09.11
MANV4
MANUAL G0514X-X3 MFG 02/12 V4.02.12
