Parts for G0514X2B 19" 3 HP Extreme-Series Bandsaw w/ Motor Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SET SCREW M6-1 X 10
Price
N/A
2
FLANGE SCREW M5-.8 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
*DISCD*MACHINE BODY
Price
N/A
6
TRUNNION ASSEMBLY
Price
N/A
6-1
FENDER WASHER 8MM
Price
N/A
6-10
Now: PW05M
FLAT WASHER 4MM
Price
N/A
6-11
POINTER
Price
N/A
6-12
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
6-13
ADJUSTMENT KNOB BOLT M6-1
Price
N/A
6-14
Now: PN01M
HEX NUT M6-1
Price
N/A
6-15
ADJUSTMENT PLATE
Price
N/A
6-16
FLAT HD SCR M5-.8 X 15
Price
N/A
6-17
CAP SCREW M6-1 X 16
Price
N/A
6-18
CAP SCREW M6-1 X 50
Price
N/A
6-19
TRUNNION SUPPORT BRACKET
Price
N/A
6-2
LOCK NUT M8-1.25
Price
N/A
6-20
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
6-21
RIGHT GUARD
Price
N/A
6-22
BALL BEARING 6000ZZ
Price
N/A
6-23
Now: PW04M
FLAT WASHER 10MM
Price
N/A
6-24
LEFT GUARD
Price
N/A
6-25
ALIGNMENT ROD
Price
N/A
6-26
LOCK WASHER 8MM
Price
N/A
6-27
CAP SCREW M5-.8 X 6
Price
N/A
6-28
LOCK WASHER 8MM
Price
N/A
6-29
LOCK WASHER 10MM
Price
N/A
6-3
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
6-4
***USE P0640X173-4***
Price
N/A
6-5
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
6-6
LOCK HANDLE M8-1.25
Price
N/A
6-7
ANGLE LABEL
Price
N/A
6-8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
6-9
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
7
BUSHING
Price
N/A
8
Now: PW03M
FLAT WASHER 6MM
Price
N/A
9
***USE P0513157A***
Price
N/A
9-1
SET SCREW M5-.8 X 5
Price
N/A
9-10
GUIDE BRACKET 16MM V2.06.09
Price
N/A
9-11
WORM SHAFT
Price
N/A
9-12
FIXED PLATE
Price
N/A
9-13
***USE P0513167***
Price
N/A
9-14
FIXED BOLT
Price
N/A
9-15
COVER
Price
N/A
9-16
CAP SCREW M8-1.25 X 16
Price
N/A
9-17
FLAT HD SCR M4-.7 X 8
Price
N/A
9-18
BUSHING W/ HEX NUT V2.04.19
Price
N/A
9-18V
BUSHING W/ HEX NUT V2.04.19
Price
N/A
9-19
GUIDE BRACKET PLASTIC SET SCREW
Price
N/A
9-2
CAP SCREW M6-1 X 16
Price
N/A
9-3
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
9-4
Now: PN04M
HEX NUT M4-.7
Price
N/A
9-5
RACK
Price
N/A
9-6
***USE P0513158***
Price
N/A
9-7
LOCK COLLAR
Price
N/A
9-8
THREADED BUSHING V2.06.09
Price
N/A
9-9
LOCK WASHER 8MM
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 35
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
UPPER WHEEL 19"
Price
N/A
17-1
BUSHING
Price
N/A
17-2
BALL BEARING 6204-2RS
Price
N/A
17-3
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
17-4
UPPER WHEEL 19"
Price
N/A
17-5
Bandsaw Tire for 19" Bandsaws (Pair)
Price
N/A
18
LOWER WHEEL ASSEMBLY
18-1
BUSHING
Price
N/A
18-2
BALL BEARING 6204-2RS
Price
N/A
18-3
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
18-4
LOWER WHEEL 19"
Price
N/A
18-5
Bandsaw Tire for 19" Bandsaws (Pair)
Price
N/A
21
Now: PW01M
FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 143" X 3/4" X 5MM
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
28
WHEEL PULLEY/BRAKE DRUM
Price
N/A
29
Now: PN32
HEX NUT 1-14
Price
N/A
30
Now: PLW09
LOCK WASHER 1"
Price
N/A
31
TABLE TILT HANDWHEEL
Price
N/A
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
CAP SCREW M6-1 X 25
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
***USE P0640X038***
Price
N/A
39
CONTROL PANEL PLATE
Price
N/A
40
TAP SCREW M4 X 10
Price
N/A
41
KEYED POWER SWITCH
Price
N/A
42
ON BUTTON
Price
N/A
43
E-STOP BUTTON 250V 10A
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M6-1 X 90
Price
N/A
48
RIVET 3 X 10MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 10
Price
N/A
50
CLEAR WINDOW
Price
N/A
51
TABLE TILT ASSEMBLY
Price
N/A
51-1
SQUARE TUBE
Price
N/A
51-10
CAP SCREW M8-1.25 X 16
Price
N/A
51-11
FLANGE SCREW M5-.8 X 10
Price
N/A
51-12
COVER
Price
N/A
51-13
COVER
Price
N/A
51-14
PINION GEAR BOLT
Price
N/A
51-15
FLAT HD SCR M4-.7 X 10
Price
N/A
51-16
***USE P0566207***
Price
N/A
51-17
PINION GEAR 15T
Price
N/A
51-18
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
51-19
Now: PN04M
HEX NUT M4-.7
Price
N/A
51-2
***USE P0513164V2***
Price
N/A
51-20
FIXED PLATE
Price
N/A
51-3
WORM SHAFT
Price
N/A
51-4
Now: PN05M
HEX NUT M16-1.5
Price
N/A
51-5
BUSHING
Price
N/A
51-6
***USE P0640X129***
Price
N/A
51-7
SET SCREW M5-.8 X 5
Price
N/A
51-8
Now: PN06M
HEX NUT M5-.8
Price
N/A
51-9
LOCK WASHER 8MM
Price
N/A
52
CAP SCREW M10-1.5 X 35
Price
N/A
53
LOCK WASHER 10MM
Price
N/A
54
Now: PW04M
FLAT WASHER 10MM
Price
N/A
55
WHEEL COVER UPPER
Price
N/A
55A
UPPER WHEEL COVER W/ LABELS & WINDOW
56
CAP SCREW M6-1 X 25
Price
N/A
58
***USE P0566B032***
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
Now: PN03M
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
Now: PN09M
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
77
CAP SCREW M10-1.5 X 35
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
81
LOWER WHEEL SHAFT
Price
N/A
82
MOTOR 3HP 220V 1-PH W/BRAKE
82-10
MOTOR MAGNETIC BRAKE W/ SHOE
Price
N/A
82-11
CAP SCREW M6-1 X 12
Price
N/A
82-12
LOCK WASHER 6MM
Price
N/A
82-13
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
82-14
CAP SCREW M5-.8 X 16
Price
N/A
82-15
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
82-16
FRONT MOTOR BEARING
82-17
REAR MOTOR BEARING
82-2
MOTOR FAN COVER
82-3
MOTOR FAN
82-4
R CAPACITOR COVER
82-5
R CAPACITOR 50M 400V 2 X 3-9/16
82-6
MOTOR JUNCTION BOX
82-9
MOTOR MAGNETIC BRAKE W/ SHOE
83
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
Now: PK15M
KEY 5 X 5 X 35
Price
N/A
91
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY
Price
N/A
93
Now: PVA42
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER W/LABELS
Price
N/A
98
FLANGE BOLT M5-.8 X 10
Price
N/A
99
COVER
103
LOCK WASHER 6MM
Price
N/A
116
Now: PW03M
FLAT WASHER 6MM
Price
N/A
117
LOCK NUT M8-1.25
Price
N/A
118
SLIDING PLATE
Price
N/A
119
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
120
CAP SCREW M8-1.25 X 20
Price
N/A
121
TRUNNION PLATE
Price
N/A
126
TABLE
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE LOCK PIN
Price
N/A
129
CAP SCREW M5-.8 X 10
Price
N/A
130
Now: PW02M
FLAT WASHER 5MM
Price
N/A
131
GUIDE POST COVER
Price
N/A
132
SHOULDER SCREW
Price
N/A
133
SHOULDER SCREW
Price
N/A
134
WASHER 5MM (PLASTIC)
Price
N/A
137
CAP SCREW M6-1 X 20
Price
N/A
143
***USE P0513158***
Price
N/A
144
CAP SCREW M6-1 X 20
Price
N/A
152
UPPER BLADE GUIDE ASSEMBLY
Price
N/A
152-1
***USE P0817143-4***
Price
N/A
152-10
UPPER GUIDE SUPPORT BLOCK
Price
N/A
152-11
ADJUSTMENT BAR
Price
N/A
152-2
ECCENTRIC SHAFT
Price
N/A
152-3
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
152-4
BALL BEARING 6202ZZ
Price
N/A
152-5
***USE P0568274***
Price
N/A
152-6
CAP SCREW M6-1 X 35
Price
N/A
152-7
UPPER SPACING SHAFT
Price
N/A
152-8
SET SCREW M6-1 X 10
Price
N/A
152-9
CAP SCREW M6-1 X 16
Price
N/A
153
***USE P0513X151***
Price
N/A
153-10
CAP SCREW M6-1 X 35
Price
N/A
153-4
LOWER BLADE GUIDE SUPPORT
Price
N/A
153-5
CAP SCREW M6-1 X 16
Price
N/A
153-6
ECCENTRIC SHAFT
Price
N/A
153-7
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
153-8
BALL BEARING 6202ZZ
Price
N/A
153-9
***USE P0568274***
Price
N/A
154
MITER GAUGE ASSY
Price
N/A
154-1
MITER GAUGE ASSY
Price
N/A
154-10
MITER GAUGE ASSY
Price
N/A
154-11
MITER GAUGE ASSY
Price
N/A
154-12
PHLP HD SCR 10-24 X 3/16
Price
N/A
154-13
Now: PN04M
HEX NUT M4-.7
Price
N/A
154-14
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
154-15
***USE P0513X152***
Price
N/A
154-2
***USE P0513X152***
Price
N/A
154-3
FLAT HD SCR M6-1 X 8
Price
N/A
154-4
MITER GAUGE ASSY
Price
N/A
154-5
PHLP HD SCR 10-24 X 3/16
Price
N/A
154-6
***USE P0513X152***
Price
N/A
154-7
MITER GAUGE ASSY
Price
N/A
154-8
Now: PW01M
FLAT WASHER 8MM
Price
N/A
154-9
MITER GAUGE ASSY
Price
N/A
155
FLANGE SCREW M5-.8 X 50
Price
N/A
156
TERMINAL BOX
Price
N/A
157
*DISCD*TERMINAL HOUSE
Price
N/A
159
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
160
MAG SWITCH ASSY MPE-18 V1
160-1
MAG SWITCH BACK COVER V1
160-2
CONTACTOR SDE MA-18 220V V1
160-3
OL RELAY SDE RA-20 12-18A V1
160-4
SWITCH FRONT COVER V1
160-5
POWER CORD 14G 3W
160-6
CORD 0.75MM X 5 V1
160-6V2
CONTROL CORD 16 5W V2.05.11
160-7
MOTOR CORD 14G 5W
160-8
FLANGE SCREW M5-.8 X 10
Price
N/A
160-9
RECTIFIER PU-23-2
Price
N/A
160V2
MAG SWITCH ASSEMBLY V2.05.11
160V2-1
SWITCH BACK COVER V2.05.11
160V2-2
CONTACTOR SDE MA-18 220V V2.05.11
160V2-3
OL RELAY SDE RA-20 12-18A V2.05.11
160V2-4
SWITCH FRONT COVER V2.05.11
160V2-9
RECTIFIER PU-23-2
Price
N/A
161
KNOB SCREW M8-1.25 X 20
Price
N/A
162
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
164
OUTER RAIL PLATE
Price
N/A
165
CONTROL CORD 16G 4W
166
MOTOR CORD 14G 5W
167
CORD V1
Price
N/A
167V2
GROUND WIRE 90MM V2.05.11
Price
N/A
168
CORD CLAMP
Price
N/A
169
FLANGE SCREW M5-.8 X 12
Price
N/A
170
EXT TOOTH WASHER 5MM
Price
N/A
171
RESAW FENCE ASSEMBLY
171-1
RESAW FENCE 590MM ALUMINUM
171-2
TAP SCREW M3.5 X 8
Price
N/A
171-3
RESAW FENCE END PLATE
171-4
*DISCD*SCALE
Item is no longer available
Price
N/A
172
FENCE ASSEMBLY
172-1
FENCE
Price
N/A
172-10
STANDOFF SET SCREW PLASTIC
172-11
NYLON PAD
172-12
GUIDE KEY
172-13
LOCK KNOB M8-1.25 X 44
Price
N/A
172-14
Now: PW01M
FLAT WASHER 8MM
Price
N/A
172-15
SET SCREW M8-1.25 X 12
Price
N/A
172-16
Now: PN03M
HEX NUT M8-1.25
Price
N/A
172-17
CAP SCREW M8-1.25 X 20
Price
N/A
172-18
Now: PW01M
FLAT WASHER 8MM
Price
N/A
172-2
POINTER
172-3
SET SCREW M5-.8 X 25
Price
N/A
172-4
LOCK PLATE
172-5
FLANGE SCREW M4-.7 X 8
Price
N/A
172-6
PIVOT BLOCK
172-7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
172-8
HANDLE
172-9
LOCK ROD
173
Now: PW01M
FLAT WASHER 8MM
Price
N/A
174
LOCK WASHER 8MM
Price
N/A
175
CAP SCREW M8-1.25 X 20
Price
N/A
176
FENCE RAIL
176-1
FENCE RAIL SCALE
177
INNER RAIL PLATE
Price
N/A
178
Now: PW03M
FLAT WASHER 6MM
Price
N/A
179
LOCK WASHER 6MM
Price
N/A
180
CAP SCREW M6-1 X 20
Price
N/A
181
HEX WRENCH 5MM
Price
N/A
182
HEX WRENCH 8MM
Price
N/A
183
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
184
WIRE NUT P3
Price
N/A
185
BUTTON HD CAP SCR M8-1.25 X 30
Price
N/A
186
LOCK WASHER 8MM
Price
N/A
187
FENDER WASHER 8MM
Price
N/A
188
POWER CORD 14G 3W 6-15
Price
N/A
188V2
POWER CORD 14G 3W 6-20 V2.02.12

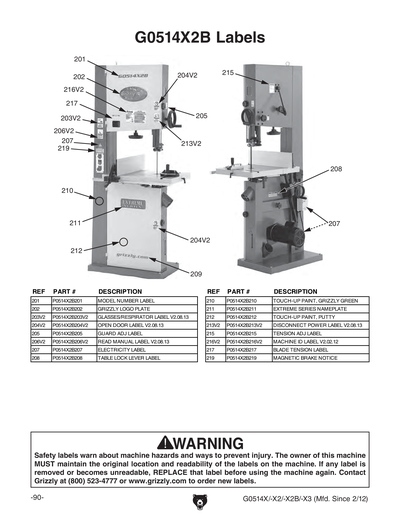

201
MODEL NUMBER LABEL
202
Now: G8589
Nameplate - Large
Price
N/A
203
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
203V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
204
DONT OPEN 2W X 3.3H
Price
N/A
204V2
DONT OPEN 2W X 3.3H
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
206V2
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
207
ELECTRICITY 1.4W X 1.2H
Price
N/A
208
***USE PLABEL-19A***
Price
N/A
210
N/S GRIZZLY GREEN G1023S
Price
N/A
211
Now: H7942
Extreme Series Nameplate
Price
N/A
212
GREY PUTTY REF G0504
Price
N/A
213
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
213V2
DISCONNECT 110V 2W X 3.3H
Price
N/A
214
DONT OPEN 2W X 3.3H
Price
N/A
215
TENSION ADJ LABEL
Price
N/A
216
MACHINE ID LABEL
216V2
MACHINE ID LABEL V2.02.12
217
BLADE TENSION LABEL
Price
N/A
218
TABLE LOCK LABEL
Price
N/A
219
MAGNETIC BRAKE NOTICE
Price
N/A
MAN
MANUAL G0514X2B MFD_05.08-04.11 V1.05.08
MANV2
MANUAL G0514X2B MFD_05.11-01.12 V2.09.11
MANV3
MANUAL G0514X2B MFD_02.12+ V3.02.12
