Parts for G0519 - Mill/Drill/Tapping Machine

Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519
Part Diagram for G0519

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
LOCK NUT M30-1.5
Price
N/A
2
LOCK WASHER 30MM
Price
N/A
3
*DISCD*TAPERED ROLLER BEARING 30206-P5
Item is no longer available
Price
N/A
3-1
*DISCD*WASHER 75 X 91 X 5
Item is no longer available
Price
N/A
4
*DISCD*SLEEVE
Item is no longer available
Price
N/A
5
*DISCD*FIXED BOLT M12
Item is no longer available
Price
N/A
6
*DISCD*SCALE BOARD
Item is no longer available
Price
N/A
7
PHLP HD SCR M4-.7 X 6
Price
N/A
8
*DISCD*PIN 2 X 20
Item is no longer available
Price
N/A
9
*DISCD*GRADUATED ROD
Item is no longer available
Price
N/A
10
*DISCD*FEED BASE
Item is no longer available
Price
N/A
11
P0519011
Now: PN01
HEX NUT 1/2-20
Price
N/A
12
FLAT WASHER 6MM
Price
N/A
13
CAP SCREW M6-1 X 50
Price
N/A
14
HEX NUT M16-1.5
Price
N/A
15
*DISCD*SUPPORT
Item is no longer available
Price
N/A
16
*DISCD*PIN 3 X 18
Item is no longer available
Price
N/A
17
*DISCD*KNOB
Item is no longer available
Price
N/A
18
*DISCD*TAPERED ROLLER BEARING 30207/P5
Item is no longer available
Price
N/A
19
*discd*bearing Cup
Item is no longer available
Price
N/A
20
*discd*spindle
Item is no longer available
Price
N/A
21
*discd*electric Box
Price
$54.95
21-1
*discd*tap/mill Switch
Price
$44.30
21-1A
*DISCD*TAP/MILL SWITCH KNOB
Item is no longer available
Price
N/A
21-2
*DISCD*REVERSE SWITCH
Price
$47.45
21-2A
*DISCD*POWER LIGHT LENS
Item is no longer available
Price
N/A
21-3
*DISCD*REVERSE SWITCH
Item is no longer available
Price
N/A
21-4
*DISCD*STOP SWITCH
Item is no longer available
Price
N/A
21-5
*DISCD*E-STOP BUTTON LA28 15V
Item is no longer available
Price
N/A
21-6
*DISCD*START SWITCH
Item is no longer available
Price
N/A
21-7
*DISCD*SPINDLE LIMIT SWITCH
Price
$8.05
22
SET SCREW M8-1.25 X 8
Price
N/A
23
*DISCD*SPEED LEVER
Item is no longer available
Price
N/A
23-3
*DISCD*START SWITCH
Item is no longer available
Price
N/A
23-4
*DISCD*STOP SWITCH
Item is no longer available
Price
N/A
24
*DISCD*NAME PLATE
Item is no longer available
Price
N/A
25
*discd*oil Seal
Item is no longer available
Price
N/A
26
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
27
*DISCD*LEVER SHAFT LEFT
Price
$12.10
28
*DISCD*LEVER LEFT
Item is no longer available
Price
N/A
29
CAP SCREW M6-1 X 12
Price
N/A
30
HEX NUT M6-1
Price
N/A
31
*DISCD*PIN
Item is no longer available
Price
N/A
32
*DISCD*LEVER BRACKET
Price
$3.20
33
*DISCD*LEVER SHAFT RIGHT
Item is no longer available
Price
N/A
34
*DISCD*LEVER RIGHT
Item is no longer available
Price
N/A
35
*DISCD*PIN M5 X 20
Item is no longer available
Price
N/A
36
CAP SCREW M4-.7 X 10
Price
N/A
37
*DISCD*PINION SHAFT
Item is no longer available
Price
N/A
38
*DISCD*KEY 8 X 7 X 32
Item is no longer available
Price
N/A
39
*DISCD*FEED COVER
Item is no longer available
Price
N/A
40
BALL BEARING 6202ZZ
Price
N/A
41
*DISCD*SEPARATING RING
Item is no longer available
Price
N/A
42
*discd*worm Shaft
Item is no longer available
Price
N/A
43
*DISCD*WORM COVER
Item is no longer available
Price
N/A
44
HEX BOLT M5-.8 X 16
Price
N/A
45
CAP SCREW M5-.8 X 12
Price
N/A
46
*DISCD*GRADUATION PLATE
Item is no longer available
Price
N/A
47
*DISCD*HANDLE WHEEL
Item is no longer available
Price
N/A
47-1
CAP SCREW M5-.8 X 8
Price
N/A
48
HEX BOLT M8-1.25 X 25
Price
N/A
49
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
50
*DISCD*SPRING 2 X 16 X 25
Item is no longer available
Price
N/A
51
*DISCD*HANDLE ROD
Item is no longer available
Price
N/A
52
*DISCD*HANDLE BALL
Price
$2.05
53
*DISCD*HANDLE BODY
Item is no longer available
Price
N/A
54
*DISCD*RIPPLE HANDLE BIG
Item is no longer available
Price
N/A
55
*DISCD*FIXED TIGHT COLLAR
Item is no longer available
Price
N/A
56
*DISCD*OIL COVER
Item is no longer available
Price
N/A
57
*DISCD*OIL POINTER
Item is no longer available
Price
N/A
58
*DISCD*HEAD BODY
Item is no longer available
Price
N/A
58A
*DISCD*COMPLETE HEADSTOCK ASSEMBLY
Item is no longer available
Price
N/A
59
*DISCD*FIXED NUT M20-1.5
Item is no longer available
Price
N/A
60
*discd*fixed Tight Collar
Item is no longer available
Price
N/A
61
*DISCD*HANDLE ROD
Item is no longer available
Price
N/A
62
*DISCD*HEX NUT M10
Item is no longer available
Price
N/A
63
HEX BOLT M10-1.5 X 35
Price
N/A
64
*DISCD*PIN M10 X 30
Item is no longer available
Price
N/A
65
*DISCD*SPRING BASE
Item is no longer available
Price
N/A
66
*DISCD*WASHER M5 X 12
Item is no longer available
Price
N/A
67
*DISCD*SPRING PLATE
Item is no longer available
Price
N/A
68
*DISCD*SPRING CAP
Item is no longer available
Price
N/A
69
FLAT WASHER 8MM
Price
N/A
70
LOCK WASHER 6MM
Price
N/A
71
*DISCD*RIPPLE HANDLE SMALL
Item is no longer available
Price
N/A
72
*DISCD*AIRTIGHT RING
Price
$4.90
73
*DISCD*AIRTIGHT BASE
Price
$23.90
74
LOCK WASHER 5MM
Price
N/A
75
CAP SCREW M5-.8 X 8
Price
N/A
76
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
77
*DISCD*GEAR
Item is no longer available
Price
N/A
78
KEY 6 X 6 X 18
Price
N/A
79
*DISCD*GEAR
Item is no longer available
Price
N/A
80
THRUST BEARING 51103
Price
N/A
81
*DISCD*ARBOR BOLT COVER BASE
Item is no longer available
Price
N/A
82
*DISCD*ARBOR BOLT COVER
Price
$15.55
82-1
*DISCD*ARBOR BOLT 7/16
Item is no longer available
Price
N/A
83
*DISCD*CAP
Item is no longer available
Price
N/A
84
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
85
*DISCD*BALL BEARING 35 X 17 X 10
Item is no longer available
Price
N/A
86
*DISCD*GEAR
Item is no longer available
Price
N/A
87
KEY 5 X 5 X 50
Price
N/A
88
STEEL BALL 8MM
Price
N/A
89
*DISCD*SPRING .8 X 6 X 16
Item is no longer available
Price
N/A
90
*DISCD*KEY 6 X 6 X 75
Price
N/A
91
*DISCD*SHAFT III
Item is no longer available
Price
N/A
92
*DISCD*GEAR
Item is no longer available
Price
N/A
93
*DISCD*GEAR
Item is no longer available
Price
N/A
94
*DISCD*GEAR
Item is no longer available
Price
N/A
95
*discd*retaining Ring
Item is no longer available
Price
N/A
96
*discd*gear
Item is no longer available
Price
N/A
97
KEY 6 X 6 X 14
Price
N/A
98
*DISCD*KEY 5 X 5 X 60
Price
N/A
99
*discd*shaft Ii
Item is no longer available
Price
N/A
100
*discd*gear
Item is no longer available
Price
N/A
101
*discd*retaining Ring
Item is no longer available
Price
N/A
102
*discd*separating Ring
Item is no longer available
Price
N/A
103
*DISCD*MOTOR SHAFT
Item is no longer available
Price
N/A
104
KEY 6 X 6 X 30
Price
N/A
105
*DISCD*GEAR
Item is no longer available
Price
N/A
106
*DISCD*MOTOR
Item is no longer available
Price
N/A
106-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
106-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
107
HEX BOLT M10-1.5 X 25
Price
N/A
108
KEY 6 X 6 X 35
Price
N/A
109
*DISCD*OIL SEAL 35 X 62 X 10
Item is no longer available
Price
N/A
110
*DISCD*HEAD BODY COVER
Item is no longer available
Price
N/A
111
*DISCD*PIN 10 X 50
Item is no longer available
Price
N/A
112
CAP SCREW M8-1.25 X 50
Price
N/A
113
*DISCD*PIPE RADIATOR
Item is no longer available
Price
N/A
114
*DISCD*OIL SEAL
Item is no longer available
Price
N/A
115
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
116
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
117
*discd*oil Cap
Item is no longer available
Price
N/A
118
*discd*degree Meter
Item is no longer available
Price
N/A
119
CAP SCREW M5-.8 X 8
Price
N/A
120
PHLP HD SCR M4-.7 X 6
Price
N/A
121
HEX WRENCH 6MM
Price
N/A
122
HEX WRENCH 5MM
Price
N/A
123
HEX WRENCH 4MM
Price
N/A
124
*discd*drill Chuck 1-16mm Jt3
Item is no longer available
Price
N/A
125
*DISCD*ARBOR JT3 X R8
Item is no longer available
Price
N/A
126
*DISCD*CHUCK KEY
Price
$8.05
127
*DISCD*FLY CUTTER 4-BIT W/BITS
Item is no longer available
Price
N/A
128
*DISCD*CARBIDE TIP CUTTER BIT
Price
$176.85
129
CAP SCREW M6-1 X 15
Price
N/A
130
*DISCD*COMBO WRENCH 24MM
Item is no longer available
Price
N/A
201
*DISCD*BASE
Item is no longer available
Price
N/A
202
HEX BOLT M5-.8 X 12
Price
N/A
203
*DISCD*GUIDE SCREW NUT T24 X 2.54 LH-8
Item is no longer available
Price
N/A
204
*DISCD*PROTECT BOARD
Item is no longer available
Price
N/A
205
THRUST BEARING 51103
Price
N/A
206
*DISCD*GUIDE SCREW SUPPORT
Item is no longer available
Price
N/A
207
*DISCD*OIL CUP
Item is no longer available
Price
N/A
208
*DISCD*PIN 8 X 25
Item is no longer available
Price
N/A
209
HEX BOLT M8-1.25 X 20
Price
N/A
210
*DISCD*GRADUATION PLATE
Item is no longer available
Price
N/A
211
*DISCD*KNURLED KNOB STYLE BOLT M5 X 12
Item is no longer available
Price
N/A
212
*DISCD*PIN 5 X 50
Item is no longer available
Price
N/A
213
*DISCD*DIAL CLUTCH
Item is no longer available
Price
N/A
214
*DISCD*HANDWHEEL
Item is no longer available
Price
N/A
215
CAP SCREW M6-1 X 8
Price
N/A
216
*discd*slip Saddle
Item is no longer available
Price
N/A
217
STEEL BALL 6.5MM
Price
N/A
218
*discd*lock Handle
Item is no longer available
Price
N/A
219
CAP SCREW M8-1.25 X 12
Price
N/A
220
*DISCD*STOP LUMP
Item is no longer available
Price
N/A
221
*DISCD*GIB SCREW NUT M8 X 35
Item is no longer available
Price
N/A
222
CAP SCREW M8-1.25 X 25
Price
N/A
223
*DISCD*GIB STRIP
Item is no longer available
Price
N/A
224
HEX BOLT M8-1.25 X 50
Price
N/A
225
*DISCD*SUPPORT RIGHT
Item is no longer available
Price
N/A
226
*DISCD*LEADSCREW NUT
Price
N/A
227
*DISCD*GUIDE SCREW T24 X 2.54
Item is no longer available
Price
N/A
228
*DISCD*TABLE
Item is no longer available
Price
N/A
228A
*DISCD*TABLE ASSEMBLY
Item is no longer available
Price
N/A
229
*DISCD*LADDER SHAPED NUT M6
Item is no longer available
Price
N/A
230
*DISCD*STOP LUMP
Item is no longer available
Price
N/A
231
HEX BOLT M6-1 X 12
Price
N/A
232
*DISCD*OIL CUP
Item is no longer available
Price
N/A
233
*DISCD*GIB STRIP SCREW
Item is no longer available
Price
N/A
234
*DISCD*HAND CRANK
Price
$10.95
301
*DISCD*PROTECT BOARD SLICE
Price
N/A
302
HEX BOLT M8-1.25 X 12
Price
N/A
303
*DISCD*RUBBER SHEET
Price
N/A
304
HEX BOLT M8-1.25 X 12
Price
N/A
305
*DISCD*PROTECT BOARD FIXED
Price
N/A
306
*DISCD*COLUMN
Price
N/A
307
FLAT WASHER 16MM
Price
N/A
308
HEX BOLT M6-1 X 20
Price
N/A
312
CAP SCREW M8-1.25 X 25
Price
N/A
313
HEX NUT M16-1.5
Price
N/A
314
FLAT WASHER 16MM
Price
N/A
315
*DISCD*TO RAISE AND LOWER
Price
N/A
317
CAP SCREW M6-1 X 20
Price
N/A
322
HEX BOLT M16-2 X 55
Price
N/A
323
LOCK WASHER 16MM
Price
N/A
324
HEX NUT M16-1.5
Price
N/A
401
*DISCD*PROTECT BOARD SLICE
Item is no longer available
Price
N/A
402
HEX BOLT M8-1.25 X 12
Price
N/A
403
*DISCD*RUBBER SHEET
Item is no longer available
Price
N/A
404
HEX BOLT M8-1.25 X 12
Price
N/A
405
*DISCD*PROTECT BOARD FIXED
Item is no longer available
Price
N/A
406
*DISCD*COLUMN
Item is no longer available
Price
N/A
407
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
408
THRUST BEARING 51102
Price
N/A
409
*DISCD*HEAD RAISE BRACKET
Item is no longer available
Price
N/A
410
*DISCD*OIL CUP
Item is no longer available
Price
N/A
411
HEX BOLT M6-1 X 16
Price
N/A
412
FLAT WASHER 16MM
Price
N/A
413
HEX BOLT M16-2 X 55
Price
N/A
414
*DISCD*ROUND NUT M16
Item is no longer available
Price
N/A
415
*DISCD*TAB WASHER FOR ROUND NUT 16M
Item is no longer available
Price
N/A
416
*DISCD*HEAD RAISE BRACKET
Item is no longer available
Price
N/A
417
HEX BOLT M6-1 X 16
Price
N/A
418
THRUST BEARING 51103
Price
N/A
419
*DISCD*GEAR
Item is no longer available
Price
N/A
420
*DISCD*BALL BEARING 47 X 20 X 14
Item is no longer available
Price
N/A
421
*DISCD*RETAINING RING
Item is no longer available
Price
N/A
422
KEY 6 X 6 X 18
Price
N/A
423
*DISCD*GUIDE SCREW T24 - 4
Item is no longer available
Price
N/A
424
*DISCD*COLUMN NUT
Price
$3.20
425
*DISCD*ANTI DUST
Item is no longer available
Price
N/A
426
CAP SCREW M4-.7 X 10
Price
N/A
427
HEX NUT M16-1.5
Price
N/A
428
LOCK WASHER 16MM
Price
N/A
429
HEX BOLT M16-2 X 55
Price
N/A
430
*DISCD*TO RAISE AND LOWER
Item is no longer available
Price
N/A
431
CAP SCREW M6-1 X 20
Price
N/A
432
*DISCD*LOCK HANDLE
Item is no longer available
Price
N/A
433
*DISCD*STEEL BALL
Item is no longer available
Price
N/A
434
*DISCD*COLUMN NUT T24 - 4-8
Item is no longer available
Price
N/A
435
*discd*gib Strip
Item is no longer available
Price
N/A
436
*discd*hand Crank
Price
$8.05
437
*DISCD*EYE SHIELD STRAIGHT SMALL V1
Item is no longer available
Price
N/A
437V2
*DISCD*EYE SHIELD ANGLED LARGE V2.08.09
Item is no longer available
Price
N/A

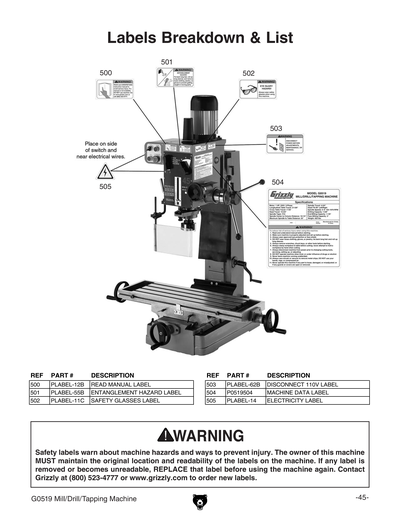

500
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
501
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
502
SAFETY GLASSES 3.8W X 2H
Price
N/A
503
DISCONNECT 110V 3.8W X 2H
Price
N/A
504
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
505
ELECTRICITY 1.4W X 1.2H
Price
N/A
MANUAL
*DISCD*MANUAL FOR G0519 11/08
Price
$13.25
