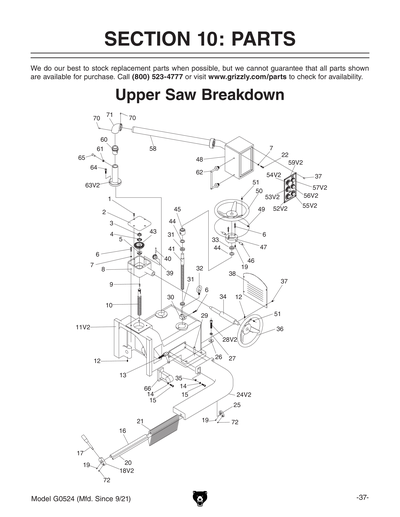

Parts for G0524 - 15 HP 3-Phase Straight Line Rip Saw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

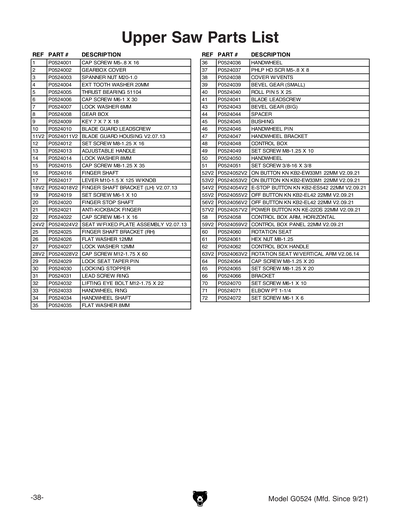

Ref # Part # Description Price Qty
001 P0524001
CAP SCREW M5-.8 X 16
Item is no longer available
P0524001 Replaced By PCAP24M
N/A View Replacement
002 P0524002
GEARBOX COVER
N/A
003 P0524003
SPANNER NUT M20-1.0
N/A
004 P0524004
EXT TOOTH WASHER 20MM
Item is no longer available
P0524004 Replaced By PTLW09M
N/A View Replacement
005 P0524005
THRUST BEARING 51104
Item is no longer available
P0524005 Replaced By P51104
N/A View Replacement
006 P0524006
CAP SCREW M6-1 X 30
Item is no longer available
P0524006 Replaced By PCAP07M
N/A View Replacement
007 P0524007
LOCK WASHER 6MM
Item is no longer available
P0524007 Replaced By PLW03M
N/A View Replacement
008 P0524008
GEAR BOX
N/A
009 P0524009
KEY 7 X 7 X 18
Item is no longer available
P0524009 Replaced By PK82M
N/A View Replacement
010 P0524010 BLADE GUARD LEADSCREW $39.00
011 P0524011
BLADE GUARD HOUSING V1
N/A
011V2 P0524011V2
BLADE GUARD HOUSING V2.07.13
N/A
012 P0524012
SET SCREW M8-1.25 X 16
Item is no longer available
P0524012 Replaced By PSS06M
N/A View Replacement
013 P0524013 ADJUSTABLE HANDLE $11.25
014 P0524014
LOCK WASHER 8MM
Item is no longer available
P0524014 Replaced By PLW04M
N/A View Replacement
015 P0524015
CAP SCREW M8-1.25 X 35
Item is no longer available
P0524015 Replaced By PCAP40M
N/A View Replacement
016 P0524016 FINGER SHAFT $12.00
017 P0524017 LEVER M10-1.5 X 125 W/KNOB $19.50
018 P0524018 FINGER SHAFT BRACKET (LH) V1 $21.50
018V2 P0524018V2
FINGER SHAFT BRACKET (LH) V2.07.13
N/A
019 P0524019
SET SCREW M6-1 X 10
Item is no longer available
P0524019 Replaced By PSS01M
N/A View Replacement
020 P0524020 FINGER STOP SHAFT $6.50
021 P0524021 ANTI-KICKBACK FINGER $4.00
022 P0524022
CAP SCREW M6-1 X 16
Item is no longer available
P0524022 Replaced By PCAP01M
N/A View Replacement
023 P0524023
SEAT W/FIXED PLATE ASSEMBLY
Item is no longer available
P0524023 Replaced By P0524024A
N/A View Replacement
024 P0524024
SEAT W/FIXED PLATE ASSEMBLY
Item is no longer available
P0524024 Replaced By P0524024A
N/A View Replacement
024A P0524024A
SEAT W/FIXED PLATE ASSEMBLY
N/A
024V2 P0524024V2
SEAT W/FIXED PLATE ASSEMBLY V2.07.13
N/A
025 P0524025 FINGER SHAFT BRACKET (RH) $21.50
026 P0524026
FLAT WASHER 12MM
Item is no longer available
P0524026 Replaced By PW06M
N/A View Replacement
027 P0524027
LOCK WASHER 12MM
Item is no longer available
P0524027 Replaced By PLW05M
N/A View Replacement
028 P0524028
CAP SCREW M12-1.75 X 55
Item is no longer available
P0524028 Replaced By PCAP119M
N/A View Replacement
028V2 P0524028V2
CAP SCREW M12-1.75 X 60
Item is no longer available
P0524028V2 Replaced By PCAP63M
N/A View Replacement
029 P0524029
LOCK SEAT TAPER PIN
N/A
030 P0524030
LOCKING STOPPER
N/A
031 P0524031 LEAD SCREW RING $5.25
032 P0524032
LIFTING EYE BOLT M12-1.75 X 22
N/A
033 P0524033
HANDWHEEL RING
N/A
034 P0524034
HANDWHEEL SHAFT
N/A
035 P0524035
FLAT WASHER 8MM
Item is no longer available
P0524035 Replaced By PW01M
N/A View Replacement
036 P0524036 HANDWHEEL $29.50
037 P0524037
PHLP HD SCR M5-.8 X 8
Item is no longer available
P0524037 Replaced By PS05M
N/A View Replacement
038 P0524038 COVER W/VENTS $16.75
039 P0524039 BEVEL GEAR (SMALL) $9.25
040 P0524040
ROLL PIN 5 X 25
Item is no longer available
P0524040 Replaced By PRP49M
N/A View Replacement
041 P0524041 BLADE LEADSCREW $18.50
042 P0524042
ROTATION SEAT W/VERTICAL ARM V1
Item is no longer available
P0524042 Replaced By P0524063
N/A View Replacement
043 P0524043 BEVEL GEAR (BIG) $13.50
044 P0524044 SPACER $4.50
045 P0524045
BUSHING
N/A
046 P0524046 HANDWHEEL PIN $5.25
047 P0524047 HANDWHEEL BRACKET $37.00
048 P0524048
CONTROL BOX
N/A
049 P0524049
SET SCREW M8-1.25 X 10
Item is no longer available
P0524049 Replaced By PSS16M
N/A View Replacement
050 P0524050 HANDWHEEL $87.00
051 P0524051
SET SCREW 3/8-16 X 3/8
Item is no longer available
P0524051 Replaced By PSS15
N/A View Replacement

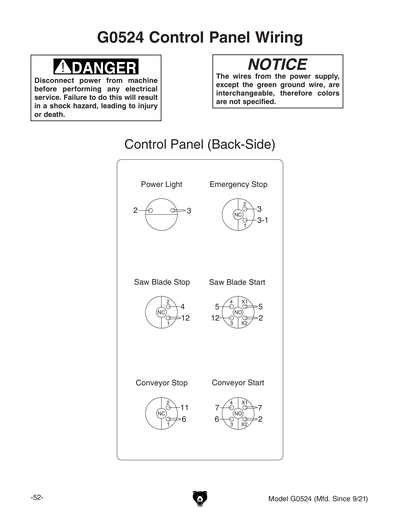

052 P0524052 ON BUTTON $12.00
053 P0524053 ON BUTTON $21.00
054 P0524054 EMERGENCY BUTTON $19.25
055 P0524055 OFF BUTTON $21.50
056 P0524056 OFF BUTTON $21.50
057 P0524057 ELECTRIC POWER BUTTON $21.50
058 P0524058 CONTROL BOX ARM, HORIZONTAL $96.00
059 P0524059 CONTROL BOX PANEL $27.00
060 P0524060 ROTATION SEAT $32.75
061 P0524061
HEX NUT M8-1.25
Item is no longer available
P0524061 Replaced By PN03M
N/A View Replacement
062 P0524062 CONTROL BOX HANDLE $17.25
063 P0524063 ROTATION SEAT W/VERTICAL ARM V1 $93.00
063V2 P0524063V2 ROTATION SEAT W/VERTICAL ARM V2.06.14 $198.00
064 P0524064
CAP SCREW M8-1.25 X 20
Item is no longer available
P0524064 Replaced By PCAP14M
N/A View Replacement
065 P0524065
SET SCREW M8-1.25 X 20
Item is no longer available
P0524065 Replaced By PSS09M
N/A View Replacement
066 P0524066
BRACKET
N/A

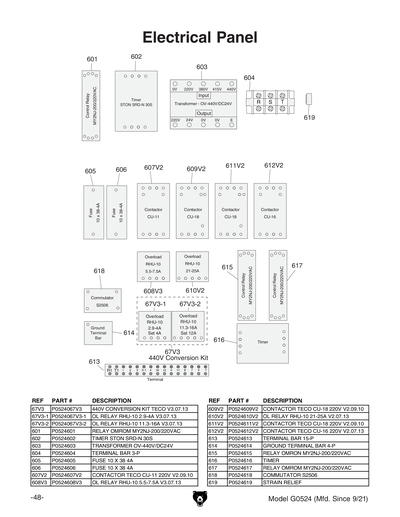

067 P0524067 440V CONVERSION KIT V1.02.03 $295.00
067-1 P0524067-1 *DISCD*OL RELAY TECO RH10E/4C 3-5A V1.10 $29.00
067-2 P0524067-2 *DISCD*OL RELAY TECH RH18/15 12-18A V1.1 $0.00
067V2 P0524067V2
440V CONVERSION KIT V2.07.08
N/A
067V2-1 P0524067V2-1
OL RELAY TECO RHN-10K 2.4-3.6A V2.07.08
N/A
067V2-2 P0524067V2-2
CONVERSION KIT 440V 2 RELAY V3.09.08
Item is no longer available
P0524067V2-2 Replaced By P05011321B
N/A View Replacement
067V3 P0524067V3 440V CONVERSION KIT V3.07.13 $135.75
067V3-1 P0524067V3-1
OL RELAY RHU-10 2.9-4A V3.07.13
N/A
067V3-2 P0524067V3-2 OL RELAY RHU-10 11.3-16A V3.07.13 $44.50
068 P0524068
*DISCD*ARM CONTROL BOX
Item is no longer available
N/A
069 P0524069
*DISCD*SWITCH BOX
Item is no longer available
N/A
070 P0524070
SET SCREW M6-1 X 10
Item is no longer available
P0524070 Replaced By PSS01M
N/A View Replacement
071 P0524071
ELBOW PT 1-1/4
N/A
072 P0524072
SET SCREW M6-1 X 6
Item is no longer available
P0524072 Replaced By PSS02M
N/A View Replacement
09V2 P052409V2
*DISCD*
Item is no longer available
N/A

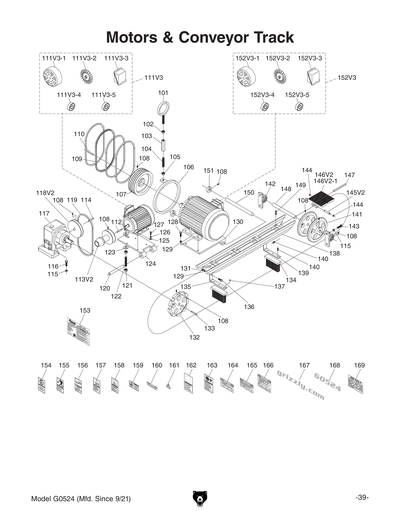

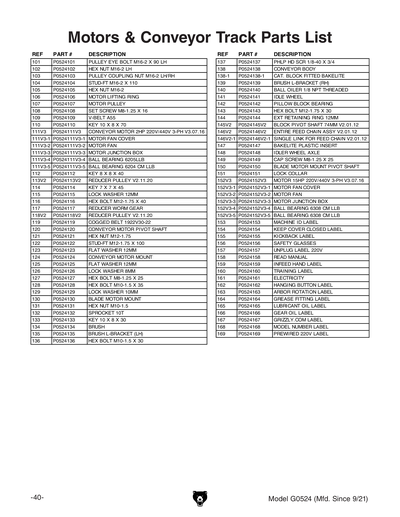

101 P0524101 PULLEY EYE BOLT M16-2 X 90 LH $45.00
102 P0524102
HEX NUT M16-2 LH
Item is no longer available
P0524102 Replaced By PN21M
N/A View Replacement
103 P0524103 PULLEY COUPLING NUT M16-2 LH/RH $30.00
104 P0524104
STUD-FT M16-2 X 110
N/A
105 P0524105
HEX NUT M16-2
Item is no longer available
P0524105 Replaced By PN13M
N/A View Replacement
106 P0524106
MOTOR LIFTING RING
N/A
107 P0524107 MOTOR PULLEY $106.75
108 P0524108
SET SCREW M8-1.25 X 16
Item is no longer available
P0524108 Replaced By PSS06M
N/A View Replacement
109 P0524109
V-BELT A55
Item is no longer available
P0524109 Replaced By PVA55
N/A View Replacement
110 P0524110
KEY 10 X 8 X 70
Item is no longer available
P0524110 Replaced By PK78M
N/A View Replacement
111 P0524111
CONVEYOR MOTOR 2HP 220V/440V 3-PH V1
N/A
111-1 P0524111-1 MOTOR FAN COVER $47.00
111-2 P0524111-2 MOTOR FAN $29.00
111-3 P0524111-3 MOTOR JUNCTION BOX $42.00
111-4 P0524111-4
BALL BEARING 6205LLB
Item is no longer available
P0524111-4 Replaced By P6205LLB
N/A View Replacement
111-5 P0524111-5
***USE P6204LLB***
Item is no longer available
P0524111-5 Replaced By P6204LLB
N/A View Replacement
111V2 P0524111V2
CONVEYOR MOTOR 2HP 220V/440V 3-PH V2.09.14
N/A
111V2-1 P0524111V2-1
MOTOR FAN COVER
N/A
111V2-2 P0524111V2-2
MOTOR FAN
N/A
111V2-3 P0524111V2-3
MOTOR JUNCTION BOX
N/A
111V2-4 P0524111V2-4
BALL BEARING 6205LLB
N/A
111V2-5 P0524111V2-5
BALL BEARING CM LLB
N/A
111V3 P0524111V3
MOTOR 2HP 220V/440V 3-PH V3.07.16
N/A
111V3-1 P0524111V3-1
MOTOR FAN COVER
N/A
111V3-2 P0524111V3-2
MOTOR FAN
N/A
111V3-3 P0524111V3-3
MOTOR JUNCTION BOX
N/A
111V3-4 P0524111V3-4
BALL BEARING 6204ZZ
Item is no longer available
P0524111V3-4 Replaced By P6204ZZ
N/A View Replacement
111V3-5 P0524111V3-5
BALL BEARING 6205ZZ
Item is no longer available
P0524111V3-5 Replaced By P6205ZZ
N/A View Replacement
112 P0524112
KEY 8 X 8 X 40
Item is no longer available
P0524112 Replaced By PK41M
N/A View Replacement
113 P0524113 REDUCER PULLEY $390.00
114 P0524114
KEY 7 X 7 X 45
Item is no longer available
P0524114 Replaced By PK62M
N/A View Replacement
115 P0524115
LOCK WASHER 12MM
Item is no longer available
P0524115 Replaced By PLW05M
N/A View Replacement
116 P0524116
HEX BOLT M12-1.75 X 40
Item is no longer available
P0524116 Replaced By PB35M
N/A View Replacement
117 P0524117 REDUCER WORM GEAR ASSY $810.00
118 P0524118 REDUCER PULLEY $390.00
119 P0524119 COGGED BELT 1220VB 30-22 $72.00
120 P0524120
CONVEYOR MOTOR PIVOT SHAFT
N/A
121 P0524121
HEX NUT M12-1.75
Item is no longer available
P0524121 Replaced By PN09M
N/A View Replacement
122 P0524122
STUD-FT M12-1.75 X 100
N/A
123 P0524123
FLAT WASHER 12MM
Item is no longer available
P0524123 Replaced By PW06M
N/A View Replacement
124 P0524124 CONVEYOR MOTOR MOUNT $49.25
125 P0524125
FLAT WASHER 12MM
Item is no longer available
P0524125 Replaced By PW06M
N/A View Replacement
126 P0524126
LOCK WASHER 8MM
Item is no longer available
P0524126 Replaced By PLW04M
N/A View Replacement
127 P0524127
HEX BOLT M8-1.25 X 25
Item is no longer available
P0524127 Replaced By PB07M
N/A View Replacement
128 P0524128
HEX BOLT M10-1.5 X 35
Item is no longer available
P0524128 Replaced By PB14M
N/A View Replacement
129 P0524129
LOCK WASHER 10MM
Item is no longer available
P0524129 Replaced By PLW06M
N/A View Replacement
130 P0524130 BLADE MOTOR MOUNT $49.25
131 P0524131
HEX NUT M10-1.5
Item is no longer available
P0524131 Replaced By PN02M
N/A View Replacement
132 P0524132 SPROCKET 10T $186.00
133 P0524133
KEY 10 X 8 X 30
Item is no longer available
P0524133 Replaced By PK84M
N/A View Replacement
134 P0524134 BRUSH $24.75
135 P0524135
BRUSH L-BRACKET (LH)
N/A
136 P0524136
HEX BOLT M10-1.5 X 30
Item is no longer available
P0524136 Replaced By PB01M
N/A View Replacement
137 P0524137
PHLP HD SCR 1/8-40 X 3/4
N/A
138 P0524138
CONVEYOR BODY
N/A
138-1 P0524138-1
SINGLE LINK FOR FEED CHAIN V1
Item is no longer available
P0524138-1 Replaced By P0524146-1
N/A View Replacement
139 P0524139 BRUSH L-BRACKET (RH) $13.50
140 P0524140 BALL OILER 1/8 NPT THREADED $3.25
141 P0524141 IDLE WHEEL $35.00
142 P0524142 PILLOW BLOCK BEARING $25.00
143 P0524143
HEX BOLT M12-1.75 X 30
Item is no longer available
P0524143 Replaced By PB27M
N/A View Replacement
144 P0524144
EXT RETAINING RING 12MM
Item is no longer available
P0524144 Replaced By PR03M
N/A View Replacement
145 P0524145 BLOCK PIVOT SHAFT 62MM V1 $3.00
145V2 P0524145V2 BLOCK PIVOT SHAFT 74MM V2.01.12 $4.00
146 P0524146
SINGLE LINK FOR FEED CHAIN V1
Item is no longer available
P0524146 Replaced By P0524146-1
N/A View Replacement
146-1 P0524146-1 SINGLE LINK FOR FEED CHAIN V1 $84.00
146A P0524146A
ENTIRE FEED CHAIN ASSY (38 LINKS) V2.01.12
Item is no longer available
P0524146A Replaced By P0524146V2
N/A View Replacement
146V2 P0524146V2 ENTIRE FEED CHAIN ASSY (38 LINKS) V2.01.12 $2,850.00
146V2-1 P0524146V2-1 SINGLE LINK FOR FEED CHAIN V2.01.12 $65.50
147 P0524147 BACKLITE PLASTIC INSERT $1.25
148 P0524148 IDLER WHEEL AXLE $18.75
149 P0524149
CAP SCREW M8-1.25 X 25
Item is no longer available
P0524149 Replaced By PCAP31M
N/A View Replacement
150 P0524150
BLADE MOTOR MOUNT PIVOT SHAFT
N/A
151 P0524151
LOCK COLLAR
N/A
152 P0524152 MOTOR 15HP 220V/440V 3-PH V1 W/PULLEY $2,035.00
152-1 P0524152-1
MOTOR FAN COVER
N/A
152-2 P0524152-2
MOTOR FAN
N/A
152-3 P0524152-3
MOTOR JUNCTION BOX
N/A
152-4 P0524152-4
***USE P6308LLB***
Item is no longer available
P0524152-4 Replaced By P6308LLB
N/A View Replacement
152-5 P0524152-5
***USE P6308LLB***
Item is no longer available
P0524152-5 Replaced By P6308LLB
N/A View Replacement
152V2 P0524152V2
MOTOR 15HP 220/440V 3PH V3.07.19 W/PULEY
Item is no longer available
P0524152V2 Replaced By P0524152V3A
N/A View Replacement
152V2-1 P0524152V2-1
MOTOR FAN COVER
N/A
152V2-2 P0524152V2-2
MOTOR FAN
N/A
152V2-3 P0524152V2-3
MOTOR JUNCTION BOX
N/A
152V2-4 P0524152V2-4
BALL BEARING 6308 CM LLB
N/A
152V2-5 P0524152V2-5
BALL BEARING 6308 CM LLB
N/A
152V2A P0524152V2A MOTOR 15HP 220/440V 3PH V2.09.14 W/PULY $1,990.00
152V3 P0524152V3
MOTOR 15HP 220/440V 3PH V3.07.19 W/PULEY
Item is no longer available
P0524152V3 Replaced By P0524152V3A
N/A View Replacement
152V3-1 P0524152V3-1
MOTOR FAN COVER
N/A
152V3-2 P0524152V3-2
MOTOR FAN
N/A
152V3-3 P0524152V3-3
MOTOR JUNCTION BOX
N/A
152V3-4 P0524152V3-4
BALL BEARING 6306ZZ
Item is no longer available
P0524152V3-4 Replaced By P6306ZZ
N/A View Replacement
152V3-5 P0524152V3-5
BALL BEARING 6308ZZ
Item is no longer available
P0524152V3-5 Replaced By P6308ZZ
N/A View Replacement
152V3A P0524152V3A MOTOR 15HP 220/440V 3PH V3.07.19 W/PULEY $2,498.00
153 P0524153
MACHINE ID LABEL
N/A
154 P0524154
KEEP COVER CLOSED LABEL
N/A
155 P0524155
KICKBACK LABEL
N/A
156 P0524156
SAFETY GLASSES 2W X 3.3H V1
Item is no longer available
P0524156 Replaced By PLABEL-11
N/A View Replacement
157 P0524157
UNPLUG LABEL 220V
N/A
158 P0524158
READ MANUAL 2W X 3.3H V1
Item is no longer available
P0524158 Replaced By PLABEL-12
N/A View Replacement
159 P0524159
INFEED HAND LABEL
N/A
160 P0524160
TRAINING LABEL
N/A
161 P0524161
ELECTRICITY 1.4W X 1.2H
Item is no longer available
P0524161 Replaced By PLABEL-14
N/A View Replacement
162 P0524162
HANGING BUTTON LABEL
N/A
163 P0524163
ARBOR ROTATION LABEL
N/A
164 P0524164
GREASE FITTING LABEL
N/A
165 P0524165
LUBRICANT OIL LABEL
N/A
166 P0524166
GEAR OIL LABEL
N/A
167 P0524167
GRIZZLY.COM LABEL
N/A
168 P0524168
MODEL NUMBER LABEL
N/A
169 P0524169
PREWIRED 220V 4.3W X 2.9H
Item is no longer available
P0524169 Replaced By PLABEL-34C
N/A View Replacement

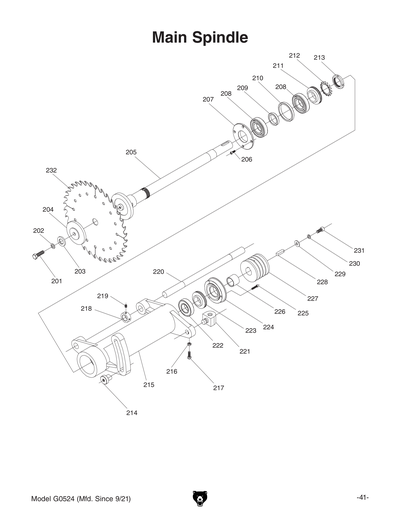

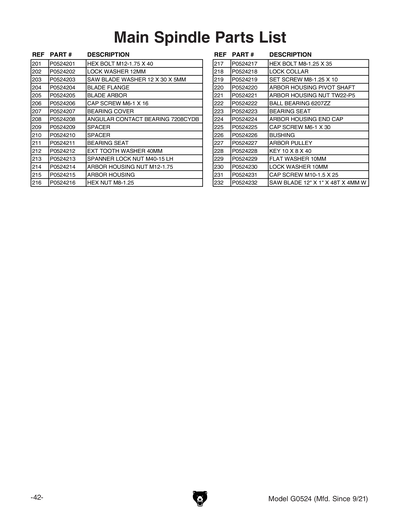

201 P0524201
HEX BOLT M12-1.75 X 40
Item is no longer available
P0524201 Replaced By PB35M
N/A View Replacement
202 P0524202
LOCK WASHER 12MM
Item is no longer available
P0524202 Replaced By PLW05M
N/A View Replacement
203 P0524203 SAW BLADE WASHER 12 X 30 X 5MM $3.50
204 P0524204 BLADE FLANGE $15.50
205 P0524205 BLADE ARBOR $208.50
205-1 P0524205-1 ARBOR WRENCH 45MM $21.00
206 P0524206
CAP SCREW M6-1 X 16
Item is no longer available
P0524206 Replaced By PCAP01M
N/A View Replacement
207 P0524207 BEARING COVER $13.50
208 P0524208
ANGULAR CONTACT BEARING 7208CYDB (2PC)
Item is no longer available
P0524208 Replaced By P7208CYDB
N/A View Replacement
209 P0524209
SPACER
N/A
210 P0524210
SPACER
N/A
211 P0524211 BEARING SEAT $18.50
212 P0524212
EXT TOOTH WASHER 40MM
Item is no longer available
P0524212 Replaced By PTLW10M
N/A View Replacement
213 P0524213 SPANNER LOCK NUT M40-15 LH $6.50
214 P0524214 ARBOR HOUSING NUT M12-1.75 $7.00
215 P0524215 ARBOR HOUSING $307.75
216 P0524216
HEX NUT M8-1.25
Item is no longer available
P0524216 Replaced By PN03M
N/A View Replacement
217 P0524217
HEX BOLT M8-1.25 X 35
Item is no longer available
P0524217 Replaced By PB20M
N/A View Replacement
218 P0524218
LOCK COLLAR
N/A
219 P0524219
SET SCREW M8-1.25 X 10
Item is no longer available
P0524219 Replaced By PSS16M
N/A View Replacement
220 P0524220
ARBOR HOUSING PIVOT SHAFT
N/A
221 P0524221 ARBOR HOUSING NUT TW22-P5 $48.00
222 P0524222
BALL BEARING 6207ZZ
Item is no longer available
P0524222 Replaced By P6207ZZ
N/A View Replacement
223 P0524223
BEARING SEAT
N/A
224 P0524224
ARBOR HOUSING END CAP
N/A
225 P0524225
CAP SCREW M6-1 X 30
Item is no longer available
P0524225 Replaced By PCAP07M
N/A View Replacement
226 P0524226 BUSHING $17.75
227 P0524227 ARBOR PULLEY $53.50
228 P0524228
KEY 10 X 8 X 40
Item is no longer available
P0524228 Replaced By PK80M
N/A View Replacement
229 P0524229
FLAT WASHER 10MM
Item is no longer available
P0524229 Replaced By PW04M
N/A View Replacement
230 P0524230
LOCK WASHER 10MM
Item is no longer available
P0524230 Replaced By PLW06M
N/A View Replacement
231 P0524231
CAP SCREW M10-1.5 X 25
Item is no longer available
P0524231 Replaced By PCAP64M
N/A View Replacement
232 P0524232 SAW BLADE 12" X 1" X 48T X 4MM W $125.00

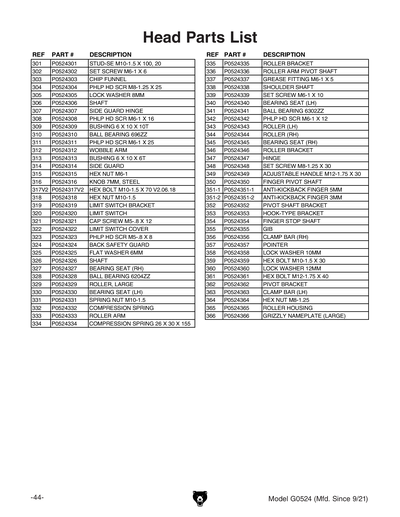

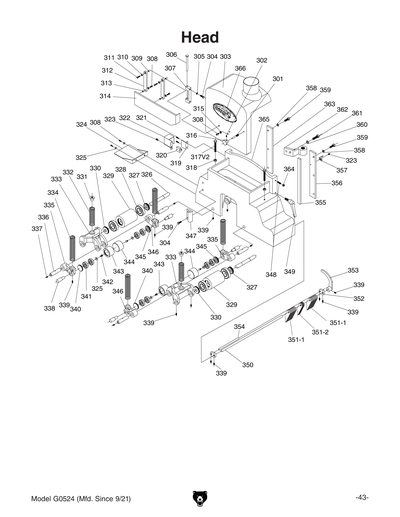

301 P0524301 STUD-SE M10-1.5 X 100, 20 $7.50
302 P0524302
SET SCREW M6-1 X 6
Item is no longer available
P0524302 Replaced By PSS02M
N/A View Replacement
303 P0524303
CHIP FUNNEL
N/A
304 P0524304
PHLP HD SCR M8-1.25 X 25
Item is no longer available
P0524304 Replaced By PS32M
N/A View Replacement
305 P0524305
LOCK WASHER 8MM
Item is no longer available
P0524305 Replaced By PLW04M
N/A View Replacement
306 P0524306
SHAFT
N/A
307 P0524307
SIDE GUARD HINGE
N/A
308 P0524308
PHLP HD SCR M6-1 X 16
Item is no longer available
P0524308 Replaced By PS11M
N/A View Replacement
309 P0524309 BUSHING 6 X 10 X 10T $6.75
310 P0524310
BALL BEARING 696ZZ
Item is no longer available
P0524310 Replaced By P696ZZ
N/A View Replacement
311 P0524311
PHLP HD SCR M6-1 X 25
Item is no longer available
P0524311 Replaced By PS47M
N/A View Replacement
312 P0524312 WOBBLE ARM $26.25
313 P0524313 BUSHING 6 X 10 X 6T $6.75
314 P0524314 SIDE GUARD $74.75
315 P0524315
HEX NUT M6-1
Item is no longer available
P0524315 Replaced By PN01M
N/A View Replacement
316 P0524316 KNOB 7MM, STEEL $7.00
317 P0524317
HEX BOLT M10-1.5 X 80
Item is no longer available
P0524317 Replaced By PB13M
N/A View Replacement
317V2 P0524317V2
HEX BOLT M10-1.5 X 70
Item is no longer available
P0524317V2 Replaced By PB160M
N/A View Replacement
318 P0524318
HEX NUT M10-1.5
Item is no longer available
P0524318 Replaced By PN02M
N/A View Replacement
319 P0524319
LIMIT SWITCH BRACKET
N/A
320 P0524320 LIMIT SWITCH $53.50
321 P0524321
CAP SCREW M5-.8 X 12
Item is no longer available
P0524321 Replaced By PCAP33M
N/A View Replacement
322 P0524322
LIMIT SWITCH COVER
N/A
323 P0524323
PHLP HD SCR M5-.8 X 8
Item is no longer available
P0524323 Replaced By PS05M
N/A View Replacement
324 P0524324 BACK SAFETY GUARD $43.25
325 P0524325
FLAT WASHER 6MM
Item is no longer available
P0524325 Replaced By PW03M
N/A View Replacement
326 P0524326
SHAFT
N/A
327 P0524327
BEARING SEAT (RH)
N/A
328 P0524328
BALL BEARING 6204ZZ
Item is no longer available
P0524328 Replaced By P6204ZZ
N/A View Replacement
329 P0524329 ROLLER, LARGE $64.00
330 P0524330
BEARING SEAT (LH)
N/A
331 P0524331
SPRING NUT M10-1.5
N/A
332 P0524332 COMPRESSION SPRING $9.00
333 P0524333 ROLLER ARM $81.00
334 P0524334 COMPRESSION SPRING 26 X 30 X 155 $21.00
335 P0524335
ROLLER BRACKET
N/A
336 P0524336
ROLLER ARM PIVOT SHAFT
N/A
337 P0524337
GREASE FITTING M6-1 X 5
Item is no longer available
P0524337 Replaced By PZERK002
N/A View Replacement
338 P0524338
SHOULDER SHAFT
N/A
339 P0524339
SET SCREW M6-1 X 10
Item is no longer available
P0524339 Replaced By PSS01M
N/A View Replacement
340 P0524340
BEARING SEAT (LH)
N/A
341 P0524341
BALL BEARING 6302ZZ
Item is no longer available
P0524341 Replaced By P6302ZZ
N/A View Replacement
342 P0524342
PHLP HD SCR M6-1 X 12
Item is no longer available
P0524342 Replaced By PS14M
N/A View Replacement
343 P0524343 ROLLER (LH) $27.00
344 P0524344 ROLLER (RH) $27.00
345 P0524345
BEARING SEAT (RH)
N/A
346 P0524346
ROLLER BRACKET
N/A
347 P0524347
HINGE
N/A
348 P0524348
SET SCREW M8-1.25 X 30
Item is no longer available
P0524348 Replaced By PSS19M
N/A View Replacement
349 P0524349 ADJUSTABLE HANDLE M12-1.75 X 30 $11.25
350 P0524350 FINGER PIVOT SHAFT $5.25
351 P0524351 ANTI-KICKBACK FINGERS $5.50
351-1 P0524351-1 ANTI-KICKBACK FINGER 5MM $6.00
351-2 P0524351-2 ANTI-KICKBACK FINGER 3MM $5.50
352 P0524352 PIVOT SHAFT BRACKET $10.50
353 P0524353 HOOK-TYPE BRACKET $42.00
354 P0524354 FINGER STOP SHAFT $4.50
355 P0524355
GIB
N/A
356 P0524356
CLAMP BAR (RH)
N/A
357 P0524357
POINTER
N/A
358 P0524358
LOCK WASHER 10MM
Item is no longer available
P0524358 Replaced By PLW06M
N/A View Replacement
359 P0524359
HEX BOLT M10-1.5 X 30
Item is no longer available
P0524359 Replaced By PB01M
N/A View Replacement
360 P0524360
LOCK WASHER 12MM
Item is no longer available
P0524360 Replaced By PLW05M
N/A View Replacement
361 P0524361
HEX BOLT M12-1.75 X 40
Item is no longer available
P0524361 Replaced By PB35M
N/A View Replacement
362 P0524362 PIVOT BRACKET $75.00
363 P0524363
CLAMP BAR (LH)
N/A
364 P0524364
HEX NUT M8-1.25
Item is no longer available
P0524364 Replaced By PN03M
N/A View Replacement
365 P0524365
ROLLER HOUSING
N/A
366 P0524366
Name Plates - Large
Item is no longer available
P0524366 Replaced By G8589
N/A View Replacement
367 P0524367
*DISCD*HEX CAP SCREW M12-35
Item is no longer available
N/A
368 P0524368
*DISCD*BRACKET
Item is no longer available
N/A
369 P0524369
*DISCD*LOCK BAR
Item is no longer available
N/A
370 P0524370
*DISCD*HEX NUT M8
Item is no longer available
N/A
371 P0524371
*DISCD*ROLLER SEAT
Item is no longer available
N/A
372 P0524372
*DISCD*LOCK SCREW
Item is no longer available
N/A

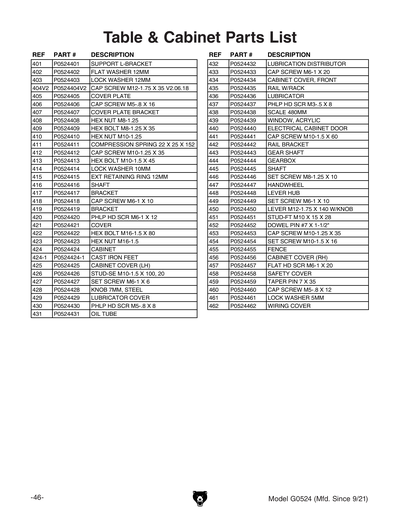

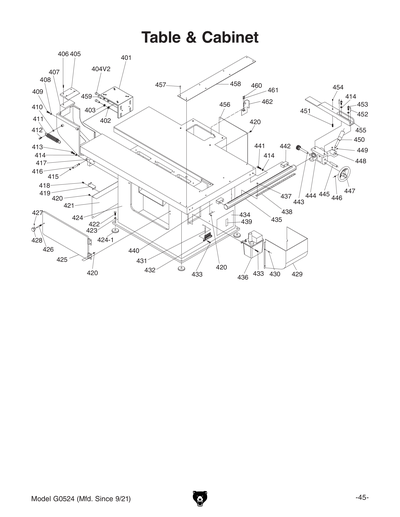

401 P0524401
SUPPORT L-BRACKET V1
N/A
401V2 P0524401V2
SUPPORT L-BRACKET V1
Item is no longer available
P0524401V2 Replaced By P0524401
N/A View Replacement
402 P0524402
FLAT WASHER 12MM
Item is no longer available
P0524402 Replaced By PW06M
N/A View Replacement
403 P0524403
LOCK WASHER 12MM
Item is no longer available
P0524403 Replaced By PLW05M
N/A View Replacement
404 P0524404
CAP SCREW M12-1.75 X 40
Item is no longer available
P0524404 Replaced By PCAP92M
N/A View Replacement
404V2 P0524404V2
CAP SCREW M12-1.75 X 35
Item is no longer available
P0524404V2 Replaced By PCAP111M
N/A View Replacement
405 P0524405
COVER PLATE
N/A
406 P0524406
CAP SCREW M5-.8 X 16
Item is no longer available
P0524406 Replaced By PCAP24M
N/A View Replacement
407 P0524407
COVER PLATE BRACKET
N/A
408 P0524408
HEX NUT M8-1.25
Item is no longer available
P0524408 Replaced By PN03M
N/A View Replacement
409 P0524409
HEX BOLT M8-1.25 X 35
Item is no longer available
P0524409 Replaced By PB20M
N/A View Replacement
410 P0524410
HEX NUT M10-1.25
Item is no longer available
P0524410 Replaced By PN08M
N/A View Replacement
411 P0524411 COMPRESSION SPRING 22 X 25 X 152 $15.00
412 P0524412
CAP SCREW M10-1.25 X 35
Item is no longer available
P0524412 Replaced By PCAP89M
N/A View Replacement
413 P0524413
HEX BOLT M10-1.5 X 45
Item is no longer available
P0524413 Replaced By PB116M
N/A View Replacement
414 P0524414
LOCK WASHER 10MM
Item is no longer available
P0524414 Replaced By PLW06M
N/A View Replacement
415 P0524415
EXT RETAINING RING 12MM
Item is no longer available
P0524415 Replaced By PR03M
N/A View Replacement
416 P0524416
SHAFT
N/A
417 P0524417
BRACKET
N/A
418 P0524418
CAP SCREW M6-1 X 10
Item is no longer available
P0524418 Replaced By PCAP04M
N/A View Replacement
419 P0524419
BRACKET
N/A
420 P0524420
PHLP HD SCR M6-1 X 12
Item is no longer available
P0524420 Replaced By PS14M
N/A View Replacement
421 P0524421 COVER $53.50
422 P0524422
HEX BOLT M16-1.5 X 80
Item is no longer available
P0524422 Replaced By PB114M
N/A View Replacement
423 P0524423
HEX NUT M16-1.5
Item is no longer available
P0524423 Replaced By PN05M
N/A View Replacement
424 P0524424
CABINET
N/A
424-1 P0524424-1 CAST IRON FEET $39.00
425 P0524425 CABINET COVER (LH) $128.00
426 P0524426
STUD-SE M10-1.5 X 100, 20
N/A
427 P0524427
SET SCREW M6-1 X 6
Item is no longer available
P0524427 Replaced By PSS02M
N/A View Replacement
428 P0524428
KNOB 7MM, STEEL
N/A
429 P0524429 LUBRICATOR COVER $150.00
430 P0524430
PHLP HD SCR M5-.8 X 8
Item is no longer available
P0524430 Replaced By PS05M
N/A View Replacement
431 P0524431 OIL TUBE $8.75
432 P0524432 LUBRICATION DISTRIBUTOR $45.00
433 P0524433
CAP SCREW M6-1 X 20
Item is no longer available
P0524433 Replaced By PCAP02M
N/A View Replacement
434 P0524434 CABINET COVER, FRONT $350.25
435 P0524435 RAIL W/RACK $393.25
436 P0524436 LUBRICATOR $390.00
437 P0524437
PHLP HD SCR M3-.5 X 8
Item is no longer available
P0524437 Replaced By PS79M
N/A View Replacement
438 P0524438 SCALE 480MM $30.00
439 P0524439
WINDOW, ACRYLIC
N/A
440 P0524440
ELECTRICAL CABINET DOOR
N/A
441 P0524441
CAP SCREW M10-1.5 X 60
Item is no longer available
P0524441 Replaced By PCAP71M
N/A View Replacement
442 P0524442 RAIL BRACKET $15.00
443 P0524443 GEAR SHAFT $32.25
444 P0524444 GEARBOX $153.75
445 P0524445 SHAFT $4.25
446 P0524446
SET SCREW M8-1.25 X 10
Item is no longer available
P0524446 Replaced By PSS16M
N/A View Replacement
447 P0524447 HANDWHEEL $58.50
448 P0524448 LEVER HUB $18.00
449 P0524449
SET SCREW M6-1 X 10
Item is no longer available
P0524449 Replaced By PSS01M
N/A View Replacement
450 P0524450 LEVER M12-1.75 X 140 W/KNOB $17.50
451 P0524451 STUD-FT M10 X 15 X 28 $10.50
452 P0524452 DOWEL PIN #7 X 1-1/2" $2.00
453 P0524453
CAP SCREW M10-1.25 X 35
Item is no longer available
P0524453 Replaced By PCAP89M
N/A View Replacement
454 P0524454
SET SCREW M10-1.5 X 16
Item is no longer available
P0524454 Replaced By PSS75M
N/A View Replacement
455 P0524455 FENCE $85.50
456 P0524456 CABINET COVER (RH) $53.50
457 P0524457
FLAT HD SCR M6-1 X 20
Item is no longer available
P0524457 Replaced By PFH06M
N/A View Replacement
458 P0524458
SAFETY COVER
N/A
459 P0524459
TAPER PIN 7 X 35
N/A
460 P0524460
CAP SCREW M5-.8 X 12
Item is no longer available
P0524460 Replaced By PCAP33M
N/A View Replacement
461 P0524461
LOCK WASHER 5MM
Item is no longer available
P0524461 Replaced By PLW01M
N/A View Replacement
462 P0524462
WIRING COVER
N/A

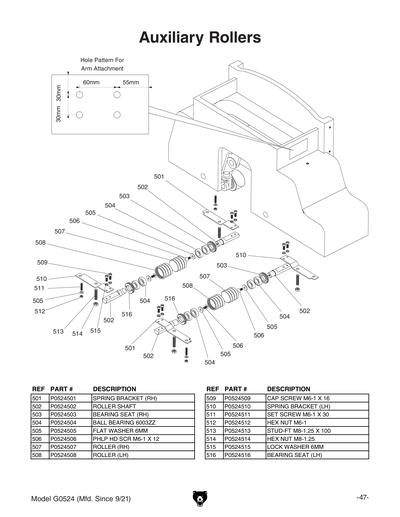

501 P0524501 SPRING BRACKET (RH) $18.75
502 P0524502
ROLLER SHAFT
N/A
502-1 P0524502-1 SHAFT ASSEMBLY RIGHT PITCH $123.00
502-2 P0524502-2 SHAFT ASSEMBLY LEFT PITCH $123.00
503 P0524503 BEARING SEAT (RH) $103.50
504 P0524504
Bearing - 35mm x 17mm
Item is no longer available
P0524504 Replaced By G3850
N/A View Replacement
505 P0524505
FLAT WASHER 6MM
Item is no longer available
P0524505 Replaced By PW03M
N/A View Replacement
506 P0524506
PHLP HD SCR M6-1 X 12
Item is no longer available
P0524506 Replaced By PS14M
N/A View Replacement
507 P0524507
ROLLER (RH)
N/A
508 P0524508
ROLLER (LH)
N/A
509 P0524509
CAP SCREW M6-1 X 16
Item is no longer available
P0524509 Replaced By PCAP01M
N/A View Replacement
510 P0524510 SPRING BRACKET (LH) $18.75
511 P0524511
SET SCREW M6-1 X 30
Item is no longer available
P0524511 Replaced By PSS28M
N/A View Replacement
512 P0524512
HEX NUT M6-1
Item is no longer available
P0524512 Replaced By PN01M
N/A View Replacement
513 P0524513
STUD-FT M8-1.25 X 100
N/A
514 P0524514
HEX NUT M8-1.25
Item is no longer available
P0524514 Replaced By PN03M
N/A View Replacement
515 P0524515
LOCK WASHER 6MM
Item is no longer available
P0524515 Replaced By PLW03M
N/A View Replacement
516 P0524516
BEARING SEAT (LH)
N/A
517 P0524517 CONTROL RELAY 200/220V OMRON $23.00
518 P0524518 COMMUTATOR $18.50
519 P0524519 EXTERNAL WIRING HARNESS $76.75
519-1 P0524519-1 WIRING HARNESS CONDUIT $64.00

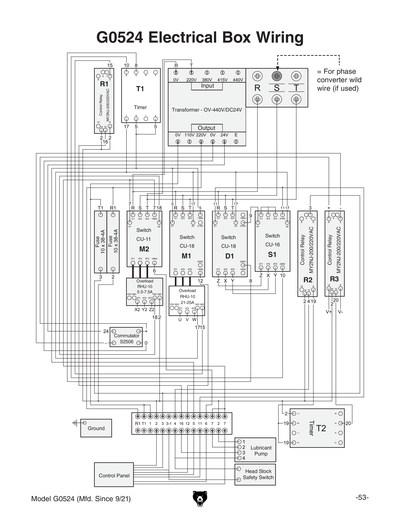

600 P0524600 COMPLETE ELECTRICAL PANEL $1,123.50
601 P0524601 RELAY OMROM MY2NJ-200/220VAC $29.00
602 P0524602 TIMER STON SRD-N 30S $167.50
603 P0524603 TRANSFORMER 190VA 220/440V-24/110V $104.00
604 P0524604 TERMINAL BAR 3-P $9.00
605 P0524605 FUSE 10 X 38 4A $23.00
606 P0524606 FUSE 10 X 38 4A $23.00
607 P0524607
*DISCD*SWITCH CN-11 V1
Item is no longer available
N/A
607V2 P0524607V2 CONTACTOR TECO CU-11 220V V2.09.10 $75.00
607V3 P0524607V3
CONTACTOR TECO CU-11 220V V3.07.13
N/A
608 P0524608
OL RELAY RH-N106 7C 5.5-8.5A V2.04.09
Item is no longer available
P0524608 Replaced By P0524608V2
N/A View Replacement
608V2 P0524608V2 OL RELAY RH-N106 7C 5.5-8.5A V2.04.09 $44.25
608V3 P0524608V3 OL RELAY RHU-10 5.5-7.5A V3.07.13 $31.50
608V4 P0524608V4
OL RELAY RHU-10 5.5-7.5A V4.07.13
N/A
609 P0524609
*DISCD*CONTACTOR CN-18 V1
Item is no longer available
N/A
609V2 P0524609V2 CONTACTOR TECO CU-18 220V V2.09.10 $75.50
609V3 P0524609V3 CONTACTOR TECO CU-18 220V V3.07.13 $50.50
610 P0524610 OL RELAY RH18/20 16-24A $102.25
610V2 P0524610V2 OL RELAY RHU-10 21-25A V2.07.13 $44.50
610V3 P0524610V3
OL RELAY RHU-10 21-25A V3.07.13
N/A
611 P0524611
*DISCD*CONTACTOR CN-18 220V TECO V1
Item is no longer available
N/A
611V2 P0524611V2
CONTACTOR TECO CU-18 220V V2.09.10
N/A
611V3 P0524611V3
CONTACTOR TECO CU-18 220V V3.07.13
N/A
612 P0524612
CONTACTOR TECO CU-16 3A1B
Item is no longer available
P0524612 Replaced By P97400120-13
N/A View Replacement
612V2 P0524612V2
CONTACTOR TECO CU-16 220V V2.07.13
N/A
612V3 P0524612V3
CONTACTOR TECO CU-11 220V V3.07.13
N/A
613 P0524613 TERMINAL BAR 15-P $55.25
614 P0524614 GROUND TERMINAL BAR 4-P $10.25
615 P0524615 RELAY OMRON MY2NJ 200/220V $16.00
616 P0524616 TIMER $128.00
617 P0524617 RELAY MY2NJ 200/220V $29.00
618 P0524618 COMMUTATOR S2506 $14.25
619 P0524619 STRAIN RELIEF M26 TYPE-1 SNAP-IN $14.25
619A P0524619A
EXTERNAL WIRING HARNESS
Item is no longer available
P0524619A Replaced By P0524519
N/A View Replacement
620 P0524620
WIRING HARNESS CONDUIT
Item is no longer available
P0524620 Replaced By P0524519-1
N/A View Replacement
621 P0524621 POWER WIRES $51.00
622 P0524622
COMPLETE WIRING HARNESS W/CONDUIT
N/A

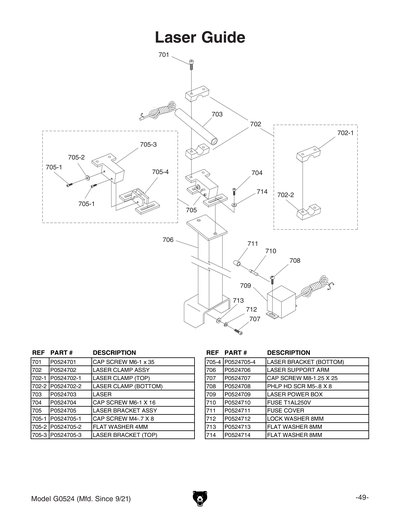

701 P0524701
CAP SCREW M6-1 X 35
Item is no longer available
P0524701 Replaced By PCAP48M
N/A View Replacement
702 P0524702 LASER CLAMP ASSY $12.00
702-1 P0524702-1
LASER CLAMP (TOP)
N/A
702-2 P0524702-2
LASER CLAMP (BOTTOM)
N/A
703 P0524703
LASER
N/A
704 P0524704
CAP SCREW M6-1 X 16
Item is no longer available
P0524704 Replaced By PCAP01M
N/A View Replacement
705 P0524705 LASER BRACKET ASSY $51.25
705-1 P0524705-1
CAP SCREW M4-.7 X 8
Item is no longer available
P0524705-1 Replaced By PCAP18M
N/A View Replacement
705-2 P0524705-2
FLAT WASHER 4MM
Item is no longer available
P0524705-2 Replaced By PW05M
N/A View Replacement
705-3 P0524705-3
LASER BRACKET (TOP)
N/A
705-4 P0524705-4
LASER BRACKET (BOTTOM)
N/A
706 P0524706 LASER SUPPORT ARM $186.75
707 P0524707
CAP SCREW M8-1.25 X 25
Item is no longer available
P0524707 Replaced By PCAP31M
N/A View Replacement
708 P0524708
PHLP HD SCR M5-.8 X 8
Item is no longer available
P0524708 Replaced By PS05M
N/A View Replacement
709 P0524709 LASER POWER BOX $207.00
710 P0524710
FUSE T1AL250V
N/A
711 P0524711
FUSE COVER
N/A
712 P0524712
LOCK WASHER 8MM
Item is no longer available
P0524712 Replaced By PLW04M
N/A View Replacement
713 P0524713
FLAT WASHER 8MM
Item is no longer available
P0524713 Replaced By PW01M
N/A View Replacement
714 P0524714
FLAT WASHER 8MM
Item is no longer available
P0524714 Replaced By PW01M
N/A View Replacement
801 P0524801
ARBOR WRENCH 45MM
N/A
802 P0524802 CAST IRON FOOT $9.75
803 P0524803
TOOLBOX
N/A
805 P0524805 GREASE GUN $15.00
806 P0524806
WRENCH 8 X 10MM OPEN-ENDS
Item is no longer available
P0524806 Replaced By PWR810
N/A View Replacement
807 P0524807
WRENCH 10 X 12MM OPEN-ENDS
Item is no longer available
P0524807 Replaced By PWR1012
N/A View Replacement
808 P0524808
WRENCH 11 X 13MM OPEN-ENDS
Item is no longer available
P0524808 Replaced By PWR1113
N/A View Replacement
809 P0524809
WRENCH 14 X 17MM OPEN-ENDS
Item is no longer available
P0524809 Replaced By PWR1417
N/A View Replacement
810 P0524810
WRENCH 17 X 19MM OPEN-ENDS
Item is no longer available
P0524810 Replaced By PWR1719
N/A View Replacement
811 P0524811
WRENCH 22 X 24MM OPEN-ENDS
Item is no longer available
P0524811 Replaced By PWR2224
N/A View Replacement
812 P0524812
HEX WRENCH 1.5-10MM 10PC SET
Item is no longer available
P0524812 Replaced By PAW1510M
N/A View Replacement
MANUAL P0524MANUAL MANUAL G0524 MFD-5/03-5/13 V1.11.07 $17.25
MANV2 P0524MANV2
MANUAL G0524 MFD-06.13+ V2.11.13
N/A
MANV3 P0524MANV3
MANUAL G0524 MFD-07.13-04.15 V3.11.14
N/A
MANV4 P0524MANV4
MANUAL G0524 MFD-05.15+ V4.05.15
N/A
PART P0524PART
MISC PART FOR G0524
N/A
