Parts for G0526A40 6" Jointer - 40th Anniversary Edition

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1

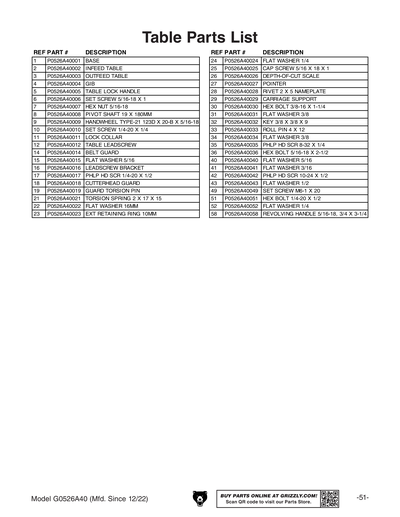

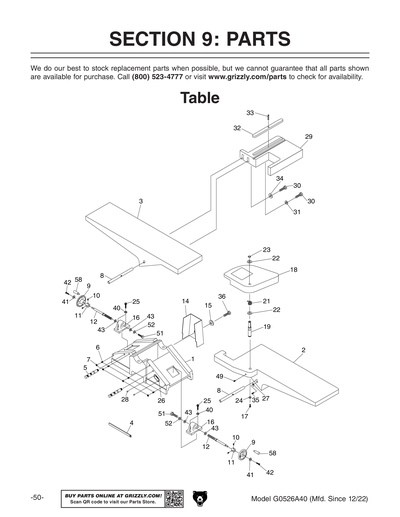

OUTFEED/ INFEED TABLE/ BASE ASSY
Price
N/A
2
OUTFEED/ INFEED TABLE/ BASE ASSY
Price
N/A
3
OUTFEED/ INFEED TABLE/ BASE ASSY
4
GIB
Price
N/A
5
TABLE LOCK HANDLE
6
Now: PSS01
SET SCREW 5/16-18 X 1
Price
N/A
7
Now: PN02
HEX NUT 5/16-18
Price
N/A
8
PIVOT SHAFT 19 X 178MM
Price
N/A
9
HANDWHEEL TYPE-21 123D X 20-B X 5/16-18
Price
N/A
10
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
11
LOCK COLLAR
Price
N/A
12
OUTFEED TABLE LEADSCREW
Price
N/A
14
BELT GUARD
Price
N/A
15
Now: PW07
FLAT WASHER 5/16
Price
N/A
16
LEADSCREW BRACKET
Price
N/A
17
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
18
CUTTERHEAD GUARD V2.12.22
Price
N/A
19
GUARD SHAFT V2.12.22
Price
N/A
21
TORSION SPRING 2 X 17 X 15 V2.12.22
Price
N/A
22
Now: PW04M
FLAT WASHER 10MM
Price
N/A
23
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
24
Now: PW06
FLAT WASHER 1/4
Price
N/A
25
CAP SCREW 5/16-18 X 1
Price
N/A
26
DEPTH-OF-CUT SCALE
Price
N/A
27
POINTER
Price
N/A
28
RIVET 2 X 5 NAMEPLATE
29
CARRIAGE SUPPORT
Price
N/A
30
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
31
Now: PW02
FLAT WASHER 3/8
Price
N/A
32
KEY 3/8 X 3/8 X 9 W/HOLE
Price
N/A
33
ROLL PIN 4 X 12
Price
N/A
34
Now: PW02
FLAT WASHER 3/8
Price
N/A
35
Now: PS23
PHLP HD SCR 8-32 X 1/4
Price
N/A
36
Now: PB23
HEX BOLT 5/16-18 X 2-1/2
Price
N/A
40
Now: PW07
FLAT WASHER 5/16
Price
N/A
41
Now: PW03
FLAT WASHER #10
Price
N/A
42
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
43
Now: PW01
FLAT WASHER 1/2
Price
N/A
49
SET SCREW M6-1 X 20
Price
N/A
51
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
52
Now: PW06
FLAT WASHER 1/4
Price
N/A
58
REVOLVING HANDLE 5/16-18, 3/4 X 3-1/4
Price
N/A
101

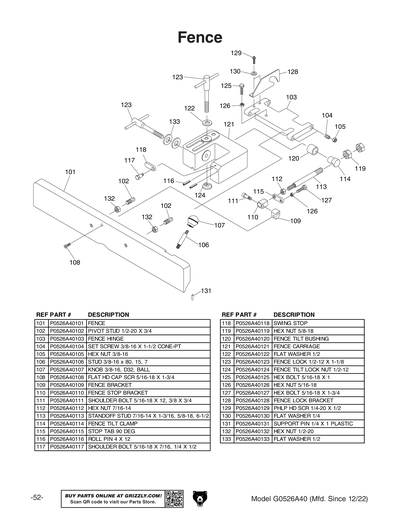

FENCE
Price
N/A
102
PIVOT STUD 1/2-20 X 5/8
Price
N/A
103
FENCE HINGE
Price
N/A
104
SET SCREW 3/8-16 X 1-1/2 CONE-PT
Price
N/A
105
Now: PN08
HEX NUT 3/8-16
Price
N/A
106
TILT LEVER
Price
N/A
107
KNOB
Price
N/A
108
FLAT HD CAP SCR 5/16-18 X 1-5/8
Price
N/A
109
FENCE BRACKET
Price
N/A
110
FENCE STOP BRACKET
Price
N/A
111
SHOULDER BOLT 5/16-18 X 112, 3/8 X 3/4
Price
N/A
112
Now: PN19
HEX NUT 7/16-14
Price
N/A
113
STANDOFF STUD 7/16-14 X 1-1/4, 5/8-18,
Price
N/A
114
FENCE TILT CLAMP
Price
N/A
115
STOP TAB-90 DEG
Price
N/A
116
ROLL PIN 4 X 12
Price
N/A
117
SHOULDER BOLT 5/16-18 X 3/8, 1/4 X 3/8
Price
N/A
118
SWING STOP
Price
N/A
119
Now: PN09
HEX NUT 5/8-18
Price
N/A
120
FENCE TILT BUSHING
Price
N/A
121
FENCE CARRIAGE
Price
N/A
122
Now: PW01
FLAT WASHER 1/2
Price
N/A
123
FENCE LOCK 1/2-12 X 1-1/8
Price
N/A
124
FENCE TILT LOCK NUT 1/2-12
Price
N/A
125
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
126
Now: PN02
HEX NUT 5/16-18
Price
N/A
127
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
128
FENCE LOCK BRACKET
Price
N/A
129
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
130
Now: PW06
FLAT WASHER 1/4
Price
N/A
131
SUPPORT PIN 1/4 X 1/2 (PLASTIC)
Price
N/A
132
Now: PN01
HEX NUT 1/2-20
Price
N/A
133
Now: PW01
FLAT WASHER 1/2
Price
N/A
201

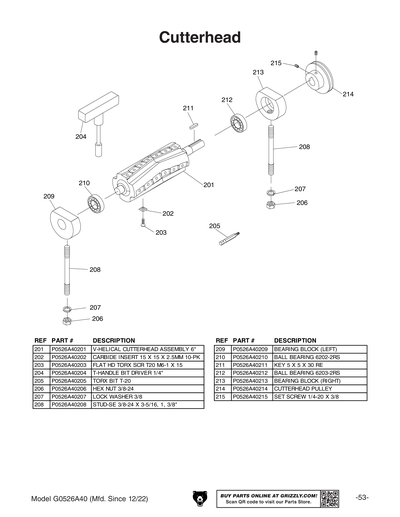

V-HELICAL CUTTERHEAD ASSEMBLY 6"
Price
N/A
202
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
203
FLAT HD TORX T20 M6-1 X 15
Price
N/A
204
T-HANDLE BIT DRIVER 1/4"
Price
N/A
205
Now: PBT01
TORX BIT T-20
Price
N/A
206
Now: PN11
HEX NUT 3/8-24
Price
N/A
207
Now: PLW04
LOCK WASHER 3/8
Price
N/A
208
STUD-SE 3/18-16 X 3-1/2, 3/4"
Price
N/A
209
BEARING BLOCK (LEFT)
Price
N/A
210
BALL BEARING 6202-2RS
Price
N/A
211
KEY 5 X 5 X 30 RE
Price
N/A
212
BALL BEARING 6203-2RS
Price
N/A
213
BEARING BLOCK (RIGHT)
Price
N/A
214
CUTTERHEAD PULLEY
Price
N/A
215
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
301

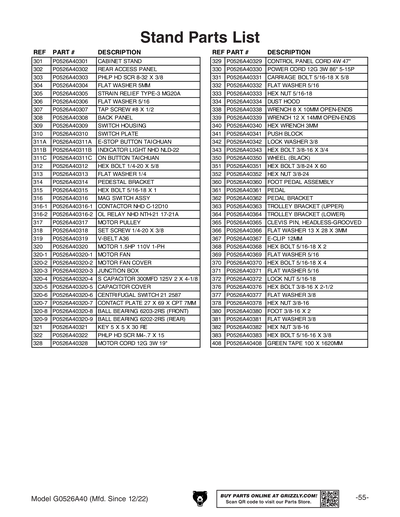

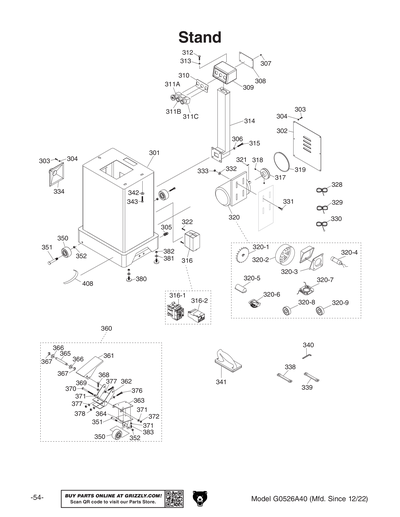

CABINET STAND
302
REAR ACCESS PANEL
303
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
304
Now: PW02M
FLAT WASHER 5MM
Price
N/A
305
STRAIN RELIEF TYPE-3 MG20A
306
Now: PW07
FLAT WASHER 5/16
Price
N/A
307
TAP SCREW #8 X 1/2
Price
N/A
308
BACK PANEL
309
SWITCH HOUSING
Price
N/A
310
SWITCH PLATE
311A
E-STOP BUTTON TAICHUAN
311B
INDICATOR LIGHT NHD NLD-22 110/220V
311C
ON BUTTON TAICHUAN 110/220V
312
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
313
Now: PW06
FLAT WASHER 1/4
Price
N/A
314
PEDESTAL BRACKET
315
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
316
MAG SWITCH ASSY 110V
316-1
CONTACTOR NHD C-09D 220V
Price
N/A
316-2
OL RELAY NHD NTH-21 17-21A
316X
MAG SWITCH ASSY 220V
316X-1
CONTACTOR NHD C-09D 220V
Price
N/A
316X-2
OL RELAY NHD NTH-11 8-11A
317
MOTOR PULLEY
Price
N/A
318
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
319
Now: PVA36
V-BELT A36
Price
N/A
320
MOTOR 1.5HP 110/220V 1-PH
320-1
MOTOR FAN
320-2
MOTOR FAN COVER
320-3
JUNCTION BOX
320-4
S CAPACITOR 300MFD 125V 2 X 4-1/8
320-5
CAPACITOR COVER
320-6
CENTRIFUGAL SWITCH 21 2587
320-7
CONTACT PLATE 27 X 69 X CPT 7MM
320-8
BALL BEARING 6203-2RS
Price
N/A
320-9
BALL BEARING 6202-2RS
Price
N/A
321
KEY 5 X 5 X 30 RE
Price
N/A
322
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
323
MOTOR MOUNT PLATE
328
MOTOR CORD 12G 3W 19" V1
328V2
MOTOR CORD 14G 3W 19" V2.03.23
329
CONTROL PANEL CORD 4W 47"
330
POWER CORD 12G 3W 86" 5-15P V1
330V2
POWER CORD 14G 3W 86" 5-15P V2.03.23
331
Now: PCB01
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
332
Now: PW07
FLAT WASHER 5/16
Price
N/A
333
Now: PN02
HEX NUT 5/16-18
Price
N/A
334
Now: W1001
Jointer Dust Hood
Price
N/A
338
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
339
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
340
HEX WRENCH 3MM
Price
N/A
341
PUSH BLOCK
Price
N/A
342
Now: PLW04
LOCK WASHER 3/8
Price
N/A
343
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
350
WHEEL (BLACK) V2.03.19
Price
N/A
351
HEX BOLT 3/8-24 X 60
352
Now: PN11
HEX NUT 3/8-24
Price
N/A
360
FOOT PEDAL ASSEMBLY V2.03.19
Price
N/A
361
PEDAL
Price
N/A
362
PEDAL BRACKET
Price
N/A
363
TROLLEY BRACKET (UPPER)
Price
N/A
364
TROLLEY BRACKET (LOWER)
365
CLEVIS PIN, HEADLESS-GROOVED
Price
N/A
366
*DISCD*FLAT WASHER 13 X 27 X 3MM
Price
N/A
367
E-CLIP 12MM
Price
N/A
368
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
369
Now: PW07
FLAT WASHER 5/16
Price
N/A
370
Now: PB121
HEX BOLT 5/16-18 X 4
Price
N/A
371
Now: PW07
FLAT WASHER 5/16
Price
N/A
372
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
376
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
377
Now: PW02
FLAT WASHER 3/8
Price
N/A
378
Now: PN08
HEX NUT 3/8-16
Price
N/A
380
FOOT 3/8-16 X 2
381
Now: PW02
FLAT WASHER 3/8
Price
N/A
382
Now: PN08
HEX NUT 3/8-16
Price
N/A
383
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
408
GREEN TAPE 100 X 1620MM
501

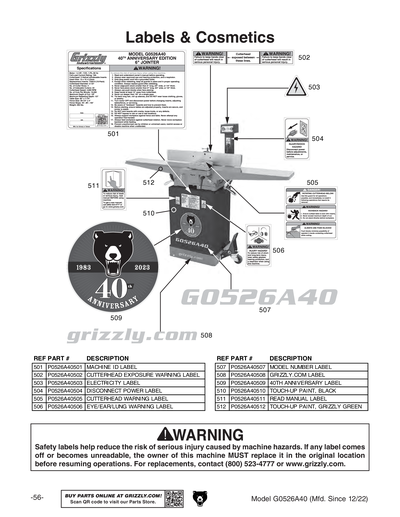

MACHINE ID LABEL V1
501V2
MACHINE ID LABEL V2.03.23
502
CUTTERHEAD EXPOSURE WARNING LABEL
Price
N/A
503
ELECTRICITY 1.4W X 1.2H
Price
N/A
504
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
505
CUTTERHEAD WARNING LABEL
506
EYE/EAR/LUNG 1.5W X 2.5H
Price
N/A
507
MODEL NUMBER LABEL
508
GRIZZLY.COM LABEL 6",GOLD
Price
N/A
509
40TH ANNIVERSARY LABEL
510
ANNIV EDITION BLACK REF G0555LANV
Price
N/A
511
READ MANUAL 1.5W X 2.5H
Price
N/A
512
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0526A40 11.22+ V1.11.22
