Parts for G0527 - 18" 5 HP Wide-Belt Sander

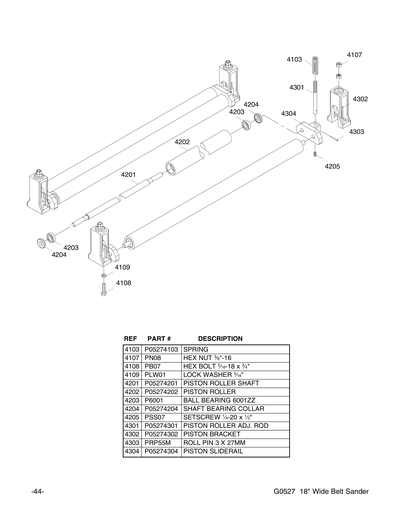

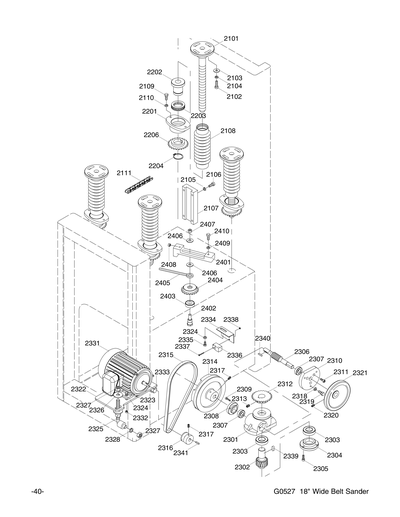

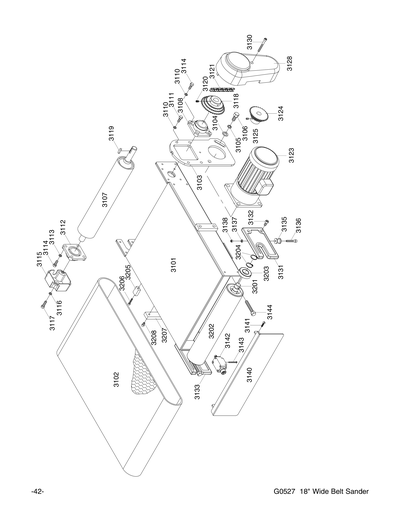

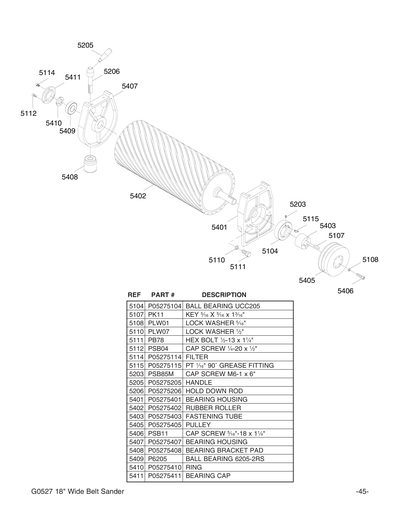

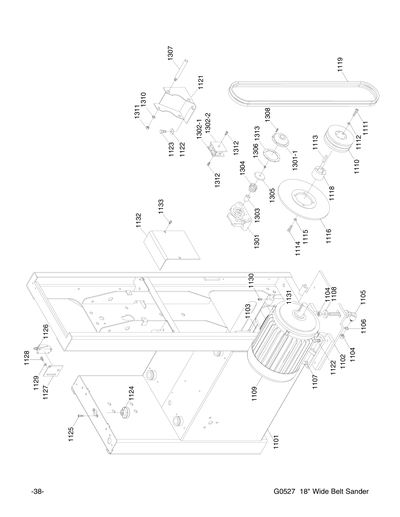

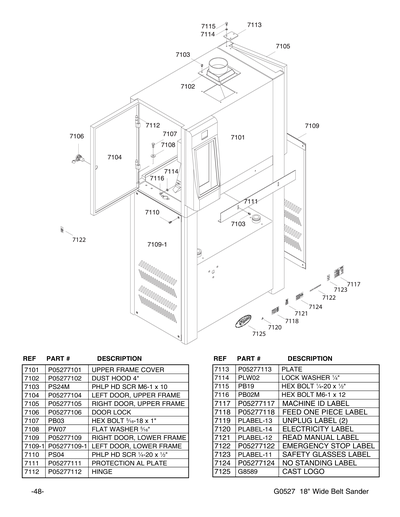

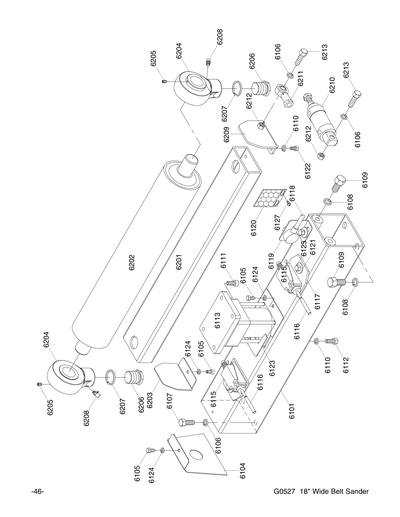

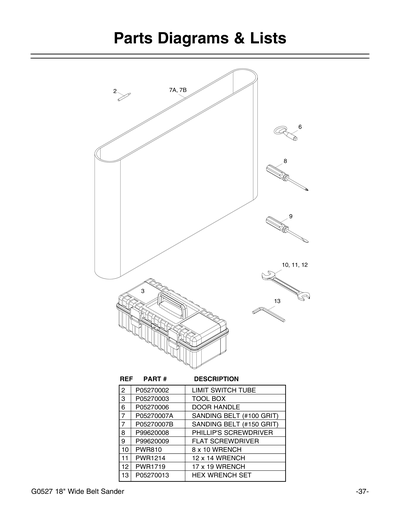

Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527
Part Diagram for G0527

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
LIMIT SWITCH CERAMIC TIP
Price
N/A
3
TOOL BOX
Price
N/A
6
DOOR HANDLE
Price
$25.90
7A
SANDING BELT #100
Price
$26.35
7B
SANDING BELT #150
Price
$24.85
8
PHLP HD SCREWDRIVER
Price
N/A
9
FLAT HD SCREWDRIVER
Price
N/A
10
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
11
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
12
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
13
HEX WRENCH SET
Price
$10.30

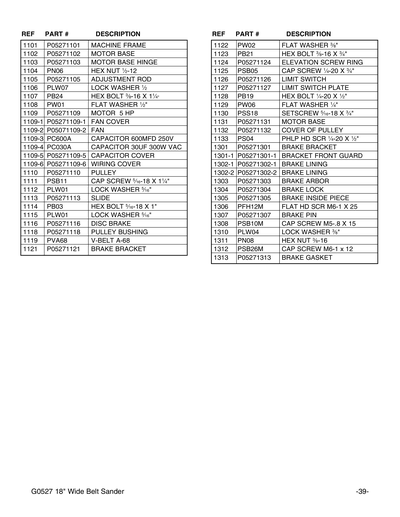

1101
MACHINE FRAME
Price
$1,277.55
1102
MOTOR BASE
Price
$116.55
1103
MOTOR BASE HINGE
Price
$4.30
1104
HEX NUT 1/2-12
Price
N/A
1105
ADJUSTMENT ROD
Price
$5.50
1106
LOCK WASHER 1/2
Price
N/A
1107
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
1108
FLAT WASHER 1/2
Price
N/A
1109
MOTOR 5HP 220V 1-PH
Price
$1,072.00
1109-1
FAN COVER
Price
$10.90
1109-2
FAN
Price
$6.05
1109-3
S CAPACITOR 600M 250V 1-3/4 X 3-3/4
Price
N/A
1109-4
R CAPACITOR 30M 300V 1-7/8 X 4
Price
N/A
1109-5
CAPACITOR COVER
Price
$6.70
1109-6
WIRING COVER
Price
$6.70
1110
PULLEY
Price
$115.95
1111
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
1112
LOCK WASHER 5/16
Price
N/A
1113
SLIDE
Price
$5.50
1114
HEX BOLT 5/16-18 X 1
Price
N/A
1115
LOCK WASHER 5/16
Price
N/A
1116
DISC BRAKE
Price
$296.50
1118
PULLEY BUSHING
Price
$50.75
1119
V-BELT A72
Price
N/A
1121
BRAKE BRACKET
Price
$50.75
1122
FLAT WASHER 3/8
Price
N/A
1123
HEX BOLT 3/8-16 X 3/4
Price
N/A
1124
FLAT HEAD NUT
Price
N/A
1125
CAP SCREW 1/4-20 X 3/4
Price
N/A
1126
LIMIT SWITCH
Price
N/A
1127
LIMIT SWITCH PLATE
Price
$13.60
1128
HEX BOLT 1/4-20 X 1/2
Price
N/A
1129
FLAT WASHER 1/4
Price
N/A
1130
SET SCREW 5/16-18 X 3/4
Price
N/A
1131
MOTOR BASE
Price
$12.10
1132
COVER OF PULLEY
Price
$50.75
1133
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
1301
BRAKE BRACKET
Price
$76.10
1301-1
BRACKET FRONT GUARD
Price
$26.00
1302-1
BRAKE LINING
Price
$35.05
1302-2
BRAKE LINING
Price
$35.05
1303
BRAKE ARBOR
Price
$26.00
1304
BRAKE SPRING 3.3 X 24.5 X 24
Price
N/A
1305
BRAKE ARBOR PLATE
Price
N/A
1306
FLAT HD SCR M6-1 X 25
Price
N/A
1307
BRAKE PIN
Price
$10.30
1308
CAP SCREW M5-.8 X 15
Price
N/A
1310
LOCK WASHER 3/8
Price
N/A
1311
HEX NUT 3/8-16
Price
N/A
1312
CAP SCREW M6-1 X 12
Price
N/A
1313
BRAKE GASKET
Price
$13.60

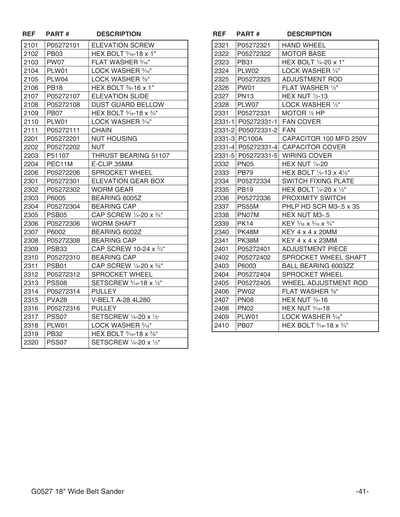

2101
ELEVATION SCREW 1 X 5 X 280
Price
N/A
2102
HEX BOLT 5/16-18 X 1
Price
N/A
2103
FLAT WASHER 5/16
Price
N/A
2104
LOCK WASHER 5/16
Price
N/A
2105
LOCK WASHER 3/8
Price
N/A
2106
HEX BOLT 3/8-16 X 3/4
Price
N/A
2107
ELEVATION SLIDE
Price
N/A
2108
DUST GUARD BELLOW
Price
$52.95
2109
HEX BOLT 5/16-18 X 3/4
Price
N/A
2110
LOCK WASHER 5/16
Price
N/A
2111
CHAIN
Price
$76.10
2201
SPROCKET SHAFT HOUSING
Price
N/A
2202
SPROCKET SHAFT
Price
N/A
2203
THRUST BEARING 51107
Price
N/A
2204
E-CLIP 35MM
Price
N/A
2206
LEADSCREW SPROCKET 24T
Price
N/A
2301
ELEVATION GEAR BOX
Price
$100.90
2302
WORM GEAR
Price
$51.35
2303
BALL BEARING 6005Z
Price
N/A
2304
BEARING CAP
Price
$40.50
2305
CAP SCREW 1/4-20 X 3/4
Price
N/A
2306
WORM SHAFT
Price
$47.45
2307
BALL BEARING 6002Z
Price
N/A
2308
BEARING CAP
Price
$40.50
2309
CAP SCREW 10-24 X 3/4
Price
N/A
2310
BEARING CAP
Price
$50.75
2311
CAP SCREW 1/4-20 X 3/4
Price
N/A
2312
SPROCKET WHEEL
Price
N/A
2313
SET SCREW 5/16-18 X 1/2
Price
N/A
2314
PULLEY
Price
$76.10
2315
V-BELT A28
Price
N/A
2316
PULLEY
Price
$45.90
2317
SET SCREW 1/4-20 X 1/2
Price
N/A
2318
LOCK WASHER 5/16
Price
N/A
2319
HEX BOLT 5/16-18 X 5/8
Price
N/A
2320
SET SCREW 1/4-20 X 1/2
Price
N/A
2321
HAND WHEEL
Price
$68.85
2322
MOTOR BASE
Price
$58.00
2323
HEX BOLT 1/4-20 X 1
Price
N/A
2324
LOCK WASHER 1/4
Price
N/A
2325
ADJUSTMENT ROD
Price
$5.50
2326
FLAT WASHER 1/2
Price
N/A
2327
HEX NUT 1/2-12
Price
N/A
2328
LOCK WASHER 1/2
Price
N/A
2331
TABLE ELV MOTOR 1/3HP 220V 1-PH
Price
N/A
2331-1
MOTOR FAN COVER
Price
N/A
2331-2
FAN
Price
$6.05
2331-3
S CAPACITOR 100M 250V 1-3/8 X 3
Price
N/A
2331-4
CAPACITOR COVER
Price
$4.85
2331-5
WIRING COVER
Price
$4.85
2332
HEX NUT 1/4-20
Price
N/A
2333
HEX BOLT 1/2-13 X 4-1/2
Price
N/A
2334
PROXIMITY SWITCH PLATE
Price
N/A
2335
HEX BOLT 1/4-20 X 1/2
Price
N/A
2336
PROXIMITY SWITCH
Price
N/A
2337
PHLP HD SCR M3-.5 X 10
Price
N/A
2338
HEX NUT M3-.5
Price
N/A
2339
KEY 5 X 5 X 18
Price
N/A
2340
KEY 4 X 4 X 20
Price
N/A
2341
KEY 4 X 4 X 22
Price
N/A
2401
ADJUSTMENT PIECE
Price
$179.35
2402
SPROCKET SHAFT
Price
N/A
2403
Bearing - 35mm x 17mm
Price
N/A
2404
SPROCKET WHEEL
Price
N/A
2405
WHEEL ADJUSTMENT ROD
Price
$13.50
2406
FLAT WASHER 3/8
Price
N/A
2407
HEX NUT 3/8-16
Price
N/A
2408
HEX NUT 5/16-18
Price
N/A
2409
LOCK WASHER 5/16
Price
N/A
2410
HEX BOLT 5/16-18 X 3/4
Price
N/A

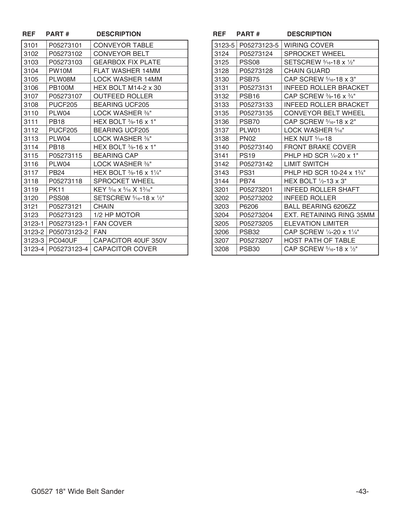

3101
CONVEYOR TABLE
Price
$660.55
3102
CONVEYOR BELT
Price
$329.50
3103
GEARBOX FIX PLATE
Price
$110.55
3104
FLAT WASHER 14MM
Price
N/A
3105
LOCK WASHER 14MM
Price
N/A
3106
HEX BOLT M14-2 X 100
Price
N/A
3107
OUTFEED ROLLER
Price
$1,013.10
3108
MOUNTED BEARING UCF205
Price
N/A
3110
LOCK WASHER 3/8
Price
N/A
3111
HEX BOLT 3/8-16 X 1
Price
N/A
3112
MOUNTED BEARING UCF205
Price
N/A
3113
LOCK WASHER 3/8
Price
N/A
3114
HEX BOLT 3/8-16 X 1
Price
N/A
3115
BEARING CAP
Price
$3.05
3116
LOCK WASHER 3/8
Price
N/A
3117
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
3118
SPROCKET WHEEL
Price
$40.50
3119
KEY 5/16 X 5/16 X 1-3/16
Price
N/A
3120
SET SCREW 5/16-18 X 1/2
Price
N/A
3121
CHAIN
Price
$60.40
3123
MOTOR 1/2HP 220V 1-PH
Price
$525.30
3123-1
FAN COVER
Price
$13.30
3123-2
FAN
Price
$6.05
3123-3
R CAPACITOR 40M 250V 1-3/16 X 2-3/8
Price
N/A
3123-4
CAPACITOR COVER
Price
$21.75
3123-5
WIRING COVER
Price
$102.25
3124
FEED MOTOR SPROCKET
Price
N/A
3125
SET SCREW 5/16-18 X 1/2
Price
N/A
3128
CHAIN GUARD
Price
$169.70
3130
CAP SCREW 5/16-18 X 3
Price
N/A
3131
INFEED ROLLER BRACKET
Price
N/A
3132
CAP SCREW 3/8-16 X 3/4
Price
N/A
3133
INFEED ROLLER BRACKET
Price
$76.10
3135
CONVEYOR BELT WHEEL
Price
$26.00
3136
CAP SCREW 5/16-18 X 2
Price
N/A
3137
LOCK WASHER 5/16
Price
N/A
3138
HEX NUT 5/16-18
Price
N/A
3140
BRAKE COVER FRONT
Price
$222.85
3141
PHLP HD SCR 1/4-20 X 1
Price
N/A
3142
LIMIT SWITCH
Price
N/A
3143
PHLP HD SCR 10-24 X 1-3/4
Price
N/A
3144
HEX BOLT 1/2-13 X 3
Price
N/A
3201
INFEED ROLLER SHAFT
Price
$371.35
3202
INFEED ROLLER
Price
$628.50
3203
BALL BEARING 6205-2RS
Price
N/A
3204
EXT RETAINING RING 35MM
Price
N/A
3205
ELEVATION LIMITER
Price
$50.75
3206
CAP SCREW 1/4-20 X 1-1/4
Price
N/A
3207
HOST PATH OF TABLE
Price
$26.00
3208
CAP SCREW 5/16-18 X 1/2
Price
N/A
4103
SPRING 3 X 15.6 X 57
Price
$9.80
4107
HEX NUT 3/8-16
Price
N/A
4108
CAP SCREW 5/16-18 X 3/4
Price
N/A
4109
LOCK WASHER 5/16
Price
N/A
4201
PISTON ROLLER SHAFT
Price
$43.50
4202
PISTON ROLLER
Price
$256.65
4203
BALL BEARING 6001ZZ
Price
N/A
4204
SHAFT BEARING COLLER
Price
$13.30
4205
SET SCREW 1/4-20 X 1/2
Price
N/A
4301
GUIDE STUD-SE 3/8-16 X 4-5/16 1-3/8
Price
N/A
4302
PISTON BRACKET
Price
$76.95
4303
ROLL PIN 3 X 27
Price
N/A
4304
PISTON SLIDE RAIL
Price
$35.65
5104
CARTRIDGE BEARING UCC205
Price
N/A
5107
KEY 5/16 X 5/16 X 1-3/16
Price
N/A
5108
LOCK WASHER 5/16
Price
N/A
5110
LOCK WASHER 1/2
Price
N/A
5111
HEX BOLT 1/2-13 X 1-1/4
Price
N/A
5112
CAP SCREW 1/4-20 X 1/2
Price
N/A
5114
FILTER
Price
$3.05
5115
GREASE FITTING 1/16"PT 90DEG
Price
$3.05
5203
CAP SCREW M6-1 X 6
Price
N/A
5205
HANDLE
Price
$34.20
5206
HOLD DOWN ROD
Price
$18.05
5401
BEARING HOUSING
Price
$193.20
5402
RUBBER ROLLER
Price
$1,283.00
5403
FASTENING TUBE
Price
$60.40
5405
PULLEY
Price
$121.40
5406
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
5407
BEARING HOUSING
Price
$417.80
5408
BEARING BRACKET PAD
Price
$301.90
5409
BALL BEARING 6205-2RS
Price
N/A
5410
RING
Price
$3.05
5411
BEARING CAP
Price
$30.85

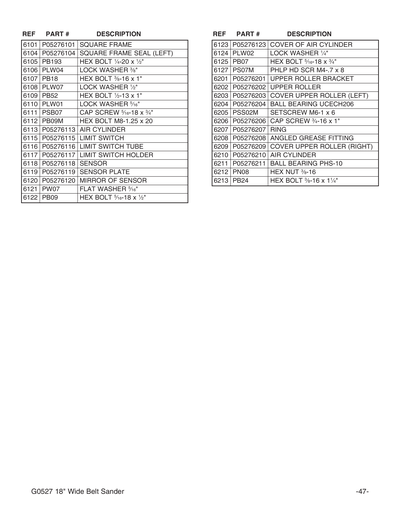

6101
SQUARE FRAME
Price
$115.95
6104
SQUARE FRAME SEAL LEFT
Price
$40.50
6105
HEX BOLT 1/4-20 X 1/2
Price
N/A
6106
LOCK WASHER 3/8
Price
N/A
6107
HEX BOLT 3/8-16 X 1
Price
N/A
6108
LOCK WASHER 1/2
Price
N/A
6109
HEX BOLT 1/2-13 X 1
Price
N/A
6110
LOCK WASHER 5/16
Price
N/A
6111
CAP SCREW 5/16-18 X 3/4
Price
N/A
6112
HEX BOLT M8-1.25 X 20
Price
N/A
6113
AIR CYLINDER
Price
$404.25
6115
LIMIT SWITCH CERAMIC ASSY
Price
N/A
6116
LIMIT SWITCH CERAMIC TIP
Price
N/A
6117
LIMIT SWITCH HOLDER
Price
$13.30
6118
SENSOR (ELECTRONIC EYE) V1
Price
$293.85
6118V2
PHOTOELECTRIC SENSOR-BANNER V2.04.10
Price
$407.55
6119
SENSOR PLATE
Price
$13.30
6120
MIRROR OF SENSOR
Price
$56.20
6121
FLAT WASHER 5/16
Price
N/A
6122
HEX BOLT 5/16-18 X 1/2
Price
N/A
6123
COVER OF AIR CYLINDER
Price
$40.50
6124
LOCK WASHER 1/4
Price
N/A
6125
HEX BOLT 5/16-18 X 3/4
Price
N/A
6127
PHLP HD SCR M4-.7 X 8
Price
N/A
6201
ROLLER BRACKET UPPER
Price
$120.75
6202
ROLLER UPPER
Price
$426.50
6203
COVER UPPER ROLLER LEFT
Price
$35.65
6204
BALL BEARING UCECH206
Price
$67.40
6205
SET SCREW M6-1 X 6
Price
N/A
6206
CAP SCREW 3/4-16 X 1
Price
$2.30
6207
LOCK WASHER 1"
Price
N/A
6208
ANGLED GREASE FITTING
Price
$4.60
6209
COVER UPPER ROLLER RIGHT
Price
$35.65
6210
AIR CYLINDER
Price
$111.20
6211
BALL BEARING PHS-10
Price
$18.75
6212
HEX NUT 3/8-16
Price
N/A
6213
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
7101
FRAME COVER UPPER V1
Price
$1,189.40
7101V2
FRAME COVER UPPER V2.01.22
Price
$1,470.75
7102
DUST HOOD 4"
Price
$22.50
7103
PHLP HD SCR M6-1 X 10
Price
N/A
7104
DOOR LEFT UPPER FRAME
Price
$371.35
7105
DOOR RIGHT UPPER FRAME
Price
$394.30
7106
DOOR LOCK (SQUARE KEY)
Price
N/A
7107
HEX BOLT 5/16-18 X 1
Price
N/A
7108
FLAT WASHER 5/16
Price
N/A
7109
DOOR RIGHT LOWER FRAME
Price
$394.30
7109-1
DOOR LEFT LOWER FRAME
Price
$371.35
7110
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
7111
PROTECTION AL PLATE
Price
$60.40
7112
HINGE
Price
$10.30
7113
PLATE
Price
$15.70
7114
LOCK WASHER 1/4
Price
N/A
7115
HEX BOLT 1/4-20 X 1/2
Price
N/A
7116
HEX BOLT M6-1 X 12
Price
N/A
7117
MACHINE ID LABEL
Price
$16.40
7118
FEED ONE PIECE LABEL
Price
$24.15
7119
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
7120
ELECTRICITY 1.4W X 1.2H
Price
N/A
7121
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
7122
EMERGENCY STOP LABEL
Price
$2.10
7123
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
7124
NO STANDING LABEL
Price
$2.65
7125
Nameplate - Large
Price
N/A

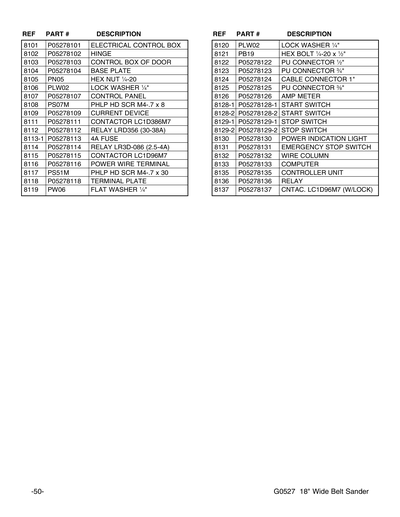

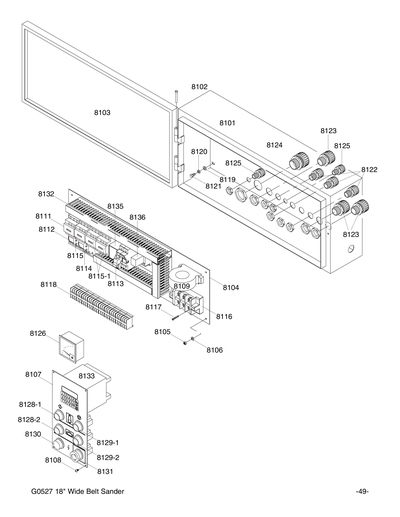

8101
ELECTRICAL CONTROL BOX
Price
$140.70
8102
HINGE
Price
$10.30
8103
CONTROL BOX OF DOOR
Price
$50.75
8104
BASE PLATE
Price
$80.95
8105
HEX NUT 1/4-20
Price
N/A
8106
LOCK WASHER 1/4
Price
N/A
8107
CONTROL PANEL
Price
N/A
8108
PHLP HD SCR M4-.7 X 8
Price
N/A
8109
CURRENT DEVICE
Price
$35.65
8111
CONTACTOR TELE LC1D386M7 220V
Price
$163.30
8112
OL RELAY SCHN LR3D32 23-32A
Price
N/A
8113
***USE P0539013***
Price
$57.50
8113V2
FUSE 4A V2.03.10
Price
N/A
8114
OL RELAY TELE LR3D086 2.5-4A 220V
Price
$38.50
8115
CONTACTOR TELE LC1D096 220V
Price
$45.45
8115-1
CONTACTOR TELE LC1096 220V W/LOC
Price
$82.75
8116
POWER WIRE TERMINAL 4P100A TEND V1.06.03
Price
$71.90
8116V2
POWER WIRE TERMINAL ENTRELEC V2.05.10
Price
$129.25
8117
PHLP HD SCR M4-.7 X 30
Price
N/A
8118
TERMINAL PLATE V1.06.03
Price
$119.55
8118V2
TERMINAL BLOCK V2.05.10
Price
$227.65
8119
FLAT WASHER 1/4
Price
N/A
8120
LOCK WASHER 1/4
Price
N/A
8121
HEX BOLT 1/4-20 X 1/2
Price
N/A
8122
PU CONNECTOR 1/2"
Price
$4.30
8123
PU CONNECTOR 3/4"
Price
$3.65
8124
CABLE CONNECTOR 1"
Price
$5.50
8125
PU CONNECTOR 3/8"
Price
$3.05
8126
AMP METER
Price
$88.00
8128-1
START SWITCH
Price
N/A
8128-2
START SWITCH
Price
$33.60
8129-1
E-STOP BUTTON 250V 10A
Price
N/A
8129-2
E-STOP BUTTON 250V 10A
Price
N/A
8130
POWER INDICATOR LIGHT 220V 22MM WHT
Price
N/A
8131
E-STOP BUTTON 250V 10A
Price
$35.95
8132
WIRE COLUMN
Price
$115.95
8133
COMPUTER W/CONTROL PANEL
Price
N/A
8135
CONTROLLER UNIT
Price
$71.00
8136
*DISCD*RELAY IDEC RU4S-NF-A220 V1.06.03
Item is no longer available
Price
N/A
8136V2
RELAY TELE RXM4-AB1-P7 V2.05.10
Price
$23.55
8138
*DISCD*OL RELAY SCHN LT47 5-60A
Price
N/A

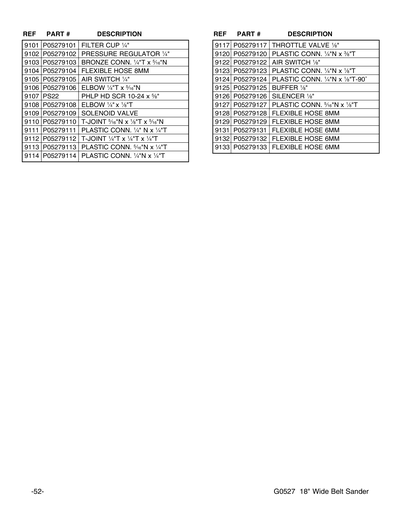

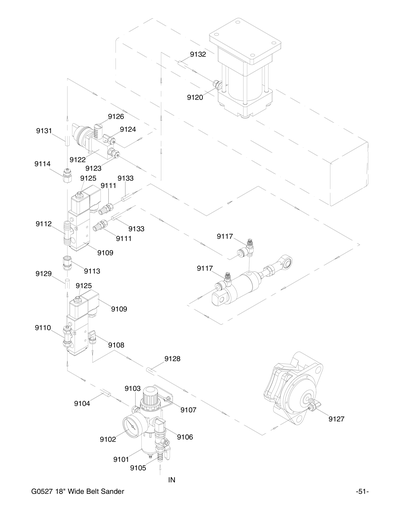

9101
PRESSURE REGULATOR W/FILTER CUP 1/4" NPT
Price
N/A
9102
PRESSURE REGULATOR W/FILTER CUP 1/4" NPT
Price
$179.65
9103
CONNECTOR 1/4 X 5/16" BRONZE
Price
$4.35
9104
FLEXIBLE HOSE 8 X 950MM V1
Price
$4.60
9104V2
FLEXIBLE HOSE 8 X 1310MM V2.03.17
Price
$4.60
9105
AIR SWITCH 1/4"
Price
$17.25
9106
ELBOW 1/4"T X 1/4"T
Price
$4.60
9107
PHLP HD SCR 10-24 X 5/8
Price
N/A
9108
ELBOW 1/4"N X 1/8"T
Price
$10.30
9109
SOLENOID VALVE NEUMA NVA-6521
Price
N/A
9110
T-JOINT 5/16"N X 1/8"T X 5/16"N
Price
$4.60
9111
CONNECTOR 1/4"N X 1/4"T BRONZE
Price
$4.60
9112
T-JOINT 1/4"T X 1/4"T X 1/4"T
Price
$8.65
9113
CONNECTOR 5/16"N X 1/4"T BRONZE
Price
$4.85
9114
CONNECTOR 1/4"N X 1/4"T BRONZE
Price
$4.60
9115
ELBOW 1/4"T X 1/4"T
Price
$4.85
9117
THROTTLE VALVE 1/8"
Price
$40.45
9120
CONNECTOR 1/4"N X 3/8"T BRONZE
Price
$4.60
9122
AIR SWITCH
Price
N/A
9123
***USE P0539518***
Price
N/A
9124
CONNECTOR 1/4"N X 1/8"T 90-DEG BRONZE
Price
$4.35
9125
BUFFER 1/8" BRONZE
Price
$8.60
9126
SILENCER 1/8" PLASTIC
Price
$10.30
9127
CONNECTOR 5/16"N X 1/8"T 90-DEG BRONZE
Price
$4.30
9128
FLEXIBLE HOSE 8 X 810MM V1
Price
$4.60
9128V2
FLEXIBLE HOSE 8 X 790MM V2.03.17
Price
$4.55
9129
FLEXIBLE HOSE 8 X 810MM V1
Price
$4.60
9129V2
FLEXIBLE HOSE 8 X 165MM V2.03.17
Price
$4.85
9131
FLEXIBLE HOSE 6 X 1480MM V1
Price
$4.55
9131V2
FLEXIBLE HOSE 6 X 1950MM V2.03.17
Price
$4.85
9132
FLEXIBLE HOSE 6 X 450MM
Price
$4.60
9133
FLEXIBLE HOSE 6 X 810MM V1
Price
$4.55
9133V2
FLEXIBLE HOSE 6 X 1020MM V2.03.17
Price
$4.60
9134
FLEXIBLE HOSE 6 X 1250MM
Price
$4.85
9135
CONNECTOR 1/8T X 1/4N
Price
$4.35
9136
CONNECTOR 1/8 X 4 W/CASING
Price
$4.35
9137
CONNECTOR 1/4N X 1/8T
Price
$4.85
AIRKIT
BLOWING DUST RETROFIT KIT
Price
$45.10
MANUAL
MANUAL FOR G0527 06/03
Price
$14.65
P
R CAPACITOR 40M 250V 1-3/16 X 2-3/8
Price
$28.70
