Parts for G0529 - 1 HP Oscillating Spindle / 12" Disc Sander

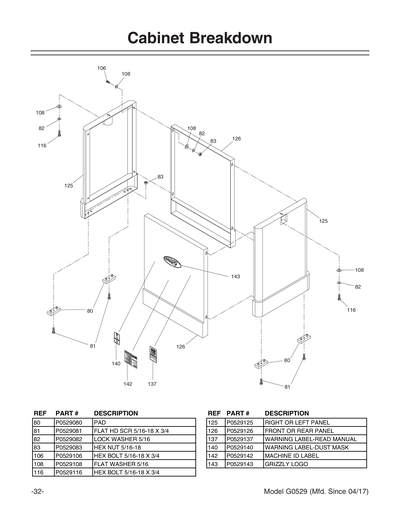

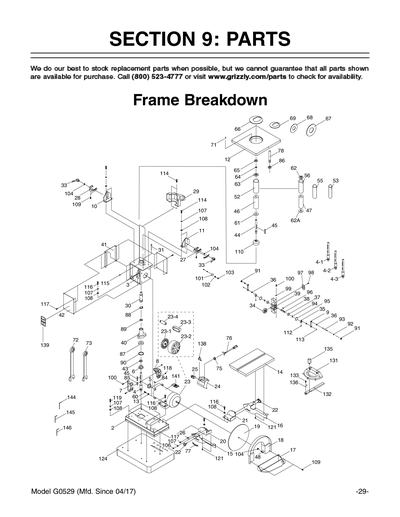

Part Diagram for G0529
Part Diagram for G0529
Part Diagram for G0529
Part Diagram for G0529
Part Diagram for G0529
Part Diagram for G0529
Part Diagram for G0529
Part Diagram for G0529

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

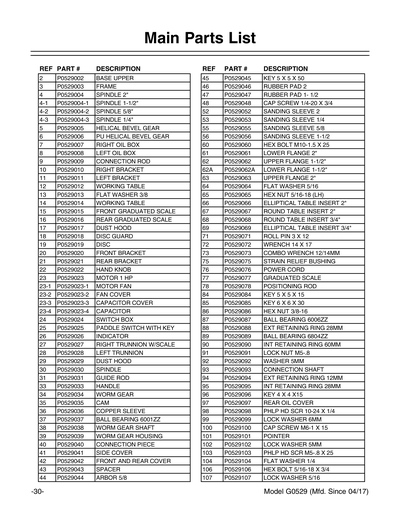

Ref #
Part #
Description
2
BASE UPPER
Price
$34.80
3
FRAME
Price
N/A
3-1
FRAME
Price
$114.45
4
MAIN ARBOR SHAFT
Price
$144.30
4-1
SPINDLE 1-1/2" ASSY
Price
N/A
4-2
SPINDLE 5/8" ASSY
Price
N/A
4-3
SPINDLE 1/4" ASSY
Price
N/A
5
HELICAL BEVEL GEAR
Price
$37.00
6
PU HELICAL BEVEL GEAR
Price
$60.60
7
OIL BOX RIGHT
Price
$4.35
8
OIL BOX LEFT
Price
$4.35
9
CONNECTION ROD
Price
$3.95
10
BRACKET RIGHT
Price
$11.75
11
BRACKET LEFT
Price
$10.60
12
WORKING TABLE
Price
$202.90
13
P0529013
Now: PW02
FLAT WASHER 3/8
Price
N/A
14
WORKING TABLE
Price
$143.45
15
GRADUATED SCALE FRONT
Price
$25.10
16
GRADUATED SCALE REAR
Price
$25.10
17
DUST HOOD
Price
$12.40
18
DISC GUARD
Price
$9.75
19
DISC
Price
$87.10
20
BRACKET FRONT
Price
$13.05
21
BRACKET REAR
Price
$6.80
22
LOCK HANDLE M6-1 X 16
Price
$9.15
23
MOTOR 1HP 110V 1-PH
Price
$618.20
23-1
MOTOR FAN
Price
$5.15
23-2
FAN COVER
Price
$7.60
23-3
CAPACITOR COVER
Price
$19.55
23-4
S CAPACITOR 300M 125V 2-11/16 X 1-3/8
Price
$42.00
23-5
R CAPACITOR 45M 250V 2-3/8 X 1-5/8
Price
$39.10
24
SWITCH BOX
Price
$11.20
25
Safety Paddle Switch
Price
N/A
26
INDICATOR
Price
$3.05
27
RIGHT TRUNNION W/SCALE
Price
$4.85
28
LEFT TRUNNION
Price
$6.50
29
DUST HOOD
Price
$7.60
30
SPINDLE
Price
$52.30
31
GUIDE ROD
Price
$3.95
32
SET SCREW 1/4-20 X 1/4
Price
N/A
33
HANDLE
Price
$5.60
34
WORM GEAR
Price
$27.70
35
CAM
Price
$3.40
36
SLEEVE COPPER
Price
$1.60
37
BALL BEARING 6001ZZ
Price
N/A
38
WORM GEAR SHAFT
Price
$4.85
39
WORM GEAR HOUSING
Price
$16.65
40
CONNECTION PIECE
Price
$32.35
41
SIDE COVER
Price
$8.50
42
COVER FRONT & REAR
Price
$8.50
43
SPACER
Price
$4.60
44
ARBOR 5/8
Price
$29.65
44-1
SPINDLE 1/4" ASSY
Price
$29.75
44-2
SPINDLE 5/8" ASSY
Price
$37.85
44-3
SPINDLE 1-1/2" ASSY
Price
$83.10
44-4
SPINDLE 2" ASSY
Price
$74.90
45
KEY 5 X 5 X 50
Price
N/A
46
RUBBER DRUM W/SANDING SLEEVE 2"
Price
N/A
46A
RUBBER DRUM W/SANDING SLEEVE 2"
Price
$106.90
47
RUBBER DRUM W/SANDING SLEEVE 1-1/2"
Price
N/A
47A
RUBBER DRUM W/SANDING SLEEVE 1-1/2"
Price
$79.15
48
CAP SCREW 1/4-20 X 3/4
Price
N/A
50
ARBOR 1/4
Price
$30.40
52
SANDING SLEEVE 2
Price
$13.95
53
SANDING SLEEVE 1/4
Price
$10.00
55
SANDING SLEEVE 5/8
Price
$10.65
56
SANDING SLEEVE 1-1/2
Price
$11.20
59
HOLD DOWN PLATE 1/4
Price
$1.60
60
HEX BOLT M10-1.5 X 25
Price
N/A
61
FLANGE LOWER 2"
Price
$3.30
62
FLANGE UPPER 1-1/2"
Price
$2.45
62A
FLANGE LOWER 2"
Price
N/A
63
FLANGE UPPER 2"
Price
$4.50
64
P0529064
Now: PW07
FLAT WASHER 5/16
Price
N/A
65
P0529065
Now: PN35
HEX NUT 5/16-18 LH
Price
N/A
66
ELLIPTICAL TABLE INSERT 2"
Price
$33.85
67
ROUND TABLE INSERT 2"
Price
$8.50
68
TABLE INSERT ROUND 3/4
Price
$15.45
69
ELLIPTICAL TABLE INSERT 3/4"
Price
$10.15
71
ROLL PIN 3 X 12
Price
N/A
72
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
73
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
75
STRAIN RELIEF BUSHING
Price
$1.60
76
POWER CORD 16G X 3W 73"L
Price
N/A
77
GRADUATED SCALE
Price
$1.60
78
POSITIONING ROD
Price
$4.10
79
LOCK WASHER 5/16
Price
N/A
80
PAD
Price
$1.60
81
FLAT HD SCR 5/16-18 X 3/4
Price
N/A
82
LOCK WASHER 5/16
Price
N/A
83
P0529083
Now: PN02
HEX NUT 5/16-18
Price
N/A
84
KEY 5 X 5 X 15
Price
N/A
85
KEY 6 X 6 X 30
Price
N/A
86
P0529086
Now: PN08
HEX NUT 3/8-16
Price
N/A
87
BALL BEARING 6006ZZ
Price
N/A
88
EXT RETAINING RING 28MM
Price
N/A
89
BALL BEARING 6804ZZ
Price
N/A
90
INT RETAINING RING 60MM
Price
N/A
91
LOCK NUT M5-.8
Price
N/A
92
FLAT WASHER 5MM
Price
N/A
93
CONNECTION SHAFT
Price
$2.75
94
EXT RETAINING RING 12MM
Price
N/A
95
INT RETAINING RING 28MM
Price
N/A
96
KEY 4 X 4 X 15
Price
N/A
97
OIL COVER REAR
Price
$2.70
98
P0529098
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
99
LOCK WASHER 6MM
Price
N/A
100
CAP SCREW M6-1 X 15
Price
N/A
101
POINTER
Price
$1.60
102
LOCK WASHER 5MM
Price
N/A
103
PHLP HD SCR M5-.8 X 25
Price
N/A
104
P0529104
Now: PW06
FLAT WASHER 1/4
Price
N/A
106
P0529106
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
107
LOCK WASHER 5/16
Price
N/A
108
P0529108
Now: PW07
FLAT WASHER 5/16
Price
N/A
109
CAP SCREW M5-.8 X 12
Price
N/A
110
COVER
Price
$2.10

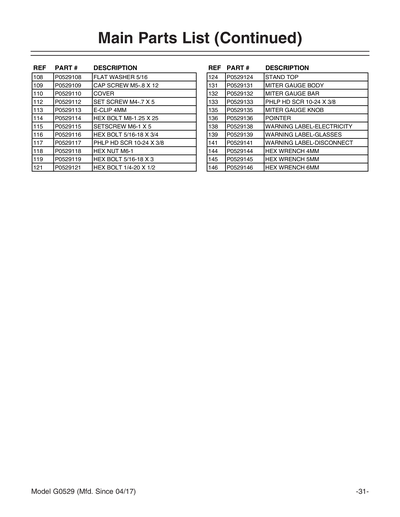

112
SET SCREW M4-.7 X 5
Price
N/A
113
E-CLIP 4MM
Price
N/A
114
HEX BOLT M8-1.25 X 25
Price
N/A
115
SET SCREW M6-1 X 6
Price
N/A
116
P0529116
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
117
P0529117
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
118
HEX NUT M6-1
Price
N/A
119
P0529119
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
120
LOCK NUT 5/16-18
Price
N/A
121
P0529121
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
123
CARTON FOR G0529
Price
$28.10
124
STAND TOP
Price
$68.25
125
PANEL RIGHT OR LEFT
Price
$80.35
126
PANEL FRONT OR REAR
Price
$50.15
127
Bearing - 35mm x 17mm
Price
N/A
128
COMPLETE CABINET
Price
$440.20
129
SANDING PAPER #100
Price
$7.90
131
MITER GAUGE BODY
Price
$27.80
132
MITER GAUGE BAR
Price
$17.25
133
P0529133
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
135
MITER GAUGE KNOB
Price
$4.60
136
POINTER
Price
$1.85
137
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
138
ELECTRICITY 1.4W X 1.2H
Price
N/A
139
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
140
DUST MASK 2W X 3.3H V1
Price
N/A
141
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
142
MACHINE ID LABEL
Price
$16.40
143
Nameplate - Small
Price
N/A
MANUAL
MANUAL FOR G0529 09/03
Price
$14.65
