Parts for G0531B - 21" 5 HP Industrial Bandsaw w/ Brake

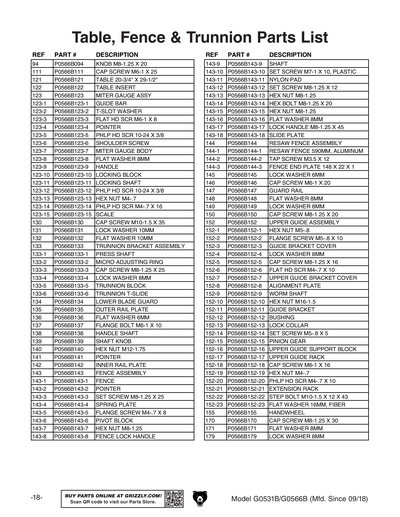

Part Diagram for G0531B

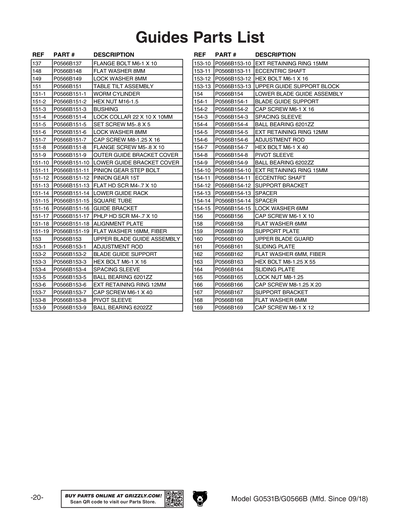

Part Diagram for G0531B

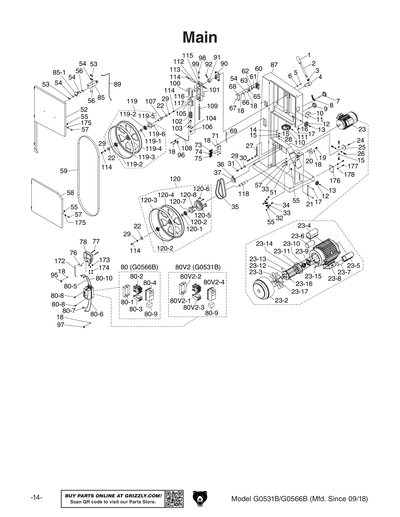

Part Diagram for G0531B

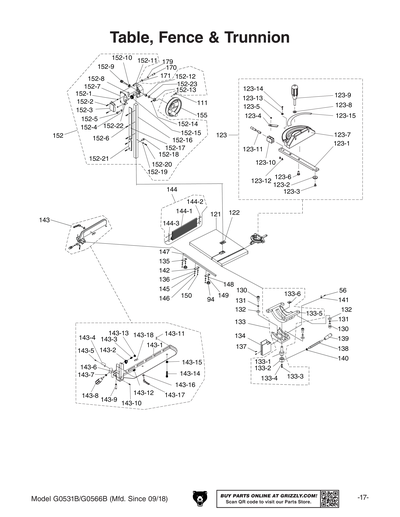

Part Diagram for G0531B

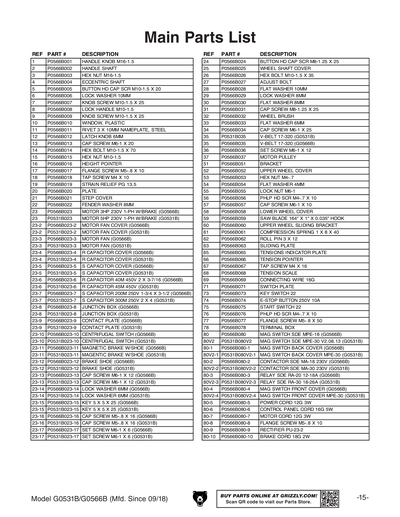

Part Diagram for G0531B

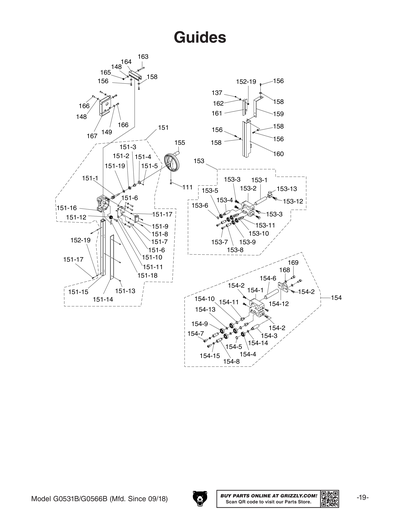

Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B
Part Diagram for G0531B

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HANDLE SLEEVE
Price
N/A
2
HANDLE SHAFT 470MM M16-2
Price
N/A
3
HEX NUT M16-1.5
Price
N/A
4
ECCENTRIC SHAFT
Price
N/A
5
BUTTON HD CAP SCR M10-1.5 X 20
Price
N/A
6
LOCK WASHER 10MM
Price
N/A
7
KNOB BOLT M10-1.5 X 55, 6-LOBE, D62
Price
N/A
8
LOCK LEVER M10-1.5
Price
N/A
9
KNOB BOLT M10-1.5 X 55, 6-LOBE, D62
Price
N/A
10
CLEAR WINDOW
Price
N/A
11
RIVET 3 X 10MM NAMEPLATE, STEEL
Price
N/A
12
***USE P0513060***
Price
N/A
13
CAP SCREW M6-1 X 20
Price
N/A
14
HEX BOLT M10-1.5 X 70
Price
N/A
15
HEX NUT M10-1.5
Price
N/A
16
HEIGHT POINTER
Price
N/A
17
FLANGE SCREW M5-.8 X 10
Price
N/A
18
TAP SCREW M4 X 10
Price
N/A
19
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
20
STRAIN RELIEF PLATE
Price
N/A
21
STEP COVER
Price
N/A
22
FENDER WASHER 8MM
Price
N/A
23
MOTOR 5HP 230V 1-PH W/BRAKE
Price
$1,442.35
23-10
MOTOR 3HP 230V 1-PH W/BRAKE
Price
N/A
23-11
MAGNETIC BRAKE W/SHOE
Price
N/A
23-12
MAGNETIC BRAKE W/SHOE
Price
N/A
23-13
CAP SCREW M6-1 X 12
Price
N/A
23-14
LOCK WASHER 6MM
Price
N/A
23-15
KEY 5 X 5 X 25
Price
N/A
23-16
CAP SCREW M5-.8 X 16
Price
N/A
23-17
SET SCREW M6-1 X 6
Price
N/A
23-2
MOTOR FAN COVER
Price
$61.60
23-3
MOTOR FAN
Price
$22.40
23-4
*DISCD*R CAPACITOR COVER
Price
N/A
23-5
*DISCD*S CAPACITOR COVER
Price
N/A
23-6
R CAPACITOR 45M 450V LC
Price
$67.40
23-7
S CAPACITOR 300M 250V 2 X 4 LAI
Price
$61.00
23-8
JUNCTION BOX
Price
N/A
23-9
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
24
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
25
COVER
Price
N/A
26
HEX BOLT M10-1.5 X 35
Price
N/A
27
ADJUST BOLT
Price
N/A
28
FLAT WASHER 10MM
Price
N/A
29
LOCK WASHER 8MM
Price
N/A
30
FLAT WASHER 8MM
Price
N/A
31
CAP SCREW M8-1.25 X 25
Price
N/A
32
BRUSH
Price
N/A
33
FLAT WASHER 6MM
Price
N/A
34
CAP SCREW M6-1 X 25
Price
N/A
35
V-BELT A30
Price
N/A
36
SET SCREW M6-1 X 12
Price
N/A
37
BUSHING
Price
N/A
51
SUPPORT V2.10.04
Price
N/A
52
WHEEL COVER UPPER
Price
N/A
53
HEX NUT M4-.7
Price
N/A
54
FLAT WASHER 4MM
Price
N/A
55
LOCK NUT M6-1
Price
N/A
56
PHLP HD SCR M4-.7 X 10
Price
N/A
57
CAP SCREW M6-1 X 10
Price
N/A
58
WHEEL COVER LOWER
Price
N/A
59
SAW BLADE 4190 X 25.4 X .9MM
Price
N/A
60
UPPER WHEEL SLIDING BRACKET
Price
N/A
61
COMPRESSION SPRING
Price
N/A
62
ROLL PIN 3 X 12
Price
N/A
63
MOVING PLATE
Price
N/A
65
FIXED PLATE
Price
N/A
66
TENSION POINTER
Price
N/A
67
TAP SCREW M4 X 16
Price
N/A
68
TENSION SCALE
Price
N/A
69
CONNECTING WIRE 16G
Price
N/A
70
SWITCH CORD 16G 3W 36"
Price
N/A
71
SWITCH PLATE
Price
N/A
73
KEYED POWER SWITCH YK 22-1A1BG
Price
N/A
74
E-STOP BUTTON 250V 10A
Price
N/A
75
ON BUTTON YK 22-1A1B
Price
N/A
76
PHLP HD SCR M4-.7 X 10
Price
N/A
77
FLANGE SCREW M5-.8 X 50
Price
N/A
78
TERMINAL BOX
Price
N/A
79
TERMINAL HOUSE
Price
N/A
80
*DISCD*MAG SWITCH SDE MPE-18 V1
Item is no longer available
Price
N/A
80-1
MAG SWITCH SDE MPE-18
Price
N/A
80-2
CONTACTOR SDE MA-18 230V
Price
N/A
80-3
*DISCD*RELAY SDE RA-20 18-26A
Item is no longer available
Price
N/A
80-4
MAG SWITCH SDE MPE-18
Price
N/A
80-5
POWER CORD 12G 3W
Price
N/A
80-6
*DISCD*CONTROL PANEL CORD 16G 5W
Price
N/A
80-7
MOTOR CORD 12G 3W
Price
N/A
80-8
FLANGE SCREW M5-.8 X 10
Price
N/A
80-9
RECTIFIER PU-23-2
Price
N/A
80V2-3
RELAY SDE RA-30 18-26A
Price
$66.85

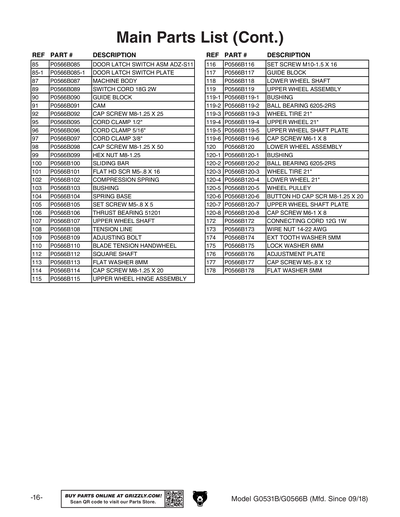

85
LIMIT SWITCH CANLIE AZDS11
Price
N/A
85-1
DOOR LATCH SWITCH PLATE
Price
N/A
87
MACHINE BODY
Price
N/A
89
*DISCD*SWITCH CORD 18G 2W
Price
N/A
90
HOUSING PLATE
Price
N/A
91
CAM
Price
N/A
92
CAP SCREW M8-1.25 X 25
Price
N/A
94
KNOB M8-1.25 X 20
Price
N/A
95
CORD CLAMP 1/2"
Price
N/A
96
CORD CLAMP 5/16"
Price
N/A
97
CORD CLAMP 3/8"
Price
N/A
98
CAP SCREW M8-1.25 X 50
Price
N/A
99
HEX NUT M8-1.25
Price
N/A
100
LOCATE PLATE
Price
N/A
101
FLAT HD SCR M5-.8 X 16
Price
N/A
102
COMPRESSION SPRING
Price
N/A
103
BUSHING
Price
N/A
104
PRESS BLOCK
Price
N/A
105
SET SCREW M5-.8 X 5
Price
N/A
106
THRUST BEARING 51201
Price
N/A
107
WHEEL SHAFT UPPER
Price
N/A
108
TENSION LINE
Price
N/A
109
*DISCD*SHAFT
Price
N/A
110
HANDWHEEL TYPE-35 178D X 14B-S
Price
N/A
111
CAP SCREW M6-1 X 25
Price
N/A
112
SQUARE SHAFT
Price
N/A
113
FLAT WASHER 8MM
Price
N/A
114
CAP SCREW M8-1.25 X 20
Price
N/A
115
UPPER WHEEL HINGE ASSY
Price
N/A
116
SET SCREW M10-1.5 X 16
Price
N/A
117
GUIDE BLOCK
Price
N/A
118
WHEEL SHAFT (LOWER)
Price
N/A
119
WHEEL UPPER ASSY
Price
N/A
119-1
BUSHING
Price
N/A
119-2
BALL BEARING 6205-2RS
Price
N/A
119-3
WHEEL TIRE 21"
Price
N/A
119-4
WHEEL UPPER 21"
Price
N/A
119-5
WHEEL SHAFT PLATE UPPER
Price
N/A
119-6
CAP SCREW M6-1 X 8
Price
N/A
120
WHEEL ASSEMBLY LOWER
Price
N/A
120-1
BUSHING
Price
N/A
120-2
BALL BEARING 6205-2RS
Price
N/A
120-3
WHEEL TIRE 21"
Price
N/A
120-4
WHEEL LOWER 21"
Price
N/A
120-5
WHEEL PULLEY
Price
N/A
120-6
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
120-7
WHEEL SHAFT PLATE UPPER
Price
N/A
120-8
CAP SCREW M6-1 X 8
Price
N/A
121
TABLE 20-3/4" X 29-1/2"
Price
N/A
122
Bandsaw Table Insert
Price
N/A
123
MITER GAUGE ASSY
Price
N/A
123-1
MITER GAUGE ASSY
Price
N/A
123-10
MITER GAUGE ASSY
Price
N/A
123-11
MITER GAUGE ASSY
Price
N/A
123-12
PHLP HD SCR 10-24 X 3/8
Price
N/A
123-13
HEX NUT M4-.7
Price
N/A
123-14
PHLP HD SCR M4-.7 X 16
Price
N/A
123-15
MITER GAUGE ASSY
Price
N/A
123-2
MITER GAUGE ASSY
Price
N/A
123-3
FLAT HD SCR M6-1 X 8
Price
N/A
123-4
MITER GAUGE ASSY
Price
N/A
123-5
PHLP HD SCR 10-24 X 3/8
Price
N/A
123-6
MITER GAUGE ASSY
Price
N/A
123-7
MITER GAUGE ASSY
Price
N/A
123-8
FLAT WASHER 8MM
Price
N/A
123-9
MITER GAUGE ASSY
Price
N/A
130
CAP SCREW M10-1.5 X 35
Price
N/A
131
LOCK WASHER 10MM
Price
N/A
132
FLAT WASHER 10MM
Price
N/A
133
TRUNNION BRACKET ASSEMBLY
Price
N/A
133-1
PRESS SHAFT
Price
N/A
133-2
MICRO ADJUSTING RING
Price
N/A
133-3
CAP SCREW M8-1.25 X 25
Price
N/A
133-4
LOCK WASHER 8MM
Price
N/A
133-5
TRUNNION BLOCK
Price
N/A
133-6
PRESS BLOCK
Price
N/A
133-7
TABLE TILT SCALE
Price
$1.60
134
BLADE GUARD LOWER
Price
N/A
135
OUTER RAIL PLATE
Price
N/A
136
FLAT WASHER 6MM
Price
N/A
137
FLANGE BOLT M6-1 X 10
Price
N/A
138
HANDLE SHAFT M12-2 90MM
Price
N/A
139
*DISCD*SHAFT KNOB
Price
N/A
140
HEX NUT M12-1.75
Price
N/A
141
POINTER
Price
N/A
142
INNER RAIL PLATE
Price
N/A
143
FENCE ASSEMBLY
Price
N/A
143-1
FENCE
Price
N/A
143-10
PLASTIC SET SCREW M7-1 X 10
Price
N/A
143-11
NYLON PAD
Price
N/A
143-12
SET SCREW M8-1.25 X 12
Price
N/A
143-13
HEX NUT M8-1.25
Price
N/A
143-14
HEX BOLT M8-1.25 X 20
Price
N/A
143-15
HEX NUT M8-1.25
Price
N/A
143-16
FLAT WASHER 8MM
Price
N/A
143-17
LOCK HANDLE M8-1.25 X 45 V2.05.11
Price
N/A
143-18
MOVING PLATE
Price
N/A
143-2
POINTER
Price
N/A
143-3
SET SCREW M8-1.25 X 25
Price
N/A
143-4
SPRING PIECE
Price
N/A
143-5
FLANGE SCREW M4-.7 X 8
Price
N/A
143-6
PIVOT BLOCK
Price
N/A
143-7
HEX NUT M8-1.25
Price
N/A
143-8
FENCE LOCK HANDLE
Price
N/A
143-9
SHAFT
Price
N/A
144
RESAW FENCE ASSEMBLY
Price
N/A
144-1
ALUMINUM RESAW FENCE 590MM
Price
N/A
144-2
TAP SCREW M3.5 X 12
Price
N/A
144-3
FENCE END PLATE 148 X 22 X 1
Price
N/A
145
LOCK WASHER 6MM
Price
N/A
146
CAP SCREW M6-1 X 20
Price
N/A
147
GUARD RAIL
Price
N/A
147-1
FENCE SCALE
Price
$23.90
148
FLAT WASHER 8MM
Price
N/A
149
LOCK WASHER 8MM
Price
N/A
150
CAP SCREW M8-1.25 X 20
Price
N/A
151
TABLE TILT ASSEMBLY
Price
N/A
151-1
WORM SHAFT
Price
N/A
151-10
COVER
Price
N/A
151-11
PINION GEAR BOLT
Price
N/A
151-12
PINION GEAR 15T
Price
N/A
151-13
FLAT HD SCR M4-.7 X 10
Price
N/A
151-14
***USE P0566207***
Price
N/A
151-15
SQUARE TUBE
Price
N/A
151-16
***USE P0513164V2***
Price
N/A
151-2
HEX NUT M16-1.5
Price
N/A
151-3
BUSHING
Price
N/A
151-4
***USE P0640X129***
Price
N/A
151-5
SET SCREW M5-.8 X 5
Price
N/A
151-6
LOCK WASHER 8MM
Price
N/A
151-7
CAP SCREW M8-1.25 X 16
Price
N/A
151-8
PHLP HD SCR M5-.8 X 10
Price
N/A
151-9
COVER
Price
N/A
152
UPPER GUIDE ASSEMBLY
Price
N/A
152-1
HEX NUT M5-.8
Price
N/A
152-10
HEX NUT M16-1.5
Price
N/A
152-11
***USE P0513164V2***
Price
N/A
152-12
BUSHING
Price
N/A
152-13
LOCK COLLAR
Price
N/A
152-14
SET SCREW M5-.8 X 5
Price
N/A
152-15
PINION GEAR
Price
N/A
152-16
UPPER GUIDE SUPPORT BLOCK
Price
N/A
152-17
RACK
Price
N/A
152-18
CAP SCREW M6-1 X 16
Price
N/A
152-19
HEX NUT M4-.7
Price
N/A
152-2
PHLP HD SCR M5-.8 X 10
Price
N/A
152-20
PHLP HD SCR M4-.7 X 10
Price
N/A
152-21
RACK EXTENSION
Price
N/A
152-22
STEP BOLT M10-1.5 X 12 X 43
Price
N/A
152-3
COVER
Price
N/A
152-4
LOCK WASHER 8MM
Price
N/A
152-5
CAP SCREW M8-1.25 X 16
Price
N/A
152-6
FLAT HD SCR M4-.7 X 10
Price
N/A
152-7
COVER
Price
N/A
152-8
FIXED PLATE
Price
N/A
152-9
WORM SHAFT
Price
N/A
153
BLADE GUIDE ASSEMBLY UPPER
Price
N/A
153-1
ADJUST BAR (ROUND) V2.10.05
Price
N/A
153-10
EXT RETAINING RING 15MM
Price
N/A
153-11
ECCENTRIC SHAFT (ROUND) V2.12.05
Price
N/A
153-12
HEX BOLT M6-1 X 16
Price
N/A
153-13
*DISCD*GUIDE SUPPORT BLOCK UPPER
Price
N/A
153-2
BLADE GUIDE SUPPORT ROUND V2.12.05
Price
N/A
153-3
HEX BOLT M6-1 X 16
Price
N/A
153-4
BEARING SHAFT
Price
N/A
153-5
BALL BEARING 6201ZZ
Price
N/A
153-6
EXT RETAINING RING 12MM
Price
N/A
153-7
CAP SCREW M6-1 X 40
Price
N/A
153-8
***USE P0568274***
Price
N/A
153-9
BALL BEARING 6202ZZ
Price
N/A
154
BLADE GUIDE ASSEMBLY LOWER
Price
N/A
154-1
BLADE GUIDE SUPPORT ROUND V2.12.05
Price
N/A
154-10
EXT RETAINING RING 15MM
Price
N/A
154-11
ECCENTRIC SHAFT (ROUND) V2.12.05
Price
N/A
154-12
SUPPORT BRACKET V2.09.06
Price
N/A
154-2
CAP SCREW M6-1 X 16
Price
N/A
154-3
BEARING SHAFT
Price
N/A
154-4
BALL BEARING 6201ZZ
Price
N/A
154-5
EXT RETAINING RING 12MM
Price
N/A
154-6
ADJUSTING SHAFT V2.10.04
Price
N/A
154-7
HEX BOLT M6-1 X 40
Price
N/A
154-8
***USE P0568274***
Price
N/A
154-9
BALL BEARING 6202ZZ
Price
N/A
155
HANDWHEEL
Price
N/A
156
CAP SCREW M6-1 X 10
Price
N/A
157
LOCK WASHER 6MM
Price
N/A
158
FLAT WASHER 6MM
Price
N/A
159
L-BRACKET
Price
N/A
160
BLADE GUARD UPPER
Price
N/A
161
SLIDING PLATE
Price
N/A
162
FIBER WASHER 6 X 13 T=1.2
Price
N/A
163
HEX BOLT M8-1.25 X 55
Price
N/A
164
SLIDING PLATE
Price
N/A
165
LOCK NUT M8-1.25
Price
N/A
166
CAP SCREW M8-1.25 X 20
Price
N/A
167
SUPPORT BRACKET
Price
N/A
168
FLAT WASHER 6MM
Price
N/A
169
CAP SCREW M6-1 X 12
Price
N/A
170
CAP SCREW M8-1.25 X 30
Price
N/A
171
FLAT WASHER 8MM
Price
N/A

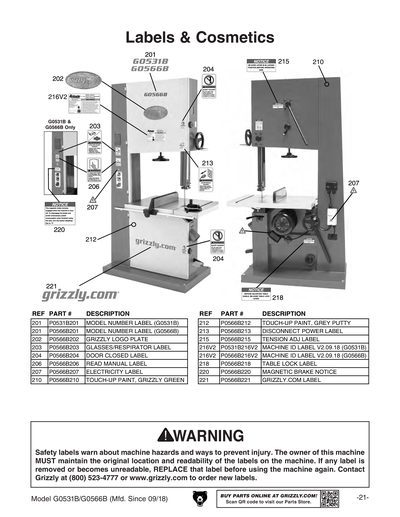

201
MODEL NUMBER LABEL
Price
$19.20
202
Nameplate - Large
Price
N/A
203
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
204
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
205
GUARD ADJ LABEL
Price
N/A
206
READ MANUAL 1.5W X 2.5H
Price
N/A
207
ELECTRICITY 0.7W X 0.6H
Price
N/A
208
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
210
N/S GRIZZLY GREEN G1023S
Price
N/A
211
Extreme Series Nameplate
Price
N/A
212
GREY PUTTY REF G0504
Price
N/A
213
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
214
DONT OPEN 2W X 3.3H
Price
N/A
215
TENSION ADJ LABEL
Price
N/A
216
MACHINE ID LABEL V1
Price
$16.40
216V2
MACHINE ID LABEL V2.09.18
Price
$16.40
218
TABLE LOCK LABEL
Price
N/A
220
MAGNETIC BRAKE NOTICE
Price
N/A
221
***USE PGZCOM-43A***
Price
N/A
MAN
MANUAL G0531B/G0566B MFD-6.08-8.18 V1
Price
N/A
MANV2
MANUAL G0531B/G0566B MFD-09.18+ V2.01.25
Price
N/A
