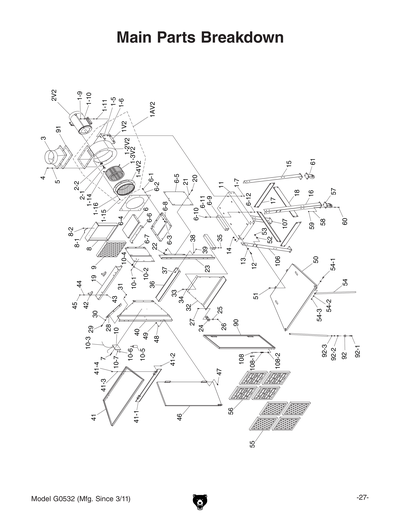

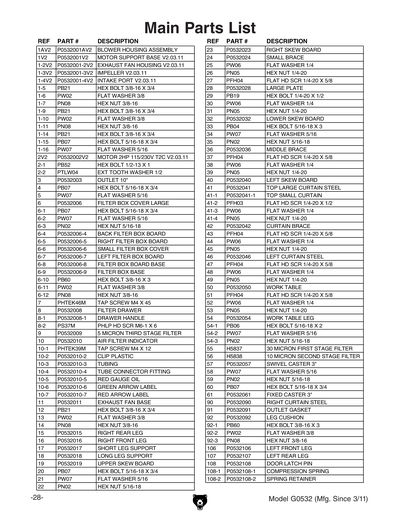

Parts for G0532 2 HP Dry Spray Booth

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOTOR SUPPORT BASE V1
1-1
BLOWER COVER
Item is no longer available
Price
N/A
1-10
Now: PW02
FLAT WASHER 3/8
Price
N/A
1-11
Now: PN08
HEX NUT 3/8-16
Price
N/A
1-12
Now: PW02
FLAT WASHER 3/8
Price
N/A
1-13
Now: PN08
HEX NUT 3/8-16
Price
N/A
1-14
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
1-15
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
1-16
Now: PW07
FLAT WASHER 5/16
Price
N/A
1-2
EXHAUST FAN HOUSING V1
1-2V2
MOTOR BASE AND BLOWER HOUSING V2.03.11
Price
N/A
1-3
*DISCD*IMPELLER V1
Item is no longer available
Price
N/A
1-3V2
*DISCD*IMPELLER V2.03.11
Item is no longer available
Price
N/A
1-4
INTAKE PORT V1
Item is no longer available
Price
N/A
1-4V2
INTAKE PORT V2.03.11
Item is no longer available
Price
N/A
1-5
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
1-6
Now: PW02
FLAT WASHER 3/8
Price
N/A
1-7
Now: PN08
HEX NUT 3/8-16
Price
N/A
1-8
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
1-9
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
1AV2
BLOWER HOUSING ASSEMBLY V2.03.11
Item is no longer available
Price
N/A
1V2
MOTOR BASE AND BLOWER HOUSING V2.03.11
Item is no longer available
Price
N/A
2
*DISCD*MOTOR E81J1406M-GG V1
2-1
Now: PB52
HEX BOLT 1/2-13 X 1
Price
N/A
2-2
EXT TOOTH WASHER 1/2
Price
N/A
2-3
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
2-4
*DISCD*MOTOR COOLING FAN
Item is no longer available
Price
N/A
2V2
2 HP Single-Phase Explosion Proof Motor
Price
N/A
3
OUTLET 10"
4
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
5
Now: PW07
FLAT WASHER 5/16
Price
N/A
6
FILTER BOX COVER LARGE
Item is no longer available
Price
N/A
6-1
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
6-10
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
6-11
Now: PW02
FLAT WASHER 3/8
Price
N/A
6-12
Now: PN08
HEX NUT 3/8-16
Price
N/A
6-2
Now: PW07
FLAT WASHER 5/16
Price
N/A
6-3
Now: PN02
HEX NUT 5/16-18
Price
N/A
6-4
BACK FILTER BOX BOARD
Item is no longer available
Price
N/A
6-5
RIGHT FILTER BOX BOARD
Item is no longer available
Price
N/A
6-6
SMALL FILTER BOX COVER
Item is no longer available
Price
N/A
6-7
LEFT FILTER BOX BOARD
Item is no longer available
Price
N/A
6-8
FILTER BOX BOARD BASE
Item is no longer available
Price
N/A
6-9
FILTER BOX BASE
Item is no longer available
Price
N/A
7
TAP SCREW M4 X 45
Price
N/A
8
FILTER DRAWER
Item is no longer available
Price
N/A
8-1
DRAWER HANDLE
Item is no longer available
Price
N/A
8-2
Now: PS37M
PHLP HD SCR M6-1 X 6
Price
N/A
9
Now: H5839
5-Micron Third-Stage Filter
Price
N/A
10
AIR FILTER INDICATOR ASSEMBLY
Item is no longer available
Price
N/A
10-1
TAP SCREW M4 X 12
Price
N/A
10-2
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
10-3
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
10-4
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
10-5
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
10-6
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
10-7
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
11
EXHAUST FAN BASE
Item is no longer available
Price
N/A
12
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
13
Now: PW02
FLAT WASHER 3/8
Price
N/A
14
Now: PN08
HEX NUT 3/8-16
Price
N/A
15
RIGHT REAR LEG
16
RIGHT FRONT LEG
Item is no longer available
Price
N/A
17
SHORT LEG SUPPORT
Item is no longer available
Price
N/A
18
LONG LEG SUPPORT
Item is no longer available
Price
N/A
19
UPPER SKEW BOARD
20
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
21
Now: PW07
FLAT WASHER 5/16
Price
N/A
22
Now: PN02
HEX NUT 5/16-18
Price
N/A
23
RIGHT SKEW BOARD
24
SMALL BRACE
25
Now: PW06
FLAT WASHER 1/4
Price
N/A
26
Now: PN05
HEX NUT 1/4-20
Price
N/A
27
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
28
LARGE PLATE
Item is no longer available
Price
N/A
29
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
30
Now: PW06
FLAT WASHER 1/4
Price
N/A
31
Now: PN05
HEX NUT 1/4-20
Price
N/A
32
LOWER SKEW BOARD
Item is no longer available
Price
N/A
33
Now: PB04
HEX BOLT 5/16-18 X 3
Price
N/A
34
Now: PW07
FLAT WASHER 5/16
Price
N/A
35
Now: PN02
HEX NUT 5/16-18
Price
N/A
36
MIDDLE BRACE
Item is no longer available
Price
N/A
37
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
38
Now: PW06
FLAT WASHER 1/4
Price
N/A
39
Now: PN05
HEX NUT 1/4-20
Price
N/A
40
LEFT SKEW BOARD
41
TOP LARGE CURTAIN STEEL
Item is no longer available
Price
N/A
41-1
TOP SMALL CURTAIN
Item is no longer available
Price
N/A
41-2
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
41-3
Now: PW06
FLAT WASHER 1/4
Price
N/A
41-4
Now: PN05
HEX NUT 1/4-20
Price
N/A
42
CURTAIN BRACE
Item is no longer available
Price
N/A
43
Now: PFH05
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
44
Now: PW06
FLAT WASHER 1/4
Price
N/A
45
Now: PN05
HEX NUT 1/4-20
Price
N/A
46
LEFT CURTAIN STEEL
Item is no longer available
Price
N/A
47
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
48
Now: PW06
FLAT WASHER 1/4
Price
N/A
49
Now: PN05
HEX NUT 1/4-20
Price
N/A
50
WORK TABLE
Item is no longer available
Price
N/A
51
Now: PFH04
FLAT HD SCR 1/4-20 X 5/8
Price
N/A
52
Now: PW06
FLAT WASHER 1/4
Price
N/A
53
Now: PN05
HEX NUT 1/4-20
Price
N/A
54
WORK TABLE LEG
54-1
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
54-2
Now: PW07
FLAT WASHER 5/16
Price
N/A
54-3
Now: PN02
HEX NUT 5/16-18
Price
N/A
55
Now: H5837
30-Micron First-Stage Filter
Price
N/A
56
Now: H5838
1-Micron Second-Stage Filter
Price
N/A
57
SWIVEL CASTER 3"
58
Now: PW07
FLAT WASHER 5/16
Price
N/A
59
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
60
Now: PN02
HEX NUT 5/16-18
Price
N/A
61
FIXED CASTER 3"
62

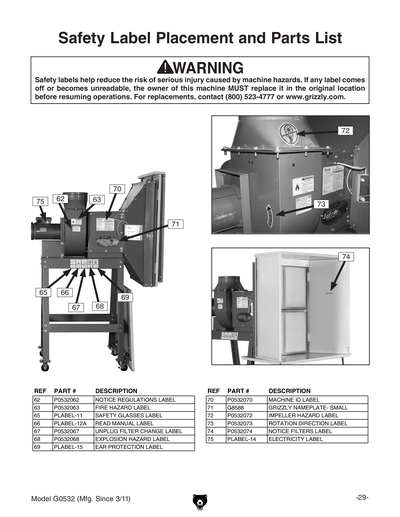

NOTICE REGULATIONS LABEL
Item is no longer available
Price
N/A
63
FIRE HAZARD LABEL
Item is no longer available
Price
N/A
65
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
66
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
67
UNPLUG FILTER CHANGE LABEL
Item is no longer available
Price
N/A
68
EXPLOSION HAZARD LABEL
Item is no longer available
Price
N/A
69
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
70
MACHINE ID LABEL
Item is no longer available
Price
N/A
71
Now: G8588
Nameplate - Small
Price
N/A
72
IMPELLER HAZARD LABEL
Item is no longer available
Price
N/A
73
ROTATION DIRECTION LABEL
Item is no longer available
Price
N/A
74
NOTICE FILTERS LABEL
Item is no longer available
Price
N/A
75
ELECTRICITY 1.4W X 1.2H
Price
N/A
90
RIGHT CURTAIN STEEL
Item is no longer available
Price
N/A
91
OUTLET GASKET
92
LEG CUSHION
92-1
Now: PB60
HEX BOLT 3/8-16 X 3
Price
N/A
92-2
Now: PW02
FLAT WASHER 3/8
Price
N/A
92-3
Now: PN08
HEX NUT 3/8-16
Price
N/A
93
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
94
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
95
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
96
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
97
AIR FILTER INDICATOR ASSEMBLY
Price
N/A
98
RIGHT REAR LEG
Price
N/A
99
RIGHT FRONT LEG
Price
N/A
106
LEFT FRONT LEG
Item is no longer available
Price
N/A
107
LEFT REAR LEG
Item is no longer available
Price
N/A
108
DOOR LATCH PIN
Item is no longer available
Price
N/A
108-1
COMPRESSION SPRING
Item is no longer available
Price
N/A
108-2
SPRING RETAINER
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0532 04/11
Item is no longer available
Price
N/A
