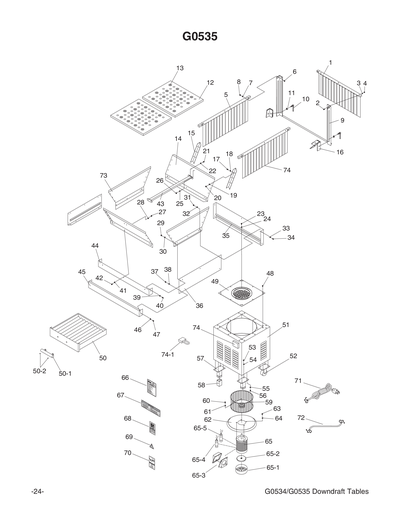

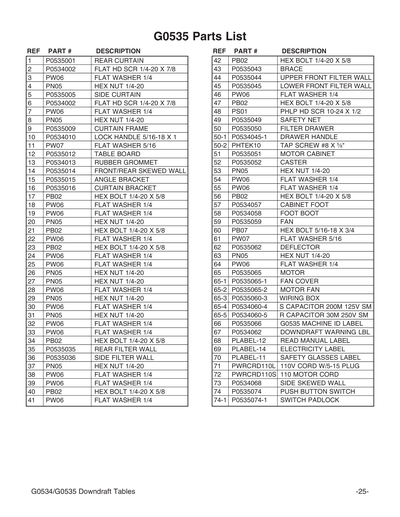

Parts for G0535 Downdraft Table 1 HP

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CURTAIN REAR
Item is no longer available
Price
N/A
2
FLAT HD SCR 1/4-20 X 7/8
Price
N/A
3
Now: PW06
FLAT WASHER 1/4
Price
N/A
4
Now: PN05
HEX NUT 1/4-20
Price
N/A
5
*DISCD*SIDE CURTAIN
Item is no longer available
Price
N/A
6
FLAT HD SCR 1/4-20 X 7/8
Price
N/A
7
Now: PW06
FLAT WASHER 1/4
Price
N/A
8
Now: PN05
HEX NUT 1/4-20
Price
N/A
9
*DISCD*CURTAIN FRAME
Item is no longer available
Price
N/A
10
LOCK HANDLE 5/16-18 X 1
Price
N/A
11
Now: PW08
FLAT WASHER #8
Price
N/A
12
TABLE BOARD
13
GROMMET M3
Price
N/A
14
SKEWED WALL FRONT REAR
15
*DISCD*ANGLE BRACKET
Item is no longer available
Price
N/A
16
*DISCD*CURTAIN BRACKET
Item is no longer available
Price
N/A
17
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
18
Now: PW06
FLAT WASHER 1/4
Price
N/A
19
Now: PW06
FLAT WASHER 1/4
Price
N/A
20
Now: PN05
HEX NUT 1/4-20
Price
N/A
21
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
22
Now: PW06
FLAT WASHER 1/4
Price
N/A
23
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
24
Now: PW06
FLAT WASHER 1/4
Price
N/A
25
Now: PW06
FLAT WASHER 1/4
Price
N/A
26
Now: PN05
HEX NUT 1/4-20
Price
N/A
27
Now: PN05
HEX NUT 1/4-20
Price
N/A
28
Now: PW06
FLAT WASHER 1/4
Price
N/A
29
Now: PN05
HEX NUT 1/4-20
Price
N/A
30
Now: PW06
FLAT WASHER 1/4
Price
N/A
31
Now: PN05
HEX NUT 1/4-20
Price
N/A
32
Now: PW06
FLAT WASHER 1/4
Price
N/A
33
Now: PW06
FLAT WASHER 1/4
Price
N/A
34
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
35
*DISCD*REAR FILTER WALL
Item is no longer available
Price
N/A
36
*DISCD*SIDE FILTER WALL
Item is no longer available
Price
N/A
37
Now: PN05
HEX NUT 1/4-20
Price
N/A
38
Now: PW06
FLAT WASHER 1/4
Price
N/A
39
Now: PW06
FLAT WASHER 1/4
Price
N/A
40
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
41
Now: PW06
FLAT WASHER 1/4
Price
N/A
42
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
43
*DISCD*BRACE
Item is no longer available
Price
N/A
44
*DISCD*FILTER WALL UPPER FRONT
Item is no longer available
Price
N/A
45
*DISCD*LOWER FRONT FILTER WALL
Item is no longer available
Price
N/A
46
Now: PW06
FLAT WASHER 1/4
Price
N/A
47
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
48
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
49
*DISCD*SAFETY NET
Item is no longer available
Price
N/A
50
FILTER DRAWER
50-1
*DISCD*DRAWER HANDLE
Price
N/A
50-2
TAP SCREW #8 X 5/8
Price
N/A
51
MOTOR CABINET
52
CASTER
Item is no longer available
Price
N/A
53
Now: PN05
HEX NUT 1/4-20
Price
N/A
54
Now: PW06
FLAT WASHER 1/4
Price
N/A
55
Now: PW06
FLAT WASHER 1/4
Price
N/A
56
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
57
DEFLECTOR
Price
N/A
58
Now: PN05
HEX NUT 1/4-20
Price
N/A
59
FAN
Item is no longer available
Price
N/A
60
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
61
Now: PW07
FLAT WASHER 5/16
Price
N/A
62
DEFLECTOR
Item is no longer available
Price
N/A
63
Now: PN05
HEX NUT 1/4-20
Price
N/A
64
Now: PW06
FLAT WASHER 1/4
Price
N/A
65
MOTOR 1HP 110V/220V 1-PH
Item is no longer available
Price
N/A
65-1
FAN COVER
Item is no longer available
Price
N/A
65-2
MOTOR FAN
Item is no longer available
Price
N/A
65-3
WIRING BOX
Item is no longer available
Price
N/A
65-4
S CAPACITOR 200M 125V 1-1/2 X 2-3/4
Price
N/A
65-5
R CAPACITOR 30M 250V 1-1/4 X 2-1/2
Price
N/A
66
MACHINE ID LABEL
Item is no longer available
Price
N/A
67
DOWNDRAFT WARNING LABEL
Price
N/A
68
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
69
ELECTRICITY 1.4W X 1.2H
Price
N/A
70
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
71
POWER CORD 16G X 3W 73"L
Price
N/A
72
POWER CORD 16G X 3W 24"L
Price
N/A
73
SIDE SKEWED WALL
73-1
PUSH BUTTON SWITCH V2
Price
N/A
74
PUSH BUTTON SWITCH V2
Price
N/A
74-1
PUSH BUTTON SWITCH V2
Price
N/A
BOX2
COMPLETE UPPER HALF BOX 2
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0534 10/03
Price
N/A
