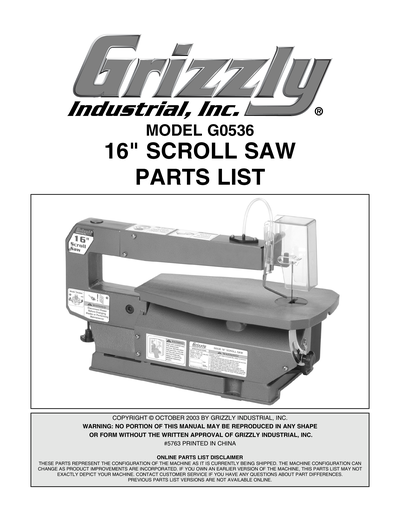

Parts for G0536 - 16" Variable-Speed Scroll Saw

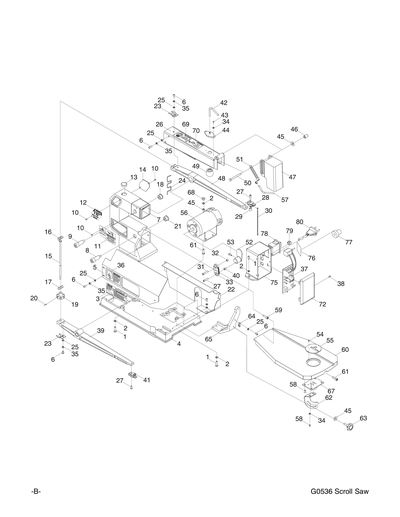

Part Diagram for G0536
Part Diagram for G0536
Part Diagram for G0536
Part Diagram for G0536
Part Diagram for G0536
Part Diagram for G0536

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEX BOLT M10-1.5 X 30
Price
N/A
2
LOCK WASHER 6MM
Price
N/A
3
*DISCD*WARNING ID LABEL
Price
$4.00
4
Price
$13.80
5
Price
$4.35
6
PHLP HD SCR M5-.8 X 10
Price
N/A
7
*DISCD*PILLAR BODY
Item is no longer available
Price
N/A
8
*DISCD*PIN LOWER
Item is no longer available
Price
N/A
9
Price
$2.05
10
PHLP HD SCR M3-.5 X 6
Price
N/A
11
Price
$1.49
12
Price
$1.49
13
Price
$1.60
14
Price
$1.49
15
*DISCD*SCREW POLE
Item is no longer available
Price
N/A
15A
Price
$4.35
16
*DISCD*SCREW POLE ASSY
Price
N/A
17
Price
$1.49
18
*DISCD*BUSHING UPPER
Item is no longer available
Price
N/A
19
*DISCD*BLADE TENSION KNOB FEMALE
Item is no longer available
Price
N/A
20
Price
$1.49
21
*DISCD*BUSHING LOWER
Item is no longer available
Price
N/A
22
Price
$3.75
23
Price
$1.49
24
Price
$1.49
25
FLAT WASHER 5MM
Price
N/A
26
*DISCD*UPPER ARM GUARD
Item is no longer available
Price
N/A
27
CAP SCREW M5-.8 X 20
Price
N/A
28
*DISCD*UPPER BLADE CLIP
Item is no longer available
Price
N/A
29
*DISCD*LINK SPACER LOWER
Price
N/A
30
*DISCD*BLADE
Item is no longer available
Price
N/A
31
CAP SCREW M5-.8 X 30
Price
N/A
32
*DISCD*LINK SPACER UPPER
Price
$1.49
33
*DISCD*CONNECTING LINK ASSY
Item is no longer available
Price
N/A
34
FLAT WASHER 4MM
Price
N/A
35
LOCK WASHER 5MM
Price
N/A
36
*DISCD*READ MANUAL WARNING LABEL
Price
$1.25
37
Price
$24.15
38
TAP SCREW M4 X 12
Price
N/A
39
Price
$9.20
40
*DISCD*LINK SPACER LOWER
Price
$1.60
41
*DISCD*BLADE LOWER CLIP
Item is no longer available
Price
N/A
42
*DISCD*AIR HOSE
Item is no longer available
Price
N/A
43
PHLP HD SCR M4-.7 X 10
Price
N/A
44
*DISCD*PRESSURE PLATE
Item is no longer available
Price
N/A
45
FLAT WASHER 6MM
Price
N/A
46
*DISCD*KNURLED NUT M6-.75
Item is no longer available
Price
N/A
47
Price
$4.70
48
*DISCD*UPPER ARM
Item is no longer available
Price
N/A
49
*DISCD*AIR BELLOWS
Item is no longer available
Price
N/A
50
HEX BOLT M6-1 X 60
Price
N/A
51
*DISCD*RETAINER
Item is no longer available
Price
N/A
52
*DISCD*ROCKER ARM
Item is no longer available
Price
N/A
53
CAP SCREW M6-1 X 12
Price
N/A
54
ROLL PIN 3 X 8
Price
N/A
55
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
56
*DISCD*MOTOR 1/5HP 110V 1-PH
Item is no longer available
Price
N/A
56-1
*DISCD*MOTOR BRUSHES 2-PK
Item is no longer available
Price
N/A
57
*DISCD*DUST BLOWER
Item is no longer available
Price
N/A
58
FLAT HD SCR M4-.7 X 10
Price
N/A
59
Price
$1.60
60
Price
$8.35
61
CAP SCREW M6-1 X 20
Price
N/A
62
*DISCD*TABLE TILT SCALE
Price
$2.05
63
*DISCD*LOCK KNOB M6-1 X 20
Price
$1.49
64
*DISCD*POINTER
Item is no longer available
Price
N/A
65
*DISCD*STRUT FRONT M6-1
Price
$7.20
67
*DISCD*PROTECTION GUARD LOWER
Price
$1.49
68
HEX NUT M6-1
Price
N/A
69
*DISCD*DUST MASK WARNING
Price
$1.49
70
*DISCD*SAFETY GLASSES WARNING
Price
$1.49
72
*DISCD*SWITCH BOX PANEL
Price
$1.49
75
Price
$2.30
76
*DISCD*VARIABLE SPEED LABEL
Price
$1.25
77
*DISCD*VARIABLE SPEED KNOB
Price
$2.30
78
Price
$12.95
79
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
80
*DISCD*CORD & PLUG
Item is no longer available
Price
N/A
81
*DISCD*REAR LOWER GUARD
Item is no longer available
Price
N/A
MAN
*DISCD*MANUAL FOR G0536 10/03
Item is no longer available
Price
N/A
