Parts for G0539 - 37" 15 HP 3-Phase Wide-Belt Sander

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

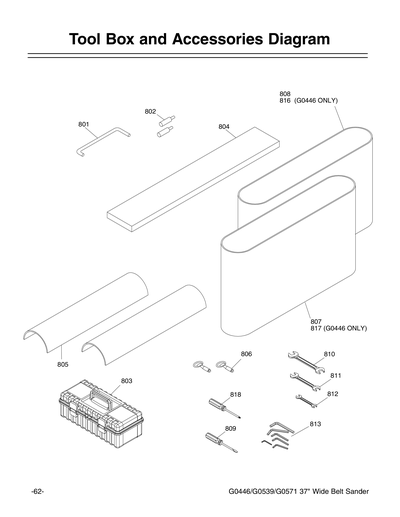

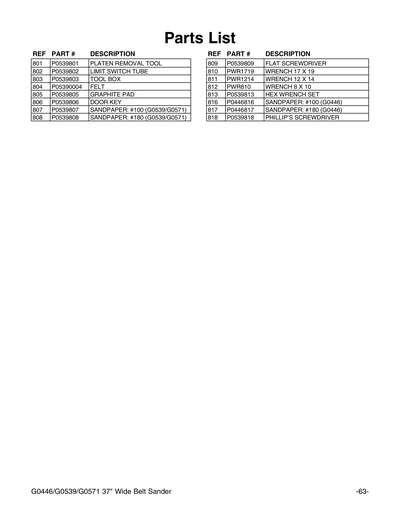

1 P05390001
Replaced By P0539801
PLATEN REMOVAL TOOL
N/A View Replacement
2 P05390002
Replaced By P0539802
LIMIT SWITCH TUBE
N/A View Replacement
3 P05390003
Replaced By P0539803
TOOL BOX
N/A View Replacement
4 P05390004
Replaced By PH29345303
FELT PLATEN PAD 1/2 X 1-13/16 X 39"
N/A View Replacement
5 P05390005
Replaced By PH29345304
GRAPHITE PAD 37" X 3-5/8"
N/A View Replacement
6 P05390006
Replaced By P0539806
DOOR KEY
N/A View Replacement
7 P05390007
Replaced By G8000
37" x 60" A/O Sanding Belt 100-Y Grit
N/A View Replacement
8 P05390008
Replaced By P0539808
SANDPAPER #180
N/A View Replacement
9 P05390009
Replaced By P0539809
SCREWDRIVER FLAT HEAD
N/A View Replacement

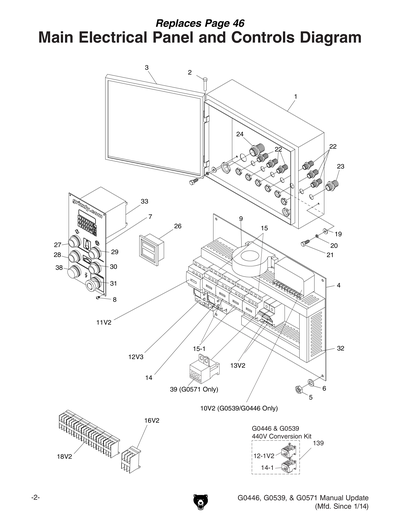

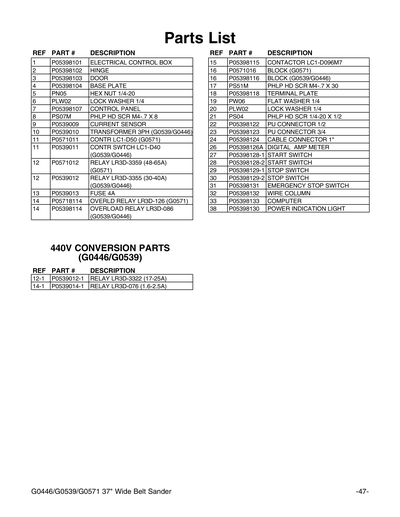

1 P0539001
Replaced By P05398101
ELECTRICAL CONTROL BOX
N/A View Replacement
10 P05390010
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
11 P05390011
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
12 P05390012
Replaced By PWR1719
WRENCH 17 X 19MM OPEN-ENDS
N/A View Replacement
13 P05390013
Replaced By P0539813
HEX WRENCH SET
N/A View Replacement
2 P0539002
Replaced By P05398102
HINGE
N/A View Replacement
3 P0539003
Replaced By P05398103
ELECTRICAL CONTROL BOX OF DOOR
N/A View Replacement
4 P0539004
Replaced By P05398104
BASE PLATE
N/A View Replacement
6 P0539006
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
7 P0539007
Replaced By PH29338107
CONTROL PANEL
N/A View Replacement
8 P0539008
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
9 P0539009 CURRENT SENSOR $69.50
10 P0539010 ***USE P04868110*** $134.50
10V2 P0539010V2
*DISCD*TRANSFORMER UL SUENN LIANG V2.03
Item is no longer available
N/A
11 P0539011
Replaced By P0539011V2
CONTACTOR SCHN LC1D40A V2.09.10
N/A View Replacement
11V2 P0539011V2 CONTACTOR SCHN LC1D40A V2.09.10 $95.00
12 P0539012 *DISCD*OL RELAY LR3D3355 220V 30/40A V1 $210.00
12-1 P0539012-1 OL RELAY TELE LR3D3322 440V 17-25A $174.00
12-1V2 P0539012-1V2 OL RELAY SCHN LR3D325 17-25A V2.09.10 $185.50
12V2 P0539012V2
Replaced By P0539012V3
OL RELAY SCHN LRD340 30-40A V3.04.13
N/A View Replacement
12V3 P0539012V3 OL RELAY SCHN LRD340 30-40A V3.04.13 $83.00
13 P0539013 FUSE 4A GL CT 2PC V1.07.05 $33.50
13V2 P0539013V2 FUSE 4A KTK-4 BUSSMANN 2PC V2.03.10 $37.50
14 P0539014
Replaced By P05398114
OL RELAY SCHN LR3D08 2.5-4A
N/A View Replacement
14-1 P0539014-1 OL RELAY SCHN LR3D07 1.6-2.5A $47.00
15 P0539015
Replaced By P05398115
CONTACTOR SCHN LC1D096M7 220V
N/A View Replacement
16 P0539016
Replaced By P05398116
BLOCK 4P100A TEND V1.07.05
N/A View Replacement
16V2 P0539016V2
Replaced By P05398116V2
POWER TERMINAL BLOCK ENTRELEC V2.03.10
N/A View Replacement
17 P0539017
Replaced By PS51M
PHLP HD SCR M4-.7 X 30
N/A View Replacement
18 P0539018
Replaced By P05398118
TERMINAL PLATE IN13BK MARK V1.07.05
N/A View Replacement
18V2 P0539018V2
Replaced By P05398118V2
TERMINAL BLOCK ENTRELEC V2.03.10
N/A View Replacement
19 P0539019
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
20 P0539020
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
21 P0539021
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
22 P0539022
Replaced By P05398122
PU CONNECTOR 1/2"
N/A View Replacement
23 P0539023
Replaced By P05398123
PU CONNECTOR 3/4"
N/A View Replacement
24 P0539024
Replaced By P05398124
CABLE CONNECTOR 1"
N/A View Replacement
26 P0539026
Replaced By P05398126A
DIGITAL READOUT AMP METER
N/A View Replacement
27 P0539027
Replaced By P05398128-1
START SWITCH
N/A View Replacement
28 P0539028
Replaced By P05398128-2
START SWITCH
N/A View Replacement
29 P0539029
Replaced By P99798129
E-STOP BUTTON 250V 10A
N/A View Replacement
30 P0539030
Replaced By P05398129-2
STOP SWITCH
N/A View Replacement
31 P0539031
Replaced By P05278131
E-STOP BUTTON 250V 10A
N/A View Replacement
32 P0539032
Replaced By P05398132
WIRE COLUMN
N/A View Replacement
33 P0539033
Replaced By P05398133
COMPUTER
N/A View Replacement
38 P0539038
Replaced By P99798130
POWER INDICATOR LIGHT 220V 22MM WHT
N/A View Replacement

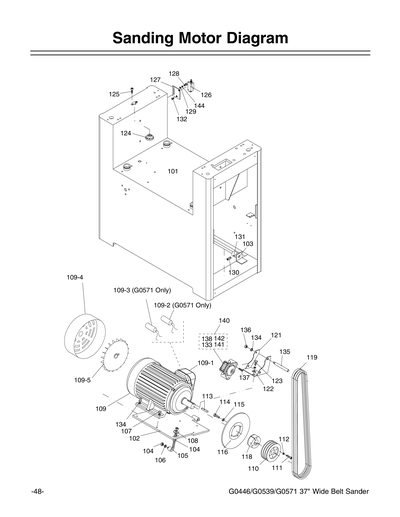

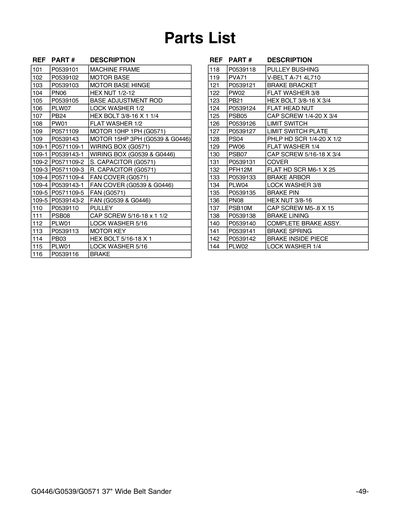

101 P0539101 MACHINE FRAME $1,535.50
102 P0539102 MOTOR BASE $141.00
103 P0539103 MOTOR BASE HINGE $5.50
104 P0539104
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
105 P0539105 BASE ADJUSTMENT ROD $9.50
106 P0539106
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
107 P0539107
Replaced By PB24
HEX BOLT 3/8-16 X 1-1/4
N/A View Replacement
108 P0539108
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
109 P0539109 MOTOR 15HP 220V/440V 3-PH $1,133.00
109-1 P0539109-1 WIRING BOX $5.50
109-4 P0539109-4 FAN COVER $12.50
109-5 P0539109-5 FAN $10.50
110 P0539110 PULLEY $111.75
1101 P05391101
Replaced By P0539101
MACHINE FRAME
N/A View Replacement
1102 P05391102
Replaced By P0539102
MOTOR BASE
N/A View Replacement
1103 P05391103
Replaced By P0539103
MOTOR BASE HINGE
N/A View Replacement
1104 P05391104
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
1105 P05391105
Replaced By P0539105
BASE ADJUSTMENT ROD
N/A View Replacement
1106 P05391106
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
1107 P05391107
Replaced By PB24
HEX BOLT 3/8-16 X 1-1/4
N/A View Replacement
1108 P05391108
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
1109 P05391109
Replaced By P0539109
MOTOR 15HP 220V/440V 3-PH
N/A View Replacement
1110 P05391110
Replaced By P0539110
PULLEY
N/A View Replacement
1111 P05391111
Replaced By PCAP08
CAP SCREW 5/16-18 X 1-1/2
N/A View Replacement
1112 P05391112
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
1113 P05391113
Replaced By P0539113
MOTOR KEY
N/A View Replacement
1114 P05391114
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
1115 P05391115
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
1116 P05391116
Replaced By P0539116
BRAKE
N/A View Replacement
1118 P05391118
Replaced By P0539118
PULLEY BUSHING
N/A View Replacement
1119 P05391119
Replaced By PVA71
V-BELT A71
N/A View Replacement
1121 P05391121
Replaced By P0539121
BRAKE BRACKET
N/A View Replacement
1122 P05391122
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
1123 P05391123
Replaced By PB21
HEX BOLT 3/8-16 X 3/4
N/A View Replacement
1124 P05391124
Replaced By P0539124
FLAT HEAD NUT
N/A View Replacement
1125 P05391125
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
1126 P05391126
Replaced By P0539126
LIMIT SWITCH
N/A View Replacement
1127 P05391127
Replaced By P0539127
LIMIT SWITCH PLATE
N/A View Replacement
1128 P05391128
Replaced By PB04
HEX BOLT 5/16-18 X 3
N/A View Replacement
1129 P05391129
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
113 P0539113 MOTOR KEY $3.50
1130 P05391130
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
1131 P05391131
Replaced By P0539131
COVER
N/A View Replacement
114 P0539114
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
115 P0539115
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
116 P0539116 BRAKE $384.00
118 P0539118 PULLEY BUSHING $81.50
119 P0539119
Replaced By PVA71
V-BELT A71
N/A View Replacement
121 P0539121 BRAKE BRACKET $63.00
122 P0539122
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
123 P0539123
Replaced By PB21
HEX BOLT 3/8-16 X 3/4
N/A View Replacement
124 P0539124 FLAT HEAD NUT $5.00
125 P0539125
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
126 P0539126 LIMIT SWITCH $38.00
127 P0539127 LIMIT SWITCH PLATE $11.00
128 P0539128
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
129 P0539129
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
130 P0539130
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
1301 P05391301
Replaced By P0539140
COMPLETE BRAKE ASSY
N/A View Replacement
1301-1 P05391301-1
Replaced By P0539140
COMPLETE BRAKE ASSY
N/A View Replacement
1302-1 P05391302-1
Replaced By P0539138
BRAKE LINING
N/A View Replacement
1302-2 P05391302-2
Replaced By P0539138
BRAKE LINING
N/A View Replacement
1303 P05391303
Replaced By P0539133
BRAKE ARBOR
N/A View Replacement
1304 P05391304
Replaced By P0539141
BRAKE SPRING
N/A View Replacement
1305 P05391305
Replaced By P0539142
BRAKE INSIDE PIECE
N/A View Replacement
1306 P05391306
Replaced By PFH12M
FLAT HD SCR M6-1 X 25
N/A View Replacement
1307 P05391307
Replaced By P0539135
BRAKE PIN
N/A View Replacement
1308 P05391308
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
N/A View Replacement
131 P0539131 COVER $19.50
1310 P05391310
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
1311 P05391311
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
1312 P05391312
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
1313 P05391313
Replaced By P0539140
COMPLETE BRAKE ASSY
N/A View Replacement
132 P0539132
Replaced By PFH12M
FLAT HD SCR M6-1 X 25
N/A View Replacement
133 P0539133 BRAKE ARBOR $31.50
134 P0539134
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
135 P0539135 BRAKE PIN $13.00
136 P0539136
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
137 P0539137
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
N/A View Replacement
138 P0539138 BRAKE LINING $50.00
139 P0539139 440V CONVERSION KIT V1 $217.50
139V2 P0539139V2 440V CONVERSION KIT V2.09.10 $145.50
140 P0539140 COMPLETE BRAKE ASSY $142.00
141 P0539141 BRAKE SPRING $6.50
142 P0539142 BRAKE INSIDE PIECE $31.50

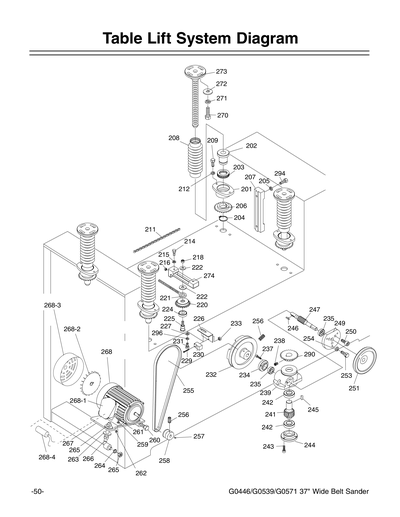

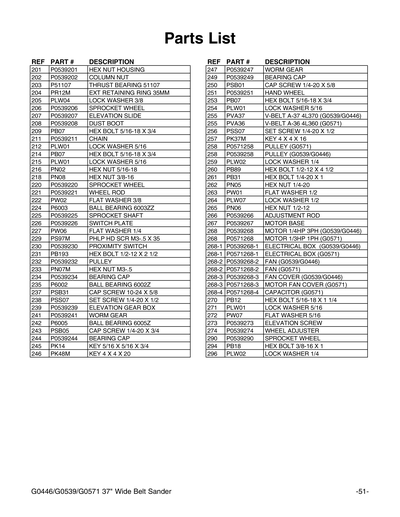

201 P0539201 HEX NUT HOUSING $31.50
202 P0539202 COLUMN NUT $29.00
203 P0539203
Replaced By P51107
THRUST BEARING 51107
N/A View Replacement
204 P0539204
Replaced By PR12M
EXT RETAINING RING 35MM
N/A View Replacement
205 P0539205
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
206 P0539206 SPROCKET WHEEL $18.00
207 P0539207 ELEVATION SLIDE $75.00
208 P0539208 DUST BOOT $44.00
209 P0539209
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
2101 P05392101
Replaced By P0539273
ELEVATION SCREW
N/A View Replacement
2102 P05392102
Replaced By PB12
HEX BOLT 5/16-18 X 1-1/4
N/A View Replacement
2103 P05392103
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
2104 P05392104
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2105 P05392105
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
2106 P05392106
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
2107 P05392107
Replaced By P0539207
ELEVATION SLIDE
N/A View Replacement
2108 P05392108
Replaced By P0539208
DUST BOOT
N/A View Replacement
2109 P05392109
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
211 P0539211 CHAIN $94.00
2110 P05392110
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2111 P05392111
Replaced By P0539211
CHAIN
N/A View Replacement
212 P0539212
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
214 P0539214
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
215 P0539215
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
216 P0539216
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
218 P0539218
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
220 P0539220 SPROCKET WHEEL $63.00
2201 P05392201
Replaced By P0539201
HEX NUT HOUSING
N/A View Replacement
2202 P05392202
Replaced By P0539202
COLUMN NUT
N/A View Replacement
2203 P05392203
Replaced By P51107
THRUST BEARING 51107
N/A View Replacement
2204 P05392204
Replaced By PRP12M
ROLL PIN 2.5 X 18
N/A View Replacement
2206 P05392206
Replaced By P0539206
SPROCKET WHEEL
N/A View Replacement
221 P0539221 WHEEL ROD $19.50
222 P0539222
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
224 P0539224
Replaced By G3850
Bearing - 35mm x 17mm
N/A View Replacement
225 P0539225 SPROCKET SHAFT $35.00
226 P0539226 SWITCH PLATE $6.50
227 P0539227
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
229 P0539229
Replaced By PS97M
PHLP HD SCR M3-.5 X 34
N/A View Replacement
230 P0539230 PROXIMITY SWITCH $93.00
2301 P05392301
Replaced By P0539239
ELEVATION GEAR BOX
N/A View Replacement
2302 P05392302
Replaced By P0539241
WORM GEAR
N/A View Replacement
2303 P05392303
Replaced By P6005Z
BALL BEARING 6005Z
N/A View Replacement
2304 P05392304
Replaced By P0539244
BEARING CAP
N/A View Replacement
2305 P05392305
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
2306 P05392306
Replaced By P0539247
WORM GEAR
N/A View Replacement
2307 P05392307
Replaced By P6002ZZ
BALL BEARING 6002ZZ
N/A View Replacement
2308 P05392308
Replaced By P0539234
BEARING CAP
N/A View Replacement
2309 P05392309
Replaced By PCAP31
CAP SCREW 10-24 X 5/8
N/A View Replacement
231 P0539231
Replaced By PB19
HEX BOLT 1/4-20 X 1/2
N/A View Replacement
2310 P05392310
Replaced By P0539249
BEARING CAP
N/A View Replacement
2311 P05392311
Replaced By PCAP01
CAP SCREW 1/4-20 X 5/8
N/A View Replacement
2312 P05392312
Replaced By P0539290
SPROCKET WHEEL
N/A View Replacement
2313 P05392313
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
2314 P05392314
Replaced By P0539232
PULLEY
N/A View Replacement
2315 P05392315
Replaced By PVA37
V-BELT A37
N/A View Replacement
2316 P05392316
Replaced By P0539258
PULLEY
N/A View Replacement
2317 P05392317
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
2318 P05392318
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
2319 P05392319
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
232 P0539232 PULLEY $56.00
2320 P05392320
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
2321 P05392321
Replaced By P0539251
HAND WHEEL
N/A View Replacement
2322 P05392322
Replaced By P0539267
MOTOR BASE
N/A View Replacement
2323 P05392323
Replaced By PB31
HEX BOLT 1/4-20 X 1
N/A View Replacement
2324 P05392324
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
2325 P05392325
Replaced By P0539266
ADJUSTMENT ROD
N/A View Replacement
2326 P05392326
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
2327 P05392327
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
2328 P05392328
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
233 P0539233
Replaced By PN07M
HEX NUT M3-.5
N/A View Replacement
2331 P05392331
Replaced By PH29332331
MOTOR 1/4HP 220V/440V 3-PH
N/A View Replacement
2332 P05392332
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
2333 P05392333
Replaced By PB89
HEX BOLT 1/2-12 X 4-1/2
N/A View Replacement
2334 P05392334
Replaced By P0539226
SWITCH PLATE
N/A View Replacement
2335 P05392335
Replaced By PB19
HEX BOLT 1/4-20 X 1/2
N/A View Replacement
2336 P05392336
Replaced By P0539230
PROXIMITY SWITCH
N/A View Replacement
2337 P05392337
Replaced By PS97M
PHLP HD SCR M3-.5 X 34
N/A View Replacement
2338 P05392338
Replaced By PN07M
HEX NUT M3-.5
N/A View Replacement
2339 P05392339
Replaced By PK14
KEY 5/16 X 5/16 X 3/4
N/A View Replacement
234 P0539234 BEARING CAP $50.00
2340 P05392340
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
2341 P05392341
Replaced By PK37M
KEY 4 X 4 X 16
N/A View Replacement
235 P0539235
Replaced By P6002ZZ
BALL BEARING 6002ZZ
N/A View Replacement
237 P0539237
Replaced By PCAP31
CAP SCREW 10-24 X 5/8
N/A View Replacement
238 P0539238
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
239 P0539239 ELEVATION GEAR BOX $125.00
2401 P05392401
Replaced By P0539274
WHEEL ADJUSTER
N/A View Replacement
2402 P05392402
Replaced By P0539225
SPROCKET SHAFT
N/A View Replacement
2403 P05392403
Replaced By G3850
Bearing - 35mm x 17mm
N/A View Replacement
2404 P05392404
Replaced By P0539220
SPROCKET WHEEL
N/A View Replacement
2405 P05392405
Replaced By P0539221
WHEEL ROD
N/A View Replacement
2406 P05392406
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
2407 P05392407
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
2408 P05392408
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
2409 P05392409
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
241 P0539241 WORM GEAR $42.50
2410 P05392410
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
242 P0539242
Replaced By P6005ZZ
BALL BEARING 6005ZZ
N/A View Replacement
243 P0539243
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
244 P0539244 BEARING CAP $50.00
245 P0539245
Replaced By PK14
KEY 5/16 X 5/16 X 3/4
N/A View Replacement
246 P0539246
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
247 P0539247 WORM GEAR $42.50
249 P0539249 BEARING CAP $63.00
250 P0539250
Replaced By PCAP01
CAP SCREW 1/4-20 X 5/8
N/A View Replacement
251 P0539251 HAND WHEEL $57.00
253 P0539253
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
254 P0539254
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
255 P0539255
Replaced By PVA36
V-BELT A36
N/A View Replacement
256 P0539256
Replaced By PSS07
SET SCREW 1/4-20 X 1/2
N/A View Replacement
257 P0539257
Replaced By PK37M
KEY 4 X 4 X 16
N/A View Replacement
258 P0539258 PULLEY $57.00
259 P0539259
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
260 P0539260
Replaced By PB89
HEX BOLT 1/2-12 X 4-1/2
N/A View Replacement
261 P0539261
Replaced By PB31
HEX BOLT 1/4-20 X 1
N/A View Replacement
262 P0539262
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
263 P0539263
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
264 P0539264
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
265 P0539265
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
266 P0539266 ADJUSTMENT ROD $6.50
267 P0539267 MOTOR BASE $72.00
268 P0539268
Replaced By PH29332331
MOTOR 1/4HP 220V/440V 3-PH
N/A View Replacement
268-1 P0539268-1 MOTOR ELECTRICAL BOX $4.00
268-2 P0539268-2
Replaced By PH29332331-2
MOTOR FAN
N/A View Replacement
268-3 P0539268-3
Replaced By PH29332331-1
MOTOR FAN COVER
N/A View Replacement
270 P0539270
Replaced By PB12
HEX BOLT 5/16-18 X 1-1/4
N/A View Replacement
271 P0539271
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
272 P0539272
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
273 P0539273 ELEVATION SCREW $142.00
274 P0539274 WHEEL ADJUSTER $222.00
290 P0539290 SPROCKET WHEEL $42.50
294 P0539294
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
296 P0539296
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
301 P0539301 TABLE $1,535.50
302 P0539302 CONVEYOR BELT $740.75
303 P0539303 OUTFEED ROLLER $1,343.50
304 P0539304 BRAKE COVER FRONT $71.50
304-1 P0539304-1 EMERGENCY STOP LABEL $20.00
305 P0539305 INFEED ROLLER BRACKET $53.25
306 P0539306 LIMIT SWITCH $47.50
307 P0539307
Replaced By PS10
PHLP HD SCR 10-24 X 1-1/2
N/A View Replacement
308 P0539308
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
309 P0539309
Replaced By PB95
HEX BOLT 1/2-12 X 3
N/A View Replacement
310 P0539310 INFEED ROLLER SHAFT $657.00
3101 P05393101
Replaced By P0539301
TABLE
N/A View Replacement
3102 P05393102
Replaced By P0539302
CONVEYOR BELT
N/A View Replacement
3103 P05393103
Replaced By P0539336
GEARBOX PLATE
N/A View Replacement
3104 P05393104
Replaced By P0539340
CUSHION
N/A View Replacement
3105 P05393105
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
3106 P05393106
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
3107 P05393107
Replaced By P0539303
OUTFEED ROLLER
N/A View Replacement
3108 P05393108
Replaced By P0539326
BEARING UCF205
N/A View Replacement
3109 P05393109
Replaced By P0539341
REDUCER
N/A View Replacement
311 P0539311
Replaced By P6206-2RS
BALL BEARING 6206-2RS
N/A View Replacement
3110 P05393110 PLUG $3.50
3111 P05393111
Replaced By P0539331
PLUG
N/A View Replacement
3112 P05393112
Replaced By P0539326
BEARING UCF205
N/A View Replacement
3113 P05393113
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
3114 P05393114
Replaced By PB24
HEX BOLT 3/8-16 X 1-1/4
N/A View Replacement
3115 P05393115
Replaced By P0539325
BEARING CAP
N/A View Replacement
3116 P05393116
Replaced By P0539344
DRIVEN PULLEY
N/A View Replacement
3117 P05393117
Replaced By PB16
HEX BOLT 3/8-16 X 1-1/2
N/A View Replacement
3118 P05393118
Replaced By P0539345
DRIVING PULLEY
N/A View Replacement
3119 P05393119
Replaced By PK66M
KEY 7 X 7 X 55
N/A View Replacement
312 P0539312
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement
3120 P05393120
Replaced By PB16
HEX BOLT 3/8-16 X 1-1/2
N/A View Replacement
3121 P05393121
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
3123 P05393123
Replaced By P9962ZX3123
FEED MOTOR 1HP 220V/440V 3-PH
N/A View Replacement
3124 P05393124
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
3126 P05393126
Replaced By P0539346
TIMING BELT
N/A View Replacement
3127 P05393127
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
3128 P05393128
Replaced By P0539343
SPEED UNIT BASE PLATE
N/A View Replacement
3129 P05393129
Replaced By P0539347
SPEED UNIT COVER
N/A View Replacement
313 P0539313
Replaced By PCAP70
CAP SCREW 5/16-18 X 2
N/A View Replacement
3130 P05393130
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
3131 P05393131
Replaced By P0539315
INFEED ROLLER BRACKET
N/A View Replacement
3132 P05393132
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
3133 P05393133
Replaced By P0539305
INFEED ROLLER BRACKET
N/A View Replacement
3135 P05393135
Replaced By P0539314
POSITIONING WHEEL
N/A View Replacement
3136 P05393136
Replaced By PCAP70
CAP SCREW 5/16-18 X 2
N/A View Replacement
3137 P05393137
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
3138 P05393138
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
314 P0539314 POSITIONING WHEEL $31.50
3140 P05393140
Replaced By P0539304
BRAKE COVER FRONT
N/A View Replacement
3141 P05393141
Replaced By PSS04
SET SCREW 1/4-20 X 5/16
N/A View Replacement
3142 P05393142
Replaced By P0539306
LIMIT SWITCH
N/A View Replacement
3143 P05393143
Replaced By PS10
PHLP HD SCR 10-24 X 1-1/2
N/A View Replacement
3144 P05393144
Replaced By PB95
HEX BOLT 1/2-12 X 3
N/A View Replacement
315 P0539315 INFEED ROLLER BRACKET $94.00
316 P0539316
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
317 P0539317
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
318 P0539318
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
319 P0539319
Replaced By PCAP62
CAP SCREW 1/4-20 X 1-1/2
N/A View Replacement
320 P0539320 ELEVATION LIMITER $35.50
3201 P05393201
Replaced By P0539310
INFEED ROLLER SHAFT
N/A View Replacement
3202 P05393202
Replaced By P0539321
INFEED ROLLER
N/A View Replacement
3203 P05393203
Replaced By P6206-2RS
BALL BEARING 6206-2RS
N/A View Replacement
3204 P05393204
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement
3205 P05393205
Replaced By P0539320
ELEVATION LIMITER
N/A View Replacement
3206 P05393206
Replaced By PCAP62
CAP SCREW 1/4-20 X 1-1/2
N/A View Replacement
321 P0539321 INFEED ROLLER $985.00
322 P0539322
Replaced By PB24
HEX BOLT 3/8-16 X 1-1/4
N/A View Replacement
325 P0539325 BEARING CAP $44.00
326 P0539326 BEARING UCF205 $42.50
327 P0539327
Replaced By P9962ZX3123
FEED MOTOR 1HP 220V/440V 3-PH
N/A View Replacement
328 P0539328
Replaced By PB32M
HEX BOLT M10-1.5 X 25
N/A View Replacement
329 P0539329
Replaced By PB07M
HEX BOLT M8-1.25 X 25
N/A View Replacement
330 P0539330
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
331 P0539331 PLUG $3.50
332 P0539332
Replaced By PK66M
KEY 7 X 7 X 55
N/A View Replacement
333 P0539333
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
334 P0539334
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
335 P0539335
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
336 P0539336 GEARBOX PLATE $150.50
337 P0539337
Replaced By P0539326
BEARING UCF205
N/A View Replacement
339 P0539339
Replaced By PB16
HEX BOLT 3/8-16 X 1-1/2
N/A View Replacement
340 P0539340 CUSHION $19.50
341 P0539341 REDUCER $1,062.25
342 P0539342
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
343 P0539343 SPEED UNIT BASE PLATE $222.00
344 P0539344 DRIVEN PULLEY $432.00
345 P0539345 DRIVING PULLEY $409.00
346 P0539346 TIMING BELT $311.50
347 P0539347 SPEED UNIT COVER $222.00
349 P0539349
Replaced By PB09M
HEX BOLT M8-1.25 X 20
N/A View Replacement

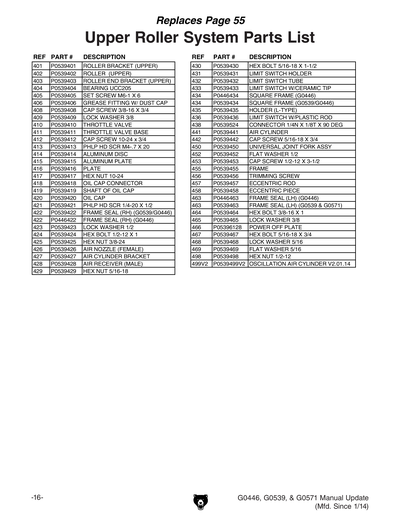

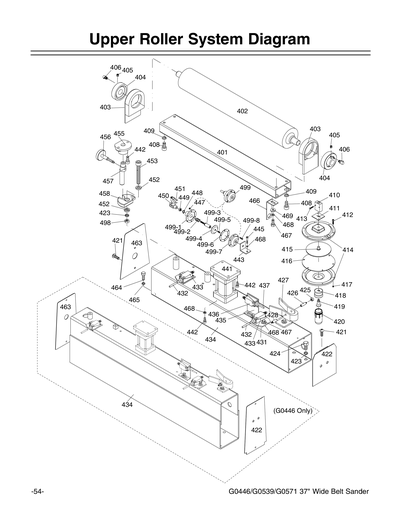

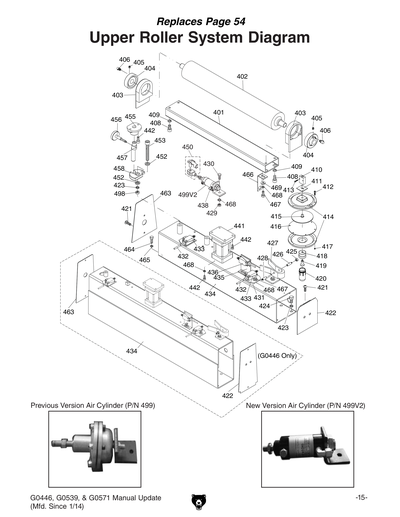

401 P0539401 ROLLER BRACKET UPPER $240.00
402 P0539402 ROLLER UPPER $669.25
403 P0539403 ROLLER BRACKET UPPER $113.00
404 P0539404
Replaced By PUCC205
CARTRIDGE BEARING UCC205
N/A View Replacement
405 P0539405
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
406 P0539406 GREASE FITTING W/DUST CAP $4.00
408 P0539408
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
409 P0539409
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
410 P0539410 THROTTLE VALVE $59.50
4101 P05394101
Replaced By P0539613
PISTON SLIDE RAIL
N/A View Replacement
4102 P05394102
Replaced By P0539688
PISTON BRACKET
N/A View Replacement
4103 P05394103
Replaced By P0539610
COMPRESSION SPRING
N/A View Replacement
4104 P05394104
Replaced By P0539611
PISTON BRACKET PIN 10MM
N/A View Replacement
4105 P05394105
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
4106 P05394106
Replaced By PS11
PHLP HD SCR 5/16-18 X 1-1/4
N/A View Replacement
4107 P05394107
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
4108 P05394108
Replaced By PB12
HEX BOLT 5/16-18 X 1-1/4
N/A View Replacement
4109 P05394109
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
411 P0539411 THROTTLE VALVE BASE $7.50
412 P0539412
Replaced By PCAP33
CAP SCREW 10-24 X 3/4
N/A View Replacement
413 P0539413
Replaced By PS52M
PHLP HD SCR M4-.7 X 20
N/A View Replacement
414 P0539414 ALUMINUM DISC $248.00
415 P0539415 ALUMINUM PLATE $18.00
416 P0539416 DIAPHRAM $13.25
417 P0539417
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
418 P0539418 OIL CAP CONNECTOR $18.00
419 P0539419 SHAFT OF OIL CAP $11.00
420 P0539420 OIL CAP $60.50
4201 P05394201
Replaced By P0539601
PISTON ROLLER SHAFT
N/A View Replacement
4202 P05394202
Replaced By P0539602
PISTON ROLLER
N/A View Replacement
4203 P05394203
Replaced By G3850
Bearing - 35mm x 17mm
N/A View Replacement
4204 P05394204
Replaced By P0539604
SHAFT BEARING COLLAR
N/A View Replacement
4205 P05394205
Replaced By PSS03
SET SCREW 1/4-20 X 3/8
N/A View Replacement
421 P0539421
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
422 P0539422 FRAME SEAL RIGHT $63.00
423 P0539423
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
424 P0539424
Replaced By PB53
HEX BOLT 1/2-12 X 1
N/A View Replacement
425 P0539425
Replaced By PN11
HEX NUT 3/8-24
N/A View Replacement
426 P0539426 AIR NOZZLE FEMALE $5.75
427 P0539427
Replaced By P9962Z6119
AIR CYLINDER BRACKET
N/A View Replacement
428 P0539428
Replaced By P9962Z6120
AIR SENSOR NOZZLE MALE
N/A View Replacement
429 P0539429
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
430 P0539430
Replaced By PB11
HEX BOLT 5/16-18 X 1-1/2
N/A View Replacement
431 P0539431 LIMIT SWITCH HOLDER $11.00
432 P0539432
Replaced By P9962Z0002
LIMIT SWITCH CERAMIC TIP
N/A View Replacement
433 P0539433
Replaced By P9962Z6115
LIMIT SWITCH CERAMIC ASSY
N/A View Replacement
434 P0539434 SQUARE FRAME $240.00
435 P0539435 HOLDER L TYPE $19.50
436 P0539436 LIMIT SWITCH W/ PLASTIC ROD $57.00
437 P0539437 LIMIT SWITCH ROD PLASTIC $1.50
438 P0539438
Replaced By P0539524
CONNECTOR 1/4N X 1/8T X 90 DEG
N/A View Replacement
441 P0539441 AIR CYLINDER $334.75
442 P0539442
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
443 P0539443 BASE $31.50
445 P0539445
Replaced By PCAP08
CAP SCREW 5/16-18 X 1-1/2
N/A View Replacement
446 P0539446
Replaced By PS08
PHLP HD SCR 10-24 X 3/4
N/A View Replacement
447 P0539447
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
448 P0539448
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
449 P0539449
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
450 P0539450 UNIVERSAL JOINT FORK ASSY $21.50
451 P0539451
Replaced By P0539450
UNIVERSAL JOINT FORK ASSY
N/A View Replacement
452 P0539452
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
453 P0539453
Replaced By PCAP79
CAP SCREW 1/2-12 X 3-1/2
N/A View Replacement
455 P0539455 FRAME $29.00
456 P0539456 TRIMMING SCREW $29.00
457 P0539457 ECCENTRIC ROD $94.00
458 P0539458 ECCENTRIC PIECE $64.00
463 P0539463 FRAME SEAL LEFT $63.00
463-1 P0539463-1 FRAME SEAL LEFT $51.50
464 P0539464
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
465 P0539465
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
466 P0539466
Replaced By P9962Z6128
SANDING BELT POWER OFF PLATE
N/A View Replacement
467 P0539467
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
468 P0539468
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
469 P0539469
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
498 P0539498
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
499 P0539499
*DISCD*DIAPHRAM ASSY V1
Item is no longer available
N/A
499-1 P0539499-1 PUSHROD COVER $63.00
499-2 P0539499-2 COMPRESSION SPRING 3.3 X 24.5 X 24 $1.75
499-3 P0539499-3 PUSHROD $18.00
499-4 P0539499-4 PLATE $18.00
499-5 P0539499-5 DIAPHRAM SCREW $2.00
499-6 P0539499-6 DIAPHRAM $11.25
499-7 P0539499-7 HOUSING REAR $63.00
499-8 P0539499-8
Replaced By PCAP33
CAP SCREW 10-24 X 3/4
N/A View Replacement
499V2 P0539499V2
Replaced By P9962Z6323V2
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
N/A View Replacement

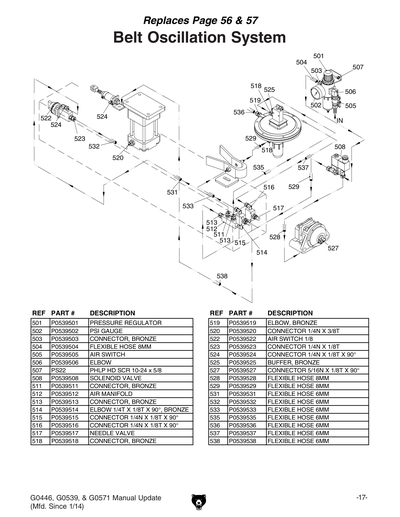

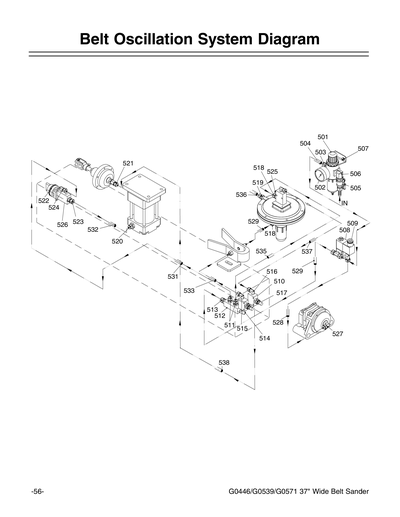

501 P0539501 PRESSURE REGULATOR W/PSI GAUGE $142.00
502 P0539502
Replaced By P0539501
PRESSURE REGULATOR W/PSI GAUGE
N/A View Replacement
503 P0539503 CONNECTOR BRONZE $4.00
504 P0539504 FLEXIBLE HOSE 8MM $3.75
505 P0539505 AIR SWITCH $15.00
506 P0539506 ELBOW $6.50
507 P0539507
Replaced By PS22
PHLP HD SCR 10-24 X 5/8
N/A View Replacement
508 P0539508
*DISCD*SOLENOID VALVE
Item is no longer available
N/A
509 P0539509 SOLENOID VALVE $71.50
510 P0539510
Replaced By P99799117
THROTTLE VALVE
N/A View Replacement
5101 P05395101
Replaced By P0539667
BEARING HOUSING
N/A View Replacement
5102 P05395102
Replaced By P0539632
RUBBER ROLLER
N/A View Replacement
5103 P05395103
Replaced By P0539655
FASTENING TUBE
N/A View Replacement
5104 P05395104
Replaced By PUCC206
CARTRIDGE BEARING UCC206
N/A View Replacement
5105 P05395105
Replaced By P0539661
PULLEY
N/A View Replacement
5106 P05395106
Replaced By PCAP11
CAP SCREW 5/16-18 X 1-1/4
N/A View Replacement
5107 P05395107
Replaced By PK11
KEY 5/16 X 5/16 X 1-3/16
N/A View Replacement
5108 P05395108
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
5109 P05395109
Replaced By P6205RS
BALL BEARING 6205RS
N/A View Replacement
511 P0539511 CONNECTOR $6.50
5110 P05395110
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
5111 P05395111
Replaced By PB41
HEX BOLT 1/2-12 X 1-1/2
N/A View Replacement
5112 P05395112
Replaced By PCAP04
CAP SCREW 1/4-20 X 1/2
N/A View Replacement
5113 P05395113
Replaced By P0539615
BEARING CAP
N/A View Replacement
5114 P05395114
Replaced By P0539666
FILTER
N/A View Replacement
5116 P05395116
Replaced By P0539615
BEARING CAP
N/A View Replacement
5117 P05395117
Replaced By P0539660
COVER OF PULLEY
N/A View Replacement
5118 P05395118
Replaced By PS07
PHLP HD SCR 1/4-20 X 3/8
N/A View Replacement
5119 P05395119
Replaced By P0539628
SPANNER NUT
N/A View Replacement
512 P0539512 CONNECTOR $13.00
513 P0539513 CONNECTOR $6.50
514 P0539514 ELBOW 1/4T X 1/8T X 90 DEG, BRONZE $4.50
515 P0539515 CONNECTOR 1/4N X 1/8T X 90 DEG $6.50
516 P0539516 CONNECTOR 1/4N X 1/8T X 90 DEG $6.50
517 P0539517
Replaced By P99799117
THROTTLE VALVE
N/A View Replacement
518 P0539518 CONNECTOR, BRONZE $6.50
519 P0539519 ELBOW, BRONZE $3.00
520 P0539520 CONNECTOR 1/4N X 3/8T $6.50
5201 P05395201
Replaced By P0539621
BEARING HOUSING
N/A View Replacement
5202 P05395202
Replaced By P0539604
SHAFT BEARING COLLAR
N/A View Replacement
5203 P05395203
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
5204 P05395204
Replaced By PUCC205
CARTRIDGE BEARING UCC205
N/A View Replacement
5205 P05395205
Replaced By P0539625
HANDLE
N/A View Replacement
5206 P05395206
Replaced By P0539630
LEVER SHANK
N/A View Replacement
521 P0539521 CONNECTOR $4.00
5211 P05395211
Replaced By P0539631
BEARING BRACKET PAD
N/A View Replacement
522 P0539522 AIR SWITCH 1/8" $57.00
523 P0539523 CONNECTOR 1/4N X 1/8T $6.50
524 P0539524 CONNECTOR 1/4N X 1/8T X 90 DEG $6.50
525 P0539525 BUFFER BRONZE $7.50
527 P0539527 *DISCD*CONNECTOR PLASTIC V1 $3.50
527V2 P0539527V2 CONECTOR,BRAS 5/16NX1/8TX90 DEG V2.12.11 $4.00
528 P0539528 FLEXIBLE HOSE 8MM $4.00
529 P0539529 FLEXIBLE HOSE 8MM $4.00
5301 P05395301
Replaced By P0539644
BRACKET MALE
N/A View Replacement
5302 P05395302
Replaced By P0539647
BRACKET FEMALE
N/A View Replacement
5303 P05395303
Replaced By PH29345303
FELT PLATEN PAD 1/2 X 1-13/16 X 39"
N/A View Replacement
5304 P05395304
Replaced By PH29345304
GRAPHITE PAD 37" X 3-5/8"
N/A View Replacement
5305 P05395305
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
N/A View Replacement
5306 P05395306
Replaced By P0539648
PRESSURE PLATE
N/A View Replacement
5307 P05395307
Replaced By P0539646
BASE
N/A View Replacement
5308 P05395308 SHAFT OF GRAPHITE BRACKET $87.50
5309 P05395309
Replaced By P0539645
TUBE
N/A View Replacement
531 P0539531 FLEXIBLE HOSE 6MM $4.00
5310 P05395310
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
N/A View Replacement
5311 P05395311
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
5312 P05395312
Replaced By P0539638
COMPRESSION SPRING 3.5 X 21 X 65
N/A View Replacement
5313 P05395313
Replaced By P0539640
HOUSING
N/A View Replacement
5314 P05395314
Replaced By P0539639
FIXING SHAFT
N/A View Replacement
5315 P05395315
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
5316 P05395316
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
5317 P05395317
Replaced By P0539622
STEP WASHER 3/8
N/A View Replacement
5318 P05395318
Replaced By P0539623
HANDLE
N/A View Replacement
5319 P05395319
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
N/A View Replacement
532 P0539532 FLEXIBLE HOSE 6MM $4.00
5320 P05395320 RING FOR ADJUSTMENT $63.00
5321 P05395321
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
5322 P05395322
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
5323 P05395323
Replaced By P0539617
HANDLE FOR FASTENING
N/A View Replacement
533 P0539533 FLEXIBLE HOSE 6MM $4.00
534 P0539534 FLEXIBLE HOSE $6.00
535 P0539535 FLEXIBLE HOSE 6MM $4.00
536 P0539536 FLEXIBLE HOSE $4.00
537 P0539537 FLEXIBLE HOSE 6MM $4.00
538 P0539538 FLEXIBLE HOSE 6MM $4.00
601 P0539601 PISTON ROLLER SHAFT $119.00
602 P0539602 PISTON ROLLER $518.50
603 P0539603
Replaced By P6003-2RS
BALL BEARING 6003-2RS
N/A View Replacement
604 P0539604 SHAFT BEARING COLLAR $19.50
605 P0539605
Replaced By PSS03
SET SCREW 1/4-20 X 3/8
N/A View Replacement
606 P0539606
Replaced By PS11
PHLP HD SCR 5/16-18 X 1-1/4
N/A View Replacement
607 P0539607
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
608 P0539608
Replaced By PB12
HEX BOLT 5/16-18 X 1-1/4
N/A View Replacement
609 P0539609
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
610 P0539610 COMPRESSION SPRING $7.75
6101 P05396101
Replaced By P0539434
SQUARE FRAME
N/A View Replacement
6103 P05396103
Replaced By P0539422
FRAME SEAL RIGHT
N/A View Replacement
6104 P05396104
Replaced By P0539463
FRAME SEAL LEFT
N/A View Replacement
6105 P05396105
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
6106 P05396106
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
6107 P05396107
Replaced By PB18
HEX BOLT 3/8-16 X 1
N/A View Replacement
6108 P05396108
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
6109 P05396109
Replaced By PB53
HEX BOLT 1/2-12 X 1
N/A View Replacement
611 P0539611 PISTON BRACKET PIN 10MM $2.00
6111 P05396111
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
6112 P05396112
Replaced By PCAP07
CAP SCREW 5/16-18 X 3/4
N/A View Replacement
6113 P05396113
Replaced By P0539441
AIR CYLINDER
N/A View Replacement
6114 P05396114 LIMIT SWITCH HOLDER L-TYPE $19.50
6115 P05396115
Replaced By P9962Z6115
LIMIT SWITCH CERAMIC ASSY
N/A View Replacement
6116 P05396116
Replaced By P9962Z0002
LIMIT SWITCH CERAMIC TIP
N/A View Replacement
6117 P05396117
Replaced By P0539431
LIMIT SWITCH HOLDER
N/A View Replacement
6118 P05396118
Replaced By P0539426
AIR NOZZLE FEMALE
N/A View Replacement
6119 P05396119
Replaced By P9962Z6119
AIR CYLINDER BRACKET
N/A View Replacement
612 P0539612
Replaced By PCAP05
CAP SCREW 1/4-20 X 3/4
N/A View Replacement
6120 P05396120
Replaced By P9962Z6120
AIR SENSOR NOZZLE MALE
N/A View Replacement
6121 P05396121
Replaced By P0539410
THROTTLE VALVE
N/A View Replacement
6122 P05396122
Replaced By P0539411
THROTTLE VALVE BASE
N/A View Replacement
6123 P05396123
Replaced By P0539416
DIAPHRAM
N/A View Replacement
6124 P05396124
Replaced By P0539414
ALUMINUM DISC
N/A View Replacement
6125 P05396125
Replaced By P0539420
OIL CAP
N/A View Replacement
6126 P05396126
Replaced By P0539415
ALUMINUM PLATE
N/A View Replacement
6127 P05396127
Replaced By PS52M
PHLP HD SCR M4-.7 X 20
N/A View Replacement
6128 P05396128
Replaced By P9962Z6128
SANDING BELT POWER OFF PLATE
N/A View Replacement
6129 P05396129
Replaced By PN11
HEX NUT 3/8-24
N/A View Replacement
613 P0539613 PISTON SLIDE RAIL $44.00
6131 P05396131
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
6132 P05396132
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
6133 P05396133
Replaced By PCAP33
CAP SCREW 10-24 X 3/4
N/A View Replacement
6134 P05396134
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
6135 P05396135
Replaced By P0539418
OIL CAP CONNECTOR
N/A View Replacement
6136 P05396136
Replaced By P0539419
SHAFT OF OIL CAP
N/A View Replacement
6139 P05396139
Replaced By PCAP08
CAP SCREW 5/16-18 X 1-1/2
N/A View Replacement
615 P0539615 BEARING CAP $50.00
617 P0539617 HANDLE FOR FASTENING $50.00
618 P0539618
Replaced By PCAP04
CAP SCREW 1/4-20 X 1/2
N/A View Replacement
6201 P05396201
Replaced By P0539401
ROLLER BRACKET UPPER
N/A View Replacement
6202 P05396202
Replaced By P0539402
ROLLER UPPER
N/A View Replacement
6203 P05396203
Replaced By P0539403
ROLLER BRACKET UPPER
N/A View Replacement
6204 P05396204
Replaced By PUCC205
CARTRIDGE BEARING UCC205
N/A View Replacement
6205 P05396205
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
6206 P05396206
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
6207 P05396207
Replaced By PLW04
LOCK WASHER 3/8
N/A View Replacement
6208 P05396208
Replaced By P0539406
GREASE FITTING W/DUST CAP
N/A View Replacement
621 P0539621 BEARING HOUSING $451.00
622 P0539622 STEP WASHER 3/8 $25.50
623 P0539623 HANDLE $31.50
624 P0539624
Replaced By PSS08
SET SCREW 5/16-18 X 1/2
N/A View Replacement
625 P0539625 HANDLE $29.00
628 P0539628 SPANNER NUT $2.00
629 P0539629
Replaced By P6205-2RS
BALL BEARING 6205-2RS
N/A View Replacement
630 P0539630 LEVER SHANK $14.50
6301 P05396301
Replaced By P0539456
TRIMMING SCREW
N/A View Replacement
6302 P05396302
Replaced By P0539457
ECCENTRIC ROD
N/A View Replacement
6303 P05396303
Replaced By PCAP79
CAP SCREW 1/2-12 X 3-1/2
N/A View Replacement
6304 P05396304
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
6305 P05396305
Replaced By P0539458
ECCENTRIC PIECE
N/A View Replacement
6306 P05396306
Replaced By P0539450
UNIVERSAL JOINT FORK ASSY
N/A View Replacement
6307 P05396307
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
6308 P05396308
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
6309 P05396309
Replaced By P0539499-3
PUSHROD
N/A View Replacement
631 P0539631 BEARING BRACKET PAD $29.00
6310 P05396310
Replaced By PN06
HEX NUT 1/2-12
N/A View Replacement
6311 P05396311
Replaced By P0539499-1
PUSHROD COVER
N/A View Replacement
6312 P05396312
Replaced By P0539499-2
COMPRESSION SPRING 3.3 X 24.5 X 24
N/A View Replacement
6313 P05396313
Replaced By P0539499-4
PLATE
N/A View Replacement
6314 P05396314
Replaced By PFH02M
FLAT HD SCR M6-1 X 12
N/A View Replacement
6315 P05396315
Replaced By P99796315
DIAPHRAGM
N/A View Replacement
6316 P05396316
Replaced By P0539499-7
HOUSING REAR
N/A View Replacement
6317 P05396317
Replaced By PN07
HEX NUT 10-24
N/A View Replacement
6318 P05396318
Replaced By PCAP33
CAP SCREW 10-24 X 3/4
N/A View Replacement
6319 P05396319
Replaced By P0539443
BASE
N/A View Replacement
632 P0539632 RUBBER ROLLER $1,450.00
6320 P05396320
Replaced By P0539455
FRAME
N/A View Replacement
633 P0539633
Replaced By PS01
PHLP HD SCR 10-24 X 1/2
N/A View Replacement
634 P0539634 STEEL ROLLER $743.50
635 P0539635
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
636 P0539636
Replaced By PCAP16
CAP SCREW 3/8-16 X 3/4
N/A View Replacement
637 P0539637
Replaced By PW02
FLAT WASHER 3/8
N/A View Replacement
638 P0539638 COMPRESSION SPRING 3.5 X 21 X 65 $6.50
639 P0539639 FIXING SHAFT $31.50
640 P0539640 HOUSING $44.00
641 P0539641
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
642 P0539642
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
644 P0539644 BRACKET MALE $192.00
645 P0539645 TUBE $38.00
646 P0539646 BASE $63.00
647 P0539647 BRACKET FEMALE $148.75
648 P0539648 PRESSURE PLATE $36.00
649 P0539649
Replaced By PH29345303
FELT PLATEN PAD 1/2 X 1-13/16 X 39"
N/A View Replacement
650 P0539650
Replaced By PH29345304
GRAPHITE PAD 37" X 3-5/8"
N/A View Replacement
651 P0539651 PLUG 25MM $3.00
652 P0539652
Replaced By PLW07
LOCK WASHER 1/2
N/A View Replacement
653 P0539653
Replaced By PB41
HEX BOLT 1/2-12 X 1-1/2
N/A View Replacement
654 P0539654
Replaced By PUCC206
CARTRIDGE BEARING UCC206
N/A View Replacement
655 P0539655 FASTENING TUBE $42.50
656 P0539656
Replaced By PK11
KEY 5/16 X 5/16 X 1-3/16
N/A View Replacement
657 P0539657
Replaced By PLW01
LOCK WASHER 5/16
N/A View Replacement
658 P0539658
Replaced By PCAP11
CAP SCREW 5/16-18 X 1-1/4
N/A View Replacement
659 P0539659
Replaced By PS07
PHLP HD SCR 1/4-20 X 3/8
N/A View Replacement
660 P0539660 COVER OF PULLEY $3.50
661 P0539661 PULLEY $150.50
662 P0539662 GREASE FITTING $3.75
663 P0539663
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
665 P0539665
Replaced By PUCC205
CARTRIDGE BEARING UCC205
N/A View Replacement
666 P0539666 FILTER $3.50
667 P0539667 BEARING HOUSING $255.50
672 P0539672
Replaced By P0446672
SHAFT BEARING COLLAR
N/A View Replacement
673 P0539673
Replaced By P6001-2RS
BALL BEARING 6001-2RS
N/A View Replacement
688 P0539688 PISTON BRACKET $113.00
689 P0539689
Replaced By PSS03
SET SCREW 1/4-20 X 3/8
N/A View Replacement
701 P0539701 FRAME COVER UPPER V1 $1,535.50
702 P0539702 DUST PORT 4" $18.75
703 P0539703
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
704 P0539704 DOOR LEFT UPPER FRAME $518.50
705 P0539705 DOOR RIGHT UPPER FRAME $337.00
706 P0539706 DOOR LOCK $63.00
707 P0539707
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
708 P0539708
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
709 P0539709 DOOR RIGHT LOWER FRAME $337.00
710 P0539710
Replaced By PFH03
FLAT HD SCR 1/4-20 X 1/2
N/A View Replacement
7101 P05397101
Replaced By P0539701
FRAME COVER UPPER V1
N/A View Replacement
7102 P05397102
Replaced By P0539702
DUST PORT 4"
N/A View Replacement
7103 P05397103
Replaced By PS14M
PHLP HD SCR M6-1 X 12
N/A View Replacement
7104 P05397104
Replaced By P0539704
DOOR LEFT UPPER FRAME
N/A View Replacement
7105 P05397105
Replaced By P0539705
DOOR RIGHT UPPER FRAME
N/A View Replacement
7106 P05397106
Replaced By P0539706
DOOR LOCK
N/A View Replacement
7107 P05397107
Replaced By PB07
HEX BOLT 5/16-18 X 3/4
N/A View Replacement
7108 P05397108
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
7109 P05397109
Replaced By P0539709
DOOR RIGHT LOWER FRAME
N/A View Replacement
7109-1 P05397109-1
Replaced By P0539712
DOOR LOWER FRAME
N/A View Replacement
711 P0539711 PLATE FRONT $94.00
7110 P05397110
Replaced By PFH03
FLAT HD SCR 1/4-20 X 1/2
N/A View Replacement
7111 P05397111
Replaced By P0539711
PLATE FRONT
N/A View Replacement
712 P0539712 DOOR LOWER FRAME $319.00
801 P0539801 PLATEN REMOVAL TOOL $7.50
802 P0539802 LIMIT SWITCH TUBE $31.50
803 P0539803 TOOL BOX $59.50
804 P0539804
Replaced By PH29345303
FELT PLATEN PAD 1/2 X 1-13/16 X 39"
N/A View Replacement
805 P0539805
Replaced By PH29345304
GRAPHITE PAD 37" X 3-5/8"
N/A View Replacement
806 P0539806 DOOR KEY $21.50
807 P0539807
Replaced By G8000
37" x 60" A/O Sanding Belt 100-Y Grit
N/A View Replacement
808 P0539808 SANDPAPER #180 $13.00
809 P0539809 SCREWDRIVER FLAT HEAD $13.00
810 P0539810
Replaced By PWR1719
WRENCH 17 X 19MM OPEN-ENDS
N/A View Replacement
8101 P05398101 ELECTRICAL CONTROL BOX $180.50
8102 P05398102 HINGE $13.00
8103 P05398103 ELECTRICAL CONTROL BOX OF DOOR $63.00
8104 P05398104 BASE PLATE $106.50
8105 P05398105
Replaced By PN05
HEX NUT 1/4-20
N/A View Replacement
8106 P05398106
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
8107 P05398107
Replaced By PH29338107
CONTROL PANEL
N/A View Replacement
8108 P05398108
Replaced By PS07M
PHLP HD SCR M4-.7 X 8
N/A View Replacement
8109 P05398109
Replaced By P0539009
CURRENT SENSOR
N/A View Replacement
811 P0539811
Replaced By PWR1214
WRENCH 12 X 14MM OPEN-ENDS
N/A View Replacement
8110 P05398110
Replaced By P0539010
***USE P04868110***
N/A View Replacement
8111 P05398111
Replaced By P0539011V2
CONTACTOR SCHN LC1D40A V2.09.10
N/A View Replacement
8112 P05398112
Replaced By P0539012
*DISCD*OL RELAY LR3D3355 220V 30/40A V1
N/A View Replacement
8113-1 P05398113-1
Replaced By P0539013
FUSE 4A GL CT 2PC V1.07.05
N/A View Replacement
8113-2 P05398113-2
Replaced By P0539013
FUSE 4A GL CT 2PC V1.07.05
N/A View Replacement
8113-3 P05398113-3
Replaced By P0539013
FUSE 4A GL CT 2PC V1.07.05
N/A View Replacement
8114 P05398114 OL RELAY SCHN LR3D08 2.5-4A $32.00
8115 P05398115 CONTACTOR SCHN LC1D096M7 220V $39.50
8115-1 P05398115-1 CONTACTOR 2-PC ASSY SCHN LC1D09 $68.50
8115-2 P05398115-2 MAGNETIC CONTACTOR TE LC1-096 220V $67.00
8116 P05398116 BLOCK 4P100A TEND V1.07.05 $59.50
8116V2 P05398116V2 POWER TERMINAL BLOCK ENTRELEC V2.03.10 $107.00
8117 P05398117
Replaced By PS51M
PHLP HD SCR M4-.7 X 30
N/A View Replacement
8118 P05398118 TERMINAL PLATE IN13BK MARK V1.07.05 $99.00
8118V2 P05398118V2 TERMINAL BLOCK ENTRELEC V2.03.10 $188.50
8119 P05398119
Replaced By PW06
FLAT WASHER 1/4
N/A View Replacement
812 P0539812
Replaced By PWR810
WRENCH 8 X 10MM OPEN-ENDS
N/A View Replacement
8120 P05398120
Replaced By PLW02
LOCK WASHER 1/4
N/A View Replacement
8121 P05398121
Replaced By PS04
PHLP HD SCR 1/4-20 X 1/2
N/A View Replacement
8122 P05398122 PU CONNECTOR 1/2" $3.50
8123 P05398123 PU CONNECTOR 3/4" $5.50
8124 P05398124 CABLE CONNECTOR 1" $4.00
8126 P05398126
Replaced By PH29338126
AMP METER V1.03.03
N/A View Replacement
8126A P05398126A DIGITAL READOUT AMP METER $74.50
8128-1 P05398128-1 START SWITCH $28.00
8128-2 P05398128-2 START SWITCH $25.50
8128-3 P05398128-3
Replaced By P05398128-1
START SWITCH
N/A View Replacement
8129-1 P05398129-1
Replaced By P99798129
E-STOP BUTTON 250V 10A
N/A View Replacement
8129-2 P05398129-2 STOP SWITCH $26.00
8129-3 P05398129-3
Replaced By P99798129
E-STOP BUTTON 250V 10A
N/A View Replacement
813 P0539813 HEX WRENCH SET $13.00
8130 P05398130
Replaced By P99798130
POWER INDICATOR LIGHT 220V 22MM WHT
N/A View Replacement
8131 P05398131
Replaced By P05278131
E-STOP BUTTON 250V 10A
N/A View Replacement
8132 P05398132 WIRE COLUMN $150.50
8133 P05398133 COMPUTER $929.50
818 P0539818 SCREWDRIVER PHILLIPS $11.00
900 P0539900
Replaced By PH29339139
CONVERSION KIT 440V LR3D-3322/LR3D-076
N/A View Replacement
9101 P05399101
Replaced By P0539501
PRESSURE REGULATOR W/PSI GAUGE
N/A View Replacement
9102 P05399102
Replaced By P0539501
PRESSURE REGULATOR W/PSI GAUGE
N/A View Replacement
9103 P05399103
Replaced By P0539503
CONNECTOR BRONZE
N/A View Replacement
9104 P05399104
Replaced By P0539504
FLEXIBLE HOSE 8MM
N/A View Replacement
9105 P05399105
Replaced By P0539505
AIR SWITCH
N/A View Replacement
9106 P05399106
Replaced By P0539506
ELBOW
N/A View Replacement
9107 P05399107
Replaced By PS22
PHLP HD SCR 10-24 X 5/8
N/A View Replacement
9108 P05399108
Replaced By P0539508
*DISCD*SOLENOID VALVE
N/A View Replacement
9109 P05399109
Replaced By P9962Z9109
SOLENOID VALVE
N/A View Replacement
9110 P05399110 T-JOINT 5/16N X 1/8T X 5/16N $6.50
9111 P05399111
Replaced By P0539511
CONNECTOR
N/A View Replacement
9112 P05399112
Replaced By P0539512
CONNECTOR
N/A View Replacement
9113 P05399113
Replaced By P0539513
CONNECTOR
N/A View Replacement
9114 P05399114
Replaced By P0539514
ELBOW 1/4T X 1/8T X 90 DEG, BRONZE
N/A View Replacement
9115 P05399115
Replaced By P0539515
CONNECTOR 1/4N X 1/8T X 90 DEG
N/A View Replacement
9116 P05399116
Replaced By P0539516
CONNECTOR 1/4N X 1/8T X 90 DEG
N/A View Replacement
9117 P05399117
Replaced By P99799117
THROTTLE VALVE
N/A View Replacement
9118 P05399118
Replaced By P0539518
CONNECTOR, BRONZE
N/A View Replacement
9119 P05399119
Replaced By P0539519
ELBOW, BRONZE
N/A View Replacement
9120 P05399120
Replaced By P0539520
CONNECTOR 1/4N X 3/8T
N/A View Replacement
9121 P05399121
Replaced By P0539521
CONNECTOR
N/A View Replacement
9122 P05399122
Replaced By P0539522
AIR SWITCH 1/8"
N/A View Replacement
9123 P05399123
Replaced By P0539523
CONNECTOR 1/4N X 1/8T
N/A View Replacement
9124 P05399124
Replaced By P0539524
CONNECTOR 1/4N X 1/8T X 90 DEG
N/A View Replacement
9125 P05399125
Replaced By P0539525
BUFFER BRONZE
N/A View Replacement
9126 P05399126
Replaced By P0539522
AIR SWITCH 1/8"
N/A View Replacement
9127 P05399127
Replaced By P0539527
*DISCD*CONNECTOR PLASTIC V1
N/A View Replacement
9128 P05399128
Replaced By P0539528
FLEXIBLE HOSE 8MM
N/A View Replacement
9129 P05399129
Replaced By P0539529
FLEXIBLE HOSE 8MM
N/A View Replacement
9131 P05399131
Replaced By P0539531
FLEXIBLE HOSE 6MM
N/A View Replacement
9132 P05399132
Replaced By P0539532
FLEXIBLE HOSE 6MM
N/A View Replacement
9133 P05399133
Replaced By P0539533
FLEXIBLE HOSE 6MM
N/A View Replacement
9134 P05399134
Replaced By P0539534
FLEXIBLE HOSE
N/A View Replacement
9135 P05399135
Replaced By P0539535
FLEXIBLE HOSE 6MM
N/A View Replacement
9136 P05399136
Replaced By P0539536
FLEXIBLE HOSE
N/A View Replacement
9137 P05399137
Replaced By P0539537
FLEXIBLE HOSE 6MM
N/A View Replacement
9138 P05399138
Replaced By P0539538
FLEXIBLE HOSE 6MM
N/A View Replacement
9139 P05399139 CONVERSION KIT 440V 2PCS $211.50
9139-1 P05399139-1
Replaced By P0539012-1
OL RELAY TELE LR3D3322 440V 17-25A
N/A View Replacement
9139-2 P05399139-2
Replaced By P0539014-1
OL RELAY SCHN LR3D07 1.6-2.5A
N/A View Replacement
MANUAL P0539MANUAL MANUAL FOR G0539 05/05 $17.25
