Parts for G0544 - 20" 5 HP Spiral Cutterhead Planer

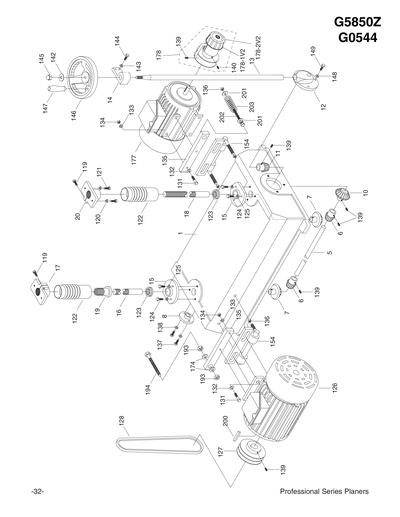

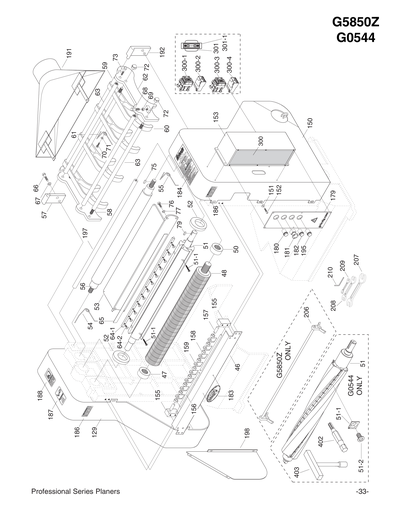

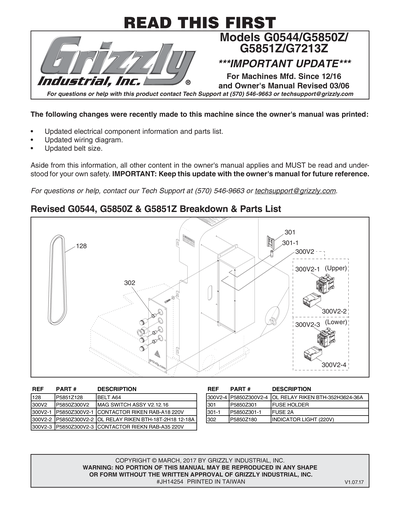

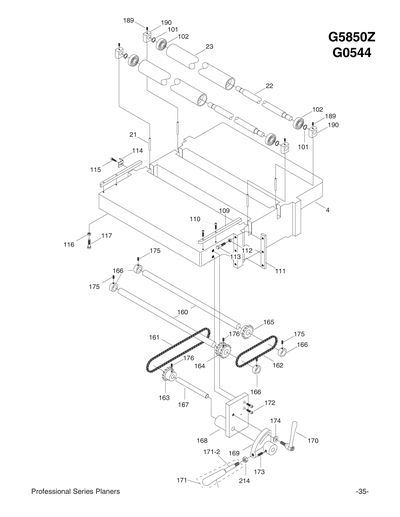

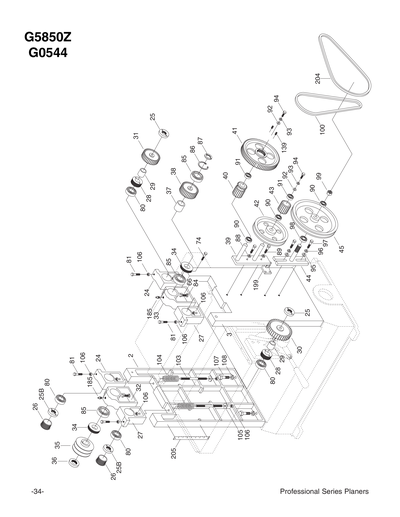

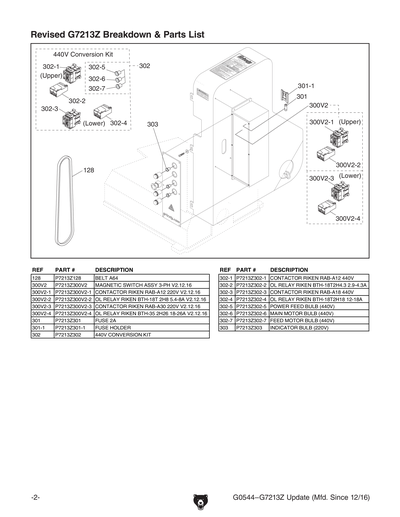

Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544
Part Diagram for G0544

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

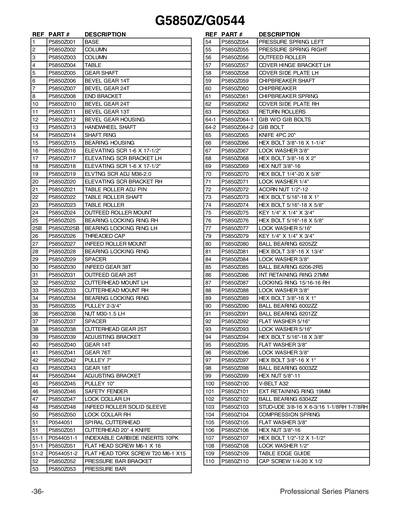

Ref #
Part #
Description
1
BASE
Price
N/A
2
LEFT COLUMN
Price
N/A
3
RIGHT COLUMN
Price
N/A
4
TABLE
Price
N/A
5
GEAR SHAFT
Price
N/A
6
BEVEL GEAR 14T
Price
N/A
7
BEVEL GEAR 24T
Price
N/A
8
END BRACKET
Price
N/A
10
BEVEL GEAR 24T
Price
N/A
11
BEVEL GEAR 13T
Price
N/A
12
BEVEL GEAR HOUSING
Price
N/A
13
HANDWHEEL SHAFT
Price
N/A
14
SHAFT RING
Price
N/A
15
BEARING HOUSING
Price
N/A
16
ELEVATION SCREW 1-6 X 17-1/2" LH
Price
N/A
17
ELEVATION SCREW BRACKET LH
Price
N/A
18
ELEVATING SCREW 1-6 X 17-1/2" RH
Price
N/A
19
ELEVATION ADJ SCR M36-2.0 RH
Price
N/A
20
ELEVATION SCR BRACKET RH
Price
N/A
21
TABLE ROLLER ADJ PIN
Price
N/A
22
TABLE ROLLER SHAFT
Price
N/A
23
TABLE ROLLER
Price
N/A
24
OUTFEED ROLLER MOUNT (R)
Price
N/A
25
BEARING LOCKING RING 15/16-16 RH R SIDE
Price
N/A
26
THREADED CAP
Price
N/A
27
INFEED ROLLER MOUNT (R)
Price
N/A
28
SPANNER NUT
Price
N/A
29
SPACER
Price
N/A
30
INFEED GEAR 38T
Price
N/A
31
OUTFEED GEAR 26T
Price
N/A
32
CUTTERHEAD MOUNT LH
Price
N/A
33
CUTTERHEAD MOUNT RH
Price
N/A
34
SPANNER NUT
Price
N/A
35
PULLEY 2-3/4"
Price
N/A
36
SPANNER NUT M30-1.5 LH
Price
N/A
37
SPACER
Price
N/A
38
CUTTERHEAD GEAR 25T
Price
N/A
39
ADJUSTING BRACKET
Price
N/A
40
GEAR 14T
Price
N/A
41
GEAR 76T
Price
N/A
42
PULLEY 7"
Price
N/A
43
GEAR 18T
Price
N/A
44
ADJUSTING BRACKET
Price
N/A
45
PULLEY 10"
Price
N/A
46
SAFETY FENDER
Price
N/A
47
LOCK COLLAR LH
Price
N/A
48
INLET FEED WHEEL SHAFT
Price
N/A
50
LOCK COLLAR RH
Price
N/A
51
SPIRAL CUTTERHEAD
Price
$2,801.15
51-1
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
51-2
FLAT HD TORX T20 M6-1 X 15
Price
N/A
52
PRESSURE BAR BRACKET
Price
N/A
53
PRESSURE BAR
Price
N/A
54
LEFT PRESSURE SPRING
Price
N/A
55
RIGHT PRESSURE SPRING
Price
N/A
56
OUTFEED ROLLER
Price
N/A
57
LEFT COVER HINGE BRACKET
Price
N/A
58
LEFT COVER SIDE PLATE
Price
N/A
59
CHIPBREAKER SHAFT
Price
N/A
60
CHIPBREAKER
Price
N/A
61
CHIPBREAKER SPRING
Price
N/A
62
COVER SIDE PLATE RH
Price
N/A
63
ROLLERS
Price
N/A
66
P0544066
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
67
LOCK WASHER 3/8
Price
N/A
68
P0544068
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
69
P0544069
Now: PN08
HEX NUT 3/8-16
Price
N/A
70
P0544070
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
71
LOCK WASHER 1/4
Price
N/A
72
P0544072
Now: PN25
ACORN NUT 1/2-12
Price
N/A
73
P0544073
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
74
P0544074
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
75
P0544075
Now: PK09
KEY 1/4 X 1/4 X 3/4
Price
N/A
76
P0544076
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
77
LOCK WASHER 5/16
Price
N/A
79
P0544079
Now: PK09
KEY 1/4 X 1/4 X 3/4
Price
N/A
80
BALL BEARING 6205ZZ
Price
N/A
81
P0544081
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
84
LOCK WASHER 3/8
Price
N/A
85
BALL BEARING 6206RS
Price
N/A
86
INT RETAINING RING 27MM
Price
N/A
87
BEARING LOCKING RING 15/16-16 RH R SIDE
Price
N/A
88
LOCK WASHER 3/8
Price
N/A
89
P0544089
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
90
BALL BEARING 6202ZZ
Price
N/A
91
BALL BEARING 6201ZZ
Price
N/A
92
P0544092
Now: PW07
FLAT WASHER 5/16
Price
N/A
93
LOCK WASHER 5/16
Price
N/A
94
P0544094
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
95
P0544095
Now: PW02
FLAT WASHER 3/8
Price
N/A
96
LOCK WASHER 3/8
Price
N/A
97
P0544097
Now: PB18
HEX BOLT 3/8-16 X 1
Price
N/A
98
Bearing - 35mm x 17mm
Price
N/A
99
P0544099
Now: PN04
HEX NUT 5/8-11
Price
N/A
100
V-BELT A32
Price
N/A
101
EXT RETAINING RING 19MM
Price
N/A
102
BALL BEARING 6304ZZ
Price
N/A
103
STUD-UDE 3/8-16 X 6-3/16 1-1/8RH/1-7/8RH
Price
N/A
104
COMPRESSION SPRING
Price
N/A
105
P0544105
Now: PW02
FLAT WASHER 3/8
Price
N/A
106
P0544106
Now: PN08
HEX NUT 3/8-16
Price
N/A
107
P0544107
Now: PB41
HEX BOLT 1/2-12 X 1-1/2
Price
N/A
108
LOCK WASHER 1/2
Price
N/A
109
TABLE EDGE GUIDE
Price
N/A
110
CAP SCREW 1/4-20 X 1/2
Price
N/A

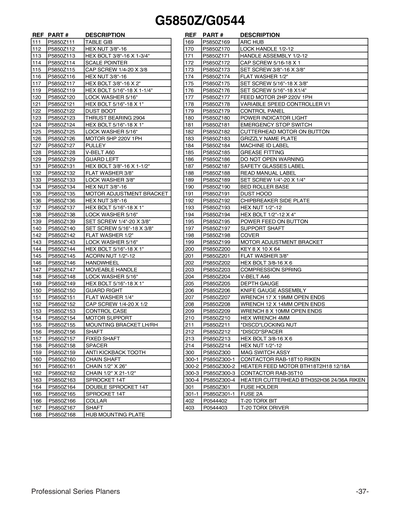

111
TABLE GIB
Price
N/A
112
P0544112
Now: PN08
HEX NUT 3/8-16
Price
N/A
113
P0544113
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
114
SCALE POINTER
Price
N/A
115
CAP SCREW 1/4-20 X 3/8
Price
N/A
116
P0544116
Now: PN08
HEX NUT 3/8-16
Price
N/A
117
P0544117
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
119
P0544119
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
120
LOCK WASHER 5/16
Price
N/A
121
P0544121
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
122
DUST BOOT
Price
N/A
123
THRUST BEARING 2904
Price
N/A
124
P0544124
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
125
LOCK WASHER 5/16
Price
N/A
126
MOTOR 5HP 220V 1-PH
Price
N/A
127
PULLEY
Price
N/A
128
V-BELT A60
Price
N/A
129
LEFT GUARD
Price
N/A
131
P0544131
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
132
P0544132
Now: PW02
FLAT WASHER 3/8
Price
N/A
133
LOCK WASHER 3/8
Price
N/A
134
P0544134
Now: PN08
HEX NUT 3/8-16
Price
N/A
135
MOTOR ADJ BRACKET
Price
N/A
136
P0544136
Now: PN08
HEX NUT 3/8-16
Price
N/A
138
LOCK WASHER 5/16
Price
N/A
139
SET SCREW 1/4-20 X 3/8
Price
N/A
140
SET SCREW 5/16-18 X 3/8
Price
N/A
142
P0544142
Now: PW01
FLAT WASHER 1/2
Price
N/A
143
LOCK WASHER 5/16
Price
N/A
144
P0544144
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
145
P0544145
Now: PN25
ACORN NUT 1/2-12
Price
N/A
146
HANDWHEEL
Price
N/A
147
HANDLE
Price
N/A
148
LOCK WASHER 5/16
Price
N/A
149
P0544149
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
150
RIGHT GUARD COVER
Price
N/A
151
P0544151
Now: PW06
FLAT WASHER 1/4
Price
N/A
152
CAP SCREW 1/4-20 X 1/2
Price
N/A
153
*DISCD*CONTROL CASE PLASTIC V1.01.99
Price
N/A
154
MOTOR SUPPORT
Price
N/A
155
MOUNTING BRACKET LH/RH
Price
N/A
156
SHAFT
Price
N/A
157
FIXED SHAFT
Price
N/A
158
SPACER
Price
N/A
159
ANTI KICKBACK TOOTH
Price
$11.20
160
CHAIN SHAFT
Price
$32.05
161
CHAIN 1/2 X 26"
Price
$16.05
162
CHAIN 1/2 X 21-1/2"
Price
$23.60
163
SPROCKET 14T
Price
$22.05
164
DOUBLE SPROCKET 14T
Price
$34.15
165
SPROCKET 14T
Price
$22.05
166
COLLAR
Price
$3.05
167
SHAFT
Price
$3.05
168
HUB MOUNTING PLATE
Price
$69.80
169
ARC HUB
Price
$36.00
170
LOCK HANDLE 1/2"-12
Price
$13.60
171
HANDLE 5/16-18 X 1"
Price
$26.90
172
CAP SCREW 5/16-18 X 1
Price
N/A
174
P0544174
Now: PW01
FLAT WASHER 1/2
Price
N/A
175
SET SCREW 5/16-18 X 3/8
Price
N/A
176
SET SCREW 5/16-18 X 1/4
Price
N/A
177
FEED MOTOR 2HP 220V 1-PH
Price
N/A
178
VARIABLE SPEED CONTROLLER V2.10.09
Price
N/A
179
CONTROL PANEL
Price
N/A
180
POWER INDICATOR LIGHT 22MM WHT
Price
N/A
181
E-STOP BUTTON 250V 10A
Price
N/A
182
CUTTERHEAD MOTOR ON BUTTON
Price
N/A
183
Oblong Nameplate-Mini
Price
N/A
184
MACHINE ID LABEL
Price
N/A
185
GREASE FITTING 1/8 STRAIGHT
Price
N/A
186
DO NOT OPEN WARNING
Price
N/A
187
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
188
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
189
SET SCREW 1/4-20 X 1/4
Price
N/A
190
BED ROLLER BASE
Price
N/A
191
DUST HOOD
Price
N/A
192
LEFT COVER HINGE BRACKET
Price
N/A
193
P0544193
Now: PN06
HEX NUT 1/2-12
Price
N/A
194
P0544194
Now: PB43
HEX BOLT 1/2-12 X 4
Price
N/A
195
CUTTERHEAD MOTOR ON BUTTON
Price
N/A
197
SUPPORT SHAFT
Price
N/A
198
COVER
Price
N/A
199
MOTOR ADJ BRACKET
Price
N/A
200
KEY 8 X 10 X 64
Price
N/A
201
P0544201
Now: PW02
FLAT WASHER 3/8
Price
N/A
202
P0544202
Now: PB70
HEX BOLT 3/8-16 X 6
Price
N/A
203
COMPRESSION SPRING
Price
N/A
204
V-BELT A46
Price
N/A
205
DEPTH GAUGE
Price
N/A
207
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
208
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
209
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
210
HEX WRENCH 4MM
Price
N/A
212
SPACER
Price
$1.60
213
P0544213
Now: PB70
HEX BOLT 3/8-16 X 6
Price
N/A
300
MAG SWITCH ASSY V1
Price
N/A
300V2
MAG SWITCH ASSY V2.12.16
Price
N/A
300V2-1
CONTACTOR RIKEN RAB-A18 220V
Price
N/A
300V2-2
OL RELAY RIKEN BTH-18T-2H18 12-18A
Price
N/A
300V2-3
CONTACTOR RIKEN RAB-A35 220V
Price
N/A
300V2-4
OL RELAY RIKEN BTH-352H36 24-36A
Price
N/A
301
FUSE HOLDER
Price
N/A
301-1
FUSE 2A
Price
N/A
401
CHEATER BAR FOR T-20 BIT
Price
N/A
402
T-20 TORX BIT
Price
N/A
403
T-20 TORX DRIVER
Price
N/A
MAN
MANUAL FOR G0544 03/06
Price
$11.75
