Parts for G0548Z - 2HP Canister Dust Collector

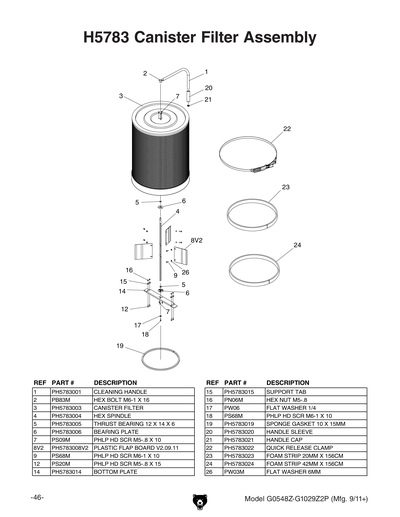

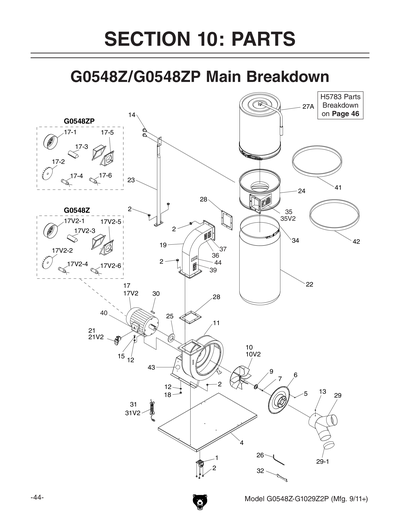

Part Diagram for G0548Z
Part Diagram for G0548Z
Part Diagram for G0548Z
Part Diagram for G0548Z
Part Diagram for G0548Z
Part Diagram for G0548Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

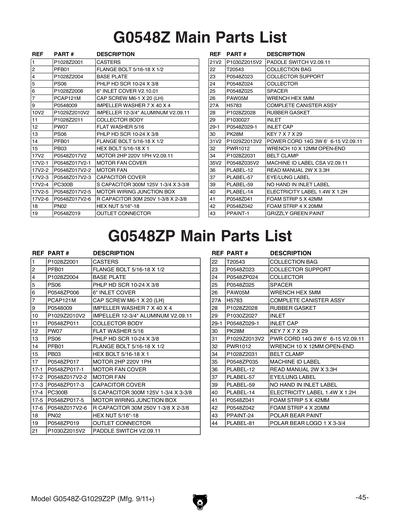

Ref #
Part #
Description
1
CASTER
Price
N/A
2
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
4
BASE PLATE
Price
N/A
5
PHLP HD SCR 10-24 X 3/8
Price
N/A
6
INLET COVER 6"
Price
N/A
7
CAP SCREW M6-1 X 20 LH
Price
N/A
8
SET SCREW 3/8-16 X 3/8
Price
N/A
9
IMPELLER WASHER 1-1/2" W/ 1/4" HOLE
Price
N/A
10
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
N/A
10V2
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
N/A
11
COLLECTOR BODY
Price
N/A
12
FLAT WASHER 5/16
Price
N/A
13
PHLP HD SCR 10-24 X 3/8
Price
N/A
14
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
15
HEX BOLT 5/16-18 X 1
Price
N/A
17
***USE P0548017***
Price
$331.20
17-1
MOTOR FAN COVER
Price
$20.90
17-2
MOTOR FAN
Item is no longer available
Price
N/A
17-3
CAPACITOR COVER
Item is no longer available
Price
N/A
17-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
17-5
MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
17V2
MOTOR 2HP 220V 1-PH V2.09.11
Price
$442.30
17V2-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
17V2-2
MOTOR FAN
Price
$13.30
17V2-3
CAPACITOR COVER
Price
$4.60
17V2-4
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
17V2-5
MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
17V2-6
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
N/A
18
HEX NUT 5/16-18
Price
N/A
19
OUTLET CONNECTOR
Price
$53.45
21
PUSH BUTTON SWITCH V1
Price
N/A
21V2
PADDLE SWITCH V2.09.11
Price
N/A
22
19-3/4 D x 41" L Plastic Bottom Bag
Price
N/A
23
COLLECTOR SUPPORT
Price
$14.85
24
RIGHT COLLECTOR
Price
$115.35
25
SPACER
Price
$6.05
26
HEX WRENCH 5MM
Price
N/A
27A
Extra Canister For G0548/Z & G0562/Z
Price
N/A
28
GASKET
Price
N/A
29
INLET 6 X 4 X 4 X 4"
Price
N/A
29-1
INLET CAP
Price
$2.75
30
KEY 7 X 7 X 29
Price
N/A
31
POWER CORD 12G X 3W 86"L
Price
N/A
31V2
POWER CORD 14G 3C 6' 6-15 V2.09.11
Price
N/A
32
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
33
POWER CORD 12G X 3W 36"L
Price
N/A
34
62" Bag Clamp
Price
N/A
35V2
MACHINE ID LABEL CSA V2.09.11
Item is no longer available
Price
N/A
36
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
37
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
38
RESPIRATOR 2W X 3.3H
Price
N/A
39
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
40
ELECTRICITY 1.4W X 1.2H
Price
N/A
41
***USE P0583031-1***
Price
$5.35
42
FOAM STRIP 4 X 20MM
Price
$2.45
43
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0548Z MFG-03.09 V3.03.11
Price
N/A
MANV1
MANUAL G0548Z MFG-03.09 V1.04.09
Item is no longer available
Price
N/A
MANV2
MANUAL G0548Z MFG-03.09 V2.12.09
Item is no longer available
Price
N/A
MANV3
MANUAL G0548Z MFG-03.09 V3.03.11
Item is no longer available
Price
N/A
MANV4
MANUAL G0548Z-ZP MFD-09.11 V4.02.12
Price
$13.00
