Parts for G0548ZP - 2 HP Canister Dust Collector w/Aluminum Impeller

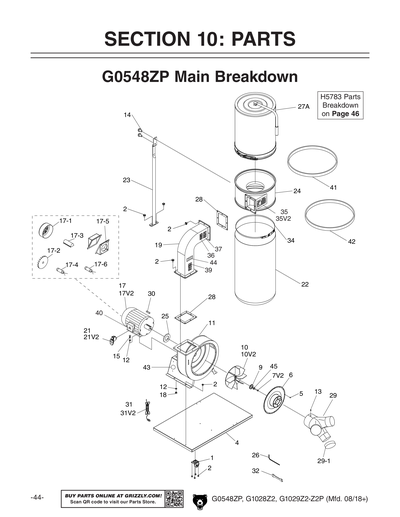

Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP
Part Diagram for G0548ZP

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
4
BASE PLATE
Price
N/A
5
PHLP HD SCR 10-24 X 3/8
Price
N/A
6
Price
$31.75
7
CAP SCREW M6-1 X 20 LH
Price
N/A
7V2
CAP SCREW M6-1 X 30LH PRE-COATED
Price
N/A
8
SET SCREW 3/8-16 X 3/8
Price
N/A
9
IMPELLER WASHER 1-1/2" W/ 1/4" HOLE
Price
N/A
10
IMPELLER 12-3/4"X95MM X7/8 ALUM V2.09.11
Price
N/A
11
Price
$217.05
12
FLAT WASHER 5/16
Price
N/A
13
PHLP HD SCR 10-24 X 3/8
Price
N/A
14
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
15
HEX BOLT 5/16-18 X 1
Price
N/A
17
Price
$377.40
17-1
Price
$23.95
17-2
MOTOR FAN
Price
N/A
17-3
Price
$13.30
17-4
S CAPACITOR 300M 125V 1-5/16 X 2-3/8
Price
N/A
17-5
MOTOR WIRING JUNCTION BOX
Price
$10.60
17-6
R CAPACITOR 30M 250V V1
Price
$29.00
17V2-6
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
N/A
18
HEX NUT 5/16-18
Price
N/A
19
Price
$64.00
21
PADDLE SWITCH V2.09.11
Price
N/A
22
19-3/4 D x 41" L Plastic Bottom Bag
Price
N/A
23
COLLECTOR SUPPORT
Price
N/A
24
RIGHT COLLECTOR
Price
N/A
25
SPACER
Price
N/A
26
HEX WRENCH 5MM
Price
N/A
27A
Extra Canister For G0548/Z & G0562/Z
Price
N/A
28
GASKET
Price
N/A
29
INLET 6 X 4 X 4 X 4" (WHITE)
Price
$85.70
29-1
INLET CAP
Price
N/A
29V2
INLET ADAPTER 6" X 4" X 3 (PC) V2.01.22
Price
$93.30
30
KEY 7 X 7 X 29
Price
N/A
31
POWER CORD 14G 3C 6' 6-15 V2.09.11
Price
N/A
32
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
34
62" Bag Clamp
Price
N/A
35
Price
$16.40
36
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
37
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
39
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
40
ELECTRICITY 1.4W X 1.2H
Price
N/A
41
FOAM STRIP 5 X 42MM
Price
N/A
42
FOAM STRIP 4 X 20MM
Price
N/A
43
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
44
POLAR BEAR LOGO-SMALL 3.75W X 1H
Price
N/A
45
LOCK WASHER 6MM
Price
N/A
MAN
MANUAL G0548Z-ZP MFD-09.11 V4.02.12
Price
N/A
