Parts for G0555LA35 14" 1 HP Deluxe Bandsaw - 35th Anniversary Edition

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
Price
N/A
2
Now: PB64
HEX BOLT 5/8-11 X 2-1/2
Price
N/A
3
Now: PW14
FLAT WASHER 5/8
Price
N/A
4
Now: PN04
HEX NUT 5/8-11
Price
N/A
5
GUIDE PIN 6 X 15MM
Price
N/A
6
LOWER WHEEL SHAFT
Price
N/A
7
BALL BEARING 6204-2RS
Price
N/A
8
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
9
Now: PW07
FLAT WASHER 5/16
Price
N/A
10
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
11
MOTOR 1HP 110V/220V 1-PH
Price
N/A
11-1
MOTOR FAN
Price
N/A
11-2
FAN COVER
Price
N/A
11-3
WIRING BOX
Price
N/A
11-4
CAPACITOR COVER
Price
N/A
11-5
S CAPACITOR 300M 125V 2 X 3-1/2
Price
N/A
11-6
CONTACTOR PLATE
Price
N/A
11-7
CENTRIFUGAL SWITCH 1725 RPM
Price
N/A
11-8
BALL BEARING 6205-2RS
Price
N/A
11-9
BALL BEARING 6204-2RS
Price
N/A
12
MOTOR PULLEY J5-TYPE
Price
N/A
13
Now: PSS07
SET SCREW 1/4-20 X 1/2
Price
N/A
14
SWITCH 994542 18A 125V
Price
N/A
14-1
SWITCH 994542 18A 125V
Price
N/A
14-2
SWITCH 994542 18A 125V
Price
N/A
14-3
SWITCH BOX
Price
N/A
15
TAP SCREW #10 X 1
Price
N/A
16
Now: PW04M
FLAT WASHER 10MM
Price
N/A
17
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
19
EXT TOOTH WASHER 10MM
Price
N/A
21
SWITCH PLATE
Price
N/A
22
WHEEL PULLEY J5-TYPE
Price
N/A
23
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
24
STRAIN RELIEF TYPE-1 3/4" SNAP-IN
Price
N/A
25
POWER CORD 16G 3W 72" 5-15P
Price
N/A
26
MOTOR CORD 16G 3W
Price
N/A
27
CAP SCREW 1/4-20 X 2-1/2
Price
N/A
28
UPPER FRAME ARM
Price
N/A
29
STAR KNOB BOLT 5/16-18 X 3/4
Price
N/A
30
SLIDING HOUSING
Price
N/A
30A
SLIDING HOUSING ASSY
Price
N/A
31
Now: PWN03
WING NUT 5/16-18
Price
N/A
32
Now: PS28M
PHLP HD SCR M8-1.25 X 30
Price
N/A
33
TENSION BOLT 3/8-16 X 11-5/8
Price
N/A
34
PIVOT PIN W/FLAT SIDE V2.07.12
Price
N/A
35
UPPER WHEEL SHAFT
Price
N/A
36
LOCK CAM
Price
N/A
37
FRONT FENCE RAIL
Price
N/A
38
COMPRESSION SPRING
Price
N/A
39
INDICATOR NUT 3/8 X 16
Price
N/A
40
UPPER WHEEL
Price
N/A
41
WHEEL TIRE
Price
N/A
42
Now: PLN16
LOCK NUT 1/2"-20 THIN
Price
N/A
43
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202-2RS
Price
N/A
45
LOWER WHEEL
Price
N/A
46
Now: PW07
FLAT WASHER 5/16
Price
N/A
47
Now: PB104
HEX BOLT 5/16-18 X 3/4 LH
Price
N/A
48
LOWER WHEEL GUARD
Price
N/A
49
KNOB 5/16-18
Price
N/A
50
INT TOOTH WASHER 8MM
Price
N/A
51
STUD LATCH
Price
N/A
52
REAR FENCE RAIL
Price
N/A
53
FRONT RAIL END CAP
Price
N/A
54
MAGNIFYING LENS
Price
N/A
55
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
56
CATCH
Price
N/A
57
LOCATING BOLT
Price
N/A
58
TAP SCREW #8 X 3/8
Price
N/A
59
FRONT UPPER COVER
Price
N/A
60
***USE G5163***
Price
N/A
61
BACK UPPER COVER
Price
N/A
62
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
63
UPPER HINGE
Price
N/A
64
STANDOFF STUD-HEX MF
Price
N/A
65
SAW BLADE GUARD
Price
N/A
66
Now: PW03M
FLAT WASHER 6MM
Price
N/A
68
RIBBED V-BELT 200J5
Price
N/A
69
LOWER WHEEL COVER HINGE
Price
N/A
70
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
71
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
72
Now: PW07
FLAT WASHER 5/16
Price
N/A
73
Now: PLW01
LOCK WASHER 5/16
Price
N/A
74
Now: PN02
HEX NUT 5/16-18
Price
N/A
75
*DISCD*CORD CLAMP
Price
N/A
76
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
77
FENCE
Price
N/A
78
SPACER
Price
N/A
79
UPPER BLADE GUIDE CASTING
Price
N/A
80
CAP SCREW 1/4-20 X 1/2
Price
N/A
81
BEARING ARBOR
Price
N/A
82
BALL BEARING 6000-2RS
Price
N/A
83
Now: PFH09
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
84
GUIDE POST
Price
N/A
85
Now: PLW03
LOCK WASHER #10
Price
N/A
86
CAP SCREW 10-24 X 1-3/4
Price
N/A
87
FENCE END CAP
Price
N/A
88
LOWER BLADE GUIDE BRACKET
Price
N/A
89
GUIDE SHAFT BRACKET
Price
N/A
90
UPPER BLADE GUARD
Price
N/A
92
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
93
LOWER BRACKET POST
Price
N/A
94
Now: PW06
FLAT WASHER 1/4
Price
N/A
95
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
96
CAP SCREW 10-32 X 1/4
Price
N/A
97
TABLE
Price
N/A
98
TABLE INSERT W/LARGE SLOT
Price
N/A
99
ROLL PIN 3 X 8
Price
N/A
100
TABLE LOCK PIN
Price
N/A
101
TRUNNION
Price
N/A
102
TILT SCALE
Price
N/A
103
TRUNNION CLAMP SHOE
Price
N/A
104
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
105
***SEE EXT. DESCRIPTION***
Price
N/A
106
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
107
FENCE CARRIAGE ALUMINUM
Price
N/A
108
***USE P0555LX108***
109
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
110
KNOB 3/8-16, 6-LOBE, D2-1/4
Price
N/A
111
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
112
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
113
Now: PN02
HEX NUT 5/16-18
Price
N/A
114
*DISCD*MITER GAUGE ASSY
Price
N/A
114-1
MITER GAUGE BODY
Price
N/A
114-10
STUD-SE 1/4-20 X 3/4 1/4
Price
N/A
114-12
Now: PFH08
FLAT HD SCR 10-24 X 1/2
Price
N/A
114-13
Now: PW02M
FLAT WASHER 5MM
Price
N/A
114-14
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
114-2
MITER BAR
Price
N/A
114-3
STOP BLOCK
Price
N/A
114-4
STOP DOWEL
Price
N/A
114-5
MITER HANDLE 1/4-20
Price
N/A
114-6
SCALE PLATE
Price
N/A
114-7
STUD-SE 1/4-20 X 1-1/8 1/2
Price
N/A
114-8
PLASTIC WASHER 1/4-16
Price
N/A
114-9
Now: PW06
FLAT WASHER 1/4
Price
N/A
115
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
116
Now: PLW01
LOCK WASHER 5/16
Price
N/A
117
Now: PW07
FLAT WASHER 5/16
Price
N/A
118
PINION SHAFT
Price
N/A
119
LOCK COLLAR
Price
N/A
120
GUIDE POST CONTROL KNOB
Price
N/A
121
SET SCREW 5/16-24 X 1-1/2
Price
N/A
122
ADJUST NUT
Price
N/A
123
CAP SCREW 1/4-20 X 5/8
Price
N/A
124
CORD CLAMP 3/8
Price
N/A
125
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
126
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
127
Now: PW03
FLAT WASHER #10
Price
N/A
128
BALL BEARING 608-2RS
Price
N/A
129
ECCENTRIC 3/8"
Price
N/A
130
***USE PX2005003***
Price
N/A
131
Now: PN08
HEX NUT 3/8-16
Price
N/A
132
HANDLE BOLT 5/16-18
Price
N/A
133
STUD-UDE 3/8-16 X 10 1, 3/4
Price
N/A
134
PLASTIC HANDLE 3/8-16
Price
N/A
135
UPPER CLUTCH
Price
N/A
136
ECCENTRIC 1/4"
Price
N/A
138
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
139
Now: PLW01
LOCK WASHER 5/16
Price
N/A
140
CLUTCH SUPPORT BRACKET
Price
N/A
141
Now: PLW04
LOCK WASHER 3/8
Price
N/A
153
CAM WEAR PLATE
Price
N/A
154
CAP SCREW 1/4-20 X 1
Price
N/A
155
Now: PSS04
SET SCREW 1/4-20 X 5/16
Price
N/A
157
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
158
Now: PN01M
HEX NUT M6-1
Price
N/A
159
RUB FOOT M6-1.0
Price
N/A
160
CAP SCREW 1/4-20 X 5/8
Price
N/A
161
REAR RAIL END CAP
Price
N/A
163
Now: PFH19
FLAT HD SCR 1/4-20 X 3/8
Price
N/A
166
FENCE SCALE
Price
N/A
167
Now: PLW02
LOCK WASHER 1/4
Price
N/A
168
Now: PSS12
SET SCREW 1/4-20 X 1
Price
N/A
169
Now: PN05
HEX NUT 1/4-20
Price
N/A
170
SET SCREW 5/16-18 X 1/2 DOG-PT
Price
N/A
172
L-BRACE
Price
N/A
184
FENCE PAD
Price
N/A
186
SWITCH PADLOCK
Price
N/A
190
CAP SCREW 1/4-20 X 3/8
Price
N/A
191
Now: PW02M
FLAT WASHER 5MM
Price
N/A
192
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
193
KNOB BOLT 5/16-18 X 2
Price
N/A
194
SHAFT BRACKET
Price
N/A
195
ROLL PIN 4 X 30
Price
N/A
197
FENCE MOUNTING PLATE
Price
N/A
198
TABLE INSERT W/SMALL SLOT
Price
N/A
199
Now: PW06
FLAT WASHER 1/4
Price
N/A
200
FENCE ADJUSTMENT PLATE
Price
N/A
201
BLACK STAND TOP
Price
N/A
202
Now: PCB01
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
204
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
205
BLACK STAND SIDE
Price
N/A
206
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
207
Now: PW06
FLAT WASHER 1/4
Price
N/A
208
Now: PFN01
FLANGE NUT 1/4-20
Price
N/A
209
BLACK UPPER STAND BRACE
Price
N/A
210
BLACK LOWER STAND BRACE
Price
N/A
211
Now: PN08
HEX NUT 3/8-16
Price
N/A
212
Now: PW02
FLAT WASHER 3/8
Price
N/A
213
STAND FOOT 3/8-16 X 2
Price
N/A
214
LOWER CLUTCH
Price
N/A
215

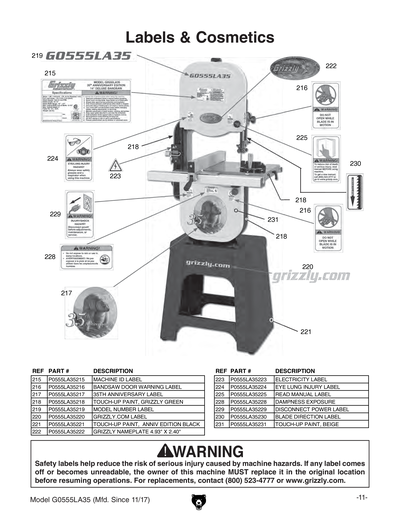

MACHINE ID LABEL
216
BANDSAW DOOR 2W X 3.3H
Price
N/A
217
35TH ANNIVERSARY LABEL
218
N/S GRIZZLY GREEN G1023S
Price
N/A
219
MODEL NUMBER LABEL
220
GRIZZLY.COM LABEL
221
ANNIV EDITION BLACK REF G0555LANV
Price
N/A
222
Now: G9987
Nameplate - Mini
Price
N/A
223
ELECTRICITY 0.7W X 0.6H
Price
N/A
224
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
225
READ MANUAL 1.5W X 2.5H
Price
N/A
226
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
227
HEX WRENCH 5MM
Price
N/A
228
DAMPNESS EXPOSURE
229
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
230
BLADE DIRECTION LABEL
231
BEIGE REF G0555
Price
N/A
MAN
MANUAL G0555LA35 MFD 10/17 V1.10.17
