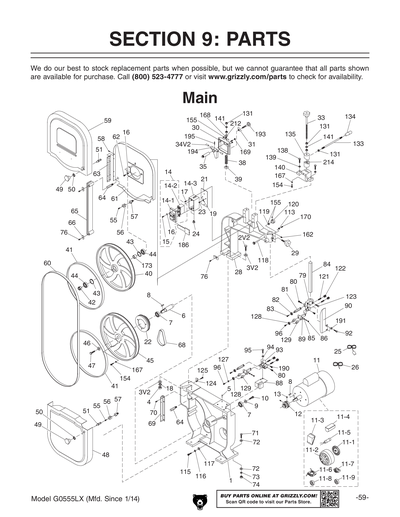

Parts for G0555LX - 14" 1 HP Deluxe Bandsaw

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0555LX001
BASE
N/A
2 P0555LX002
***USE PB64***
Item is no longer available
P0555LX002 Replaced By PB64
N/A View Replacement
3 P0555LX003
***USE PW14***
Item is no longer available
P0555LX003 Replaced By PW14
N/A View Replacement
4 P0555LX004
***USE PN04***
Item is no longer available
P0555LX004 Replaced By PN04
N/A View Replacement
5 P0555LX005 GUIDE PIN 6 X 15MM $1.00
6 P0555LX006 LOWER WHEEL SHAFT $10.50
7 P0555LX007
***USE P6204-2RS***
Item is no longer available
P0555LX007 Replaced By P6204-2RS
N/A View Replacement
8 P0555LX008
***USE PK23M***
Item is no longer available
P0555LX008 Replaced By PK23M
N/A View Replacement
9 P0555LX009
***USE PW07***
Item is no longer available
P0555LX009 Replaced By PW07
N/A View Replacement
10 P0555LX010
***USE PB32***
Item is no longer available
P0555LX010 Replaced By PB32
N/A View Replacement
11 P0555LX011 MOTOR 1HP 110V/220V 1-PH $165.00
11-1 P0555LX011-1 MOTOR FAN $3.00
11-2 P0555LX011-2 FAN COVER $5.50
11-3 P0555LX011-3 WIRING BOX $3.25
11-4 P0555LX011-4
CAPACITOR COVER
N/A
11-5 P0555LX011-5 S CAPACITOR 300M 125V 2 X 3-1/2 $6.75
11-6 P0555LX011-6 CONTACTOR PLATE $3.00
11-7 P0555LX011-7 CENTRIFUGAL SWITCH 1725 RPM $3.00
11-8 P0555LX011-8
***USE P6205-2RS***
Item is no longer available
P0555LX011-8 Replaced By P6205-2RS
N/A View Replacement
11-9 P0555LX011-9
***USE P6204-2RS***
Item is no longer available
P0555LX011-9 Replaced By P6204-2RS
N/A View Replacement
12 P0555LX012 MOTOR PULLEY J5-TYPE $12.25
13 P0555LX013
***USE PSS07***
Item is no longer available
P0555LX013 Replaced By PSS07
N/A View Replacement
14 P0555LX014 SWITCH 994542 18A 125V $28.50
14-1 P0555LX014-1
***USE P0555LX014***
Item is no longer available
P0555LX014-1 Replaced By P0555LX014
N/A View Replacement
14-2 P0555LX014-2
***USE P0555LX014***
Item is no longer available
P0555LX014-2 Replaced By P0555LX014
N/A View Replacement
14-3 P0555LX014-3 SWITCH BOX $9.00
15 P0555LX015
***USE PHTEK40***
Item is no longer available
P0555LX015 Replaced By PHTEK40
N/A View Replacement
16 P0555LX016
***USE PW04M***
Item is no longer available
P0555LX016 Replaced By PW04M
N/A View Replacement
17 P0555LX017
***USE PS22***
Item is no longer available
P0555LX017 Replaced By PS22
N/A View Replacement
19 P0555LX019
***USE PTLW08M***
Item is no longer available
P0555LX019 Replaced By PTLW08M
N/A View Replacement
21 P0555LX021 SWITCH PLATE $2.25
22 P0555LX022 WHEEL PULLEY J5-TYPE $21.25
23 P0555LX023
***USE PS18***
Item is no longer available
P0555LX023 Replaced By PS18
N/A View Replacement
24 P0555LX024 STRAIN RELIEF 3/4" TYPE-1 SNAP-IN $1.00
25 P0555LX025 POWER CORD 16G 3W 6FT 5-15P $19.50
26 P0555LX026 MOTOR CORD 16G 3W $4.50
27 P0555LX027
***USE PCAP43***
Item is no longer available
P0555LX027 Replaced By PCAP43
N/A View Replacement
28 P0555LX028 UPPER FRAME ARM $141.00
29 P0555LX029 STAR KNOB BOLT 5/16-18 X 3/4 $2.25
30 P0555LX030 SLIDING HOUSING $10.50
30A P0555LX030A SLIDING HOUSING ASSY $37.00
31 P0555LX031
***USE PWN03***
Item is no longer available
P0555LX031 Replaced By PWN03
N/A View Replacement
32 P0555LX032
***USE PS28M***
Item is no longer available
P0555LX032 Replaced By PS28M
N/A View Replacement
33 P0555LX033 TENSION BOLT 3/8-16 X 11-5/8 $9.75
34 P0555LX034 PIVOT PIN ROUND V1 $1.25
34V2 P0555LX034V2 PIVOT PIN W/FLAT SIDE V2.07.12 $1.25
35 P0555LX035 UPPER WHEEL SHAFT $9.00
36 P0555LX036 LOCK CAM $5.75
37 P0555LX037 FRONT FENCE RAIL $39.00
38 P0555LX038 COMPRESSION SPRING $4.50
39 P0555LX039 INDICATOR NUT 3/8 X 16 $3.00
40 P0555LX040 UPPER WHEEL $78.50
41 P0555LX041 WHEEL TIRE $6.50
42 P0555LX042
***USE PLN16***
Item is no longer available
P0555LX042 Replaced By PLN16
N/A View Replacement
42V2 P0555LX042V2
***USE PLN16***
Item is no longer available
P0555LX042V2 Replaced By PLN16
N/A View Replacement
43 P0555LX043
***USE PR21M***
Item is no longer available
P0555LX043 Replaced By PR21M
N/A View Replacement
44 P0555LX044
***USE P6202-2RS***
Item is no longer available
P0555LX044 Replaced By P6202-2RS
N/A View Replacement
45 P0555LX045 LOWER WHEEL $81.00
46 P0555LX046
***USE PW07***
Item is no longer available
P0555LX046 Replaced By PW07
N/A View Replacement
47 P0555LX047
***USE PB104***
Item is no longer available
P0555LX047 Replaced By PB104
N/A View Replacement
48 P0555LX048 LOWER WHEEL GUARD $27.00
49 P0555LX049 KNOB 5/16-18 $2.25
50 P0555LX050
***USE PTLW03M***
Item is no longer available
P0555LX050 Replaced By PTLW03M
N/A View Replacement
51 P0555LX051 STUD LATCH $2.25
52 P0555LX052 REAR FENCE RAIL $11.75
53 P0555LX053 FRONT RAIL END CAP $4.25
54 P0555LX054 MAGNIFYING LENS $2.00
55 P0555LX055
***USE PS01***
Item is no longer available
P0555LX055 Replaced By PS01
N/A View Replacement
56 P0555LX056 CATCH $4.00
57 P0555LX057 LOCATING BOLT $3.50
58 P0555LX058
***USE PHTEK7***
Item is no longer available
P0555LX058 Replaced By PHTEK7
N/A View Replacement
59 P0555LX059 FRONT UPPER COVER $30.00
60 P0555LX060 SAW BLADE 93-1/2 X 3/8 X 6TPI HOOK $20.00
61 P0555LX061 BACK UPPER COVER $21.75
63 P0555LX063 UPPER HINGE $4.25
64 P0555LX064 STANDOFF STUD-HEX MF $2.00
65 P0555LX065 SAW BLADE GUARD $5.25
66 P0555LX066
FLAT WASHER 6MM
Item is no longer available
P0555LX066 Replaced By PW03M
N/A View Replacement
68 P0555LX068 RIBBED V-BELT 200J5 $12.00
69 P0555LX069 LOWER WHEEL COVER HINGE $4.25
70 P0555LX070
***USE PS06***
Item is no longer available
P0555LX070 Replaced By PS06
N/A View Replacement
71 P0555LX071
***USE PB11***
Item is no longer available
P0555LX071 Replaced By PB11
N/A View Replacement
72 P0555LX072
***USE PW07***
Item is no longer available
P0555LX072 Replaced By PW07
N/A View Replacement
73 P0555LX073
***USE PLW01***
Item is no longer available
P0555LX073 Replaced By PLW01
N/A View Replacement
74 P0555LX074
***USE PN02***
Item is no longer available
P0555LX074 Replaced By PN02
N/A View Replacement
75 P0555LX075
CORD CLAMP
N/A
76 P0555LX076
***USE PS01***
Item is no longer available
P0555LX076 Replaced By PS01
N/A View Replacement
77 P0555LX077 FENCE $29.50
77A P0555LX077A COMPLETE FENCE ASSEMBLY $78.00
78 P0555LX078 SPACER $2.25
79 P0555LX079 UPPER BLADE GUIDE CASTING $11.25
80 P0555LX080
***USE PCAP04***
Item is no longer available
P0555LX080 Replaced By PCAP04
N/A View Replacement
81 P0555LX081 BEARING ARBOR $3.50
82 P0555LX082
***USE P60002RS***
Item is no longer available
P0555LX082 Replaced By P60002RS
N/A View Replacement
83 P0555LX083
***USE PFS22***
Item is no longer available
P0555LX083 Replaced By PFS22
N/A View Replacement
84 P0555LX084 GUIDE POST $24.50
85 P0555LX085
***USE PLW03***
Item is no longer available
P0555LX085 Replaced By PLW03
N/A View Replacement
86 P0555LX086
***USE PCAP110***
Item is no longer available
P0555LX086 Replaced By PCAP110
N/A View Replacement
87 P0555LX087 FENCE END CAP $2.25
88 P0555LX088 LOWER BLADE GUIDE BRACKET $2.50
89 P0555LX089 GUIDE SHAFT BRACKET $7.25
90 P0555LX090 UPPER BLADE GUARD (RED) $4.25
92 P0555LX092
***USE PS06***
Item is no longer available
P0555LX092 Replaced By PS06
N/A View Replacement
93 P0555LX093 LOWER BRACKET POST $8.50
94 P0555LX094
***USE PW06***
Item is no longer available
P0555LX094 Replaced By PW06
N/A View Replacement
95 P0555LX095
***USE PB05***
Item is no longer available
P0555LX095 Replaced By PB05
N/A View Replacement
96 P0555LX096
***USE PCAP109***
Item is no longer available
P0555LX096 Replaced By PCAP109
N/A View Replacement
97 P0555LX097 TABLE $213.00
98 P0555LX098 TABLE INSERT W/LARGE SLOT $3.75
99 P0555LX099
***USE PRP15M***
Item is no longer available
P0555LX099 Replaced By PRP15M
N/A View Replacement
100 P0555LX100 TABLE LOCK PIN $3.75
101 P0555LX101 TRUNNION $7.00
102 P0555LX102 TILT SCALE $1.00
103 P0555LX103 TRUNNION CLAMP SHOE $3.25
104 P0555LX104
***USE PB19***
Item is no longer available
P0555LX104 Replaced By PB19
N/A View Replacement
105 P0555LX105 TRUNNION BASE $19.25
106 P0555LX106
***USE PB12***
Item is no longer available
P0555LX106 Replaced By PB12
N/A View Replacement
107 P0555LX107 FENCE CARRIAGE ALUMINUM $24.50
108 P0555LX108 POINTER $1.00
109 P0555LX109
***USE PS18***
Item is no longer available
P0555LX109 Replaced By PS18
N/A View Replacement
110 P0555LX110 STAR KNOB 3/8-16 $2.50
111 P0555LX111 TRUNNION HEX BOLT 3/8-16 X 2 $2.00
112 P0555LX112
***USE PB22***
Item is no longer available
P0555LX112 Replaced By PB22
N/A View Replacement
113 P0555LX113
***USE PN02***
Item is no longer available
P0555LX113 Replaced By PN02
N/A View Replacement
114 P0555LX114 MITER GAUGE ASSY $54.00
114-1 P0555LX114-1 MITER GAUGE BODY $18.00
114-10 P0555LX114-10 STUD-SE 1/4-20 X 3/4 1/4 $1.50
114-12 P0555LX114-12
***USE PFH08***
Item is no longer available
P0555LX114-12 Replaced By PFH08
N/A View Replacement
114-13 P0555LX114-13
***USE PW02M***
Item is no longer available
P0555LX114-13 Replaced By PW02M
N/A View Replacement
114-14 P0555LX114-14
***USE PS01***
Item is no longer available
P0555LX114-14 Replaced By PS01
N/A View Replacement
114-2 P0555LX114-2 MITER BAR $4.50
114-3 P0555LX114-3
STOP BLOCK
N/A
114-4 P0555LX114-4 STOP DOWEL $4.50
114-5 P0555LX114-5 MITER HANDLE 1/4-20 $4.25
114-6 P0555LX114-6 SCALE PLATE $2.75
114-7 P0555LX114-7 STUD-SE 1/4-20 X 1-1/8 1/2 $1.50
114-8 P0555LX114-8
PLASTIC WASHER 1/4-16
Item is no longer available
P0555LX114-8 Replaced By P1014Z045
N/A View Replacement
114-9 P0555LX114-9
***USE PW06***
Item is no longer available
P0555LX114-9 Replaced By PW06
N/A View Replacement
115 P0555LX115
***USE PB03***
Item is no longer available
P0555LX115 Replaced By PB03
N/A View Replacement
116 P0555LX116
***USE PLW01***
Item is no longer available
P0555LX116 Replaced By PLW01
N/A View Replacement
117 P0555LX117
***USE PW07***
Item is no longer available
P0555LX117 Replaced By PW07
N/A View Replacement
118 P0555LX118 PINION SHAFT $5.00
119 P0555LX119 LOCK COLLAR $1.50
120 P0555LX120 GUIDE POST CONTROL KNOB $16.00
121 P0555LX121
***USE PSS100***
Item is no longer available
P0555LX121 Replaced By PSS100
N/A View Replacement
122 P0555LX122 ADJUST NUT $3.00
123 P0555LX123
***USE PCAP01***
Item is no longer available
P0555LX123 Replaced By PCAP01
N/A View Replacement
124 P0555LX124
CORD CLAMP 3/8
N/A
125 P0555LX125
***USE PS01***
Item is no longer available
P0555LX125 Replaced By PS01
N/A View Replacement
126 P0555LX126
***USE PSS02***
Item is no longer available
P0555LX126 Replaced By PSS02
N/A View Replacement
127 P0555LX127
***USE PW03***
Item is no longer available
P0555LX127 Replaced By PW04M
N/A View Replacement
128 P0555LX128
***USE P608-2RS***
Item is no longer available
P0555LX128 Replaced By P608-2RS
N/A View Replacement
129 P0555LX129 ECCENTRIC 3/8" $3.00
130 P0555LX130 BEARING PAD $2.00
131 P0555LX131
***USE PN08***
Item is no longer available
P0555LX131 Replaced By PN08
N/A View Replacement
132 P0555LX132 HANDLE BOLT 5/16-18 $3.50
133 P0555LX133 STUD-UDE 3/8-16 X 10 1, 3/4 $2.00
134 P0555LX134 PLASTIC HANDLE 3/8-16 $2.25
135 P0555LX135 UPPER CLUTCH $6.00
136 P0555LX136 ECCENTRIC 1/4" $4.25
138 P0555LX138
***USE PB12***
Item is no longer available
P0555LX138 Replaced By PB12
N/A View Replacement
139 P0555LX139
***USE PLW01***
Item is no longer available
P0555LX139 Replaced By PLW01
N/A View Replacement
140 P0555LX140 CLUTCH SUPPORT BRACKET $14.50
141 P0555LX141
***USE PLW04***
Item is no longer available
P0555LX141 Replaced By PLW04
N/A View Replacement
153 P0555LX153 CAM WEAR PLATE $2.50
154 P0555LX154
***USE PCAP06***
Item is no longer available
P0555LX154 Replaced By PCAP06
N/A View Replacement
155 P0555LX155
***USE PSS04***
Item is no longer available
P0555LX155 Replaced By PSS04
N/A View Replacement
157 P0555LX157
***USE PB58***
Item is no longer available
P0555LX157 Replaced By PB58
N/A View Replacement
158 P0555LX158
***USE PN01M***
Item is no longer available
P0555LX158 Replaced By PN01M
N/A View Replacement
159 P0555LX159 RUB FOOT M6-1.0 $1.75
160 P0555LX160
***USE PCAP01***
Item is no longer available
P0555LX160 Replaced By PCAP01
N/A View Replacement
161 P0555LX161 REAR RAIL END CAP $1.25
162 P0555LX162 BALL PLUNGER 1/4-20 X 1/2 $2.00
163 P0555LX163
***USE PFH19***
Item is no longer available
P0555LX163 Replaced By PFH19
N/A View Replacement
166 P0555LX166 FENCE SCALE $4.75
167 P0555LX167
***USE PLW02***
Item is no longer available
P0555LX167 Replaced By PLW02
N/A View Replacement
168 P0555LX168
***USE PSS12***
Item is no longer available
P0555LX168 Replaced By PSS12
N/A View Replacement
169 P0555LX169
***USE PN05***
Item is no longer available
P0555LX169 Replaced By PN05
N/A View Replacement
170 P0555LX170 DOG PT SET SCR 5/16-18 X 1/2 $1.00
172 P0555LX172 L-BRACE $3.50
173 P0555LX173 BUSHING $2.50
184 P0555LX184 FENCE PAD $1.50
186 P0555LX186 SWITCH PADLOCK $14.25
190 P0555LX190
***USE PCAP17***
Item is no longer available
P0555LX190 Replaced By PCAP17
N/A View Replacement
191 P0555LX191
***USE PW02M***
Item is no longer available
P0555LX191 Replaced By PW02M
N/A View Replacement
192 P0555LX192
***USE PFS03***
Item is no longer available
P0555LX192 Replaced By PFS03
N/A View Replacement
193 P0555LX193 KNOB BOLT 5/16-18 X 2 $2.00
194 P0555LX194 SHAFT BRACKET $12.00
195 P0555LX195
***USE PRP73M***
Item is no longer available
P0555LX195 Replaced By PRP73M
N/A View Replacement
197 P0555LX197 FENCE MOUNTING PLATE $2.50
198 P0555LX198 TABLE INSERT W/SMALL SLOT $4.25
199 P0555LX199
***USE PW06***
Item is no longer available
P0555LX199 Replaced By PW06
N/A View Replacement
200 P0555LX200 FENCE ADJUSTMENT PLATE $7.50
201 P0555LX201 STAND TOP $48.00
202 P0555LX202
***USE PCB01***
Item is no longer available
P0555LX202 Replaced By PCB01
N/A View Replacement
204 P0555LX204
***USE PFN02***
Item is no longer available
P0555LX204 Replaced By PFN02
N/A View Replacement
205 P0555LX205 STAND SIDE $45.00
206 P0555LX206
***USE PB02***
Item is no longer available
P0555LX206 Replaced By PB02
N/A View Replacement
207 P0555LX207
***USE PW06***
Item is no longer available
P0555LX207 Replaced By PW06
N/A View Replacement
208 P0555LX208
***USE PFN01***
Item is no longer available
P0555LX208 Replaced By PFN01
N/A View Replacement
209 P0555LX209 UPPER STAND BRACE $9.25
210 P0555LX210 LOWER STAND BRACE $7.50
211 P0555LX211
***USE PN08***
Item is no longer available
P0555LX211 Replaced By PN08
N/A View Replacement
212 P0555LX212
***USE PW02***
Item is no longer available
P0555LX212 Replaced By PW02
N/A View Replacement
213 P0555LX213 STAND FOOT 3/8-16 X 2 $4.50
214 P0555LX214 LOWER CLUTCH $6.00
215 P0555LX215 MACHINE ID LABEL CSA $9.50
216 P0555LX216
***USE PLABEL-23***
Item is no longer available
P0555LX216 Replaced By PLABEL-23
N/A View Replacement
217 P0555LX217
***USE PLABEL-19B***
Item is no longer available
P0555LX217 Replaced By PLABEL-19B
N/A View Replacement
218 P0555LX218
***USE PPAINT-1***
Item is no longer available
P0555LX218 Replaced By PPAINT-1
N/A View Replacement
219 P0555LX219 MODEL NUMBER LABEL $22.00
220 P0555LX220 GRIZZLY.COM LABEL $1.00
221 P0555LX221
***USE PPAINT-11***
Item is no longer available
P0555LX221 Replaced By PPAINT-11
N/A View Replacement
222 P0555LX222
***USE PLABEL-62A***
Item is no longer available
P0555LX222 Replaced By PLABEL-62A
N/A View Replacement
223 P0555LX223
***USE PLABEL-14A***
Item is no longer available
P0555LX223 Replaced By PLABEL-14A
N/A View Replacement
224 P0555LX224
***USE PLABEL-11A***
Item is no longer available
P0555LX224 Replaced By PLABEL-11A
N/A View Replacement
225 P0555LX225
***USE PLABEL-12A***
Item is no longer available
P0555LX225 Replaced By PLABEL-12A
N/A View Replacement
226 P0555LX226
***USE PWR1012***
Item is no longer available
P0555LX226 Replaced By PWR1012
N/A View Replacement
227 P0555LX227
***USE PAW05M***
Item is no longer available
P0555LX227 Replaced By PAW05M
N/A View Replacement
BAG1 P0555LXBAG1 HARDWARE BAG $21.00
BOX2 P0555LXBOX2 COMPLETE STAND ASSY BOX 2 $216.00
MAN P0555LXMAN MANUAL G0555LX MFD-01.12-02.13 V1 $19.50
MANV2 P0555LXMANV2 MANUAL G0555LX MFD-03.13+ V2.04.13 $8.00
P0555LANV136 P0555LANV136
***USE P0555LX136***
Item is no longer available
P0555LANV136 Replaced By P0555LX136
N/A View Replacement
PART P0555LXPART
MISC PART FOR G0555LX
N/A
PFS22 PFS22 FLANGE SCREW 1/4"-20 X 5/16 $1.00
