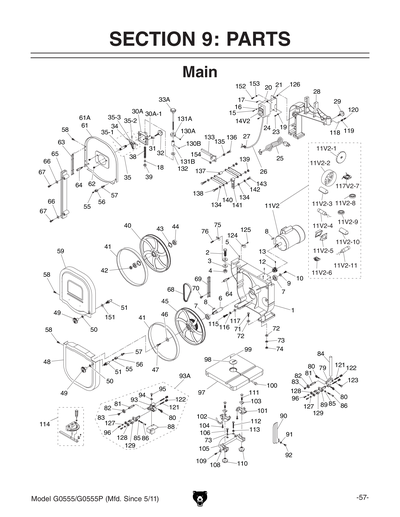

Parts for G0555P 14" 1 HP Bandsaw, Polar Bear Series

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

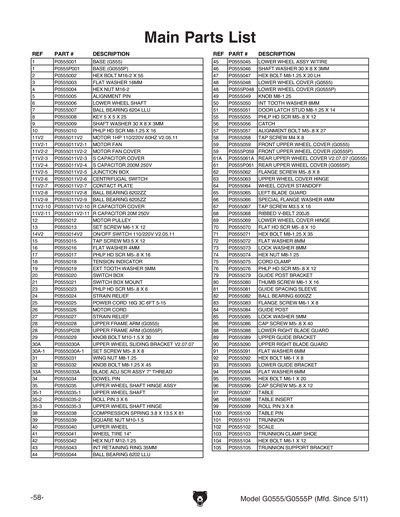

1
BASE
Item is no longer available
Price
N/A
2
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
3
Now: PW08M
FLAT WASHER 16MM
Price
N/A
4
Now: PN13M
HEX NUT M16-2
Price
N/A
5
ALIGNMENT PIN
Price
N/A
6
LOWER WHEEL SHAFT
Price
N/A
7
BALL BEARING 6204-2RS
Price
N/A
8
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
9
SHAFT WASHER 30 X 8 X 3MM
Price
N/A
10
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
11V2
MOTOR 1HP 110V/220V 1-PH V2.05.11
Price
N/A
11V2-1
MOTOR FAN V2.05.11
Price
N/A
11V2-10
S CAPACITOR COVER V2.05.11
Price
N/A
11V2-11
R CAPACITOR 20M 250V 1-1/2 X 1-1/4 V2.05
Price
N/A
11V2-2
MOTOR FAN COVER V2.05.11
Price
N/A
11V2-3
S CAPACITOR COVER V2.05.11
Price
N/A
11V2-4
S CAPACITOR 200M 250V 1-1/2 X 2-3/4 V2.0
Price
N/A
11V2-5
JUNCTION BOX V1
Price
N/A
11V2-6
CENTRIFUGAL SWITCH W/CONTACT PLATE V2.05.11
Price
N/A
11V2-7
***USE P0555011V2-7***
Price
N/A
11V2-8
BALL BEARING 6202ZZ
Price
N/A
11V2-9
BALL BEARING 6205ZZ
Price
N/A
12
MOTOR PULLEY 5/8" BORE
Price
N/A
13
SET SCREW M6-1 X 12
Price
N/A
14V2
ON/OFF SWITCH 110/220V V2.05.11
Price
N/A
15
TAP SCREW M3.5 X 12
Price
N/A
16
Now: PW05M
FLAT WASHER 4MM
Price
N/A
17
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
18
TENSION INDICATOR
Price
N/A
19
EXT TOOTH WASHER 5MM
Price
N/A
20
SWITCH BOX
Price
N/A
21
SWITCH BOX MOUNT
Price
N/A
23
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
24
STRAIN RELIEF M15 TYPE-2
Price
N/A
25
POWER CORD 16G 3C 6FT 5-15
Price
N/A
25V2
POWER CORD 16G 3C 6FT 5-15
Price
N/A
26
MOTOR CORD
Price
N/A
27
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
28
UPPER FRAME ARM
Item is no longer available
Price
N/A
29
KNOB BOLT M10-1.5 X 30
Price
N/A
30A
UPPER WHEEL SLIDING BRACKET V2.07.07
Price
N/A
30A-1
SET SCREW M5-.8 X 8
Price
N/A
31
WING NUT M8-1.25
Price
N/A
32
KNOB BOLT M8-1.25 X 45
Price
N/A
33A
ADJUSTMENT SCR ASSY 7" THREAD
Price
N/A
34
STEEL PIN 8 X 23MM
Price
N/A
35
UPPER WHEEL SHAFT HINGE ASSY
Price
N/A
35-1
UPPER WHEEL SHAFT
Price
N/A
35-2
ROLL PIN 4 X 24
Price
N/A
35-3
UPPER WHEEL SHAFT HINGE
Price
N/A
38
COMPRESSION SPRING 3.8 X 13.5 X 81
Price
N/A
39
SQUARE NUT M10-1.5
Price
N/A
40
UPPER WHEEL ASSY.
Price
N/A
41
Urethane Tire for 14" Bandsaws (Pair)
Price
N/A
42
Now: PN24M
HEX NUT M12-1.25
Price
N/A
43
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202-2RS
Price
N/A
45
LOWER WHEEL ASSY W/TIRE
Price
N/A
46
SHAFT WASHER 30 X 8 X 3MM
Price
N/A
47
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
48
LOWER WHEEL COVER
49
***USE P0555X049***
Price
N/A
50
INT TOOTH WASHER 8MM
Price
N/A
51
DOOR LATCH STUD M8-1.25 X 14
Price
N/A
55
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
56
CATCH
Price
N/A
57
ALIGNMENT BOLT M5-.8 X 27
Price
N/A
58
TAP SCREW M4 X 8
Price
N/A
59
*DISCD*FRONT UPPER WHEEL COVER
Item is no longer available
Price
N/A
61
REAR UPPER WHEEL COVER
62
FLANGE SCREW M5-.8 X 8
Price
N/A
63
UPPER WHEEL COVER HINGE
Price
N/A
64
WHEEL COVER STANDOFF-SE HEX
Price
N/A
65
LEFT BLADE GUARD
Price
N/A
66
Now: PW05M
FLAT WASHER 4MM
Price
N/A
67
TAP SCREW M3.5 X 16
Price
N/A
68
RIBBED V-BELT 200J5
Price
N/A
69
LOWER WHEEL COVER HINGE
Price
N/A
70
FLAT HD SCR M5-.8 X 10
Price
N/A
71
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
72
Now: PW01M
FLAT WASHER 8MM
Price
N/A
73
LOCK WASHER 8MM
Price
N/A
74
Now: PN03M
HEX NUT M8-1.25
Price
N/A
75
CORD CLAMP
Price
N/A
76
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
79
GUIDE POST BRACKET
Price
N/A
80
THUMB SCREW M6-1 X 16
Price
N/A
81
GUIDE SPACING SLEEVE
Price
N/A
82
BALL BEARING 6000ZZ
Price
N/A
83
FLANGE SCREW M6-1 X 8
Price
N/A
84
GUIDE POST
Price
N/A
85
LOCK WASHER 5MM
Price
N/A
86
CAP SCREW M5-.8 X 40
Price
N/A
88
***USE P0580088***
Price
N/A
89
UPPER GUIDE BRACKET
Price
N/A
90
UPPER RIGHT BLADE GUARD
Price
N/A
91
Now: PW03M
FLAT WASHER 6MM
Price
N/A
92
Now: PB05M
HEX BOLT M6-1 X 8
Price
N/A
93
LOWER GUIDE BRACKET
Price
N/A
94
Now: PW03M
FLAT WASHER 6MM
Price
N/A
95
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
96
CAP SCREW M5-.8 X 12
Price
N/A
97
TABLE
Price
N/A
98
Table Insert for G0580, G0555 and G0555P
Price
N/A
99
ROLL PIN 3 X 8
Price
N/A
100
TABLE PIN
Price
N/A
101
TRUNNION
Price
N/A
102
SCALE
Price
N/A
103
TRUNNION CLAMP SHOE
Price
N/A
104
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
105
TRUNNION SUPPORT BRACKET
Price
N/A
106
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A

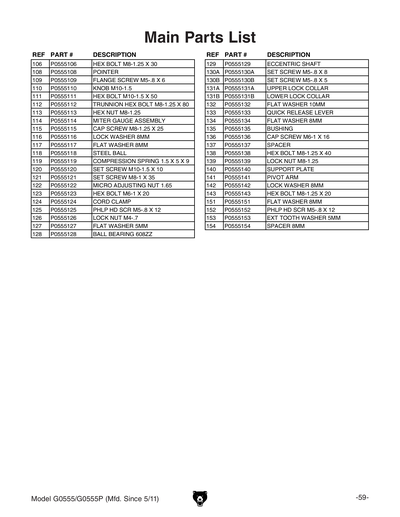

108
POINTER
Price
N/A
109
FLANGE SCREW M5-.8 X 6
Price
N/A
110
KNOB M10-1.5
Price
N/A
111
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
112
TRUNNION HEX BOLT M8-1.25 X 80
Price
N/A
113
Now: PN03M
HEX NUT M8-1.25
Price
N/A
114
MITER GAUGE ASSEMBLY
Price
N/A
115
CAP SCREW M8-1.25 X 25
Price
N/A
116
LOCK WASHER 8MM
Price
N/A
117
Now: PW01M
FLAT WASHER 8MM
Price
N/A
118
STEEL BALL 8MM
Price
N/A
119
COMPRESSION SPRING 1.5 X 5 X 9
Price
N/A
120
SET SCREW M10-1.5 X 10
Price
N/A
121
SET SCREW M8-1 X 35
Price
N/A
122
MICRO ADJUSTING NUT 1.65
Price
N/A
123
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
124
CORD CLAMP
Price
N/A
125
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
126
LOCK NUT M4-.7
Price
N/A
127
Now: PW02M
FLAT WASHER 5MM
Price
N/A
128
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
129
ECCENTRIC SHAFT
Price
N/A
130A
SET SCREW M5-.8 X 8
Price
N/A
130B
SET SCREW M5-.8 X 5
Price
N/A
131A
UPPER LOCK COLLAR
Price
N/A
131B
LOWER LOCK COLLAR
Price
N/A
132
Now: PW04M
FLAT WASHER 10MM
Price
N/A
133
QUICK RELEASE LEVER
Price
N/A
134
Now: PW01M
FLAT WASHER 8MM
Price
N/A
135
BUSHING
Price
N/A
136
CAP SCREW M6-1 X 16
Price
N/A
137
SPACER
Price
N/A
138
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
139
LOCK NUT M8-1.25
Price
N/A
140
SUPPORT PLATE
Price
N/A
141
PIVOT ARM
Price
N/A
142
LOCK WASHER 8MM
Price
N/A
143
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
144

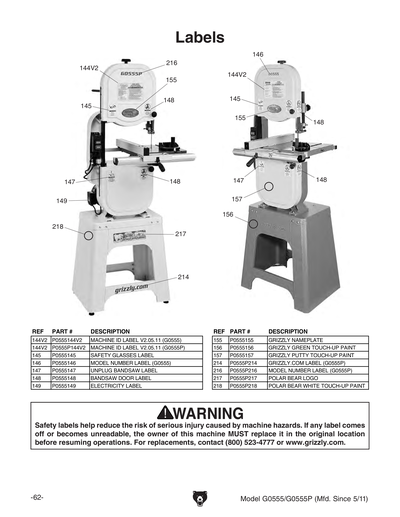

MACHINE ID LABEL V1
Item is no longer available
Price
N/A
144V2
MACHINE ID LABEL V2.05.11 CSA
Item is no longer available
Price
N/A
145
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
147
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
148
BANDSAW DOOR 2W X 3.3H
Price
N/A
149
ELECTRICITY 1.4W X 1.2H
Price
N/A
151
Now: PW01M
FLAT WASHER 8MM
Price
N/A
152
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
153
EXT TOOTH WASHER 5MM
Price
N/A
154
SPACER 8MM
Price
N/A
155
Now: G9987
Nameplate - Mini
Price
N/A
201

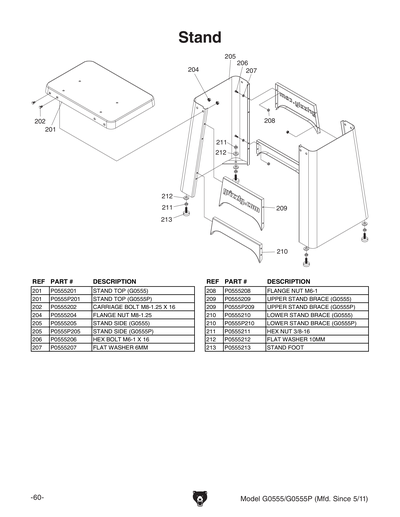

STAND TOP
Item is no longer available
Price
N/A
202
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
204
FLANGE NUT M8-1.25
Price
N/A
205
STAND SIDE
206
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
207
Now: PW03M
FLAT WASHER 6MM
Price
N/A
208
FLANGE NUT M6-1
Price
N/A
209
UPPER STAND BRACE
210
LOWER STAND BRACE
211
Now: PN08
HEX NUT 3/8-16
Price
N/A
212
Now: PW04M
FLAT WASHER 10MM
Price
N/A
213
STAND FOOT
Price
N/A
214
Now: G9987
Nameplate - Mini
Price
N/A
216
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
217
POLAR BEAR LOGO-LARGE 9.5W X 2.5H
Price
N/A
218
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
300

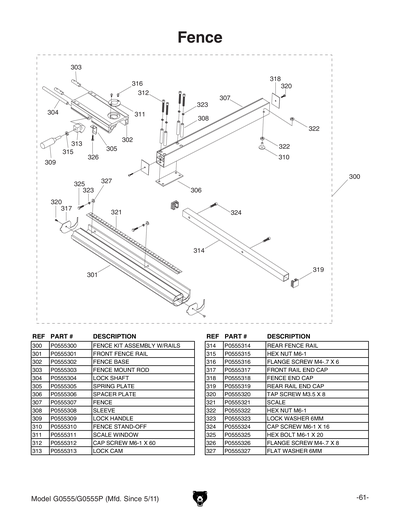

FENCE KIT ASSEMBLY W/RAILS
Price
N/A
301
***USE P0555X201***
Price
N/A
302
FENCE BASE
Price
N/A
303
FENCE MOUNT ROD
Price
N/A
304
LOCK SHAFT
Price
N/A
305
SPRING PLATE
Price
N/A
306
SPACER PLATE
Price
N/A
307
FENCE
Price
N/A
308
SLEEVE
Price
N/A
309
***USE P0817121-9***
Price
N/A
310
FENCE STAND-OFF
Price
N/A
311
***USE P0640X121-11***
Price
N/A
312
CAP SCREW M6-1 X 60
Price
N/A
313
LOCK CAM
Price
N/A
314
REAR FENCE RAIL
Price
N/A
315
Now: PN01M
HEX NUT M6-1
Price
N/A
316
FLANGE SCREW M4-.7 X 6
Price
N/A
317
***USE P0555XH217***
Price
N/A
318
FENCE END CAP
Price
N/A
319
REAR RAIL END CAP
Price
N/A
320
TAP SCREW M3.5 X 8
Price
N/A
321
SCALE
Price
N/A
322
Now: PN01M
HEX NUT M6-1
Price
N/A
323
LOCK WASHER 6MM
Price
N/A
324
CAP SCREW M6-1 X 16
Price
N/A
325
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
326
FLANGE SCREW M4-.7 X 8
Price
N/A
327
Now: PW03M
FLAT WASHER 6MM
Price
N/A
MAN
MANUAL FOR G0555 MFG 05.11 V3.06.11
Price
N/A
