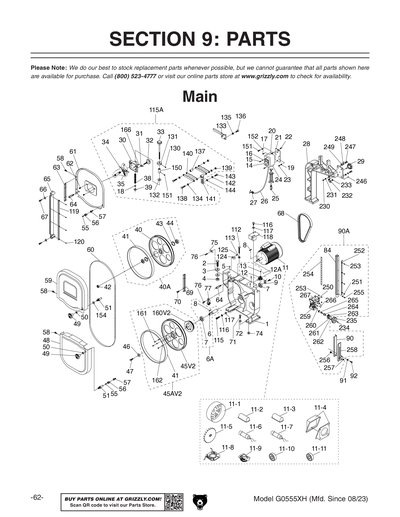

Parts for G0555XH 14" 1-3/4 HP Extreme Series Resaw Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
Price
N/A
1V2
BASE V2.08.24
2
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
3
Now: PW08M
FLAT WASHER 16MM
Price
N/A
4
Now: PN13M
HEX NUT M16-2
Price
N/A
5
ALIGNMENT PIN
Price
N/A
6
LOWER WHEEL SHAFT
6A
LOWER WHEEL SHAFT ASSY
7
BALL BEARING 6204-2RS
Price
N/A
8
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
9
Now: PW01M
FLAT WASHER 8MM
Price
N/A
10
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
11
MOTOR 1-3/4 HP 110/220V 1-PH
11-1
MOTOR FAN COVER
11-10
BALL BEARING 6205ZZ
Price
N/A
11-11
BALL BEARING 6203ZZ
Price
N/A
11-2
S CAPACITOR COVER
11-3
R CAPACITOR COVER
11-4
MOTOR JUNCTION BOX
11-5
MOTOR FAN
11-6
S CAPACITOR 300M 250V, 1-3/8" X 2-11/16"
11-7
R CAPACITOR 50M 250V, 1-19/32" X 2-3/8"
11-8
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
11-9
CENTRIFUGAL SWITCH W/ CONTACT PLATE
12
MOTOR PULLEY
12A
MOTOR PULLEY ASSY
13
SET SCREW M6-1 X 12
Price
N/A
14
ON/OFF SWITCH (PUSH BUTTON)
15
TAP SCREW M3.5 X 12
Price
N/A
16
Now: PW05M
FLAT WASHER 4MM
Price
N/A
17
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
18
***USE P0555018***
Price
N/A
19
EXT TOOTH WASHER 5MM
Price
N/A
20
SWITCH BOX
Price
N/A
21
SWITCH BOX MOUNT PLATE
Price
N/A
22
SPRING NUT M4-.7
23
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
24
STRAIN RELIEF TYPE-2 10MM
25
POWER CORD 14G 3W 72" 5-15P
26
MOTOR CORD
Price
N/A
27
STRAIN RELIEF TYPE-2 10MM
Price
N/A
28
UPPER FRAME ARM
28V2
UPPER FRAME ARM V2.08.24
29
KNOB BOLT M8-1.25 X 25, 6-LOBE, D40
30
HINGE BRACKET V1.12.06
Price
N/A
31
WING NUT M8-1.25
Price
N/A
32
KNOB BOLT M8-1.25 X 45
Price
N/A
33
TENSION KNOB BOLT ASSEMBLY
Price
N/A
34
STEEL PIN 8 X 23MM
Price
N/A
35
UPPER WHEEL SHAFT HINGE ASSY
36
LAMP W/ HOLDER AND HEX NUT
37
FLANGE SCREW M5-.8 X 8
Price
N/A
38
COMPRESSION SPRING
Price
N/A
39
SQUARE NUT M10-1.5
Price
N/A
40
UPPER WHEEL
Price
N/A
40A
UPPER WHEEL ASSY
41
***USE T23070***
Price
N/A
42
Now: PN24M
HEX NUT M12-1.25
Price
N/A
43
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202-2RS
Price
N/A
45
LOWER WHEEL V1
Price
N/A
45A
LOWER WHEEL ASSY V1
45AV2
LOWER WHEEL ASSY V2.10.21
46
Now: PW01M
FLAT WASHER 8MM
Price
N/A
47
Now: PB81M
HEX BOLT M8-1.25 X 20 LH
Price
N/A
48
LOWER WHEEL GUARD
Price
N/A
48V2
LOWER WHEEL GUARD V2.08.24
49
GRIZZLY ROUND KNOB M8-1.25
Price
N/A
50
INT TOOTH WASHER 8MM
Price
N/A
51
LATCH STUD M8-1.25 X 14
Price
N/A
55
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
56
CATCH
Price
N/A
57
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
58
TAP SCREW M4 X 8
Price
N/A
59
UPPER WHEEL FRONT COVER
Price
N/A
59A
UPPER WHEEL FRONT COVER W/LABELS
59V2
UPPER WHEEL FRONT COVER V2.08.24
60
SAW BLADE 6TPI 3/8" X 105"
61
UPPER WHEEL BACK COVER V2.08.07
Price
N/A
61V2
UPPER BACK COVER V2.08.24
62
FLANGE BOLT M8-1.25 X 8
63
UPPER WHEEL COVER HINGE
Price
N/A
64
STANDOFF STUD
Price
N/A
65
BLADE GUARD (LEFT)
66
FLAT WASHER 3.5MM
67
TAP SCREW M3.5 X 16
Price
N/A
68
RIBBED V-BELT 200J5
Price
N/A
69
LOWER WHEEL COVER HINGE
Price
N/A
70
FLAT HD SCR M5-.8 X 10
Price
N/A
71
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
72
Now: PW01M
FLAT WASHER 8MM
Price
N/A
74
FLANGE NUT M8-1.25
Price
N/A
75
PLATE PROTECTOR
76
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
77
WHEEL BRUSH
Price
N/A
79
UPPER SUPPORT BRACKET POST
80
THUMB SCREW M6-1 X 16
Price
N/A
81
SPACING POST
82
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
83
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
84
GUIDE SHAFT
85
LOCK WASHER 5MM
Price
N/A
86
HEX BOLT M5-.8 X 40
Price
N/A
87
BEARING SHEATH
88A
UPPER SUPPORT ASSY
89
GUIDE BEARING SUPPORT BRACKET
89A
LOWER SUPPORT ASSY
90
SUPPORT BRACKET
90A
UPPER SUPPORT BRACKET POST ASSY
91
Now: PW03M
FLAT WASHER 6MM
Price
N/A
92
Now: PB05M
HEX BOLT M6-1 X 8
Price
N/A
93
LOWER SUPPORT BRACKET POST
95A
TRUNNION SUPPORT BRACKET ASSY
97
TABLE
98
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
101
TRUNNION
Price
N/A
102
SCALE
103
***USE P0555103***
Price
N/A
103A
TRUNNION CLAMP SHOE ASSY
104
FLANGE BOLT M6-1 X 12
Price
N/A
105
***USE P0555105***
Price
N/A
106
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
108
***USE P0580108***
Price
N/A
109
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
110
KNOB 10MM
Price
N/A
111
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
112
Now: PB82M
HEX BOLT M8-1.25 X 80
Price
N/A
113
Now: PN03M
HEX NUT M8-1.25
Price
N/A
114
MITER GAUGE ASSY
Price
N/A
115
CAP SCREW M8-1.25 X 25
Price
N/A
115A
SLIDING BRACKET ASSY
116
LOCK WASHER 8MM
Price
N/A
117
Now: PW01M
FLAT WASHER 8MM
Price
N/A
118
LOWER BLADE GUIDE
119
BLADE GUARD COVER
120
PHLP HD SCR M4-.7 X 5
121
ADJUSTING SCREW M8-1 X 35
122
ADJUSTING NUT M8-1
123
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
124
CORD CLAMP
Price
N/A
125
CAP SCREW M5-.8 X 6
Price
N/A
127
Now: PW02M
FLAT WASHER 5MM
Price
N/A
128
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
129
BIAS SHAFT
Price
N/A
130
SET SCREW M5-.8 X 10
Price
N/A
131
UPPER LOCK COLLAR
Price
N/A
132
Now: PW04M
FLAT WASHER 10MM
Price
N/A
133
TENSION LEVER
Price
N/A
134
Now: PW01M
FLAT WASHER 8MM
Price
N/A
135
BUSHING
Price
N/A
136
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
137
SPACER
Price
N/A
138
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
139
LOCK NUT M8-1.25
Price
N/A
140
SUPPORT PLATE
Price
N/A
141
PIVOT ARM
Price
N/A
142
LOCK WASHER 8MM
Price
N/A
143
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
144
Now: PW01M
FLAT WASHER 8MM
Price
N/A
145
Now: PN58M
HEX NUT M12-1.75 THIN
Price
N/A
146
LAMP W/ HOLDER AND HEX NUT
Price
N/A
150
LOWER LOCK COLLAR
Price
N/A
151
SET SCREW M5-.8 X 5
Price
N/A
152
EXT TOOTH WASHER 5MM
Price
N/A
154
Now: PW01M
FLAT WASHER 8MM
Price
N/A
160
LOWER WHEEL ASSY V1
Price
N/A
160V2
LOWER WHEEL ASSY V2.10.21
Price
N/A
161
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
162
LOCK WASHER 6MM
Price
N/A
166
SET SCREW M5-.8 X 8
Price
N/A
168
EXT TOOTH WASHER 5MM
Price
N/A
169
CORD CLAMP
200
FENCE ASSY
201
FRONT FENCE RAIL
202
ADJUSTMENT BASE
203
FIXED SHAFT
204
SHAFT
205
FLAT SPRING
206
ADJUSTABLE HANDLE M8-1.25 X 50, 78L
Price
N/A
207
SUPPORT TUBE
208
Now: PW01M
FLAT WASHER 8MM
Price
N/A
209
FIXED HANDLE 29 X 77, M8-1.25 X 22
210
NYLON PAD
211
MAGNIFYING GLASS
212
CAP SCREW M6-1 X 25
Price
N/A
213
FIXED CAM
215
Now: PN03M
HEX NUT M8-1.25
Price
N/A
216
FLANGE SCREW M4-.7 X 6
Price
N/A
217
GUARD PIECE
218
MOVING PLATE
220
TAP SCREW M3.5 X 12
Price
N/A
221
SCALE
223
LOCK WASHER 6MM
Price
N/A
225
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
226
FLANGE SCREW M4-.7 X 8
Price
N/A
227
Now: PW03M
FLAT WASHER 6MM
Price
N/A
228
FENCE
229
MOUNTING PLATE
230
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
231
Now: PW03M
FLAT WASHER 6MM
Price
N/A
232
PLATE
233
Now: PN02M
HEX NUT M10-1.5
Price
N/A
234
FLANGE SCREW M6-1 X 8
Price
N/A
235
KNOB 12-LOBE, D60
236
LOCK WASHER 8MM
Price
N/A
237
QUICK RELEASE HANDLE
238
Now: PN03M
HEX NUT M8-1.25
Price
N/A
239
Now: PW01M
FLAT WASHER 8MM
Price
N/A
240
EXTEND PLATE
241
Now: PW03M
FLAT WASHER 6MM
Price
N/A
242
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
246
SET SCREW M6-1 X 8
Price
N/A
247
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
248
LOCK WASHER 8MM
Price
N/A
249
Now: PW01M
FLAT WASHER 8MM
Price
N/A
250
PAD
251
Now: PN04M
HEX NUT M4-.7
Price
N/A
252
GEAR TRACK
253
FLAT HD SCR M4-.7 X 8
Price
N/A
254
SCALE
255
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
256
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
257
LOCK NUT M8-1.25
Price
N/A
258
UPPER BLADE GUARD BRACKET
259
UPPER SUPPORT BRACKET POST
260
SET SCREW M6-1 X 6
Price
N/A
261
LOCK WASHER 6MM
Price
N/A
262
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
263
FIXED GEAR
264
***USE P0640X130***
265
ADJUSTING GEAR
266
METAL PLATE
267
SPRING PIECE
301

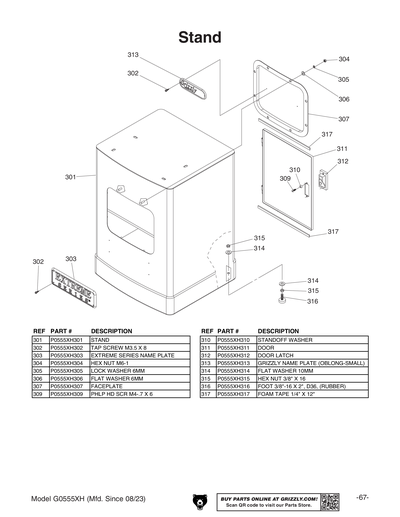

STAND
Price
N/A
301V2
STAND V2.08.24
302
TAP SCREW M3.5 X 8
Price
N/A
303
Now: H7942
Extreme Series Nameplate
Price
N/A
304
Now: PN01M
HEX NUT M6-1
Price
N/A
305
LOCK WASHER 6MM
Price
N/A
306
Now: PW03M
FLAT WASHER 6MM
Price
N/A
307
FACEPLATE
307V2
FACEPLATE V2.08.24
309
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
310
STANDOFF WASHER
311
DOOR
311V2
DOOR V2.08.24
312
DOOR LATCH
313
Now: H4609
Oblong Nameplate-Small
Price
N/A
313V2
GREEN & BLACK SERIES LABEL V2.08.24
314
Now: PW04M
FLAT WASHER 10MM
Price
N/A
315
Now: PN08
HEX NUT 3/8-16
Price
N/A
316
FOOT 3/8"-16 X 2", D36, (RUBBER)
317
DOOR CUSHION
Price
N/A
401

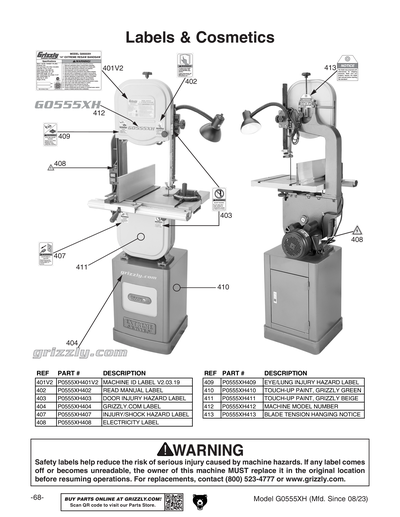

MACHINE ID LABEL
402
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
403
DOOR INJURY HAZARD LABEL
404
GRIZZLY.COM LABEL 9.875",BEIGE
Price
N/A
404V2
GRIZZLY.COM LABEL V2.08.24
407
DISCONNECT 110V 2W X 3.3H
Price
N/A
408
ELECTRICITY 1.4W X 1.2H
Price
N/A
409
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
410
N/S GRIZZLY GREEN G1023S
Price
N/A
411
BEIGE REF G0555
Price
N/A
412
MACHINE MODEL NUMBER
412V2
MODEL NUMBER LABEL V2.08.24
413
BLADE TENSION HANGING NOTICE
MAN
MANUAL FOR G0555XH MFD-01.18 V1.02.18
MANV2
MAN FOR G0555XH MFD-02.19-09.21 V2.03.19
MANV3
MANUAL G0555XH MFD-10.21-07.23 V3.12.21
MANV4
MANUAL G0555XH MFD-08.23+ V4.08.23
