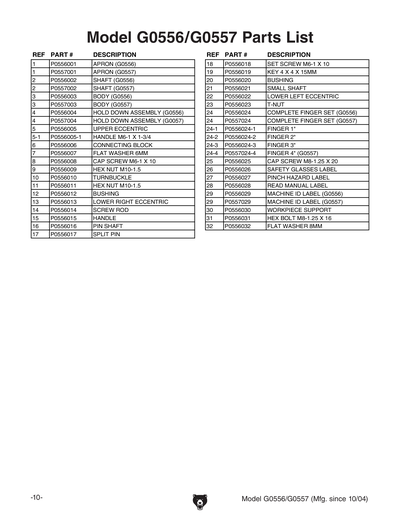

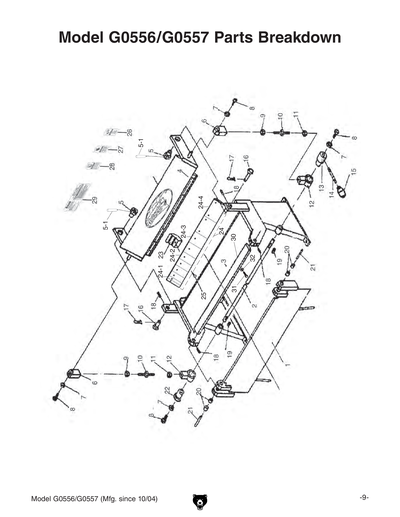

Parts for G0556 12" 20-Gauge Benchtop Pan and Box Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
APRON
2
SHAFT
3
BODY
4
HOLD DOWN ASSY
5
ECCENTRIC UPPER
5-1
HANDLE M6-1 X 1-3/4
6
CONNECTING BLOCK
7
Now: PW03M
FLAT WASHER 6MM
Price
N/A
8
CAP SCREW M6-1 X 10
Price
N/A
9
Now: PN02M
HEX NUT M10-1.5
Price
N/A
10
TURNBUCKLE
11
Now: PN02M
HEX NUT M10-1.5
Price
N/A
12
BUSHING
13
ECCENTRIC LOWER RIGHT
14
SCREW ROD
15
HANDLE
16
PIN SHAFT
17
SPLIT PIN
18
KNURLED LOCKING SWIVEL SET SCREW
19
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
20
BUSHING
21
SHAFT SMALL
22
ECCENTRIC LOWER LEFT
23
T-NUT
24
COMPLETE FINGER SET
24-1
COMPLETE FINGER SET
Price
N/A
24-2
COMPLETE FINGER SET
Price
N/A
24-3
COMPLETE FINGER SET
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
SAFETY GLASSES 1.25W X 2H
27
PINCH HAZARD LABEL
28
READ MANUAL 1.5W X 2.5H
Price
N/A
29
MACHINE ID LABEL
30
WORKPIECE SUPPORT 12"
31
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
32
Now: PW01M
FLAT WASHER 8MM
Price
N/A
33
SET SCREW M6-1 X 10
Price
N/A
MANUAL
MANUAL FOR G0556/7 12/03
