Parts for G0557 - 24" Pan and Box Brake

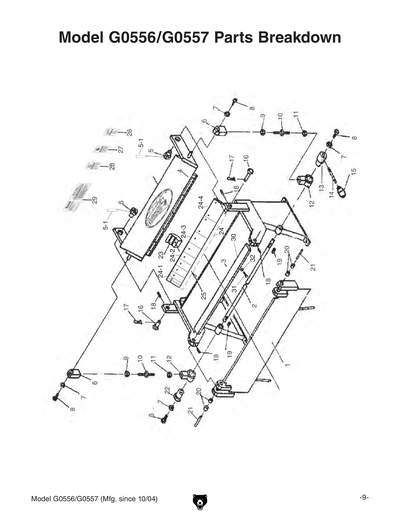

Part Diagram for G0557
Part Diagram for G0557
Part Diagram for G0557
Part Diagram for G0557

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

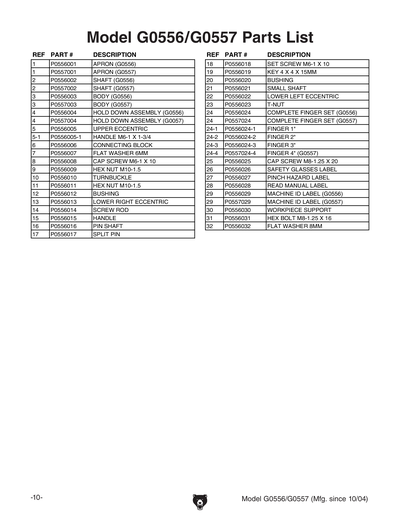

Ref #
Part #
Description
1
Price
$113.00
2
SHAFT
Item is no longer available
Price
N/A
3
Price
$158.15
4
HOLD DOWN ASSY
Item is no longer available
Price
N/A
5
ECCENTRIC UPPER
Price
N/A
6
CONNECTING BLOCK
Price
N/A
7
FLAT WASHER 6MM
Price
N/A
8
CAP SCREW M6-1 X 10
Price
N/A
9
HEX NUT M10-1.5
Price
N/A
10
TURNBUCKLE
Price
N/A
11
HEX NUT M10-1.5
Price
N/A
12
BUSHING
Price
N/A
13
ECCENTRIC LOWER RIGHT
Price
N/A
14
SCREW ROD
Price
N/A
15
HANDLE
Price
N/A
16
PIN SHAFT
Price
N/A
16A
*DISCD*PIVOT PIN
Price
N/A
17
SPLIT PIN
Price
N/A
18
SET SCREW M6-1 X 10
Price
N/A
19
KEY 4 X 4 X 15
Price
N/A
20
BUSHING
Price
N/A
21
SHAFT SMALL
Price
N/A
22
ECCENTRIC LOWER LEFT
Price
N/A
23
T-NUT
Price
N/A
24
Price
$221.10
24-1
COMPLETE FINGER SET
Price
N/A
24-2
COMPLETE FINGER SET
Price
N/A
24-3
COMPLETE FINGER SET
Price
N/A
24-4
COMPLETE FINGER SET
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
SAFETY GLASSES 1.25W X 2H
Price
N/A
27
PINCH HAZARD LABEL
Price
N/A
28
READ MANUAL 1.5W X 2.5H
Price
N/A
29
MACHINE ID LABEL
Item is no longer available
Price
N/A
30
WORKPIECE SUPPORT 24"
Item is no longer available
Price
N/A
31
HEX BOLT M8-1.25 X 16
Price
N/A
32
FLAT WASHER 8MM
Price
N/A
100
CRATE FOR G0557
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0557 12/03
Item is no longer available
Price
N/A
