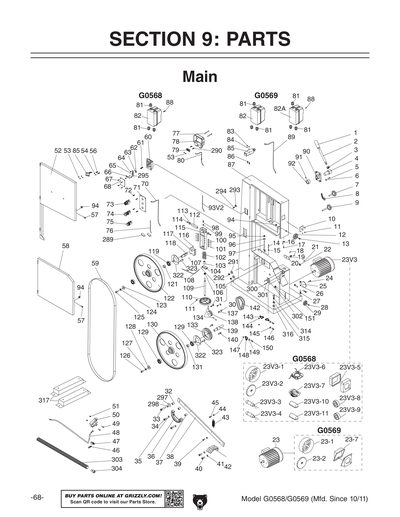

Parts for G0568 24" 5 HP Industrial Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

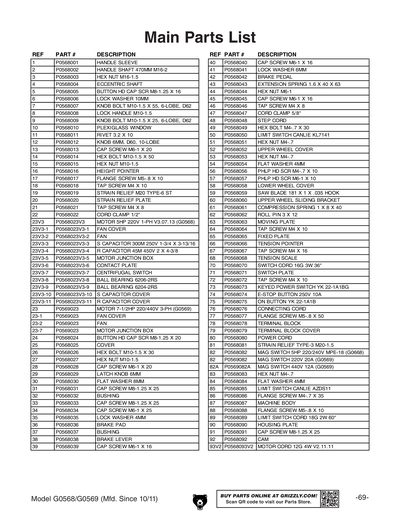

1
HANDLE SLEEVE
Price
N/A
2
HANDLE SHAFT
3
Now: PN05M
HEX NUT M16-1.5
Price
N/A
4
ECCENTRIC SHAFT
Price
N/A
5
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
6
LOCK WASHER 10MM
Price
N/A
7
KNOB BOLT M10-1.5 X 55, 6-LOBE, D62
Price
N/A
8
LOCK LEVER M10-1.5
Price
N/A
9
KNOB SCREW M10-1.5 X 25
Price
N/A
10
CLEAR WINDOW
Price
N/A
11
RIVET 3.2 X 10
Price
N/A
12
***USE P0513060***
Price
N/A
13
CAP SCREW M6-1 X 20
Price
N/A
14
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
15
Now: PN02M
HEX NUT M10-1.5
Price
N/A
16
HEIGHT POINTER
Price
N/A
17
FLANGE SCREW M5-.8 X 10
Price
N/A
18
TAP SCREW M4 X 10
Price
N/A
19
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
20
STRAIN RELIEF PLATE
Price
N/A
21
TAP SCREW M4 X 8
Price
N/A
22
CORD CLAMP 1/2"
Price
N/A
23
MOTOR 5HP 220V 1-PH V1
23-1
*DISCD*FAN COVER
Item is no longer available
Price
N/A
23-2
*DISCD*FAN
Item is no longer available
Price
N/A
23-3
*DISCD*S CAPACITOR COVER
Item is no longer available
Price
N/A
23-4
S CAPACITOR 600M 250V 1-3/8 X 2-3/4
23-5
R CAPACITOR COVER
23-6
R CAPACITOR 30M 300V 1-5/8 X 2-3/4
23-7
*DISCD*WIRING BOX
Item is no longer available
Price
N/A
23V2
MOTOR 5HP 220V 1-PH V3.07.13
Price
N/A
23V2-1
FAN COVER
23V2-2
FAN
Price
N/A
23V2-3
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
N/A
23V2-4
R CAPACITOR 20M 500V 1-3/4 X 3-3/8
23V2-5
JUNCTION BOX
23V2-6
CONTACT PLATE
23V2-7
CENTRIFUGAL SWITCH
23V2-8
BALL BEARING 6206-2RS
Price
N/A
23V2-9
BALL BEARING 6204-2RS
Price
N/A
23V3
MOTOR 5HP 220V 1-PH V3.07.13
23V3-1
FAN COVER
Price
N/A
23V3-10
S CAPACITOR COVER
23V3-11
R CAPACITOR COVER
23V3-2
***USE P0569023-2***
Price
N/A
23V3-3
S CAPACITOR 300M 250V 1-3/4 X 3-13/16
23V3-4
R CAPACITOR 45M 450V 2 X 4-3/8
23V3-5
MOTOR JUNCTION BOX
23V3-6
CONTACT PLATE
Price
N/A
23V3-7
CENTRIFUGAL SWITCH
Price
N/A
23V3-8
BALL BEARING 6206-2RS
Price
N/A
23V3-9
BALL BEARING 6204-2RS
Price
N/A
24
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
25
COVER
Price
N/A
26
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
27
Now: PN02M
HEX NUT M10-1.5
Price
N/A
28
CAP SCREW M6-1 X 20
Price
N/A
29
LATCH KNOB 6MM
Price
N/A
30
Now: PW01M
FLAT WASHER 8MM
Price
N/A
31
CAP SCREW M8-1.25 X 25
Price
N/A
32
BUSHING
Price
N/A
33
CAP SCREW M8-1.25 X 25
Price
N/A
34
CAP SCREW M6-1 X 25
Price
N/A
35
LOCK WASHER 4MM
Price
N/A
36
BRAKE SHOE
Price
N/A
37
BUSHING
Price
N/A
38
BRAKE LEVER
39
CAP SCREW M6-1 X 16
Price
N/A
40
CAP SCREW M6-1 X 16
Price
N/A
41
LOCK WASHER 6MM
Price
N/A
42
BRAKE PEDAL
Price
N/A
43
EXTENSION SPRING 1.6 X 40 X 63
Price
N/A
44
Now: PN01M
HEX NUT M6-1
Price
N/A
45
CAP SCREW M6-1 X 16
Price
N/A
46
TAP SCREW M4 X 8
Price
N/A
47
CORD CLAMP 5/8"
Price
N/A
48
STEP CORD
Price
N/A
49
Now: PB41M
HEX BOLT M4-.7 X 30
Price
N/A
50
LIMIT SWITCH CANLIE KL7141
Price
N/A
51
Now: PN04M
HEX NUT M4-.7
Price
N/A
52
UPPER WHEEL COVER
52A
UPPER WHEEL COVER W/ LABELS
53
Now: PN04M
HEX NUT M4-.7
Price
N/A
54
Now: PW05M
FLAT WASHER 4MM
Price
N/A
55
PLASTIC SET SCREW
Price
N/A
56
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
57
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
58
LOWER WHEEL COVER
58A
LOWER WHEEL COVER W/LABELS
59
SAW BLADE 181 X 1 X .035" HOOK
60
UPPER WHEEL SLIDING BRACKET
Price
N/A
61
COMPRESSION SPRING
Price
N/A
62
ROLL PIN 3 X 12
Price
N/A
63
MOVING PLATE
Price
N/A
64
TAP SCREW M4 X 10
Price
N/A
65
FIXED PLATE
Price
N/A
66
TENSION POINTER
Price
N/A
67
TAP SCREW M4 X 16
Price
N/A
68
TENSION SCALE
69
CONNECTING WIRE 16G
Price
N/A
70
SWITCH CORD 16G 3W 36"
Price
N/A
71
SWITCH PLATE
Price
N/A
72
TAP SCREW M4 X 10
Price
N/A
73
***USE P0514X041***
Price
N/A
74
E-STOP BUTTON 250V 10A
Price
N/A
75
ON BUTTON YK 22-1A1B
Price
N/A
76
CONNECTING CORD
Price
N/A
77
FLANGE SCREW M5-.8 X 50
Price
N/A
78
TERMINAL BLOCK
79
TERMINAL BLOCK COVER
80
POWER CORD
81
STRAIN RELIEF TYPE-3 M20-1.5
82
MAG SWITCH 5HP 220/240V MPE-18
83
Now: PN04M
HEX NUT M4-.7
Price
N/A
84
Now: PW05M
FLAT WASHER 4MM
Price
N/A
85
LIMIT SWITCH CANLIE AZDS11
Price
N/A
86
FLANGE SCREW M4-.7 X 35
Price
N/A
87
MACHINE BODY
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
LIMIT SWITCH CORD 18G 2W 60"
Price
N/A
90
HOUSING PLATE
Price
N/A
91
CAP SCREW M8-1.25 X 25
Price
N/A
92
CAM
Price
N/A
93
MOTOR CORD
Price
N/A
93V2
MOTOR CORD 12G 4W V2.11.11

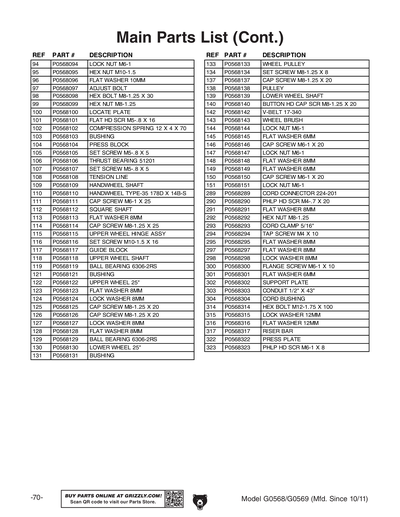

94
LOCK NUT M6-1
Price
N/A
95
Now: PN02M
HEX NUT M10-1.5
Price
N/A
96
Now: PW04M
FLAT WASHER 10MM
Price
N/A
97
ADJUST BOLT
98
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
99
Now: PN03M
HEX NUT M8-1.25
Price
N/A
100
LOCATE PLATE
Price
N/A
101
FLAT HD SCR M5-.8 X 16
Price
N/A
102
COMPRESSION SPRING 12 X 4 X 70
103
BUSHING
Price
N/A
104
PRESS BLOCK
Price
N/A
105
SET SCREW M5-.8 X 5
Price
N/A
106
THRUST BEARING 51201
Price
N/A
107
SET SCREW M5-.8 X 5
Price
N/A
108
TENSION LINE
Price
N/A
109
HANDWHEEL SHAFT
110
HANDWHEEL TYPE-35 178D X 14B-S
Price
N/A
111
CAP SCREW M6-1 X 25
Price
N/A
112
SQUARE SHAFT
Price
N/A
113
Now: PW01M
FLAT WASHER 8MM
Price
N/A
114
CAP SCREW M8-1.25 X 25
Price
N/A
115
UPPER WHEEL HINGE ASSY.
116
SET SCREW M10-1.5 X 16
Price
N/A
117
GUIDE BLOCK
Price
N/A
118
UPPER WHEEL SHAFT
119
BALL BEARING 6306-2RS
Price
N/A
120
Now: PR64M
INT RETAINING RING 72MM
Price
N/A
121
BUSHING
122
UPPER WHEEL 25"
123
Now: PW01M
FLAT WASHER 8MM
Price
N/A
124
LOCK WASHER 8MM
Price
N/A
125
CAP SCREW M8-1.25 X 20
Price
N/A
126
CAP SCREW M8-1.25 X 20
Price
N/A
127
LOCK WASHER 8MM
Price
N/A
128
Now: PW01M
FLAT WASHER 8MM
Price
N/A
129
BALL BEARING 6306-2RS
Price
N/A
130
LOWER WHEEL 25"
131
BUSHING
132
Now: PR64M
INT RETAINING RING 72MM
Price
N/A
133
WHEEL PULLEY
Price
N/A
134
SET SCREW M8-1.25 X 8
Price
N/A
135
KEY 8 X 7 X 30
137
CAP SCREW M8-1.25 X 20
Price
N/A
138
PULLEY
Price
N/A
139
LOWER WHEEL SHAFT
140
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
141
Now: PW03M
FLAT WASHER 6MM
Price
N/A
142
Now: PVA32
V-BELT A32
Price
N/A
143
***USE P0566B032***
Price
N/A
144
LOCK NUT M6-1
Price
N/A
145
Now: PW03M
FLAT WASHER 6MM
Price
N/A
146
CAP SCREW M6-1 X 20
Price
N/A
147
LOCK NUT M6-1
Price
N/A
148
Now: PW01M
FLAT WASHER 8MM
Price
N/A
149
Now: PW03M
FLAT WASHER 6MM
Price
N/A
150
CAP SCREW M6-1 X 20
Price
N/A
151
LOCK NUT M6-1
Price
N/A
155
*DISCD*FENCE
Price
N/A
155V2
FENCE V2.08.10
155V2-10
SET SCREW M7-1 X 10 (PLASTIC)
155V2-12
SET SCREW M8-1.25 X 12
Price
N/A
155V2-13
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
155V2-14
Now: PN03M
HEX NUT M8-1.25
Price
N/A
155V2-4
SPRING PLATE
Price
N/A
155V2-5
FLANGE SCREW M4-.7 X 8
Price
N/A
155V2-6
PIVOT BLOCK V2.08.10
155V2-7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
155V2-9
SHAFT V2.08.10
155V2A
FENCE ASSEMBLY V2.08.10
156
KNOB SCREW M10-1.5 X 25
Price
N/A
156V2
HANDLE V2.08.10
157
POINTER
Price
N/A
157V2
POINTER V2.08.10
158
FLANGE SCREW M5-.8 X 8
Price
N/A
159
Now: PW03M
FLAT WASHER 6MM
Price
N/A
160
LOCK WASHER 4MM
Price
N/A
161
CAP SCREW M8-1.25 X 20
Price
N/A
162
CAP SCREW M10-1.5 X 30
Price
N/A
163
LOCK WASHER 10MM
Price
N/A
164
Now: PW04M
FLAT WASHER 10MM
Price
N/A
165
***USE P0636X154***
Price
N/A
166
BLADE GUARD
Price
N/A
166V2
BLADE GUARD V2.06.09
167
FLANGE SCREW M6-1 X 10
Price
N/A
168
PRESS SHAFT
Price
N/A
169
MICRO ADJUSTING RING
Price
N/A
170
CAP SCREW M8-1.25 X 20
Price
N/A
171
LOCK WASHER 8MM
Price
N/A
172
HANDLE SHAFT M12-2 90MM
Price
N/A
173
SLEEVE
Price
N/A
174
CAP SCREW M10-1.5 X 35
Price
N/A
175
LOCK WASHER 10MM
Price
N/A
176
Now: PW04M
FLAT WASHER 10MM
Price
N/A
177
TRUNNION BLOCK
Price
N/A
178
PRESS BLOCK
Price
N/A
179
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
180
POINTER
Price
N/A
181
GUARD RAIL V2.08.10
Price
N/A
181V2
GUARD RAIL V2.08.10

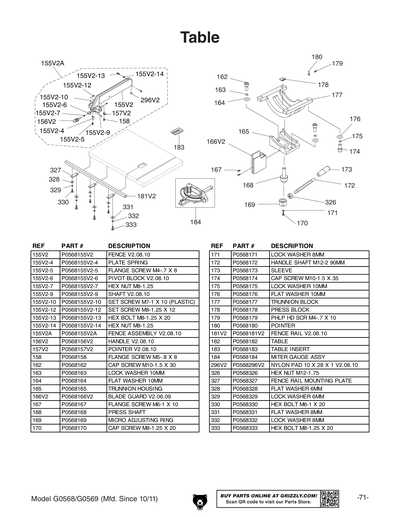

182
TABLE
182-1
TABLE SCALE
183
Bandsaw Table Insert
Price
N/A
184
MITER GAUGE ASSY
Price
N/A
184-1
MITER GAUGE ASSY
Price
N/A
184-10
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
184-11
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
184-12
Now: PN04M
HEX NUT M4-.7
Price
N/A
184-13
Now: PW01M
FLAT WASHER 8MM
Price
N/A
184-2
MITER GAUGE ASSY
Price
N/A
184-3
MITER GAUGE ASSY
Price
N/A
184-4
MITER GAUGE ASSY
Price
N/A
184-5
MITER GAUGE ASSY
Price
N/A
184-6
MITER GAUGE ASSY
Price
N/A
184-7
MITER GAUGE ASSY
Price
N/A
184-8
MITER GAUGE ASSY
Price
N/A
184-9
Now: PFH9M
FLAT HD SCR M6-1 X 6
Price
N/A
185
LOCK WASHER 8MM
Price
N/A
186
FLANGE SCREW M5-.8 X 10
Price
N/A
187
COVER
Price
N/A
189
CAP SCREW M8-1.25 X 16
Price
N/A
190
FLAT HD SCR M4-.7 X 10
Price
N/A
191
RACK EXTENSION
Price
N/A
192
COVER
Price
N/A
193
PINION GEAR BOLT
Price
N/A
194
***USE P0568246***
Price
N/A
195
FIXED PLATE
Price
N/A
196
WORM SHAFT
Price
N/A
197
Now: PN59M
HEX NUT M16-1.5 THIN
Price
N/A
198
***USE P0513164V2***
Price
N/A
199
Now: PW01M
FLAT WASHER 8MM
Price
N/A
200
BUTTON HD CAP SCR M8-1.25 X 35
Price
N/A
201
BUSHING
Price
N/A
202
LOCK COLLAR
Price
N/A
203
CAP SCREW M6-1 X 25
Price
N/A
204
HANDWHEEL TYPE-35 178D X 14B-S X M10-1.5
205
FIXED HANDLE 24 X 90, M10-1.5 X 12
206

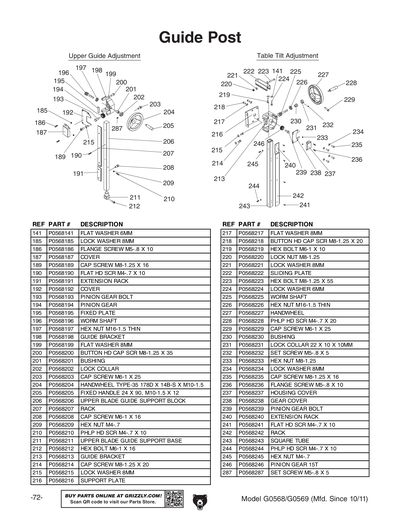

UPPER BLADE GUIDE SUPPORT BLOCK
207
RACK
Price
N/A
208
CAP SCREW M6-1 X 16
Price
N/A
209
Now: PN04M
HEX NUT M4-.7
Price
N/A
210
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
211
UPPER BLADE GUIDE SUPPORT BASE
212
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
213
***USE P0513164V2***
Price
N/A
214
CAP SCREW M8-1.25 X 20
Price
N/A
215
LOCK WASHER 8MM
Price
N/A
216
SUPPORT PLATE
Price
N/A
217
Now: PW01M
FLAT WASHER 8MM
Price
N/A
218
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
219
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
220
LOCK NUT M8-1.25
Price
N/A
221
LOCK WASHER 8MM
Price
N/A
222
SLIDING PLATE
Price
N/A
223
Now: PB30M
HEX BOLT M8-1.25 X 55
Price
N/A
224
LOCK WASHER 6MM
Price
N/A
225
WORM SHAFT
Price
N/A
226
Now: PN59M
HEX NUT M16-1.5 THIN
Price
N/A
227
HANDWHEEL
Price
N/A
228
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
229
CAP SCREW M6-1 X 25
Price
N/A
230
BUSHING
Price
N/A
231
***USE P0640X129***
Price
N/A
232
SET SCREW M5-.8 X 5
Price
N/A
233
Now: PN03M
HEX NUT M8-1.25
Price
N/A
234
LOCK WASHER 8MM
Price
N/A
235
CAP SCREW M8-1.25 X 16
Price
N/A
236
FLANGE SCREW M5-.8 X 10
Price
N/A
237
HOUSING COVER
238
GEAR COVER
239
PINION GEAR BOLT
240
RACK EXTENSION
Price
N/A
241
FLAT HD SCR M4-.7 X 10
Price
N/A
242
***USE P0566207***
Price
N/A
243
SQUARE TUBE
244
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
245
Now: PN04M
HEX NUT M4-.7
Price
N/A
246
PINION GEAR 15T
247
CAP SCREW M6-1 X 10
Price
N/A
248
LOCK WASHER 6MM
Price
N/A
249
Now: PW03M
FLAT WASHER 6MM
Price
N/A
250
L-BRACKET
Price
N/A
251
Now: PW03M
FLAT WASHER 6MM
Price
N/A
252
CAP SCREW M6-1 X 10
Price
N/A
253
BLADE GUARD
254
Now: PW03M
FLAT WASHER 6MM
Price
N/A
255
CAP SCREW M6-1 X 10
Price
N/A
256
SLIDING PLATE
257
FIBER WASHER 5MM
Price
N/A
258
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
259

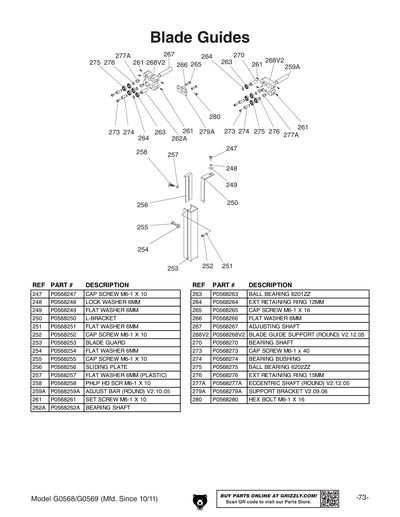

*DISCD*ADJUST BAR HEXAGON V1.08.04
Price
N/A
259A
ADJUST BAR (ROUND) V2.10.05
Price
N/A
260
*DISCD*BLADE GUIDE SUPPORT HEX V1.08.04
Price
N/A
261
SET SCREW M6-1 X 10
Price
N/A
262
*DISCD*SPACING SLEEVE UPPER HEX V1.08.04
Price
N/A
262A
BEARING SHAFT
Price
N/A
263
BALL BEARING 6201ZZ
Price
N/A
264
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
265
CAP SCREW M6-1 X 16
Price
N/A
266
Now: PW03M
FLAT WASHER 6MM
Price
N/A
267
*DISCD*ADJUSTING SHAFT V1.08.04
Price
N/A
268
*DISCD*BLADE GUIDE SUPPORT HEX V1.08.04
Price
N/A
268V2
BLADE GUIDE SUPPORT ROUND V2.12.05
Price
N/A
269
SET SCREW M6-1 X 10
Price
N/A
270
BEARING SHAFT
Price
N/A
271
BALL BEARING 6202ZZ
Price
N/A
272
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
273
CAP SCREW M6-1 X 40
Price
N/A
274
BEARING BUSHING
275
BALL BEARING 6202ZZ
Price
N/A
276
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
277
*DISCD*ECCENTRIC SHAFT HEX V1.08.04
Price
N/A
277A
ECCENTRIC SHAFT (ROUND) V2.12.05
Price
N/A
278
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
279
*DISCD*SUPPORT BRACKET V1.08.04
Price
N/A
279A
SUPPORT BRACKET V2.09.06
Price
N/A
280
Now: PS83M
PHLP HD SCR M6-1 X 45
Price
N/A
281
CAP SCREW M6-1 X 40
Price
N/A
283
BALL BEARING 6202ZZ
Price
N/A
284
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
286
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
287
SET SCREW M5-.8 X 5
Price
N/A
289
CORD CONNECTOR 224-201
290
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
291
Now: PW01M
FLAT WASHER 8MM
Price
N/A
292
Now: PN03M
HEX NUT M8-1.25
Price
N/A
293
CORD CLAMP 5/16"
294
TAP SCREW M4 X 10
Price
N/A
295
Now: PW01M
FLAT WASHER 8MM
Price
N/A
296
NYLON PIECE
Price
N/A
296V2
NYLON PAD 10 X 28 X 1 V2.08.10
297
Now: PW01M
FLAT WASHER 8MM
Price
N/A
298
LOCK WASHER 8MM
Price
N/A
299
PIN 6 X 15
300
FLANGE SCREW M6-1 X 10
Price
N/A
301
Now: PW03M
FLAT WASHER 6MM
Price
N/A
302
SUPPORT V2.10.04
Price
N/A
303
CONDUIT 1/2" X 43"
304
CORD BUSHING
305

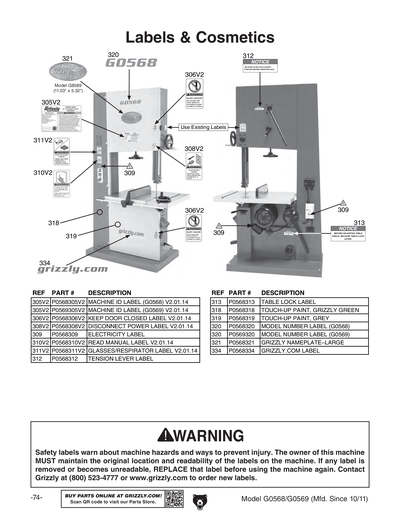

MACHINE ID LABEL V1
305V2
MACHINE ID LABEL V2.01.14
306
DONT OPEN 2W X 3.3H
Price
N/A
306V2
DOOR CLOSED BLADE 1.5W X 2.5H
Price
N/A
307
***USE PLABEL-19A***
Price
N/A
308
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
308V2
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
309
ELECTRICITY 1.4W X 1.2H
Price
N/A
310
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
310V2
READ MANUAL 1.5W X 2.5H
Price
N/A
311
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
311V2
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
312
TENSION LEVER LABEL
Price
N/A
313
TABLE LOCK LABEL
Price
N/A
314
HEX BOLT M12-1.75 X 100
Price
N/A
315
LOCK WASHER 12MM
Price
N/A
316
Now: PW06M
FLAT WASHER 12MM
Price
N/A
317
RISER BAR
318
N/S GRIZZLY GREEN G1023S
Price
N/A
319
LIGHT GREY REF G9733
Price
N/A
320
MODEL NUMBER LABEL
321
Now: G8589
Nameplate - Large
Price
N/A
322
PRESS PLATE
323
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
324
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
325
POINTER
326
Now: PN09M
HEX NUT M12-1.75
Price
N/A
327
FENCE RAIL MOUNTING PLATE
328
Now: PW03M
FLAT WASHER 6MM
Price
N/A
329
LOCK WASHER 6MM
Price
N/A
330
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
331
Now: PW01M
FLAT WASHER 8MM
Price
N/A
332
LOCK WASHER 8MM
Price
N/A
333
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
334
GRIZZLY.COM LABEL 13.5",GREEN
Price
N/A
MANUAL
MANUAL G0568-69 MFD-10/04-09/11 V1.08.04
MANV2
MANUAL G0568-69 MFD-10/11-05/25 V2.03.25
