Parts for G0572 - Hanging Air Filter w/ Remote

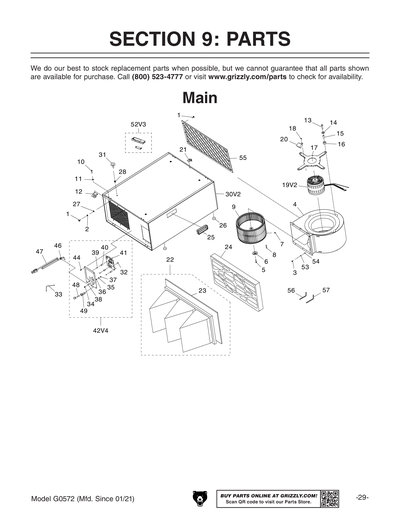

Part Diagram for G0572
Part Diagram for G0572
Part Diagram for G0572
Part Diagram for G0572
Part Diagram for G0572
Part Diagram for G0572

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

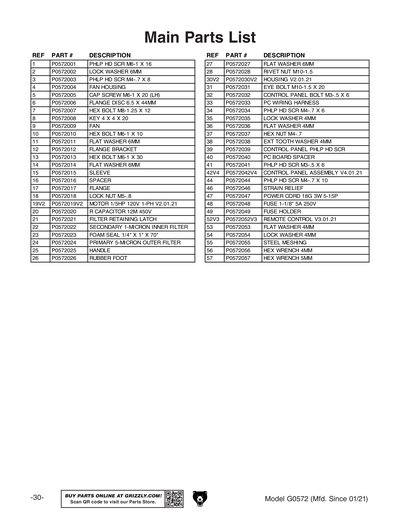

Ref #
Part #
Description
1
PHLP HD SCR M6-1 X 16
Price
N/A
2
LOCK WASHER 6MM
Price
N/A
3
PHLP HD SCR M4-.7 X 8
Price
N/A
4
Price
$111.50
5
CAP SCREW M6-1 X 20 LH
Price
N/A
6
Price
$2.90
7
HEX BOLT M8-1.25 X 12
Price
N/A
8
KEY 4 X 4 X 20
Price
N/A
9
Price
$82.75
10
HEX BOLT M6-1 X 10
Price
N/A
11
FLAT WASHER 6MM
Price
N/A
12
Price
$1.90
13
HEX BOLT M6-1 X 30
Price
N/A
14
FLAT WASHER 6MM
Price
N/A
15
Price
$1.90
16
Price
$1.90
17
Price
$21.60
18
LOCK WASHER 4MM
Price
N/A
19
*DISCD*MOTOR 1/5HP 115V 1-PH
Item is no longer available
Price
N/A
19V2
Price
$367.35
20
Price
$19.85
21
Price
$1.90
22
Secondary 1 Micron Filter for G0572
Price
N/A
23
Secondary 1 Micron Filter for G0572
Price
N/A
24
Primary 5 Micron Filter for G0572
Price
N/A
25
Price
$8.65
26
Price
$2.90
27
FLAT WASHER 6MM
Price
N/A
28
Price
$3.65
29
Price
$28.45
30
Price
$280.00
30V2
Price
$158.15
31
Price
$4.70
32
CONTROL PANEL BOLT M3-.5 X 6
Price
$1.90
33
Price
$20.50
34
PHLP HD SCR M4-.7 X 6
Price
N/A
35
LOCK WASHER 4MM
Price
N/A
36
FLAT WASHER 4MM
Price
N/A
37
HEX NUT M4-.7
Price
N/A
38
EXT TOOTH WASHER 4MM
Price
N/A
39
CONTROL PANEL PHLP HD SCR
Price
$8.65
40
Price
$1.90
41
PHLP HD SCR M3-.5 X 6
Price
N/A
42
*DISCD*PC BOARD & CONTROL PANEL V3.05.10
Price
N/A
42A
*DISCD*PC BOARD & CONTROL PANEL V3.05.10
Price
N/A
42V3
*DISCD*PC BOARD & CONTROL PANEL V3.05.10
Item is no longer available
Price
N/A
42V4
CONTROL PANEL ASSEMBLY V4.01.21
Price
$131.90
43
Price
$2.65
44
PHLP HD SCR M4-.7 X 10
Price
N/A
45
***SEE EXT DESCRIPTION***
Item is no longer available
Price
N/A
46
Price
$1.90
47
POWER CORD 18G 3W 5-15P
Price
$12.25
48
Price
$2.20
49
Price
$5.45
50
*DISCD*REMOTE CONTROL COVER V1
Item is no longer available
Price
N/A
50V2
COMPLETE REMOTE CONTROL SMALL V2.10.07
Price
N/A
50V2A
COMPLETE REMOTE CONTROL SMALL V2.10.07
Price
$33.45
51
*DISCD*REMOTE LABEL V1
Item is no longer available
Price
N/A
52
*DISCD*REMOTE CONTROL LARGE V1
Item is no longer available
Price
N/A
52V2
COMPLETE REMOTE CONTROL SMALL V2.10.07
Price
N/A
52V3
REMOTE CONTROL V3.01.21
Price
$29.40
53
FLAT WASHER 4MM
Price
N/A
54
LOCK WASHER 4MM
Price
N/A
55
Price
$20.15
56
HEX WRENCH 4MM
Price
N/A
57
HEX WRENCH 5MM
Price
N/A

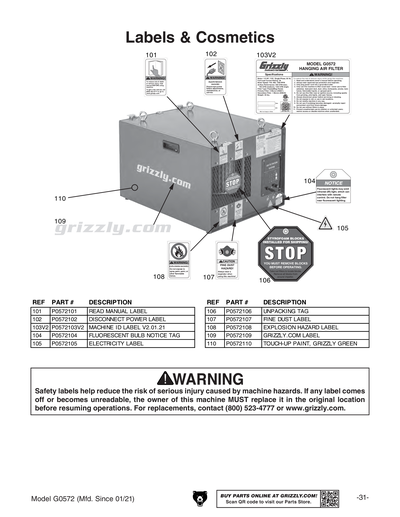

101
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
102
DISCONNECT 110V 2W X 3.3H
Price
N/A
103
Price
$16.40
103V2
MACHINE ID LABEL V2.01.21
Price
$16.40
104
FLUORESCENT BULB NOTICE TAG
Price
$1.90
105
ELECTRICITY 1.4W X 1.2H
Price
N/A
106
Price
$4.00
107
RESPIRATOR 2W X 3.3H
Price
N/A
108
Price
$1.60
109
GRIZZLY.COM LABEL 14.5",BEIGE
Price
N/A
110
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0572 MFD-01.05-12.20 V1.06.07
Price
$11.00
MANV2
MANUAL G0572 MFD-01.21+ V2.10.20
Price
$14.65
