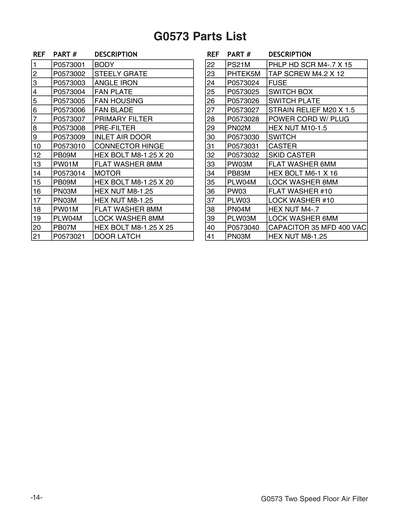

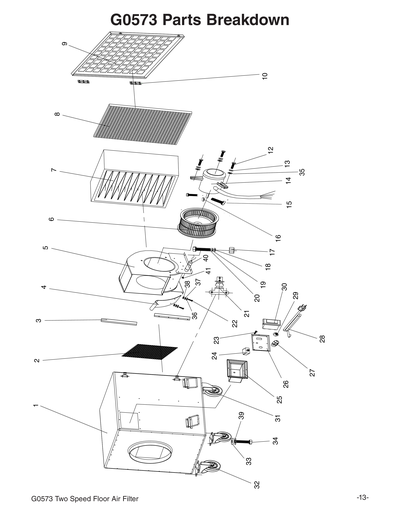

Parts for G0573 Large Floor Air Filter

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BODY
Item is no longer available
Price
N/A
2
STEEL GRATE
3
ANGLE IRON
Item is no longer available
Price
N/A
4
FAN PLATE
Item is no longer available
Price
N/A
5
FAN HOUSING
6
FAN BLADE
7
Now: H9990
Primary Box Filter for G0573
Price
N/A
8
Now: H9619
Prefilter for G0573
Price
N/A
9
INLET AIR DOOR
10
CONNECTOR HINGE
12
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
13
Now: PW01M
FLAT WASHER 8MM
Price
N/A
14
MOTOR 1-3/4HP 110V 1-PH
15
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
16
Now: PN03M
HEX NUT M8-1.25
Price
N/A
17
Now: PN03M
HEX NUT M8-1.25
Price
N/A
18
Now: PW01M
FLAT WASHER 8MM
Price
N/A
19
LOCK WASHER 8MM
Price
N/A
20
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
21
DOOR LATCH
22
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
23
TAP SCREW 10-24 X 1/2
Price
N/A
24
FUSE
25
SWITCH BOX
26
SWITCH PLATE
27
STRAIN RELIEF M20
28
POWER CORD W/PLUG
29
Now: PN02M
HEX NUT M10-1.5
Price
N/A
30
SWITCH
31
CASTER
32
SKID CASTER
33
Now: PW03M
FLAT WASHER 6MM
Price
N/A
34
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
35
LOCK WASHER 8MM
Price
N/A
36
Now: PW03
FLAT WASHER #10
Price
N/A
37
Now: PLW03
LOCK WASHER #10
Price
N/A
38
Now: PN04M
HEX NUT M4-.7
Price
N/A
39
LOCK WASHER 6MM
Price
N/A
40
R CAPACITOR 35M 400V
41
Now: PN03M
HEX NUT M8-1.25
Price
N/A
MAN
MANUAL FOR G0573 08/07
Item is no longer available
Price
N/A
MANUAL
MANUAL FOR G0573 08/07
Item is no longer available
Price
N/A
