Parts for G0575 - 1-1/2 HP 10" Table Saw

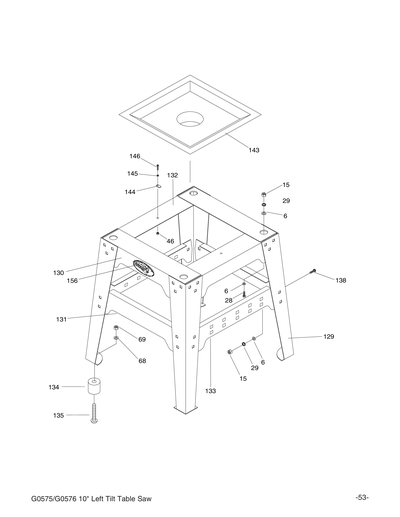

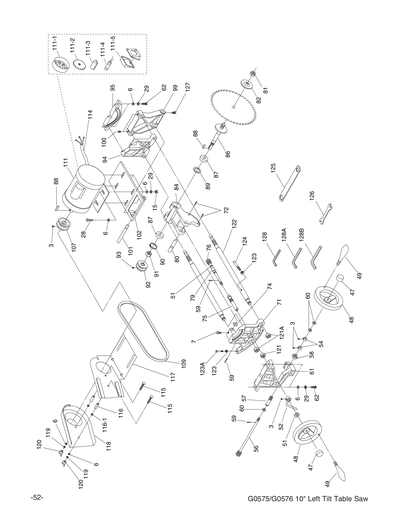

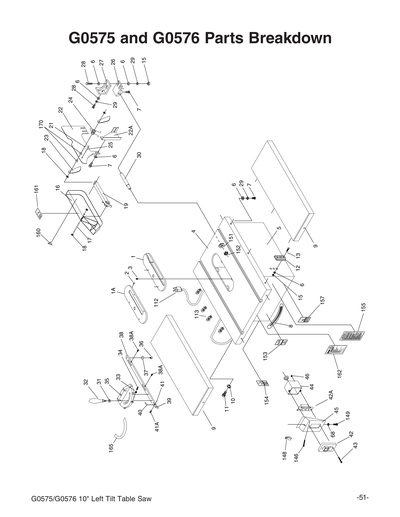

Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575
Part Diagram for G0575

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

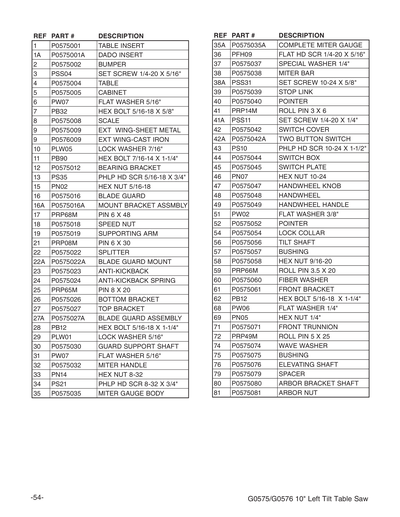

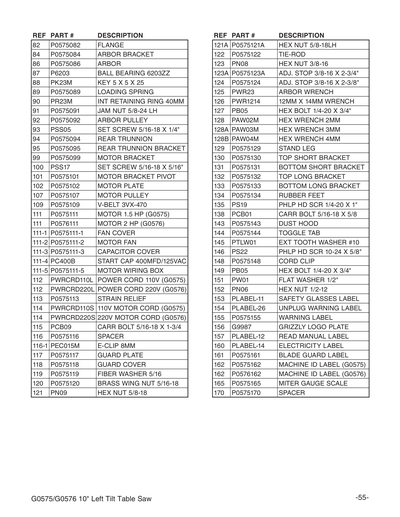

Ref #
Part #
Description
1
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
1A
*DISCD*DADO TABLE INSERT
Item is no longer available
Price
N/A
2
BUMPER
Price
N/A
3
SET SCREW 1/4-20 X 5/16
Price
N/A
4
TABLE
Price
$278.90
5
CABINET STAND
Price
N/A
6
P0575006
Now: PW07
FLAT WASHER 5/16
Price
N/A
7
P0575007
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
8
SCALE
Item is no longer available
Price
N/A
9
EXTENSION WING SHEET
Price
N/A
10
LOCK WASHER 7/16
Price
N/A
11
P0575011
Now: PB90
HEX BOLT 7/16-14 X 1-1/4
Price
N/A
12
BEARING BRACKET
Price
N/A
13
P0575013
Now: PS35
PHLP HD SCR 5/16-18 X 3/4
Price
N/A
15
P0575015
Now: PN02
HEX NUT 5/16-18
Price
N/A
16
*DISCD*BLADE GUARD
Price
N/A
16A
*DISCD*MOUNTING BRACKET ASSY
Price
N/A
17
ROLL PIN 6 X 48
Price
N/A
18
DISC WASHER 1/4
Price
N/A
19
SUPPORTING ARM
Price
N/A
21
ROLL PIN 6 X 30
Price
N/A
22
*DISCD*SPLITTER
Price
N/A
22A
*DISCD*MOUNT
Price
N/A
23
*DISCD*ANTI KICKBACK
Price
N/A
24
ANTI KICKBACK SPRING C-SHAPE
Price
N/A
25
ROLL PIN 8 X 20
Price
N/A
26
*DISCD*LOWER BRACKET V1
Price
N/A
27
*DISCD*UPPER BRACKET V1
Price
N/A
27A
*DISCD*BLADE GUARD ASSY V1
Price
N/A
28
P0575028
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
29
LOCK WASHER 5/16
Price
N/A
30
GUARD SUPPORT SHAFT
Price
N/A
31
P0575031
Now: PW07
FLAT WASHER 5/16
Price
N/A
32
HAND KNOB
Price
N/A
33
P0575033
Now: PN14
HEX NUT 8-32
Price
N/A
34
P0575034
Now: PS21
PHLP HD SCR 8-32 X 3/4
Price
N/A
35
*DISCD*MITER GAUGE BODY
Price
N/A
35A
*DISCD*COMPLETE MITER GAUGE ASSY
Price
N/A
36
FLAT HD SCR 1/4-20 X 5/16
Price
N/A
37
SLIDING BLOCK
Price
N/A
38
MITER BAR
Price
N/A
38A
SET SCREW 10-24 X 5/8
Price
N/A
39
STOP LINK
Price
N/A
40
POINTER
Price
N/A
41
ROLL PIN 3 X 6
Price
N/A
41A
SET SCREW 1/4-20 X 1/4
Price
N/A
42
*DISCD*SWITCH BOX W/2 BUTTONS
Price
N/A
42A
*DISCD*SWITCH
Price
N/A
43
P0575043
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
44
SWITCH BOX
Price
N/A
45
*DISCD*SWITCH FIXING PLATE
Price
N/A
46
P0575046
Now: PN07
HEX NUT 10-24
Price
N/A
47
HANDWHEEL KNOB
Price
N/A
48
HANDWHEEL
Price
N/A
49
HANDWHEEL HANDLE
Price
N/A
51
P0575051
Now: PW02
FLAT WASHER 3/8
Price
N/A
52
POINTER
Price
$2.30
54
SET COLLAR
Price
N/A
56
*DISCD*TILT SHAFT
Price
N/A
57
ECCENTRIC
Price
N/A
58
P0575058
Now: PN16
HEX NUT 9/16-18
Price
N/A
59
ROLL PIN 3.5 X 20
Price
N/A
60
FIBER WASHER 3/8
Price
N/A
61
*DISCD*BRACKET FRONT
Item is no longer available
Price
N/A
62
P0575062
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
68
P0575068
Now: PW06
FLAT WASHER 1/4
Price
N/A
69
SET SCREW 1/4-20 X 1-1/2
Price
N/A
71
*DISCD*TRUNNION FRONT
Item is no longer available
Price
N/A
72
ROLL PIN 5 X 25
Price
N/A
74
*DISCD*WAVE WASHER 18 X 30 X .5
Price
N/A
75
ECCENTRIC
Price
N/A
76
ELEVATING SHAFT
Price
N/A
79
SPACER
Price
N/A
80
ARBOR BRACKET SHAFT
Price
N/A
81
ARBOR NUT 5/8"-12
Price
$8.65
82
FLANGE
Price
N/A
83
BLADE OPTIONAL
Price
N/A
84
*DISCD*ARBOR BRACKET
Item is no longer available
Price
N/A
86
ARBOR
Price
$41.70
87
BALL BEARING 6203ZZ
Price
N/A
88
KEY 5 X 5 X 25
Price
N/A
89
LOADING SPRING 30 X 38 X .3
Price
N/A
90
INT RETAINING RING 40MM
Price
N/A
91
JAM NUT 5/8-24 LH
Price
$1.85
92
ARBOR PULLEY
Price
N/A
93
SET SCREW 5/16-18 X 1/4
Price
N/A
94
TRUNNION REAR
Price
$14.50
95
TRUNNION BRACKET REAR
Price
$16.65
99
MOTOR BRACKET
Price
$16.65
100
SET SCREW 5/16-18 X 5/16
Price
N/A
101
MOTOR PLATE ROD
Price
N/A
102
MOTOR PLATE
Price
N/A
107
*DISCD*MOTOR PULLEY
Price
N/A
109
V-BELT 3VX-470
Price
N/A
111
MOTOR 1.5HP 110V/220V 1-PH
Price
$481.00
111-1
FAN COVER
Price
$17.55
111-2
MOTOR FAN
Price
$16.65
111-3
CAPACITOR COVER
Item is no longer available
Price
N/A
111-4
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
111-5
MOTOR WIRING BOX
Item is no longer available
Price
N/A
112
POWER CORD 16G X 3W 73"L
Price
N/A
113
NYLON CLAMP
Price
N/A
114
POWER CORD 16G X 3W 24"L
Price
N/A
115
CARRIAGE BOLT 5/16-18 X 1-3/4
Price
N/A
116
SPACER
Price
$1.49
116-1
E-CLIP 8MM
Price
N/A
117
GUARD PLATE
Price
$11.60
118
GUARD COVER
Price
$10.65
119
FIBER WASHER 3/8 X 1
Price
$1.49
120
WING NUT 5/16-18
Price
N/A
121
P0575121
Now: PN09
HEX NUT 5/8-18
Price
N/A
121A
HEX NUT 5/8-18 LH
Price
N/A
122
*DISCD*TIE ROD
Item is no longer available
Price
N/A
123
P0575123
Now: PN08
HEX NUT 3/8-16
Price
N/A
123A
ADJUST STOP 3/8-16 X 2-3/4
Item is no longer available
Price
N/A
124
ADJUST STOP 3/8-16 X 2-3/8
Item is no longer available
Price
N/A
125
WRENCH 23MM COMBO
Price
N/A
126
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
127
P0575127
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
128
HEX WRENCH 2MM
Price
N/A
128A
HEX WRENCH 3MM
Price
N/A
128B
HEX WRENCH 4MM
Price
N/A
129
*DISCD*FOOT STAND
Price
N/A
130
BRACKET TOP SHORT
Price
N/A
131
BOTTOM SHORT BRACKET
Price
N/A
132
BRACKET TOP LONG
Price
N/A
133
BOTTOM LONG BRACKET
Price
N/A
134
RUBBER FEET
Price
N/A
135
P0575135
Now: PS19
PHLP HD SCR 1/4-20 X 1
Price
N/A
138
CARRIAGE BOLT 5/16-18 X 5/8
Price
N/A
143
*DISCD*DUST HOOD
Price
N/A
144
PLATE
Price
N/A
145
EXT TOOTH WASHER #10
Price
N/A
146
P0575146
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
148
CORD CLIP
Price
$1.49
149
P0575149
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
151
P0575151
Now: PW01
FLAT WASHER 1/2
Price
N/A
152
P0575152
Now: PN06
HEX NUT 1/2-12
Price
N/A
153
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
154
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
155
WARNING LABEL
Price
$4.25
156
Nameplate - Mini
Price
N/A
157
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
160
ELECTRICITY 1.4W X 1.2H
Price
N/A
161
BLADE GUARD LABEL
Price
N/A
162
MACHINE ID LABEL
Item is no longer available
Price
N/A
165
MITER GAUGE SCALE
Item is no longer available
Price
N/A
170
SPACER
Price
$1.49
BAG1
HAND TOOL HARDWARE BAG
Item is no longer available
Price
N/A
BAG2
RUBBER FEET HARDWARE BAG
Item is no longer available
Price
N/A
BAG3
STAND HARDWARE BAG
Item is no longer available
Price
N/A
BAG4
MOTOR MOUNTING HARDWARE BAG
Item is no longer available
Price
N/A
BAG5
BLADE GUARD HARDWARE BAG
Item is no longer available
Price
N/A
BAG6
EXTENSION WING HARDWARE BAG
Item is no longer available
Price
N/A
BAG7
DUST PORT HARDWARE BAG
Item is no longer available
Price
N/A
BAG8
POWER SWITCH HARDWARE BAG
Item is no longer available
Price
N/A
BOX2
COMPLETE FENCE ASSY BOX 2
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0575 10/04
Item is no longer available
Price
N/A
