Parts for G0583 - 1 HP Canister Dust Collector

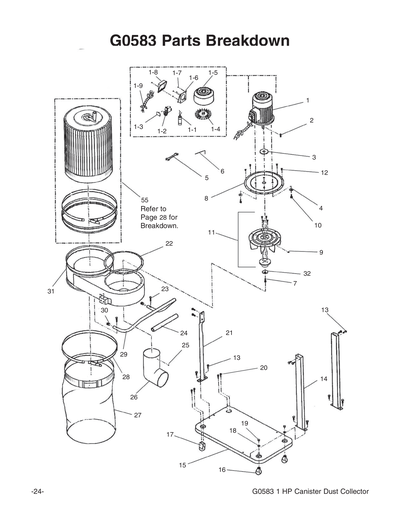

Part Diagram for G0583

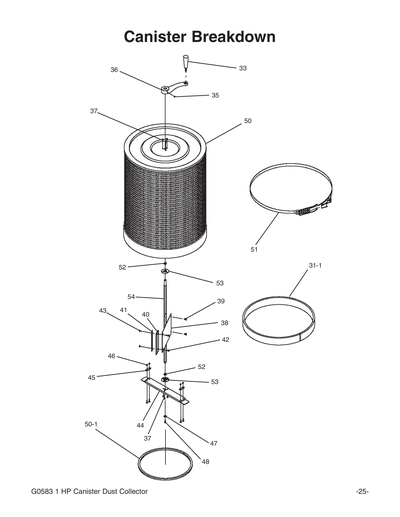

Part Diagram for G0583
Part Diagram for G0583
Part Diagram for G0583
Part Diagram for G0583
Part Diagram for G0583

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

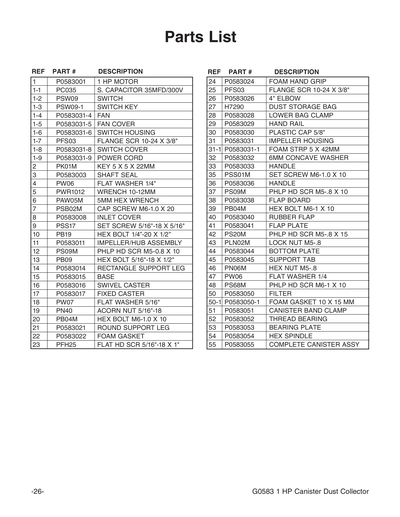

Ref #
Part #
Description
1
MOTOR 1HP 110V/220V 1-PH
Price
$205.95
1-1
R CAPACITOR 35M 300V 1-1/2 X 2-3/8
Price
N/A
1-2
Safety Paddle Switch
Price
N/A
1-3
PADDLE SWITCH KEY
Price
N/A
1-5
Price
$20.85
1-6
SWITCH HOUSING
Item is no longer available
Price
N/A
1-7
FLANGE SCREW 10-24 X 3/8
Price
N/A
1-8
SWITCH COVER
Item is no longer available
Price
N/A
1-9
POWER CORD
Item is no longer available
Price
N/A
2
KEY 5 X 5 X 22
Price
N/A
3
SHAFT SEAL
Item is no longer available
Price
N/A
4
P0583004
Now: PW06
FLAT WASHER 1/4
Price
N/A
5
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
6
HEX WRENCH 5MM
Price
N/A
7
CAP SCREW M6-1 X 20
Price
N/A
8
INLET COVER
Item is no longer available
Price
N/A
9
SET SCREW 5/16-18 X 5/16
Price
N/A
10
P0583010
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
11
IMPELLER/HUB ASSEMBLY
Item is no longer available
Price
N/A
12
PHLP HD SCR M5-.8 X 10
Price
N/A
13
P0583013
Now: PB09
HEX BOLT 5/16-18 X 1/2
Price
N/A
14
RECTANGULAR SUPPORT LEG
Item is no longer available
Price
N/A
15
BASE
Item is no longer available
Price
N/A
16
SWIVEL CASTER
Item is no longer available
Price
N/A
17
FIXED CASTER
Item is no longer available
Price
N/A
18
P0583018
Now: PW07
FLAT WASHER 5/16
Price
N/A
19
P0583019
Now: PN40
ACORN NUT 5/16-18
Price
N/A
20
HEX BOLT M6-1 X 10
Price
N/A
21
ROUND SUPPORT LEG
Item is no longer available
Price
N/A
22
Price
$4.90
23
FLAT HD SCR 5/16-18 X 1
Price
N/A
24
Price
$1.85
25
FLANGE SCREW 10-24 X 3/8
Price
N/A
26
PLASTIC ELBOW 4" 90DEG
Price
N/A
27
Dust Collection Bag for G0583Z, G0785 and G0944 Series
Price
N/A
28
Price
$14.10
29
HAND RAIL
Item is no longer available
Price
N/A
30
PLASTIC CAP 5/8"
Item is no longer available
Price
N/A
31
IMPELLER HOUSING
Item is no longer available
Price
N/A
31-1
Price
$5.35
32
CONCAVE WASHER 6MM
Item is no longer available
Price
N/A
33
Price
$11.50
35
SET SCREW M6-1 X 10
Price
N/A
36
Price
$12.95
37
PHLP HD SCR M5-.8 X 10
Price
N/A
38
*DISCD*FLAP BOARD
Item is no longer available
Price
N/A
39
HEX BOLT M6-1 X 10
Price
N/A
40
RUBBER FLAP
Price
N/A
41
FLAP PLATE
Price
N/A
42
PHLP HD SCR M5-.8 X 15
Price
N/A
43
LOCK NUT M5-.8
Price
N/A
44
BOTTOM PLATE
Item is no longer available
Price
N/A
45
MOUNTING PLATE
Price
N/A
46
HEX NUT M5-.8
Price
N/A
47
P0583047
Now: PW06
FLAT WASHER 1/4
Price
N/A
48
PHLP HD SCR M6-1 X 10
Price
N/A
50
FILTER 370 X 600
Price
N/A
50-1
FOAM GASKET 10 X 15 MM
Price
N/A
51
Price
$18.40
52
THRUST BEARING 12 X 14 X 6
Price
N/A
53
BEARING PLATE
Price
N/A
54
HEX SPINDLE
Item is no longer available
Price
N/A
55
Replacement Canister Filter for G0583Z
Price
N/A
56
Price
$8.35
MAN
MANUAL FOR G0583 09/05
Item is no longer available
Price
N/A
