Parts for G0583Z - 1 HP Canister Dust Collector

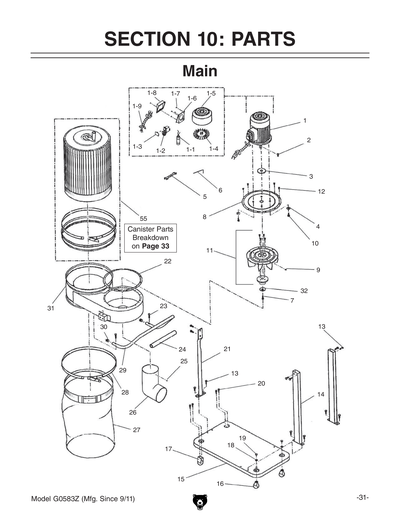

Part Diagram for G0583Z
Part Diagram for G0583Z
Part Diagram for G0583Z
Part Diagram for G0583Z
Part Diagram for G0583Z
Part Diagram for G0583Z
Part Diagram for G0583Z
Part Diagram for G0583Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

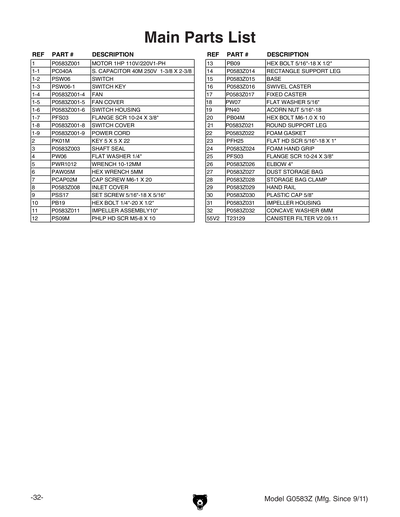

Ref #
Part #
Description
1
MOTOR 1HP 1PH 110/220V
Price
$212.75
1-1
R CAPACITOR 30M 300V 1-7/8 X 4
Price
N/A
1-2
Safety Paddle Switch
Price
N/A
1-3
PADDLE SWITCH KEY
Price
N/A
1-4
FAN
Price
$5.15
1-5
FAN COVER
Price
$13.60
1-6
SWITCH HOUSING
Price
$4.30
1-7
FLANGE SCREW 10-24 X 3/8
Price
N/A
1-8
SWITCH COVER
Price
$4.30
1-9
POWER CORD
Price
$24.70
2
KEY 5 X 5 X 22
Price
N/A
3
***USE P0785032***
Price
$1.49
4
FLAT WASHER 1/4
Price
N/A
5
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
6
HEX WRENCH 5MM
Price
N/A
7
CAP SCREW M6-1 X 20
Price
N/A
8
INLET COVER
Price
$10.00
9
SET SCREW 5/16-18 X 5/16
Price
N/A
10
HEX BOLT 1/4-20 X 1/2
Price
N/A
11
STEEL IMPELLER ASSEMBLY 10" V1
Price
$94.20
11V2
CAST ALUMINUM IMPELLER 10" V2.09.12
Price
$109.65
12
PHLP HD SCR M5-.8 X 10
Price
N/A
13
HEX BOLT 5/16-18 X 1/2
Price
N/A
14
RECTANGULAR SUPPORT LEG
Price
$13.60
15
BASE
Price
$43.80
16
SWIVEL CASTER
Price
$7.10
17
FIXED CASTER
Price
$4.10
18
FLAT WASHER 5/16
Price
N/A
19
ACORN NUT 5/16-18
Price
N/A
20
HEX BOLT M6-1 X 10
Price
N/A
21
ROUND SUPPORT LEG
Price
$14.00
22
FOAM GASKET
Price
$9.70
23
FLAT HD SCR 5/16-18 X 1
Price
N/A
24
FOAM HAND GRIP
Price
N/A
25
FLANGE SCREW 10-24 X 3/8
Price
N/A
26
ELBOW 4"
Price
$8.05
27
Dust Collection Bag for G0583Z, G0785 and G0944 Series
Price
N/A
28
STORAGE BAG CLAMP
Price
$14.85
29
HAND RAIL
Price
$13.30
30
CAP PLASTIC 5/8"
Price
$1.60
31
IMPELLER HOUSING
Price
$103.00
31-1
FOAM STRIP 5 X 42MM
Price
N/A
31-1V2
FOAM STRIP 6 X 20MM V2.09.11
Price
$2.20
32
IMPELLER WASHER
Price
N/A
33
HANDLE
Price
$12.40
35
SET SCREW M6-1 X 10
Price
N/A
36
HANDLE
Price
N/A
37
PHLP HD SCR M5-.8 X 10
Price
N/A
38
PLASTIC FLAP BOARD V2.09.11
Price
N/A
38V2
PLASTIC FLAP BOARD V2.09.11
Price
$7.15
39
PHLP HD SCR M6-1 X 10
Price
N/A
40
RUBBER FLAP
Price
N/A
41
FLAP PLATE
Price
$1.49
42
PHLP HD SCR M5-.8 X 15
Price
N/A
43
LOCK NUT M5-.8
Price
N/A
44
BOTTOM PLATE
Price
$15.70
45
MOUNTING PLATE
Price
N/A
46
HEX NUT M5-.8
Price
N/A
47
FLAT WASHER 1/4
Price
N/A
48
PHLP HD SCR M6-1 X 10
Price
N/A
50
FILTER 370 X 600
Price
$329.10
50-1
FOAM GASKET 10 X 15 MM
Price
$3.65
51
METAL BELT CLAMP
Price
$19.30
52
THRUST BEARING 12 X 14 X 6
Price
N/A
53
BEARING PLATE
Price
N/A
54
HEX SPINDLE
Price
$18.85
55

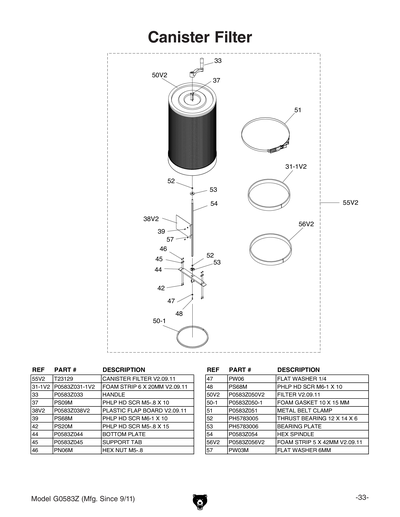

*DISCD*CANISTER FILTER V1
Item is no longer available
Price
N/A
55V2
Replacement Canister Filter for G0583Z
Price
N/A
56
FOAM STRIP 4 X 20MM V1
Price
$2.20
56V2
FOAM STRIP 5 X 42MM V2.09.11
Price
$4.60
101

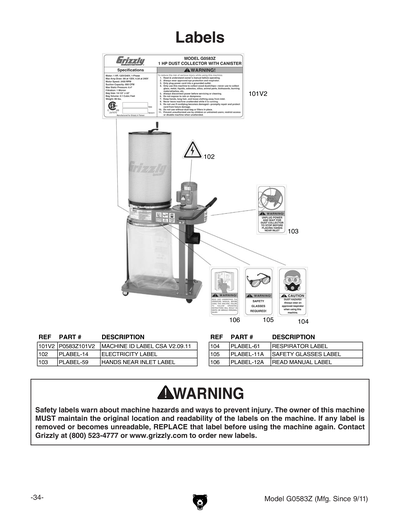

MACHINE ID LABEL V1
Price
$16.40
101V2
MACHINE ID LABEL CSA V2.09.11
Price
$16.40
102
ELECTRICITY 1.4W X 1.2H
Price
N/A
103
HANDS/DUST COLLECTOR OUTLET 2W X 3.3H
Price
N/A
104
RESPIRATOR 2W X 3.3H
Price
N/A
105
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
106
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
MAN
MANUAL FOR G0583Z MFG 03.09 V2.07.10
Price
N/A
MANV1
MANUAL FOR G0583Z MFG 03.09 V2.07.10
Price
N/A
MANV2
MANUAL FOR G0583Z MFG 03.09 V2.07.10
Price
$11.25
MANV3
MANUAL FOR G0583Z MFG 09.11 V3.11.11
Price
$11.25
